Produkttyp	PC-Gehäuse (Midi-Tower)
Modell	MasterBox NR600
Marke	Cooler Master
Abmessungen (B x T x H)	220 mm x 496 mm x 488 mm
Gewicht	ca. 7,5 kg
Material	Stahl, Kunststoff, gehärtetes Glas
Motherboard-Kompatibilität	ATX, Micro-ATX, Mini-ITX
Netzteil-Typ	ATX PS2 (nicht enthalten)
Maximale Netzteillänge	180 mm
Maximale Grafikkartenlänge	410 mm
Maximale CPU-Kühlerhöhe	166 mm
Lüfterplätze	Front: 3x 120 mm / 2x 140 mm, Top: 2x 120/140 mm, Heck: 1x 120 mm
Radiatorunterstützung	Front: 360/280/240 mm, Top: 240/140 mm, Heck: 120 mm
Laufwerksschächte	2x 3,5" (intern), 2x 2,5" (intern)
Erweiterungssteckplätze	7
I/O-Anschlüsse	2x USB 3.0, 1x USB 3.1 Typ C, Audio
Staubfilter	Front, Oberseite, Netzteil
Seitenfenster	gehärtetes Glas (links)
Garantie	2 Jahre eingeschränkt
Lieferumfang	Gehäuse, Montagematerial, Bedienungsanleitung
Reinigung	Staubfilter regelmäßig entfernen und mit trockenem Tuch reinigen; Gehäuse mit feuchtem Tuch abwischen
Sicherheitshinweise	Nur für den Einsatz als PC-Gehäuse; keine unsachgemäße Modifikation

Häufig gestellte Fragen - MasterBox NR600 COOLER MASTER

Wie viele Lüfter können im MasterBox NR600 installiert werden?

Im MasterBox NR600 können maximal 6 Lüfter installiert werden: vorne 3x 120 mm oder 2x 140 mm, oben 2x 120/140 mm und hinten 1x 120 mm.

Welche Radiatorgrößen werden unterstützt?

Der MasterBox NR600 unterstützt Radiatoren bis zu 360 mm an der Vorderseite, bis zu 240 mm an der Oberseite und 120 mm an der Rückseite.

Ist ein Netzteil im Lieferumfang enthalten?

Nein, das Netzteil ist nicht im Lieferumfang enthalten. Es muss separat erworben werden und sollte der ATX-Norm entsprechen.

Kann ich eine große Grafikkarte einbauen?

Ja, die maximale Länge der Grafikkarte beträgt 410 mm ohne vorderen Lüfter.

Wie reinige ich die Staubfilter?

Die Staubfilter an der Vorderseite, Oberseite und am Netzteil können leicht entfernt und mit einem trockenen Tuch gereinigt werden.

Welche Mainboard-Formfaktoren sind kompatibel?

Das Gehäuse unterstützt ATX, Micro-ATX und Mini-ITX Mainboards.

Wie viele Festplatten können eingebaut werden?

Es gibt Platz für 2x 3,5-Zoll und 2x 2,5-Zoll Laufwerke.

Hat das Gehäuse ein Seitenfenster?

Ja, die linke Seite besteht aus gehärtetem Glas, das mit Schrauben befestigt ist.

Kann ich einen 240-mm-Radiator oben einbauen?

Ja, an der Oberseite ist ein 240-mm-Radiator oder zwei 120-mm-Lüfter möglich.

Wie wird die Glasscheibe entfernt?

Entfernen Sie die Schrauben an der Rückseite der Glasscheibe, dann können Sie sie vorsichtig abnehmen.

BEDIENUNGSANLEITUNG MasterBox NR600 COOLER MASTER

COOLER MASTER

Make It Yours.

MASTERBOX NR600

A

x1

B

x13

©

x20

D

x24

E

x4

F

x6

G

x10

H

x1

I

x4

EN	Package Content	HU	A csomag tartalma
AR	جزمة المحتوى	ID	Isi Paket
BG	Съдържание на пакета	IT	Contenuto della scatola
CHS	零件包	JP	パッケージ内容物
CHT	零件包	KR	구성품
CS	Obsah balení	NL	Verpakkingsinhoud
DE	Verpackungsinhalt	PL	Zawartość opakowania
EL	Періехóμενα Συσκευασίας	PT	Conteúdo da embalagem
ES	Contenido Paquete	RU	Комплектация
FR	Contenu de l'emballage	SR	Saržaj pakovanja
FA	محتويات	TR	Paket içeriği

3D wireframe diagram of a rectangular box with grid pattern (no text or symbols)

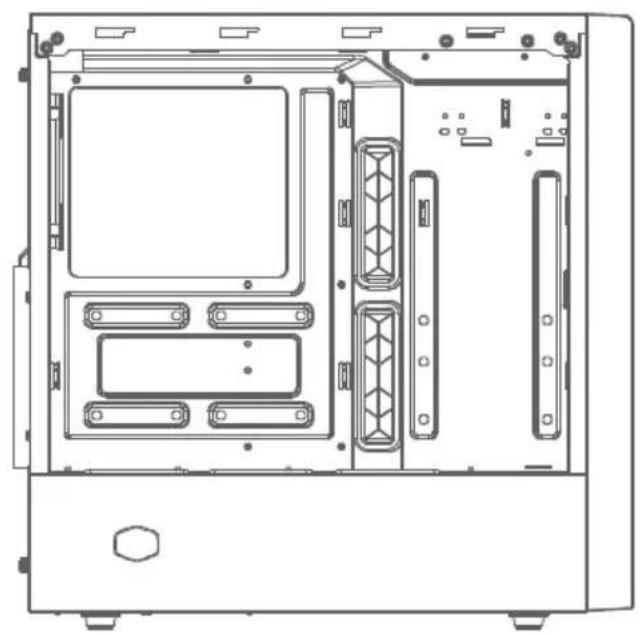

Technical line drawing of a computer tower case with internal compartments and mounting points (no text or labels)

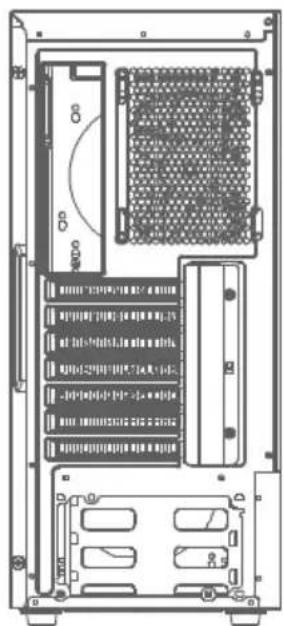

Pure diagram of a rectangular panel with grid pattern and two corner supports (no text or symbols)

Technical diagram of an internal server rack with multiple drive bays and a central grid (no text or labels visible)

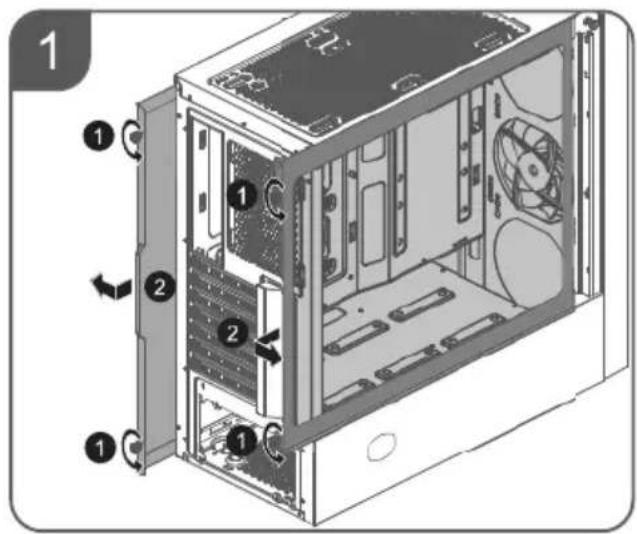

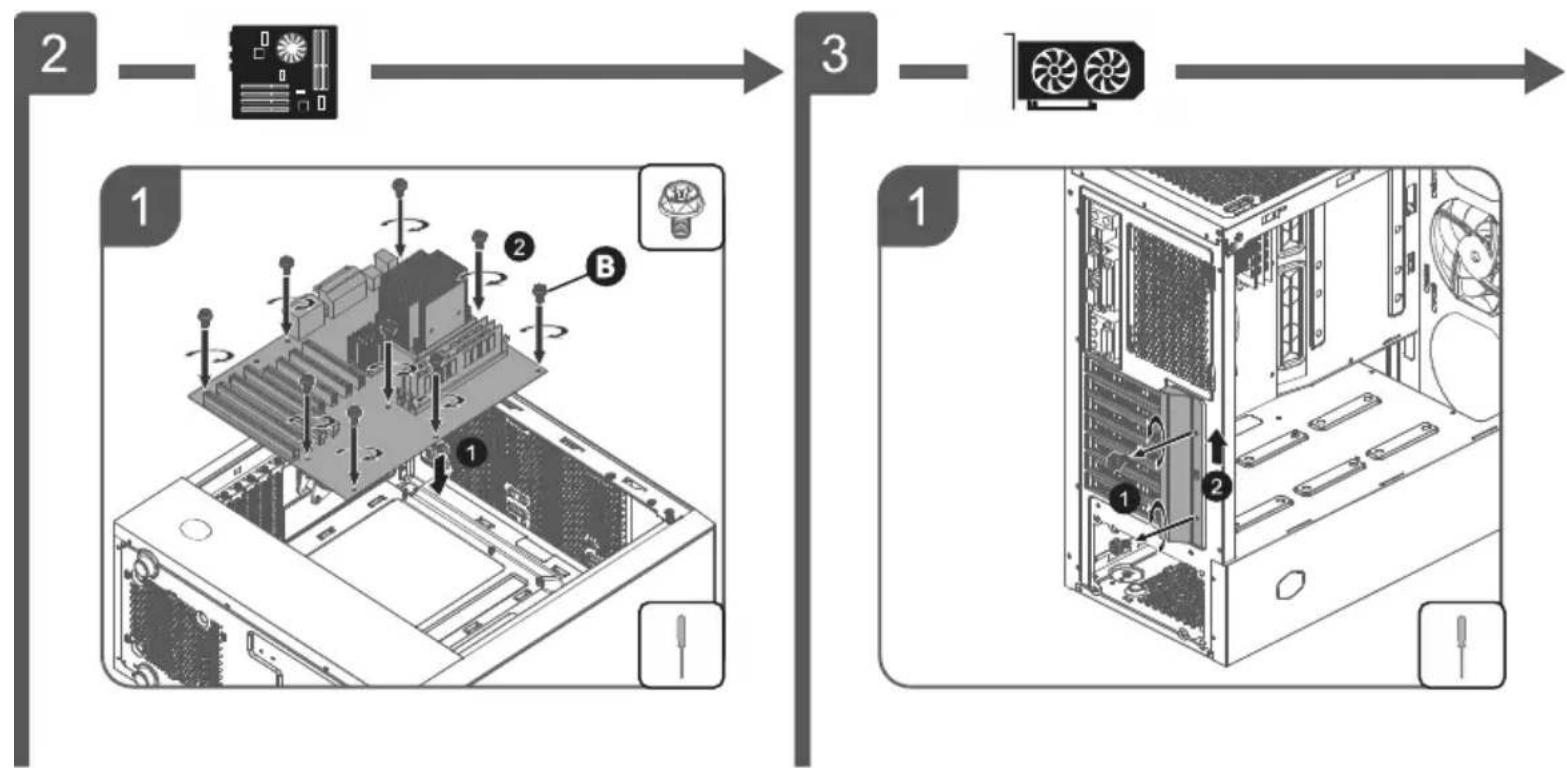

1

Diagram of a computer tower case with numbered components and directional arrows indicating internal structure

OR

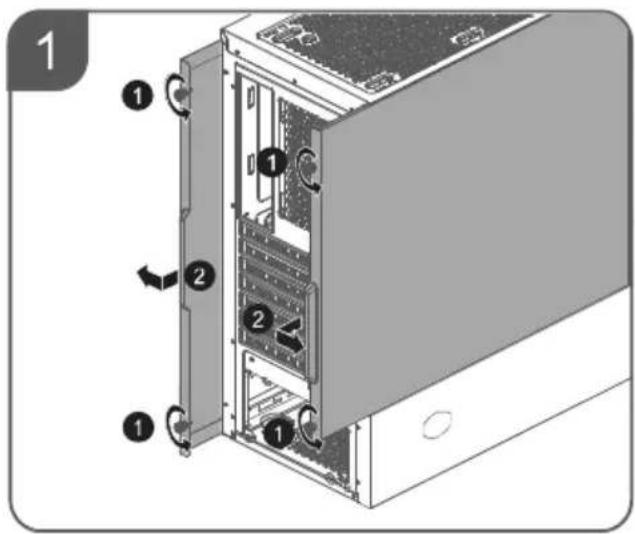

Diagram of a computer tower case with numbered components and directional arrows indicating movement or assembly.

1

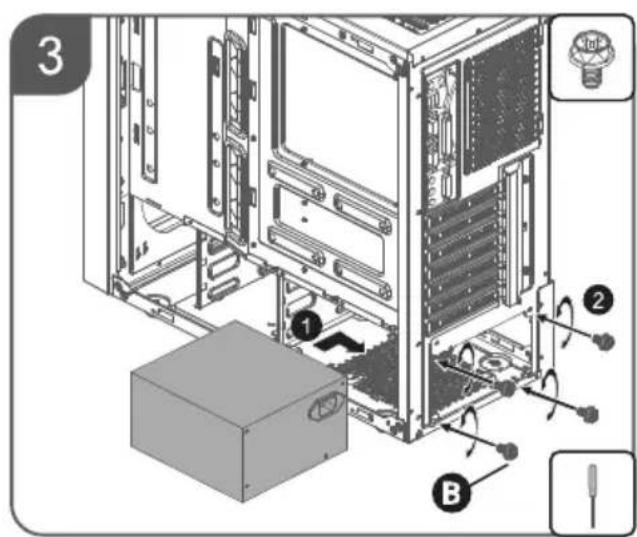

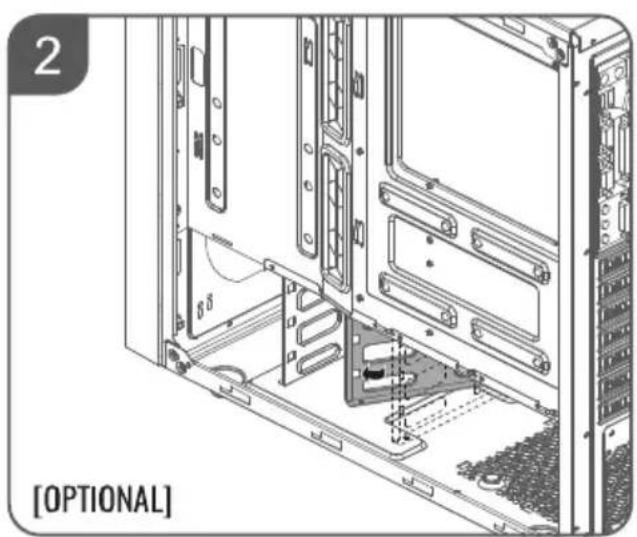

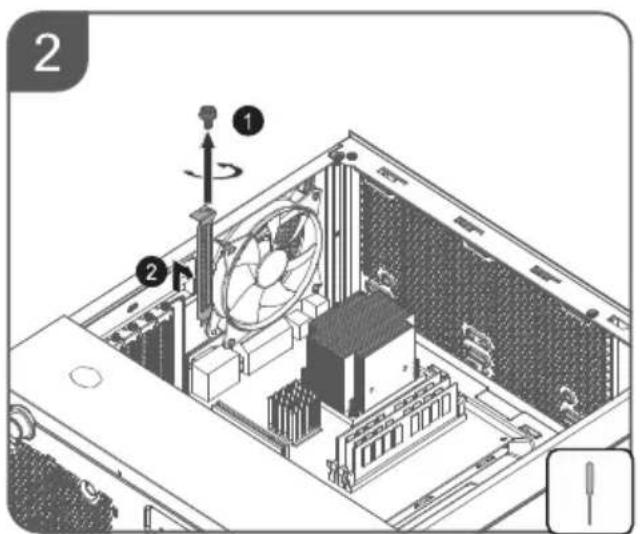

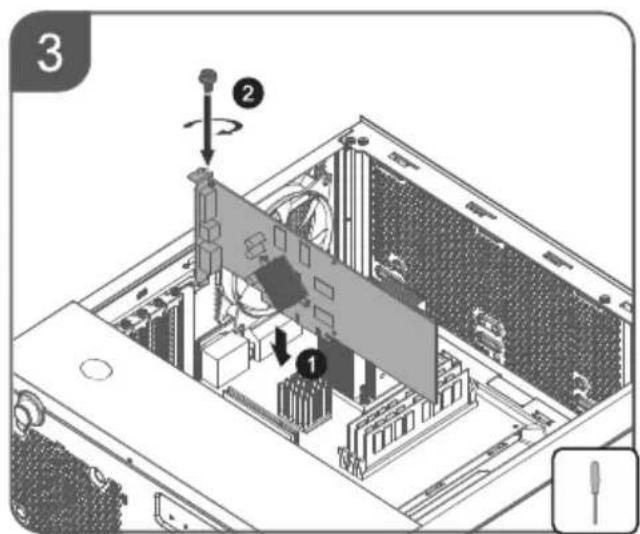

Technical diagram of a computer tower with labeled components and directional arrows indicating motion or rotation.

Technical diagram of an internal server rack with labeled components and directional arrows indicating rotation or movement.

Technical diagram of a server rack with labeled components and numbered parts, showing internal layout and mounting hardware.

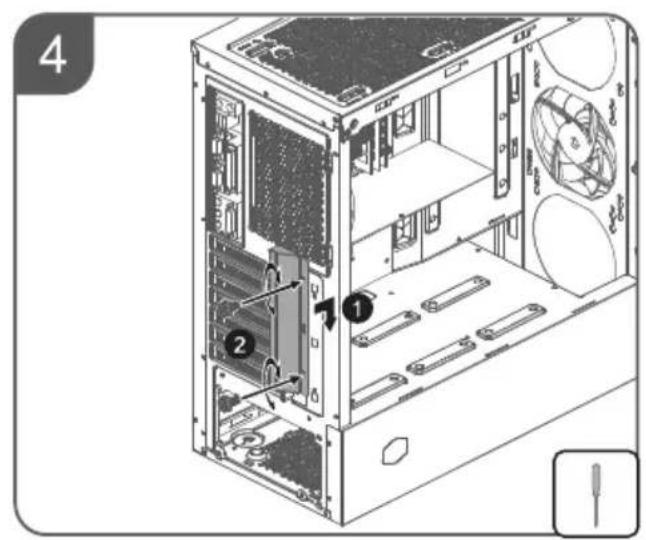

4

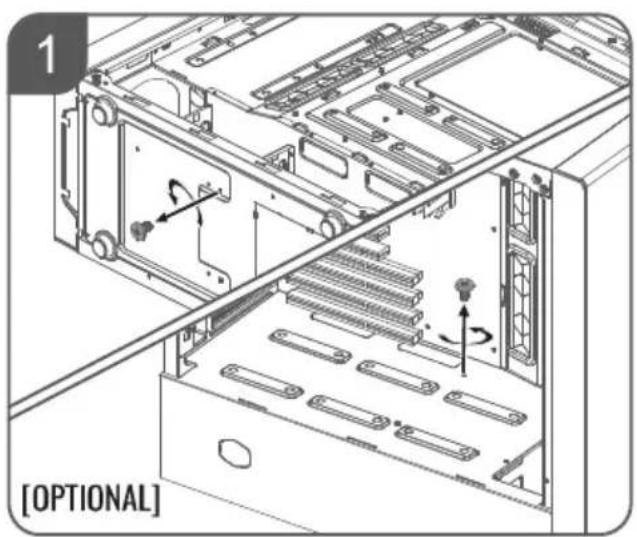

[OPTIONAL]

[OPTIONAL]

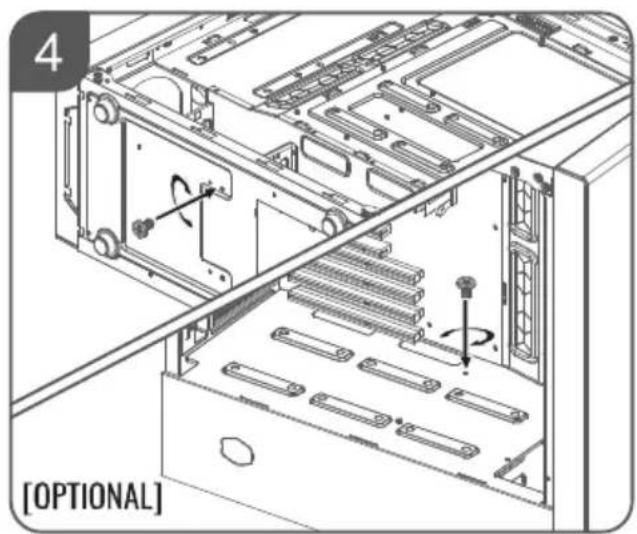

Technical diagram of a computer tower case with labeled components and numbered parts

[OPTIONAL]

5

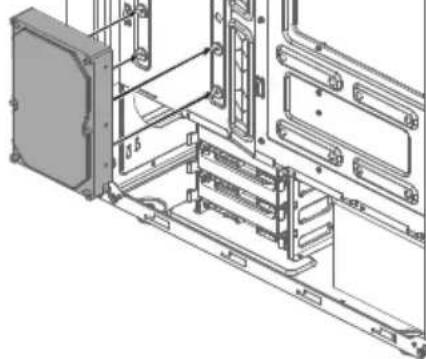

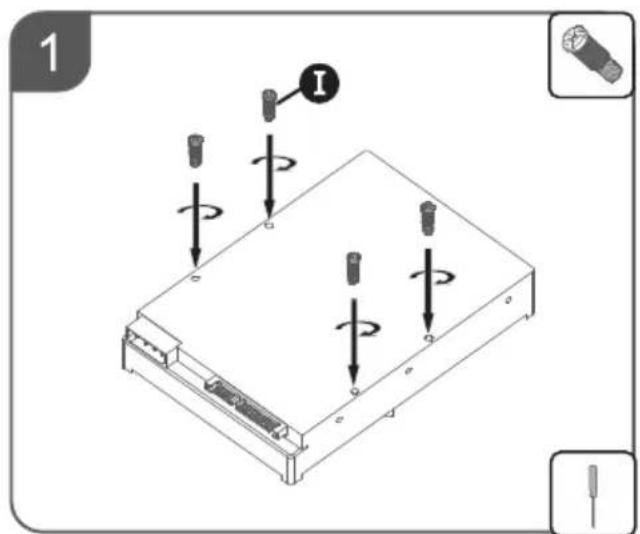

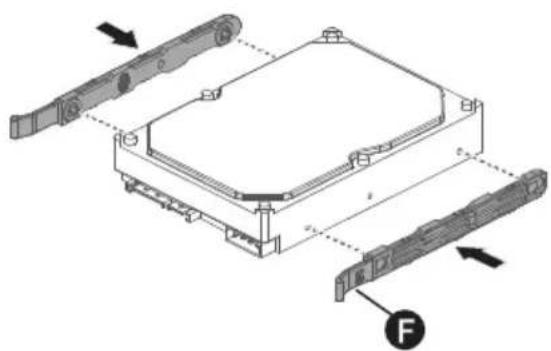

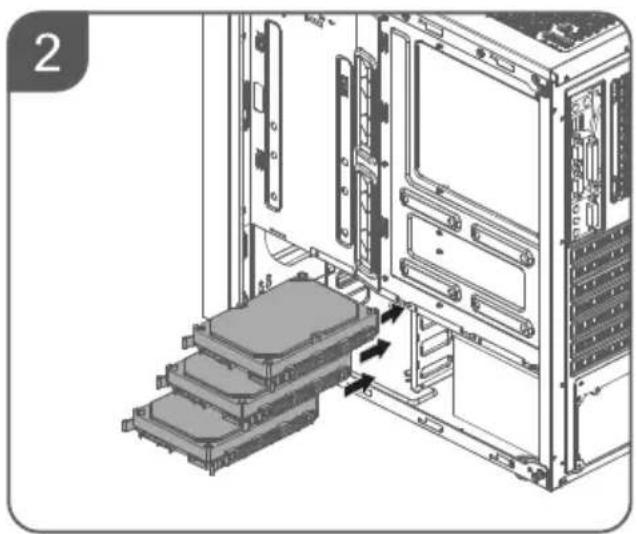

3.5"

1

Technical diagram of a mechanical assembly with labeled components (no text or symbols present)

Technical diagram of a server rack with labeled components and directional arrows indicating assembly (no text or symbols present)

OR

1

2

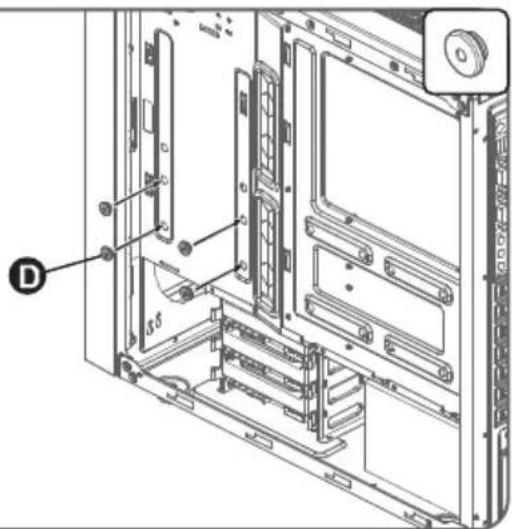

Technical diagram of a computer tower with labeled components and a numbered annotation 'D'

3

Technical line drawing of a mechanical assembly with no visible text or symbols

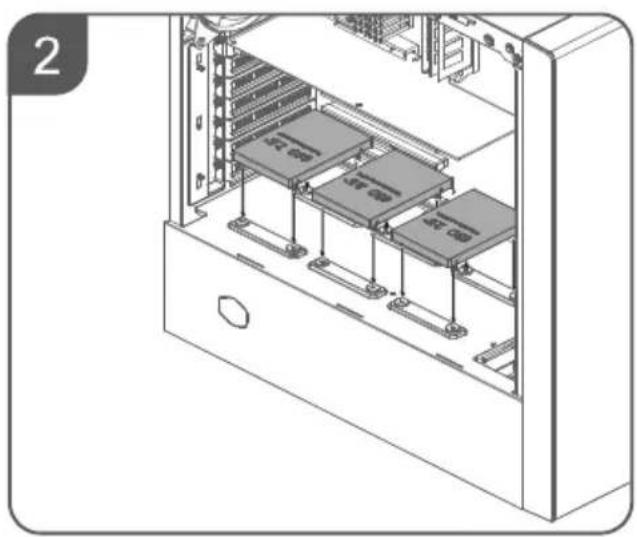

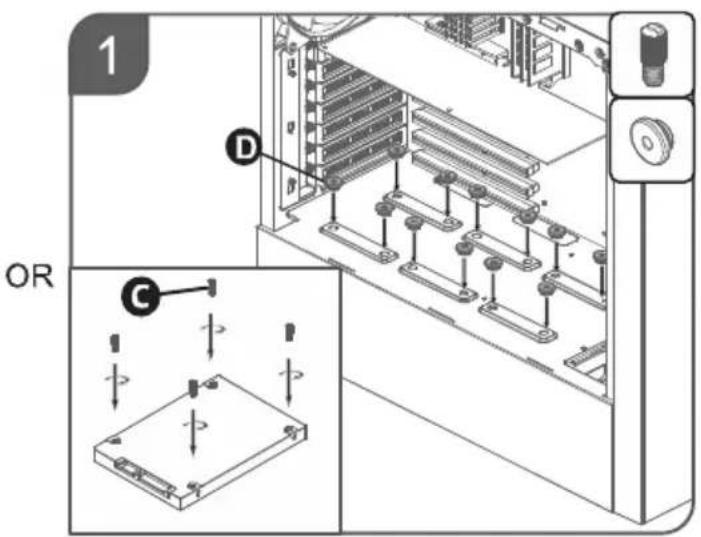

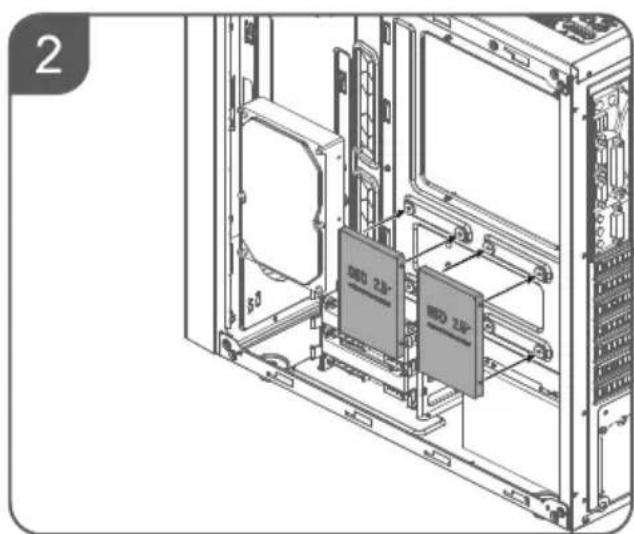

2.5"

1 D C

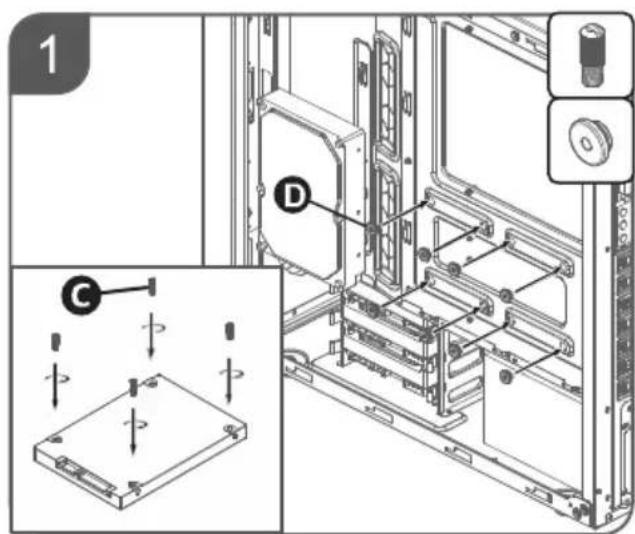

Technical line drawing of a server rack with two 2.5-inch memory units (no text or symbols)

1 D OR C

Isometric view of an internal server rack with three labeled electronic components (no text or symbols visible)

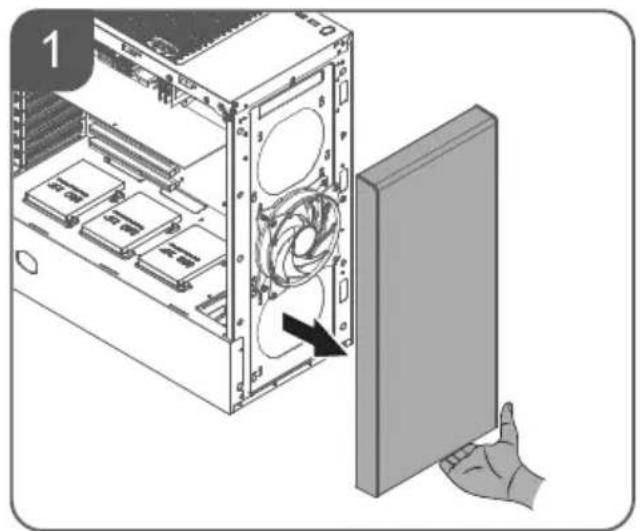

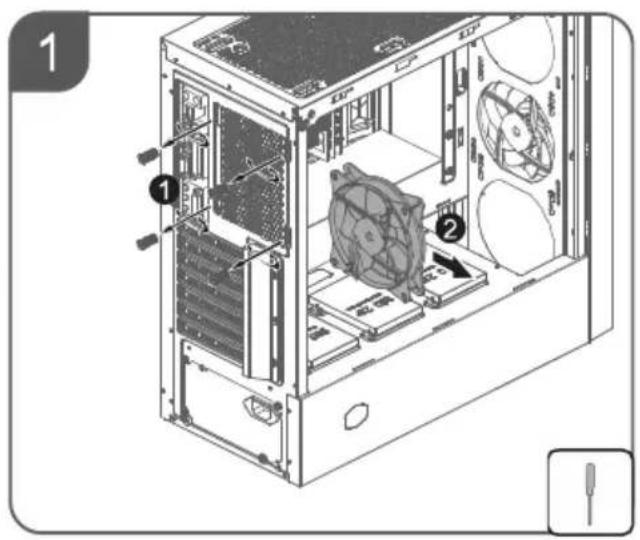

120/140mm

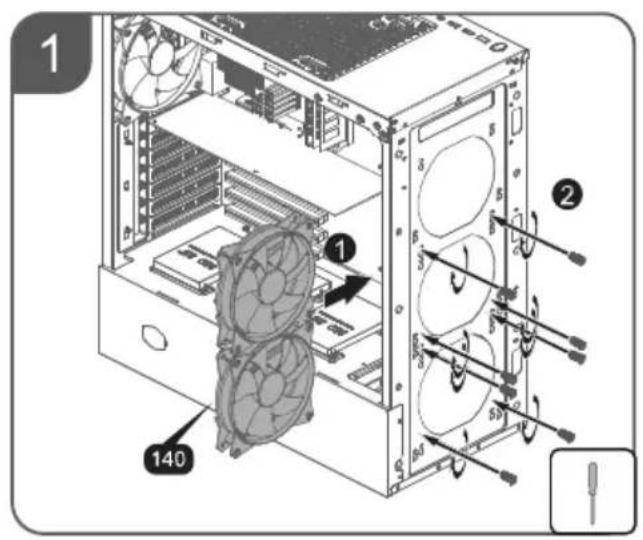

Diagram showing a computer tower with a fan inside the case and a hand holding a hard drive (no text or symbols present)

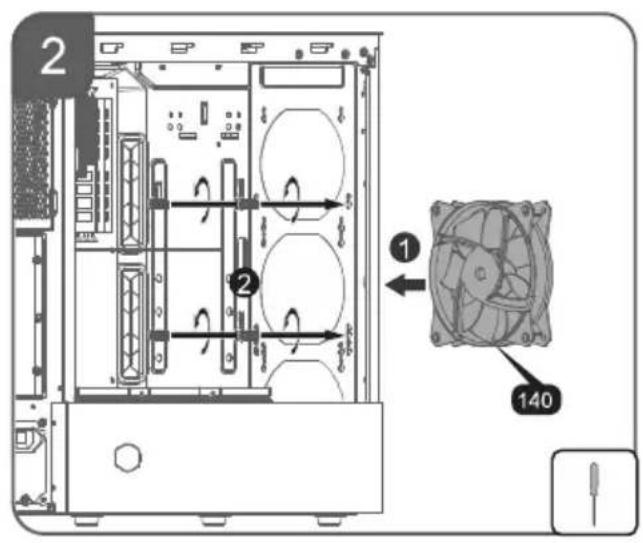

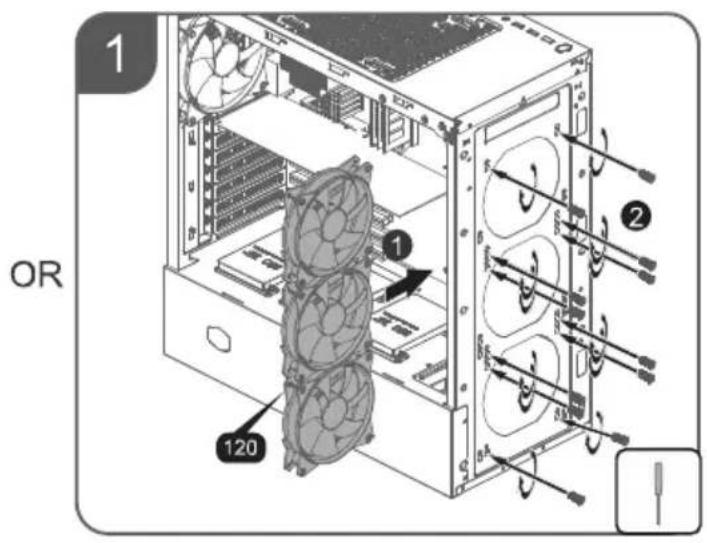

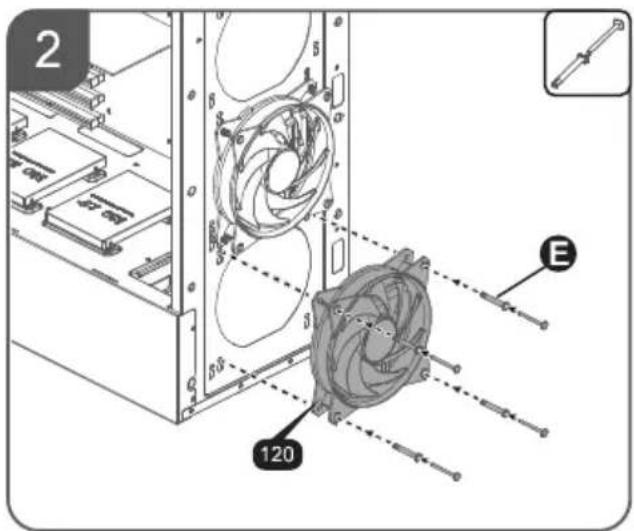

2 120 E

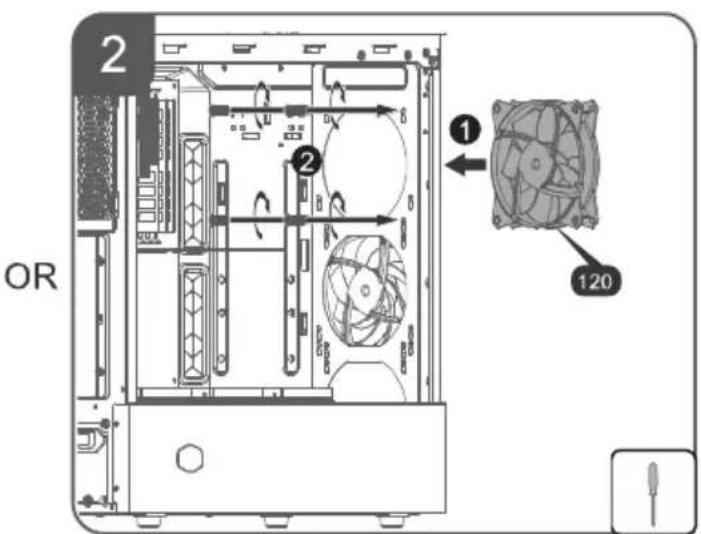

2 OR ① ② 120

OR

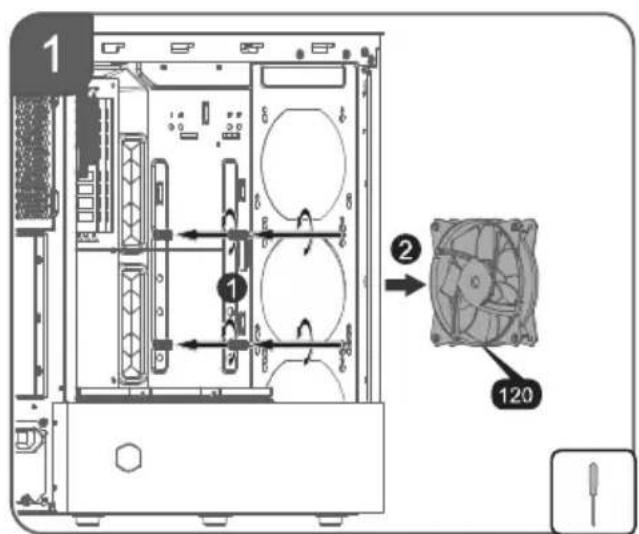

1 2 120

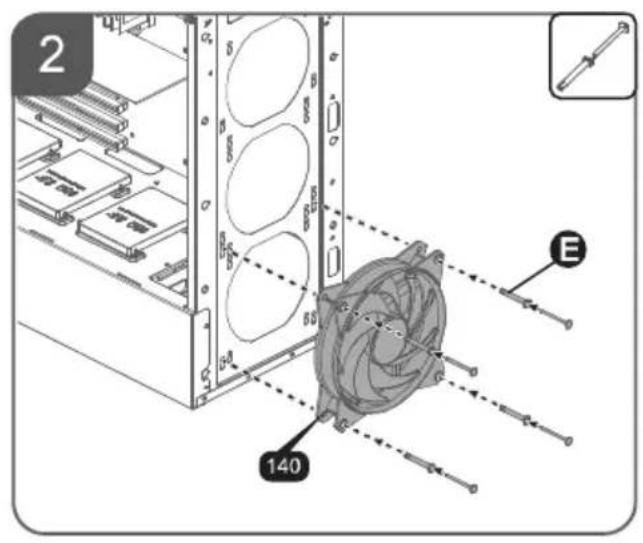

2 E 140

OR

2 1 140

1 OR ① ② 120

OR

1 2 3 4 5 6 7 8 9 10 11 12 13 140

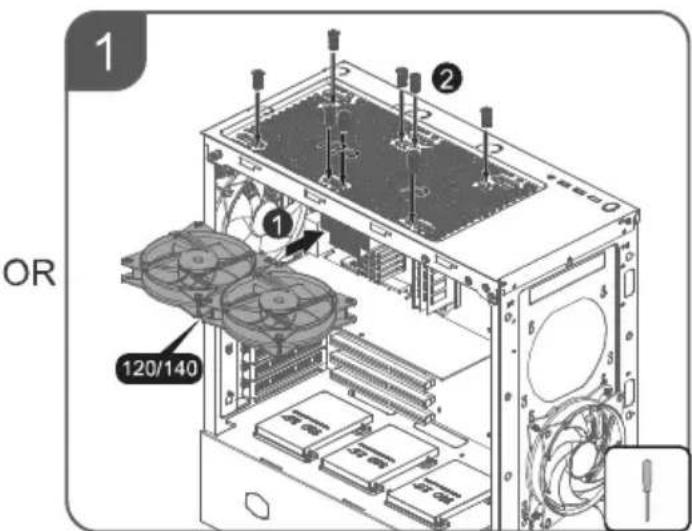

OR 1 ① ② 120/140

8

1

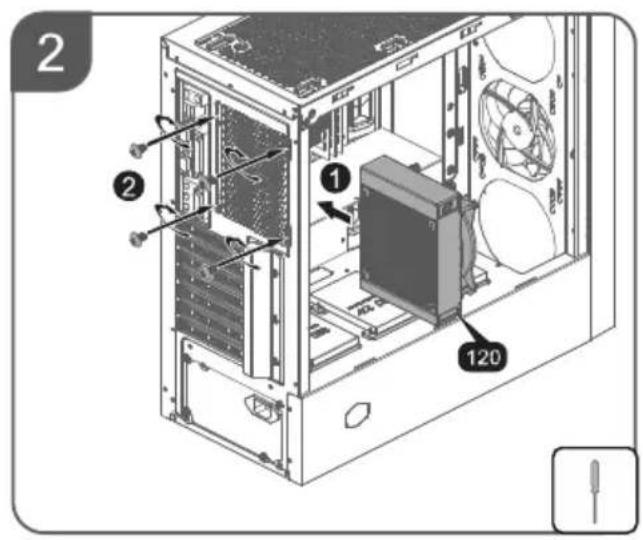

Technical diagram of a computer tower with labeled components and numbered parts, including drive bays and CPU socket.

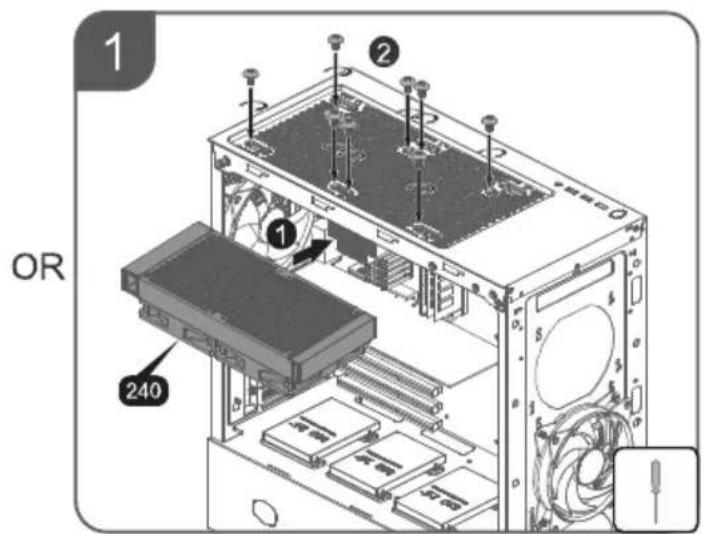

1 OR 2 ① ② 240

OR

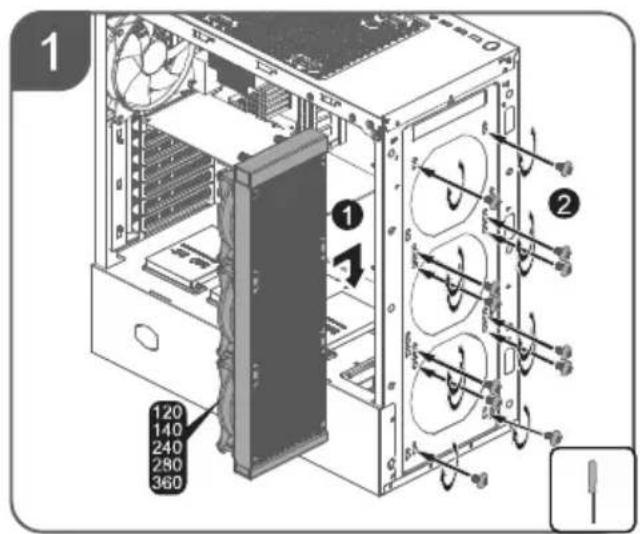

1 120 140 240 280 360

OR

Technical diagram of a computer tower case with labeled components and numbered parts

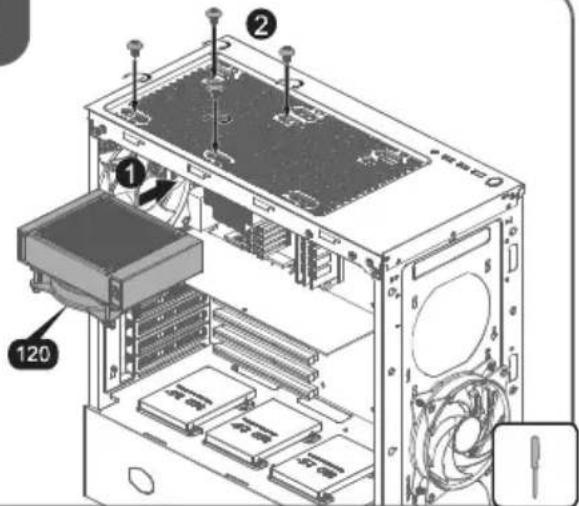

2 ① ② 120

1

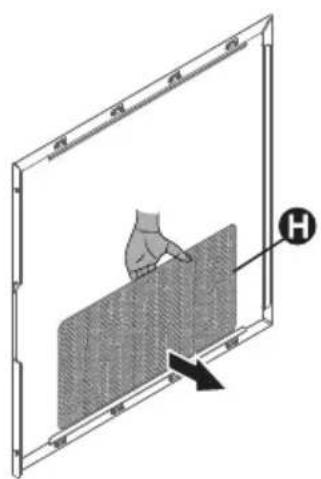

Diagram of a person installing or adjusting a grid panel inside a frame, with an arrow indicating the direction (no text or symbols present)

2

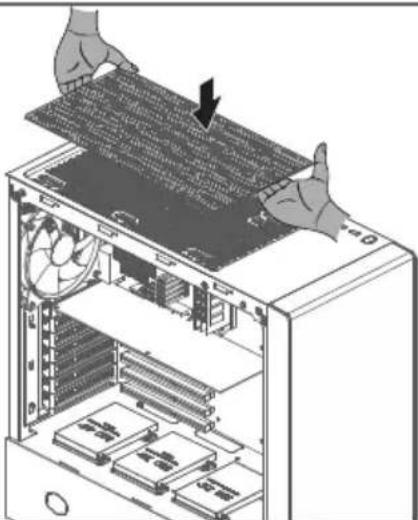

Illustration of a computer tower with a hand installing or adjusting the top panel, showing internal components and a downward arrow (no text or symbols)
