BEDIENUNGSANLEITUNG Connect Smart Lezyne
GPS + SMART CONNECT - QUICK START GUIDE
Follow these instructions to pair a Lezyne Smart Connect LED to a compatible Lezyne GPS computer.
To customize your Smart Connect lights beforehand, click here to view the LED Ally app video tutorial >


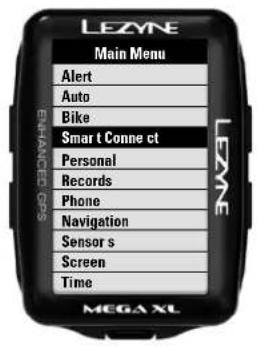

LEZYNE Main Menu Alert Auto Bike Smart Conne ct Personal Records Phone Navigation Sensor s Screen Time MEGA XLSTEP 1
Select "Smart Connect" from the Main Menu.


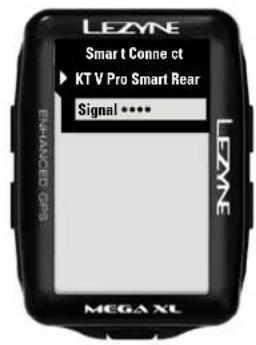

LEZNE Smart Conne ct ► KT V Pro Smart Rear Signal •••• LEZNE MEGA XLSTEP 4
Select the light you want to pair with.
Choose Combo, Front or Rear (Note: If the Front and Rear are linked, they will only show up under "Combo"). To link a combo, use the Lezyne LED Ally app.


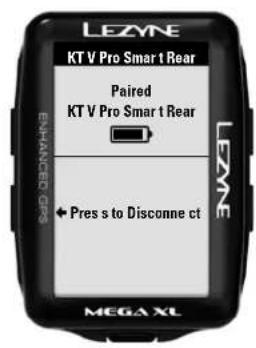

LEZYNE KT V Pro Smar t Rear Paired KT V Pro Smar t Rear LEZNE ← Pres s to Disconne ct MEGA XLSTEP 5
Your light(s) are now paired. To connect a different light, go back to this page and click the "Press to Disconnect" option first and start the pairing process over again.
Let the GPS scan. (Note: If the light(s) are currently paired with another GPS Device or the LED Ally phone app, they will not show up. Disconnect or move away from signal range first.)
When turning your GPS device back on you will be asked to reconnect to your lights. This is necessary so the device does not unknowingly power on your Smart Connect lights.
Once connected, a Smart Connect page will now be available in the GPS's main page carousel.
Note: In some cases only 4 sensors can be connected to a Lezyne GPS device at once. If you have too many sensors connected, please switch one to Ant+ or disconnect another sensor to use Smart Connect.

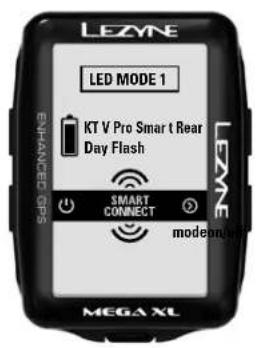

Example A: Connected Combo


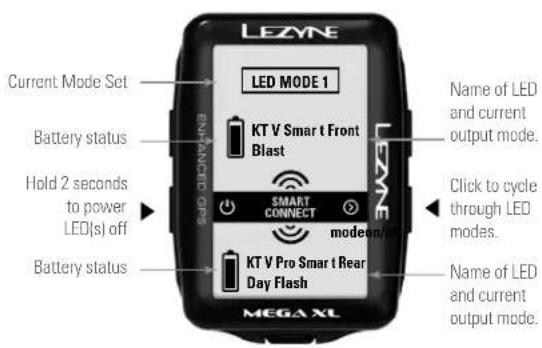

LEZYNE Current Mode Set LED MODE 1 BATTERY STATUS ENTAINED GPS KT V Smart Front Blast SMART CONNECT MODEON/RESET Hold 2 seconds to power LED(s) off Battery status MTGAX XL Name of LED and current output mode. Click to cycle through LED modes. Name of LED and current output mode.Example B: Connected Front or Rear
