WD Gold™

Datacenter Hard Drives

Scale it in gold.

With up to ten times the workload capacity of desktop drives, WD Gold ^™ hard drives employ advanced technology to deliver among the best in reliability, capacity, power efficiency and performance. Designed for a multitude of Datacenter-specific applications, WD Gold ^™ hard drives are perfect for high-availability server and storage arrays that demand the most robust storage device available with 24/7 premium customer support.

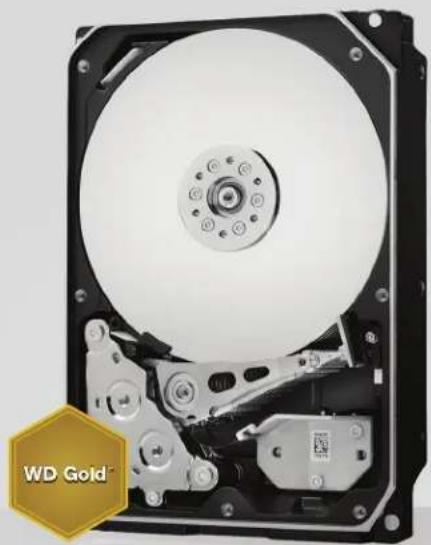

Internal view of a hard disk drive showing internal components and casing (no text or symbols visible)

INTERFACE

SATA 6 Gb/s

WIDTH/HEIGHT

3.5-inch/1-inch

PERFORMANCE CLASS

7200 RPM Class

CAPACITIES

1TB to 10TB

MODEL NUMBERS

WD101KRYZ WD2005FBYZ WD8002FRYZ WD1005FBYZ

WD6002FRYZ

WD4002FYYZ

Product Benefits

Full range of nearline capacities

From entry-level servers to high end enterprise storage systems, WD Gold™ hard drives offer the capacities required for the most demanding datacenter environments.

High workload capability

Delivering both performance and reliability to any datacenter environment, WD Gold™ hard drives are designed to handle workloads up to 550TB per year which is among the highest workload capability of any 3.5-inch hard drive.

High level of reliability

With up to 2.5 million hours MTBF, WD Gold™ hard drives deliver one of the highest levels of reliability and durability for yearly operation (24x7x365) within the most demanding storage environments.

Vibration protection

Enhanced RAFF™ technology includes sophisticated electronics to monitor the drive and correct both linear and rotational vibration in real time. The result is a significant performance improvement in high vibration environments over our desktop hard drives.

RAID-specific, time-limited error recovery (TLER)

Reduces drive fallout caused by the extended hard drive error-recovery processes common to desktop drives.

Dynamic fly height technology

Each read-write head's fly height is adjusted in real time for optimum reliability.

Dual actuator technology

A head positioning system with two actuators that improves positional accuracy over the data track(s). The primary actuator provides coarse displacement using conventional electromagnetic actuator principles. The secondary actuator uses piezoelectric motion to fine tune the head positioning to a higher degree of accuracy.

Compatibility testing

All WD Gold ^™ hard drives are extensively tested across a variety of popular OEM storage systems, SATA controllers, and host bus adapters, to ensure ease of integration for a plug and play solution.

Premium support

Dedicated 24x7 over the phone support is included with every WD Gold™ hard drive.

Applications

Enterprise servers, datacenter environments, enterprise storage systems, data warehousing/mining, enterprise NAS, and high end surveillance systems.

The WD Advantage

WD puts datacenter products through extensive Functional Integrity Testing (F.I.T.) prior to any product launch. This testing ensures our products consistently meet the high quality and reliability standards of the WD brand. Following a FIT test the Enterprise System Group (ESG) testing validates interoperability with HBAs, operating systems, and drivers, to ensure an even greater level of quality, reliability, and peace of mind.

WD also has a detailed Knowledge Base with helpful articles and software utilities. Our customer support lines have long operational hours to ensure you get the help you need when you need it. Our toll-free customer support lines are here to help or you can access our WD Support site for additional details.

Specifications 10TB 8TB 6TB 4TB 2TB 1TB
512 emulation model number ^1	WD101KRYZ WD8002FRYZ WD6002FRYZ
512 native model number ^1				WD4002FYYZ WD2005FBYZ WD1005FBYZ
Logical/Physical bytes per sector	512 / 4096	512 / 4096	512 / 4096	512 / 512	512 / 512	512 / 512
Formatted capacity ^2	10TB	8TB	6TB	4TB	2TB	1TB
512n/512e user sectors per drive	19,532,873,728	15,628,053,168	11,721,045,168	7,814,037,168	3,907,029,168	1,953,525,168
Interface ^2	SATA 6 Gb/s	SATA 6 Gb/s	SATA 6 Gb/s	SATA 6 Gb/s	SATA 6 Gb/s	SATA 6 Gb/s
Native Command Queuing	Yes	Yes	Yes	Yes	Yes	Yes
Form Factor	3.5-inch	3.5-inch	3.5-inch	3.5-inch	3.5-inch	3.5-inch
RoHS compliant ^3	Yes	Yes	Yes	Yes	Yes	Yes
Performance
Data transfer rate (max) ^2 Buffer to hostHost to/from drive (sustained)	6 Gb/s249 MB/s	6 Gb/s205 MB/s	6 Gb/s226 MB/s	6 Gb/s201 MB/s	6 Gb/s200 MB/s	6 Gb/s184 MB/s
Cache (MB)	256	128	128	128	128	128
Performance Class	7200 RPM Class	7200 RPM Class	7200 RPM Class	7200 RPM Class	7200 RPM Class	7200 RPM Class
Reliability/Data Integrity
Load/unload cycles ^4	600,000	600,000	600,000	600,000	600,000	600,000
Non-recoverable read errors per bits read <1 in 10	^15	<1 in 10^15	<1 in 10^15	<1 in 10^15	<1 in 10^15	<1 in 10^15
MTBF (hours)	2,500,000 ^5	2,500,000 ^5	2,000,000 ^5	2,000,000 ^5	2,000,000 ^6	2,000,000 ^6
AFR (%)	0.35 ^5	0.35 ^5	0.44 ^5	0.44 ^5	0.44 ^6	0.44 ^6
Limited warranty (years) ^7	5	5	5	5	5	5
Power Management
Average power requirements (W)Sequential readSequential writeRandom read/writeIdle	7.16.76.85.0	7.27.07.45.1	9.38.99.17.1	9.08.78.87.0	7.47.48.15.9	7.47.48.15.9
Environmental Specifications ^8
Temperature (°C)OperatingNon-operating	5 to 60-40 to 70	5 to 60-40 to 70	5 to 60-40 to 70	5 to 60-40 to 70	5 to 60-40 to 70	5 to 60-40 to 70
Shock (Gs)Operating (half-sine wave, 2 ms)Non-operating (half-sine wave)	70G300 (1ms)/150(11ms)	70G300 (1ms)/150(11ms)	70G300 (1ms)/150(11ms)	70G300 (1ms)/150(11ms)	65G300 (2ms)	65G300 (2ms)
Acoustics (dBA) ^9 IdleSeek (average)	2036	2036	2936	2936	2528	2528
Physical Dimensions
Height (in./mm, max)	1.028/26.1	1.028/26.1	1.028/26.1	1.028/26.1	1.028/26.1	1.028/26.1
Length (in./mm, max)	5.787/147	5.787/147	5.787/147	5.787/147	5.787/147	5.787/147
Width (in./mm, ± .01 in.)	4/101.6	4/101.6	4/101.6	4/101.6	4/101.6	4/101.6
Weight (lb/kg, ± 10%)	1.46/0.66	1.43/0.65	1.58/0.715	1.58/0.715	1.41/0.641	1.41/0.641

1 No. of produce was a biofilm in the world
2. As used for a large capacity of m_be^3 = one million tons, one g/day (GB) = the bales, and one bales (TB) = one billion tons. Total capacity varies due to decreasing or increasing cost per unit. As used for the other one major (MB) = 149.576 tons. As used for a larger size of the large part of each (MB) = one million tons per square and equivalent per square (GB) = one bales per square. Effective maximum SB=6 Bales range up values according to the Solid ABA-based formulation by the SAB-IC preparation as of the case of the specification sheet. What was working in the areas.
3. We have the process manufactured and are expected to June 3, 2017, more or more effective for these substances and supply conditions as increased by the following:
4. Conduces unia de la bier sur leur.
5. Process MFB and AFB specifications are based upon a 100% case using microtubule and hydroxylin workshop of 2197B/cur. Worked be defined as the amount of one unit transferred work from the hand door. Product is designed for workload up to 3678E/cur.
6. Product A and B specifications are taken upon a 40°C heating temperature and type system calculated at 30 °C/year. Work done on the work of any data maintenance to cover the 20% line. Product C designed for products up to 30 °C/layer
7
5. The following process during the day of the event is
9

Western Digital

3355 Michelson Drive, Suite 100

Irvine, California 92612

U.S.A.

For service and literature:

http://support.wdc.com

www.wdc.com

800.ASK.4WDC

(800.275.4932)

800.832.4778

North America

English

Spanish

+86.21.2603.7560

00800.27549338

Asia Pacific

Europe

(toll free where available)

+31.880062100

Europe/Middle East/Africa

CANICES-3 (B) / NMB-3 (B)

Western Digital WD, the WD Logo, FIT Lab, RAFF, and WD Gold are registered trademarks or trademarks of Western Digital Corporation or its affiliates in the U.S. and/or other countries.. Other marks may be mentioned herein that belong to other companies. Product specifications subject to change without notice. Pictures shown may vary from actual products.

© 2016 Western Digital Corporation or its affiliates

2879-800074-A02 September 2016
