BEDIENUNGSANLEITUNG VSP 3600 RGBlink

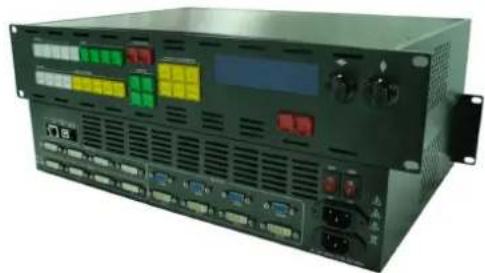

Front view of a black industrial power supply unit with control knobs and buttons (no visible text or labels)

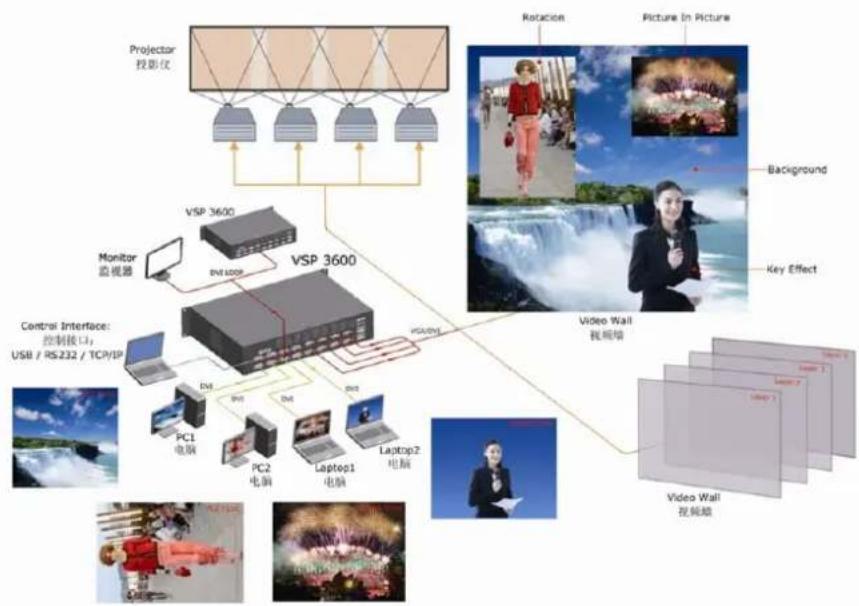

Application

Packing Configuration

Material code Description QTY

RACABA0013 Power Cord

1

RCRCPJ00005 DB9 to RJ11 Cable

1

RCRCPJ00006 USB Cable

1

RCRCPJ00008 DVI Cable 5

RTOL00Z038-1 USB Disk

1

RREG01M007 Screw Driver

1

RPAK00X004

Antistatic Bag 2

Please check the Application of VSP 3600 in our website:

http://www.rgblink.cn/

http://www.rgblink.com/

ERP material code

VSP 3600 ERP No.:RCRCPK0119

Feature

Inputs:

1) 4XDVI (HDMI 1.3 Compatible);

Outputs:

1) 4XDVI Loop Out;

2) 4XDVI;

3) 4XVGA;

Support Functions:

1) Super resolution 2048x816 mosaic for single device;

2) Support 4 layer processing;

3) Support image rotation, key color extraction, subtitles superimposed;

4) Support pixel to pixel mapping / Multiple display images / Multiple cascade seamless splicing

5) Support loop output multiple cascade seamless splicing.

Control Interface:

1) Local front panel operation;

2) Remote USB, RS232,TCP/IP control

Size: 480mm x 301mm x 89mm;

Net Weight: 4.3kg;

Power Supply: 35WX2 hot Backup;

Temperature: 0°C\~40°C;

Humidity: 10%\~85%;
