BEDIENUNGSANLEITUNG ProLight Frezzi
Professional Camera Light Small, Powerful & Versatile

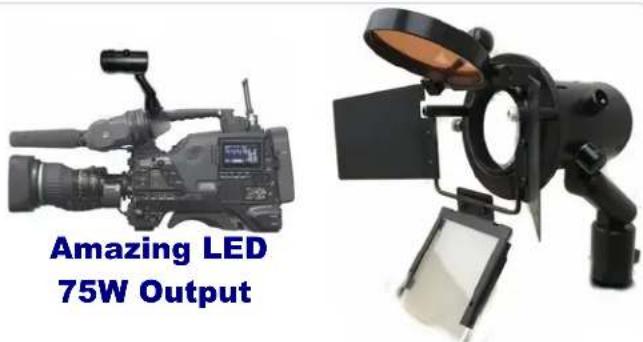

The Frezzi ProLight is the new standard in professional camera lights. Based on the industry's leading camera light, the Frezzi Mini-Fill, it retains all of the renowned features and adds today's must needed capabilities.
New Features
Quick Release
Articulating Arm
USB Charge Port
The ProLight is the only camera light with a built in USB charging port that can charge any USB powered device from your camera battery.
Pass-Thru PT
Trusted Frezzi Features
• Output 5X Typical LED camera lights
• Full Spectrum 90+CRI
- Low Power Draw 8W
- Single Shadow
• Rugged all aluminum
- Fully weatherproof
- Compact Design/ Light weight 8oz.
- New Rugged Combo-Barn Door Filter Accessory
- Advanced dimmer control without color shift
- Upgradeable lamp change. Future-proof and hybrid accepts LED and Tungsten lamps

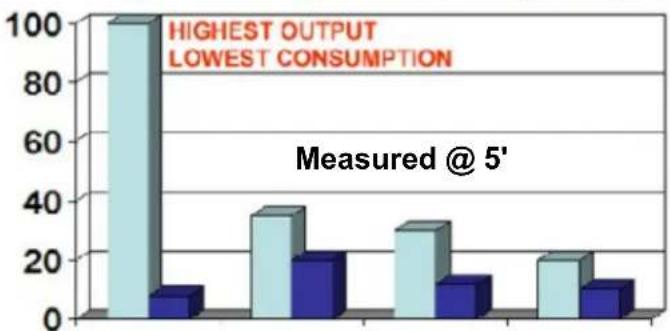

Light Out (fc) ■ Consumption(W)
bar
| Category | Highest Output | Lowest Consumption | | -------- | -------------- | ------------------ | | 1 | 100 | 10 | | 2 | 35 | 20 | | 3 | 30 | 15 | | 4 | 20 | 10 |Frezzi
20W
Tungsten
Typical
Industry
LED
Typical
Panel
LED
Instant diffusion and accurate color change with flip down filters, eliminates imprecise dial adjustments while maintaining highest output and lowest power consumption.
Always be fully charged in the field with the built in USB Charging Port
Ordering Information
Item Model Description
91726 PLPT-C COOL LED PROLIGHT 5000K LEDCEX with Dual PT connector
91727 PLPT-W WARM LED PROLIGHT 3200K LEDWEX with Dual PT connector
91728 PLTK-T 20W TUNGSTEN PROLIGHT 20W lamp with Dual PT connector
Options and Accessories
96216 PA-CTO ProLight Combo accessory with 5000K to 3000K color changer, diffusion and 2 leaf BD
96217 PA-CTB ProLight Combo accessory with 3000K to 5000K color changer, diffusion and 2 leaf BD
Specifications
ProLight with 5000K LED75
Light Output 100 ft-cd @ 5 feet
Beam Width 30 degrees
Lamp Life 25K Hours
Camera Mount Cold shoe
Tilt Angle Full Adjustable
Size 3.5" x 5" x 2"
USB Charge 5V 2Amps
Weight 8 oz.
Socket Type MR-16
Power Requirement
12-16VDC 2Amps Max
ProLight


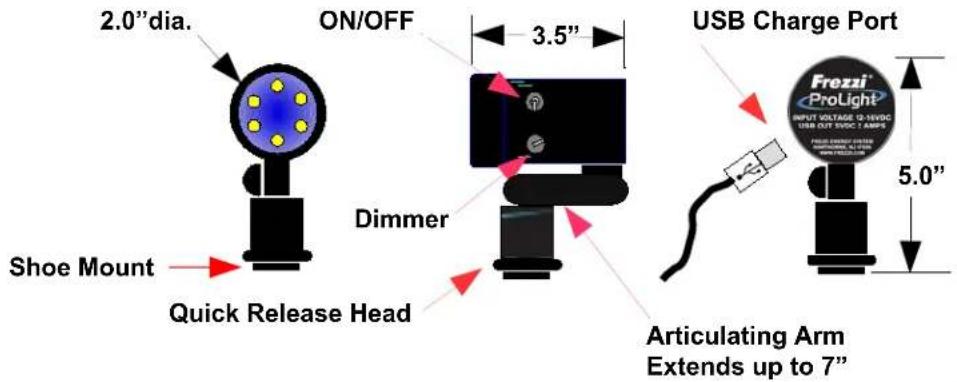

2.0" dia. ON/OFF 3.5" Shoe Mount Quick Release Head Dimmer USB Charge Port Frezzi ProLight INPUT VOLTAGE 0-1VDC USB OUT VDC T AMPY 4.0" 5.0" Articulating Arm Extends up to 7"
Includes Female Shoe for
Cameras with 1/4-20 thread
Specifications subject to change without notice
