BEDIENUNGSANLEITUNG Orbit Smith-Victor
Precautions:
1) Review manual before using product.
2) Use only with household rated voltage.
3) Turn off light before unplugging. Do not turn off by unplugging the cord and do not touch power cord with wet hands.
4) Never insert metal objects into cooling holes.
5) Avoid moving the light by pulling on the power cord.
6) Do Not use if unit is damaged, especially power supply cord.
7) Do Not expose to dripping or splashing fluids.
8) Do not use in wet areas.
9) Use only the AC Adapter packed in this set.
10) Contact Smith-Victor for service.
Smith-Victor WARRANTY
Smith-Victor warrants to the first commercial owner to be free from defects in the material and workmanship for a period of one (1) year from the date of purchase and will repair or replace product found to be defective under normal use. Warranty does not cover damage caused by shipment, by product abuse, accident, modification, disassembly or use beyond intended use specified by Smith-Victor.
This warranty is the only warranty made to any person by Smith-Victor and is in lieu of all other expressed or implied warranties. The remedies set forth in this warranty shall be the exclusive remedies available to any person for breach of this warranty. Under no circumstances shall Smith-Victor be liable to any person for incidental or consequential damages, whether arising out of breach of warranty or other contract, negligence, strict liability or other tort or otherwise.
Smith-Victor • Photogenic • Dot Line Quantum • Radiopopper • Photoflex • Cool-Lux Speedotron • Norman • Logan
Smith-Victor is a division of PromarkBRANDS
1268 Humbracht Circle, Bartlett, IL 60103 U.S.A.
800-348-9862 or 630-830-9200
sales@smithvictor.com | www.smithvictor.com
www.promarkbrands.com
# 999624 Manual for Orbit 401629_1-2019
User Manual
Model: Orbit
Item: 401629

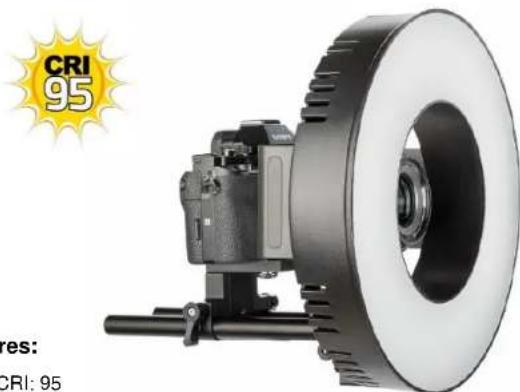

PRO SERIES 10" Bi-Color LED Ring Light with Adjustable Rail Mount
The Smith-Victor 10" Bi-Color LED Ring Light was designed with professionals in mind. Shoot beautiful, evenly lit images from 3000-5500K and the ability to dim from 1 to 100%. The 15mm camera rail mount is compatible with most pro rig systems. The included camera platform mounts most HDSLR cameras and camcorders, or even smartphones with an accessory phone mount. The LEDs have a long life expectancy of 50,000 hours.
• CRI: 95
• 1700 Lux
• Bi-color 3000-5500K
• Dimmable range 1-100%
- Quick switch color temperature presets
• Great for photo and video
- LED panel display
- Designed with the pro photographer & videographer in mind
- Adjustable 15mm rail mount
• Excellent color rendition
• AC or DC power with accessory batteries
• Built-in USB for charging Sony cameras or smartphone

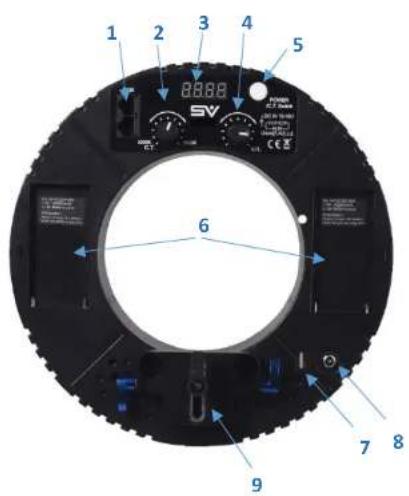

Operation:
6 - Battery mounts
2 - Color temperature knob
7 - USB connection
3 - LED display
8 - Power input
4 – Brightness control
9 – Mounting Bracket for rails
5 – Power & Color Temperature Presets: (3) Daylight, Tungsten or blend
Instructions:
The Orbit has an adjustable camera mount allowing posioning of the camera and lens for best weight distribuon and comfort of the photographer/videographer. Once the camera is placed on the mount, the camera's posion in relationship to the light source can be moved back and forward along the rails and moved up and down via the adjustments on the mount.
Specifications:
| CRI: | 95 |
| Color Temperature: | 3000°K~5500°K +/- 200°K |
| Quick Switch Color Temp: | 3000°K / 4250°K / 5500°K |
| LCD Panel Display: | Yes |
| Beam Angle: | 120° |
| Dimming: | 1~100% |
| Power Draw: | 40 Watts |
| Incadecent Watt Equivalent: | Approx. 320 Watts |
| Lux: | 1700 |
| Life Expectancy of LEDs: | 50,000 hrs |
| Temperature Control: | Natural Convection |
| Power: | 110-240VAC~1.5A or (2) Sony style NP-F batteries |
| Operating Voltage: | DC 13-18V |
| Camera Mount: | Platform with 15mm rails |
| Platform Height Adjustment Range: | 2.5" |
| Platform Linear Adjustment Range: | 6.75" with included rails |
| Rails for Platform: | (2) 5/8 x 7.9" |
| DMX: | Yes |
| USB: | Yes |
| Light Dimensions: | 10.0" x 2.5" with an opening diameter of 5.1" |
| Weight of Light Unit: | 2.0 lb |

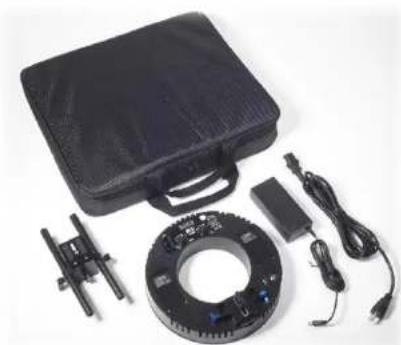

What's in the Box:
(1) Pro Series Orbit LED Ring Light (1) Adjustable Rail Mount
(1) Power Adapter with Cord
(1) Padded Carry Case
