BEDIENUNGSANLEITUNG Tiny AC Dovado

TINY

Universal Access Router

Exterior view of a red and black electronic device with a wireless antenna (no visible text or symbols)

Front view of a wireless router device with a black antenna and control buttons (no visible text or symbols)

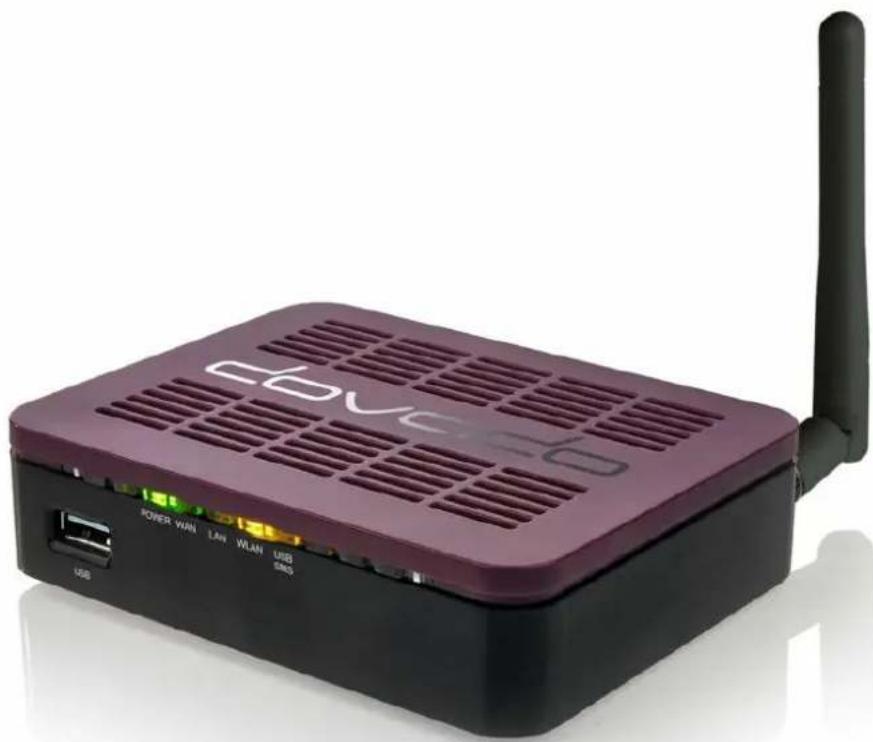

DOVADO TINY AC

Universal Access Router

dovado

Purple and black Lenovo 3.0C-3.0 wireless router with visible ports and antenna (no text or symbols on body)

UNIVERSAL ACCESS, NO MATTER WHAT

Imagine a router that connects you to the Internet via just about any broadband source available, be it Fixed, Mobile or even WiFi; a router that was designed with your most important requirement in mind: Internet access! The Dovado TINY AC is the world's first true Universal Access Router; a highly versatile device that securely connects all of your devices online without much effort. Whether your home or office has access to ADSL, Fiber, 4G/3G or WiFi, the Dovado TINY AC works with all!

SPOTBOOST™ INTERFACE CONNECTS YOU TO OTHER WIFI NETWORKS!

The Dovado SpotBoost™ feature allows your Dovado TINY AC router to scan for all of the available WiFi networks in its proximity. Such networks may include a friendly neighbor, a public hotspot, your hotel's WiFi, a mobile pocket router or even a smartphone running WiFi-tethering! SpotBoost™ WiFi-Tethering is available on either WiFi band, be it 2.4GHz or 5GHz. Once connected, all of your devices will be able to access the Internet via SpotBoost™ and operate securely within the Dovado TINY AC's own private network. As an added bonus, features such as Dynamic DNS, (embedded) VPN Client and Port Forwarding are also available over the SpotBoost™ interface.

AWARD-WINNING 4G/3G USB MODEM & MOBILE HOTSPOT SUPPORT!

The Dovado TINY AC is the first commercially available 802.11ac router to offer support for the very broadest range of 4G/LTE and 3G USB Modems and Mobile Hotspot devices in the world; handling full Category 6 LTE throughput speeds (300Mbps 4G)! Support for the latest modems are introduced with each new firmware update, accompanied by plenty of handy features we know you'll enjoy! The Dovado TINY AC is shipped with support for over 300 such devices from over 20 different brands, along with a decade of optimized software. Thanks to the Dovado SmartUSB™ feature, the Dovado TINY AC offers the best track-record in uptime performance by electrically re-powering the inserted USB modem in case of failure to connect.

PHYSICAL

ANTENNA TYPE WEIGHT POWER REQUIREMENTS

External detachable (SMA connector) 2dBi

Dipole Dual-Band Antenna

167g 12VDC, 1A (100-240V AC, 50/60Hz)

DIMENSIONS LEDs

32 x 90 x 115 mm

POWER, WAN, LAN, WLAN, USB/SMS

OVERVIEW

WIFI CAPABILITIES ROUTER FEATURES	AES 7601ingob@0.0000bps2023idgn (2.4GHz) & 450Mbps 802.11ac (5GHz)Supports 32 + 32 WiFi clients (Dual SSID)Dovado SpotBoostTM WiFi-Tethering interface allows tethering with other WiFi infrastructures for Internet connectivityDetachable dual-band antenna with great indoor coverageMAC Address Filtering for WLANWEP 64/128 bit encryptionWPA/WPA2 (TKIP/AES/Mixed)-PSKWPA2 Enterprise (requires a RADIUS server)		Automatic failover between all Internet connectionsPort-Forwarding & Remote ManagementBi-monthly Mobile Broadband Traffic CounterMultiple Dynamic DNS ClientsInternet SchedulerPort-ForwardingSPI-FirewallUPnPVPN Pass-throughRemote (Live) Firmware Updates viaHTTP/FTP/SMS CommandEmail notifications (as alternative to SMS)NTP Clock
FIXED BROADBAND FEATURES	Gigabit Ethernet connectivity, with full speed throughputDynamic (DHCP) IP, Static IP, PPPoEAuthenticationConnect to other WiFi networks (as optional WAN interface)Automatic failover to mobile broadband or WiFi-tethered network	VPN FEATURES	PPTP-based VPN client (up to 128-bit MPPE encryption)VPN Phonebook (stored profiles)Separate Port-Forwarding options for VPN clientHost Exemptions (specify which devices use VPN)
MOBILE BROADBAND FEATURES	Supports the widest range of 4G/3G USB modemsUse your smartphone or Mobile Hotspot as a modem (WiFi-pairing via Dovado SpotBoostTM)4G/LTE routing speeds of 300 MbpsAutomatically configures Mobile Internet settingsOperates in Routed/Bridged mode*Maximal uptime with SmartUSBTM and Connection TrackerTMManual Selection of 4G/LTE Frequency Band*SMS Mailbox/Remote Control/Notifications*	ENVIRONMENT	Dynamic DNS (own alias when using VPN)Automatic redial in case of failureOperating Temperature: 0–40°CelsiusOperating Humidity: 10% to 90% (non-condensing)
		CERTIFICATIONS	Type: CE

*See www.dovado.com/modems for SMS & Bridge Mode compatibility

For more information, visit www.dovado.com
