| Produkttyp | Elektronischer Mückenabwehrmittel |
| Marke | Xiaomi |
| Modell | Mi Portable Electronic Mosquito Repeller |
| Abmessungen | Ca. 5 × 5 × 2 cm |
| Gewicht | Ca. 50 g |
| Stromversorgung | Lithium-Ionen-Akku (USB-C aufladbar) |
| Betriebsdauer | Bis zu 10 Stunden pro Ladung |
| Ladezeit | Ca. 2 Stunden |
| Abwehrmethode | Ultraschallwellen |
| Frequenzbereich | 20–60 kHz |
| Reichweite | Bis zu 3 Meter |
| Anzeige | LED-Statusleuchte (Betrieb/Ladezustand) |
| Geeignet für | Innenräume, Camping, Reisen |
| Material | Kunststoff |
| Farbe | Weiß mit grauen Akzenten |
| Wartung | Regelmäßig mit trockenem Tuch reinigen |
| Sicherheit | Für Menschen und Haustiere unbedenklich; Gerät von Wasser fernhalten |
| Lieferumfang | 1 × Repeller, 1 × USB-C-Kabel, 1 × Kurzanleitung |
| Garantie | 2 Jahre (abhängig vom Händler) |
Häufig gestellte Fragen - Mi Portable Electronic Mosquito Repeller Xiaomi
Benutzerfragen zu Mi Portable Electronic Mosquito Repeller Xiaomi
0 Frage zu diesem Gerät. Beantworten Sie die, die Sie kennen, oder stellen Sie Ihre eigene.
Eine neue Frage zu diesem Gerät stellen
Laden Sie die Anleitung für Ihr Elektronischer Abwehrmittel kostenlos im PDF-Format! Finden Sie Ihr Handbuch Mi Portable Electronic Mosquito Repeller - Xiaomi und nehmen Sie Ihr elektronisches Gerät wieder in die Hand. Auf dieser Seite sind alle Dokumente veröffentlicht, die für die Verwendung Ihres Geräts notwendig sind. Mi Portable Electronic Mosquito Repeller von der Marke Xiaomi.
BEDIENUNGSANLEITUNG Mi Portable Electronic Mosquito Repeller Xiaomi
Mi portable electronic mosquito

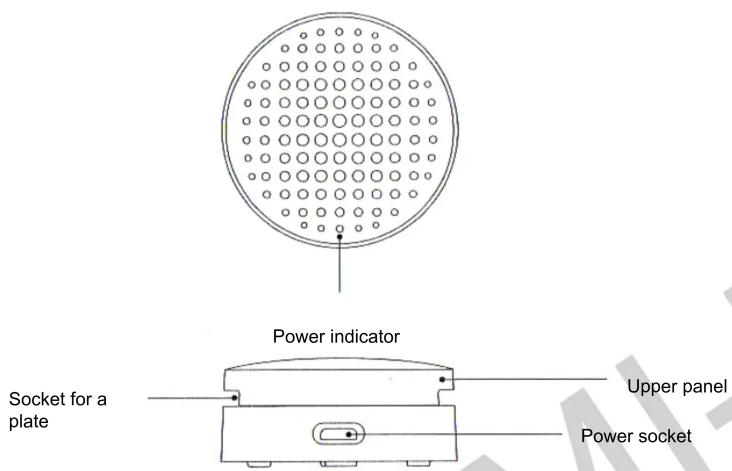

Familiarization with your device

The main parameters
Name: Mi portable electronic mosquito
Model: DWX01ZM
Rated voltage: 5.0V---
Capacity: 2.2W
Operating temperature: 1370C+80C
Size: 46.8 (D) x 20.5 (H) mm
Weight: about 25g
Standart: Q/320281DHR03-2016
Exploitation

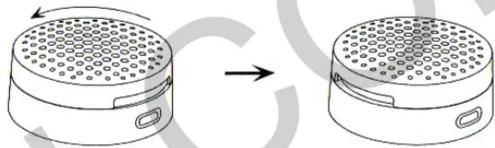

a) Scroll fumigator upper panel until you see a socket for plate.


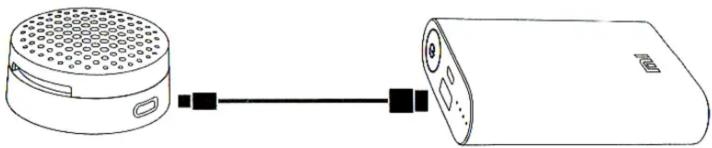

c) Use a USB cable to connect fumigator to the Mi Power Bank or other portable chargers. When connected to a charger fumigator power indicator lights. If you do not use this device, scroll to upper panel until the power light fade out. Disconnect the USB cable from the device.
Precautions
- Prohibited to throw, squeeze, independently disassemble and pierce the device.
- Do not use in areas with high temperature or high humidity.
- Do not drop the device to the fire, the water and do not expose it to aggressive liquids.
- Prohibited to cover the device by any things because it hinders normal heat dissipation. This may cause breakage of the device or cause fire.
- When using the device you need to install it on a heat resistant surface. Do not place the product in direct sunlight, on heating appliances, textiles and other flammable surface.
- Not recommended for children to use this device without adult supervision.
- If you are not using the device, disconnect it from the power. After turning off the device for some time the temperature will be high enough. Be careful to not burn yourself.
Warranty:
Warranty servicing is carried out according to the law on «The rights of the consumer of China» and «Law on product quality of China».
Warranty service includes:
- Within 7 days of purchase, in case of any problem on «fault list», Xiaomi service center determine the cause of the problem, then you can choose a free replacement of the product or a refund.
- Within 8-15 days of purchase, in case of any problem on «fault list» Xiaomi service center determine the problem, then you choose a free replacement of the product or repair.
- Within 12 month of purchase, in case of any problem on «fault list» Xiaomi service center determine the problem, then you have free reapeir
The presence of toxic and hazardous substances
| Name detail | Pb | Hg | Cd | Cr6+ | PBB | PBDE |
| Circuit board | X | O | O | O | O | O |
| Device body | O | O | O | O | O | O |
| The panel adhesive tape and other little add-ons | O | O | O | O | O | O |
O: toxic and harmful substances in all components of the device are contained in an amount lower the limit value according to the standard SJ / T11363-2006 «Requirements of limiting the presence of toxic and hazardous substances in products».
X: presence of toxic and hazardous substances, at least in one of the components of the device in an amount that exceeds the threshold, according to SJ / T11363-2006 «Requirements of limiting the presence of toxic and hazardous substances in products».
This product conform EU RoHS requirements and regulations on environmental protection; International country still can not replace or reduce the aluminum content in a copper alloy.
In terms of environmentally safe use indicates that at normal operating conditions, the leakage of hazardous substances or elements of the device and its applications impossible. During using device does not detect any harmful effects on the environment, human health, and can not cause any serious injuries.
List of faults
| Name of fault | |
| Mi portable electronic mosquito | Cracks / breakage through the construction or material of the device |
| Problems with the heating plate after turning on the device | |
| Problems with the operation of the power meter after switching the device | |
The conditions, which are not included in warranty service
- Completion of the maintenance, fall, negligent attitude, abuse, on product spill liquid, accident, or if broke label and marking device;
- The warranty period has expired;
- Damage arising under force majeure circumstances;
- Damage that do not conform to «List of faults» of the Xiaomi service center;
- Damage that arose in connection with the human factor and which prevent its proper operation.
Manufacturer: OOO «Jiangsu Zimi Electric Technology»
Address: Building 913A, 159A, Dengjiang Middle Street, Jiangsu
Xiaomi-Mi.com
