BEDIENUNGSANLEITUNG Guardian 10KW Generac
10-22 kW
GUARDIAN® SERIES
Automatic Home
Standby Generators
GENERAC®
NOW FEATURING: FREE MOBILE LINK™ WIRELESS MONITORING
The #1 Selling Home Standby Generator Brand
24-7 POWER PROTECTION
CHOOSE THE #1 SELLING HOME STANDBY GENERATOR BRAND, NOW FEATURING FREE MOBILE LINK™ WIRELESS MONITORING
Generac's Guardian Series generators provide the automatic backup power you need to protect your home and family during a power outage. Connected to your existing LP or natural gas fuel supply, it kicks in within seconds of sensing power loss—automatically—and runs for as long as necessary until utility power returns. Choose from Generac's industry leading lineup to power just the essentials or Generac's 22 kW, the largest air-cooled generator in the market for whole-house coverage.
Now coming with FREE Mobile Link Wireless Monitoring, allowing you to monitor the status of your generator on a phone, tablet or computer from anywhere in the world. Giving you the ability to connect your account to your authorized service dealer for fast, friendly and convenient assistance.
*Total harmonic distortion (THD) less than 5.0%—lower than both IEEE standards for utility power and published numbers for competitive air-cooled home standby generators.

TRUE POWER™ TECHNOLOGY
Delivers best-in-class power quality with less than 5 percent total harmonic distortion for clean, smooth operation of sensitive electronics and appliances.

SMART, USER-FRIENDLY CONTROLS. GENERAC'S EVOLUTION™ CONTROLLER
Features a multilingual LCD display that allows you to monitor battery status and track maintenance intervals to ensure your generator is always in top operating condition.

GENERAC'S G-FORCE ENGINES
Are purpose-built, pressure-lubricated engines capable of handling the rigors of generator use, resulting in power that's more reliable and requires less routine maintenance than any competitive engine. Generac's new G-Force engine features hydraulic lifters – improving engine performance and extending the life of the product (Hydraulic lifters only available on the 13 & 16 kW)

QUIET-TEST™ SELF-TEST MODE
Runs at a lower RPM for a five or twelve minute test, making generators significantly quieter than other brands while consuming less fuel.

TOUGH, DURABLE
ALL-ALUMINUM ENCLOSURES
Our RhinoCoat™ powder-coated finish helps make corrosion-resistant aluminum perfect for all weather conditions.
MOBILE LINK™ REMOTE WIRELESS MONITORING
FREE with every Guardian Series home standby generator. Mobile Link allows you to monitor the status of your generator from anywhere in the world using a smart-phone, tablet, or PC. Easily access information, such as the current operating status and maintenance alerts. Connect your account to your authorized service dealer for fast, friendly and proactive service. With Mobile Link, you are taken care of before the next power outage.


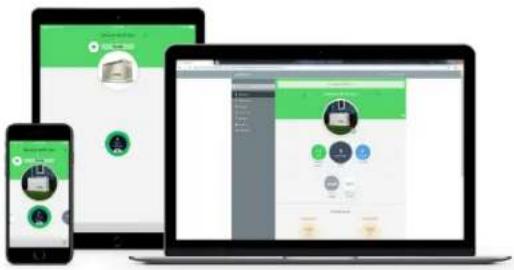

Screenshot of a digital dashboard with app icons and status bar, displayed on multiple devices including tablets, laptops, and desktops.

5-Year Limited Warranty for automatic standby generators.

Generac generators and engines are Engineered and Built in the USA*
*Assembled in the USA using domestic and foreign parts

24/7•365 Customer Support Team standing by all day, every day from our headquarters in Wisconsin to answer any questions you might have.
10-22 kW GUARDIAN SERIES
AUTOMATIC HOME STANDBY GENERATORS

| SPECIFICATIONS (LP/NG) | 10/9 kW | 13/13 kW | 16/16 kW | 20/18 kW | 22/19.5 kW |
| Generator Only Model 7171 7173 7176 7038 | 7042 | ||||
| Generator / Select Circuit Switch Model | 7172100 AmpSwitch | 7174100 AmpSwitch | 7177100 AmpSwitch | n/a n/a | |
| Generator / 200 Amp Service Rated Load Shedding Smart Switch Package Model # | n/a 7175 | 7178 7039 7043 | |||
| Voltage (Single Phase) 120/240V | |||||
| Amps @ 240V LPG 41.7 54.2 66.6 83.3 91.6 | |||||
| Amps @ 240V NG 37.5 54.2 66.6 75 81.3 | |||||
| Engine/Alternator RPM 3600/3600 | |||||
| Engine Generac G-Force | |||||
| Engine Displacement 460cc 816cc 999cc | |||||
| Fuel Consumption @ 1/2 Load NG cu. ft/hr | 101 | 154 | 182 | 204 | 228 |
| Fuel Consumption @ Full Load NG cu. ft/hr | 127 | 225 | 245 | 301 | 327 |
| Fuel Consumption @ 1/2 Load LPG cu. ft/hr (gal/hr) | 36 (0.97) | 56 (1.54) | 62 (1.70) | 86 (2.37) | 92 (2.53) |
| Fuel Consumption @ Full Load LPG cu. ft/hr (gal/hr) | 54 (1.48) | 90 (2.45) | 109 (2.99) | 129.6 (3.56) | 142.1 (3.90) |
| Quiet-Test Mode | Yes | ||||
| db(A) at Exercise | 57 | 55 | 55 | 55 | 57 |
| db(A) at Normal Operating Load | 61 | 65 | 65 | 67 | 67 |
| Enclosure | Aluminum | ||||
| Enclosure Color | Bisque | ||||
| Warranty 5-Year Limited | |||||
| Dimensions (L" x W" x H") | 48 x 25 x 29 | ||||
| Weight (lbs.) | 338 | 385 | 420 | 448 | 466 |
| Standard with Mobile Link | Yes | ||||
Nationwide Dealer Service Network
Generac's commitment to service includes scheduled maintenance programs, warranty assistance and emergency service to ensure that Generac customers are never left powerless. The largest nationwide dealer network has factory-trained technicians on staff and maintains large inventories of Generac parts, components and accessories. Find a dealer near you at Generac.com.
E | GENERAC T | PROMISE

* 2017 in the USA using domestic and foreign parts.
GENERAC
