BEDIENUNGSANLEITUNG 99910 TMC

PRODUCT FEATURE

TMC range of marine electric toilets offer a wide variety of styles and sizes to suit the requirement of virtually any boat. The Luxury series contains a contemporary skirted style large bowl with fully enclosed motor and plumbing connections, protects motor and is easy to clean.

COMMON FEATURE

● Top quality vitreous china bowl.
● Solid plastic seat and cover.
● Self-macerating combined, water in, water out pump.
● Convenient push button operation.
● Supplied with standard switch box.
● Supplied with 25 to 38 mm outlet adaptor.

SPECIFICATION

MODEL	99907		99909		99910
MOTOR	12 V	24 V	12 V	24 V	12 V	24 V
AMP DRAW	18 A	9 A	18 A	9 A	18 A	9 A
FUSE SIZE	30 A	15 A	30 A	15 A	30 A	15 A
INLET HOSE	3/4” (φ 20 mm)		3/4” (φ 20 mm)		3/4” (φ 20 mm)
DISCHARGE HOSE	1” (φ 25.4 mm)		1” (φ 25.4 mm)		1” (φ 25.4 mm)
WEIGHT	28.1 Kgs (61.82 lbs)		23.5 Kgs (51.7 lbs)		27.5 Kgs (60.5 lbs)
ORDER NO.	502-9907011	502-9907012	502-9909011	502-9909012	502-9910011	502-9910012

INSTALLATION

D L

MODEL	A	B	C	D	E
9990701	284(11.18")	270(10.63")	383(15.08")	480(18.90")	460(18.11")
9990901	300(11.81")	270(10.63")	344(13.54")	442(17.40")	362(14.25")
9991001	312(12.28")	270(10.63")	364(14.33")	482(18.98")	388(15.28")

A B C

Flush operation options

(1) by Switch box TMC-99902S
(2) by Flush Control Panel TMC-0240401

(2) TWC-024001 CCOUTPUT DCUT BLACK BATTERY MOTOR RED OUT WHITE HOSSE

IN : Clean Water inlet
OUT : Waste outlet

● TMC marine toilets may be installed above or below the waterline.
- Inlet and outlet seacock should be easily accessible and be positive shut off valves. If seacock not be conveniently operated from toilet location, install suitable shut off valves for inlet and discharge connections.
● Surface where toilet is mountd should be flat to prevent distortion of toilet base.

PLUMBING CONNECTIONS

• Connect inlet hose using 20 mm (3/4") ID hose. Make sure all inlet connections are airtight and free of sharp bends or restrictions.
• Connect 25.4 mm (1") hose to discharge port and make suitable connection to holding tank or other discharge system. Avoid sharp bends or restrictions.
• For above waterline installations, a check valve (optional) may have to be installed in the flush water intake line to ensure rapid pump priming. To retain water in bowl, make a loop in the discharge line about 20 cm (8 inches) above base of bowl.
• Do not connect inlet hose to a pressurized water system.
• The toilet is, or can be, below waterline at any normal (including static) attitude of vessel heel and / or trim, a 3/4" vented loop fitting must be installed in the length of hose connecting the flushing pump to the inlet seacock. The vented loop fitting must be positioned so it remains slightly above the waterline at all angles of heel and trim.

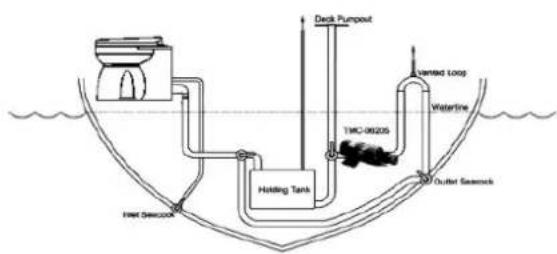

ABOVE THE WATERLINE


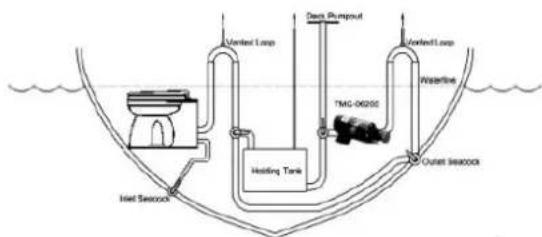

BELOW THE WATERLINE

• ALL TMC TOILETS CAN BE MOUNTED BOTH ABOVE AND BELOW THE WATER LINE.
• CONSULT WITH A QUALIFIED MARINE PLUMBER IS RECOMMENDED.
• CONSULT WITH THE COAST GUARD FOR WASTEDICHARGE RULES ON WATERWAYS WHERE YOU WILL BE OPERATING.

VENTED LOOPS

● 25.4 mm (1") for waste outlet discharge
● 25.4 mm (1") for macerator toilet discharge
- 20 mm (3/4") for water inlet discharge
- Vented loops are required for below waterline installations and hose connections must be double clamped.
● Top of the loop must be above waterline.
● Intake vented loops must be installed between pump and back of the bowl.
● Discharge vented loops must be installed between the discharge of toilet and seacock.

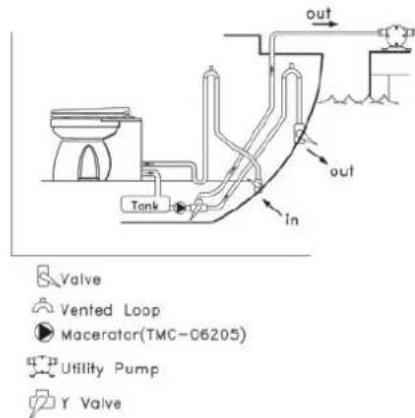

TOILET INSTALLATION SAMPLES (below water line)

Fig. 1 Vented loops installed below water line are required to prevent backflow of the waste. The waste has to be treated properly before direct discharge.

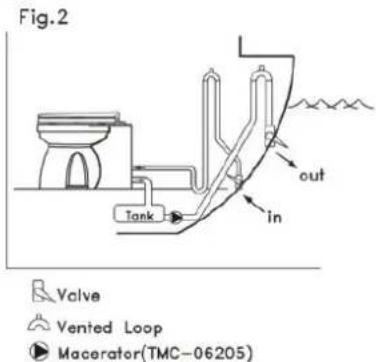

Fig. 2 Vented loops installed below water line are required to prevent backflow of the waste. The waste can be stored in the holding tank first then discharged into water after proper treatment

Fig.1 out in Valve Vented Loop

Fig.2 Tank out in Valve Vented Loop Macerator(TMC-06205)

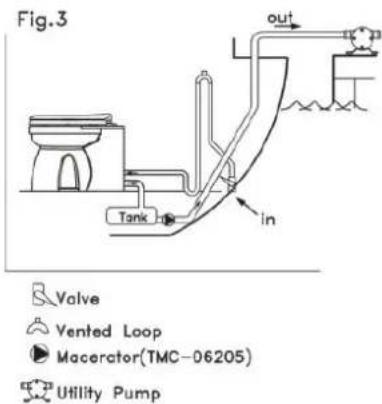

Fig. 3 Vented loops installed below water line are required to prevent backflow of the waste. The waste can be stored in the holding tank first then discharged to pump out station at the port.

Fig.3 Tank in out Valve Vented Loop Macerator(TMC-06205) Utility Pump

out out Tank in in Valve Vented Loop Macerator(TMC-06205) Utility Pump Y Valve

CAUTIONS

● Always close sea-cocks when leaving boat unattended.
● Always close sea-cocks when toilet is not in use.
● Failure to do so may result in flooding which can cause loss of property and life.
- Do Not apply flame or heat to hoses.
- Do Not apply sealing compounds to any hose connection.
- Do Not use thick liquid toilet cleansers or neat bleach because they may damage the valves, gaskets and seals.
- If the toilet is plumbed to the vessels portable water supply you must install an anti-syphon breaker valve on the toilet inlet pipework to prevent water supply contamination.
- Do Not dismantle the product without the help of authorized technician. For any questions, please contact with your original seller or dealer.
- Correct motor polarity (Red to positive (+), Black to negative (-)) is important. Reverse polarity can damage motor and void warranty. Full voltage at the motor is required to properly operate the Electric Toilet. The toilet must be wired in a circuit independent of all other accessories.
● The toilet bowl body is made of vitreous china and it's fragile. Do Not drop the product from high place or with heavy force. Please handle the product with care.

INSTALLATION INSTRUCTIONS :

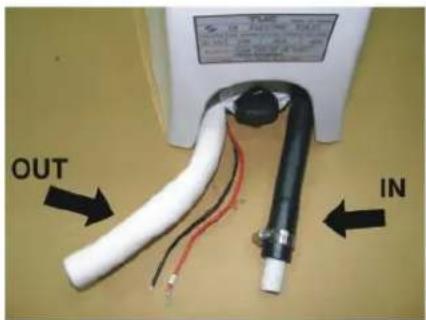

1. Inlet / Outlet

• In - clear water inlet, 3/4'' (20 mm)
• Out - waste outlet, 1'' (25.4 mm)

OUT IN

2. 2- 12mm mounting hole on both side for surface installation.

Use M10 or 3/8" screws to fix the toilet. Use washers and rubber gaskets included to prevent the ceramic body from damaging.

2- φ 12

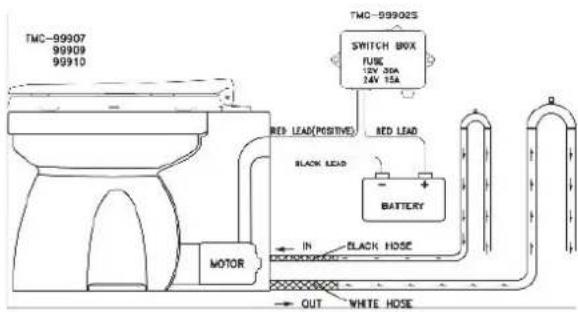

3. Wiring Diagram of Electric Flushing System

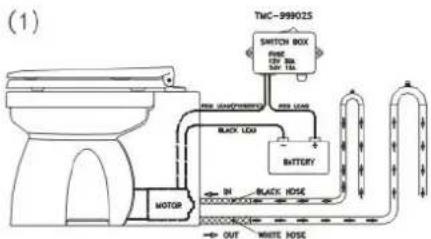

(1) TMC-99902S Switch Box

SOUET RISK 30-12V 30A 10-12V 10A SWITCH SOUET 30-12V

TMC-99907 99909 99910 TMC-99902S SWITCH BOX FUSE 12V NDA 24V TSA RED LEAD(POSITIVE) RED LEAD BLACK LEAD - + BATTERY IN BLACK HOSE MOTOR OUT WHITE HOSE

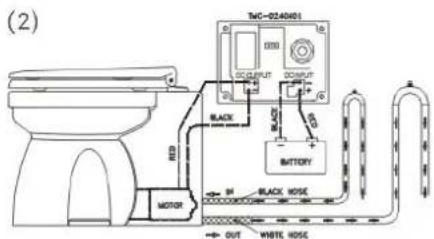

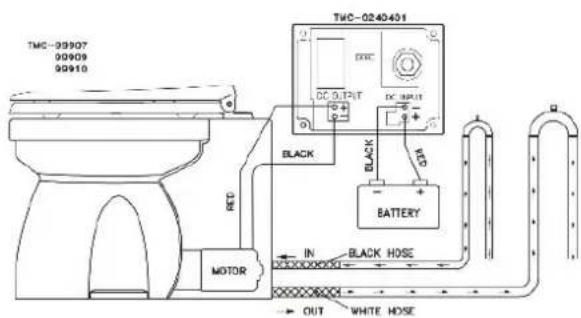

(2) TMC-0240401 Flush Panel

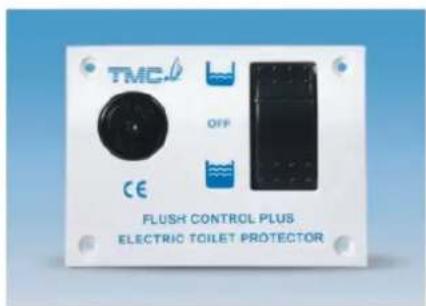

TMC OFF CE FLUSH CONTROL PLUS ELECTRIC TOILET PROTECTOR

TMC-99907 99909 99910 TMC-0240401 DC OUTPUT DC INPUT BLACK BLACK BATTERY IN BLACK HOSE MOTOR OUT WHITE HOSE

1. Adaptors (for installation options)


5/8" 1" 1" 1-1/2" 1"

Trouble Shooting

1. Waste can not be pump out due to clogging problem

(1) Untighten the mounting screws of both sides

(2) Remove the toilet from the wall

(3) Disconnect toilet inlet/outlet pipes from boat plumbing system

Close-up of a white object with a black arrow pointing to a small dark object, possibly part of a mechanical or architectural component (no visible text or symbols)

White toilet with side door and arrow indicating left-side motion (no text or symbols)

White industrial machine with black handle and curved arm (no visible text or symbols)

(4) Disconnect the pumping inlet and discharge hoses.

(5) Rest the toilet on surface carefully

(6) Remove four screws.

Close-up of a mechanical component with a tool inserted, no visible text or symbols

Close-up of a medical device with white tubing and black cable (no visible text or symbols)

Close-up of a white mechanical component with four bolts and a rod (no visible text or symbols)

(7) Pull out complete motor, pump and macerator assembly from base. Clean out the clogging materials.

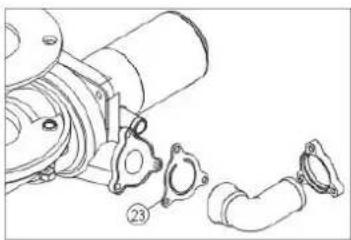

(8) After cleaning, follow the indicated direction and instal the non-return valve (key #23) back in position.

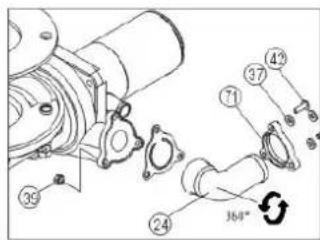

(9) Outlet port (key #24) can be rotated 360°. User may rotate it to the desired position then fastened it by the screw (key #42).

Close-up of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical assembly with flanges and components (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and a 360° rotation indicator

1. Impeller may get stocked inside pump body if the electric pump is idled for a period of time. Follow the indicated direction to rotate the impeller from outside to prevent the electric pump from damage of instant high current in starting operation.

Close-up of a white electric motor with a black handle and screwdriver inserted, no visible text or symbols

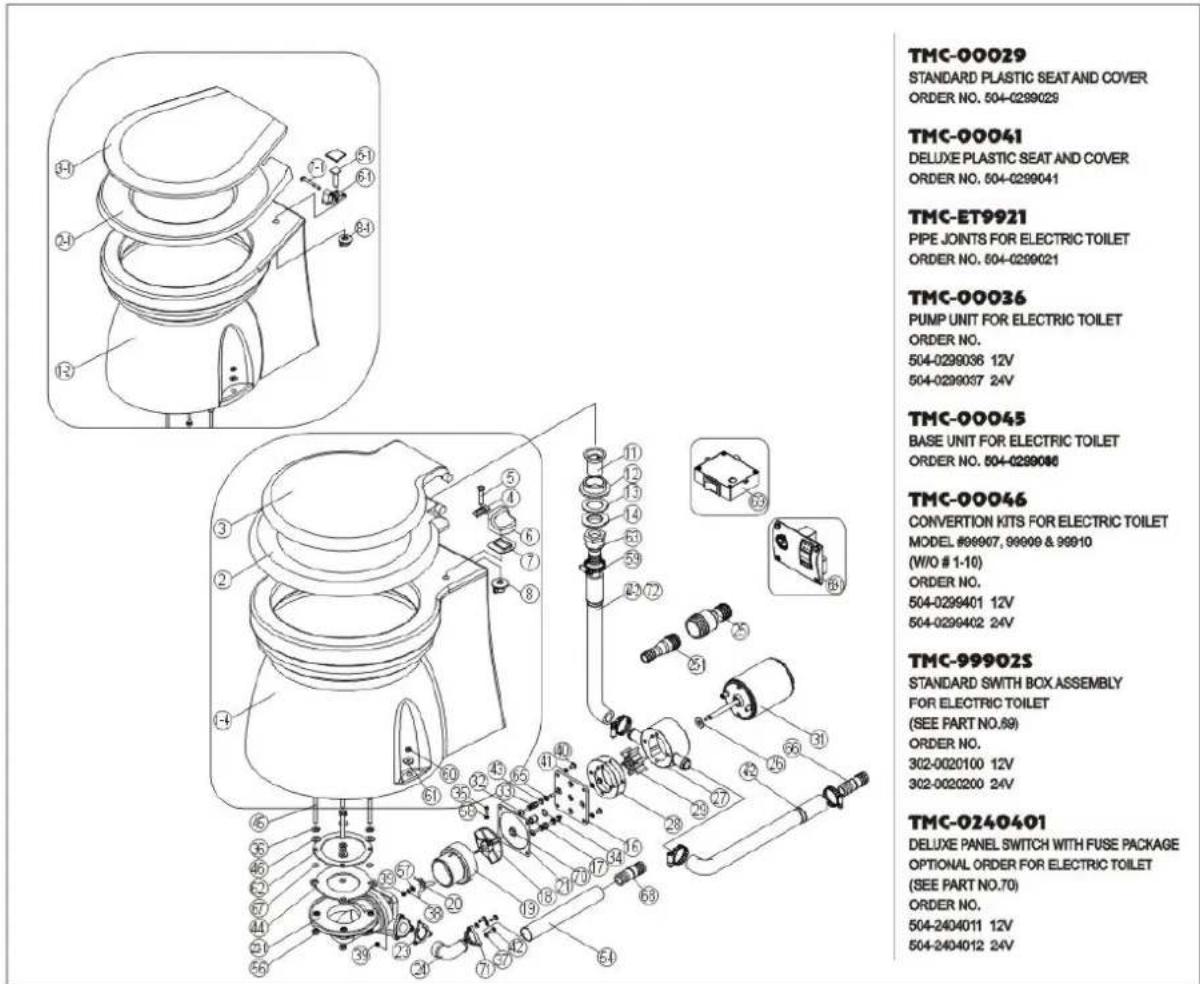

THC-00029 STANDARD PLASTIC SEAT AND COVER ORDER NO. 504-0299029 THC-00041 DELUXE PLASTIC SEAT AND COVER ORDER NO. 504-0299041 THC-ET9921 PIPE JOINTS FOR ELECTRIC TOILET ORDER NO. 504-0299021 THC-00036 PUMP UNIT FOR ELECTRIC TOILET ORDER NO. 504-0299036 12V 504-0299037 24V THC-00045 BASE UNIT FOR ELECTRIC TOILET ORDER NO. 504-0299086 THC-00046 CONVENTION KITS FOR ELECTRIC TOILET MODEL #99907, 99909 & 99910 (W/O # 1-10) ORDER NO. 504-0299401 12V 504-0299402 24V THC-99902S STANDARD SWITCH BOX ASSEMBLY FOR ELECTRIC TOILET (SEE PART NO.89) ORDER NO. 302-0020100 12V 302-0020200 24V THC-0240401 DELUXE PANEL SWITCH WITH FUSE PACKAGE OPTIONAL ORDER FOR ELECTRIC TOILET (SEE PART NO.70) ORDER NO. 504-2404011 12V 504-2404012 24V

99909	99907 99910	DESCRIPTION	Q'TY
1-4	1-2	Closestool Body	1
2	2-1	Seat Cushion	1
3	3-1	Closestool Cover	1
4		Washer	2
5	5-1	Square Neck Bolt	2
6	6-1	Support	2
7	7-1	Support Packing	2
8	8-1	Wing Nut	2
\
11	Joint		1
12	Joint Packing		1
13	Flat Washer		1
14	Joint Nut		1
\
16	Wearplate		1
17	Sleeve Kit		1
18	Centrifugal Impeller		1
19	Macerator Housing		1
20	Raxor Blade		1
21	Gasket		1
22-1	Base		1
23	Flapper Valve		1

KEY	DESCRIPTION	Q-TY
24	Discharge Port	1
1
25	Adaptor	1
25-1	Adaptor	1
26	Silinger	1
27	Body	1
28	Gasket	1
29	Flexible Impeller	1
1
31	Motor	1
32	Screw	2
33	Screw	2
34	O Ring	1
35	Set Screw	1
36	Flat Washer	4
37	Flat Washer	3
38	Spring Washer	1
39	Hexagon Nut	4
40	Screw	4
41	Spring Washer	4
42	Screw	3
43	Flat Washer	4

KEY	DESCRIPTION	Q-TY
44	Base Packing	1
45	Hexagon Bolt	4
46	Plastic Washer	4
47-2	Hose (99907×2)	1
1
56	Hexagon Nut	4
57	Flat Washer	1
58	Spring Washer	1
59	Cramp	4
60	Flat Washer	2
61	Base Packing	1
62	Anchor Plate	1
63	Pipe Joint	1
1
65	Rubber washer	4
66	Inner Pipe Joint	1
67	O Ring	4
68	Adaptor	1
69	Switch box (standard)	1
69-1	Panel switch (optional)	1
70	Rubber Jacket	1
71	Flange	1
72	Hose (99909、99910)	1

• TMC TOILET SERVICE PARTS ARE SOLD BY PACKAGE.
• INDIVIDUAL PART LIST IS FOR REFERENCE ONLY.

Service Parts For TMC Electric Toilet Model 99907, 99909, 99910

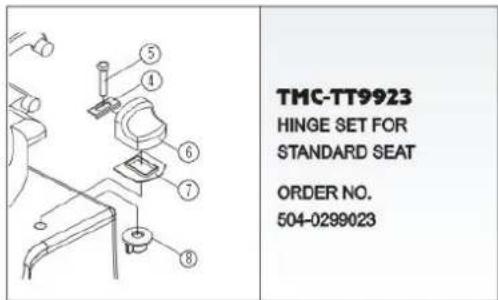

THC-TT9923 HINGE SET FOR STANDARD SEAT ORDER NO. 504-0299023

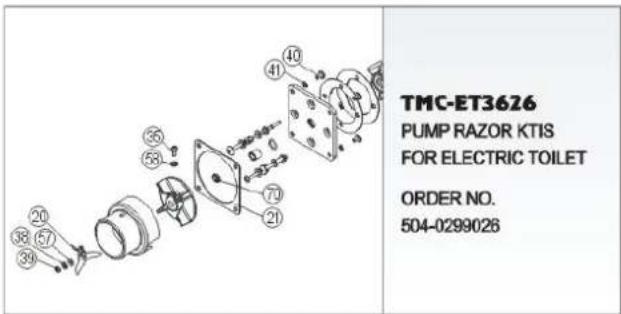

TMC-ET3626 PUMP RAZOR KTIS FOR ELECTRIC TOILET ORDER NO. 504-0299026

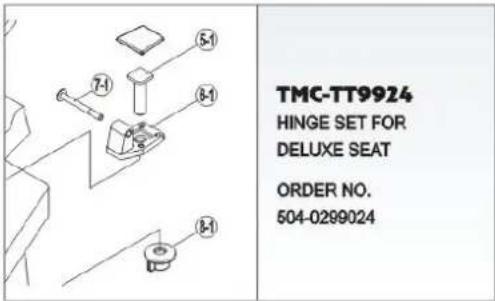

TMC-TT9924 HINGE SET FOR DELUXE SEAT ORDER NO. 504-0289024

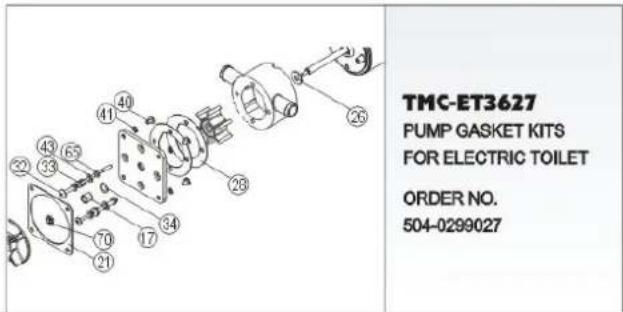

TMC-ET3627 PUMP GASKET KITS FOR ELECTRIC TOILET ORDER NO. 504-0299027

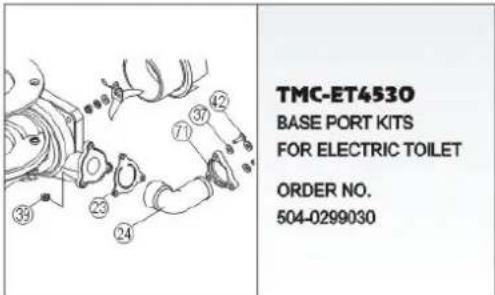

TMC-ET4530 BASE PORT KITS FOR ELECTRIC TOILET ORDER NO. 504-0299030

TMC-ET3628 PUMP BODY KITS FOR ELECTRIC TOILET ORDER NO. 504-0299028

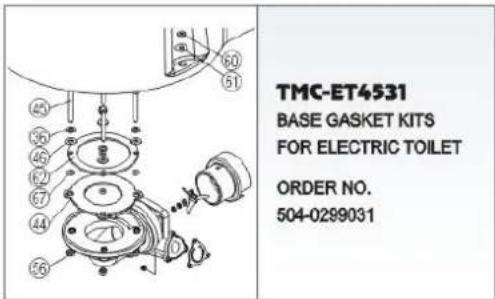

TMC-ET4531 BASE GASKET KITS FOR ELECTRIC TOILET ORDER NO. 504-0299031

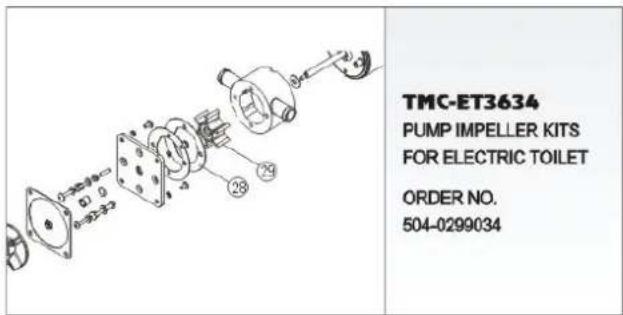

TMC-ET3634 PUMP IMPELLER KITS FOR ELECTRIC TOILET ORDER NO. 504-0299034

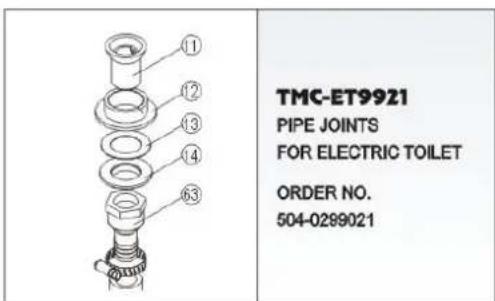

TMC-ET9921 PIPE JOINTS FOR ELECTRIC TOILET ORDER NO. 504-0289021

• TMC TOILET SERVICE PARTS ARE SOLD BY PACKAGE.
- INDIVIDUAL PART LIST IS FOR REFERENCE ONLY.
