BEDIENUNGSANLEITUNG 24M35H-B LG

OWNER'S MANUAL

LED LCD MONITOR

Please read this manual carefully before operating your set and retain it for future reference.

LED LCD MONITOR MODEL

24M35H

CONTENTS

3 ASSEMBLING AND PREPARING

3 Unpacking
4 Parts and buttons
5 Setting up the Monitor set
5 - Attaching the Stand Base
5 - Detaching the Stand Base
6 - Mounting on a table
6 - Using the cable holder
8 - Mounting on a wall

9 USING THE MONITOR SET

9 Connecting to a PC
9 - D-SUB connection
9 - HDMI connection

11 CUSTOMIZING SETTINGS

12 Customizing Settings
12 - Menu Settings
13 - Picture
14 - Color
15 - Display
15 - Audio
16 - Others

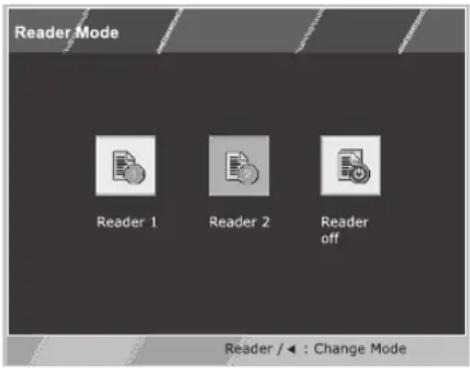

17 READER Setting
18 FUNC. Setting

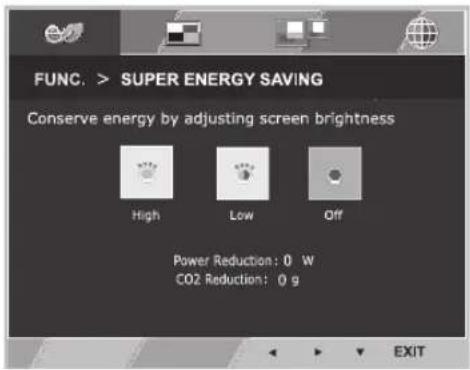

18 - SUPER ENERGY SAVING
19 - Picture Mode

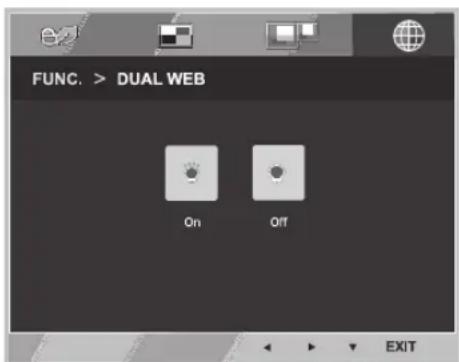

20 - DUAL DISPLAY
20 - DUAL WEB

21 TROUBLESHOOTING

23 SPECIFICATIONS

23 24M35H
24 Preset Modes (Resolution)
24 Indicator

25 PROPER POSTURE

25 Proper posture for using the Monitor set.

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and accessories.

Illustration of a CD or DVD disc and its corresponding blank image (no text or symbols)

CD(Owner's Manual) / Card

D-SUB Cable

Power Cord

Simple black rectangular device with a coiled cable and terminal connector (no text or symbols visible)

AC-DC Adapter

Exterior view of a gray industrial power adapter with a black cable (no text or symbols visible)

AC-DC Adapter

( Depending on the country ) ( Depending on the country )

Stand Body

CAUTION

• Do not use any unapproved accessories to ensure the safety and product life span.
• Any damages or injuries by using unapproved accessories are not covered by the warranty.

NOTE

• The accessories supplied with your product may vary depending on the model.
• Product specifications or contents in this manual may be changed without prior notice due to upgrade of product functions.

Parts and buttons

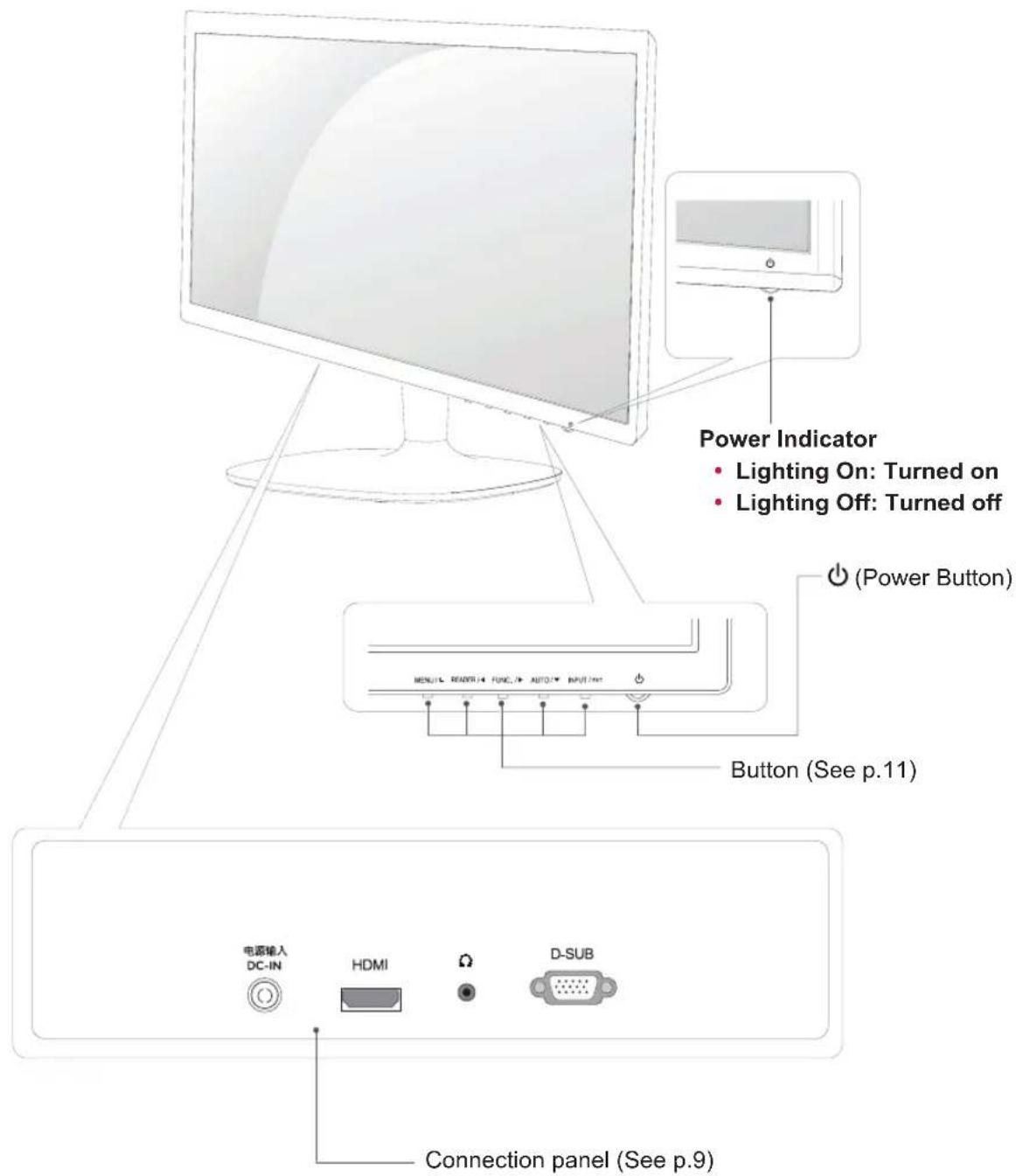

Power Indicator • Lighting On: Turned on • Lighting Off: Turned off Button (See p.11) Connection panel (See p.9)

Setting up the Monitor set

Attaching the Stand Base

1 Place the Monitor set with the screen side down on a flat and cushioned surface.

CAUTION

Lay a foam mat or soft protective cloth on the surface to protect the screen from damage.

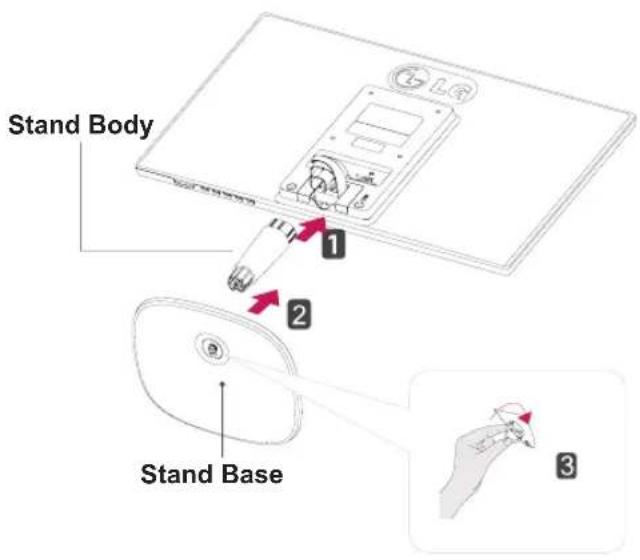

2 1 Attach the Stand Body to the monitor set.
2 Attach the Stand Base.
3 Tighten the screw to the right.

Stand Body 1 2 Stand Base 3

Detaching the Stand Base

1 Place the Monitor set with the screen side down on a flat and cushioned surface.

2 1 Pull out the Stand Body and Stand Base from the monitor set.
2 Turn the screw to the left.
3 Pull out the Stand Base.

Stand Body

Stand Base 1 2

Stand Body Stand Base

Mounting on a table

1 Lift and tilt the Monitor set into its upright position on a table.

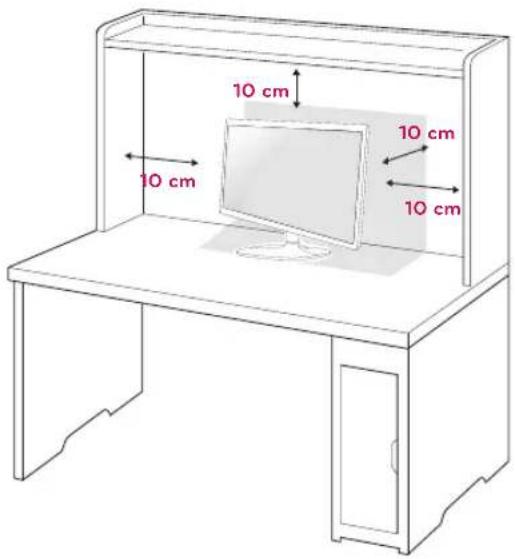

Leave a 10 cm (minimum) space from the wall for proper ventilation.

10 cm 10 cm 10 cm 10 cm

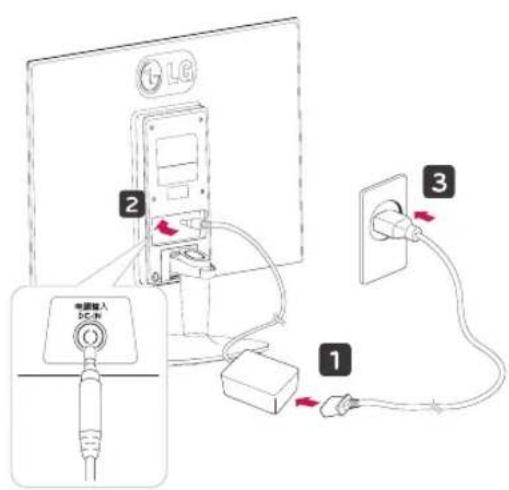

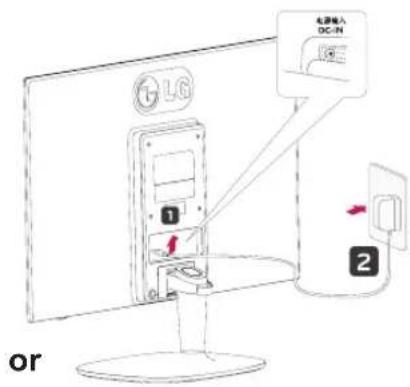

2 Connect the AC-DC Adapter and Power Cord to a wall outlet.

电源输入 DC-料 ① ② or

2 3 1 电源输入 DC/水

3 Press (Power) button on the bottom switch panel to turn the power on.

CAUTION

Unplug the power cord before moving the Monitor to another location. Otherwise electric shock may occur.

Using the cable holder

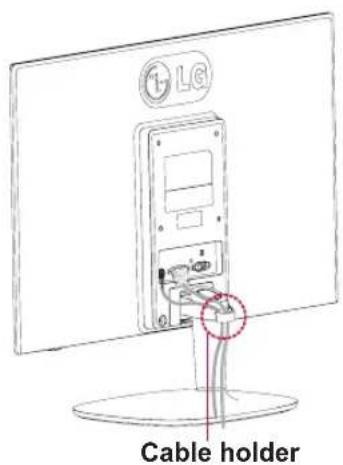

LG Cable holder

Illustration of hands performing a cable or wire manipulation operation, with a red downward arrow indicating action (no text or symbols present)

WARNING

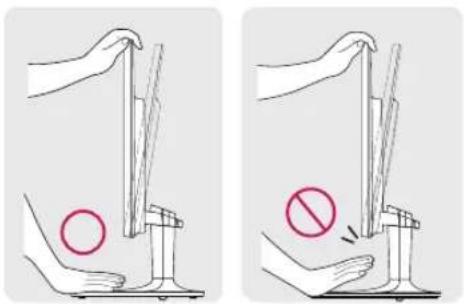

When you adjust the angle, do not hold the bottom of the Monitor set frame as shown on the following illustration, as may injure your fingers.

Illustration of two hands holding a tool, one with a red circle and the other with a prohibition sign (no text or symbols present)

Do not touch or press the screen when adjusting the angle of the monitor.

Line drawing of two hands holding a blank computer monitor with a red prohibition symbol (no text or labels)

Do not hold this set like below picture.Monitor screen can detach from stand base and injure your body.

Simple line drawing of hands holding a rectangular object with a red prohibition symbol (no text or labels)

NOTE

Tilt from +20 to -5 degrees up or down to adjust the angle of the Monitor set to suit your view.

-3° 20° Front Rear

Using the Kensington security system

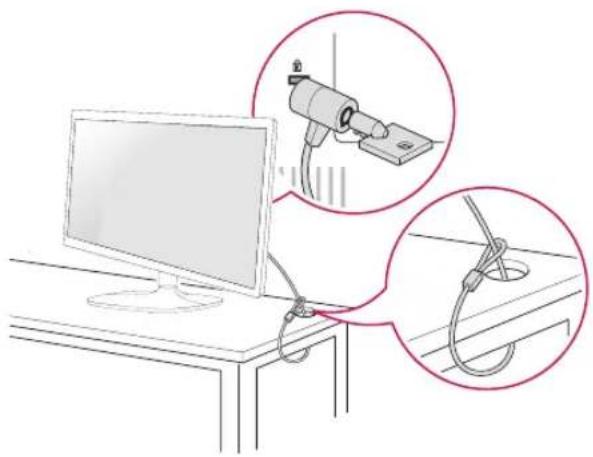

The Kensington security system connector is located at the back of the Monitor set. For more information of installation and using, refer to the manual supplied with the Kensington security system or visit http://www.kensington.com.

Connect the Kensington security system cable between the Monitor set and a table.

Illustration of a computer monitor connected to a cable with two magnified insets showing a mechanical device and a rope knot (no text or symbols present)

NOTE

The Kensington security system is optional. You can obtain it from most electronics stores.

Mounting on a wall

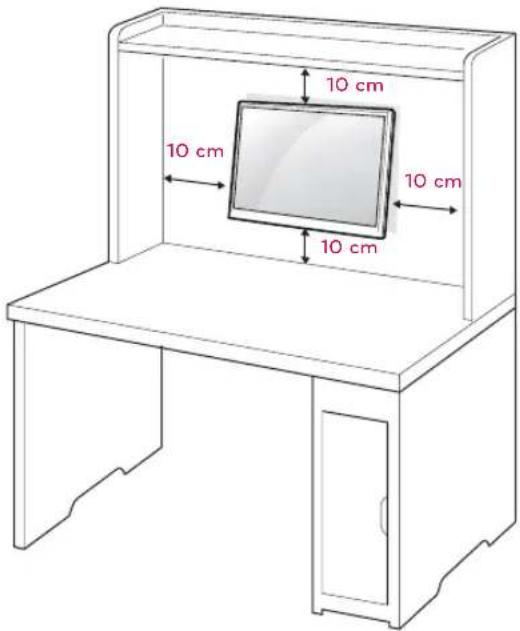

For proper ventilation, allow a clearance of 10 cm on each side and from the wall. Detailed instructions are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and Setup Guide.

10 cm 10 cm 10 cm 10 cm

If you intend to mount the Monitor set to a wall, attach Wall mounting interface (optional parts) to the back of the set.

When you install the Monitor set using a wall mounting interface (optional parts), attach it carefully so it will not drop.

1 Please, Use the screw and wall mount interface in accordance with VESA Standards.

2 If you use screw longer than standard, the monitor might be damaged internally.

3 If you use improper screw, the product might be damaged and drop from mounted position. In this case, LG Electronics is not responsible for it.

4 VESA compatible.

5 Please use VESA standard as below.

• 784.8 mm (30.9 inch) and under
* Wall Mount Pad Thickness : 2.6 mm
* Screw : Φ 4.0 mm x Pitch 0.7 mm x Length 10 mm

• 787.4 mm (31.0 inch) and above

* Please use VESA standard wall mount pad and screws.

Model	24M35H
VESA (A x B)	100 x 100
Standard screw	M4
Number of screws	4

CAUTION

• Disconnect the power cord first, and then move or install the Monitor set. Otherwise electric shock may occur.
• If you install the Monitor set on a ceiling or slanted wall, it may fall and result in severe injury.
• Use only an authorized LG wall mount and contact the local dealer or qualified personnel.
• Do not over tighten the screws as this may cause damage to the Monitor set and void your warranty.
• Use only screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty.

NOTE

• Use the screws that are listed on the VESA standard screw specifications.
• The wall mount kit will include an installation manual and necessary parts.
• The wall mount bracket is optional. You can obtain additional accessories from your local dealer.
• The length of screws may differ depending on the wall mount. Be sure to use the proper length.
• For more information, refer to the instructions supplied with the wall mount.

USING THE MONITOR SET

Connecting to a PC

- Your Monitor set supports Plug & Play ^* .
*Plug & Play: A PC recognizes a connected device that users connect to a PC and turn on, without device configuration or user intervention.

D-SUB connection

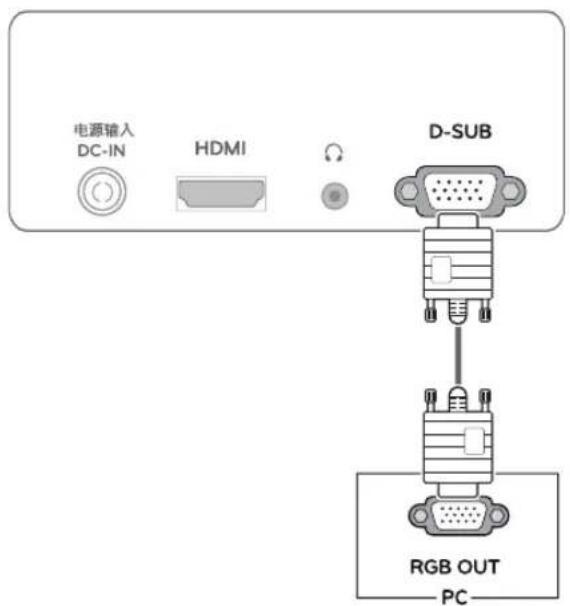

Transmits analog video from your PC to the Monitor set. Connect the PC and the Monitor set with the supplied D-sub 15 pin signal cable as shown in the following illustrations.

电源输入 DC-IN HDMI D-SUB RGB OUT PC

NOTE

- When using a D-Sub signal input cable connector for Macintosh

Technical line drawing of two electronic component packages (no text or symbols)

- Mac adapter

For Apple Macintosh use, a separate plug adapter is needed to change the 15 pin high density (3 row) D-SUB VGA connector on the supplied cable to a 15 pin 2 row connector.

HDMI connection

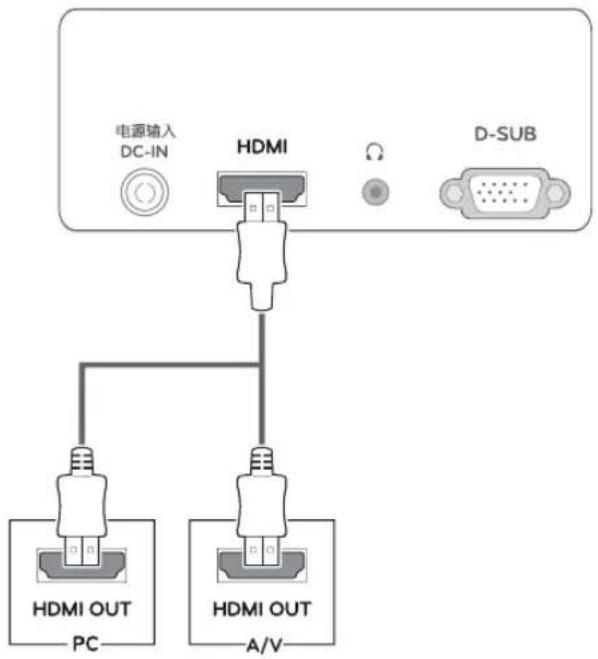

Transmits the digital video and audio signals from your PC or A/V to the Monitor set. Connect the PC or A/V and the Monitor set with the HDMI cable as shown in the following illustrations.

NOTE

- If you use HDMI PC, it can cause compatibility problem.

CAUTION

• Connect the signal input cable and tighten it by turning the screws clockwise.
• Do not press the screen with your finger for a long time as this may result in temporary distortion on the screen.
• Avoid displaying a fixed image on the screen for a long period of time to prevent image burn. Use a screensaver if possible.

NOTE NOTE

• When you want to use two PC in our Monitor, please connect the signal cable(D-SUB/HDMI) respectively in Monitor set.
• If you turn the Monitor set on while it is cold, the screen may flicker. This is normal.
• Some red, green, or blue spots may appear on the screen. This is normal.

Self Image Setting Function

Press the power button on the bottom panel to turn the power on. When monitor power is turned on, the "Self Image Setting" Function is executed automatically. (Only supported in Analog Mode)

FUNC. /► AUTO /▼ INPUT / EXIT

- "Self Image Setting" Function.

This function provides the user with optimal display settings. When the user connects the monitor for the first time, this function automatically adjusts the display to optimal settings for individual input signals. (Only supported in Analog Mode)

• 'AUTO' Function.

When you encounter problems such as blurry screen, blurred letters, screen flicker or tilted screen while using the device or after changing screen resolution, press the AUTO function button to improve resolution. (Only supported in Analog Mode)

CUSTOMIZING SETTINGS

1 Press the desired button on the bottom of the Monitor set.
2 Change the value of the menu item by pressing the buttons on the bottom of the Monitor set.

To return to the upper menu or set other menu items, use the up arrow ( ) button.

3 SelectEXIT to leave the OSD menu.

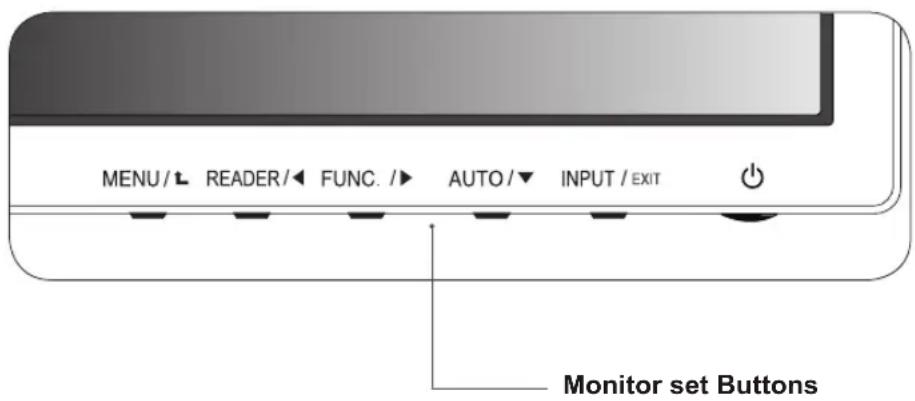

MENU/L READER/◄ FUNC. /► AUTO/▼ INPUT / EXIT Monitor set Buttons

Button Description
MENU / ⬆	Accesses the main menus.(See p.12)
	OSD Locked/OSD Unlocked	This function allows you to lock the current control settings, so that they cannot be inadvertently changed.Press and hold the MENU button for several seconds.The message "OSD LOCKED" should appear.You can unlock the OSD controls at any time by pushing the MENU button for several seconds. The message "OSD UNLOCKED" should appear.
READER/◀	Use this button to enter Reader Mode menu. Its function works to display screen as paper-like picture for Eye comfort.If you want to more information(See p.17).
FUNC./▶	Use this button to enter SUPER ENERGY SAVING, Picture Mode, DUAL DISPLAY, DUAL WEB menus.(See p.18)
AUTO / ▼	When adjusting your display settings, always press the AUTO button on the MONITOR SETUP OSD. (Only supported in Analog Mode)
	The best display mode	1920 x 1080
INPUT / EXIT	You can choose the input signal.When two input signals are connected, you can select the input signal (D-SUB/HDMI) you want.When only one signal is connected, it is automatically detected. The default setting is D-SUB.
	EXIT
	EXIT the OSD(On Screen Display).
◀ (Power Button)	Turns the power on or off.
	Power Indicator The power indicator stays white if the display is running properly (On Mode). If the display is in Sleep Mode, the power indicator blinks white.

Customizing Settings

Menu Settings

1 PressMENU button on the bottom of the Monitor set to display the Menu OSD.
2 Set the options by pressing the ◀ or ▶ or ▼ buttons.
3 Select the Next Menu" button to enter the more option settings.
4 SelectEXIT to leave the OSD menu. To return to the upper menu or set other menu items, use the up arrow (↑) button.

Each option is explained below.

Menu Brightness 100 Contrast 70 Wide/Original Wide 1/2 Reset No 1/2 Next Menu Menu > Next Menu > Picture A Sharpness 5 B Black Level High 1/2 C Over Scan Off 1/2 L EXIT

Menu Analog HDMI			Description
Brightness	● ●		To adjust the brightness of the screen
Contrast	● ●
Wide/Original	●	●	Wide
			Switch to full screen mode according to input image signal.
			Original
			Change the input image signal ratio to original.* This function works only if input resolution is lower than Monitor set ratio (16:9).
Reset	●	●	Restore all factory default settings. Press the◀, ▶buttons to reset immediately.

Menu > Next Menu Analog		HDMI	Description
Picture Sharpness • •				To adjust the clearness of the screen
Color Gamma		•	•	To customize the color of the screen
Display Horizontal		•		To adjust the position of the screen
Audio	Volume •			To adjust the volume

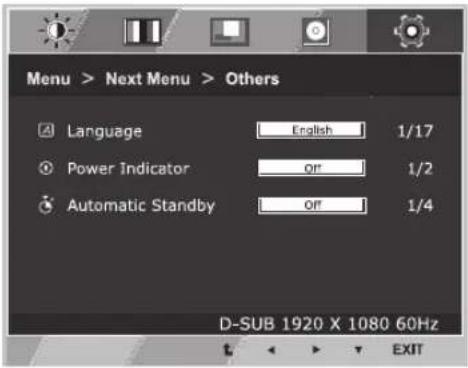

Others Language		•	•	To customize the screen status for a user's operating environment

• Analog: D-SUB(Analog signal) input.
• HDMI: HDMI(Digital signal) input.


1 PressMENU button on the bottom of the Monitor set to display the Menu OSD.
2 Select the Next Menu" button to enter the more option settings.
3 Enter toPicture by pressing the ▼ button.
4 Set the options by pressing the ◀ or ▶ or ▼ buttons.
5 SelectEXIT to leave the OSD menu.

To return to the upper menu or set other menu items, use the up arrow (↑) button.

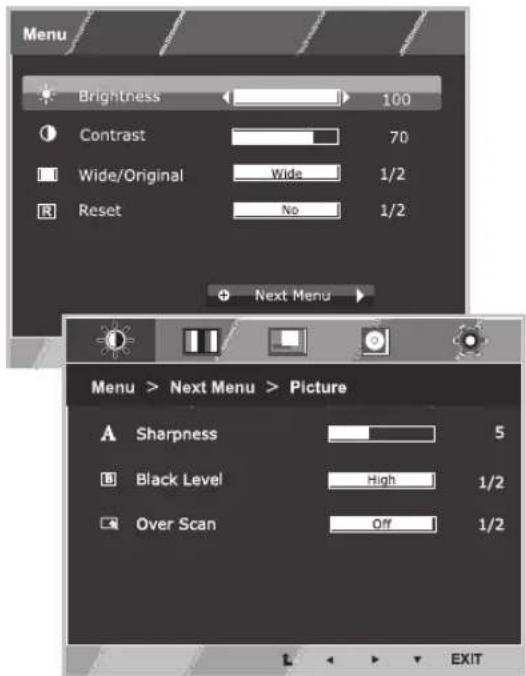

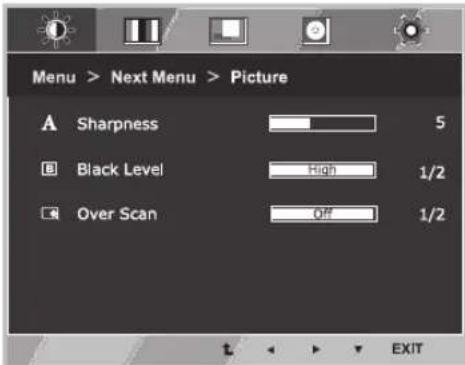

Menu > Next Menu > Picture A Sharpness 5 Black Level High 1/2 Over Scan Off 1/2 EXIT

Each option is explained below.

Menu > Next Menu > Picture Description
Sharpness To adjust the clearness of the screen.
Black Level	You can set the offset level. If you select 'High', the screen will be bright and if you select 'Low', the screen will be dark.(only for HDMI input)* Offset?As the criteria for video signal, it is the darkest screen the monitor can show.
Over Scan To select the range of output image for DTV timing in HDMI input.(only for HDMI input)Recommend overscan function to turn on when connect AV equipment.

Color

1 PressMENU button on the bottom of the Monitor set to display the Menu OSD.
2 Select the Next Menu" button to enter the more option settings.
3 SelectColor by pressing the ▶ button.
4 Enter toColor by pressing the ▼ button.
5 Set the options by pressing the ◀ or ▶ or ▼ buttons.
6 SelectEXIT to leave the OSD menu. To return to the upper menu or set other menu items, use the up arrow (↑) button.

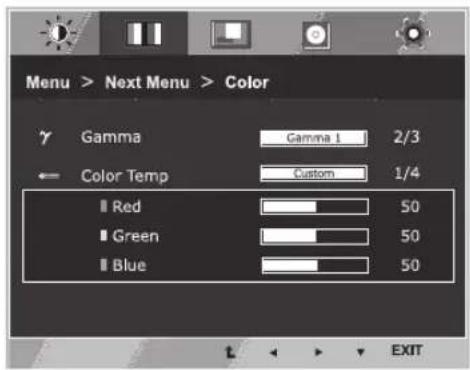

Menu > Next Menu > Color γ Gamma Gamma 1 2/3 ← Color Temp Custom 1/4 ■ Red 50 ■ Green 50 ■ Blue 50 EXIT

Each option is explained below.

Menu > Next Menu > Color Description
Gamma Set your own gamma value.	: Gamma 0, Gamma 1, Gamma 2 on the monitor, high gamma values display whitish images and low gamma values display blackish images.
Color Temp Custom
	• Red:Set your own red color levels.• Green:Set your own green color levels.• Blue:Set your own blue color levels.
	Select the screen color.Warm:Set the screen to warm color temperature (more red).Medium:Set the screen to medium color temperature.Cool:Set the screen to cool color temperature (more blue).

Display

1 PressMENU button on the bottom of the Monitor set to display the Menu OSD.
2 Select the Next Menu" button to enter the more option settings.
3 SelectDisplay by pressing the ▶ button.
4 Enter toDisplay by pressing the ▼ button.
5 Set the options by pressing the ◀ or ▶ or ▼ buttons.
6 SelectEXIT to leave the OSD menu. To return to the upper menu or set other menu items, use the up arrow (↑) button.

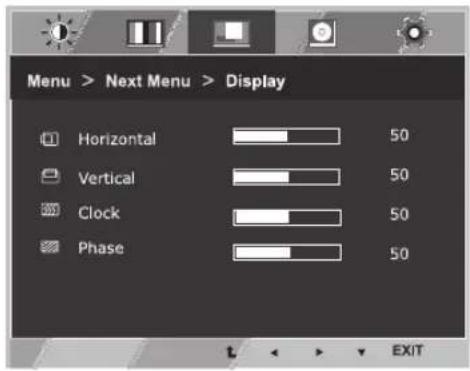

Menu > Next Menu > Display Horizontal 50 Vertical 50 Clock 50 Phase 50 EXIT

Each option is explained below.

Menu > Next Menu > Display	Description
Horizontal To move image left and right.
Vertical To move image up and down.
Clock To minimize any vertical bars	or stripes visible on the screen background.The horizontal screen size will also change.
Phase To adjust the focus of the display. This item allows you to remove any horizontal noise and clear or sharpen the image of characters.

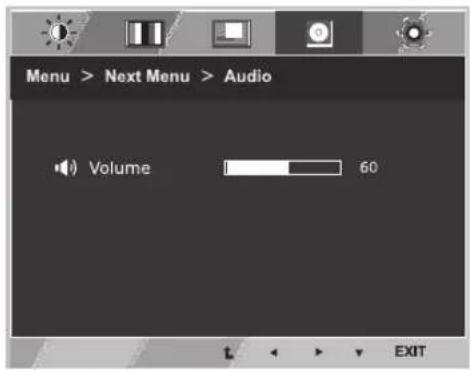

Audio

1 PressMENU button on the bottom of the Monitor set to display the Menu OSD.
2 Select the Next Menu" button to enter the more option settings.
3 SelectAudio by pressing the ▶ button.
4 Enter toVolume by pressing the ▼ button.
5 Set the options by pressing the ◀ or ▶ buttons.
6 SelectEXIT to leave the OSD menu.

To return to the upper menu or set other menu items, use the up arrow (↑) button.

Menu > Next Menu > Audio Volume 60 EXIT

Each option is explained below.

Menu > Next Menu > Audio Description

Volume To adjust the volume of headphone/earphone.(Only for HDMI input)

Others

1 PressMENU button on the bottom of the Monitor set to display the Menu OSD.
2 Select the Next Menu" button to enter the more option settings.
3 SelectOthers by pressing the ▶ button.
4 Enter toOthers by pressing the ▼ button.
5 Set the options by pressing the ◀ or ▶ or ▼ buttons.
6 SelectEXIT to leave the OSD menu. To return to the upper menu or set other menu items, use the up arrow (↑) button.

Menu > Next Menu > Others Language English 1/17 Power Indicator Off 1/2 Automatic Standby Off 1/4 D-SUB 1920 X 1080 60Hz EXIT

Each option is explained below.

Menu > Next Menu > Others Description
Language To choose the language	n which the control names are displayed.
Power Indicator	Use this function to set the power indicator on the bottom side of the monitor to On or Off.If you set Off, it will go off.If you set On at any time, the power indicator will automatically be turned on.
Automatic Standby	If you do not press any button on the monitor set for a certain period, the monitor set will automatically switch to standby mode.

READER Setting

1 Press READER button on the bottom of the Monitor set to display the Reader Mode OSD.
2 Set the options by pressing the ◀ buttons.

Reader Mode Reader 1 Reader 2 Reader off Reader / ← : Change Mode

Each option is explained below.

Reader Mode Description

Reader 1 It is a mode that the screen is adjusted to the best for the newspaper. If you want screen more bright, you can control brightness in Menu OSD.

Reader 2 It is a mode that the screen is adjusted to the best for the cartoon. If you want screen more bright, you can control brightness in Menu OSD.

Reader Off It is a mode that reader mode is off.

NOTE

If option of Reader Mode is Reader 1 or Reader 2, Picture Mode will automatically be Custom and Super Energy Saving will automatically be Off.

FUNC. Setting

SUPER ENERGY SAVING

1 Press FUNC. button on the bottom of the Monitor set to display the FUNC. OSD.
2 Enter to SUPER ENERGY SAVING by pressing the ▼ button.
3 Set the options by pressing the ◀ or ▶ or ▼ buttons.
4 SelectEXIT to leave the OSD menu. To return to the upper menu or set other menu items, use the up arrow (↑) button.

FUNC. > SUPER ENERGY SAVING Conserve energy by adjusting screen brightness High Low Off Power Reduction: 0 W CO2 Reduction: 0 g EXIT

Each option is explained below.

SUPER ENERGY SAVING Description
High	Enables SUPER ENERGY SAVING you can save energy with this energy- high efficient function.
Low	Enables SUPER ENERGY SAVING you can save energy with this energy- low efficient function.
Off Disables SUPER ENERGY	SAVING.

NOTE

• TOTAL POWER REDUCTION: How much power is saved while using the monitor.
• TOTAL CO2 REDUCTION: Change the TOTAL POWER REDUCTION to CO2.
• SAVING DATA(W/h)

	600 mm(23.6 inch)
SUPER SAVING(High)	6 W/h
SUPER SAVING(Low)	3 W/h

• Saving Data depends on the Panel. So, those values should be different from each panel and panel vendor. If option of Super Energy Saving is High or Low, monitor luminance become higher or lower depend on source.
• LG calculated these values by using "broadcast video signal"

(including broadcast video: IEC 62087)

• SUPER SAVING refers to how much power can be saved using the SUPER ENERGY SAVING function.
• If option of Super Energy Saving is High or Low, Picture Mode will automatically be Custom and Reader Mode will automatically be Reader Off.

Picture Mode

1 PressFUNC. button on the bottom of the Monitor set to display the FUNC. OSD.
2 SelectPicture Mode by pressing the ▶ button.
3 Enter toPicture Mode by pressing the ▼ button.
4 Set the options by pressing the ◀ or ▶ buttons.
5 Select EXIT to leave the OSD menu. To return to the upper menu or set other menu items, use the up arrow(↓)button.

PC Mode

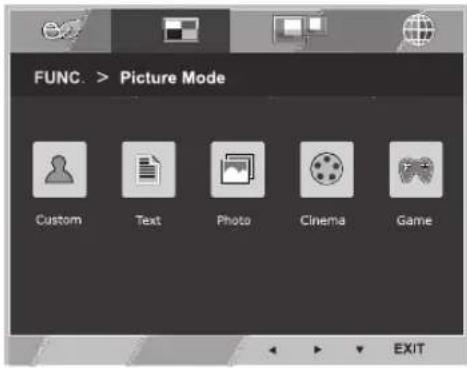

FUNC. > Picture Mode Custom Text Photo Cinema Game EXIT

AV Mode

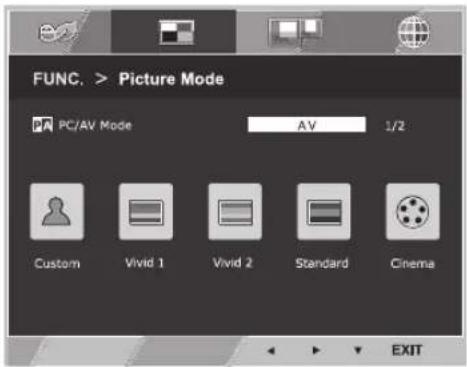

FUNC. > Picture Mode PC/AV Mode AV 1/2 Custom Vivid 1 Vivid 2 Standard Cinema EXIT

Each option is explained below.

Picture Mode	Description
Custom	It is a mode that the user can adjust each element. It can adjust the color mode of the Main Menu.
Text It is a mode that the screen is adjusted to the best for the textworks.
Photo It is a mode that the screen is adjusted to the best to view pictures.
Cinema It is a mode that the screen is adjusted to the best to view the videos.
Game It is a mode that the screen is adjusted to the best to play a game.

Picture Mode	Description
Custom	It is a mode that the user can adjust each element. It can adjust the color mode of the Main Menu.
Vivid 1	Adjusts the video image for the retail environment by enhancing the contrast, brightness, Colour, and sharpness.
Vivid 2
Standard	Adjusts the image for the normal environment.
Cinema	It is a mode that the screen is adjusted to the best to view the videos.

NOTE

If option of Picture Mode is non-Custom, Reader Mode will automatically be Reader Off and Super Energy Saving will automatically be Off.

* Before using below functions, please install DUAL SMART SOLUTION programme.

DUAL DISPLAY

1 Press FUNC. button on the bottom of the Monitor set to display the FUNC. OSD.
2 SelectDUAL DISPLAY by pressing the ▶ button.
3 Enter toDUAL DISPLAY by pressing the ▼ button.
4 Set the options by pressing the ◀ or ▶ buttons.
5 SelectEXIT to leave the OSD menu. To return to the upper menu or set other menu items, use the up arrow (↑) button.

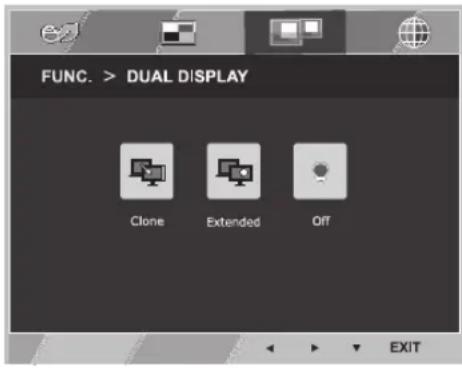

FUNC. > DUAL DISPLAY Clone Extended Off EXIT

Each option is explained below.

DUAL DISPLAY Description
Clone By selecting Clone,user	can use secondary monitor as done mode of primary monitor.
Extended By selecting Extended	user can use secondary monitor as extended mode of primary monitor.
Off If select Off,DUAL DISPLAY	is off.

* Before using below functions, please install DUAL SMART SOLUTION programme.

DUAL WEB

1 Press FUNC. button on the bottom of the Monitor set to display the FUNC. OSD.
2 SelectDUAL WEB by pressing the ▶ button.
3 Enter toDUAL WEB by pressing the ▼ button.
4 Set the options by pressing the ◀ or ▶ buttons.
5 SelectEXIT to leave the OSD menu. To return to the upper menu or set other menu items, use the up arrow (↑) button.

FUNC. > DUAL WEB On Off EXIT

Each option is explained below.

DUAL WEB Description

On Help user to browse web efficiently by dividing in half. Help to arrange and move windowson screen. Help user to control dividedwindows ratio.

Off If select Off,DUAL WEB is off.

NOTE

- When monitor goes to power saving mode with pc saving option-> Pressing any button -> OSD appear and user should press dual button -> User can bring back to normal mode.

TROUBLESHOOTING

Check the following before calling for service.

No image appears
Is the power cord of the display connected?	Check and see if the power cord is connected properly to the power outlet.
Is the power indicator light on?	Press the Power button.
Is the power on and the power indicator White?	Adjust the brightness and the contrast.
Is the power indicator flickering?	If the display is in power saving mode, try moving the mouse or pressing any key on the keyboard to bring up the screen.Try to turn on the PC.
Do you see an "OUT OF RANGE" message on the screen?	This message appears when the signal from the PC (video card) is out of horizontal or vertical frequency range of the display. See the 'Specifications' section of this manual and configure your display again.
Do you see a "NO SIGNAL" message on the screen?	When the monitor is on "No-Signal" in 5 minutes, the monitor goes to DPM mode.

Do you see a "OSD LOCKED" message on the screen?
Do you see “OSD LOCKED” when you push MENU button?	• You can secure the current control settings, so that they cannot be inadvertently changed. You can unlock the OSD controls at any time by pushing the MENU button for several seconds: the message “OSD UNLOCKED” will appear.

Display image is incorrect
Display Position is incorrect.	Press the AUTO button to automatically adjust your display image to the ideal setting.
On the screen background, vertical bars or stripes are visible.	Press the AUTO button to automatically adjust your display image to the ideal setting.
Any horizontal noise appearing in any image or characters are not clearly portrayed.	Press the AUTO button to automatically adjust your display image to the ideal setting.Check Control Panel ▶ Display ▶ Settings and adjust the display to the recommended resolution or adjust the display image to the ideal setting. Set the color setting higher than 24 bits (true color).

CAUTION

• Check Control Panel ▶ Display ▶ Settings and see if the frequency or the resolution were changed. If yes, readjust the video card to the recommend resolution.
• If the recommended resolution (optimal resolution) is not selected, letters may be blurred and the screen may be dimmed, truncated or biased. Make sure to select the recommend resolution.
• The setting method can differ by computer and O/S (Operation System), and resolution mentioned above may not be supported by the video card performance. In this case, please ask to the computer or the video card manufacturer.

Display image is incorrect
The screen color is mono or abnormal.	Check if the signal cable is properly connected and use a screwdriver to fasten if necessary.Make sure the video card is properly inserted in the slot.Set the color setting higher than 24 bits (true color) atControl Panel▶ Settings.
The screen blinks.	Check if the screen is set to interlace mode and if yes, change it to the recommend resolution.

Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message?
Have you installed the display driver?	Be sure to install the display driver from the display driver CD (or diskette) that comes with your display. Or, you can also download the driver from our web site: http://www.lg.com.Make sure to check if the video card supports Plug&Play function.

The screen is flickering.
Did you select the recommended resolution?	• If the selected resolution is HDMI 1080i 60/50 Hz, the screen may be flickering. Change the resolution to the recommended resolution 1080P.

SPECIFICATIONS

24M35H

Display Screen	Type 60.0 cm (23.6 inch)	Flat Panel Active matrix-TFT LCDAnti-Glare coatingVisible diagonal size: 60.0 cm
	Pixel Pitch 0.272 mm x	0.272 mm (Pixel Pitch)
Sync Input Horizontal Frequency 30 kHz to 83 kHz (Automatic)
Vertical Frequency 56Hz to 75Hz (D-SUB)56Hz to 61Hz (HDMI)
Input Form Separate Sync. Digital
Video Input Signal Input 15 pin D-SUB Connector/HDMI Connector
Input Form RGB Analog (0.7 Vp-p/ 75 ohm), Digital
Resolution Max D-SUB(Analog): 1920 x 1080 @ 60 HzHDMI (Digital): 1920 x 1080 @ 60 Hz
Recommend VESA 1920 x 1080 @ 60 Hz
Plug & Play DDC 2B(Analog,HDMI)
Power Consumption On Mode: 23 W(Typ.)Sleep Mode ≤ 0.3 WOff Mode ≤ 0.3 W
Power Input 19 V =1.3 A
AC-DC Adapter	Type ADS-40SG-19-3 19025G, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-40FSG-19 19025GPG-1, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-40FSG-19 19025GPBR-1, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-40FSG-19 19025GPI-1, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-40FSG-19 19025GPCU-1, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-40FSG-19 19025GPB-2, manufactured by SHENZHEN HONOR ELECTRONIC or Type LCAP21, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type LCAP26-A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type LCAP26-E, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type LCAP26-I, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type LCAP26-B, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type PSAB-L203A, manufactured by LG Innotek Co.,Ltd or Type PSAB-L202B, manufactured by LG Innotek Co.,Ltd or Type PSAB-L202C, manufactured by LG Innotek Co.,Ltd or Type PSAB-L202D, manufactured by LG Innotek Co.,Ltd
	OUTPUT: 19 V--- 1.3 A
Dimensions (Width x Height x Depth)	With Stand 55.6 cm x 43.8 cm x 21.5 cm
	Without Stand	55.6 cm x 34.1 cm x 9.8 cm
Weight	3.0 kg
Tilt Range	-3° to 20°
Environmental conditions	Operating Temperature Operating Humidity	10°C to 35 °C10 % to 80 %
	Storage Temperature Storage Humidity	-20°C to 60 °C5 % to 90 % non-Condensing
Stand Base Attached ( ), Detached (O)
Power cord Wall-outlet type

Product specifications shown above may be changed without prior notice due to upgrade of product functions.

Preset Modes (Resolution)

D-SUB Timing

Display Modes (Resolution)				Horizontal Frequency(kHz)	Vertical Frequency(Hz)	Polarity(H/V)
720 x 400	31.468	70	-/+
640 x 480	31.469	60	-/-
640 x 480	37.500	75	-/-
800 x 600	37.879	60	+/+
800 x 600	46.875	75	+/+
1024 x 768	48.363	60	-/-
1024 x 768	60.023	75	+/+
1152 x 864	67.500	75	+/+
1280 x 1024	63.981	60	+/+
1280 x 1024	79.976	75	+/+
1680 x 1050	65.290	60	-/+
1920 x 1080	67.500	60	+/+	Recommend Mode

HDMI Timing

Factory support mode(Preset Mode)	HorizontalFrequency(kHz)	VerticalFrequency(Hz)	HDMI
480P 31.50 60 O
576P 31.25 50 O
720P 37.50 50 O
720P 45.00 60 O
1080i 28.12 50 O
1080i 33.75 60 O
1080P 56.25 50 O
1080P 67.50 60			ORecommend Mode

Indicator

Mode LED Color
On Mode White
Sleep Mode Blinking White
Off Mode Off

PROPER POSTURE

Proper posture for using the Monitor set.

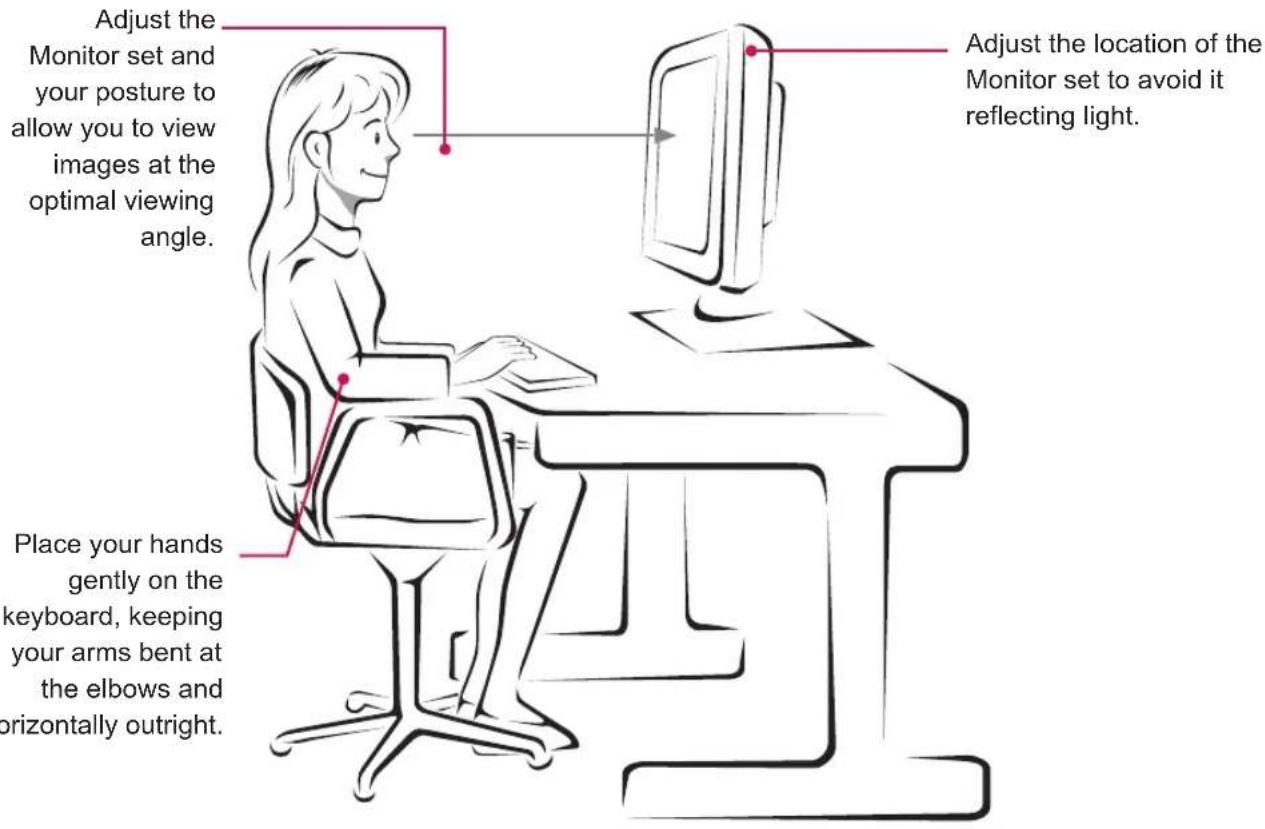

Adjust the Monitor set and your posture to allow you to view images at the optimal viewing angle. Place your hands gently on the keyboard, keeping your arms bent at the elbows and borizontally outright. Adjust the location of the Monitor set to avoid it reflecting light.

Place your hands gently on the keyboard, keeping your arms bent at the elbows and horizontally outright.

LG

Life's Good

Declaration of Conformity

Trade Name: LG

Model : 24M35HA

Responsible Party: LG Electronics Inc.

Address : 1000 Sylvan Ave. Englewood Cliffs NJ 07632 U.S.A

TEL: [phone]

*above information is only for USA FCC Regulatory

Make sure to read the Safety Precautions before using the product.

Keep the Owner's Manual (CD) in an accessible place for future reference.

The model and serial number of the SET is located on the back and one side of the SET.

Record it below should you ever need service.

MODEL

SERIAL
