BEDIENUNGSANLEITUNG NDS-1208 Naxa

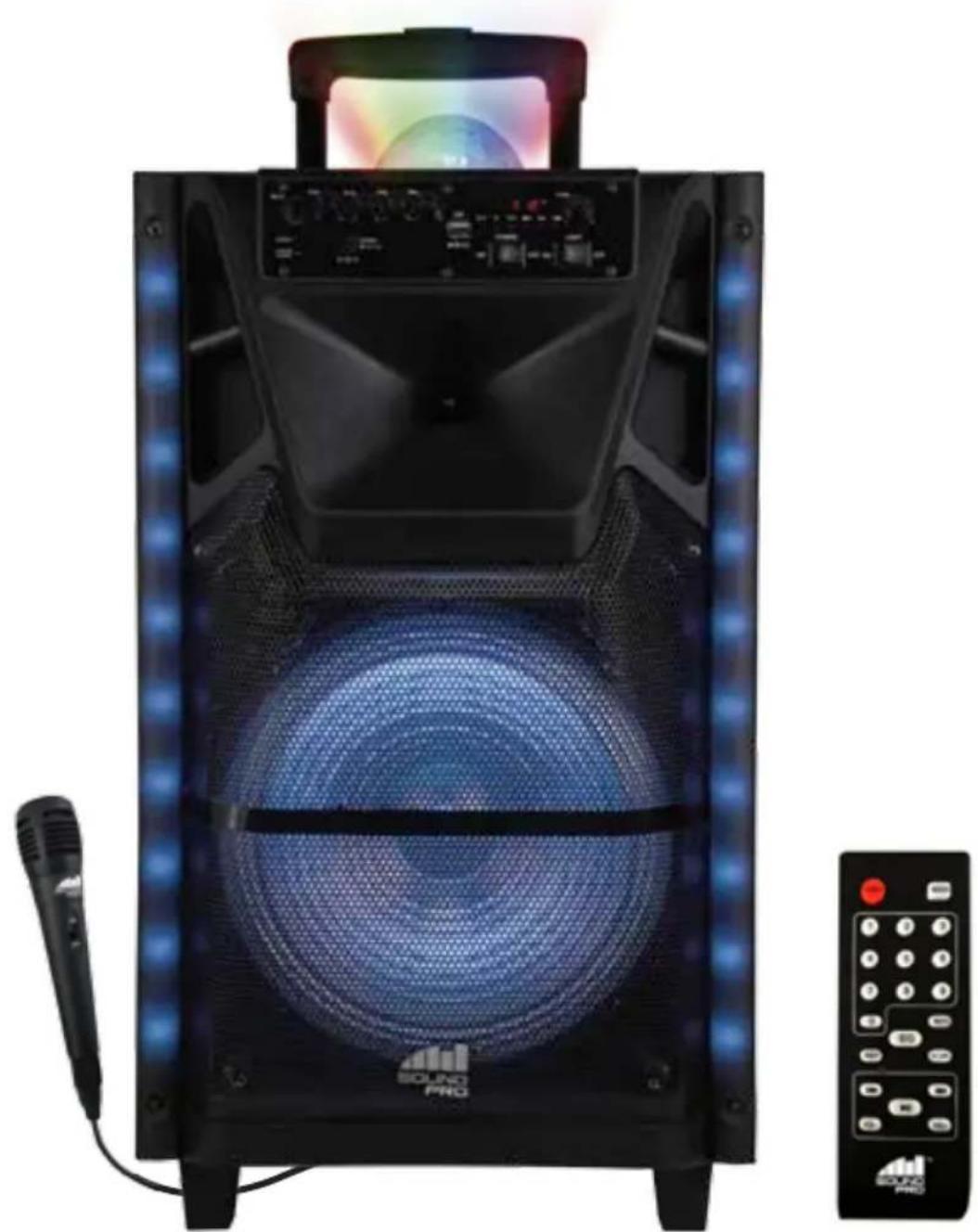

Exterior view of a sound wave projector tower with blue LED lighting and a black control panel (no text or symbols visible)

WARNING

CAUTION WARNING: SHOCK HAZARD. DO NOT OPEN. AVIS: RISQUE DE CHOC ELECTRIQUE. NE PAS OUVRIR

CAUTION: TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK) OF THE UNIT. REFER SERVICING ONLY TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of significant magnitude to constitute risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operation and servicing instructions in the literature accompanying the appliance.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Guard this manual.

3. Obey all alerts.

4. Follow all instructions.

5. WARNING. To prevent fire or shock hazard, do not expose this equipment to rain or moisture. Do not store and operate this product near liquid.

6. Clean only with dry cloth.

7. Do not store and operate this product near any heat sources such as radiators and heat registers, stove or other appliances (including amplifiers) that produce heat. Keep this product in a well ventilated place.

8. Do not ignore the safety purpose of the polarized or grounding plug. A polarized plug has two blades being wider than the other. A grounding plug has two blades plus a round pin to ground. The wide blade or third prong is intended to provide security. If the provided plug does not fit into your outlet, consult an electrician to replace the outlet.

9. Protect all wires connected to this unit from being walked on or pinched, particularly at plugs and the point where the cord exits the unit. When unplugging from the electrical outlet, grasp the plug and do not pull the cord.

10. Disconnect the unit during lightning storms or when long period is to remain unused.

11. Keep this unit off when connecting all the devices connected to it.

12. After finishing the installation and connections, connect all your equipment with low volume level. Once all devices are connected, slowly increase the volume or level controls to achieve the proper position.

13. Before placement, installation, as assembly or suspending any product, inspect all equipment suspension, cabinets, transducers, brackets and associated equipment. Any missing component, corroded, deformed, or with non-nominal load can reduce the intensity, placement and arrangement of the installation significantly. Any of these conditions can reduce the security of the facility and must be corrected immediately. Use only suitable equipment for the loading conditions of the installation and that any possibility of reducing term, unexpected overload, never exceed the capacity of the material or equipment.

14. Consult a licensed professional to install the equipment and make sure that all local, regional and national regulations related to security are understood and adhered to.

15. All services should be performed by qualified professionals. Servicing is required when the apparatus has been damaged in any way, as if having the power cord or its damaged connector, or if the machine breaks contact with liquid or if any object is inserted in the unit or if the unit is exposed to rain or moisture, or if the unit does not operate normally, or has been dropped.

CHARGE THE BATTERY FULLY BEFORE FIRST USE TO OPTIMIZE ITS LIFETIME PERFORMANCE.

FCC NOTICE

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, ma cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to connect the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAUTION ON MODIFICATIONS

Any changes or modifications not expressly approved by the grantee of this device may void the authority granted by the FCC to operate the equipment.

NDS-1208 • 12" Portable DJ SPEAKER USER'S GUIDE

Thank you for purchasing the NDS-1208 12" DJ Speaker with Bluetooth and FM Radio.

Please read the manual carefully before operating.

FEATURES

• Drivers: 12"Woofer + 1.5"Tweeter
  • Woofer with Disco Light, Top Dome and 2x side Flashing Lights
  • 5 Control Levels including; Volume, Treble, Bass, Echo, and MIC Volume
  • FM Radio
• Front LED Display
  • Peak Music Power Output (PMPO): 3000 W
• Stream Music from wireless Bluetooth® enabled devices
  • Built-in MP3 player supports USB and Micro SD memory cards
• Inputs: Karaoke 6.3 mm MIC, 3.5 mm AUX
  • Wired Microphone & Remote Control included
  •Convenient Telescoping handle and trolley wheels

PARING A BLUETOOTH DEVICE

Use Bluetooth mode to stream music from a Bluetooth enabled device (e.g., smartphone or tablet device). A device must be paired with the unit before using them together for the first time.

1. Make sure Bluetooth is enabled on your device and that it is next to the unit before attempting to pair it.
2. Turn on the DJ Speaker and set it to Bluetooth mode (press the MODE button). The speaker will automatically enter pairing mode and make a beeping sound.
3. Use your device to search for nearby Bluetooth devices. The speaker will be listed as "SOUND PRO NDS-1208." (This function is usually in the Bluetooth settings menu; refer to your device's instruction manual to learn more.)
4. Select "SOUND PRO NDS-1208" from the list of found/available devices. The speaker will make a confirmation tone that connection is successful. You can now start playback on your connected device to begin streaming music to the speaker.

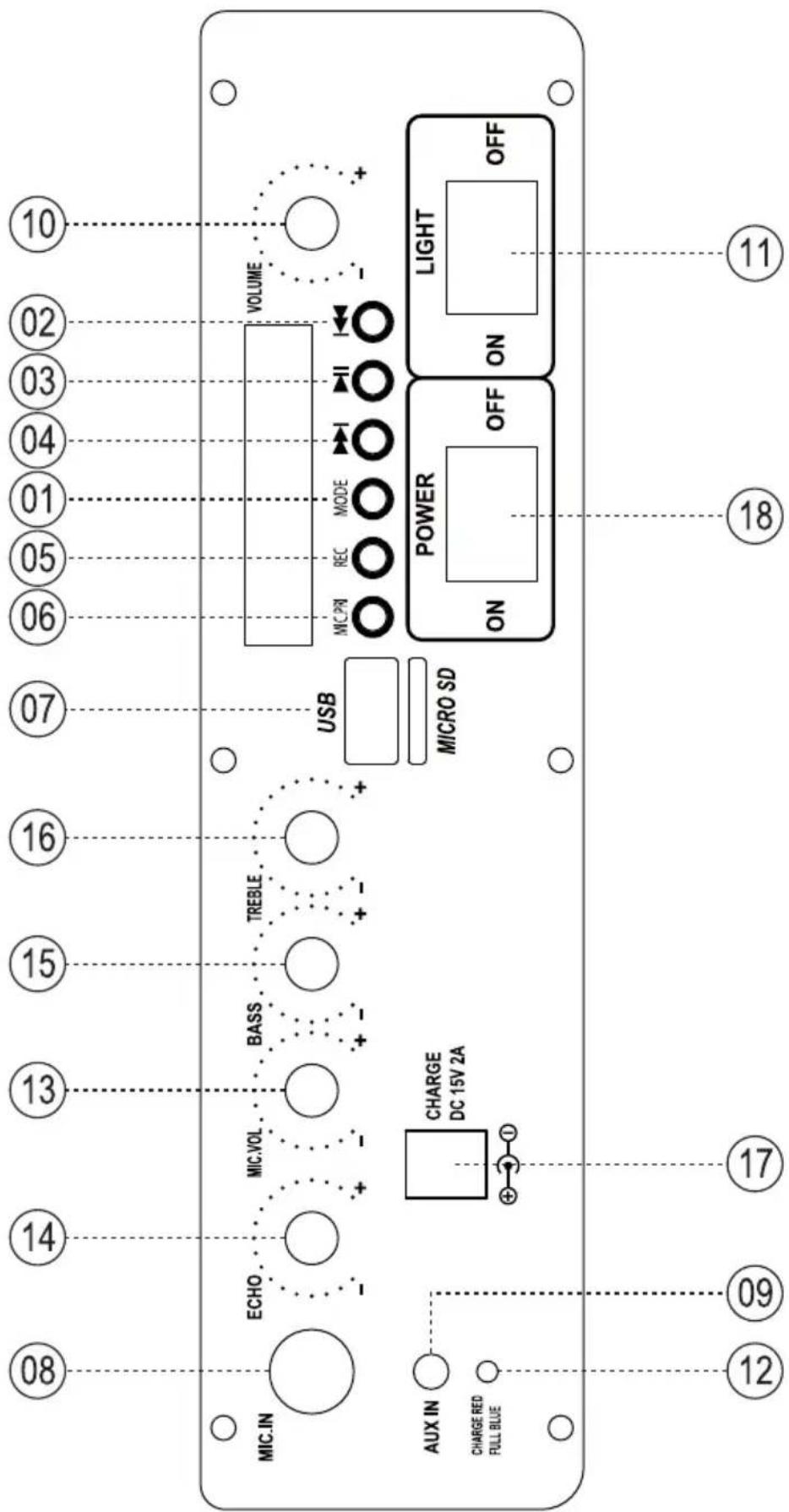

08 14 13 15 16 07 06 05 01 04 03 02 10 MIC.IN ECHO MIC.VOL BASS TREBLE VOLUME USB MIC PRI REC MODE I II - MICRO SD POWER ON OFF ON LIGHT CHARGE RED FULL BLUE AUX IN 12 09 17 18 11

1. Input Model Button: Press this button to toggle between the various inputs (LINE, USB, MICRO SD, FM & Bluetooth)
2. Previous Track button: When in USB/MICRO SD/Bluetooth mode, press this button to skip to the previous track. Press and hold it to decrease the volume for USB/MICRO SD/Bluetooth. When in FM mode, press this button to tune to the previous station. Hold it down to decrease the volume for FM.
3. Play/Pause button: When in USB/MICRO SD mode, press this button to start or pause playback.
4. Next Track button: When in USB/MICRO SD/Bluetooth mode, press this button to skip to the next track. Press and hold it to increase the volume for USB/MICRO SD/Bluetooth. When in FM mode, press this button to tune to the next station. Press and hold it to increase the volume for FM.
5. REC/PLAY: Press this button to play or record from Karaoke.
6. Press the MIC PRI button to turn on the MIC priority function.
7. USB/MICRO SD card port: connect your USB or MICRO SD card here. The speaker will only play music files from USB/MICRO SD input only. Do not connect your computer to the USB port; it will not play files directly from a computer.

NOTE: The USB port is intended only for data transfer only. Other devices cannot be used with this USB connection. The use of USB extension cords is not recommended.

1. Microphone Input: Connection for a microphone with a 1/4 inch plug.
2. AUX Input: Connection for a music player or other audio device with a 3.5 mm plug.
3. Master Level Volume Control: Turn this dial to adjust the master volume.
4. Light ON/OFF: Turns the light ON or OFF.
5. Charging indicator: Light is RED when battery is charging. Light will turn BLUE when Full.
6. Microphone Volume Control: Turn this dial to adjust the volume level of the microphone input.
7. Microphone ECHO dial: Turn this to adjust the reverb effect level applied to the microphone input.
8. Bass dial: Turn this to adjust the level of low frequencies.
9. Treble dial: Turn this to adjust the level of high frequencies.
10. DC Connection: Use the power adaptor (15V, 2A) to connect the unit to an AC power outlet.
11. Power button: setting the unit to ON will allow the unit to play using the built-in battery or DC power.

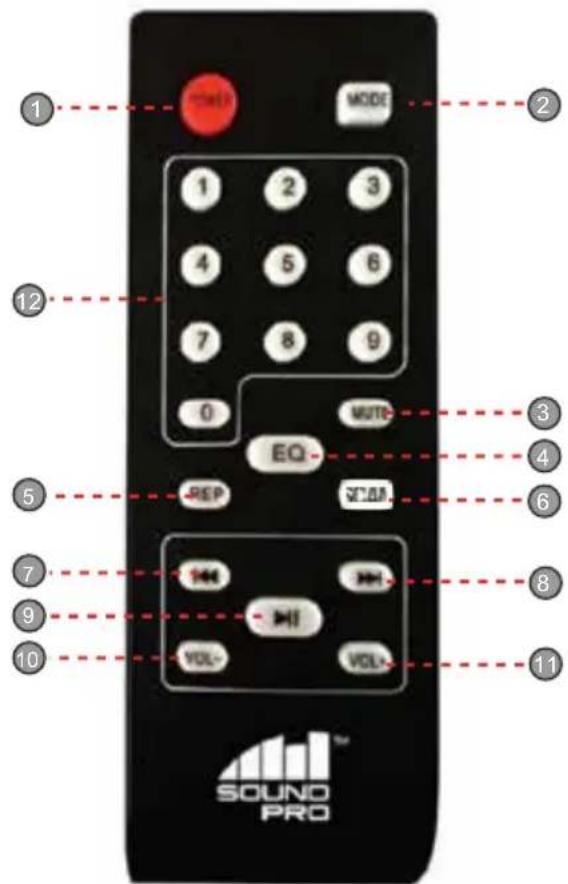

REMOTE CONTROL

1. POWER: Press this button to turn the display On or Off.
2. MODE: Press this button to toggle between the various inputs for LINE (AUX), USB, MICRO SD, FM, Bluetooth.
3. MUTE: Press this button to mute.
4. EQ: Press this button to change the equalizer setting in USB/MICRO SD modes.
5. REP: Press this button on control panel or remote control. Press once to repeat current song. Press twice quickly to repeat all songs.
6. Scan: Press this button to scan radio station.
7. Previous Track: Press this button to skip to the previous track/station in USB/MICRO SD/FM mode.

1 2 3 4 5 6 7 8 9 0 MUTE EQ- REP SCAN. 5 6 7 8 9 10 VOL- VOL+ 11 SOUND PRO

1. Next Track: Press this button to skip to the next track/station in USB/MICRO SD/FM mode.

2. PLAY/PAUSE: Press this button to play or pause the track.

3. VOL-: Press this button to decrease the volume.

4. VOL+: Press this button to increase the volume.

5. Keypad for selecting a track number in USB/MICRO SD mode.

MICROPHONE

Microphone ON/OFF

1. To prevent damage to the microphone, do not turn on the microphone before setting the microphone Volume dial to zero (0). Then turn ON the microphone and slowly increase the microphone volume.
2. If you notice static or distortion in the microphone, ensure that the XLR cable is connected to the microphone securely and that the ECHO level is set to a reasonable level.
3. Turn the microphone OFF when it is not in use.

SPECIFICATIONS

Number of Speakers: 1 tweeter + 1 woofer

Speaker Driver Size: 1.5 in

Woofer Driver size: 12.0 in

Woofer weight: 100 oz.

Peak Music Power Output: 3000 W

Wireless Source: Bluetooth®

Removable Memory Support: USB / Micro SD Card

Audio Format Support: MP3

Tuners: FM

Input Sources: Karaoke 6.3 mm MIC, 3.5 mm AUX

Light Effects: Woofer with Disco Light, Top Dome and 2x side Flashing Lights

Level controls: Master Volume, Treble, Bass, Echo, MIC

Battery Type: Rechargeable Battery

Battery Capacity: 4.5A (3 hrs. at Max Vol.)

Battery Voltage: 12V - 4.5A

Accessories Included: 1pc. Wired Mic, Remote Control, DC power adapter,

Warranty Card, User's Manual

SUPPORT

If you have any problems with your device, please consult the instructions in this manual. Please also visit us on the web at www.naxa.com to get up to the minute information, news, and documentation for your device. For additional assistance, please contact Naxa Technical Support.

NAXA Technical Support

2320 East 49th St.

Vernon, CA 90058

866.411.6292

http://www.naxa.com/supportcenter/
