BEDIENUNGSANLEITUNG EnergoInfra Energotech

Circular golden object with a central rectangular cutout, resembling a stylized sun or tunnel (no text or symbols)

EnergoInfra

Electric Infrared Heater

Interior view of a modern office lobby with glass windows and a ceiling-mounted LED fixture (no visible text or symbols)

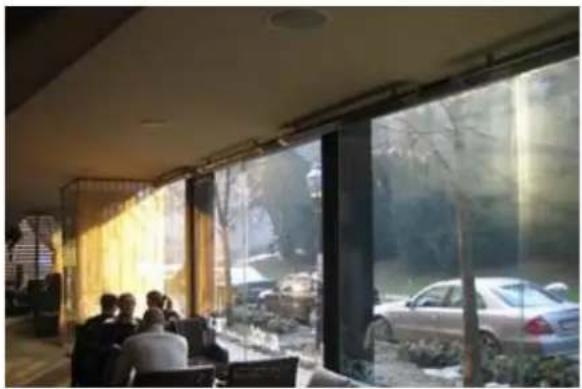

Energolnfra is an all-round, supplementary or overall heater for conservatories, balconies, patios and is also effective as a spot/zone heater in workshops, warehouses etc. Energolnfra is approved in splash-proof IP44 design for wet and dry rooms and outdoor installations. For that reason suitable also in bathrooms and utility rooms. Ceiling or wall mounted.

Energol Infra is used often as a supplementary heater in conservatories, balconies, patios etc. It is also suitable for spot and zone heating in workshops and warehouses etc. It may be fitted in wet and dry areas such as bathrooms and washing rooms.

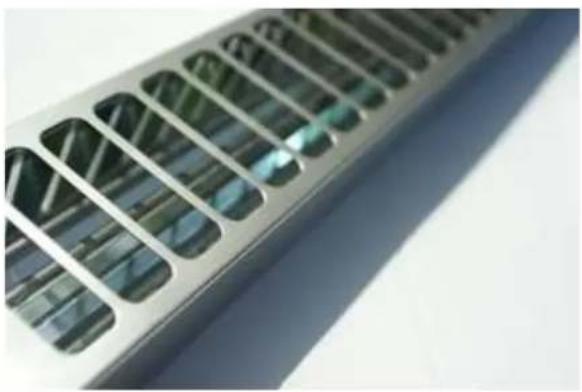

Energoinfra is constructed of corrosion protected materials which assures a long life span. The casing, heating element, brackets and protective guards are made of uncoated stainless steel. The reflector is made of high-gloss polished aluminium.

Energolnfra is available in three models, EIR500, EIR1000 and EIR1500 at 230V, see table.

EnergoInfra can be ceiling or wall mounted. The supplied fixing brackets are adjustable and can be angled in different fixed positions. The heater can also be suspended on wires, chains etc.

The infra heater is approved in splash-proof IP44 design for wet and dry rooms and for outdoor installations.

Energolnfra is approved for fixed installation by an authorised electrician. Cable connections are to a 4mm^2 terminal in the junction box at the end of the heater. Connection between several heaters is possible.

Heat control is simply carried out with use of our room thermostats. Where a large number of heaters are fitted, one of our control panels may be used (ask us for a separate brochure).

Interior view of a modern building with large windows overlooking a sunlit outdoor scene, people gathered in the foreground (no visible text or symbols)

Close-up of a metallic ventilation grille with visible grating and ventilation slots (no text or symbols)

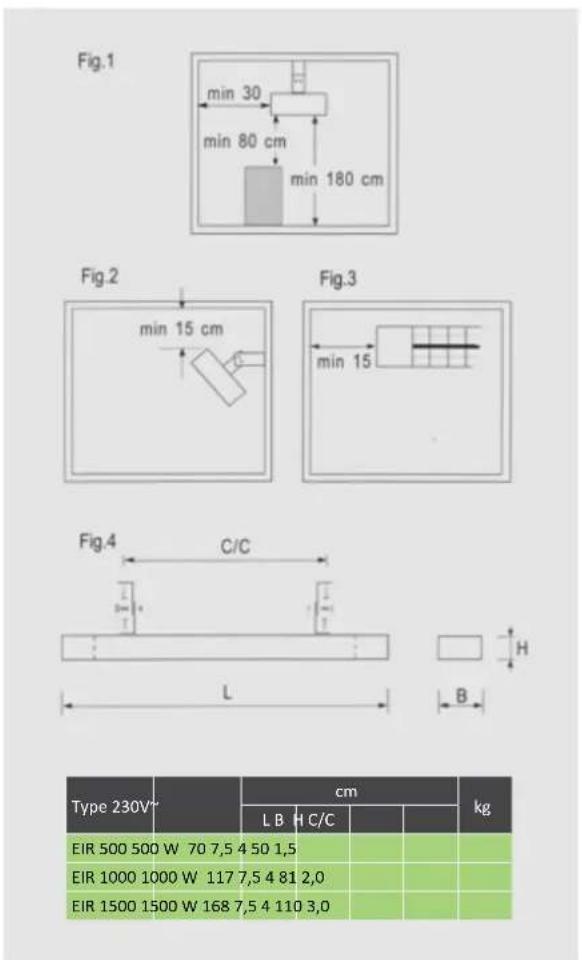

Fig.1 min 30 min 80 cm min 180 cm Fig.2 min 15 cm Fig.3 min 15 Fig.4 C/C L B H Type 230V+ cm kg L B H C/C EIR 500 500 W 70 7,5 4 50 1,5 EIR 1000 1000 W 117 7,5 4 81 2,0 EIR 1500 1500 W 168 7,5 4 110 3,0

ENERGOTECH
