BEDIENUNGSANLEITUNG CIRA506/W Audac

INSTALLATION MANUAL

CIRA SERIES QUICK-FIT™ CEILING SPEAKERS WITH TWIST-FIX™ GRILL

AUDAC

STEP 1 STEP 2

Ø Diameter

Cut a hole on the mounting location in the ceiling. Make sure the diameter is matching the cut-out measurement for the installing loudspeaker.

Double check if there are no cables or other obstructions behind the mounting surface before making the cut-out.

Technical line drawing of a mechanical assembly with no visible text or symbols

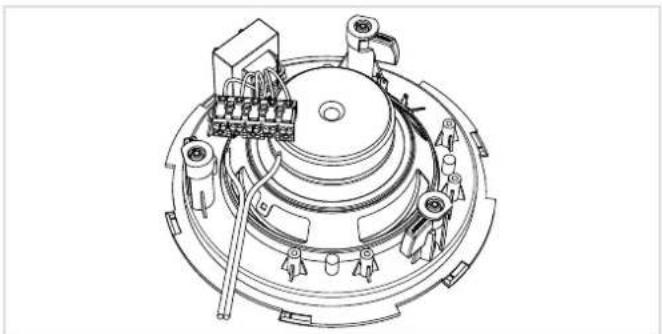

Connect the wires coming from the amplifier to the FastCon™ terminal block connector on the loudspeaker.

The correct power tapping is chosen by connecting the appropriate terminals of the connector. A description of the power tap selection is shown on the magnet sticker on the rear side of the loudspeaker.

When using 100V speakers in low impedance mode (8Ω), disconnect the ground wires by interrupting the cable lugs.

STEP 3 STEP 4

Technical line drawing of a mechanical assembly with no visible text or symbols

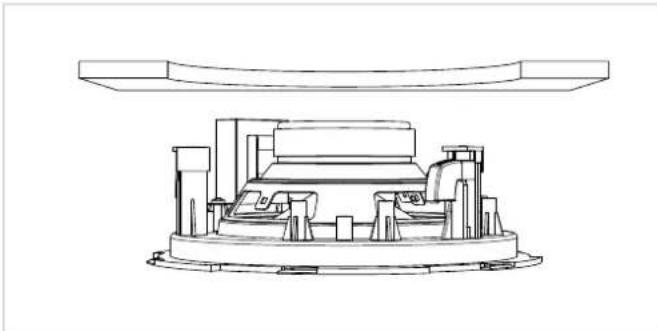

Make sure the mounting clamps are fully bended inwards, allowing the speaker fit through the cut-out. Insert the speaker to the opening.

Technical line drawing of a mechanical assembly with circular components and mounting brackets (no text or symbols)

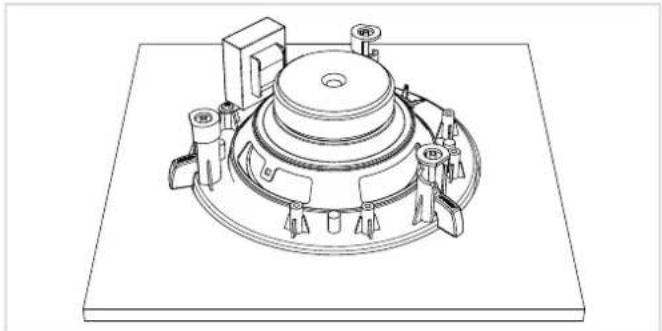

Fix the speaker in the provided opening by tightening the screws of the mounting clamps using a screw driver. A quarter turn will make the mounting clamps flip-out, locking the speaker in place. Tighten the screws for proper fixation of the speaker.

STEP 5 STEP 6

Technical line drawing of a mechanical component with concentric rings and mounting holes (no text or symbols)

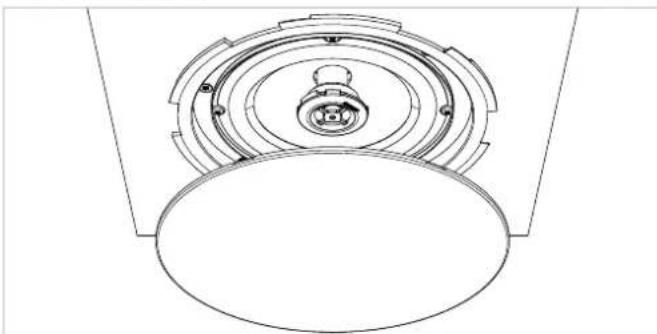

Attach the grill to the speaker by inserting the lips into the provided openings on the speaker baffle and rotating it over a partial turn (15°).

Simple line drawing of an oval shape inside a tilted rectangular frame (no text or symbols)

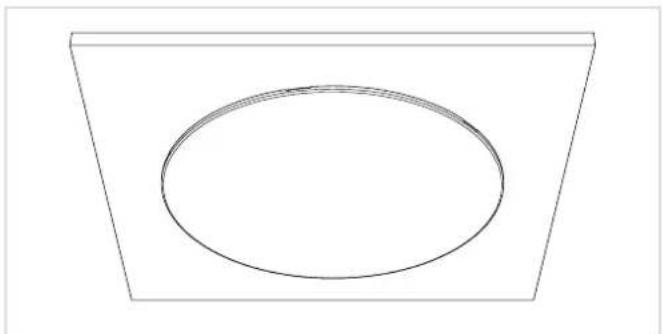

The speaker is now correctly installed and ready for use.

INSTALLATION MANUAL

CIRA SERIES QUICK-FIT™ CEILING SPEAKERS WITH TWIST-FIX™ GRILL

AUDAC

Model Max. Power RMS Power Cut-out			dimension	Dimensions Line transformer power tappings - Impedance
CIRA506	60 Watt	30 Watt	170 mm	193 × 83 mm	6W / 3W / 1.5W - 8
CIRA524	60 Watt	30 Watt	170 mm	193 × 83 mm	24W / 12W / 6W - 8
CIRA530D	60 Watt	30 Watt	170 mm	193 × 83 mm	16
CIRA724	60 Watt	30 Watt	200 mm	224 × 78 mm	24W / 12W / 6W - 8
CIRA730D	60 Watt	30 Watt	200 mm	224 × 78 mm	16
CIRA824	80 Watt	40 Watt	243 mm	270 × 82 mm	24W / 12W / 6W - 8
CIRA840D	80 Watt	40 Watt	243 mm	270 × 82 mm	16

PRECAUTIONS

• ALWAYS KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. NEVER THROW THEM AWAY
• ALWAYS HANDLE THIS UNIT WITH CARE
- CLEAN ONLY WITH DRY CLOTH
• HEED ALL WARNINGS AND FOLLOW ALL INSTRUCTIONS
• NEVER EXPOSE THIS EQUIPMENT TO RAIN, MOISTURE, ANY DRIPPING OR SPLASHING LIQUID.
• DO NOT INSTALL THIS UNIT NEAR ANY HEAT SOURCES SUCH AS RADIATORS OR OTHER APPAR ATUS THAT PRODUCE HEAT
• DO NOT PLACE THIS UNIT IN ENVIRONMENTS WITH A HIGH LEVEL OF DUST, HEAT, MOISTURE OR VIBRATION
- THIS UNIT IS DEVELOPED FOR INDOOR USE ONLY. DO NOT USE IT OUTDOORS
• ONLY USE ATTACHMENTS & ACCESSORIES SPECIFIED BY THE MANUFACTURER.
- ONLY INSTALL THE SPEAKER IN LOCATIONS THAT CAN STRUCTURALLY SUPPORT THE WEIGHT OF THE SPEAKER. IGNORING THIS CAN BRING THE SPEAKER DOWN.
• DO NOT USE ANY OTHER METHOD THAN SPECIFIED TO MOUNT THE SPEAKER. IF EXTREME FORCE IS APPLIED TO THE SPEAKER, IT COULD FALL DOWN
• ATTACH A SAFETY WIRE TO THE SPEAKER WHEN IT IS MOUNTED HIGH UP. ONLY USE INDUSTRY-ACCEPTED RIGGING TOOLS AND METHODS
- CAREFULLY CHECK THE UNIT'S CONDITION AFTER UNPACKING.

CAUTION - SERVICING

This product contains no user serviceable parts. Refer all servicing to qualified service personnel. Do not perform any servicing (unless you are qualified to do so.)

EC DECLARATION OF CONFORMITY

This product conforms to all the essential requirements and further relevant specifications described in following directives: 2014/30/EU (EMC) and 2014/35/EU (LVD)

• IF THERE IS ANY DAMAGE TO THE CARTON BOX OR THE UNIT ITSELF, INFORM YOUR VENDOR IMMEDIATELY.
  • ALWAYS FOLLOW THE LOCAL REGULATIONS AND REQUIREMENTS REGARDING INSTALLATION, SUSPENSION AND CONNECTION OF THIS LOUDSPEAKER. EVEN WHEN OTHERWISE SPECIFIED IN THIS DOCUMENT.
• THE INSTALLATION OF THIS LOUDSPEAKER SHALL BE DONE BY QUALIFIED PERSONNEL ONLY.
  • USE CABLES OF THE RIGHT GAUGE TO CONNECT THE LOUDSPEAKER
  • USE CABLES WITH CLEAR COLOR CODING INDICATING THE POLARITY AND MAINTAIN THE SAME POLARITY THROUGHOUT THE WHOLE SYSTEM.
  • ONLY USE THE CORRECT AMPLIFIER OUTPUT VOLTAGE AND IMPEDANCE. EXCEEDING THESE LIMITS COULD CAUSE FIRE OR OTHER FAILURES.
  • AVOID EXPLOSIONS: DO NOT USE THE SPEAKER AROUND GASOLINE, THINNER OR OTHER COMBUSTIBLES
  • AVOID ELECTRIC SHOCKS: SWITCH OFF THE AMPLIFIER WHEN CONNECTING THE LOUDSPEAKER
  • DO NOT USE THE LOUDSPEAKER FOR AN EXTENDED PERIOD OF TIME AT DISTORTED SOUND. THIS COULD CAUSE PERMANENT DAMAGE.

WASTE OF ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE)

The WEEE marking indicates that this product should not be disposed with regular household waste at the end of its product life. This regulation is created to protect both the environment and human health.

This product is developed and manufactured with high quality materials and components which can be recycled and/or reused. Please dispose of this product at your local collection point or recycling center for electrical and electronic waste. Do this to make sure that the product is recycled in an environmental friendly way, and help to protect the environment in which we all live.
