BEDIENUNGSANLEITUNG SolarBooster AP250 Xtorm

xtorm user Manual AP250 #MOREENERGY

XTREME SERIES - Power your adventures

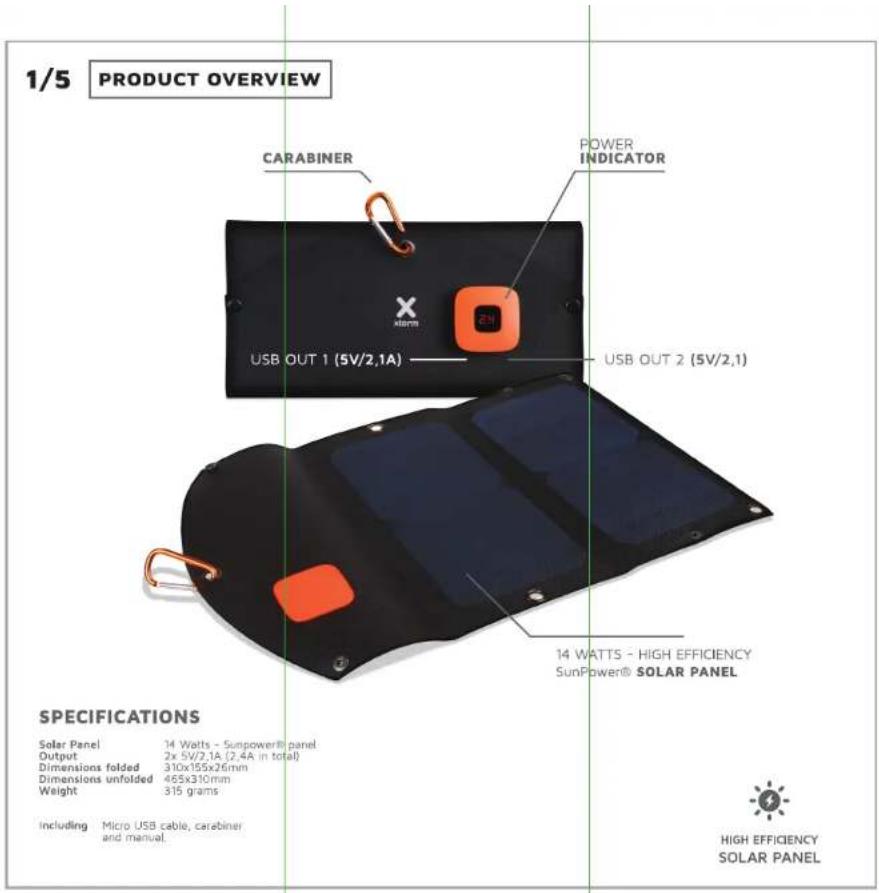

1/5 PRODUCT OVERVIEW CARABINER POWER INDICATOR USB OUT 1 (5V/2,1A) USB OUT 2 (5V/2,1) 14 WATTS - HIGH EFFICIENCY SunPower® SOLAR PANEL SPECIFICATIONS Solar Panel 14 Watts - Sunpower® panel Output 2x 5W/2.1A (2.4A in total) Dimensions folded 310x155x26mm Dimensions unfolded 465x310mm Weight 315 grams Including Micro USB cable, carabiner and manual. HIGH EFFICIENCY SOLAR PANEL

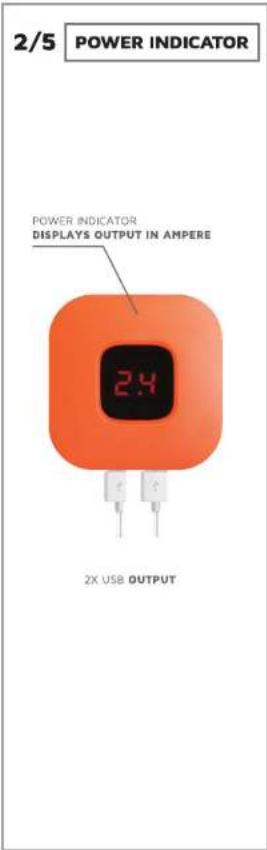

2/5 POWER INDICATOR POWER INDICATOR DISPLAYS OUTPUT IN AMPERE 2.4 2X USB OUTPUT

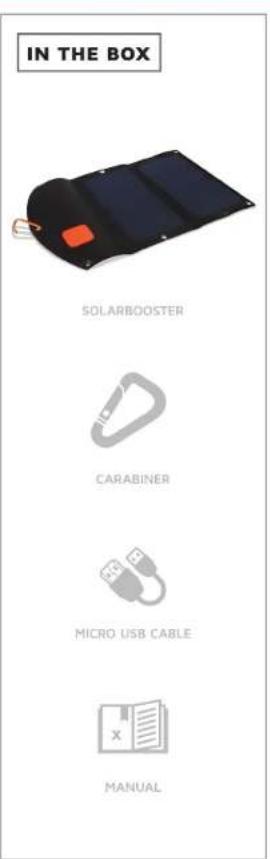

IN THE BOX SOLARBOOSTER CARABINER MICRO USB CABLE MANUAL

All Xtorm SolarBoosters are equipped with extremely efficient solar panels. With an efficiency of 22%, these panels can generate a lot of power with a small surface area. These SunPower® panels are the best solar panels available on the consumer market.

Thanks to the use of water-resistant materials and protected USB port openings the SolarBooster is splash proof. Keep in mind water and electricity are never a good combination.

The SolarBooster is made from canvas coated with a water-resistant synthetic material that's both flexible and strong. The solar panels are integrated in the material, making it an easy to maintain smooth surface.

The latest generation SunPower® cells make the SolarBooster very lightweight. The compact and practical design make it easy to take with you anywhere you go.

All Xtorm products have a 2 year warranty in case something goes wrong. We ensure that you will receive a replacement if the product fails within 2 years

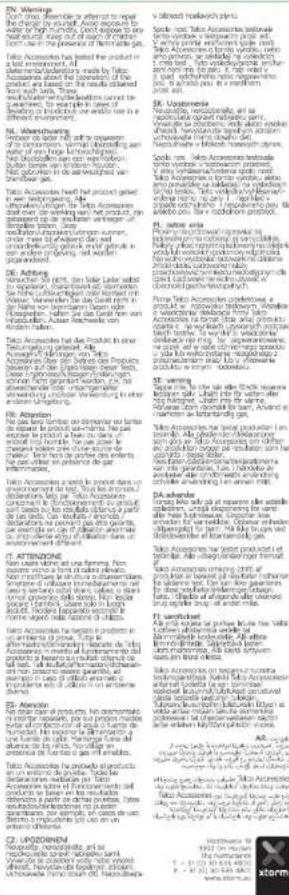

EN. Waring A. Tama A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. Title: Tama Accessories in English Title: Tama Accessories in English Title: Tama Accessories in English Title: Tama Accessories in English Title: Tama Accessories in English Title: Tama Accessories in English Title: Tama Accessories in English Title: Tama Accessories in English Title: Tama Accessories in English Title: Tama Accessories in English Title: Tama Accessories in English Title: Tama Accessories in English Title: Tama Accessories in English Title: T: 10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 Title: Tama Accessories in English Title: Tama Accessories in English Title: Tama Accessories in English Title: Tama Accessories in English Title: Tama Accessories in English Title: Tama Accessories in English Title: Tama Accessories in English Title: Tama Accessories in English Title: Tama Accessories in English Title: Tama Accessories in English Title: Tama Accessories in English Title: Tama Accessories in English Title: S: 158762496666666666666666666666666666666666666666666666666666666666666666666666666666666666666666666666666666 Tota Accessories in English Title: Tama Accessories in English Title: Tama Accessories in English Title: Tama Accessories in English Title: Tama Accessories in English Title: Tama Accessories in English Title: Tama Accessories in English Title: Tama Accessories in English Title: Tama Accessories in English Title: Tama Accessories in English Title: Tama Accessories in English Title: Tama Accessories in English Title: Tama Accessories in English

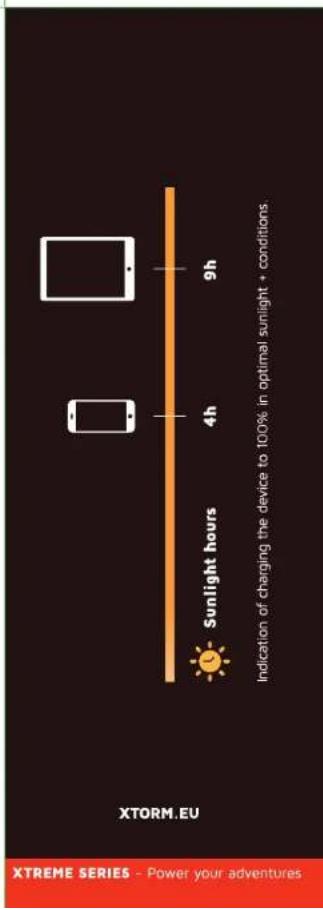

9h 4h Sunlight hours Indication of charging the device to 100% in optimal sunlight + conditions. XTORM.EU XTREME SERIES - Power your adventures

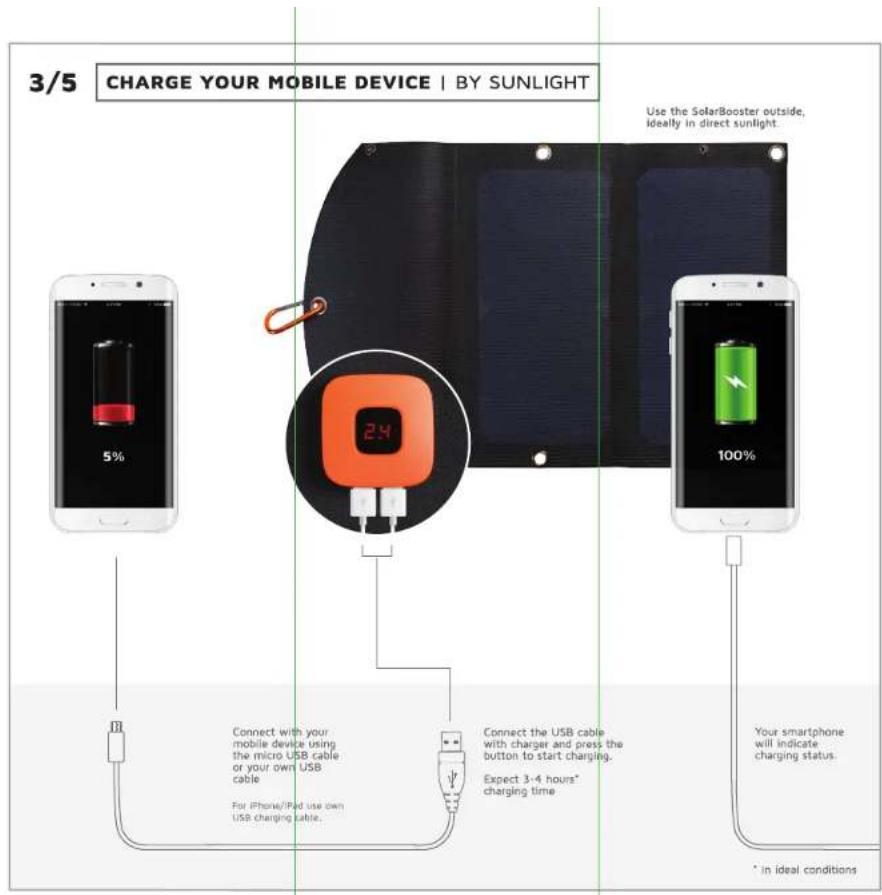

3/5 CHARGE YOUR MOBILE DEVICE | BY SUNLIGHT Use the SolarBooster outside, Ideally in direct sunlight Connect with your mobile device using the micro USB cable or your own USB cable For iPhone/iPod use own USB charging cable. Connect the USB cable with charger and press the button to start charging. Expect 3-4 hours* charging time Your smartphone will indicate charging status. * in ideal conditions

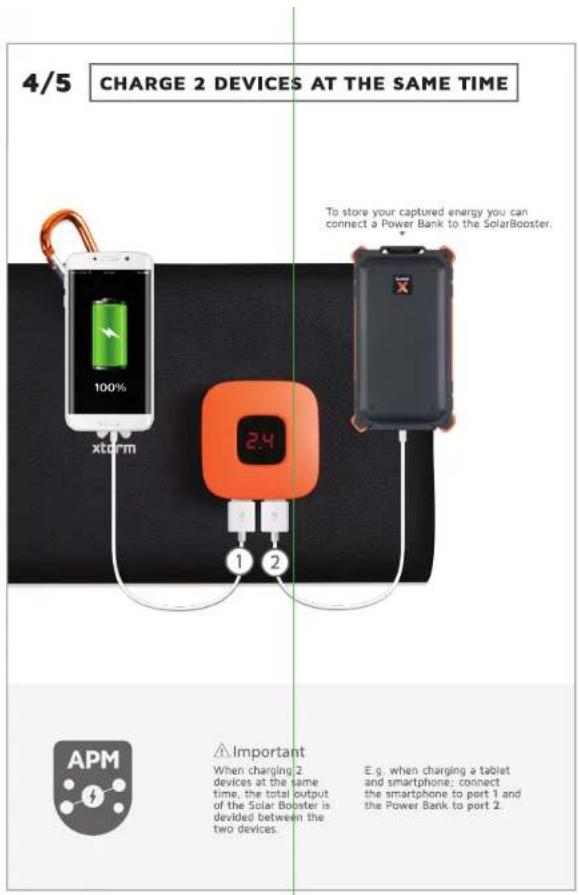

4/5 CHARGE 2 DEVICES AT THE SAME TIME To store your captured energy you can connect a Power Bank to the SolarBooster. 100% xtorm 2.4 APM Important When charging 2 devices at the same time, the total output of the Solar Booster is divided between the two devices. E.g. when charging a tablet and smartphone; connect the smartphone to port 1 and the Power Bank to port 2.

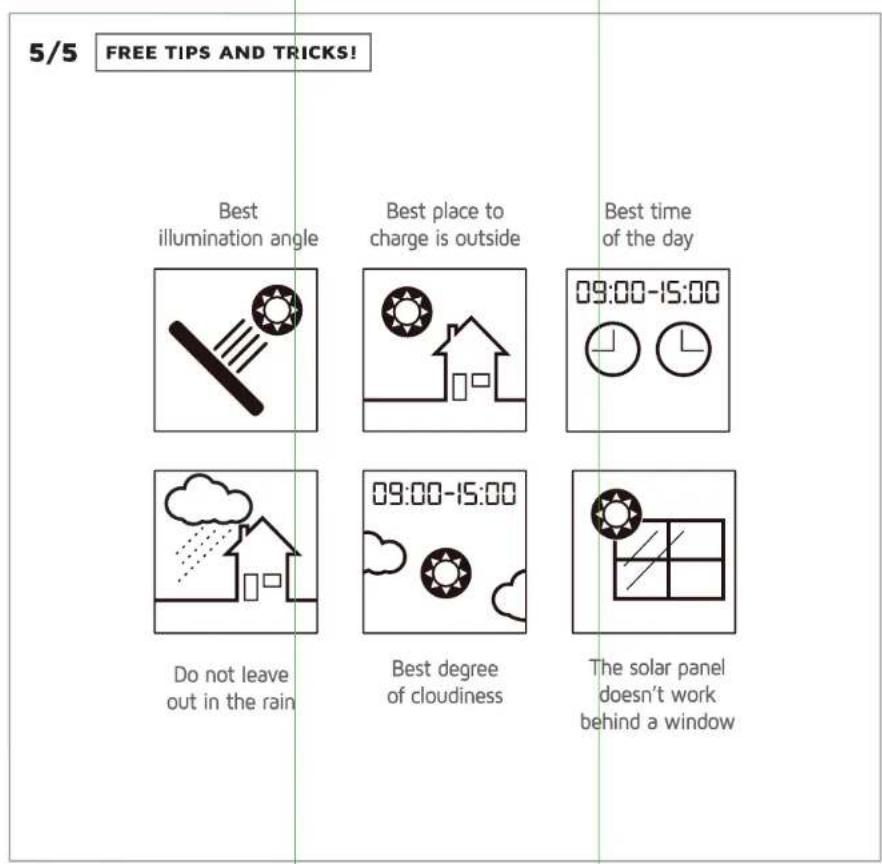

5/5 FREE TIPS AND TRICKS! Best illumination angle Best place to charge is outside Best time of the day 09:00-15:00 Do not leave out in the rain 09:00-15:00 Best degree of cloudiness The solar panel doesn't work behind a window

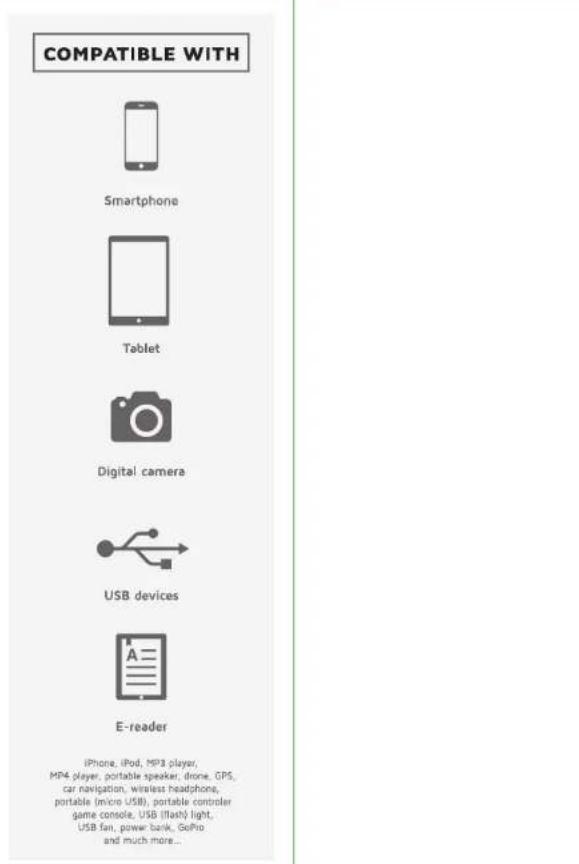

COMPATIBLE WITH Smartphone Tablet Digital camera USB devices E-reader iPhone, iPod, MP3 player, MP4 player, portable speaker, drone, GPS, car navigation, wireless headphone, portable (micro USB), portable controller game console, USB (Flash) light, USB fan, power bank, GoPro and much more...
