BEDIENUNGSANLEITUNG Polycrown Solar Sunrise

Photovoltaic Module Monocrystalline60

KEY FEATURES

Sunrise Polycrown Solar - Photovoltaic Module Monocrystalline60 - 1

High module efficiency through superior manufacturing technology

Sunrise Polycrown Solar - Photovoltaic Module Monocrystalline60 - 2

No power loss thanks to improved temperature co-efficier caused by 5 busbar solar cell

Sunrise Polycrown Solar - Photovoltaic Module Monocrystalline60 - 3

Strictly control the micro-crack of solar cells and the o non visible defect of internal modules

Sunrise Polycrown Solar - Photovoltaic Module Monocrystalline60 - 4

Module can bear snow loads up to 5400Pa and wind loads up to 2400Pa

Sunrise Polycrown Solar - Photovoltaic Module Monocrystalline60 - 5

Manufactured according to and certified international | Quality and Environment Management System

Sunrise Polycrown Solar - Photovoltaic Module Monocrystalline60 - 6

Using advanced low reflection and high light transmission glass and cell sheet surface cutting technology, in the weak light environment can also play a good performance.

Sunrise Polycrown Solar - Photovoltaic Module Monocrystalline60 - 7

Sunrise Polycrown Solar - Photovoltaic Module Monocrystalline60 - 8

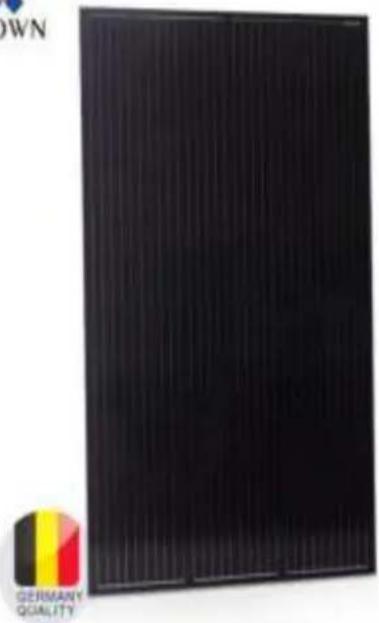

natural_image Close-up of a black solar panel with visible vertical lines and a German flag patch below (no text or symbols on the panel itself)

Certificates

  • IEC61215,IEC61730,CQC、CE、TUV
    •ISO9001:2008
    •ISO14001:2004
    BSOHSAS18001:2007

Sunrise Polycrown Solar - Certificates - 1

Sunrise Polycrown Solar - Certificates - 2

Sunrise Polycrown Solar - Certificates - 3

Sunrise Polycrown Solar - Certificates - 4

Sunrise Polycrown Solar - Certificates - 5

Warranties

• 10 years product warranty
• 25 years power warranty

Sunrise Polycrown Solar - Warranties - 1

area | Time (s) | Guaranteed Power (%) | | :--- | :--- | | 0 | 100 | | 5 | 97.5 | | 10 | 80 | | 25 | 80 |
ModelNS-300S6-20NS-305S6-20NS-310S6-20
Maximum Power at STC(Pmax)300W305W310W
Optimum Operating Voltage (Vmp)31.89V31.96V32.04V
Optimum Operating Current (Imp)9.407A9.543A9.675A
Open-Circuit Voltage (Voc)39.21V39.29V39.37V
Short-Circuit Current (Isc)9.885A10.082A10.226A
Solar Cell Efficiency (%)20.9321.3021.66
Solar Module Efficiency (%)18.4418.7519.05
Operating Temperature-40to85°C
Maximum System VoltageDC1000
Maximum Series Fuse Rating15A
Power Tolerance0~+3%
STC:Irradiance 1000W/m2,Modules Temperature 25°C,AM=1.5

Temperature Coefficient and Mechanical Characteristics

Nominal Operating Cell Temperature (NOCT)47°C+/-2°C
Temperature Coefficient of Pmax-0.47%/°C
Temperature Coefficient of VOC-0.346%/°C
Temperature Coefficient of ISC+0.036%/°C
Solar cellMono156*156mm
No.of cells60 (6×10)
Dimensions1640mm*992mm*35mm
Weight18kg
Front glass3.2mm tempered glass
FrameAnodized aluminium alloy
Junction boxPV-******
ConnectorPlug and socket
Output cablesPV 4.0mm ^2 ,0.9m
1*20'400 pcs
1*40'800 pcs
1*40'HQ900pcs

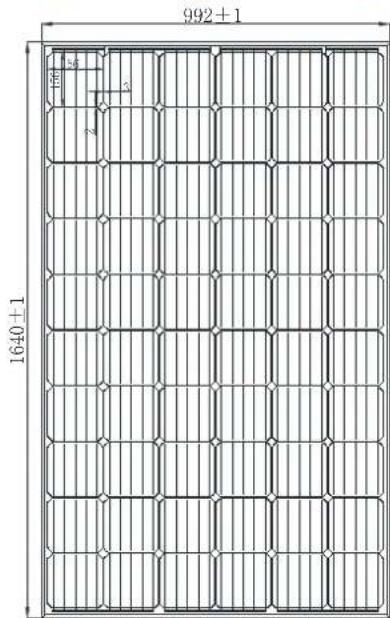

Engineering Drawings
Sunrise Polycrown Solar - Temperature Coefficient and Mechanical Characteristics - 1

text_image 992±1 1640±1 10 5 3 Z

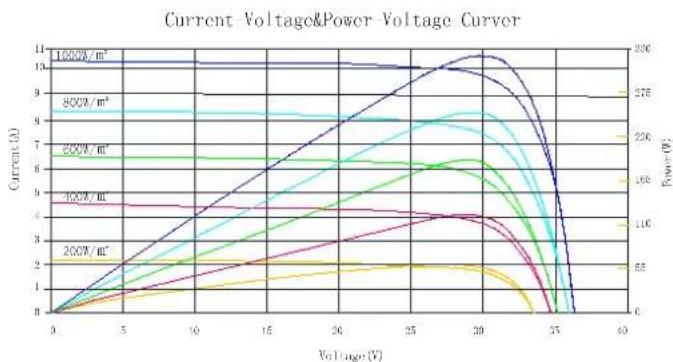

IV-Curves
Sunrise Polycrown Solar - Temperature Coefficient and Mechanical Characteristics - 2

line | Voltage (V) | Current (Ω) for 200V/m² | Current (Ω) for 400V/m² | Current (Ω) for 800V/m² | Current (Ω) for 1000V/m² | Power (W) for 200V/m² | Power (W) for 400V/m² | Power (W) for 800V/m² | Power (W) for 1000V/m² | |-------------|--------------------------|--------------------------|--------------------------|---------------------------|------------------------|------------------------|------------------------|-------------------------| | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | | 5 | ~1.5 | ~2.5 | ~4.5 | ~7.5 | ~6 | ~9 | ~12 | ~15 | | 10 | ~2.5 | ~4.5 | ~7.5 | ~11.5 | ~8 | ~12 | ~16 | ~21 | | 15 | ~3.5 | ~6.5 | ~10.5 | ~15.5 | ~9 | ~14 | ~19 | ~26 | | 20 | ~4.5 | ~8.5 | ~13.5 | ~19.5 | ~10 | ~16 | ~23 | ~33 | | 25 | ~5.5 | ~10.5 | ~16.5 | ~23.5 | ~11 | ~18 | ~27 | ~39 | | 30 | ~6.5 | ~12.5 | ~19.5 | ~27.5 | ~12 | ~20 | ~31 | ~46 | | 35 | ~7.5 | ~14.5 | ~22.5 | ~31.5 | ~13 | ~22 | ~36 | ~53 | | 40 | ~8.5 | ~16.5 | ~25.5 | ~35.5 | ~14 | ~24 | ~41 | ~60 | | 45 | ~9.5 | ~18.5 | ~28.5 | ~39.5 | ~15 | ~26 | ~46 | ~67 | | 50 | ~10.5 | ~20.5 | ~31.5 | ~43.5 | ~16 | ~28 | ~51 | ~74 | | 55 | ~11.5 | ~22.5 | ~34.5 | ~47.5 | ~17 | ~30 | ~56 | ~81 | | 60 | ~12.5 | ~24.5 | ~37.5 | ~51.5 | ~18 | ~32 | ~61 | ~88 | | 65 | ~13.5 | ~26.5 | ~40.5 | ~55.5 | ~19 | ~34 | ~66 | ~95 | | 70 | ~14.5 | ~28.5 | ~43.5 | ~59.5 | ~20 | ~36 | ~71 | ~102 | | 75 | ~15.5 | ~30.5 | ~46.5 | ~63.5 | ~21 | ~38 | ~76 | ~109 | | 80 | ~16.5 | ~32.5 | ~49.5 | ~67.5 | ~22 | ~40 | ~81 | ~116 | | 85 | ~17.5 | ~34.5 | ~52.5 | ~71.5 | ~23 | ~42 | ~86 | ~123 | | 90 | ~18.5 | ~36.5 | ~55.5 | ~75.5 | ~24 | ~44 | ~91 | ~130 | | 95 | ~19.5 | ~38.5 | ~58.5 | ~79.5 | ~25 | ~46 | ~96 | ~137 | | 100 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | The chart includes two data series: 'Current Voltage' and 'Power'. The x-axis represents 'Voltage (V)' and the y-axis represents 'Current (Ω)' and 'Power (W)'. The legend indicates 'Power' values for each current level in a specific curve.
