4K2USB3: 4K to USB 3.0

4KX2USB3: 4K+LOOP to USB 3.0

HD2USB3: HD to USB 3.0

DVI2USB3: DVI to USB 3.0

VGA2USB3: VGA to USB 3.0

SDI2USB3: SDI to USB 3.0

Quick Start Guide

WWW.INOGENI.COM

Thank you!

With theNOGENI to USB 3.0 capture device, you have just acquired the finest and easiest to use DVI/HDMI/VGA/CVBS/3GSDI to USB 3.0 converter. Engineered by video professionals, for video professionals, it is the most compatible USB 3.0 device across most OSes and USB 3.0 chipsets. No driver installation insures trouble-free operation, just Plug'n Go!

Since the list of features and software/hardware compatibilities is growing constantly, please consult the website, www.inogeni.com, for the latest information.

You will also find the latest firmware, FAQs and upgrade tools on the web site.

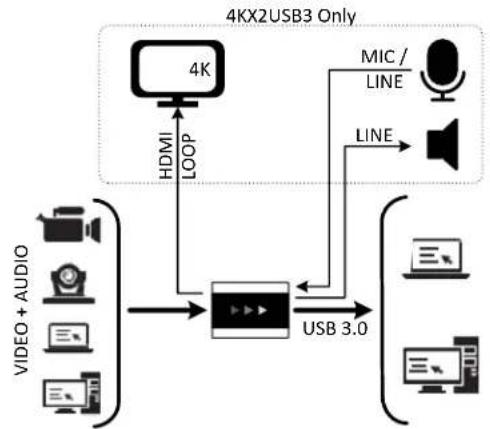

Connection Diagram:

Quickstart:

Eager to tryit, Now?

Connect the INOGENI to a USB 3.0 port and to your video source.

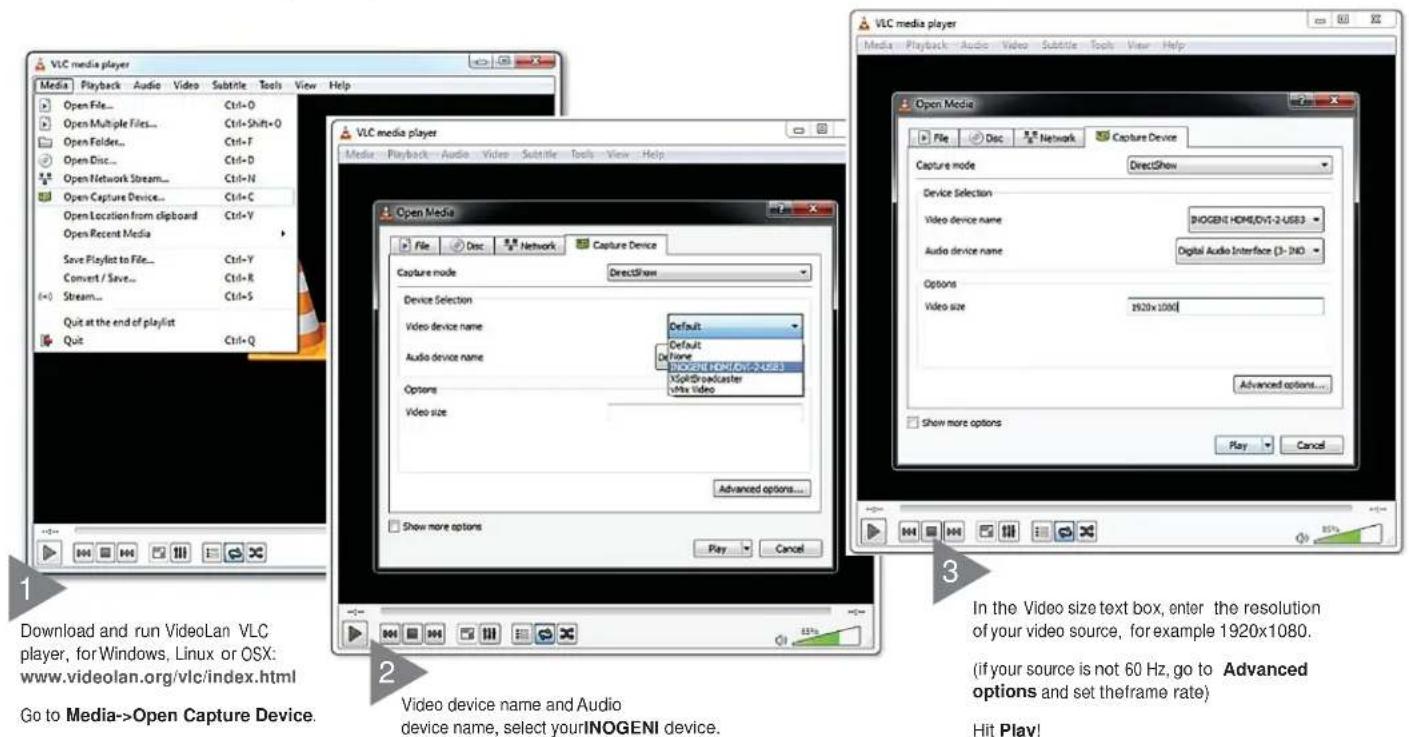

VLC media player Media | Playback | Audio | Video | Subtitle | Tools | View | Help Open File... Open Multiple Files... Open Folder... Open Disc... Open Network Stream... Open Capture Device... Open Location from clipboard Open Recent Media Save Playlist to File... Convert / Save... Stream... Quit at the end of playlist Quit Ctrl+O Ctrl+F Ctrl+D Ctrl+N Ctrl+C Ctrl+Y Ctrl+R Ctrl+S Ctrl+Q 1 Download and run VideoLan VLC player, for Windows, Linux or OSX: www.videolan.org/vlc/index.html Go to Media->Open Capture Device. 2 Video device name and Audio device name, select yourINOGENI device. 3 In the Video size text box, enter the resolution of your video source, for example 1920x1080. (if your source is not 60 Hz, go to Advanced options and set theframe rate) Hit Play!

In the Video size text box, enter the resolution of your video source, for example 1920x1080.

(if your source is not 60 Hz, go to Advanced options and set theframe rate)

Hit Play!

You should see and hear your live video!

Package contents

1-INOGENI

2-User Guide

3-USB 3.0 cable

4-HDMI to DVI adapter (DVIUSB model only)

Quick troubleshooting:

1- Theport on your must be USB 3.0. The tab inside the connector is blue, or you will see the USB"SS"(Superspeed) logo beside it.

2-USB 3.0 is a relatively new technology, be sure to have the latest USB 3.0 drivers for your computer. Visit your computer website.

3-The frame rate of the source must match exactly the frame rate selected in your application for optimal performance.

4-You can load a Diagnostic tool and Sample application from www.inogeni.com.

5-Please visit www.inogeni.com for frequently-asked-questions (FAQs).

6-You can contact INOGENI technical supportat [e-mail]

Compatibility:

Since INOGENI uses the standard Windows/Linux/OSX video capture driver, no driver installation is necessary and it insures maximum compatibility with most capture and streaming applications. Please visit the web site for the latest applications that were tested with the INOGENI device.

We would beglad to hear from you and your application with the INOGENI, please give us your feedback at [e-mail].

For technical support, email us at [e-mail].

© Copyright 2019 by Inogeninc. All rights reserved.

LimitedTwo (2)YearWarranty on Paris and Labour

Inogeni warrants the products against material defects in materials or workmanship under normal use and service for a period of two (2) year after the date of the original purchase. During this period, Inogeni will, at Inogeni option, repair or replace a defective product with a new or recertified or equivalent product without charge to you for parts or labour.
