BEDIENUNGSANLEITUNG NN-5506 PANASONIC

OPERATING

INSTRUCTIONS

Microwave Ovens

NN-5856

NN-5556/NN-5506

NN-5456/NN-5406

NN-5256

NN-5556/NN-5500 NN-5456/NN-5400 NN-5256 IMPORTANT: Before operating this oven, please read these instructions carefully. Important

Panasonic

IMPORTANT:

Before operating this oven, please read these instructions carefully. Important safety information is enclosed. Do not discard these operating instructions – they should be kept for further reference along with your cookbook.

For your safety read the following information carefully

This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 13 amp fuse is fitted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has a rating of 13 amps and that it is approved by ASTA or BSI to BS1362. Check for the ASTA mark on the body of the fuse.

If the fuse cover is detachable, never use the plug with the cover omitted. If a replacement fuse cover is required, ensure it is the same colour as that visible on the pin face of the plug (ie. red or orange). A replacement fuse cover can be purchased from your local Panasonic Dealer.

HOW TO REPLACE THE FUSE

Open the fuse compartment with a screwdriver and replace the fuse.

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY AND AN APPROPRIATE ONE FITTED. THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13 AMP SOCKET.

If a new plug is to be fitted, please observe the wiring code as shown below. If in any doubt, please consult a qualified electrician. (For U.K. Models only)

WARNING: THIS APPLIANCE MUST BE EARTHED.

IMPORTANT: The wires in this mains lead are coloured in accordance with the following code:

Green-and-yellow - Earth; Blue - Neutral; Brown - Live

As the colours of the wire in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked with the letter E or by the Earth symbol 12 or coloured GREEN or GREEN-AND-YELLOW.

The wire which is coloured BLUE must be connected to the terminal in the plug which is marked with the letter N or coloured BLACK

The wire which is coloured BROWN must be connected to the terminal in the plug which is marked with the letter L or coloured RED.

When this oven is installed it should be easy to isolate the appliance from the electricity supply by pulling out the plug or operating a circuit breaker.

Voltage & Power

The voltage used must be the same as specified on this microwave oven. Using a higher voltage than that which is specified is dangerous and may result in a fire or other type of accident causing damage.

Do not immerse cord, plug or oven in water. Keep cord away from heated surfaces. Do not let cord hang over the edge of table or work top. Do not plug your oven in via an extension cable as this can be dangerous. It is important to plug the oven directly into a wall socket.

The back of the appliance heats up during use. Do not allow the cord to be in contact with the back of the appliance or cabinet surface.

Unpacking your oven

1. Examine Your Oven

Unpack oven, remove all packing material, and examine the oven for any damage such as dents, broken door latches or cracks in the door. Notify dealer immediately if unit is damaged. Do NOT install if unit is damaged.

is damaged. Panasonic CROWAVE

2. Guarantee Card

Fill out and post the pre-addressed guarantee card.

3. Cord

If the supply cord of this appliance is damaged, it must be replaced by the special cord available only from the manufacturer.

N.B. The appliance should be inspected for damage to the door seals and door seal areas and if these areas are damaged the appliance should not be operated until it has been repaired by a service technician trained by the manufacturer.

DO NOT REMOVE ADHESIVE PLASTIC FILM FROM INSIDE OF DOOR OR OVER VENTS ON OVEN CEILING

Placement of your oven

Placement of Oven

1. Oven must be placed on a flat, stable surface. For proper operation, the oven must have sufficient air flow, ie 5cm/2" at the side; 15cm/6" clear over the top; 10cm/4" at the rear.
2. Do not place the microwave oven on a shelf directly above a gas or electric hob. This may be a safety hazard and the oven may be damaged.

6" 2" 4" 2"

1. Do not block air vents on the rear and bottom or top of the cabinet. Do not place any articles on the top of the oven over the vents. If air vents are blocked during operation, the oven may overheat. If the oven overheats, a thermal safety device will turn the oven off. The oven will remain inoperable with blank display until it has cooled.
2. Do not use outdoors.

Simple line drawing of a microwave oven with sun and trees, no text or symbols present

Using Your Oven

1. The appliance must not be operated by Microwave WITHOUT FOOD IN THE OVEN. Operation when empty will damage the appliance.

Model NN-5256 - Always zero the timer when food is removed from the oven.

1. Children should be kept away from the oven at all times and should only be allowed to operate the oven under supervision. Ensure that children do not touch the hot outer casing after operation of the oven.

n. in the oe do

1. Storage of Accessories. Do not store any objects other than oven accessories inside the oven in case it is accidentally turned on. In case of electronic failure, oven can only be turned off at wall socket.

Maintenance of your oven

1. Service

WHEN YOUR OVEN REQUIRES A SERVICE call your local Panasonic engineer (01344 - 853584 Service Administration). It is dangerous for anyone other than a service technician trained by the manufacturer to perform repair service. Do not attempt to remove the outer casing of the oven.

Panasonic Service

2. Door Seals

Do not attempt to tamper with or make any adjustments or repairs to door, control panel housing, safety Interlock switches or any other part of the oven. Do not remove outer panel from oven. The door seals and door seal areas should always be kept clean - use a damp cloth.

3. Oven Light

The oven lamp must be replaced by a service technician trained by the manufacturer. DO NOT attempt to remove the outer casing from the oven.

4. Spare Parts

These may be ordered from SEME [phone]. Ensure you quote correct model number.

Care of your Microwave Oven

1. Switch the oven off before cleaning and unplug at socket if possible.
2. Keep the inside of the oven, door seals and door seal areas clean. When food spatters or spilled liquids adhere to oven walls and door seals and door seal areas wipe off with a damp cloth. Mild detergent may be used If they get very dirty. The use of harsh detergent or abrasives is not recommended.
3. The outside oven surface should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.

4. If the Control Panel becomes dirty, clean with a soft, dry cloth. Do not use harsh detergents or abrasives on Control Panel. When cleaning the Control Panel, leave the oven door open to prevent the oven from accidentally turning on. After cleaning touch STOP/CANCEL Pad to clear display window.

5. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and in no way indicates a malfunction of the unit or microwave leakage.

6. It is occasionally necessary to remove the glass turntable for cleaning. Wash the tray in warm soapy water.
7. The roller ring and oven cavity floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent and hot water then dry with a clean cloth. The roller ring may be washed in mild soapy water. Cooking vapours collect during repeated use but in no way affect the bottom surface or the roller ring wheels. After removing the roller ring from cavity floor for cleaning, be sure to replace it in the proper position.

Important Information - Read Carefully

Short Cooking Times

As microwave cooking times are much shorter than other cooking methods it is essential that recommended cooking times are not exceeded without first checking the food.

Cooking times given in the cookbook are approximate. Factors that may affect cooking times are: preferred degree of cooking, starting temperature, altitude, volume, size and shape of foods and utensils used. As you become familiar with the oven, you will be able to adjust these factors.

It is better to undercook rather than overcook foods. If food is undercooked, it can always be returned to the oven for further cooking. If food is overcooked, nothing can be done. Always start with minimum cooking times.

Important.

If the recommended cooking times are exceeded the food will be spoiled and in extreme circumstances could catch fire and possibly damage the interior of the oven.

1. Small quantities of food.

Take care when heating small quantities of food as these can easily burn, dry out or catch fire if cooked too long. Always set short cooking times and check the food frequently.

NB. If materials inside the oven should ignite, keep oven door closed, turn oven off, and disconnect the

power cord, or shut off power at the fuse or circuit breaker panel.

NEVER OPERATE THE OVEN WITHOUT FOOD.

2. Foods low in moisture.

Take care when heating foods low in moisture, eg bread items, chocolate, popcorn, biscuits and pastries. These can easily burn, dry out or catch on fire if cooked too long.

Cartoon character resembling a computer with a head, holding a plate (no text or symbols)

Cartoon character holding a newspaper and hat with city skyline (no text or symbols)

3. Christmas Pudding.

Christmas puddings and other foods high in fats or sugar. eg. jam, mince pies, must not be over heated. These foods must never be left unattended as with over cooking these foods can ignite.

4. Boiled Eggs.

Do not boil eggs in their shell in your microwave. Raw eggs boiled in their shells can explode causing injury.

Cartoon illustration of a computer monitor character pointing at two cartoon figures (no text or symbols present)

Simple line drawing of two figures in motion, one holding a bat (no text or symbols)

1. Foods with Skins. Potatoes, apoles, egg yolk, whole vegetables and sausages are examples of food with non porous skins. These must be pierced using a fork before cooking to prevent bursting.

6. Liquids.

When heating liquids, eg soup, sauces and beverages in your microwave oven, overheating the liquid beyond boiling point

Cartoon character with a surprised expression, waving (no text or symbols)

can occur without evidence of bubbling. This could result in a sudden boil over of the hot liquid. To prevent this possibility the following steps should be taken:

a) Avoid using straight-sided containers with narrow necks.
b) Do not overheat.
c) Stir the liquid before placing the container in the oven and again halfway through the heating time.
d) After heating, allow to stand in the oven for a short time, stirring again before carefully removing the container.

7. Lids.

Always remove the lids of jars and containers and takeaway food containers before you microwave them. If you don't then steam and pressure might build up inside and cause an explosion even after the microwave cooking has stopped.

8. Deep Fat Frying.

Do not attempt to deep fat fry in your oven.

9. Meat Thermometer.

Use a meat thermometer to check the degree of cooking of roasts and poultry only when meat has been removed from the microwave. If undercooked,

return to the oven and cook for a few more minutes at the recommended power level. Do not leave a conventional meat thermometer in the oven when microwaving.

Important Information – Read Carefully

10. Paper, Plastic.

Carefully attend the appliance if paper, plastic or other combustible materials are used as containers or for covering. Do not use wire twist-ties with roasting bags as arcing will occur.

Do not use re-cycled paper products, eg Kitchen roll unless they say they are specifically designed for use in a microwave oven. These products contain impurities which may cause sparks and/or fires when used.

Cartoon illustration of a smiling character holding a rectangular object (no text or symbols)

72

11. Reheating.

It is essential that reheated food is served "piping hot". Remove the food from the oven and check that it is "piping hot", ie steam is being emitted from all parts and any sauce is bubbling. (If you wish you may choose to check the food has reached 72°C with a food thermometer

- but remember do not use this thermometer inside the microwave.)

For foods that cannot be stirred, eg lasagne, shepherds pie, the centre should be cut with a knife to test it is well heated through. Even if a manufacturer's packet instructions have been followed always check the food is piping hot before serving and if in doubt return your food to the oven for further heating.

14. Babies Bottles and Food Jars

When reheating babies bottles always remove top and teat. Liquid at the top of the bottle will be much hotter than that at the bottom and must be shaken thoroughly before checking the temperat be removed from babies food also be stirred or shaken before checked.

Cartoon character shaped like a computer monitor with arms and legs (no text or symbols)

15. Containers

Before use check that utensils/containers are suitable for use in microwave ovens.

16. Care of your Oven Cavity

Your oven cavity is constructed of zinc coated steel, painted with an extremely durable coating. After use, the oven interior should be wiped out to remove any remaining water in order to reduce the risk of corrosion to the cavity and door. The cavity and door can be damaged by abrasive cleaners and sharp objects so care must be taken to avoid damage caused in this way. If the cavity or door become damaged the lining may begin to corrode. Providing the above precautions are taken regarding the cleaning and care of your oven the life of the cavity and door may be extended. However, should any corrosion of the cavity or door occur within a period of 3 years from the date of purchase and providing the above precautions are followed the cavity and door will be serviced by your supplier on a free of charge basis.

12. Standing Time.

Standing time refers to the period at the end of cooking or reheating when food is left before being eaten, ie. It is a rest time which allows the heat in the food to continue to conduct to the centre, thus eliminating cold spots.

13. Keeping Your Oven Clean.

It is essential for the safe operation of the oven that it is wiped out regularly. Use warm soapy water, squeeze the cloth out well and use to remove any grease or food from the interior. Pay particular attention to the door seal area and also the areas

Cartoon illustration of a smiling computer monitor character with arms and legs (no text or symbols)

around the microwave feed guide situated on the right hand side of the cavity wall. The oven should be unplugged when cleaning.

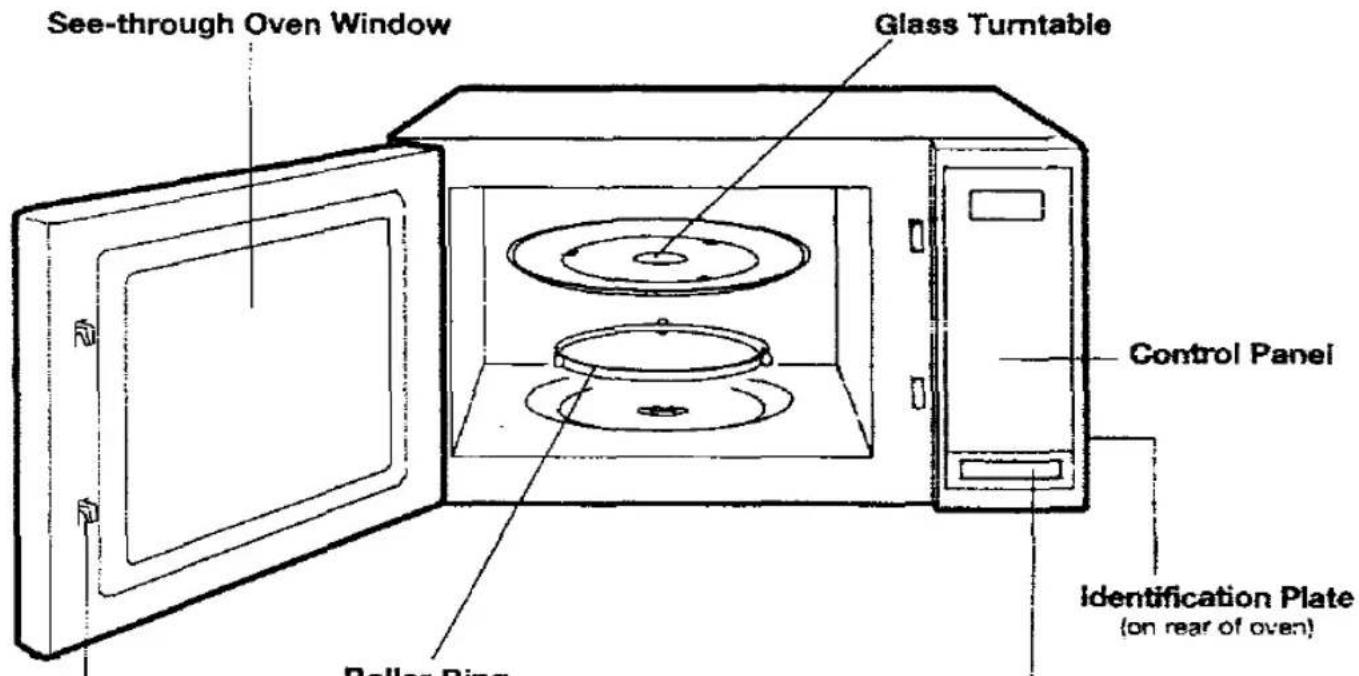

Parts of Your Oven

1. Do not operate the oven without the Roller Ring and Glass Tumtable in place.
2. Only use the Glass Turntable specifically designed for this oven. Do not substitute with any other Glass Turntable.
3. If Glass Turntable is hot, allow to cool before cleaning or placing in water.

4. Do not cook directly on Glass Tumtable. Always place food in a microwave safe dish. The only exception to this is when cooking Jacket Potatoes or Auto Program Jacket Potatoes.

5. If food or utensil on Glass Turntable touches oven walls, causing the tray to stop moving, the tray will automatically rotate in opposite direction. This is normal. Open oven door, reposition the food and Restart.

6. The Glass Turntable can rotate in either direction.

See-through Oven Window Glass Turntable Control Panel Identification Plate (on rear of oven) Roller Ring

Roller Ring

1. The Roller Ring and oven floor should be cleaned frequently to prevent excessive noise.
2. The Roller Ring must always be used together with the Glass Turntable for cooking.

Door Release Pad

Press to open the door.

Opening the door during cooking will stop the cooking process without cancelling the program. Cooking resumes as soon as the door is closed and Start Pad is pressed.

The oven light will turn on and stay on whenever the door is opened.

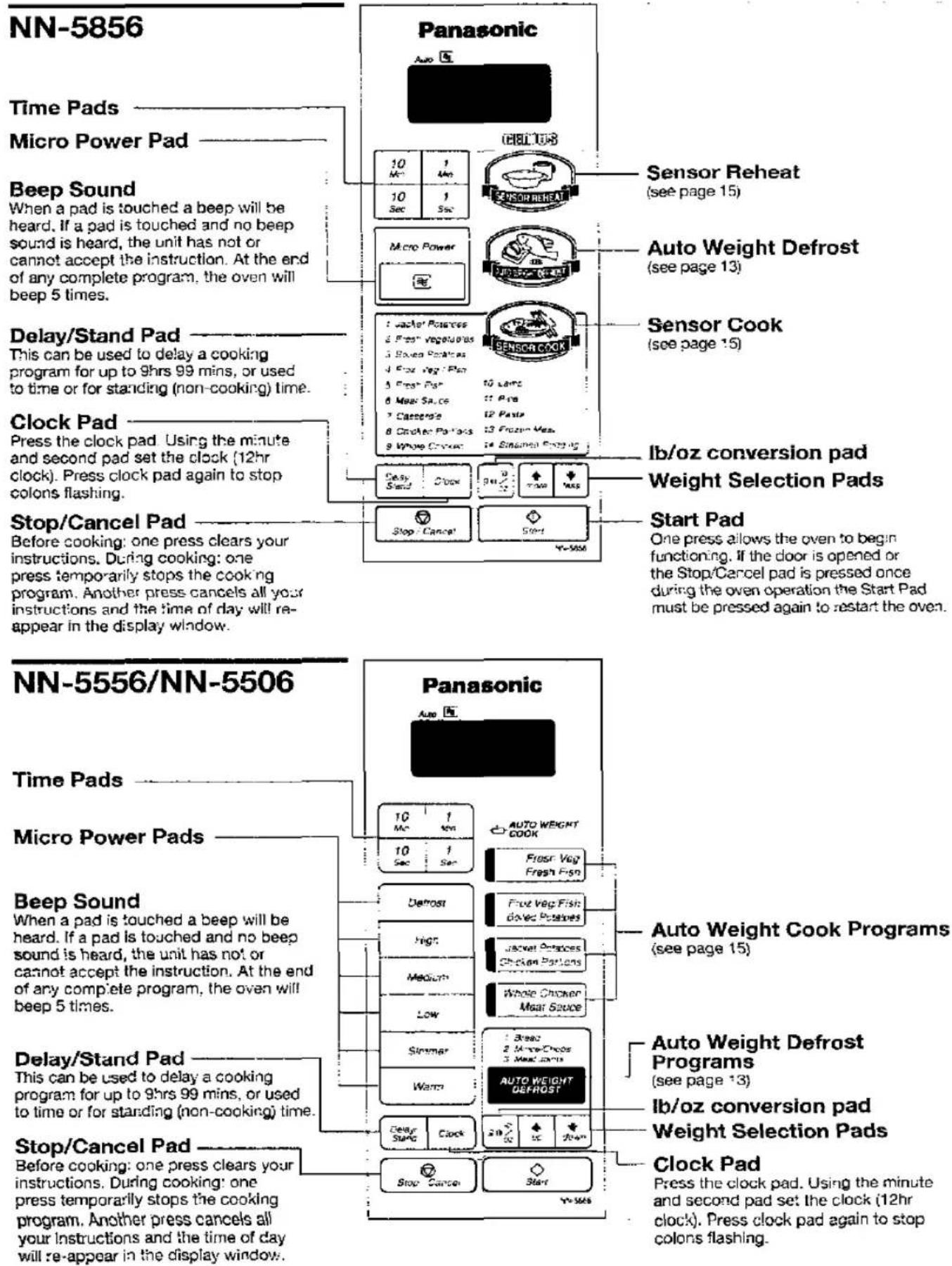

Control Panels NN-5856 and NN-5556/NN-5506

NN-5856 Time Pads Micro Power Pad Beep Sound When a pad is touched a beep will be heard. If a pad is touched and no beep sound is heard, the unit has not or cannot accept the instruction. At the end of any complete program, the oven will beep 5 times. Delay/Stand Pad This can be used to delay a cooking program for up to 9hrs 99 mins, or used to time or for standing (non-cooking) time. Clock Pad Press the clock pad. Using the minute and second pad set the clock (12hr clock). Press clock pad again to stop colons flashing. Stop/Cancel Pad Before cooking: one press clears your instructions. During cooking: one press temporarily stops the cooking program. Another press cancels all your instructions and the time of day will reappear in the display window. NN-5556/NN-5506 Time Pads Micro Power Pads Beep Sound When a pad is touched a beep will be heard. If a pad is touched and no beep sound is heard, the unit has not or cannot accept the instruction. At the end of any complete program, the oven will beep 5 times. Delay/Stand Pad This can be used to delay a cooking program for up to 9hrs 99 mins, or used to time or for standing (non-cooking) time. Stop/Cancel Pad Before cooking: one press clears your instructions. During cooking: one press temporarily stops the cooking program. Another press cancels all your instructions and the time of day will reappear in the display window. Panasonic Auto CELUS 10 Mcc 1 Sec 1 Sec Sensor Reheat (see page 15) 10 Sec 1 Sec Sensor Cook (see page 15) 1. Driver Potatoes 2. Fresh Vegetables 3. Oven Potatoes 4. Fog Veg Palen 5. Fresh Pad 6. Mask Sauce 7. Castencle 8. Clothes Partics 9. White Crows 10. Lamp 11. Pipe 12. Paste 13. Frozen Maps 14. Engineer Folding Delay Seed Close Pcs 100% Take Next Next Start Pad One press allows the oven to begin functioning. If the door is opened or the Stop/Cancel pad is pressed once during the oven operation the Start Pad must be pressed again to restart the oven. Auto Weight Cook Programs (see page 15) 10 Sec 1 Sec Frost Veg Fresh Pad Frost Veg Fish Daves Postures High Medium Low Smaller Warm Clear Stang Clock Auto Weight Defrost 20Hz 20Hz Auto Weight Defrost Programs (see page 13) 100Hz 20Hz 20Hz Ib/oz conversion pad Weight Selection Pads Clock Pad Press the clock pad. Using the minute and second pad set the clock (12hr clock). Press clock pad again to stop colons flashing.

Control Panels NN-5456/NN-5406 and NN-5256

NN-5456/NN-5406

Time Pads

Micro Power Pads

Beep Sound

When a pad is touched a beep will be heard. If a pad is touched and no beep sound is heard, the unit has not or cannot accept the instruction. At the end of any complete program, the oven will beep 5 times.

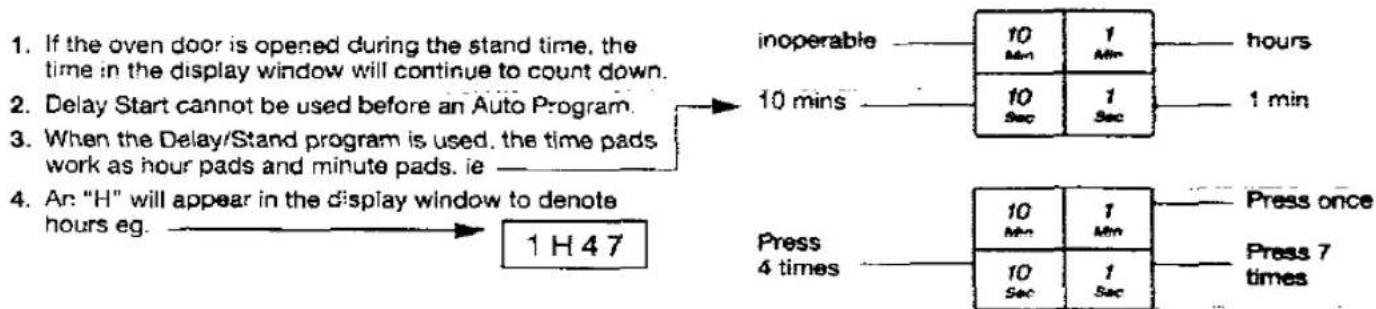

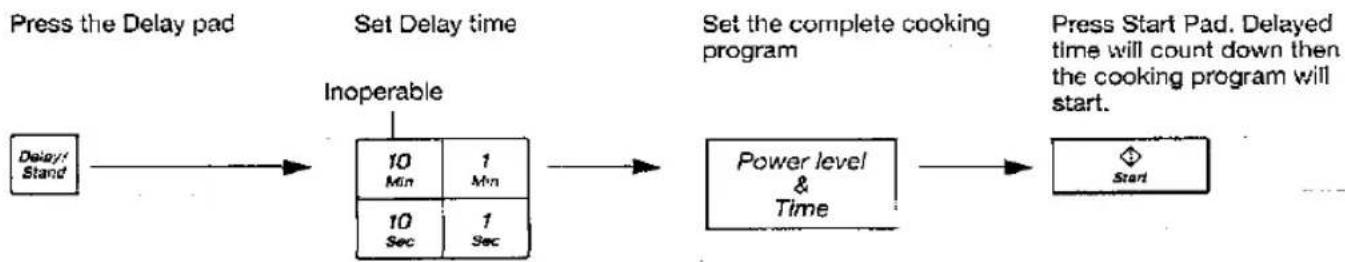

Delay/Stand Pad

This can be used to delay a cooking program for up to 9hrs 99 mins, or used to time or for standing (non-cooking) time.

Clock Pad

Press the clock pad. Using the minute and second pad set the clock (12hr clock). Press clock pad again to stop colons flashing.

Stop/Cancel Pad

Before cooking: one press clears your instructions. During cooking: one press temporarily stops the cooking program. Another press cancels all your instructions and the time of day will reappear in the display window.

Panasonic

10Min	1Min
10Sec	1Sec

CONVENENT RECIPE

Delrose High Medium Low Summer Warm

HOLM

Convenient Recipe Programs (see page 14)

Auto Weight Defrost Programs (see page 13) lb/oz conversion pad Weight Selection Pads

Start Pad

One press allows the oven to begin functioning. If the door is opened or the Stop/Cancel pad is pressed once during the oven operation the Start Pad must be pressed again to restart the oven.

NN-5256

Panasonic

Cash / Debt (Rmb) 0 1 2 3 30 14 25 20 15 10 6 9 8 5 4 3 2 1

Low Medium Summer Warm High

Easy Defrost Dial

Turn to select weight for defrost time.

Timer Dial

Turn to select length of cooking time NB. When food is removed from oven; after cooking is complete, check timer is in zero position.

Microwave Power Selection Dial

Turn to selected power level

Door Release Pad

Opening the door during cooking will stop the cooking program. Cooking continues as soon as the door is closed. The oven light will turn on and stay on whenever the door is open. It is quite safe to open the door during a cooking program. There is no risk of microwave exposure

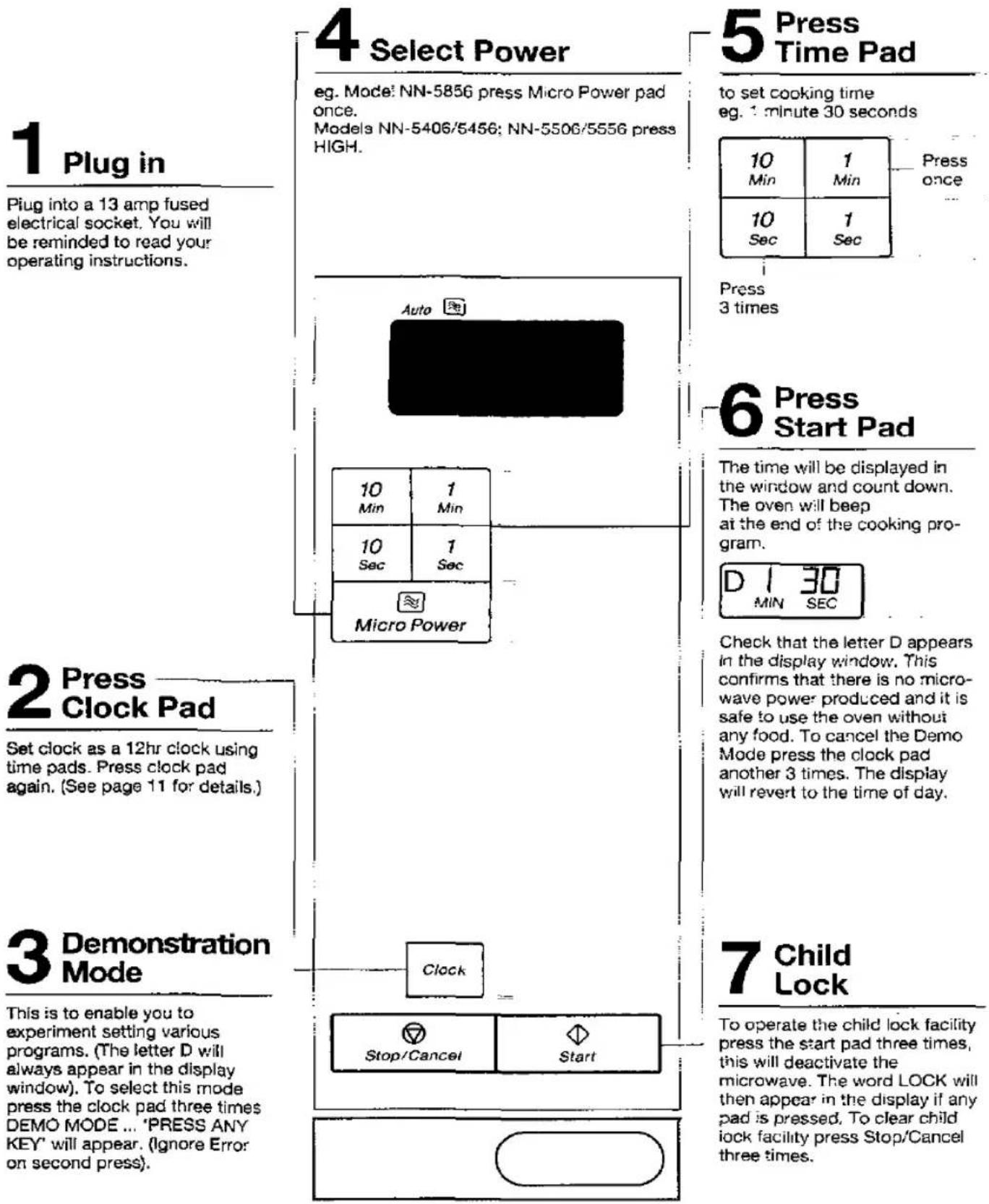

Let's Start to Use your Oven! – Demonstration Mode

    subgraph Inputs
        B --> F["Auto"]
        B --> G["Micro Power"]
        H["2 Press Clock Pad"] --> I["Set clock as a 12hr clock using time pads. Press clock pad again. (See page 11 for details.)"]
        J["3 Demonstration Mode"] --> K["Clock"]
        L["Stop/Cancel"] --> M["Start"]
    end

    N["To set cooking time eg. 1 minute 30 seconds"] --> O["Press once"]
    O --> P["10 Min"]
    O --> Q["1 Min"]
    O --> R["10 Sec"]
    O --> S["1 Sec"]

    T["The oven will beep at the end of the cooking program."] --> U["D 1 30 MIN SEC"]
    U --> V["Check that the letter D appears in the display window. This confirms that there is no microwave power produced and it is safe to use the oven without any food. To cancel the Demo Mode press the clock pad another 3 times. The display will revert to the time of day."]
    V --> W["To operate the child lock facility press the start pad three times, this will deactivate the microwave. The word LOCK will then appear in the display if any pad is pressed. To clear child lock facility press Stop/Cancel three times."]

Quick Guide to Operation

Feature	How to Operate
To Set Clock	Enter time of day (12hr clock)
To Use Power and Time SettingModel NN-5856	Select power. Set the cooking time.
To Use Power and Time SettingMode's NN-5556/5506/NN-5456/NN-5406	Select power. Set the cooking time
To Cook using Sensor Cook padNN-5856	Press the pad to select the program you require.
To Cook using Sensor Reheat padNN-5856	Select reheat fridge or reheat room (1 or 2 presses)
To Cook using Auto Weight Cook padNN-5556/5506	Select program you require Select weight. Press up arrow for minimum weightKeep pressing for required weight
To Defrost using Auto Weight Defrost pad	Press the Auto Weight Defrost pad to select category Set the weight. Press up arrow for minimum weightKeep pressing for required weight
To Use as a Kitchen Timer	Set the desired time

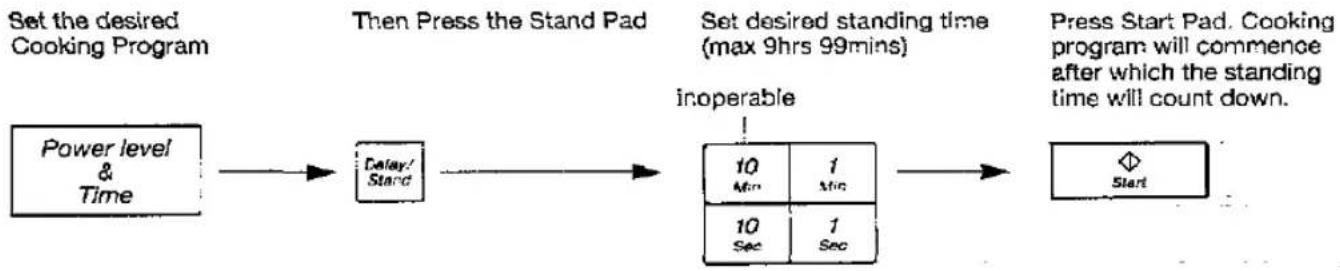

To Set Standing Time	Set the Desired Cooking Program then select required STAND time before pressing START
To Set Delay/Stand	Set Delay time before selecting the Desired Cooking program

Setting the Clock

10Min	1Min
10Sec	1Sec

Delay/Stand

Clock

Stop/Cancel

Start

1 Press Clock Pad

"SET TIME" will appear in the display window.

2 Press Time Pads

Enter time of day by pressing appropriate Time Pads. eg. 11.25pm (12hr clock only)

Press once —— 10 Min —— 1 Min —— Press once Press twice —— 10 Sec —— 1 Sec —— Press 5 times

"PRESS CLOCK" will appear in the window.

3 Press Clock Pad

Colon stops blinking. The time is shown in the window.

NB

1. To reset time of day, repeat step 1 through to step 3.
2. The clock will keep the time of day as long as the oven is plugged in and electricity is supplied.
3. This is a 12 hour clock, ie 2pm = 2.00 not 14.00. The oven will not function if a 24 hour clock is set.

Using the Power and Time Settings (NN-5856 only)

CAUTION: The oven will automatically work on HIGH microwave power if a cooking time is entered without the power level previously being selected.

1 Select Power

Press Micro Power pad to select correct power.

Press	Power Level
once twice3 times4 times5 times6 times	HighDefrostMediumLowSimmerWarm

2 Set Time

Set cooking time by pressing Time Pads

3 Press Start

Press Start Pad. The Cooking Program will start and the time in the display will count down.

Using Power and Time Settings (NN-5556/NN-5506/NN-5456/NN-5406)

CAUTION: The oven will automatically work on HIGH microwave power if a cooking time is entered without the power level previously being selected.

1 Select Power

Defrost

High

Medium

Low

Simmer

Warm

Select correct power pad

2 Set Time

10Mn	1Mn
10Sec	1Sec

Set cooking time by pressing Time Pads

3 Press Start

Start

Press Start Pad. The Cooking Program will start and the time in the display will count down.

Two Stage Cooking:

eg. High power 10 minutes followed by Simmer power 20 minutes; Select High power and program 10 minutes then select second power (Simmer) with second cooking time (20 minutes) then press Stari.

Three Stage Cooking:

eg. High power 5 minutes, Delay 5 minutes, High power 2 minutes; Select first Power level and cooking time, then press DELAY time, then select final power level and final cooking time. Then press Start.

Using Power and Time Settings NN-5256

1 Select Power

Turn dial to select power level

2 Set Time

Set cooking time by turning dial. If the door is already closed cooking time will begin immediately.

Using the the Delay/Stand Feature

The Delay/Stand Pad is used as a timing pad only either before, during or after a cooking program. When the Delay/Stand Pad is selected with a time, there is no microwave power in the oven during this time.

    F["inoperable"] --> G["10 Min"]
    F --> H["1 Min"]
    I["10 mins"] --> J["10 Sec"]
    I --> K["1 Sec"]

    L["Press once"] --> M["10 Min"]
    L --> N["1 Min"]
    O["Press 7 times"] --> P["10 Sec"]
    O --> Q["1 Sec"]

1. To Set a Standing Time:

2. To Set a Delay Start:

Defrosting using Auto Weight Defrost

This feature allows you to defrost joints of meat, mince, chops and bread all automatically. See Cookbook for Defrosting guidelines.

AUTO WEIGHT DEFROST

1 Press Pad to select Defrost category 1, 2 or 3 (See cookbook for defrosting guidelines)
2 Select weight. Press if you wish to select Imperial weight. Adjust the weight by pressing or arrows.
3 Press Start Pad.

Defrosting using the NN-5256

Simmer Low Medium Warm High

Select Defrost power by turning the dial.

Check (Exposure) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

Set the weight by turning the dial.

Using the Convenient Recipe Feature - NN-5456/NN-5406 only

10Min	1Min
10Sec	1Sec

Defrost

High

Medium

Low

Summer

Warm

1	Breed
2	MincelCrops
3	Meat Joints
AUTO WEIGHT DEFROST

Detary:Stara

Clock

g		down

Stop / Cancel

Start

NP-5136

1 Press desired category Chilled Meal: Frozen Meal: Jacket Potato

2 Keep pad pressed until desired serving portion appears in display window. See cookbook for serving portion details.

3 Press Start

Your Recipe

To assist you in using your oven for regular, repeated tasks, you are able to pre-program the oven for a specific power level and time that is convenient to you.

To Program:

1.

Press

2.

Select desired cooking program using a power pad and it is only possible to set one stage cooking ie. one power level and one cooking time.

n0	1
n1	1

keys.

The program may be used for repetitive tasks. eg. softening butter in the morning - High Power for 20 secs. etc.

3.

Press

if using the program immediately. OR press

To Use:

Press

Press

The pre-programmed power level and cooking time will be automatically selected by the oven. If the oven is unplugged or in the event of a power failure, the memory of "Your Recipe" will be lost. Re-program as above.

Auto Weight Cook - Model NN-5556/NN-5506

AUTO WEIGHT COOK

Fresh Veg. Fresh Fish

Froz.Veg/Fish Boiled Potatoes

Jacket Potatoes Chicken Portions

Whole Chicken Meat Sauce

1. Press appropriate pad to select food type

One press will give upper category, two presses will select lower category

2. Select Weight

Press ☐ if you wish to select imperial weight.

Press the ☐ or ☐ pad (one press on the up pad will display the minimum weight). Keep pressing and the weight will change in 100g or 1oz increments

3. Press Start Pad

Sensor Reheat - NN-5856 only

SENSOR REHEAT

1. Press Pad

Once for Reheat Fridge or twice for Reheat Room.

2. Adjust to Taste

Press 🧑 or 🧑: Pad if you wish to alter cooking results.

The More/Less pads adjust the cooking times by approximately 10%

3. Press Start Pad

The category will remain in the display window until the oven calculates the cooking time after detecting a burst of steam. See cookbook for preparing food and minimum/maximum weights to use.

Sensor Cook - NN-5856 only

SENSOR COOK

1. Press Pad appropriate number of times

1. Jacket Potatoes
2. Fresh Vegetables
3. Boiled Potatoes
4. Frozen Veg/Fish
5. Fresh Fish
6. Meat Sauce
7. Casserole
8. Chicken Portions
9. Whole Chicken
10. Lamb
11. Rice
12. Pasta
13. Frozen Meal
14. Steamed Pudding

2. Adjust to Taste

Press 🧑 or 🧑 Pad if you wish to alter cooking results.

The More/Less pads adjust the cooking times by approximately 10%

3. Press Start Pad

The Category will remain in the display window until the oven calculates the cooking time after detecting a burst of steam. See cookbook for preparing food and Minimum/Maximum weight to use.

Questions and Answers

Q: My microwave oven causes interference with my TV. Is this normal?

A: Some radio and TV interference might occur when you cook with the microwave oven. This interference is similar to the interference caused by small appliances such as mixers, vacuums, hair dryers, etc. It does not indicate a problem with your oven.

Q: Why does my oven light dim?

A: When cooking with a power other than HIGH, the oven must cycle to obtain the lower power levels. The oven light dims and clicking noises can be heard when the oven cycles.

Q: Sometimes warm air comes from the oven vents. Why?

A: The heat given off from the cooking food warms the air in the oven cavity. This warmed air is carried out of the oven by the air flow pattern in the oven. There isn't an airtight seal to the air therefore steam can escape. There are no microwaves in the air, or steam. The oven vents should never be blocked during cooking

Technical Specification

Building-In Your Oven

1. In case of fitting into an oven housing, please use Panasonic's Trim Kit NN-5406/NN-5506 - NN-TKK05 NN-5856/NN-5456/NN-5556/NN-5256 - NN-TKK55

2. Microwave ovens should not be built into a unit directly above a top front venting conventional cooker. This will invalidate your one year guarantee. A microwave which is built under a work surface must have adequate air circulation and must have a vent in the work surface. Read Trim-Kit instructions carefully before installation.

Technical Specifications

Power Source:	230-240V 50HZ
Required Power:	1310W
Output Power:	800W (IEC-705)
Outer Dimensions:	510mm (W) x 370mm (D) x 305mm (H)
Oven Cavity Dimensions:	330mm (W) x 330mm (D) x 211mm (H)
Weight:	16kg

Weight and Dimensions shown are approximate.

This appliance was produced to BS 800.

Scanned image of a barcode with vertical black and white lines on both sides

E00038030BP

W0596-0

Printed in the U.K.
