BEDIENUNGSANLEITUNG NN-K403 PANASONIC

Panasonic

MICRO & BROWNER OPERATING INSTRUCTIONS & COOKERY BOOK

For Model: NN-K403B/453B

Standard Conversion Chart

Weight			Capacity
12oz	-	15g	12tsp	-	3ml
1oz	-	25g	1tsp	-	5ml
2oz	-	50g	1tbsp	-	15ml
3oz	-	75g	14pt	-	150ml
4oz	-	100g	12pt	-	300ml
5oz	-	150g	34pt	-	450ml
6oz	-	175g	1pt	-	600ml
7oz	-	200g	114pt	-	1litre
8oz	-	225g
9oz	-	250g
10oz	-	275g
11oz	-	300g
12oz	-	350g
13oz	-	375g
14oz	-	400g
15oz	-	425g
1lb/16oz	-	450g

When using recipes in this book always follow metric or imperial measurements. Do not combine the two. In some recipes the conversions are not a direct equivalent due to recipe result.

Important

Your oven is rated 800 Watts (IEC). When using other cookbooks remember to adjust cooking times accordingly. Take care also when using packet instructions on convenience foods. ALWAYS check the progress of the food as it cooks or reheats by simply pressing the door OPEN button and after checking the progress of the food, press START to restart the cooking time.

Failure to follow the instructions given in this Cookbook and Operating Instructions, may affect the recipe result and in some instances may be dangerous.

Acknowledgements:

Photography: Sue Atkinson, Arc Studios, Windsor.

Loan of china: The Token House, Windsor.

Film Making: Spectrum Colour Print, Wealdstone.

Origination: Clear Image Ltd., London NW6.

Printed by: 3 Arch Press Ltd., Pontyclun, S. Wales.

Microwaving with Panasonic

Microwaving is still a relatively new method of cooking and so even if this is not your first microwave oven, do please read the opening chapters of this cookbook to achieve perfect results every time.

Microwaves leave most foods tastier and leave you with less washing up, but don't expect to become a perfect microwave cook overnight – some of the methods are very different to those used in conventional cooking. The cooking times are short because microwaves quickly convert energy into heat in the food – because of this read carefully the section of General Guidelines and Containers to Use.

The Home Economists at the Test Kitchen have carefully selected recipes in each chapter to give you a basis on which to convert your own favourites.

Should you require any further help or explanation, phone our COOKERY ADVICE LINE: 0344 862108 or write to:

The Microwave Test Kitchen Panasonic Consumer Electronics U.K. Willoughby Road Bracknell Berks RG12 8FP

When writing, be sure to state your model number.

Contents

Operating Instructions 2-7

Containers to Use 8,9

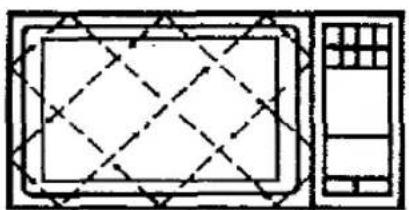

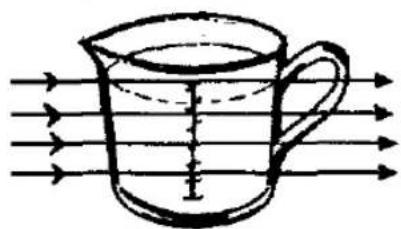

Microwaving Principles 10

Microwaving General Guidelines .....11, 12

Selecting Micro Power Levels 13

Defrosting Guidelines ....14

Defrosting - Common Foods ....15

Oven Accessories to Use 16

Combination Cooking General Guidelines .....17

Auto Programs Guidelines ....18

Auto Programs 19

Grilling 20

Cooking and Reheating Charts 21-26

Reheating by Microwave 27, 28

Recipes

Soups and Starters 29

Fish 30

Meat and Poultry 33

Eggs, Cheese and Snacks ....36

Cereals, Pasta, Rice and Beans ....38

Vegetables and Vegetarian 40

Sauces 43

Desserts and Fruit 44

Cakes 46

Operating Instructions

Pages 2-7 of this cookbook are Operating Instructions. These must be read prior to operating the machine. Failure to read these instructions could result in damage to your oven.

Black-and-white photo of three people in a control room with filing cabinets (no visible text or symbols)

At our busy Test Kitchen in Bracknell, all the ovens are especially programmed for the UK market and the recipes are tested many times to ensure you achieve successful results every time.

Unpacking Your Oven

1. Examine Your Oven

Unpack oven, remove all packing material, and examine the oven for any damage such as dents, broken door latches or cracks in the door. Notify dealer immediately if unit is damaged. Do NOT install if unit is damaged N.B. The appliance should be inspected for damage to the door seals and door seal areas and if these areas are damaged; the appliance should not be operated until it has been repaired by a service technician trained by the manufacturer

2. Guarantee Card

Fill out and post the pre-addressed guarantee card. This oven was manufactured for DOMESTIC USE ONLY

3. Earthing Instructions

FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY

This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 13 amp fuse is fitted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has a rating of 13 amps and that it is approved by ASTA or BSI to BS1362. Check for the ASTA mark or the BSI mark on the body of the fuse. If the plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover, the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from your local Panasonic Dealer IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY AND AN APPROPRIATE ONE FITTED. THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13 AMP SOCKET.

If a new plug is to be fitted, please observe the winng code as shown below. If in any doubt, please consult a qualified electrician. (For U.K. Models only)

WARNING: THIS APPLIANCE MUST BE EARTHED. IMPORTANT: The wires in this mains lead are coloured in accordance with the following code

Green-and-yellow. Earth

Blue Neutral

Brown Live

As the colours of the wire in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal which is marked with the letter E or by the Earth symbol or coloured GREEN or GREEN-AND-YELLOW

The wire which is coloured BLUE must be connected to the terminal in the plug which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal in the plug which is marked with the letter L or coloured RED.

HOW TO REPLACE THE FUSE

Open the fuse compartment with a screwdriver and replace the fuse

Caution Points

1. Before Use

Before using COMBINATION or GRILL function for the first time operate the oven without food and accessories on GRILL 1 for 20 mins. This will allow the oil that is used for rust protection to be burned off. This is the only time that the oven is operated empty.

2. Hot Surfaces

Exterior oven surfaces, including air vents on the cabinet and the oven door, will get hot during COMBINATION and GRILLING. Use care when opening or closing door and when inserting or removing food and accessories. The oven has a heater situated in the top of the oven. After using the COMBINATION and GRILL functions the roof and walls will be very hot

3. Voltage & Power

The voltage used must be the same as specified on this microwave oven. Using a higher voltage than that which is specified is dangerous and may result in a fire or other type of accident causing damage

4. Plug Fuse see Point 3. left column

5. Service

It is dangerous for anyone other than a service technician trained by the manufacturer to perform repair service. Do not attempt to remove the outer casing of the oven

6. Operating When Empty

The appliance must not be operated by Microwave or Combination WITHOUT FOOD IN THE OVEN. Operation when empty will damage the appliance

7. Cord/Plug

If the supply cord of this appliance is damaged, it must be replaced by the special cord available only from the manufacturer. Do not immerse cord, plug or oven in water. Keep cord away from heated surfaces. Do not let cord hang over the edge of table or work top. Do not plug your oven in via an extension cable as this can be dangerous. It is important to plug the oven directly into a wall socket. The back of the appliance heats up during use. Do not allow the cord to be in contact with the back of the appliance or cabinet surface

8. Door Seals

Do not attempt to tamper with or make any adjustments or repairs to the door, control panel housing, safety interlock switches or any other part of the oven Do not remove outer panel from oven. The door seals and door seal areas should always be kept clean - use a damp cloth

9. Oven Light

This appliance including the oven lamp should be serviced only by service technician trained by the manufacturer.

10. Outdoor Use

Do not use outdoors.

11. Storage of Accessories

When the oven is not being used, do not store any objects other than oven accessories inside the oven in case it is accidentally turned on in case of electronic failure, oven can only be turned off at wall socket

Placement of Oven

1. Oven must be placed on a flat, stable surface. For proper operation, the oven must have sufficient air flow ie 5cm/2" at the side: 15cm/6" clear over the top
2. Do not block air vents on the rear and bottom or top of the cabinet. Do not place any articles on the top of the oven on top of the top vents. If air vents are blocked

during operation, the oven may overheat! If the oven overheats, a thermal safety device will turn the oven off. The oven will remain inoperable with blank display until it has cooled

1. Do not place the microwave oven on a shelf directly above a gas or electric hob. The oven may become damaged

Important Information – Read Carefully

Short Cooking Times

As microwave cooking times are much shorter than other cooking methods it is essential that recommended cooking times are not exceeded without first checking the food. Cooking times given in the cookbook are approximate. Factors that may affect cooking times are: preferred degree of cooking, starting temperature, altitude, volume, size and shape of foods and utensils used. As you become familiar with the oven, you will be able to adjust these factors. It is better to undercook rather than overcook foods. If food is undercooked, it can always be returned to the oven for further cooking. If food is overcooked, nothing can be done. Always start with minimum cooking times.

Important

If the recommended cooking times are exceeded the food will be spoiled and in extreme circumstances could catch fire and possibly damage the interior of the oven.

1. Small quantities of food.

Take care when heating small quantities of food as these can easily bum, dry out or catch on fire if cooked too long. Always set short cooking times and check the food frequently

N.B. If materials inside the oven should ignite, keep oven door closed, turn oven off, and disconnect the power cord, or shut off power at the fuse or circuit breaker panel. NEVER OPERATE THE OVEN WITHOUT FOOD INSIDE ON MICROWAVE OR COMBINATION.

2. Foods low in moisture.

Take care when heating foods low in moisture. eg bread items, chocolate, biscuits and pastries. These can easily bum, dry out or catch on fire if cooked too long.

3. Christmas Pudding.

Christmas puddings and other foods high in fats or sugar, eg. Jam, mince pies, must not be over heated. These foods must never be left unattended as with over cooking these foods can ignite.

4. Boiled Eggs.

Do not boil eggs in their shell in your microwave. Raw eggs boiled in their shells can explode causing injury

5. Foods with Skins.

Potatoes, apples, egg yolk, whole vegetables and sausages are examples of food with non porous skins. These must be pierced using a fork before cooking to prevent bursting.

6. Liquids.

When heating liquids, eg soups, sauces and beverages in your microwave oven, overheating the liquid beyond boiling point can occur without evidence of bubbling. This could result in a sudden boil over of the hot liquid. To prevent this possibility the following steps should be taken:

a) Avoid using straight-sided containers with narrow necks.
b) Do not overheat.
c) Stir the liquid before placing the container in the oven and again halfway through the heating time
d) After heating, allow to stand in the oven for a short time, stirring again before carefully removing the container

7. Deep Fat Frying.

Do not attempt to deep fat in your oven

8. Meat Thermometer.

Use a meat thermometer to check the degree of cooking of roasts and poultry only when meat has been removed from the microwave. If undercooked, return to the oven and cook for a few more minutes at the recommended power level. Do not leave a conventional meat thermometer in the oven when microwaving.

9. Paper, Plastic.

Carefully attend the appliance if paper, plastic or other combustible materials are used as containers or for covering. Do not use twist-ties with roasting bags as arcing will occur.

Do not use re-cycled paper products, eg Kitchen roll unless they say they are specifically designed for use in a microwave oven. These products contain impurities which may cause sparks and/or fires when used.

10. Reheating.

It is essential that reheated food is served "piping hot". Remove the food from the oven and check that it is "piping hot" ie steam is being emitted from all parts and any sauce is bubbling. (If you wish you may choose to check the food has reached 72°C with a food thermometer - but remember do not use this thermometer inside the microwave.)

For foods that cannot be stirred, eg lasagne, shepherds pie, the centre should be cut with a knife to test it is well heated through. Even if a manufacturer's packet instructions have been followed always check the food is piping hot before serving and if in doubt return your food to the oven for further heating.

11. Standing Time.

Standing time refers to the period at the end of cooking or reheating when food is left before being eaten, ie. it is a rest time which allows the heat in the food to continue to transfer to the centre, thus eliminating cold spots. See page 12 for details.

12. Keeping Your Oven Clean.

It is essential for safe operation of the oven that it is wiped out regularly. Use warm soapy water, squeeze the cloth out well and use to remove any grease or food from the interior. Pay particular attention to the door seal area and also the areas around the microwave feed guide situated on the right hand side of the cavity wall. The oven should be unplugged when cleaning.

13. Grilling.

The oven will only operate on the GRILL function with the door closed.

14. Fan Motor Operation.

After using the oven the fan motor rotates for about: 5 minutes to cool the electric components. This is normal and you can take out food even though the fan motor operates. You can continue using the oven during this 5 minutes.

15. Care of Your Oven Cavity.

Your oven cavity is constructed of zinc coated steel (Zintec), painted with an extremely durable acrylic coating. When cooking many foods it is normal for condensation to appear in the oven. After use the oven interior cavity and door must be wiped out to remove any remaining water. The cavity can be damaged by abrasive cleaners and sharp objects so care must be taken to avoid damage caused in this way. If the cavity becomes damaged, the lining may begin to corrode. If any corrosion is noticed please contact your local service agent for advice.

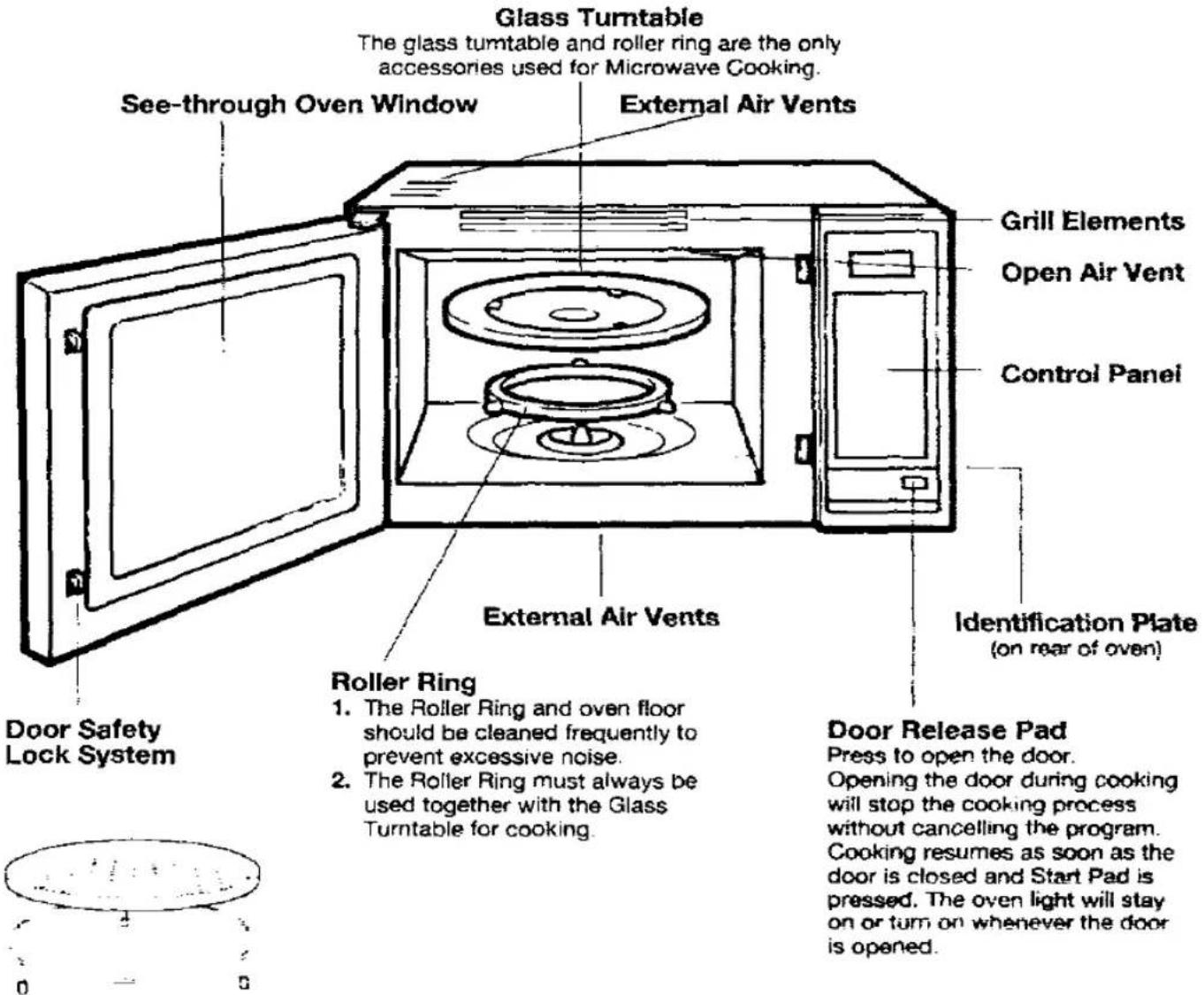

Parts of Your Oven

Glass Turntable

1. Do not operate the oven without the Roller Ring and Glass Turntable in place.
2. Only use the Glass Turntable specifically designed for this oven. Do not substitute with any other Glass Turntable.
3. If Glass Tumtable is hot, allow to cool before cleaning or placing in water.
4. Do not cook directly on Glass Turntable. Always place food in a microwave safe dish. The only exception to this is when cooking Jacket Potatoes or Auto Program Crisper Jackets.
5. If food or utensil on Glass Turntable touches oven walls, causing the tray to stop moving, the tray will automatically rotate in opposite direction. This is normal. Open oven door, reposition the food and Restart.
6. The Glass Turntable can rotate in either direction.

7. While cooking by MICROWAVE or COMBINATION, Turntable may vibrate. This will not affect cooking performance.

8. The metal Grill Accessory provided must ONLY be used as directed for Grilling and Combination cooking. Never use this on microwave only. Do not use if operating the oven with less than 200g (7oz) of food on a manual or Auto Combination program. FAILURE TO USE ACCESSORIES CORRECTLY COULD DAMAGE YOUR OVEN.

9. Arcing may occur if the incorrect weight of food is used, the Grill Accessory has been damaged. or a metal container has been used accidentally. If this occurs, stop the machine immediately, and continue to cook by GRILL ONLY.
10. Always refer to instructions for correct accessories to use on all programs (page 19). The glass turntable and roller ring are the only accessories used for Microwave Cooking.

Glass Turntable The glass turntable and roller ring are the only accessories used for Microwave Cooking. See-through Oven Window External Air Vents Grill Elements Open Air Vent Control Panel Door Safety Lock System External Air Vents Identification Plate (on rear of oven) Roller Ring 1. The Roller Ring and oven floor should be cleaned frequently to prevent excessive noise. 2. The Roller Ring must always be used together with the Glass Turntable for cooking. Door Release Pad Press to open the door. Opening the door during cooking will stop the cooking process without cancelling the program. Cooking resumes as soon as the door is closed and Start Pad is pressed. The oven light will stay on or turn on whenever the door is opened.

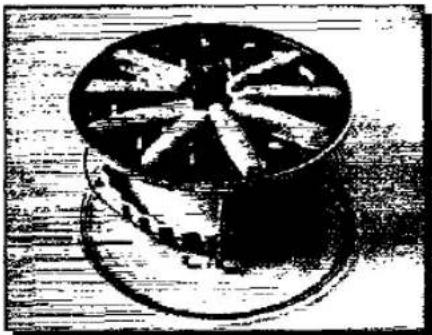

Grill Accessory

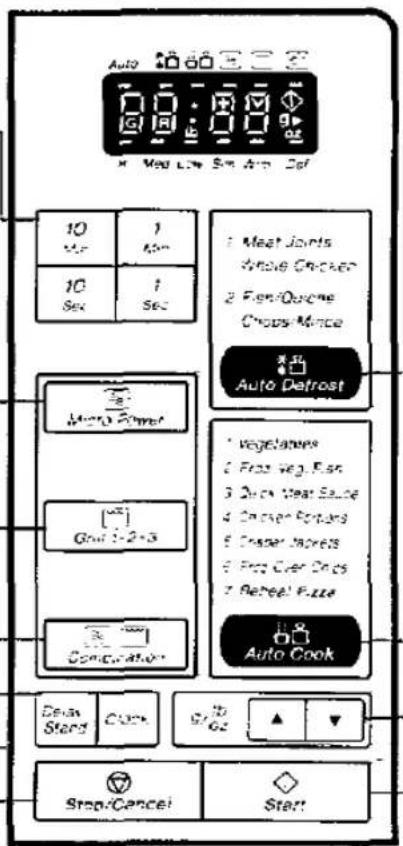

Control Panel - NN-K403/453

NN-K403/453

1.

Display Window

To assist you in programming the oven easily the next operation for you to press is indicated in the display window.

3.

Set the cooking time, eg after selecting power level!

2.

Set the weight. eg after selecting Auto Defrost.

Press Start Pad. eg after selecting Auto Cook program or a Power Level and a time.

Time Pads

Microwave Power Pad

Grill Pad

Combination Pad

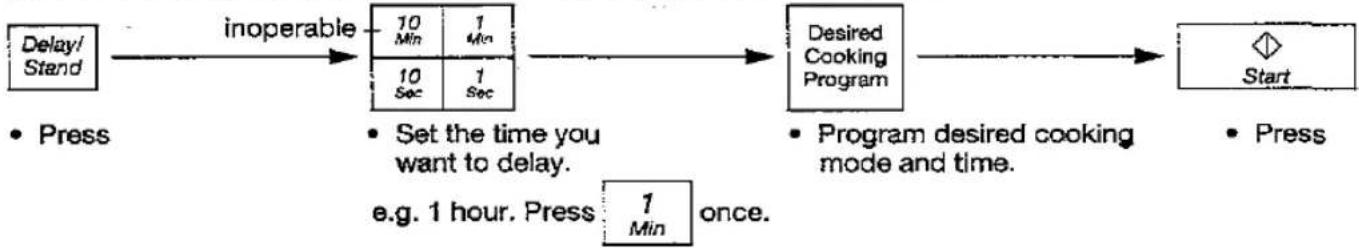

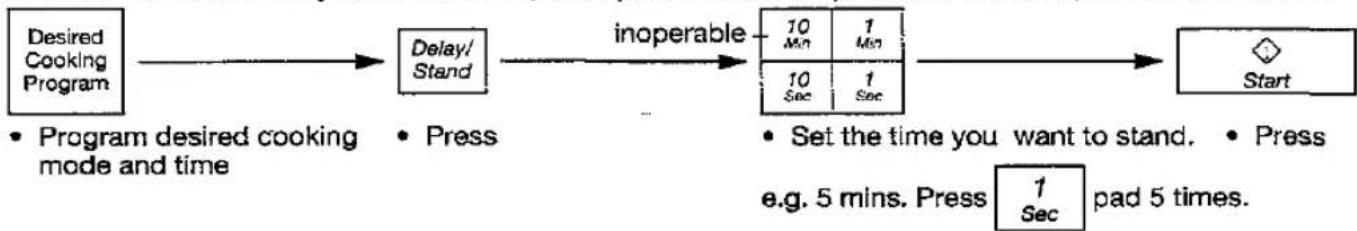

Delay/Stand Pad

This can be used to delay a cooking program for up to 9hrs 99 mins, or used to time or for standing (non-cooking) time.

Clock Pad

Press the clock pad. Using the minute and second pad set the clock (12hr clock). Press clock pad again to stop colons flashing.

Stop/Cancel Pad

Before cooking: one press clears your instructions. During cooking; one press temporarily stops the cooking program. Another press cancels all your instructions and the time of day will appear in the display window.

Auto 10 Wt 1 10 Sex 1 Sex 1 Meat Joints Veget Chicker 2 Frist/Queue Chaps Mince Auto Detrost Green Door [ ] Gnd 1-2-3 Concurator Vegetables 2 Frist Veg. Fan 3 Duck Wear Sauce 4 Censor Pants 5 Censor Movers 6 Frog Cover Doors 7 Reheel Puzzle Auto Cook Down Starts Clock Stop/Cancel Start

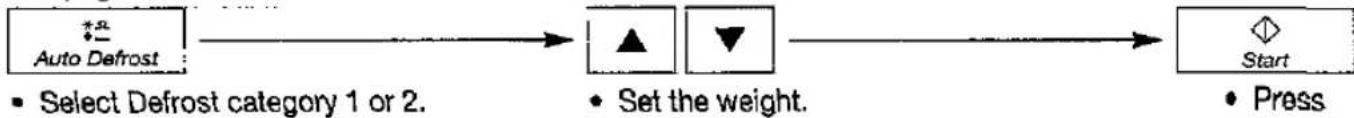

Auto Defrost Pad

Auto Programs

Weight Selection Pads

-Start Pad

One press allows the oven to begin functioning. If the door is opened or the Stop/Cancel pad is pressed once during the oven operation the Start Pad must be pressed again to restart the oven.

Door Release Pad

Opening the door during cooking will stop the cooking process without cancelling the program. Cooking continues as soon as the door is closed and the Start Pad is pressed. The oven light will turn on and stay on whenever the door is open. It is quite safe to open the door during a cooking program. There is no risk of microwave exposure.

Care Of Your Microwave Oven

1. Switch the oven off before cleaning and unplug at socket if possible.
2. Keep the inside of the oven, door seals and door seal areas clean. When food splatters or spilled liquids adhere to oven walls, door seals and door seal areas wipe off with a damp cloth. Mild detergent may be used if they get very dirty. The use of harsh detergent or abrasives is not recommended.
3. After GRILL or COMBINATION cooking the ceiling and walls of the oven should be cleaned with a soft cloth squeezed in soapy water. Particular care should be taken to keep the window area clean particularly after cooking by GRILL or COMBINATION. Stubborn spots inside the oven can be removed by using a small amount of branded spray microwave oven cleaner sprayed onto a soft damp cloth. Wipe onto problem spots, leave for recommended time and then wipe off.
4. The outside oven surface should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
5. If the Control Panel becomes dirty, clean with a soft, dry cloth. Do not use harsh detergents or abrasives on Control Panel. When cleaning the Control Panel, leave the oven door open to prevent the oven from accidentally turning

on. After cleaning touch STOP/CANCEL Pad to clear display window.

1. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated in colder weather conditions and in no way indicates a malfunction of the unit.
2. It is occasionally necessary to remove the glass turntable for cleaning. Wash the tray in warm soapy water.
3. The roller ring and oven cavity floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent and hot water then dry with a clean cloth. The roller ring may be washed in mild soapy water. Cooking vapours collect during repeated use but in no way affect the bottom surface or the roller ring wheels. After removing the roller ring from cavity floor for cleaning, be sure to replace it in the proper position.
4. When GRILLING or cooking by COMBINATION some foods may splatter grease onto the oven walls. If the oven is not cleaned occasionally to eliminate this grease, it can accumulate and cause the oven to 'SMOKE' during use. These marks will be more difficult to clean later.

Controls and Operation Procedure

KG/LB CONVERSION:

When using the Auto Defrost and Auto Cook features, the oven automatically displays the kg symbol. If you wish to use the lb/oz to enter your weight in Imperial, press START pad directly after plugging the oven in but before setting the clock.

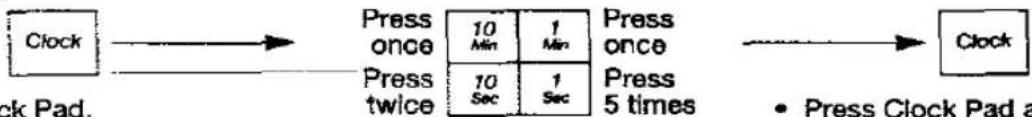

CLOCK PAD:

It is a 12 hour clock, ie. set 2:00 pm as 2:00 NOT 14:00.

When oven is first plugged in, "88:88" will appear in the display window.

To set clock

• Press Clock Pad. Colons will start blinking.
• Set time of day. eg 11:25
• Press Clock Pad again to stop colons blinking. Time of day is now locked into oven display. NB: Oven will not operate whilst colons are still blinking.

POWER PAD:

Select power level before programming in the cooking time.

Press 1 x for HIGH, 2 x for DEFROST, 3 x for MEDIUM, 4 x for LOW, 5 x for SIMMER, 6 x for WARM.

TIME PADS

The Pads can be programmed up to 99 minutes and 99 seconds.

Example: To set 13 minutes 45 seconds

Press once Press 4 times

Press 3 times Press 5 times

STOP/CANCEL Pad:

Before cooking: One tap clears your instructions. During cooking: One tap temporarily stops the cooking process. Another tap cancels all your instructions and time of day appears in display window.

START Pad:

One tap allows oven to begin functioning. If door is opened or STOP/CANCEL Pad is tapped once during oven operation, START Pad must again be touched to restart oven.

Door Release Pad:

Opening the door during cooking will stop the cooking process without cancelling the program. Cooking resumes as soon as the door is closed and START Pad is touched. The oven light will turn on and stay on whenever the door is opened. It is quite safe to open the door at any time during a cooking program and there is no risk of Microwave exposure.

Beep Sound:

When a pad is touched correctly, a beep will be heard. If a pad is touched and no beep is heard, the unit has not or cannot accept the instruction. The oven will beep twice between programmed stages. At the end of any complete program, the oven will beep 5 times.

Microwave Cooking

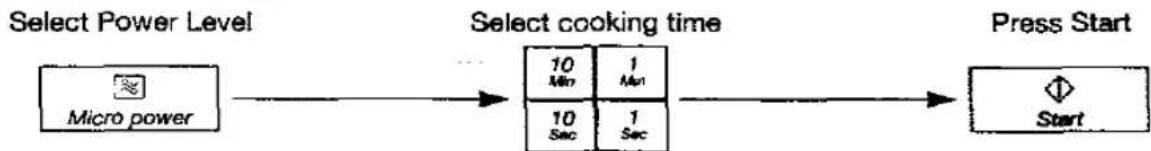

One Stage Cooking:

Two Stage Cooking: (Microwave or Combination)

eg. High Power 10 minutes followed by Simmer power 20 minutes; Select High power and program 10 minutes then select second power (Simmer) with second cooking time (20 minutes) then press Start.

Three Stage Cooking: (Microwave only)

eg. High Power 5 minutes, Delay 5 minutes, High power 2 minutes; Select first power level and cooking time, then press DELAY pad and select DELAY time, then select final power level and final cooking time. Then press Start

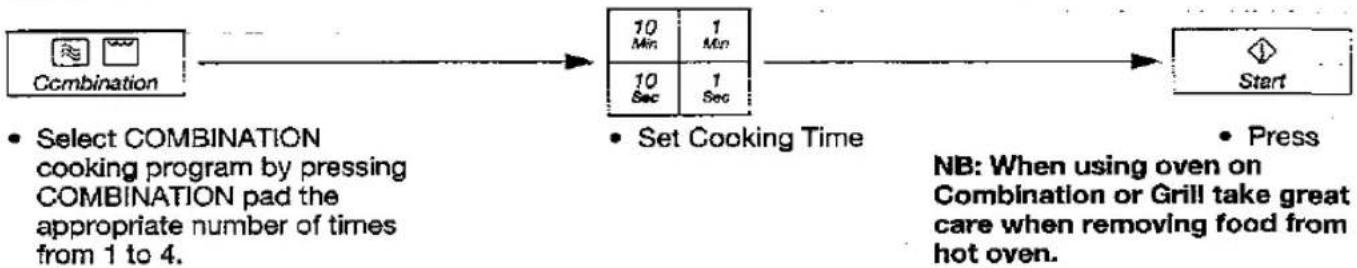

Combination Cooking


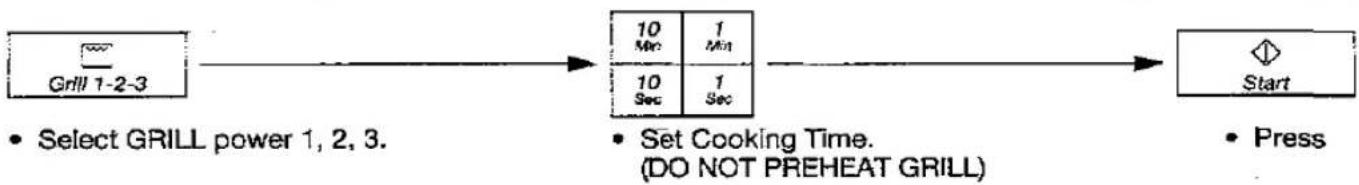

Grilling

Delay Start:

This feature allows you to program a Delay Start. The time pads operate as HOUR pads and MINUTE pads on this feature. It is not possible to delay start an AUTO PROGRAM.

Stand Time:

This feature allows you to program a Stand Time after cooking is completed and to program the oven as a minute timer or/and delay start. The time pads operate as HOUR pads and MINUTE pads on this feature.

Auto Programs

See page 19 for how to use and details of accessories.

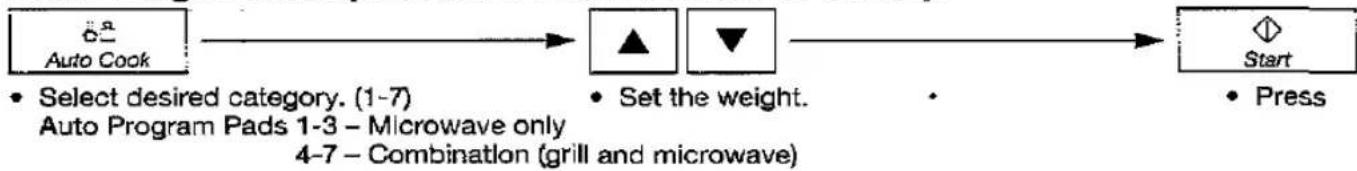

Auto Weight Cook (COMBINATION or MICROWAVE):

See pages 18 and 19 for weight ranges and appropriate preparation of the food.

Auto Weight Defrost:

See page 14 for further details.

Containers to Use on Microwave

Apart from measuring ingredients and selecting the correct cooking power and time, the container you choose to microwave your food in is the most important factor that decides success or failure.

ALWAYS USE THE CORRECT SIZED CONTAINER RECOM- MENDED IN THE RECIPE.

Although new microwave accessories are constantly being introduced, many dishes already in your kitchen cupboard are ideal for cooking and reheating by microwave.

The golden rule is NEVER use a dish made of metal or that has a metal pattern or trim - if you do so, you might damage your oven or ruin your dish, since the metal patterns will lift off during cooking.

Testing Dishes for Suitability

When unsure that a cooking container is suitable for use in your microwave, check by the following test:

1. Fill a microwave safe measuring jug with 300ml (2pt) cold water.

2. Place it on the turntable alongside the dish to be tested. If the dish you are testing is a large dish, then stand the measuring jug on top of the empty dish.

3. Heat on HIGH power for 1 minute.

Abstract black-and-white sketch of a circular object with a star-like center, surrounded by horizontal lines (no text or symbols)

RESULT

If the dish is suitable for microwaving, it will remain cool, whilst the water in the jug will begin to feel warm. If the testing dish feels warm, do not use as it is obviously absorbing microwave energy. N.B. This test does not apply to plastic or metal based containers e.g. Le Creuset style dishes, which should not be used as they are cast iron covered with enamel

Quick Check Guide to Cooking Utensils

Illustration of a smartphone, a circular device with a crosshair, and a small figure on a surface (no text or symbols)

OVEN GLASS

Everyday glass that is heat resistant e.g. Pyrex, is ideal. Do not use delicate glass which may crack due to the heat from the food. Do not use lead crystal which may crack or arc.

CHINA AND CERAMIC

Everyday glazed china plates, saucers, bowls, mugs and cups can be used if they are heat resistant. Porcelain and ceramic are also ideal.

Fine bone china should only be used for reheating for short periods, otherwise the change in temperature may crack the dish or craze the finish.

Do not use dishes with a metal rim or pattern. Do not use jugs or mugs with glued handles, since the glue can melt in a microwave.

POTTERY, EARTHENWARE, STONEWARE

If completely glazed, these dishes are suitable. Do not use if partially glazed or unglazed, since they are able to absorb water which in turn absorbs microwave energy, making the container very hot and slows down the cooking of food.

FOIL/METAL CONTAINERS

NEVER ATTEMPT TO COOK IN FOIL OR METAL containers – the microwaves cannot pass through and the food will not heat evenly – this may also damage your oven. Small items in shallow foil containers can be RE-HEATED in the microwave, but take care that containers do not touch the oven walls or door. Use wooden kebab sticks instead of metal skewers. DO NOT RE-USE FOIL CONTAINERS AS THEY MAY BECOME DENTED OR DAMAGED AND ARCING MAY OCCUR.

Abstract black ink brush strokes on white background, no text or symbols present

Black-and-white illustration of various household items including a bed, lamp, and tools (no text or symbols visible)

Black-and-white abstract composition featuring overlapping circular shapes and a central dark circle (no text or symbols)

Black-and-white abstract image with no discernible text, symbols, or structured content.

TIN FOIL

Small amounts of smooth tin foil can be used to SHIELD joints of meat during defrosting and cooking, as the microwaves cannot pass through the foil, this prevents the parts shielded from overcooking or overdefrosting. Take care that the foil does not touch the sides or roof of the oven, as this may cause arcing and damage your oven.

ROASTING BAGS

Roasting bags are useful when slit up one side to tent a joint for roasting by power and time. Do not use the metal twists supplied and do NOT use on AUTO PROGRAMS.

Abstract black-and-white illustration of geometric shapes and circular elements (no text or symbols)

PAPER

Plain white absorbent kitchen paper (kitchen towel) can be used for covering blind pastry cases and for covering bacon to prevent splattering BUT FOR SHORT COOKING TIMES ONLY. NEVER RE-USE A PIECE OF KITCHEN TOWEL. ALWAYS USE A FRESH PIECE OF PAPER FOR EACH DISH.

Avoid kitchen paper containing manmade fibres. If you are using branded re-cycled kitchen towel, check first that it is recommended for microwave use.

Do not use waxed or plastic coated cups or plates as the finish may melt in the oven.

Greaseproof paper can be used to line the base of dishes and to cover fatty foods e.g. bacon rashers to stop them splattering.

White paper plates can be used for SHORT REHEATING TIMES.

CLING FILM

Microwave cling film can be used for covering food that is reheated by microwave. It is also useful for covering food to be cooked, but care should be taken to avoid the film being in direct contact with the food.

WICKER, WOOD, STRAW BASKETS

Do not use these items in your microwave. With continued use and with prolonged exposure they will crack and could ignite. Do not use wooden dishes in your microwave.

PLASTIC

There are many plastic containers designed for microwave use.

Only use Tupperware containers If they are designed for microwave use.

Do not use Melamine - although it is heat resistant it absorbs microwave energy and scorches.

Even if a container is microwave safe, do not use for cooking foods high in sugar or fat. Foods that require long cooking times e.g. brown rice, should not be cooked in plastic.

Never cook in cream or margarine cartons or yoghurt pots, as these will melt with the heat from the food.

Many plastics that are not heatproof for cooking are suitable for defrosting.

Scanned text of a document with fragmented and low-resolution content, likely from a printed or damaged document.

Black-and-white image with a large emblem and partial text, likely from a document or sign.

Abstract black-and-white sketch with circular and rectangular shapes, no readable text or symbols

Black-and-white abstract image with circular and radial patterns, no visible text or symbols

Microwaving Principles

Microwave energy has been used in this country to cook and heat since early experiments with RADAR. Microwaves themselves are in fact present in the atmosphere all the time – both naturally and from manmade sources.

Manmade microwaves include radar, radio and television waves, telecommunications links and car phones. If you follow our basic recommendations and keep your oven clean, then it will be completely safe.

Illustration of a vintage television set with a satellite dish above and a computer monitor (no text or symbols)

Many years ago it was discovered that one of the effects of microwaves is to make water molecules VIBRATE very quickly. Because all foods contain water to a greater or lesser extent, they can quickly be heated by the friction caused by this vibration.

Microwave

Water Molecule

Absorption

Vibration

Your microwave oven converts electricity into microwaves in the magnetron.

Waveguide Magnetron Oven Cavity Turntable

Microwaves are REFLECTED off metal, so they bounce off the walls and the metal door screen, back onto the food.

Pure architectural floor plan lines without any text, numbers, or symbols

They contain no heat themselves and pass through the cooking container i.e. are transmitted, to be ABSORBED by the water molecules, as well as sugar and fat particles in the food.

Simple line drawing of a measuring cup with arrows indicating direction (no text or symbols)

Microwaves can only penetrate to a depth of 1½-2 inches (4-5 cm) and as heat spreads through the food by conduction, just as in a traditional oven, the food cooks from the outside inwards.

When a microwave oven is switched off, the food will continue to cook by this conduction - NOT BY MICROWAVE ENERGY. Hence STANDING TIME is very important in microwaving, particularly for dense foods i.e meat, cakes and reheated meals.

The dish used to cook or reheat the food will get warm during

cooking, as the heat conducts from the food. Even in microwaving, oven gloves are required!

MICROWAVES CANNOT PASS THROUGH METAL AND THEREFORE METAL COOKING UTENSILS CAN NEVER BE USED IN A MICROWAVE.

Foods Not Suitable for Cooking by Microwave

Yorkshire Puddings, Souffles, Double Crust Pastry Pies.

Because these foods rely on dry external heat to cook correctly, do not attempt to cook by microwave.

Foods that require deep fat frying cannot be cooked either, however shallow fried foods can be cooked in a browning dish, available from major department stores. Always follow manufacturers' instructions carefully when preheating the dish (remember your oven is 800Watts (IEC) on HIGH power).

Bolled Eggs

Do not boil eggs in your microwave.

Raw eggs boiled in their shells can explode.

Cleaning

The interior should be kept clean at all times. Stubborn spots can be removed with a branded oven spray on a soft cloth.

The door surround is a plastic based substance and is best kept clean with soapy water. DO NOT USE ANY TYPE OF OVEN CLEANER ON THE DOOR. The door seal area must be kept clean at all times to ensure microwaves are not attracted to this area and to avoid damage to the door screen film. The tumtable can be cleaned with hot soapy water and is dishwasher safe. Wash the roller ring regularly in soapy water.

General Guidelines

Black-and-white illustration of two circular objects with food items, possibly tomatoes or vegetables, arranged in a row (no text or symbols visible)

COVERING

Cover foods with microwave cling film or a self-fitting lid. Cover fish, vegetables, casseroles, soups. Do not cover cakes, sauces, jacket potatoes, pastry Items.

Black-and-white illustration of a naval ship at sea with crew visible below (no text or symbols)

STARTING TEMPERATURE

The colder the food, the longer it takes to heat up. Food from a fridge takes longer to reheat than food at room temperature.

Black-and-white sketch of a globe with continents and latitude/longitude lines (no text or symbols)

SPACING

Foods cook more quickly and evenly if spaced apart. NEVER pile foods on top of each other.

Simple line drawing of a cup with a spoon, no text or symbols present

TURNING AND STIRRING

Some foods require stirring during cooking. Meat and poultry should be turned after half the cooking time.

Scanned text of contract clauses with partially visible Chinese characters and a large black block at the bottom.

SHAPE

Even shapes cook evenly. Food cooks better by microwave when in a round container rather than square.

Black-and-white illustration of a globe showing continents and latitude/longitude lines (no text or labels)

ARRANGING

Individual foods e.g. chicken portions or chops, should be placed on a dish so that the thicker parts are to the outside.

Black-and-white sketch of a bowl with a spoon above it, no visible text or symbols

LIQUIDS

All liquids must be stirred before and during heating. Water especially must be stirred before and during heating, to avoid eruption. Do not heat liquids that have previously been boiled.

Abstract black-and-white geometric composition with no visible text or symbols

CHECKING FOOD

It is essential that food is checked during and after a recommended cooking time, even if an AUTO PROGRAM has been used (just as you would check food cooked in a conventional oven). Return the food to the oven for further cooking if necessary.

Black-and-white photo of a person standing in front of a building with visible windows and a large window (no text or symbols)

CLEANING

As microwaves work on food particles, keep your oven clean at all times. Stubborn spots of food can be removed by using a branded microwave spray cleaner, sprayed onto a soft cloth, always wipe the oven dry after cleaning.

General Guidelines

Abstract black-and-white graphic with three circular shapes and a central dot (no text or symbols)

DISH SIZE

Follow the dish sizes given in the recipes, as these affect the cooking and reheating times. A quantity of food spread in a bigger dish cooks and reheats more quickly.

Abstract black-and-white ink blot pattern with no discernible text or symbols

QUANTITY

Small quantities cook faster than large quantities, also small meals will reheat more quickly than large portions.

Abstract black-and-white sketch of a dome-shaped object and a textured base (no text or symbols)

DENSITY

Porous airy foods heat more quickly than dense heavy foods.

STANDING TIME

Dense foods e.g. meat, jacket potatoes and cakes, require a STANDING TIME (inside or outside of the oven) after cooking, to allow heat to finish conducting to cook the centre completely.

MEAT JOINTS - Stand 15 mins. wrapped in tin foil.

JACKET POTATOES - Stand 5 mins. wrapped in tin foil.

LIGHT CAKES - Stand 5 mins. before removing from dish.

RICH DENSE CAKES - Stand 15-20 mins.

FISH - Stand 2-5 mins.

Black-and-white illustration of a globe, a large sphere, and two small objects with textured surfaces (no text or symbols)

If food is not cooked after STANDING TIME, return to oven and cook for additional time.

EGG DISHES - Stand 2-3 mins.

PRECOOKED CONVENIENCE FOODS - Stand for 5 mins.

PLATED MEALS - Stand for 2-5 mins.

VEGETABLES – Boiled potatoes benefit from standing 1-2 mins., however most other types of vegetables can be served immediately.

DEFROSTING - It is essential to allow standing time to complete the process. This can vary from 5 mins. e.g. raspberries, to up to 1 hour for a joint of meat.

PIERCING

The skin or membrane on some foods will cause steam to build up during cooking. These foods must be pierced or a strip of skin should be peeled off before cooking to allow the steam to escape. Eggs, potatoes, apples, sausages etc, will all need to be pierced before cooking. DO NOT ATTEMPT TO BOIL EGGS IN THEIR SHELLS.

MOISTURE CONTENT

Many fresh foods e.g. vegetables and fruit, vary in their moisture content throughout the season. Jacket potatoes are a particular example of this. For this reason cooking times may have to be adjusted throughout the year. Dry ingredients e.g. rice, pasta, can dry out further .... during storage and cooking times may differ from ingredients freshly purchased.

CLING FILM

Cling film helps keep the food moist and the trapped steam assists in speeding up cooking times. However it should be pierced before cooking, to allow excess steam to escape. Always take care when removing cling film from a dish as the build-up of steam will be very hot.

Always purchase cling film that states on the packet "suitable for microwave cooking" and use as a covering only. Do not line dishes with cling film.

Selecting Micro Power Levels

There are 6 different micro power levels available on your oven - one of them being Cyclic Defrost.

Select the micro power level you require by pressing the micro power pad the appropriate number of times as shown in the chart below, program in the desired cooking time, then press START.

MICRO POWER LEVEL	No. OF PRESSES ON PAD	WATTAGE (IEC)	USE
HIGH	1	800	Reheating meals and sauces, cooking fish, vegetables, sauces, preserves.
DEFROST	2	270	Defrosting frozen foods.
MEDIUM	3	560	Roasting, egg sauces, heating milk, cooking sponge cakes
LOW	4	420	Chicken casseroles, quiches.
SIMMER	5	240	Cooking stews and casseroles, rice puddings, rich fruit cakes, egg custards.
WARM	6	90	Softening ice-cream, butter, cream cheese.

Multi-Stage Cooking

For some recipes e.g. soups and casseroles, it is necessary to use different power levels. Your oven has a 3 stage memory, i.e. you can program up to 3 different instructions and the oven will switch automatically from power to power after the appropriate time has elapsed e.g. Christmas Pudding:

Stage 1 HIGH power for 4 mins.

Stage 2 STAND for 5 mins.

Stage 3 HIGH power for 2 mins.

Defrosting Guidelines

The biggest problem when defrosting food in a microwave is to get the inside defrosted before the outside starts to cook.

For this reason Panasonic have made the defrosting on your oven CYCLIC DEFROST, which means you just press the DEFROST pad and set the required time. The oven then divides this time into 8 stages.

These stages alternate between defrosting (total of 4) and standing (total of 4).

During the standing stages there is no microwave power in the oven, although the light will remain on and the turntable will turn. The automatic stand times ensure a more even defrost and for small items the usual stand time can be eliminated.

Use the micro power pad to select the Defrost setting. Push the micro power pad twice, then select the Defrost time required (see charts over).

Auto Weight Defrost

This feature allows you to enter the weight in lbs and ozs or grams and the oven will select the correct defrosting time for the foods described. Do not use for porous foods e.g. bread, cakes and convenience foods etc.

See Operating Instructions for selection of the lbs and ozs or

grams (page 6). During the defrosting process, the oven will bleep to remind you to check the food

i.e. turn, shield or break the food apart, as shown below.

There are two categories for Auto Weight Defrost:

1. Meat Joints/Whole Chicken

2. Fish/Quiche - Chops/Sausages

See below for weights suitable for these programs.

	MIN.	MAX.
1. Meat JointsWhole Chicken	0.1kg(4ozs)	3.5kg(7lbs)
2. Fish/QuicheChops/Sausages	0.1kg(4ozs)	1.5kg(3lbs)

Tips for Defrosting

Abstract black-and-white circular pattern with radial symmetry (no text or symbols)

Separate chops and small items e.g. Quiche slices, sliced bread and large pieces of fruit where possible. Defrost on a microwave rack if available.

Abstract black-and-white graphic with a circular frame and central dark shape, no text or symbols present.

Give large joints of meat and loaves of bread further standing to ensure they are not still icy in the centre.

Black-and-white photo of a textured surface with a diagonal line extending from it (no visible text or symbols)

Break up small items e.g. minced meat, frequently during defrosting.

Black and white abstract pattern with no discernible text or symbols

Remove wrappers from meat. Place on a microwave rack or upturned saucer.

Black-and-white photo of a car wheel with visible hub and wheel rim (no text or symbols)

Before defrosting, shield edges, back fat of joints and thin edges of fish with small pieces of SMOOTH tin foil to prevent over-defrosting.

Black and white illustration of a globe with grid lines, no visible text or symbols

Turn dense foods, ie. meat, 2-3 times during defrosting.

Defrosting Common Foods

Select Defrost Power then the approximate time given below.

The times given below are a guideline only. Always check the progress of the food by opening the oven door and then re-starting. For larger quantities adjust times accordingly. It is not essential to cover food during defrosting.

Food	Qty	Weight	Time to Select (approx)
*BACON
Rashers	10	525g	9 mins.
Steaks	2	225g	7 mins.
BEEFBURGERS	4	465g	7 mins.
BEEF
*Mince	-	450g	10 mins.
*Stewing Steak, cubed	-	450g	12 mins.
#Joints	-	450g	16 mins. per 450g
BREAD
*Large Loaf, sliced	1	800g	8 mins.
Small Loaf	1	400g	5 mins.
Slice	1	30g	30 secs.
Rolls	4	200g	2 mins.
Croissants	4	200g	3 mins.
BUTTER	-	250g	2 mins.
CAICES
Cheesecake	1	425g	5 mins.
Gateau, small	1	375g	3-4 mins.
Scones	4	250g	3 mins.
CASSEROLE	4	1.6kg	40-50 mins.
CHEESE	-	450g	3 mins.
CHICKEN
#Drumsticks	-	450g	18-20 mins.
#Whole	-	450g	13 mins. per 450g
#Portions	4	1kg	23 mins.
#Poussin	1	380g	10 mins.
CREAM
Sticks	6	150g	4-5 mins.
#DUCK, Whole	1	450g	18 mins. per 450g
FISH
#*Fillets	4	450g	12 mins.
*Prawns	-	200g	7 mins.
*Steaks	2	365g	10 mins.
#Whole	2	340g	9 mins.
*FRUIT, Soft	-	227g	5-6 mins.
LAMB
*Chops	4	450g	8 mins.
#Joints	-	450g	15 mins. per 450g
LARD	-	500g	3 mins.

Food	Qty	Weight	Time to Select (approx)
MARGARINE	-	250g	2 mins.
APPLE PIES	1	25g	50 secs.
	4	100g	1 min.
	6	150g	1 min. 30 secs.
PLATED MEALS - HOMEMADE
Medium size	1	370g	5 mins.
*OFFAL	-	275g	6 mins.
*ORANGE JUICE - CONCENTRATED		190ml	4 mins.
PASTRY
Filo	-	300g	2 mins.
Puff	-	370g	4 mins.
Shortcrust	-	370g	4 mins.
PIES
Cooked Fruit	1	375g	10 mins.
Cooked Meat	1	520g	15 mins.
PORK
*Diced	-	450g	12 mins.
Joints	-	450g	16 mins. per 450g
*Chops	4	450g	10-12 mins.
QUICHE
Slice	1	65g	3-4 mins.
Whole	1	360g	11 mins.
*SAUSAGES	8	450g	12 mins.
*SAUSAGEMEAT	-	454g	11 mins.
*SOUP	1 litre	Use HIGH Power	10 mins.
#TURKEY	-	450g	17 mins. per 450g
CONVENIENCE FOODS
Lasagne	-	400g	6-7 mins.
Pizza	1	385g	5 mins.
*#Sausage roll (cooked)		Use LOW power 300g	4-5 mins.

NOTES

* Stir or separate these foods as soon as possible during defrosting.

# Shield these foods on extreme edges and ends.

Oven Accessories to Use

Microwave

Scanned text of contract clauses with partially visible Chinese characters and a circular diagram overlay.

When using your oven on MICROWAVE only, the glass turntable provided must always be in position. DO NOT attempt to use microwave only with any metal accessory in the oven.

DO NOT place food directly onto the turntable except in the case of Jacket Potatoes cooked by MICROWAVE only or Auto Program Crisper Jackets.

Foods reheated or cooked by MICROWAVE only are normally covered with a lid or cling film, unless otherwise stated.

Combination

Black-and-white illustration of a circular mechanical component with radial blades and central hub (no text or symbols)

Why can I use the grill accessory on Combination?

The metal grill accessory is designed to be used on Combination and Grilling. Never attempt to use any other metal item except those provided with the oven. Place a heatproof dish eg. Pyrex, underneath to catch any fat and drips.

Black and white illustration of a stylized, oval-shaped object with horizontal lines, possibly a decorative or abstract form (no text or symbols)

Use the grill accessory only as described and ensure you DO NOT use if operating the oven with less than 200g (7oz) of food on a manual Program. For small quantities do not cook by Combination, cook by GRILL or MICROWAVE ONLY for best results.

Some foods should be cooked without using the grill accessory i.e. roasts, pies and puddings. The food should be placed in a heatproof non-metallic dish and placed directly onto the turntable.

CAUTION:

The GRILL accessory must always be used with the glass turntable in position.

Remove the GRILL accessory from the oven by holding the GRILL accessory and ceramic dish firmly. Use oven gloves when removing accessories. The oven roof and walls will be very hot.

Black-and-white abstract image with a circular shape and horizontal lines, no visible text or symbols

Arcing may occur if the incorrect weight of food is used, the GRILL accessory has been damaged, or a metal container has been used accidentally. If this occurs, stop the machine immediately.

General Guidelines for Combination Cooking

The Micro and Browner oven offers 4 Combination programs, which cover the various GRILL and MICROWAVE settings.

Do not preheat the oven on Combination.

Combination cooking is ideal for many foods. The microwave power cooks them quickly, whilst the grill gives traditional browning and crisping.

FOODS NOT SUITABLE FOR COMBINATION COOKING

Batter mixtures, e.g. Yorkshires, Choux pastry, Toad in the Hole

Cakes

Egg White mixtures e.g. souffles, meringues

Frozen pastry items, e.g. sausage rolls

Raw double layer pastry pies (some single topped shortcrust pastry pies can be cooked)

The foods above should be cooked in a conventional oven.

Press the Combination pad 1, 2, 3 or 4 times to select the combination of your choice. Set the cooking time and press START.
Combination Program	Number of Presses on Combination Pad	Grill	Micro Power
1	1	High	Simmer
2	2	Medium	Low
3	3	Low	Medium
4	4	Warm	High

CONTAINERS TO USE

DO NOT use plastic MICROWAVE containers on combination programs. Dishes must be able to withstand the heat of the top grill – heatproof glass e.g. Pyrex or ceramic are ideal.

DO NOT use your own metal dishes or tins, as the microwaves will not penetrate the food evenly.

For home-made savoury recipes e.g. Cottage Pie, Lasagne, place in heatproof dish and place dish directly on the turntable. Supermarket convenience savoury dishes in shallow foil dishes may be used with care on Combination. Take care that they do not touch the oven walls or door. DO NOT use if ____ they are crushed or damaged in any way, as arcing may occur and NEVER place on the grill accessory.

COVERING

NEVER cover food when cooking on a Combination program.

CAUTION: The covering will melt or crack and could ignite.

CAUTION: Take care to use oven gloves when removing dishes from the oven - especially when turning or stirring foods as the oven walls and roof will be very hot.

Auto Programs

Guidelines for Use

The AUTO PROGRAMS are designed to take the guesswork out of cooking or reheating your favourite foods. The oven automatically sets the correct MICROWAVE power, GRILL setting and the cooking time.

1. The blue numbers cook the foods listed automatically by MICROWAVE only. The red numbers cook the foods listed by MICROWAVE and GRILL.

2. AUTO PROGRAMS must only be used for foods described on page 19.

3. DO NOT operate the oven on any program without food inside, this may be dangerous and could damage your oven.

4. Only cook foods within the weight ranges described below. DO NOT operate the oven with less than 200g (7oz) food on an AUTO PROGRAM if the GRILL accessories are used.

5. Only use accessories as indicated.

6. Most foods benefit from a STANDING time after cooking on an AUTO PROGRAM to allow heat to continue conducting to the centre.

7. To allow for some variations that occur in food, check that food is thoroughly cooked and piping hot before serving.
8. For some foods cooked by Combination, the base will be soft and not crisp e.g. Pizza, Pastry Items.

Auto Weight Cooking/Reheating NN-K403/453

TO USE

Select the appropriate AUTO PROGRAM. Enter in the correct weight of the food using the weight pads. The weight may be entered in either metric or imperial (see Operating Instructions for conversion). Press START.

The oven will select the correct MICROWAVE power, GRILL setting and cooking time automatically.

DISHES TO USE

For MICROWAVE only programs use microwave-safe dishes, e.g. Pyrex or ceramic.

For Combination programs use the oven accessories as described on page 19.

COVERING

For Combination Programs DO NOT cover as this will impede the food browning. For the MICROWAVE only programs cover the dish with microwave cling film or a lid designed to fit the dish.

Minimum/Maximum Weights

When cooking with Auto Programs, food must be within the weight ranges shown below.

Program	Minimum Weight	Maximum Weight
1. Vegetables	100g (4oz)	1.0kg (2lb 2oz)
2. Frozen Vegetables/ Fish	100g (4oz)	1.0kg (2lb 2oz)
3. Quick Meat Sauce	500g (1lb 2oz)	2.0kg (4lb 4oz)
4. Chicken Portions	100g (4oz)	2.0kg (4lb 4oz)
5. Crisper Jackets	175g (6oz)	2.0kg (4lb 4oz)
6. Frozen Oven Chips	200g (7oz)	500g (lb 2oz)
7. Reheat Pizza	100g (4oz)	1.0kg (2lb 2oz)

Auto Programs

Auto Programs must only be used for the foods described below. Programs 1-3 use Microwave, Programs 4-7 are Combination Programs.

1 - Vegetables - Fresh

Black-and-white circular image showing a tree with surrounding foliage (no text or symbols)

To cook fresh vegetables e.g. carrots, courgettes, broccoli, cauliflower and small potato pieces. Place prepared vegetables into a suitable sized container. Sprinkle with 6tbsp (90ml) of water. Cover lightly with pierced cling film or a lid. Press in the weight of the vegetables, then press START. Large quantities will require stirring halfway.

2 - Frozen Vegetables/Fish

Black-and-white sketch of a bowl filled with food items, no visible text or symbols

Add 2tbsp of water to the vegetables/fish. Cover with pierced cling film or use a dish with a lld. Press in the weight of the vegetables/fish, then press START. Large quantities of vegetables will require stirring halfway. Shield fish if necessary.

3 - Quick Meat Sauce

Black-and-white circular emblem featuring a stylized landscape with figures and buildings, no visible text or symbols.

For minced beef based dishes e.g. Bolognese sauce, finely diced chicken or pork fillet in a sauce. Combine ingredients and cover with pierced cling film or a lid. Press in the weight of the ingredients, then press START. This dish will require stirring halfway during cooking.

4 , Chicken Portions

Abstract black-and-white sketch of a stylized animal or creature in motion, enclosed in a circular frame (no text or symbols)

To cook chicken quarters e.g. leg quarters and breast & wing quarters with bone. DO NOT use for drumsticks, thighs or boneless breasts. Spread chicken pieces out in a heatproof dish and place on turntable. Press in the weight of the quarters then press START. Small weights may need extra browning i.e. after cooking is complete GRILL for a further 5 mins.

5 Crisper Jackets

Scanned text of contract clauses with partial Chinese characters and a circular diagram below

To cook jacket potatoes with a crisper, drier skin, choose medium sized potatoes 175-225g (6-8oz) maximum. Wash and dry potatoes and prick with a fork several times. Place directly onto turntable. Press In the weight, then press START. Turn during cooking if necessary.

6 . Frozen Oven Chips

Black-and-white sketch of a bowl filled with elongated food items (no text or symbols visible)

To cook FROZEN oven chips and potato products e.g. Hash Browns, Croquettes, etc., that are suitable for GRILLING. Spread potato products out well on GRILL accessory on turntable. Press in weight of food, then press START. Turn halfway. For best results cook in a single layer.

7 - Reheat Pizza

Black-and-white illustration of a circular object with textured surface and central hole, resembling a food or architectural fragment (no visible text or symbols)

For reheating and browning the top of FRESH (NOT frozen) purchased pizza. Remove all packaging and place on a heatproof dish on turntable. Press in weight then press START.

Grilling

There are 3 GRILL settings: 1, 2 and 3.

Most meat items e.g. bacon, sausages, chops can be cooked on the hottest GRILL 1 setting.

GRILL 2 and 3 settings are used for more delicate foods or those that require a longer grill time e.g. fish or chicken portions.

TO USE

Press the GRILL pad 1, 2 or 3 times to select the appropriate setting. Program in the desired cooking time, close the door and then press start. It is not possible to use the GRILL function with the oven door open.

DO NOT attempt to preheat the GRILL.

There is no microwave power on the GRILL only program.

The GRILL will glow on and off during cooking - this is normal. Always clean the oven after using the GRILL and before using microwave or Combination.

Never cover foods when grilling.

TURNING

Most foods require turning halfway during cooking. When turning food, open oven door and CAREFULLY remove GRILL accessory using oven gloves.

After turning, return food to the oven, close door and press START. The oven will continue to

count down the remaining cooking time. It is quite safe to open the oven door at any time to check the progress of the food as it is grilling.

Black and white illustration of a globe with a sunburst pattern, no visible text or symbols

CAUTION

The GRILL accessory must always be used with the glass turntable in position. Remove GRILL accessory from oven by holding GRILL accessory and heatproof dish firmly. Use oven gloves when removing accessories. The oven roof and walls will be very hot.

Cooking and Reheating using Micro Power/Grill/Combination

The charts on pages 21-28 show you the best way to cook or reheat your favourite foods, either by microwave, GRILL or Combination. The best method depends on the type of food.

Remember when cooking or reheating any food that it should be stirred or turned wherever possible. This ensures even cooking or reheating on the outside and in the centre.

When is food reheated?

Food that has been reheated or cooked should be served "piping hot" i.e. steam should be visibly emitted from all parts. As long as good hygiene practices have

been followed during the preparation and storage of the food, then cooking or reheating by GRILL, microwave or Combination present no safety risks.

Foods that cannot be stirred should be cut with a knife to test that they are adequately heated throughout. Even if a manufacturer's instructions or the times in the cookbook have been followed, it is still important to check the food is heated thoroughly. If in doubt, always return to the oven for further reheating.

If you cannot find the equivalent food in the chart then choose a similar type and size listed and

adjust the cooking time if necessary.

For foods that are only cooked or reheated by one method e.g. reheating baked beans or grilling toast, please refer to the separate GRILLING and MICRO-WAVE charts on pages 26-27 and the relevant cooking chapters e.g. Vegetables page 40.

Foods cooked or reheated by Combination which cannot be turned will have a soft base since there is no bottom heater in the oven.

Cooking and Reheating Charts

Food	Weight/Quantity	Choice of Cooking Modes	Time (mins.)	Instruction/Guidelines
BREAD - Pre-cooked - Fresh - N.B. Breads reheated by microwave will have a soft base.
Croissants	1	HIGH power	15-20 secs.	Place on micro-safe plate on turntable. Do not cover.
		or GRILL 1	2-3	Place on heatproof plate on turntable.
	4	HIGH power	30-40 secs.	Place on micro-safe plate on turntable. Do not cover.
		or GRILL 1	3-5	Place on heatproof plate on turntable.
Rolls	1	HIGH power	15-20 secs.	Place on micro-safe plate on turntable. Do not cover.
		or GRILL 1	3-4	Place on heatproof plate on turntable.
	4	HIGH power	30-40 secs.	Place on micro-safe plate on turntable. Do not cover.
		or GRILL 1	4-6	Place on heatproof plate on turntable.
BREAD - Frozen
Part-baked rolls	340g (6)	Combi 1	6-8	Place on heatproof plate on turntable.
Part-baked Garlic Baguette	325g (2)	Combi 1	6-8	Place on heatproof plate on turntable.
BACON - from raw
Rashers	200g (8)	HIGH power	4-6 or 45 secs. per rasher	Place on micro-safe rack or plate on turntable and cover with kitchen towel to minimise splatter.
		or GRILL 1	8-10	Place on grill accessory on turntable. Turn halfway.
Steaks	210g (4)	HIGH power	4-5	Place on micro-safe rack or plate on turntable.
		or GRILL 1	8	Place on grill accessory on turntable. Turn halfway.
		or Combi 2	6-8	Place on grill accessory on turntable. Turn halfway.
BEEF - Joints from raw - CAUTION: Hot fat! Remove dish with care. For Guidelines see Meat Chapter page 33.
Medium Rare		MEDIUM power then Combi 1	11-14 per 450g	Place on upturned saucer in heatproof dish. Place on turntable. Turn joint over halfway during cooking. Drain off fat during cooking.
			5 mins. ONLY
BEEF - Steaks from raw - CAUTION: Hot fat! Remove grill accessory with care.
Rump	350g (2)	MEDIUM power	6-8	Place on micro-safe rack or plate on turntable.
		or GRILL 1	14-15	Place on grill accessory on turntable. Turn halfway.
		or Combi 2	8-10	Place on grill accessory on turntable. Turn halfway.
Sirloin	400g (2)	MEDIUM power	7-9	Place on micro-safe rack or plate on turntable.
		or GRILL 1	14-15	Place on grill accessory on turntable. Turn halfway.
		or Combi 2	8-10	Place on grill accessory on turntable. Turn halfway.
BEEFBURGERS - Fresh from raw - CAUTION: Hot fat! Remove grill accessory with care.
	355g (6)	HIGH power	3-4	Place on micro-safe rack or plate on turntable.
		or GRILL 1	10-12	Place on grill accessory on turntable. Turn halfway.
		or Combi 2	8-10	Place on grill accessory on turntable. Turn halfway.
BEEFBURGERS - Frozen from raw - CAUTION: Hot fat! Remove grill accessory with care.
	355g (6)	HIGH power	6-8	Place on plate or microwave safe rack on turntable.
		or GRILL 1	14-16	Place on grill accessory on turntable. Turn halfway.
		or Combi 2	10-12	Place on grill accessory on turntable. Turn halfway.
CHICKEN from raw - CAUTION: Hot fat! Remove grill accessory and heatproof dish with care. For Guidelines see Meat Chapter page 33.
Breasts, boneless	850g (4)	MEDIUM power	12-14	Place on plate or microwave safe rack on turntable.
		or GRILL 1	20-25	Place on grill accessory on turntable. Turn halfway.
		or Combi 2	15-20	Place on grill accessory on turntable. Turn halfway.

Cooking and Reheating Charts

Food	Weight/Quantity	Choice of Cooking Modes	Time (mins.)	Instruction/Guidelines
CHICKEN from raw - CAUTION: Hot fat! Remove grill accessory and heatproof dish with care. For Guidelines see Meat Chapter page 33.
Drumsticks	900g (8)	MEDIUM power	12-14	Place on microwave safe plate or rack on tumtable.
		or GRILL 1	20-25	Place on grill accessory on tumtable. Turn halfway
		or Combl 2	16-18	Place on grill accessory on tumtable. Turn halfway.
Quarters	860g (4)	MEDIUM power	20-25	Place on microwave safe plate or rack on tumtable.
		or GRILL 1	30	Place in a heatproof dish on tumtable.
		or Combl 2	15-20	Place on grill accessory on tumtable.
Whole		MEDIUM power then Combl 1	9-10 per 450g	Place on upturned saucer breast side down In heatproof dish. Place on tumtable. Turn chicken over halfway. Drain off fat during cooking.
			5 mins. ONLY
FISH - FRESH from raw - For Guidelines see Fish Chapter page 30.
Breaded Fillets	300g (2)	GRILL 1	12-14	Place on grill accessory on tumtable. Turn halfway.
		or Combl 2	10-12	Place on grill accessory on tumtable. Turn halfway.
Cakes	200g (2)	GRILL 1	8-10	Place on grill accessory on tumtable. Turn halfway.
		or Combl 1	8-10	Place on grill accessory on tumtable. Turn halfway.
Fillets	450g (3)	HIGH power	3-4	Place on micro-safe dish. Add 30ml of liquid.
		or GRILL 1	12-14	Place on grill accessory on tumtable. Turn halfway.
Goujons	200g	GRILL 1	6-8	Place on grill accessory on tumtable. Turn halfway.
		or Combl 1	6-8	Place on grill accessory on tumtable. Turn halfway.
Steaks	350g (2)	HIGH power	3-4	Place on micro-safe dish. Add 30ml of liquid.
		or GRILL 2	10-12	Place on grill accessory on tumtable. Turn halfway.
Whole	280g (1)	HIGH power	3-4	Place on micro-safe dish. Add 30ml of liquid.
		or GRILL 2	12-14	Place on grill accessory on tumtable. Turn halfway.
FISH - FROZEN from raw - For Guidelines see Fish Chapter page 30.
Breaded Fillets	300g (2)	GRILL 1	16-18	Place on grill accessory on tumtable. Turn halfway.
		or Combl 1	13-14	Place on grill accessory on tumtable. Turn halfway.
Cakes	400g (4)	GRILL 1	15-16	Place on grill accessory on tumtable. Turn halfway.
		or Combl 1	12-14	Place on grill accessory on tumtable. Turn halfway.
Fish Fingers	210g (8)	HIGH power	4-5	Place on micro-safe dish. Do not cover.
		or GRILL 1	12-14	Place on grill accessory on tumtable. Turn halfway.
		or Combl 1	8-10	Place on grill accessory on tumtable. Turn halfway.
Haddock Fillets	380g (4)	GRILL 1	10-15	Place on grill accessory on tumtable. Turn halfway.
Scampi	255g	GRILL 1	10-12	Place on grill accessory on tumtable. Turn halfway.
		or Combl 1	8-10	Place on grill accessory on tumtable. Turn halfway.
Whole	450g (2)	HIGH power	10-12	Place on micro-safe dish. Add 30ml of liquid.
JACKET POTATOES - See page 41.
LEIMS - from raw - CAUTION: Hot fat! Remove grill accessory and heatproof dish with care. For Guidelines see Meat Chapter page 33.
Chops, cutlets	425g (4)	MEDIUM power	6-7	Place in micro-safe dish or rack on tumtable.
		or GRILL 1	15-18	Place on grill accessory on tumtable. Turn halfway.
		or Combl 2	14-18	Place on grill accessory on tumtable. Turn halfway.

Cooking and Reheating Charts

Food	Weight/Quantity	Choice of Cooking Modes	Time (mins.)	Instruction/Guidelines
LAMB from raw - CAUTION: Hot fatl Remove grill accessory and heatproof dish with cars. For Guidelines see Meat Chapter page 33.
Chops, Loin	600g (4)	MEDIUM power	7-8	Place in micro-safe dish or rack on turntable.
		or GRILL 1	15-20	Place on grill accessory on turntable. Turn halfway
		or Combi 1	10-12	Place on grill accessory on turntable. Turn halfway.
Joints		MEDIUM power then Combi 1	12-13 per 450g	Place on uptumed saucer in heatproof dish. Place dish on turntable. Turn joint over halfway during cooking. Drain off fat during cooking.
			5 mins. ONLY
PASTRY - UNCOOKED
Shortcrust Flan Case	23cm (9")	HIGH power	3-4	Prick base of pastry and chill well. Lay piece of kitchen towel in base. Place on turntable.
		or Combi 1	4-5	Prick base of pastry and chill well. Do not cover. Place on turntable.
Vol-au-Vents	125g (6)	Combi 1	4-5	Brush with beaten egg. Place on heatproof plate on turntable.
PASTRY PRODUCTS - PRECOOKED - N.B. Pastries reheated by microwave or Combination will have a soft base.
Beef & Onlon Pie	120g (1)	HIGH power	1-2	Place in micro-safe dish on turntable. Do not cover.
		or Combi 2	4-5	Place on heatproof plate on turntable. Do not cover.
	495g (4)	HIGH power	3-4	Place In micro-safe dish on turntable. Do not cover.
		or Combi 2	10-12	Place on grill accessory on turntable. Turn halfway.
Chicken Pie	340g (1)	HIGH power	4-5	Place in micro-safe dish on turntable. Do not cover.
		or Combi 2	6	Place on heatproof plate on turntable. Do not cover.
Cornish Pastle	270g (1)	HIGH power	2-3	Place in micro-safe dish on turntable. Do not cover.
		or Combi 2	5-6	Place on heatproof plate on turntable. Do not cover.
	535g (2)	HIGH power	4-6	Place in micro-safe dish on turntable. Do not cover.
		or Combi 2	10-12	Place on heatproof plate on turntable. Do not cover.
Meat Pie	550g (1)	HIGH power	5-6	Place In micro-safe dish on turntable. Do not cover
		or Combi 2	8-10	Place on heatproof dish on turntable. Do not cover.
Quiche	400g (1)	HIGH power	3-4	Place in micro-safe dish on turntable. Do not cover.
		or Combi 2	7-8	Place on heatproof plate on turntable. Do not cover.
Samosas	140g (4)	HIGH power	1-2	Place In micro-safe dish on turntable. Do not cover.
		or Combi 2	6-8	Place on grill accessory on turntable. Do not cover.
Sausage Roll	75g (1)	HIGH power	1	Place in micro-safe dish on turntable. Do not cover.
		or Combi 2	4-6	Place on heatproof plate on turntable. Do not cover.
Spring Roll	130g (2)	HIGH power	1	Place in micro-safe dish on turntable. Do not cover.
		or Combi 2	4-6	Place on grill accessory on turntable. Do not cover.
PIZZA - FRESH part cooked - N.B. Remove all packaging. Pizzas will have a soft base.
Chilli Beef	400g	HIGH power	4-5	Place on micro-safe plate on turntable. Do not cover.
		or GRILL 1	12-14	Place on heatproof dish on turntable.
		or Combi 1	10-15	Place on heatproof plate on turntable. Do not cover.
Deep Pan, Ham	475g	HIGH power	4-6	Place on micro-safe plate on turntable. Do not cover.
		or GRILL 1	13-15	Place on heatproof plate on turntable. Do not cover.
		or Combi 1	10-15	Place on heatproof plate on turntable. Do not cover.

Cooking and Reheating Charts

Food	Weight/Quantity	Choice of Cooking Modes	Time (mins.)	Instruction/Guidelines
PIZZA - FRESH - N.B. Remove all packaging. Pizzas will have a soft base.
Selection	370g	HIGH power	4-5	Place on micro-safe plate on turntable. Do not cover.
		or GRILL 1	10-12	Place on heatproof plate on turntable.
		or Combl 1	8-10	Place on heatproof plate on turntable. Do not cover.
PIZZA - FROZEN - N.B. Remove all packaging. Pizzas will have a soft base.
French Bread	320g (1)	GRILL 1	13-15	Place on heatproof plate on turntable.
		or Combl 1	6-8	Place on heatproof plate on turntable. Do not cover.
Pepperoni	420g	Combl 1	15-20	Place on heatproof plate on turntable. Do not cover.
PORK from raw - CAUTION: Hot fat! Remove grill accessory and heatproof dish with care.For Guidelines see Meat Chapter page 33.
Chops	800g (4)	MEDIUM power	13-15	Place in micro-safe dish or rack on turntable.
		or GRILL 1	20-25	Place on grill accessory on turntable. Turn halfway.
		or Combl 2	18-20	Place on grill accessory on turntable. Turn halfway.
Tenderloin	250g	MEDIUM power	5-7	Place in micro-safe dish or rack on turntable.
		or GRILL 2	20-25	Place on grill accessory on turntable. Turn halfway.
		or Combl 2	10-15	Place on grill accessory on turntable. Turn halfway.
Joints		MEDIUM power then Combl 1	13-14 per 450g	Place on upturned saucer in heatproof dish on turntable. Turn joint over halfway during cooking.Drain off fat during cooking.
			5 mins. ONLY
POTATO PRODUCTS part cooked - FRESH
Croquettes	250g (6)	HIGH power	3-4	Place on micro-safe plate on turntable. Do not cover.
		or GRILL 1	12-14	Place on grill accessory on turntable. Turn halfway.
		or Combl 2	10-12	Place on grill accessory on turntable. Turn halfway.
Stuffed Jackets	510g (4)	HIGH power	8-10	Place on micro-safe plate on turntable. Do not cover.
		or Combl 2	12-14	Place on grill accessory on turntable.
POTATO PRODUCTS part cooked - FROZEN
Croquettes	300g	GRILL 1	13-14	Place on grill accessory on turntable. Turn halfway.
		or Combl 2	12-14	Place on grill accessory on turntable. Turn halfway.
Hash Browns	300g (7)	GRILL 1	15-18	Place on grill accessory on turntable. Turn halfway.
		or Combl 1	10-12	Place on grill accessory on turntable. Turn halfway.
Oven Chips & Associated Products	300g	GRILL 1	14-15	Place on grill accessory on turntable. Turn halfway.
		or Combl 1	8-10	Place on grill accessory on turntable. Turn halfway.
PURCHASED CONVENIENCE FOODS - Chilled - N.B. Transfer food from foil container to a similar sized heat-proof dish. Plastic dishes designed for microwave and conventional ovens may be used with care.
Cauliflower Cheese	454g	HIGH power	7	Place on turntable.
		or Combl 1	10	Place on turntable.
Chicken Kiev from raw	284g (2)	GRILL 1	12-14	Place on grill accessory on turntable. Turn halfway.
		or Combl 1	15	Place on grill accessory on turntable. Turn halfway.
Cottage Pie	190g	HIGH power	3-4	Place on turntable.
		or Combl 3	10-15	Place on turntable.
	595g	HIGH power	6-8	Place on turntable.
		or Combl 3	18-20	Place on turntable.
Crisp Bakes	227g (2)	GRILL 1	10-12	Place on grill accessory on turntable. Turn halfway.
		or Combl 1	8-10	Place on grill accessory on turntable. Turn halfway.
Filled Mushrooms	227g	GRILL 1	8-10	Place on grill accessory on turntable.
		or Combl 1	6-8	Place on grill accessory on turntable.

Cooking and Reheating Charts

Food	Weight/Quantity	Choice of Cooking Modes	Time (mins.)	Instruction/Guidelines
PURCHASED CONVENIENCE FOODS - Chilled - N.B. Transfer food from foil container to a similar sized heat-proof dish. Plastic dishes designed for microwave and conventional ovens may be used with care.
Hot & Spicy Wings	700g	HIGH power	6-7	Place on micro-safe plate or rack on turntable.
		or GRILL 1	12-15	Place on grill accessory on turntable. Turn halfway.
		or Combi 2	15-18	Place on grill accessory on turntable. Turn halfway.
Lasagne	300g	HIGH power	5-6	Place on turntable.
		or Combi 3	20	Place on turntable.
Onion Bhajis Pakora Felafel	200g (6)	HIGH power	1-2	Place on micro-safe plate on turntable.
		or GRILL 1	5-6	Place on grill accessory on turntable. Turn halfway.
		or Combi 2	5-6	Place on grill accessory on turntable. Turn halfway.
Potatoes Anna	454g	High power	8-7	Place on turntable.
		or Combi 2	10-12	Place on turntable.
Spare Ribs	250g	HIGH power	5	Place on micro-safe plate or rack on turntable.
		or GRILL 1	10	Place on grill accessory on turntable. Turn halfway.
		or Combi 2	10-12	Place on grill accessory on turntable. Turn halfway.
Turkey Burgers	260g (2)	GRILL 1	10	Place on grill accessory on turntable. Turn halfway.
		or Combi 2	8	Place on grill accessory on turntable. Turn halfway.
Vegetable Bake	454g	HIGH power	6-8	Place on turntable.
		or Combi 2	12-14	Place on turntable.
PURCHASED CONVENIENCE FOODS - FROZEN - N.B. Transfer food from foil container to a similar sized heat-proof dish. Plastic dishes designed for microwave and conventional ovens may be used with care.
Breaded Mushrooms	300g	GRILL 1	12-14	Place on grill accessory on turntable. Turn halfway.
		or Combi 1	10-12	Place on grill accessory on turntable. Turn halfway.
Crispy Pancakes	227g	GRILL 1	12-14	Place on grill accessory on turntable. Turn halfway.
		or Combi 1	12-14	Place on grill accessory on turntable. Turn halfway.
Golden Drummers	340g (6)	GRILL 1	12-15	Place on grill accessory on turntable. Turn halfway.
		or Combi 2	10-12	Place on grill accessory on turntable. Turn halfway.
Lasagne	330g	DEFROST power	8	Place on turntable.
		then HIGH power	8-9
		or Combi 2	20	Place on turntable.
Onion Ringe	250g	GRILL 1	10-12	Place on grill accessory on turntable. Turn halfway.
		or Combi 1	10-12	Place on grill accessory on turntable. Turn halfway.
Plaice Momay	510g	DEFROST power	10	Place on turntable.
		then HIGH power	7-8
		or Combi 3	14-16	Place on turntable.
Shepherd's Pie	460g	DEFROST power	10	Place on turntable.
		then HIGH power	6-8
		or Combi 3	18-20	Place on turntable.

Cooking and Reheating Charts

Food	Weight/ Quantity	Choice of Cooking Modes	Time (mins.)	Instruction/Guidelines
SAUSAGES from raw - CAUTION; Hot fat! Remove grill accessory with cans.
Chipolatas	227g (8)	HIGH power	3	Place in micro-safe or rack on tumtable.
		or GRILL 1	8-12	Place on grill accessory on tumtable. Turn halfway.
		or Combi 1	6-8	Place on grill accessory on tumtable. Turn halfway.
Thick	454g (8)	HIGH power	4-5	Place in micro-safe or rack on tumtable. Turn halfway.
		or GRILL 1	12-14	Place on grill accessory on tumtable. Turn halfway.
		or Combi 2	10-12	Place on grill accessory on tumtable. Turn halfway.
SWEETS AND DESSERTS - N.B. Transfer food from toll container to a similar stand heatproof dish.
Apple Pie	465g	HIGH power	4	Place on tumtable. Do not cover.
		or Combi 2	8-10	Place on tumtable.
Fruit Crumble	400g	HIGH power	4	Place on tumtable. Do not cover.
		or Combi 2	4-6	Place on tumtable.
Fruit Pie, Individual	1	HIGH power	10-15 secs.	Place on tumtable.
		or Combi 2	2	Place on tumtable.
	4	High power	30-35 secs.	Place on tumtable.
		or Combi 2	3-4	Place on tumtable.
GRILLING CHART for foods that require grilling ONLY
Cheese on Toast	4 slices	GRILL 1	3 to toast then 4 with topping	Place on grill accessory on tumtable. Turn after toasting first side.
Muffins	-	GRILL 1	4-6	Place on grill accessory on tumtable. Turn halfway.
Toast	4 slices	GRILL 1	4-6	Place on grill accessory on tumtable. Turn halfway.
Flash Browning
Brulee	-	GRILL 1	10-15	Place on tumtable.
Cauliflower Cheese	-	GRILL 1	8-10	Place on tumtable.
Meringue Topping		GRILL 1	4-5	Place on tumtable.

Reheating by Microwave

The times below are guidelines only as the total time will depend on the starting temperature of the food and container used. Always check the food is piping hot before consumption.

Food	Weight/ Quantity	Power Level	Time to Select (approx)
BABIES BOTTLES - See below
CANNED BEANS, RICE, PASTA
Baked Beans	225g	HIGH	2 mins.
Baked Beans	447g	HIGH	4 mins.
Baked Beans & Sausages	450g	HIGH	5 mins.
Ravioli in Sauce	215g	HIGH	2 mins. 30 secs.
Ravioli in Sauce	400g	HIGH	4 mins.
Rice	277g	HIGH	2 mins.
Space Invaders	425g	HIGH	3 mins. 30 secs.
Spaghetti Bolognese	210g	HIGH	2 mins.
Spaghetti Bolognese	430g	HIGH	4 mins.
Spaghetti in Tomato Sauce	213g	HIGH	2 mins.
CANNED MEAT
Chilli Con Came	410g	HIGH	3 mins. 30 secs.
Hot Dogs (drained)	415g	HIGH	2 min. 30 secs.
Meat Balls	418g	HIGH	4 mins. 30 secs.
Minced Beef & Onion	392g	HIGH	4 mins.
Stewed Steak	405g	HIGH	4 mins.
CANNED SOUPS
Cream of Mushroom	425g	HIGH	4 mins.
Cream of Tomato	425g	HIGH	4 mins.
Minestrone	300g	HIGH	2 mins. 30 secs.
CANNED PUDDINGS
Creamed Rice	425g	HIGH	2 mins.
Creamed Rice	624g	HIGH	3 mins.
Creamed Rice	822g	HIGH	5 mins.
Custard	425g	HIGH	2 mins.
Sponge Pudding	300g	HIGH	2 mins.
CANNED VEGETABLES - Drain where appropriate
Carrots, whole	410g	HIGH	3 mins.
Green Beans	410g	HIGH	2 mins. 30 secs.
Mushrooms, whole	300g	HIGH	2 mins.
Mushrooms, creamed	213g	HIGH	2 mins.
Peas, Mushy	440g	HIGH	2 mins.
Peas, Garden	550g	HIGH	2 mins. 30 secs.
Peas, Marrowfat	300g	HIGH	2 mins.
Potatoes, new	820g	HIGH	5 mins.
Sweetcorn	198g	HIGH	1 min. 30 secs.
Sweetcorn	340g	HIGH	2 mins.
Tomatoes, whole	400g	HIGH	3 mins.
Chick pea dhal	425g	HIGH	3 mins.

Food	Weight/Quantity	Power Level	Time to Select (approx)
PURCHASED CONVENIENCE FOODS - FROZEN
Boil in Bag
Chicken & Mushroom Casserole	170g	HIGH	4 mins.
Chicken Curry & Rice	340g	HIGH	7 mins.
POWER LEVEL KEY
HIGH = HIGH POWER
MED = MEDIUM POWER
NOTES FOR YOUR OWN FOODS

BABIES' BOTTLES - CAUTION

Milk or formula MUST be shaken thoroughly before heating and again at the end, and tested carefully before feeding a baby.

For 7-8fl.oz of milk from fridge temperature, remove top and teat. Heat on HIGH power for 25-30 secs. CHECK CAREFULLY.

For 3fl.oz of milk from fridge temperature, remove top and teat. Heat on HIGH Power for 10-15 secs. CHECK CAREFULLY.

N.B. Liquid at the top of the bottle will be much hotter than at the bottom of the bottle and must be shaken thoroughly before checking the temperature.

Reheating by Microwave

Food	Weight/Quantity	Power Level	Time to Select (approx)
CHRISTMAS PUDDINGS
Slice	150g	HIGH	30 secs.
Small	450g	HIGH	2 mins.
Medium	900g	HIGH	3 mins.
Large	1.1kg	HIGH	3 mins. 30 secs.
DRINKS - COFFEE
1 mug	235ml	HIGH	2 mins.
2 mugs	470ml	HIGH	3 mins. 30 secs.
3 mugs	705ml	HIGH	4 mins. 30 secs.
4 mugs	940ml	HIGH	6 mins.
DRINKS - MILK
1 mug	235ml	MED	2 mins.
1 jug	600ml	MED	4 mins. 30 secs.
HOMEMADE MEAT DISHES
Casserole for 2	500g	HIGH	3 mins.
Casserole for 4	1kg	HIGH	10 mins.
Mince for 1	250g	HIGH	3 mins.
Mince for 4	1kg	HIGH	8 mins.
Bolognese Sauce	250g	HIGH	3 mins.
Bolognese Sauce	1kg	HIGH	8 mins.
PASTA
Cooked Spaghetti	100g	HIGH	1 min.
Macaroni Cheese	225g	HIGH	3 mins.
Macaroni Cheese	1kg	HIGH	8 mins.
PLATED MEALS - HOMEMADE - CHILLED
Child size	1	HIGH	3 mins.
Child size	2	HIGH	5 mins.
Adult size	1	HIGH	4-5 mins.
Adult size	2	HIGH	5-6 mins.
PLATED MEALS - HOMEMADE - FROZEN
Adult size	1	HIGH	7-8 mins.
PORRIDGE
1 portion		HIGH	1 min.
4 portions		HIGH	3 mins. 30 secs.
PUDDINGS AND DESSERTS
Baked Apple - 1	175g	HIGH	30 secs.-1 min.
Bread & Butter Pudding	340g	HIGH	2-3 mins.
Fruit Crumble	200g	HIGH	30-45 secs.
Fruit Crumble	800g	HIGH	3-4 mins.
Fruit Pie, small		HIGH	10-30 secs.
Fruit Pie, large	286g	HIGH	1 min. 20 secs.
Milk Pudding for 1		HIGH	50 secs.
Milk Pudding for 4		HIGH	3 mins. 40 secs.
Pancakes, filled	1	HIGH	45-60 secs.
Pancakes, filled	2	HIGH	1 min.
Rice Pudding	500g	HIGH	2 mins. 30 secs.
RICE
Boiled Rice	100g	HIGH	45 secs.

Food	Weight/Quantity	Power Level	Time to Select (approx)
PURCHASED CONVENIENCE FOODS - FROZEN
Boiled Rice	450g	HIGH	2 mins. 30 secs.
SAUCES
Custard	300ml	HIGH	1 mins. 30 secs.
Custard	600ml	HIGH	3 mins.
Savoury Sauce	300ml	HIGH	2 mins.
VEGETABLES
Jacket Potato	250g	HIGH	1 min.
Green Vegetables	100g	HIGH	1 min. 30 secs.
Green Vegetables	225g	HIGH	1 min. 30 secs.
Root Vegetables	100g	HIGH	1 min.
Root Vegetables	225g	HIGH	1 min. 30 secs.
NOTES FOR YOUR OWN FOODS
POWER LEVEL - KEY
HIGH = HIGH POWER
MED = MEDIUM POWER
DEF = DEFROST POWER

POINTS FOR CHECKING

Always check that food is piping hot after reheating by microwave. If unsure, return to oven. Foods that have been cooked and are just being reheated in your microwave still require a STAND TIME of approx. 5-15 mins. The denser the food, the longer the STAND TIME required. This STAND TIME is particularly important for foods that cannot be stirred.

Soups and Starters

Guidelines

General Tips - Homemade Soups

POWER LEVEL

Use HIGH power to bring soup to the boil, then LOW or SIMMER power to cook. Remember to use the multi-stage memory of the oven for two stage cooking.

DISH SIZE

Always use a large dish or bowl – at least twice the capacity of the soup.

COVERING

Always cover soup with microwave cling film or the lid designed for the dish.

DEFROSTING FROZEN SOUP

As soups can be stirred easily as they begin to thaw, it is quicker and usually more convenient to defrost frozen soup using HIGH power.

Stir frequently during the defrosting process to ensure even and thorough defrosting.

REHEATING SOUP

For canned soups, or refrigerated soups, transfer to microwave safe container, cover and reheat on HIGH power, stirring frequently.

MEAT SOUPS

When converting your favourite meat soup recipes for microwave, use multi-stage programming to bring the soup to the boil on HIGH power for 10 mins. followed by 40-60 mins. on SIMMER power.

General Tips - Starters

STARTING TEMPERATURE

Remember foods reheated from the fridge will take slightly longer than food at room temperature.

COVERING

Keep foods covered with cling film, or another suitable lid, except for pastry items.

PASTRY

Pastry items only reheat well by microwave, if the pastry is very crisp. During reheating, pastry absorbs moisture from the filling.

Ingredients

1 medium onion, chopped

25g (1oz) butter

2 carrots, thinly sliced

1 medium potato, thinly sliced

100g (4oz) red split lentils

900ml (1½pt) hot chicken stock

1 bay leaf

salt and pepper

185g (6½oz) can tomatoes

Ingredients

4 large tomatoes, scored around the middle

15g (oz) butter or margarine

1 small onion, finely chopped half red pepper, diced

198g (7oz) can drained tuna

1 egg yolk

30ml (2tbsp) fresh breadcrumbs

15ml (1tbsp) fresh basil, chopped salt and pepper

15ml (1tbsp) grated Parmesan cheese

Lentil & Tomato Soup

Serves: 4

Dish: 3 litre (6pt) casserole dish Oven Accessory: glass turntable

Calories Total: 673 kcals Serving: 168 kcals

1. Place onion and butter in a bowl. Cover and cook on HIGH power for 2 mins. or until onion is soft.

2. Add all other ingredients, except tomatoes, cover and cook on HIGH power for 4-5 mins. then SIMMER power for 20 mins. or until lentils are tender. Add tomatoes.

3. Blend in a food processor. Reheat on HIGH power for 3 mins. or until hot.

Stuffed Tomatoes

Serves: 4

Dish: large flan dish

Calories Total: 666 kcals

Oven Accessory: glass turntable

Serving: 167 kcals

1. Slice the tops from the tomatoes and scoop out centres. Turn upside down to drain.

2. Place the butter, onion and pepper in a small bowl. Cover and cook on HIGH power for 2-3 mins. or until softened.

3. Mix in the tuna, egg yolk, breadcrumbs, basil and seasoning.

4. Spoon the filling into the tomato cups and arrange in the flan dish. Sprinkle on the Parmesan. Cook on Combination 1 for 14-18 mins. or until the tomatoes are tender. Allow to stand for 2 mins.

Fish

Fish cooks very well by microwave as it stays moist and the lingering fish smells left in conventional ovens are avoided.

For fish with a strong odour, eliminate the smell after cooking by SIMMERING 600ml (1pt) of boiling water with 1 sliced lemon in a large bowl for 20 mins. Wipe out oven with a dry cloth.

WHEN IS FISH COOKED?

Fish is cooked when it flakes easily and becomes opaque.

Black and white photo of a bowl-shaped object on a textured surface (no visible text or symbols)

ARRANGING

Thin fillets of fish i.e. plaice, should be rolled up prior to cooking to avoid overcooking on the thinner outside edge and tail.

Abstract black-and-white illustration of a flower-like shape with no text or symbols

FISH STEAKS

Fish steaks should be arranged in a circle - thicker part to the outside - to avoid overcooking and disintegration of the tail ends.

Abstract black-and-white graphic with a circular shape and horizontal lines, no discernible text or symbols.

COVERING

Always cover fish with either microwave cling film or use a dish with a self-fitting lid.

Black and white abstract image with no discernible text, symbols, or structured content.

BOIL IN BAG FISH

Boil-in-bag fish with sauce should be cooked in 2 stages. For 150g-170g, place bag sauce side down on a plate, slash top of bag with a knife. Cook on DEFROST power for 4 mins., STAND for 2 mins. then cook on MEDIUM power for 6 mins. or until fish is well cooked through.

Simple line drawing of a smiling face inside a rounded rectangular frame (no text or symbols)

LIQUID

Fresh fish should always be sprinkled with 30ml (2tbsp) of lemon juice or white wine. When cooking Frozen fish, add liquid as above for even cooking.

Abstract black-and-white pattern with a central oval shape and horizontal lines (no text or symbols)

WHOLE FISH

If cooking 2 whole fish together, they should be arranged head to tail for even cooking.

Large whole fish must have the tail and head shielded halfway through cooking with smooth pieces of tin foil secured with cocktail sticks.

SALT

Do not sprinkle salt onto fish before cooking as this may make the fish dry.

NOISE

During cooking, popping sounds may be heard. This is due to moisture trapped between the flesh, particularly with oily fish such as salmon and mackerel. This can be minimised when cooking whole fish if the skin is pierced several times with a cocktail stick.

STAND TIME

Fish should STAND after cooking for 2-3 mins. This can be outside the oven to enable the oven to be used for further cooking.

COOKING FISH BY GRILL OR COMBINATION

Brush fish with melted butter or oil to keep fish moist. Place on grill accessory. DO NOT add salt, however sprinkle with pepper or herbs if required.

Select the appropriate GRILL setting as indicated in the charts on page 22. A better result is achieved by using GRILL 2 setting, to avoid the outside overburning before the inside is cooked through.

For small quantities cook by MICROWAVE or GRILL only for best results.

Ingredients

25g (1oz) butter 1 clove garlic, crushed 1 small onion, finely chopped 15ml (1tbsp) plain flour 15ml (1tbsp) curry powder grated rind and juice of ½ lemon 300ml (½pt) hot fish stock 25g (1oz) sultanas 10ml (2tsp) tomato puree 30ml (2tbsp) sweet chutney 450g (1lb) haddock, skinned and chopped salt and pepper 75g (3oz) creamed coconut

Fish Curry

Serves: 4

Dish: large casserole

Calories Total: 1400 kcals

Oven Accessory: glass turntable

Serving: 350 kcals

1. Melt the butter in the casserole dish on HIGH power for 30 secs. or until melted.
2. Stir in the garlic and onion and cook covered on HIGH power for 3 mins.
3. Stir in the flour, curry powder, lemon rind and juice and fish stock. Cover an cook on HIGH power for 3 mins. stirring halfway through the cooking time.
4. Stir in the remaining ingredients except the coconut, cover and cook on HIGH power for 3-4 mins. or until fish flakes, stirring occasionally.
5. Break up the coconut with a fork, then stir into the curry. Leave to stand for 5 mins. before serving with boiled rice.

Ingredients

25g (1oz) butter 2 onions, peeled and quartered 1 clove garlic, crushed 2 courgettes, sliced 1 yellow pepper, sliced 3ml (½tsp) cumin 3ml (½tsp) paprika 15ml (1tbsp) tomato puree 400g (14oz) can tomatoes 8 plaice fillets 15ml (1tbsp) lemon juice

Fish Provencal

Serves: 4

Dish: large shallow rectangular dish

Calories Total: 756 kcals Serving: 189 kcals

Oven Accessory: glass turntable

1. Place the butter, onions and garlic in a large bowl. Cover and cook on HIGH power for 2 mins. or until softened.
2. Add the courgettes and yellow pepper. Cover and cook on HIGH power for 2 mins. or until softened. Add the spices, puree and tomatoes. Cover and cook on HIGH power for 4 mins. or until piping hot. Pour into serving dish.
3. Roll each fillet and arrange on top of the sauce. Sprinkle with lemon juice. Cook covered on HIGH power for 7-8 mins. or until the fish is cooked. Garnish with parsley and serve with French bread.

Ingredients

50g (2oz) butter 50g (2oz) plain flour 450ml (%pt) milk 100g (4oz) Cheddar cheese, grated salt and pepper pinch grated nutmeg 450g (1lb) frozen spinach 450g (1lb) smoked haddock fillet, skinned 50g (2oz) breadcrumbs

Haddock & Spinach Florentine Serves: 4

Dish: 20cm (8") square dish

Calories Total: 1885 kcals

Oven Accessory: glass turntable

Serving: 471 kcals

1. Mix together the butter, flour and milk in a large jug and cook uncovered on HIGH power for 4-5 mins. or until the sauce has thickened, whisking every minute.
2. Stir in half of the cheese and season well with salt, pepper and nutmeg. Place spinach in the dish and cook covered on HIGH Power for 6-7 mins, or until cooked. Place in a sieve and drain thoroughly, then place back into the dish.
3. Place the fish in a single layer on top of the spinach. Cook covered on High Power for 5-6 mins or until the fish is cooked
4. Pour the cheese sauce over the fish to cover it completely. Sprinkle the remaining cheese and breadcrumbs on top. Cook on Combination 2 for 8-10 mins. or until piping hot.

Ingredients

350g (12oz) potatoes

25g (1oz) butter

1 small onion, finely chopped

200g can tuna, drained

1 egg, hardboiled, chopped

30ml (2tbsp) fresh parsley, chopped

10ml (2tsp) lemon juice

salt and pepper

1 egg, beaten

100g (4oz) breadcrumbs

Ingredients

450g (1lb) smoked haddock

30ml (2tbsp) lemon juice

15ml (1tbsp) oil

1 large onion, sliced

600g (1¼lb) cooked jacket potatoes,

sliced (see page 41)

40g (1½oz) butter

40g (1½oz)flour

3ml (1/2 tsp) mustard

600ml (1pt) milk

salt and pepper

100g (4oz) Red Leicester cheese

75g (3oz) wholemeal breadcrumbs

Ingredients

100g (4oz) broccoli

100g (4oz) cauliflower

1 medium red pepper, diced

198g (7oz) can salmon, drained

25g (1oz) butter

30ml (2tbsp) plain flour

300ml (1/2pt) milk

50g (2oz) grated tasty cheese

150ml (%pt) cream (optional)

salt and pepper to taste

15g (1/oz) butter

75g (3oz) fresh white breadcrumbs

15ml (1tbsp) chopped fresh parsley

pinch paprika

Tuna Fish Cakes

Serves: 4

Dish: grill accessory

Calories Total: 1885 kcals

Oven Accessory: glass turntable

Serving: 471 kcals

1. Cook potatoes with 45ml (3tbsp) water, covered on HIGH power for 6-8 mins. or until cooked. Drain.

2. Place butter and onion in a bowl, cover and cook on HIGH power for 4 mins. or until soft. Add potatoes and mash.

3. Stir in tuna, hard boiled egg, parsley and lemon juice, season well.

4. Shape into 8 cakes and coat in beaten egg and breadcrumbs.

5. Place on grill accessory and cook on Combination 1 for 12-14 mins. or until brown, turning halfway.

Family Fish Pie

Serves: 4

Dish: large casserole

Calories Total: 2497 kcals

Oven Accessory: glass turntable

Serving: 624 kcals

1. Arrange fish in a shallow dish. Add lemon juice, cover and cook on HIGH power for 4 mins. or until it flakes easily.

2. Place onion and oil in a bowl. Cover and cook on HIGH power for 3 mins, or until the onion is soft.

3. Melt the butter on HIGH power for 30 secs. Stir in the flour and mustard and cook for a further 15 secs. Add milk and seasoning, gradually stir to a smooth paste. Cook on HIGH power for 5 mins. or until the sauce is thick and bubbling. Stir twice during cooking. Add 75g (3oz) of grated cheese to the sauce and stir well.

4. Flake the fish and arrange in a serving dish. Add onions and place the sliced potatoes on top.

5. Pour over the cheese sauce. Sprinkle with breadcrumbs and remaining cheese.

6. Cook on Combination 3 for 10-15 mins. or until crispy and piping hot.

Salmon & Vegetable Mornay

Serves: 4

Dish: 20 x 25cm (8" x 10") dish

Calories Total: 1707 kcals

Oven Accessory: glass turntable

Serving: 427 kcals

1. Break broccoli and cauliflower into florets, add red pepper and 2tbsp water. Cover and cook on HIGH power for 5-6 mins. or until soft. Drain.

2. Flake salmon and mix with vegetables.

3. Melt butter in jug on HIGH power for approx. 20-30 secs. Stir in flour then milk. Cook on HIGH power for 2 mins. or until mixture bolls and thickens; stir halfway. Stir in cheese, cream and seasoning. Pour cheese sauce over vegetables and salmon.

4. Melt extra butter in a small bowl on HIGH power for approx. 15-20 secs. Stir in breadcrumbs, parsley and paprika. Sprinkle over vegetable mixture.

5. Cook on Combination 2 for 10-15 mins. or until golden brown.

Meat & Poultry

Guidelines

DEFROSTED JOINTS

If the meat has previously been frozen, ensure it is properly thawed before cooking by microwave. Defrosted joints of meat must be allowed to STAND for a minimum of 30 mins. before cooking to ensure the centre is fully defrosted.

FAT

Large amounts of fat absorb microwave energy and can cause the meat next to it to overcook. Always choose joints that aren't excessively fatty.

STANDING TIME

Meat and poultry require a minimum of 15 mins. STANDING TIME wrapped in tin foil after cooking by microwave. Roast meat is always easier to carve after STANDING and the meat will continue to cook during the STAND TIME.

BONE

Bone tips on legs of lamb and crown roasts may need shielding when cooked by microwave, to prevent overcooking.

TURNING

Joints and poultry should be turned over halfway through cooking.

SHIELDING

Large joints may need shielding with pieces of smooth tin foil after half the cooking time to avoid overcooking on the outside edges. Turkeys and large chickens should have their breast meat, legs and wings protected. Secure foil with cocktail sticks and do not allow foil to touch the walls of the oven.

How to roast a joint by microwave

To roast basic joints of meat place the joint onto the rack of a microwave roasting set and cover with a dome lid. Alternatively use a large, shallow dish and place the joint on an up-turned saucer and cover with cling film.

How to cook small cuts of meat by microwave

Some cuts of meat can be cooked successfully by microwave although due to their short cooking times and no heat source, they will not crisp and brown.

They should always be cooked on a microwave rack to lift them out of their juices.

How to roast a joint by Combination

Place the joint on an upturned saucer on heatproof dish. Joints are best cooked by microwave only and then browned and crisped by a final Combination stage. Follow the guidelines on pages 21-26. DO NOT cover.

Abstract black-and-white graphic with circular and curved shapes, no text or symbols present.

Black-and-white sketch of a circular object with radial lines, resembling a mechanical or architectural component (no text or symbols visible)

Black-and-white sketch of a globe with visible continents and cloud cover (no text or labels)

Cooking small cuts of meat by Grill or Combination

Place food on grill accessory. Place grill accessory on turntable. Use heatproof dish to catch fat/drips.

For larger pieces or pieces of meat that will not fit without touching the roof or catching on the grill, place in a heatproof dish on turntable. The grilling action will still brown the food, but may take slightly longer.

Black-and-white sketch of a bowl with a lid, no visible text or symbols

Ingredients

Sauce:

15ml (1tbsp) comflour

15ml (1tbsp) caster sugar

15ml (1tbsp) white wine vinegar

15ml (1tbsp) orange juice

15ml (1tbsp) tomato sauce

15ml (1tbsp) sherry

juice from pineapple

seasoning to taste

450g (1lb) pork fillet diced and trimmed

½ green pepper, sliced

225g (Boz) can pineapple chunks,

drained (reserve juice)

Sweet and Sour Pork

Serves; 4

Dish: 20cm (8") casserole

Oven Accessory: glass turntable

Calories Total: 969 kcals

Serving: 242 kcals

1. Mix all sauce ingredients together.

2. Layer pork, pepper and pineapple in casserole, pour over sauce.

3. Cover and cook on HIGH power for 5 mins. then LOW power for 10-15 mins. or until meat is tender. Stir halfway through cooking time.

Tip:

Braised or stewed meat cooked in a microwave has a slightly firmer texture and therefore it is essential to purchase good quality meats.

Ingredients

25g (1oz) butter

2 medium onions, sliced

2 sticks celery, trimmed and chopped

100g (4oz) mushrooms, sliced

4 chicken quarters, skinned

300ml (2pt) hot chicken stock

396g (14oz) can tomatoes

salt and pepper

30ml (2tbsp) cornflour

Chicken Casserole

Serves: 4

Dish: 3 litre (6pt) casserole

Oven Accessory: glass turntable

Calories Total: 1847 kcals

Serving: 462 kcals

1. Place vegetables and butter in dish. Cover and cook on HIGH power for 2-3 mins. or until soft.

2. Place chicken on top of vegetables, cover with stock and tomatoes and add salt and pepper to taste.

3. Cover and cook on HIGH power for 5 mins, then LOW power for 30-40 mins, or until well cooked through.

4. Mix comflour with a little water. Remove chicken from casserole, skim off excess fat and stir in comflour paste. Cook on HIGH power for 2 mins. Serve chicken with sauce poured over.

N.B.

If diced boneless breast is used in place of the quarters, reduce 2nd cooking period to 15-20 mins. or until well cooked through.

Пр:

When cooking a casserole, place a saucer or small upturned plate over the meat to keep it submerged in the juices.

Ingredients

1 onion, diced

1 clove of garlic, crushed

1 green pepper, diced

30ml (2tbsp) oil

100g (4oz) mushrooms, sliced

225g (8oz) lean minced beef

1 glass of red wine

15ml (1tbsp) mixed herbs

100g (4oz) garlic sausage or bacon,

diced

396g (14oz) can chopped tomatoes

30ml (2tbsp) tomato puree

salt and pepper

Bolognese Sauce

Serves: 4

Dish: 1.5 litre (3pt) casserole dish Calories Total: 1396 kcals

Oven Accessory: glass turntable

Serving: 394 kcals

1. Mix onion, garlic, pepper and oil in a bowl. Cook on HIGH power for 2 mins. or until onion is soft.

2. Stir in all the other ingredients. Cover and cook on HIGH power for 10 mins. then MEDIUM power for 15-20 mins. or until vegetables are soft. (or Auto Meat Sauce)

Ingredients

1 onion, diced 1 clove garlic, crushed 15ml (1tbsp) oil 397g (14oz) can chopped tomatoes 15ml (1tbsp) tomato puree 5ml (1tsp) mixed herbs 450g (1lb) mince salt and pepper

Savoury Mince

Serves: 4

Dish: 1.5 litre (3pt) casserole dish Calories Total: 1211 kcals Oven Accessory: glass turntable Serving: 303 kcals

1. Place onion, garlic and oil in casserole, cover and cook on HIGH power for 2 mins. or until soft.
2. Place all other ingredients in casserole. Stir well.
3. Cover and cook on HIGH power for 10 mins. then MEDIUM power for 15-20 mins.

Variation:

Calories: 1654 kcals

Chilli Con Carne

Serving: 414 kcals

Add 396g (14oz) can red kidney beans drained, 15ml (1tbsp) chilli powder, 1 diced green pepper to the ingredients above.

Ingredients

1 quantity of Savoury Mince (see above) double quantity of White Pouring Sauce (see page 43) 100g (4oz) grated cheese 5ml (1tsp) mustard salt and pepper 12 sheets pre-cooked lasagne (or sufficient for 3 layers) 60ml (4tbsp) Parmesan cheese

Lasagne

Serves: 4

Dish: large rectangular dish

Calories Total: 3146 kcals

approx. 27 x 23cm (11 x 9")

Serving: 787 kcals

Oven Accessory: glass tumtable

1. Add cheese and seasoning to the hot white sauce.
2. Cover the base of the dish with a layer of cheese sauce, then a layer of lasagne, followed by a layer of hot meat mixture. Continue with a layer of lasagne then meat, ending with a layer of cheese sauce.
3. Sprinkle Parmesan cheese over the top and cook on Combination 3 for 30-35 mins. or until the pasta is tender and brown and crisp on top.

Ingredients

1 small onion, finely chopped 25g (1oz) butter 450g (1lb) lean minced beef 3ml (½tsp) paprika 30ml (2tbsp) tomato ketchup 1 egg, beaten 30ml (2tbsp) chutney pinch mixed dried herbs 70g pkt dry mushroom soup mix 50g (2oz) packaged breadcrumbs

Beef & Mushroom Burgers

Serves: 4

Dish: grill accessory

Calories Total: 1762 kcals

Oven Accessory: glass turntable

Serving: 441 kcals

1. Place onion and butter in a bowl, cover and cook on HIGH power for 3 mins. or until soft.
2. Stir in mince, paprika, tomato ketchup, egg, chutney, herbs, half soup mix and breadcrumbs. Shape into 8 patties.
3. Coat the patties with the remaining soup mix and place on grill accessory. Cook on Combination 1 for 14-16 mins. or until burgers are cooked in centre. Turn once during cooking.

Ingredients

1kg (2½b) pork spare ribs 300ml (¾pt) water 225g (8oz) can crushed pineapple 150ml (¾pt) HP Fruity Sauce 15ml (1tbsp) brown sugar 45ml (3tbsp) soy sauce 5ml (1tsp) fresh grated ginger

Hawaiian Ribs

Serves: 2

Dish: 20 x 25cm (8 x 10")

Calories Total: 2971 kcals

rectangular dish + grill accessory

Serving: 1486 kcals

Oven Accessory: glass turntable

1. Place the ribs in a single layer in dish with the water, cover and cook on HIGH power for 10-15 mins. Drain.
2. Place all other ingredients in blender and blend until smooth. Dip each rib in the sauce ensuring they are well coated.
3. Place on grill accessory and cook on Combination 1 for 15-20 mins.or until cooked and crispy. Baste with extra sauce if required. Turn occasionally.

Eggs, Cheese & Snacks

PIERCING

Always pierce egg yolk and white to stop them exploding when poaching or frying in a microwave.

BOILED EGGS IN SHELLS

Never attempt to cook a boiled egg by microwave. They can explode dangerously.

QUICHES

Always cook quiches on LOW power to avoid curdling the egg filling.

POACHED EGGS COOKING CHART

POACHED EGGS

1. Place 45ml (3tbsp) water in a small bowl.
2. Heat on HIGH power for 40 secs. to bring water to the boil.
3. Break in egg. Pierce membrane of yolk and white several times (this stops the egg exploding).

No. of Eggs	Time for Water to Boil	Cooking time MEDIUM Power	Stand Time
1	40 secs.	30 secs.	1 min.
2	1 min.	1 min.	1 min.
3	1 min. 30 secs.	1 min. 30 secs.	1 min.
4	2 mins.	1 min. 50 secs.	1 min.

1. Cover with cling film or a saucer and cook on MEDIUM power for 30-40 secs. (For more than one egg, see cooking chart).

2. Stand covered for 1 min. before serving.

SPEEDY POACHED EGGS

For speedy Poached Eggs break eggs directly into cup or ramekin. Pierce and cook covered on MEDIUM power for the times given opposite.

SPEEDY POACHED EGGS COOKING CHART

No. of eggs	Cooking Time	Stand Time
1	40-50 secs.	1 min.
2	1 min. 30 secs.	1 min.
4	2 mins. 40 secs.	1 min.

SCRAMBLED EGGS

1. Mix eggs, milk, knob of butter and pinch of pepper in a pyrex jug.
2. Heat on HIGH power for first cooking time recommended in chart.
3. Stir well.

SCRAMBLED EGGS COOKING CHART

No. of eggs	Milk	1st Cooking Time	STIR	2nd Cooking Time	Stand Time
1	1 tbsp	30 secs.	STIR	20 secs.	1 min.
2	2 tbsp	50 secs.	STIR	30 secs.	1 min.
3	3 tbsp	1 min. 20 secs.	STIR	30 secs.	2 mins.

1. Heat on HIGH power for second recommended cooking time.

2. Stand. The eggs will be creamy before standing, but become firm after stand time.

Ingredients

15ml (1tbsp) olive or vegetable oil ½ red and green pepper, seeded and diced 1 small onion, finely chopped 4 eggs 3ml (½tsp) basil salt and pepper to taste

Piperade

Serves: 2

Dish: 22cm (9") Pyrex plate, Calories Total: 520 kcals
lightly greased + grill accessory Serving: 260 kcals
Oven Accessory: glass turntable

1. Place oil and vegetables in a bowl, cover and cook on HIGH power for 3-4 mins. or until soft. Drain.
2. Spread the vegetables over the plate. Beat the eggs with the salt and pepper and pour over the vegetables.
3. Place plate on grill accessory and cook on Combination 2 for 8-10 mins. or until the eggs are softly set, but still moist, beating with a fork several times during the first 2 mins. of cooking. Allow to stand for 1-2 mins. before serving.

Ingredients

1 onion, sliced 15ml (1tbsp) cooking oil 1 small French stick 30ml (2tbsp) Dolmio sauce or Passata 75g (3oz) Mozzarella cheese, grated

French Bread Pizza

Serves: 2

Dish: grill accessory

Calories Total: 1072 kcals

Oven Accessory: glass turntable

Serving: 536 kcals

1. Cook the onion with the oil, covered, on HIGH power for 3-4 mins.
2. Cut bread in half lengthways. Place on grill accessory and cook on GRILL 1 for 1-2 mins. Spread with the Dolmio sauce. Top with the onion and then cheese.
3. Place back on grill accessory and cook on Combination 1 for 4-5 mins. or until browning and hot.

Ingredients

Base: 100g (4oz) self raising flour 50g (2oz) butter 100g (4oz) potato, cooked and sieved Topping: 45ml (3tbsp) tomato puree 100g (4oz) Mozzarella cheese 1 onion, sliced 2 large mushrooms, sliced ½ green pepper, sliced mixed herbs seasoning

Potato Based Pizza

Serves: 4

Dish: 24cm (9½") Pyrex pizza dish or plate

Calories Total: 863 kcals Serving: 216 kcals

Oven Accessory: glass turntable

1. Rub butter into flour until it resembles fine breadcrumbs, add the cooked potato and work into a dough.
2. Line pizza dish with dough, spread with tomato puree, then layer remaining ingredients, finishing with the cheese. Cook on Combination 2 for 15-20 mins. or until browned.

Ingredients

4 slices bread, buttered 5ml (1tsp) Dijon mustard 2 slices smoked ham 100g (4oz) sliced cheese

Croque Monsieur

Serves: 2

Dish: grill accessory

Calories Total: 1450 kcals Serving: 725 kcals

Oven Accessory: glass turntable

1. Place the bread, buttered side up on grill accessory and cook on GRILL 1 for approximately 3-4 mins. or until browning.
2. On 2 slices of the bread, spread the untoasted sides with mustard and top with ham and cheese. Cover with the other slices, browned side uppermost.
3. Place back on the grill accessory and cook on Combination 2 for 1-2 mins, or until the cheese has melted.

Ingredients

4 slices bread 1 small onion, finely chopped 100g (4oz) cheese, grated 1 egg, beaten seasoning

Cheese, Egg & Onion Toasties

Serves: 2

Dish: small bowl + grill accessory Oven Accessory: glass turntable

Calories Total: 948 kcals Serving: 474kcals

1. Place bread on grill accessory and cook on GRILL 1 for approx. 3-4 mins. or until golden.
2. Combine remaining ingredients and season well.
3. Turn bread untoasted side up and spread mixture equally between slices.
4. Cook on Combination 1 for 5-6 mins. until golden and browning.

Cereals, Pasta, Rice & Beans

Your microwave is ideal for cooking cereals, pasta, rice and beans. In many instances the cooking times may be similar to times used when cooking on a hob. However, there are no saucepans to wash up and there are energy savings to consider whenever you are cooking by microwave.

DISH SIZE

Always use a large heatproof bowl or casserole dish to cook beans, pasta and rice. A 3 litre (6pt) dish is ideal.

WATER

Use boiling water for cooking to minimise the cooking time for rice, pasta and beans.

COVERING

Always cook rice, pasta, cereals and beans covered with either microwave cling film, or a lid.

RICE

For manual cooking measure rice and liquid by volume, use twice the volume of liquid to rice. A 300ml (½pt) mug of uncooked rice serves 2-3 people.

PASTA

Add 15ml (1tbsp) oil to the water and stir two or three times during cooking to help prevent the pasta from sticking.

BEANS & PULSES

Beans and pulses should be pre-soaked. Cover then with boiling water, cover with a lid and leave to stand overnight. Rinse with fresh water and drain. Lentils do not require pre-soaking.

RED KIDNEY BEANS

These MUST BOIL for at least 12 mins. to destroy potentially toxic enzymes.

Ingredients

175g (6oz) quick cooking macaroni 40g (1½oz) butter 1 small onion, finely chopped 100g (4oz) bacon, chopped 40g (1½oz) flour 600ml (1pt) milk 5ml (1tsp) french mustard 150g (5oz) red cheese, grated salt and pepper 25g (1oz) fresh brown breadcrumbs

Macaroni Cheese

Serves: 4

Dish: large dish + jug Calories Total: 2822 kcals Oven Accessory: glass turntable Serving: 706 kcals

1. Cook macaroni in 450ml (%pt) boiling water on HIGH power for 5-6 mins. or until soft. Drain.
2. Place butter, onion and bacon in a jug. Cook on HIGH power for 5 mins. or until onion is soft. Stir halfway through cooking.
3. Stir in flour and cook for 30 secs. on HIGH power.
4. Gradually add milk, stir well and season. Cook on HIGH power for 5 mins. or until sauce is thick and bubbling. Stir twice during cooking.
5. Add mustard and 100g (4oz) grated cheese. Place the macaroni in a large dish and pour over the sauce. Sprinkle with breadcrumbs and remaining cheese.
6. Cook on Combination 1 for 12-14 mins. or until cheese starts to melt.

Cooking Charts - Manual Cooking

	Power	Time Mins.
Pasta - for 225g (8oz) + 1 litre (1%pt) water
Twists	HIGH	10-12
Macaroni	HIGH	12-14
Spaghetti	HIGH	8
Lasagne	HIGH	6-8
Tortellini	HIGH	12
Tagliatelli	HIGH	8-9
Quick Cook Pasta 225g (8oz) + 1 litre (1%pt) water
Spaghetti	HIGH	5-7
Pasta Shapes	HIGH	6-8
Rice - for 300ml (%pt) + 600ml (1pt) water
Easycook White	HIGH	13-14
Easycook Brown	HIGH	17-20
Long Grain White	MEDIUM	15-16
Long Grain Brown	MEDIUM	22
Wild Rice & Brown Rice Mix	MEDIUM	20-22

	Power	Time Mins.
Beans & Pulses 225g (Box) + 600ml (1pt) water
Black Eyed Beans	HIGH LOW	15 then 30
Chick Peas	HIGH LOW	10 then 40
Marrowfat Peas	HIGH LOW	3 then 15
Red Kidney Beans	HIGH LOW	15 then 40
Lentils - do not pre-soak	MEDIUM	12-14

Porridge	Oats (cup)	Water/Milk (cup)	Time on MEDIUM
1 serving	12	1	3-3 12 mins.
2 servings	1	2	5-6 mins.
4 servings	2	4	10-11 mins.

Stir porridge halfway through cooking time.

Ingredients

1 quantity Chilli Con Carne

(see page 35)

12 Taco shells

1/2 lettuce, shredded

2 tomatoes, thinly sliced

100g (4oz) cheese, grated

Ingredients

225g (8oz) mixed dried pasta

i.e. tagliatelle, twists, shells

1 litre (1%pt) boiling water

15ml (1tbsp) oil

3ml (1/2tsp) salt

25g (1oz) butter

100g (4oz) mushrooms, peeled and

sliced

198g (7oz) can tuna, drained

Sauce:

40g (1½oz) butter

40g (1½oz) flour

30ml (2tbsp) Dry Vermouth (optional)

salt and pepper to taste

25g (1oz) cheese, grated

25g (1oz) breadcrumbs

Ingredients

225g (8oz) dried chick peas, soaked

overnight

1 clove garlic, peeled and crushed

15ml (1tbsp) Tahini (sesame seed

cream)

45ml (3tbsp) olive oil

30ml (2tbsp) lemon juice

salt and pepper

225g (8oz) yoghurt

Ingredients

25g (1oz) butter or margarine

2 onions, finely chopped

350g (12oz) easycook long grain

brown rice

900ml (1½pt) hot chicken stock

4 sticks celery, sliced

1 small red pepper, seeded and

chopped

100g (4oz) small button mushrooms,

halved

100g (4oz) frozen peas

salt and pepper

100g (4oz) cooked chicken, diced

100g (4oz) garlic sausage, chopped

45ml (3tbsp) fresh chopped parsley

30ml (2tbsp) Parmesan cheese, grated

Tacos

Serves: 4

Dish: large dinner plate

Calories Total: 2705 kcals

Oven Accessory: glass turntable

Serving: 676 kcals

1. Prepare Chilli Con Came according to recipe instructions.

2. Stand shells on plate. Heat on HIGH power for 40-50 secs. to warm through.

3. Divide shredded lettuce between Taco shells. Fill with hot Chilli mixture. Top with sliced tomato and sprinkle with grated cheese. Serve immediately.

Tuna Pasta

Serves: 4

Dish: 3 litre (6pt) casserole dish

Calories Total: 2408 kcals

Oven Accessory: glass turntable

Serving: 602 kcals

1. Cook pasta in water with oil and salt covered on HIGH power for 10-12 mins, or until soft. Leave to stand for 2-3 mins. Drain.

2. Melt butter in small dish on HIGH power for approx. 45 secs. Add mushrooms and cook on HIGH power for 3-5 mins. or until soft.

3. To make sauce, melt butter on HIGH power for 30-40 secs. Stir in flour to make a roux. Gradually whisk in milk until well combined. Cook on HIGH power for 3-4 mins. or until smooth and glossy. Stir halfway through cooking. Add Vermouth and season.

4. Combine pasta, tuna and mushrooms in dish. Pour sauce over and stir to mix thoroughly. Sprinkle with cheese and breadcrumbs and cook on Combination 1 for 10-12 mins. or until golden brown.

Hummus

Serves: 4

Dish: large bowl

Calories Total: 1286 kcals

Oven Accessory: glass turntable

Serving: 321 kcals

1. Drain soaked chick peas. Place into a large bowl with 1 litre (1½pts) fresh water. Cook covered on HIGH power for 10 mins, then LOW power for 30-40 mins. or until soft.

2. Drain chick peas and blend in a food processor until smooth.

3. Stir in other ingredients. Chill.

Chicken Risotto

Serves: 4

Dish: 3 litre (6pt) casserole

Calories Total: 2129 kcals

Oven Accessory: glass turntable

Serving: 532 kcals

1. Place the butter and onions in dish. Cover and cook on HIGH power for 3 mins. or until the onion is soft.

2. Add the rice, cover and cook on HIGH power for 1 min.

3. Add the stock and cook on HIGH power for 5 mins. then MEDIUM power for 15 mins. or until the rice is cooked. Stir halfway during cooking.

4. Stir in the celery. Cover and cook on HIGH power for 2 mins.

5. Add the red pepper, mushrooms and peas. Cover and cook on HIGH power for 5 mins. or until the vegetables are tender.

6. Toss the rice mixture with a fork to separate the grains and stir in the chicken, garlic sausage, parsley and cheese. Reheat on HIGH power for 2 mins. or until hot.

Vegetables and Vegetarian

Black-and-white photo of a circular object with abstract shapes and no visible text or symbols

• Root vegetables. i.e. carrots, swede, should be cut into slices, strips or cubes.
• Do not mix fresh and frozen vegetables as the cooking times may be different.

Black-and-white photo of a bowl filled with granular material, possibly food or material (no visible text or symbols)

• Cabbage should be shredded and cooked by power and time.
• Fresh vegetables require 90ml (6tbsp) of water. For each extra 450g (1lb) add an extra 90ml (6tbsp) of water and stir halfway.

Black-and-white illustration of a soccer ball and a baseball bat, no text or symbols present

• if cooking potatoes with other vegetables, only cook with other ROOT vegetables.
• Never add salt to vegetables before microwaving. Remember the flavour of microwaved vegetables is much better than boiled.

Black-and-white illustration of a bowl containing various food items, possibly tomatoes or vegetables, with no visible text or symbols.

- Always cook vegetables in a dish that is a suitable size. Use flat dishes not basins. Always cover with microwave cling film or a lid.

Silhouette of three figures in a row, possibly a camel or horse, with no visible text or symbols.

- Certain vegetables i.e. broccoli and asparagus, should be arranged so that the tips are in the centre of the dish, as these require less cooking.

Abstract black-and-white circular pattern with curved lines and speckled texture (no text or symbols)

- Whole cauliflower should be cooked upside down on MEDIUM power for 10 mins. approx. with 90ml (6tbsp) water.

Fresh/Frozen Vegetables Manual Cooking Charts - Use HIGH Power

Fresh Vegetables per 450g (1lb) with 90ml (6tbsp) water	Cooking Time (mins.)
*Asparagus	6-8
Aubergine	6-7
Beans: Broad	6
Runner	7-8
French	7-8
*Beetroot (use MEDIUM)	15-17
Broccoli	6-7
*Brussel Sprouts	6-8
*Cabbage: Sliced	7-8
Wedges	9-10
Carrots: Sliced	7-8
Whole baby	9
Cauliflower: Florets	8-9
Celery	6-8
*Com on the cob	6-7
Courgettes	5

Fresh Vegetables per 450g (1lb) with 90ml (6tbsp) water	Cooking Time (mins.)
Leeks: Sliced	7-8
Whole	8-9
Mange Tout	4-5
Marrow, cubed	4-5
Mushrooms	4-5
Parsnips, sliced	6-7
Peas	4-6
*Potatoes: Boiled	6-7
To par-boil	5-6
New, whole	6-7
To mash	8
*Spinach	7
*Spring greens	7
*Swede, cubed	7-8
Turnip	11-12

Frozen Vegetablesper 450g (1lb) with30ml (2tbsp) water	Cooking Time(mins.)
Asparagus	7-8
Beans: Broad	9-10
Whole green	10-12
Sliced runner	8-10
Broccoli	8-9
Brussel Sprouts	9-10
Cabbage: Shredded	5-6
Carrots: Whole	9
Sliced	8
Cauliflower	10
Mange Tout	7-8
Mixed Vegetables	7
Peas	7-8
Spinach, nuggets	8-9
Swede, diced	10
Sweetcorn	7

*For vegetables marked with an asterisk, add more water for a more even cooking result

Jacket Potatoes

Before Cooking

Wash potatoes and prick skins several times.

Abstract circular pattern with textured black-and-white shapes, no visible text or symbols

Spread around edge of turntable.

Varieties of potatoes vary in their suitability for cooking by microwave. We recommend Maris Piper for consistently good results. The cooking times given may need adjustment for other varieties. The ideal size of potato to be cooked by microwave or Combination (Auto Crisper Jacket) is 175g-225g (6-8oz). Microwaving jacket potatoes is quicker than Combination, but will produce a soft result. Combination cooking will produce a drier, crisper texture. If you wish to further enhance the browning at the end of cooking, use GRILL 1 (see chart below)

After Cooking

Remove from oven and wrap in tin foil to retain the heat.

Black-and-white sketch of two textured circular objects with horizontal lines, no visible text or symbols

Leave to stand for 5 mins.

Jacket Potatoes - Manual Cooking Chart

Quantity	Mins. on High Power	Mins. on Grill 1 to crispen
1	4	8-10
2	6	10-12
4	10	11-13
6	15	12-15

Ingredients

1 clove of garlic, halved 500g (1lb 2oz) potatoes, sliced very thinly pinch nutmeg pepper and salt 150ml (½pt) double cream 25g (1oz) butter

Ingredients

600g (1lb 5oz) peeled potatoes 15ml (1tbsp) vegetable oil

Gratin Dauphinois

Serves: 4

Dish: 20cm (8") shallow dish

Calories Total: 1445 kcals

Oven Accessory: glass turntable

Serving: 361 kcals

1. Rub halves of garlic around inside of dish and discard.
2. Layer the potato slices in the dish, seasoning with salt and pepper and nutmeg between each layer.
3. Pour the cream evenly over the top of the potatoes and dot with butter. Cook on Combination 1 for 20-30 mins, or until cooked and browned.

Roast Potatoes

Serves: 4

Dish: shallow Pyrex dish

Calories Total: 610 kcals

Oven Accessory: glass turntable + grill accessory

Serving: 153 kcals

1. Cut potatoes into even sized pieces. Place in dish and brush with oil.
2. Place dish on grill accessory and cook on Combination 1 for 30-40 mins, or until cooked and crispy, turning occasionally.
   CAUTION: Please check that there is a gap of at least 2cm between the potatoes and the oven roof.

Ingredients

1 large onion, chopped

25g (1oz) butter

1 clove of garlic, crushed

225g (8oz) each of diced carrots,

diced leeks, diced courgettes

1 green pepper, chopped

150ml (4pt) hot vegetable stock

salt and pepper to taste

300ml (1/pt) prepared tomato sauce

175g (6oz) pre-cooked lasagne

225g (8oz) Mozzarella cheese

Ingredients

2 medium aubergines, diced

salt

15ml (1tbsp) oil

2 cloves of garlic, chopped

pinch cayenne pepper

10ml (2tsp) ground coriander

5ml (1tsp) ground cumin

5ml (1tsp) turmeric

2.5cm (1") root ginger, peeled & sliced

1 small cauliflower, divided into florets

2 medium potatoes, diced

100g (4oz) green beans, sliced

1 fresh chilli, deseeded and sliced

150ml (4pt) vegetable stock

397g (14oz) can chopped tomatoes

100g (4oz) cashew nuts

Ingredients

1 cauliflower, trimmed

90ml (6tbsp) water

25g (1oz) butter

25g (1oz) flour

3ml (1/2tsp) French mustard

300ml (1/2pt) milk

seasoning to taste

Topping:

75g (3oz) grated red cheese

15ml (1tbsp) brown breadcrumbs

Ingredients

1 aubergine, sliced

5ml (1tsp) salt

1 courgette, sliced

1 onion, sliced

1 green pepper, trimmed and sliced

1 clove of garlic, peeled and crushed

396g (14oz) can of tomatoes

30ml (2tbsp) olive oil

salt and pepper to taste

Vegetable Lasagne

Serves: 4-6

Dish: large deep rectangular dish

Calories Total: 2686 kcals

Oven Accessory: glass turntable

Serving: 537 kcals

1. Place onion and butter in a casserole dish, cover and cook on HIGH power for 3 mins. Add vegetable stock, re-cover and cook on HIGH power for 8-10 mins. or until vegetables are soft. Season to taste.
2. Cover base of dish with a thin layer of tomato sauce, then a layer of lasagne on top followed by a layer of vegetable mixture. Thinly slice 175g (6oz) of the cheese and layer on top of vegetables. Continue layering until ingredients are all used ending with a tomato sauce layer.
3. Grate remaining cheese and arrange over top in 3 diagonal bands. Cook on Combination 3 for 25-30 mins., or until the pasta is cooked.

Vegetable Curry

Serves: 4

Dish: 3 litre (6pt) casserole

Calories Total: 1304 kcals

Oven Accessory: glass turntable

Serving: 326 kcals

1. Sprinkle the aubergine liberally with salt in a colander. Stand for 30 mins. to remove bitter juices. Rinse well under cold water and drain.
2. Combine garlic, spices and oil in casserole, cover and cook on HIGH power for 2 mins.
3. Add all other ingredients to casserole, except cashews. Cover and cook on HIGH power for 10 mins, then SIMMER power for 30-40 mins, or until vegetables are soft. Stir occasionally.
4. Sprinkle with cashews and serve with boiled rice.

N.B. This recipe is best cooked in advance, chilled and then reheated to allow the flavours to develop.

Cauliflower Cheese

Serves: 4

Dish: large bowl +

shallow casserole

Calories Total: 903 kcals

Serving: 226 kcals

Oven Accessory: glass turntable

1. Place cauliflower upside down in a bowl. Add water. Cover and cook on MEDIUM power for 10 mins. or until tender. Drain.
2. Melt butter on HIGH power for 15-30 secs. Stir in flour and mustard. Cook for a further 15 secs. Add milk gradually. Stir well and season. Cook on HIGH power for 2-3 mins. or until sauce is thick and bubbling. Stir once halfway during cooking.
3. Stir in 50g (2oz) grated cheese. Pour the sauce over the cauliflower. Top with remaining cheese and breadcrumbs.
4. Cook on Combination 1 for 8-10 mins, or until golden brown.

Ratatouille

Serves: 4

Dish: 20cm (8") casserole

Calories Total: 418 kcals

Oven Accessory: glass turntable

Serving: 105 kcals

1. In a colander sprinkle aubergine slices with salt and leave for 30 mins. to remove bitter juices. Rinse with cold water.
2. Combine all ingredients in a casserole. Cover and cook on HIGH power for 15 mins. or until vegetables are soft. Stir halfway through cooking time.

Sauces

Guidelines

CONTAINER SIZE

Always use a container or jug at least twice the capacity of the sauce, to avoid boiling over.

COVERING

DO NOT cover sauces when cooking.

STIRRING - IMPORTANT

Sauces/gravy should be thoroughly stirred before, during and after cooking, to avoid any eruptions and to result in a smooth sauce.

REHEATING

Sauces can be made in advance and reheated by microwave. Reheat on HIGH power and stir halfway.

POWER LEVEL

Most sauces require HIGH Power for cooking. Sauces containing eggs should be cooked on LOW power.

WOODEN SPOONS

Do not leave wooden spoons in the sauce when cooking. The wood may dry out and burn. NEVER LEAVE metal spoons in the sauce.

Ingredients

15g (½oz) butter 15g (½oz) flour 300ml (½pt) milk

White Pouring Sauce

Dish: 1 litre (2pt) jug

Calories Total: 359 kcals

Oven Accessory: glass turntable

1. Melt butter in jug on HIGH power for 20-40 secs.
2. Stir in the flour to make a roux.
3. Add the milk gradually stirring continuously until well combined.
4. Cook for 1½ mins. on HIGH power. Stir and cook for a further 1½ mins. Sauce should be smooth and glossy and coat the back of a spoon.

Variations of White Sauce

Mushroom

Calorie Total: 376 kcals

Mustard

Calorie Total: 359 kcals

Parsley

Calorie Total: 360 kcals

Onion

Calorie Total: 378 kcals

Ingredients

30ml (2tbsp) custard powder 15ml (1tbsp) sugar 600ml (1pt) cold milk

Ingredients

meat or poultry dripping with sediment 30ml (2tbsp) flour 300ml (½pt) stock salt and pepper

Stir 50g (2oz) mushrooms sliced thinly and 15ml (1tbsp) tomato puree into sauce halfway through cooking time. Stir 15ml (1tbsp) French mustard into sauce halfway through cooking time. Stir 60ml (4tbsp) chopped parsley and 15ml (1tbsp) lemon juice into sauce halfway through cooking time. Cook 1 small onion in the butter for 30 secs. on HIGH power before adding the flour and milk.

Custard

Dish: 1 litre (2pt) jug

Calories Total: 520 kcals

Oven Accessory: glass turntable

1. Mix together the custard powder, sugar and a little milk to form a smooth paste.
2. Blend in the remaining milk, whisking well.
3. Cook on HIGH power for 4-6 mins. Whisk well halfway through cooking time and again at the end.

Gravy

Dish: 1 litre (2pt) jug

Calories Total: 262 kcal/s

Oven Accessory: glass turntable

1. Scrape dripping and sediment from roasting dish into the jug.
2. Stir flour into dripping.
3. Gradually blend in stock.
4. Cook on HIGH power for 2-3 mins. stirring halfway through. Season and serve.

Desserts and Fruit

Guidelines

MILK PUDDINGS COOKING CHART

MILK PUDDINGS

• Always cook on SIMMER power to avoid puddings boiling over.
• Always use a very large container and cover tightly.
• Always stir halfway through cooking time.
- Add a knob of butter to rice puddings to prevent a skin from forming.

Type	Qty	Milk	Sugar	Power	Time
Pudding Rice	50g (2oz)	450ml (4pt)	30ml (2tbsp)	HIGH then SIMMER	5 mins. then 25-30 mins.
Flaked Rice	50g (2oz)	600ml (1pt)	30ml (2tbsp)	SIMMER	20 mins.
Tapioca	50g (2oz)	600ml (1pt)	30ml (2tbsp)	SIMMER	30-35 mins.

Ingredients

butter for greasing 225ml (8fl.oz) evaporated milk 350ml (12fl.oz) water 50g (2oz) short grain rice 25g (1oz) caster sugar

Creamy Rice Pudding

Serves: 4

Dish: large bowl

Oven Accessory: glass turntable

Calories Total: 672 kcals

Serving: 168 kcals

1. Butter the bowl. Mix the milk and water together. Pour into the bowl and stir in the rice and sugar.
2. Cook on HIGH power for 5-6 mins. or until the liquid is boiling.
3. Immediately reduce to SIMMER power and cook for 25-30 mins. or until starting to thicken. Stir with a fork to break up any lumps after every 15 mins. and at the end of the cooking time.
4. Leave to stand for 5 mins. to thicken further before serving.

STEWED/POACHED FRUIT

• Peel and slice or chop the fruit according to personal preference.
  • After cooling, stewed fruit can be used as a base for crumbles or pies.
• Use a flat based dish (not pudding basin) and only half fill with fruit to avoid boiling over.
  • Always cover the fruit with microwave cling film or a lid.
  • The times opposite are approximate. The times given may have to be adjusted for over/under ripe fruit.

STEWED/POACHED FRUIT MANUAL COOKING CHART

Fruit per 450g (1lb)(add sugar to taste after cooking)		Water	Power	Time(mins.)
Apples:	Poached	300ml (1⁄2pt)	HIGH	5
	Stewed	-	HIGH	5
Poaches:	Poached	300ml (1⁄2pt)	HIGH	4-5
Pears:	Poached	300ml (1⁄2pt)	HIGH	5-6
Plums:	Poached	300ml (1⁄2pt)	HIGH	8
	Stewed	30ml (2tbsp)	HIGH	8-10
Rhubarb:	Stewed	30ml (2tbsp)	HIGH	5

Ingredients

75g (3oz) butter 175g (6oz) digestive biscuits 5ml (1tsp) cinnamon

Filling:

175g (6oz) cream cheese

175g (6oz) cottage cheese

75g (3oz) caster sugar

25g (1oz) cornflour

1 lemon, grated rind of

150ml (4pt) soured cream

2 eggs, separated

50g (2oz) sultanas

Ingredients

75g (3oz) mixed dried fruit 6 slices of bread, buttered and cut in half diagonally 450ml (2pt) milk 3 eggs 25g (1oz) caster sugar 3ml (2tsp) nutmeg

Ingredients

675g (1½lb) cooking apples, peeled, cored and sliced 100g (4oz) demerara sugar 100g (4oz) margarine 175g (6oz) plain wholemeal flour 3ml (2tsp) cinnamon

Ingredients

1 cooking apple, peeled and grated 1 carrot, peeled and grated 1 orange, juice and grated rind 400g (14oz) mixed dried fruit 45ml (3tbsp) brandy 15ml (1tbsp) black treacle 50g (2oz) self-raising flour pinch of salt 15ml (1tbsp) cocoa 5ml (1tsp) mixed spice 3ml (1/2tsp) nutmeg 100g (4oz) shredded suet 150g (5oz) fresh breadcrumbs 50g (2oz) mixed peel 50g (2oz) flaked almonds 2 eggs, beaten

Baked Lemon Cheesecake

Serves: 8

Dish: 20cm (8") deep Pyrex dish, Calories Total: 3023 kcals greased Serving: 378 kcals

Oven Accessory: glass turntable

1. Melt butter on HIGH power for 1-2 mins, or until melted. Stir in biscuits and cinnamon. Press into base of dish.
2. Blend cream cheese and cottage cheese together until smooth. add sugar, comflour, lemon rind, soured cream and egg yolks.
3. Whisk egg whites until stiff and carefully fold into the cheese mixture. Sprinkle the sultanas over the biscuit base and pour over the filling mixture.
4. Cook on Combination 1 for 9-10 mins. or until the filling has set and is golden brown. Chill before serving.

Bread and Butter Pudding

Serves: 4

Dish: 20 x 25cm (8 x 10") oblong, greased dish

Calories Total: 1544 kcals Serving: 386 kcals

Oven Accessory: glass turntable

1. Arrange the bread and fruit in the prepared dish.
2. Warm the milk for 3 mins. on MEDIUM power but do not allow to boil.
3. Beat together the eggs and sugar and add the milk, stirring well.
4. Pour the mixture over the bread, sprinkle with nutmeg and leave to stand for 15 mins. Cook on Combination 1 for 15-20 mins, or until set and browned.

Apple Crumble

Serves: 4

Dish: 20cm (8") shallow casserole Oven Accessory: glass turntable

Calories Total: 1930 kcals Serving: 483 kcals

1. Place apple slices in dish, sprinkle with 25g (1oz) of the sugar. Cover and cook on HIGH power for 2-3 mins. until the apples begin to just soften.
2. Rub the margarine into the flour and cinnamon until mixture resembles fine breadcrumbs. Stir in remaining sugar.
3. Sprinkle the crumble over the apples to completely cover the fruit.
4. Cook on Combination 1 for 10-12 mins. or until golden brown and crisp.

Christmas Pudding

Serves: 6-8

Dish: 1.3 litre (2½pt) pudding basin lightly greased

Calories Total: 4355 kcals Serving: 622 kcals

Oven Accessory: glass turntable

1. Place apple and carrot in a large bowl. Cover and cook on HIGH power for 5 mins. Beat well to make a thick puree.
2. Stir in juice, rind and mixed fruit. Cook on HIGH power for 2 mins. Stir in brandy and treacle. Stand for 5 mins. Beat in rest of ingredients.
3. Press into the pudding basin. Cover with greaseproof paper and cook on HIGH power for 5 mins. Stand for 5 mins. Cook on HIGH power for another 2 mins. or until just firm.

N.B. One of the advantages of using your microwave to make this traditional pudding is that it can be made the week before Christmas and stored in a cool dry place. DO NOT attempt to make the pudding in advance, since the flavour will not improve with keeping, unlike a traditionally steamed pudding.

Cakes

Guidelines

SHAPE

Cakes to be microwaved are best cooked in round dishes, and lined with greaseproof paper rather than greased. NEVER grease and flour a dish used to cook a microwave cake, as a hard crust will form on the outside.

DISH SHAPE

Ring moulds are ideal for baking cakes in, especially dense cakes. They help prevent the outside edge of the cake overcooking before the dense centre is cooked through. Square cakes cooked by microwave are generally not as successful as the corners will need shielding to prevent them overcooking.

KEEPING QUALITY

Light sponge type cakes cook very quickly by microwave and so should be cooked as required, since their keeping quality is not as long as those baked traditionally.

CONSISTENCY

Generally cakes to be cooked by microwave should have a softer consistency than those baked traditionally. As a general rule add 15-30ml (1-2tbsp) of milk or water to the mixture.

COVERING

Just as you wouldn't cover a cake baked in a traditional oven, NEVER cover your cakes cooked by microwave.

MICRO POWER LEVELS

Always use the correct micro power level stated in the recipes following. As a general rule, the denser the cake, the lower the power level required.

PACKET CAKES

Do not line containers with cling film. Follow manufacturers' instructions for time. REMEMBER your oven is 800W (IEC) on HIGH power.

DISH SIZE

Always us the exact dish size stated in the following recipes, otherwise cooking times will be affected.

MIXING/BEATING

Cakes cooked by microwave need to be well mixed, but not over beaten. Generally it is unnecessary to cream butter and sugar or beat eggs in an electric mixer or food processor. Do not attempt to cook whisked/fatless sponges, or any cakes containing whisked egg white.

EGGS

The following recipes have been tested using SIZE 3 eggs. Using a different size of egg may affect cooking times.

ADAPTING YOUR OWN RECIPES

Look for a similar recipe in the following pages of this book to give you a guideline on power levels, timing and method.

Ingredients

100g (4oz) self raising flour 100g (4oz) soft margarine 100g (4oz) caster sugar 2 eggs 30ml (2tbsp) milk

Sponge Cake

Dish: 18cm (7") souffle dish, Calories Total: 1659 kcals base lined with greaseproof paper Oven Accessory: glass turntable

1. Combine all ingredients together in a large bowl. Mix well until smooth. Tip into prepared dish and smooth the top.
2. Cook on Combination 2 for 7-8 mins. Cool for 10 mins. before turning out onto a rack. The cake is cooked when it has just dried on the top. Do not overcook as overcooked cakes stale quickly

Variation: Pineapple Upside Down

Calories Total: 1891 kcals

Sprinkle 15ml (1tbsp) brown sugar in the base of a 20cm (8") deep Pyrex dish. Arrange 4 drained pineapple slices and 4 cherry halves on top

Spoon the above sponge mixture over the pineapple and cook on MEDIUM power for 6-7 mins. or until cooked. Leave to cool before turning upside down

Ingredients

2 eggs, beaten

150ml (4pt) vegetable or corn oil

150g (5oz) self-raising wholemeal flour

100g (4oz) soft light brown sugar

10ml (2tsp) cinnamon

75g (3oz) raisins

100g (4oz) carrots. grated

Icing:

50g (2oz) cream cheese

50g (2oz) butter

100g (4oz) icing sugar

10ml (2tsp) lemon juice

50g (2oz) walnuts, chopped

Carrot Cake

Dish: 20cm (8") ring mould, Calories Total: 3845 kcals base lined with greaseproof paper

Oven Accessory: glass turntable

1. Mix eggs and oil together.

2. Combine flour, sugar, cinnamon, raisins and carrots in a mixing bowl. Pour egg mixture into flour and stir well until well combined.

3. Pour into ring mould and cook on MEDIUM power for 7-8 mins, or until firm. Stand for 10 mins, before turning out.

4. Beat cream cheese and butter until smooth. Gradually beat in icing sugar and lemon juice. Spread over sides and top of cake and sprinkle with walnuts.

Ingredients

100g (4oz) plain chocolate

100g (4oz) butter

100g (4oz) soft dark brown sugar

100g (4oz) self-raising flour

10ml (2tsp) cocoa powder

pinch salt

2 eggs, beaten

3ml (1/2 tsp) vanilla essence

100g (4oz) walnuts, chopped

Boston Brownies

Dish: 20cm (8") square dish Calories Total: 2730 kcals lined with greaseproof

Oven Accessory: glass turntable

1. Place chocolate and butter in a bowl and cook on HIGH power for 1 min. or until chocolate has melted.

2. Stir in all other ingredients and beat well

3. Pour into dish and cook on Combination 3 for 6-8 mins. or until just slightly sticky. Allow to cool and then cut into squares.

Ingredients

175g (6oz) shortcrust pastry

45ml (3tbsp) jam

100g (4oz) butter

100g (4oz) sugar

2 eggs

2 drops almond essence

100g (4oz) self-raising flour

25g (1oz) ground almonds

25g (1oz) flaked almonds

Bakewell Tart

Serves: 6

Dish: 23cm (9") flan dish Calories Total: 2845 kcals

Oven Accessory: glass turntable Serving: 474 kcals

1. Roll out pastry to line dish. Rest for 10 mins. Cook on HIGH power for 3-4 mins. or until beginning to dry. Spread with jam.

2. Cream butter and sugar. Gradually beat in eggs, essence and fold in flour and almonds. Spread over the jam and sprinkle with almonds.

3. Cook on Combination 2 for 12-14 mins. or until just cooked. Stand for 5 mins. before serving.

Ingredients

75g (3oz) butter or margarine

30ml (2tbsp) golden syrup

75g (3oz) light brown sugar

150g (5oz) porridge oats

50g (2oz) raisins

Chewy Flapjacks

Makes: 8 slices

Dish: 20cm (8") round dish Calories Total: 1697 kcals

Oven Accessory: glass turntable Serving: 212 kcals

1. Place butter, syrup and sugar in a bowl and cook on HIGH power for 1-2 mins. or until melted.

2. Stir in the oats and raisins. Press into dish. Cook on Combination 1 for 9-10 mins. Allow to cool slightly then cut into pieces.

Index

A

Accessories to use 16

Apple Crumble 45

Auto Program Cooking 18.19

Auto Weight Defrost 14

B

Bacon

Rashers 21

Steaks 21

Baked Lemon Cheesecake 45

Bakewell Tart 47

Beans, Cooking Chart 38

Beef

Beef and Mushroom Burgers 35

Bolognese Sauce 34

Burgers 21

Defrosting 14, 15

Lasagne 35

Roasting Joints 21 & 33

Savoury Mince 35

Steaks 21

Tacos 39

Boil-in-Bag Fish 30

Bolognese Sauce 34

Boston Brownies 47

Bread and Butter Pudding 45

C

Cakes and Slices

Bakewell Tart 47

Boston Brownies 47

Carrot Cake 47

Chewy Flapjacks 47

Sponge Cake 46

Cauliflower Cheese 42

Cereals, Pasta, Rice & Beans

Chicken Risotto 39

Macaroni Cheese 38

Tacos 39

Tomato & Lentil Soup 29

Tuna Pasta 39

Cheese, Egg & Onion Toasties 37

Chewy Flapjacks 47

Chicken

Auto Program Cooking, portions 19

Chicken Casserole 34

Chicken Risotto 39

Defrosting 14,15

Roasting 22

Chops 23 & 24

Christmas Pudding 45

Cleaning Your Oven 5

Cling Film 9

Combination Cooking Guidelines 17

Containers to Use 8,9

Control Panels 5

Cooking Charts 21-26

Cooking Guidelines 11, 12

Creamy Rice Pudding 44

Croque Monsieur 37

Custard 43

D

Defrosting Charts 15

Defrosting Guidelines 14

Desserts & Fruit

Apple Crumble 45

Baked Lemon Cheesecake 45

Bread & Butter Pudding 45

Christmas Pudding 45

Flaked Rice Pudding 44

Fruit, Poached 44

Fruit, Stewed 44

Pineapple Upside Down Pudding 46

Rice Pudding 44

Tapioca Pudding 44

E

Eggs, Cheese and Snacks

Cauliflower Cheese 42

Cheese, Egg & Onion Toasties 37

Croque Monsieur 37

French Bread Pizza 37

Macaroni Cheese 38

Piperade 36

Poached Eggs 36

Potato Based Pizza 37

Scrambled Eggs 36

F

Family Fish Pie 32

Fish

Auto Cooking, frozen 19

Boil in Bag 30

Defrosting 14,15

Family Fish Pie 32

Fish in Breadcrumbs 22

Salmon & Vegetable Momay 32

Tuna Fish Cakes 32

Tuna Pasta 39

Flaked Rice Pudding 44

French Bread Pizza 37

Fruit, Poached 44

Fruit, Stewed 44

G

Gratin Dauphinois 41

Gravy 43

Grilling 20

H

Hawaiian Ribs 35

J

Jacket Potatoes 41

L

Lamb

Chops 23

Defrosting 14,15

Roasting 23

Lasagne 35

M

Macaroni Cheese 38

Meat & Poultry

Bacon 21

Beef & Mushroom Burgers 35

Bolognese Sauce 34

Chicken Casserole 34

Chicken Pieces 19 & 22

Chicken Risotto 39

Chilli Con Carne 35

Chops 23,24

Defrosting 14, 15

Guidelines 33

Hawaiian Ribs 35

Lasagne 35

Savoury Mince 35

Steak 21

Sweet and Sour Pork 34

Tacos 39

Micro Power Levels 13

Microwave Principles 10

Multi-Stage Cooking 6

Mushroom Sauce 43

Mustard Sauce 43

0

Onion Sauce 43

P

Parsley Sauce 43

Pineapple Upside-Down 46

Piperade 36

Pizza, reheating 23, 24

Poached Eggs 36

Pork

Defrosting 14, 15

Hawaiian Ribs 35

Sweet and Sour Pork 34

Potato Based Pizza 37

R

Ratatouille 42

Reheating 21-28

Rice 38

Rice Pudding 44

Roast Potatoes 41

s

Salmon & Vegetable Mornay 32

Sauces

Custard 43

Gravy 43

Mushroom 43

Mustard 43

Onion 43

Parsley 43

Sausages 26

Savoury Mince 35

Scrambled Eggs 36

Soups & Starters

Stuffed Tomatoes 29

Tomato & Lentil Soup 29

Sponge Cake 46

Standing Times 12

Steak 21

Stuffed Tomatoes 29

Sweet and Sour Pork 34

T

Tacos 39

Taploca Pudding 44

Tomato & Lentil Soup 29

Tuna Fish Cakes 32

Tuna Pasta 39

v

Vegetables & Vegetarian

Cauliflower Cheese 42

Gratin Dauphinois 41

Jacket Potatoes 41

Ratatouille 42

Roast Potatoes 41

Stuffed Tomatoes 29

Vegetable Curry 42

Vegetable Lasagne 42

W

White Sauce 43

Buildings with the Oven 1. In case of opening into an oven housing, please use Panasonic's Trim Kit 50K-7KPT/FTK702. 2. Microwave overis should not be built into a directly above top front venting conventional coolers this will invocate your one year guarantee. If building in above a conventional oven is a gap of air (6 inches) above the other is important that the microwave driven the air. A microwave which is built under a work source must have adequate air circulation and must have a vent in the work surface. Read Trim Kit options carefully before installation. TECHNICAL SPECIFICATION Source: 249V 50HZ Required Power: 140W Microwave: 140W Frequency: 2450Hz Grip Power: 1140W Outside Dimensions: 52mm (D) x 30cm Over (Dimensions): 2450mm (W) x 350mm(D) x 200mm Frequency: 2450MHz Weight: 17.5kg Power Source: 52V 50HZ Rated Voltage: 320V 50HZ All other specifications unchanged Weight and Dimensions shown are applied This volume was produced to EN 60335-2-6 This volume is Type B. Superpliance Matsushita Electric Industrial Co. Ltd., Central Power, Osaka 530-91, Japan. E00037511 BP T1193-1 Printed in U.K.
