Microwave & Grill Oven

This appliance was produced to BS 800

NN-K802/NN-K852

NN-K602/NN-K652

NN-K802/NN-K852 NN-K602/NN-K652 IMPORTANT: Before operating this oven, please read these instructions carefully. Important safety information is enclosed. Do not

Panasonic

IMPORTANT:

Before operating this oven, please read these instructions carefully. Important safety information is enclosed. Do not discard these operating instructions – they should be kept for further reference along with your cookbook.

1. Examine Your Oven

Unpack oven, remove all packing material, and examine the oven for any damage such as dents, broken door latches or cracks in the door. Notify dealer immediately if unit is damaged. Do NOT install if unit is damaged. N.B. The appliance should be inspected for damage to the door seals and door seal areas and if these areas are damaged the appliance should not be operated until it has been repaired by service technician trained by the manufacturer.

2. Guarantee Card

Fill out and post the pre-addressed guarantee card. This oven was manufactured for DOMESTIC USE ONLY.

3. Earthing Instructions

FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY

This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 13 amp fuse is fitted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has a rating of 13 amps and that it is approved by ASTA or BSI to BS1362. Check for the ASTA mark 📍 or the BSI mark 🌐 on the body of the fuse. If the plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover, the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from your local Panasonic Dealer. IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY AND AN APPROPRIATE ONE FITTED. THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13 AMP SOCKET. If a new plug is to be fitted, please observe the wiring code as shown below. If in any doubt, please consult a qualified electrician. (For U.K. Models only)

WARNING: THIS APPLIANCE MUST BE EARTHED. IMPORTANT: The wires in this mains lead are coloured in accordance with the following code:

Green-and-yellow: Earth

Blue: Neutral Brown: Live

As the colours of the wire in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked with the letter E or by the Earth symbol 12 or coloured GREEN or GREEN-AND-YELLOW.

The wire which is coloured BLUE must be connected to the terminal in the plug which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal in the plug which is marked with the letter L or coloured RED.

HOW TO REPLACE THE FUSE

Open the fuse compartment with a screwdriver and replace the fuse.

1. Before Use

Before using COMBINATION or GRILL function for the first time operate the oven without food and accessories on GRILL 1 for 20 mins. This will allow the oil that is used for rust protection to be burned off. This is the only time that the oven is operated empty.

2. Hot Surfaces

Exterior oven surfaces, including air vents on the cabinet and the oven door, will get hot during COMBINATION and GRILLING. Use care when opening or closing door and when inserting or removing food and accessories. The oven has a heater situated in the top of the oven. After using the COMBINATION and GRILL functions the roof and walls will be very hot.

3. Voltage & Power

The voltage used must be the same as specified on this microwave oven. Using a higher voltage than that which is specified is dangerous and may result in a fire or other type of accident causing damage

1. Plug Fuse see Point 3, left column

5. Service

It is dangerous for anyone other than a service technician trained by the manufacturer to perform repair service. Do not attempt to remove the outer casing of the oven.

6. Operation When Empty

The appliance must not be operated by Microwave or Combination WITHOUT FOOD IN THE OVEN. Operation when empty will damage the appliance

7. Cord/Plug

If the supply cord of this appliance is damaged, it must be replaced by the special cord available only from the manufacturer. Do not immerse cord, plug or oven in water. Keep cord away from heated surfaces. Do not let cord hang over the edge of table or work top. Do not plug your oven in via an extension cable as this can be dangerous. It is important to plug the oven directly into a wall socket. The back of the appliance heats up during use. Do not allow the cord to be in contact with the back of the appliance or cabinet surface.

8. Door Seals

Do not attempt to tamper with or make any adjustments or repairs to door, control panel housing safety interlock switches or any other part of the oven. Do not remove outer panel from oven. The door seals and door seal areas should always be kept clean - use a damp cloth.

9. Oven Light

This appliance including the oven lamp should be serviced only by service technician trained by the manufacturer.

10. Outdoor Use

Do not use outdoors.

11. Storage of Accessories

When the oven is not being used, do not store any objects other than oven accessories inside the oven in case it is accidentally turned on. In case of electronic failure, oven can only be turned off at wall socket

Placement of Oven

1. Oven must be placed on a flat, stable surface. For proper operation, the oven must have sufficient air flow ie 5cm/2" at the side; 15cm/6" clear over the top.

2. Do not block air vents on the rear and bottom or top of the cabinet. Do not place any articles on the top of the oven on top of the top vents. If air vents are blocked

during operation, the oven may overheat. If the oven overheats, a thermal safety device will turn the oven off. The oven will remain inoperable with blank display until it has cooled.

1. Do not place the microwave oven on a shelf directly above a gas or electric hob. The oven may be damaged

Short Cooking Times

As microwave cooking times are much shorter than other cooking methods it is essential that recommended cooking times are not exceeded without first checking the food. Cooking times given in the cookbook are approximate. Factors that may affect cooking times are: preferred degree of cooking, starting temperature, altitude, volume, size and shape of foods and utensils used. As you become familiar with the oven, you will be able to adjust these factors. It is better to undercook rather than overcook foods. If food is undercooked, it can always be returned to the oven for further cooking. If food is overcooked, nothing can be done. Always start with minimum cooking times.

Important.

If the recommended cooking times are exceeded the food will be spoiled and in extreme circumstances could catch fire and possibly damage the interior of the oven.

1. Small quantities of food.

Take care when heating small quantities of food as these can easily burn, dry out or catch on fire if cooked too long. Always set short cooking times and check the food frequently.

NB. If materials inside the oven should ignite, keep oven door closed, turn oven off, and disconnect the power cord, or shut off power at the fuse or circuit breaker panel.

NEVER OPERATE THE OVEN WITHOUT FOOD INSIDE ON MICROWAVE OR COMBINATION.

2. Foods low in moisture.

Take care when heating foods low in moisture, eg bread items, chocolate, biscuits and pastries. These can easily burn, dry out or catch on fire if cooked too long.

3. Christmas Pudding.

Christmas puddings and other foods high in fats or sugar, eg. jam, mince pies, must not be over heated. These foods must never be left unattended as with over cooking these foods can ignite.

4. Boiled Eggs.

Do not boil eggs in their shell in your microwave. Raw eggs boiled in their shells can explode causing injury.

5. Foods with Skins,

Potatoes, apples, egg yolk, whole vegetables and sausages are examples of food with non porous skins. These must be pierced using a fork before cooking to prevent bursting.

6. Liquids.

When heating liquids, eg soup, sauces and beverages in your microwave oven, overheating the liquid beyond boiling point can occur without evidence of bubbling. This could result in a sudden boil over of the hot liquid. To prevent this possibility the following steps should be taken:

a) Avoid using straight-sided containers with narrow necks.
b) Do not overheat.
c) Stir the liquid before placing the container in the oven and again halfway through the heating time.
d) After heating, allow to stand in the oven for a short time, stirring again before carefully removing the container.

7. Deep Fat Frying.

Do not attempt to deep fat fry in your oven.

8. Meat Thermometer.

Use a meat thermometer to check the degree of --cooking of roasts and poultry only when meat has been removed from the microwave. If undercooked, return to the oven and cook for a few more minutes at the recommended power level. Do not leave a conventional meat thermometer in the oven when microwaving.

9. Paper, Plastic.

Carefully attend the appliance if paper, plastic or other combustible materials are used as containers or for covering. Do not use wire twist-ties with roasting bags as arcing will occur.

Do not use re-cycled paper products, eg Kitchen roll unless they say they are specifically designed for use in a microwave oven. These products contain impurities which may cause sparks and/or fires when used.

10. Reheating.

It is essential that reheated food is served "piping hot". Remove the food from the oven and check that it is "piping hot", ie steam is being emitted from all parts and any sauce is bubbling. (If you wish you may choose to check the food has reached 70°C with a food thermometer - but remember do not use this thermometer inside the microwave.)

For foods that cannot be stirred, eg lasagne, shepherds pie, the centre should be cut with a knife to test it is well heated through. Even if a manufacturer's packet instructions have been followed always check the food is piping hot before serving and if in doubt return your food to the oven for further heating.

11. Standing Time.

Standing time refers to the period at the end of cooking or reheating when food is left before being eaten, ie. it is a rest time which allows the heat in the food to continue to transfer to the centre, thus eliminating cold spots. See cookbook for details.

12. Keeping Your Oven Clean.

It is essential for the safe operation of the oven that it is wiped out regularly. Use warm soapy water, squeeze the cloth out well and use to remove any grease or food from the interior. Pay particular attention to the door seal area and also the areas around the microwave feed guide situated on the right hand side of the cavity wall. The oven should be unplugged when cleaning.

13. Grilling.

The oven will only operate on the GRILL function with the door closed.

14. Fan Motor Operation.

After using COMBINATION AND GRILLING the fan motor rotates for about 5 minutes to cool the electric components. This is normal and you can take out food even though the fan motor operates. You can continue using the oven during this 5 minutes.

Glass Turntable

1. Do not operate the oven without the Roller Ring and Glass Turntable in place.
2. Only use the Glass Turntable specifically designed for this oven. Do not substitute any other Glass Turntable.
3. If Glass Turntable is hot, allow to cool before cleaning or placing in water.
4. Do not cook directly on Glass Turntable. Always place food in a microwave safe dish. The only exception to this is when cooking Jacket Potatoes or Auto Program Crisper Jackets.
5. If food or utensil on Glass Turntable touches oven walls, causing the tray to stop moving, the tray will automatically rotate in opposite direction. This is normal. Open oven door, reposition the food and Restart.
6. The Glass Tumtable can rotate in either direction.

7. While cooking by MICROWAVE or COMBINATION, Turntable may vibrate. This will not affect cooking performance.

8. The metal Grill Accessory provided must ONLY be used as directed in the Cookbook for grilling and combination cooking. Never use this on microwave only. Do not use it operating the oven with less than 200g (7oz) of food on a manual or Auto Combination program. FAILURE TO USE ACCESSORIES CORRECTLY COULD DAMAGE YOUR OVEN.

9. Arcing may occur if the incorrect weight of food is used, the Grill Accessory has been damaged, or a metal container has been used accidentally. If this occurs, stop the machine immediately, and continue to cook by GRILL ONLY.
10. Always refer to cookbook for correct accessories to use on all programs. The glass turntable and roller ring are the only accessories used for Microwave Cooking.

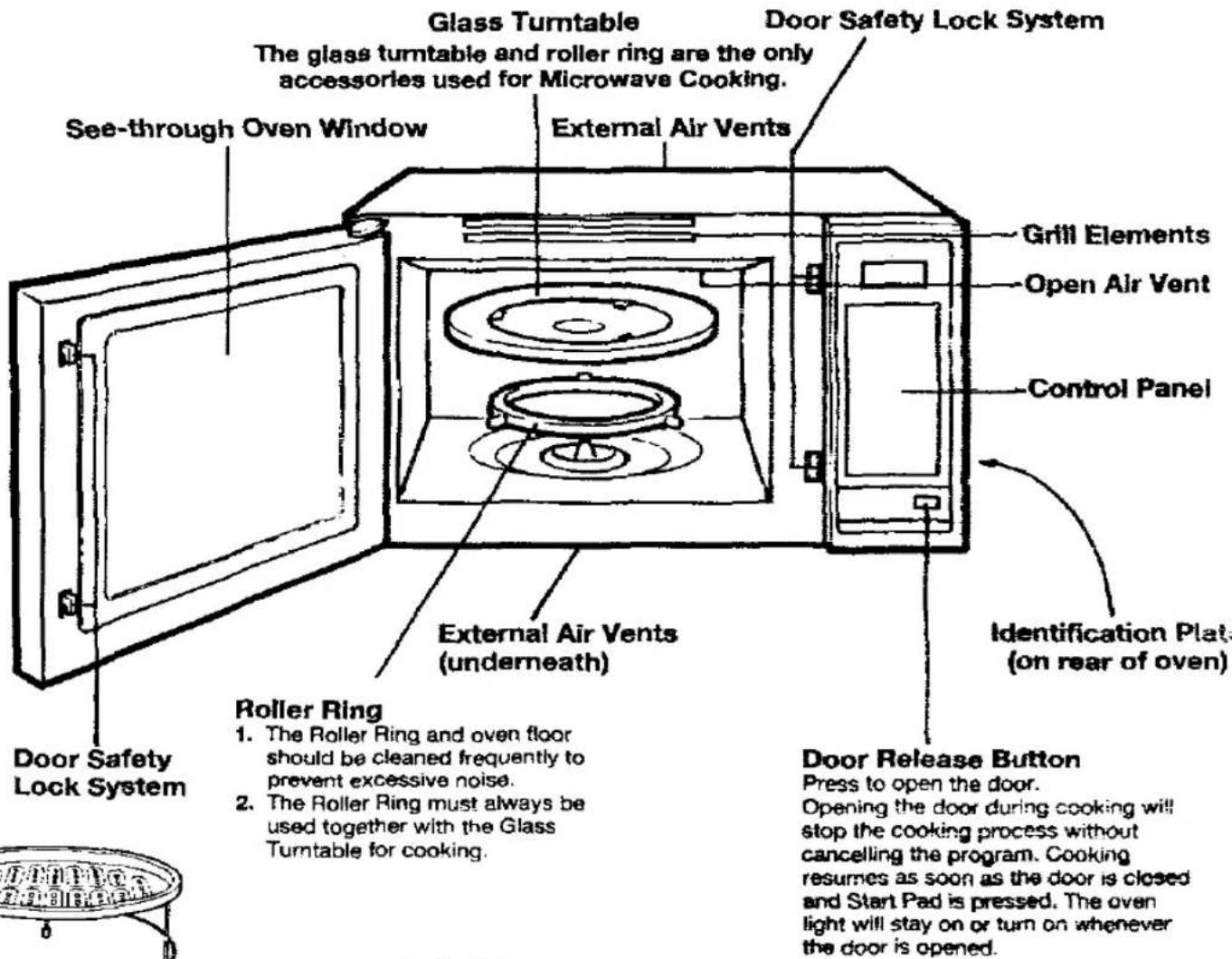

Glass Turntable The glass turntable and roller ring are the only accessories used for Microwave Cooking. See-through Oven Window External Air Vents Door Safety Lock System Grill Elements Open Air Vent Control Panel Identification Plate (on rear of oven) External Air Vents (underneath) Roller Ring 1. The Roller Ring and oven floor should be cleaned frequently to prevent excessive noise. 2. The Roller Ring must always be used together with the Glass Turntable for cooking. Door Safety Lock System Door Release Button Press to open the door. Opening the door during cooking will stop the cooking process without cancelling the program. Cooking resumes as soon as the door is closed and Start Pad is pressed. The oven light will stay on or turn on whenever the door is opened.

Line drawing of a round table with four legs and a central plate (no text or symbols)

Grill Accessory

Drip Tray (for models NN-K802/852)
Available as an optional extra number A06016520GP.

NN-K802/852

1.

Set the cooking time, eg after selecting power level.

2.

Set the weight. eg after selecting Auto Defrost.

Display Window

To assist you in programming the oven easily the next operation for you to press is indicated in the display window.

3.

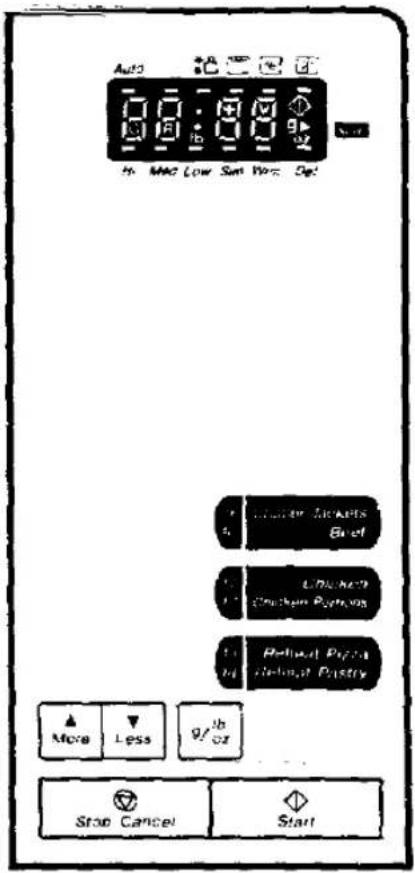

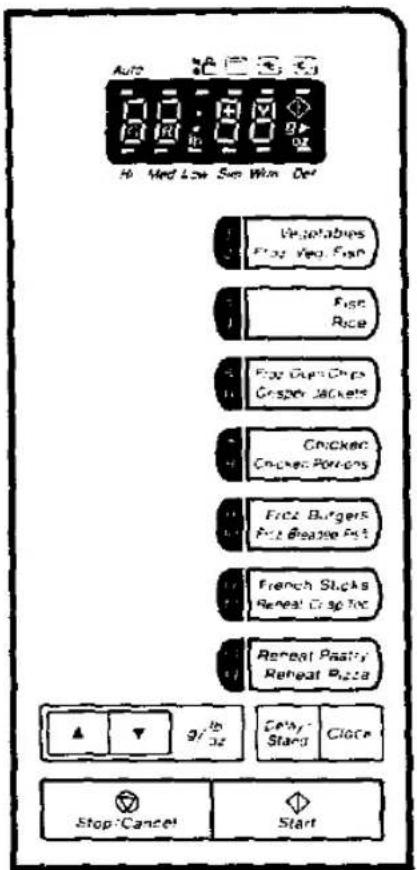

Press Start Pad. eg after selecting Auto Cook program or a Power Level and a time.

Auto Programs Clock Pad Press the clock pad. Using the minute and second pad set the clock (12hr clock). Press clock pad again to stop colons flashing. Delay/Stand Pad This can be used to delay a cooking program for up to 9hrs 99mins, or used to time or for standing (non-cooking) time. Start Pad One press allows the oven to begin functioning. If the door is opened or the Stop/Cancel pad is pressed once during the oven operation the Start Pad must be pressed again to restart the oven. Door Release Pad Opening the door during cooking will stop the cooking process without cancelling the program. Cooking continues as soon as the door is closed and the Start Pad is pressed. The oven light will turn on and stay on whenever the door is open. It is quite safe to open the door during a cooking program. There is no risk of microwave exposure. Time Pads Microwave Power Pad Grill Pad Combination Pad Auto Defrost Pad Calorie Memory Calorie Count More/Less Pads Weight Selection Pads Stop/Cancel Pad Before cooking: one press clears your instructions. During cooking: one press temporarily stops the cooking program. Another press cancels all your instructions and the time of day will appear in the display window.

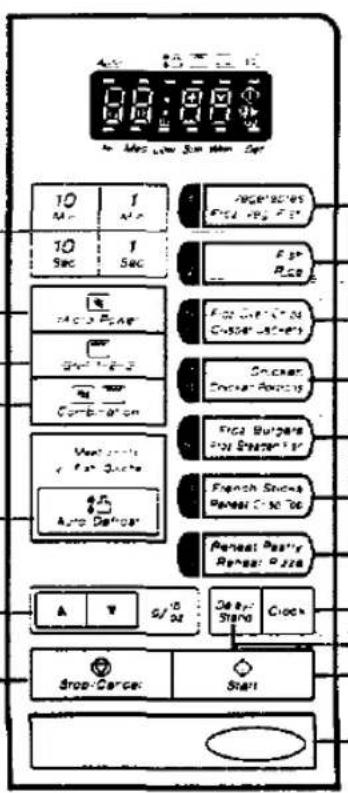

NN-K602/652

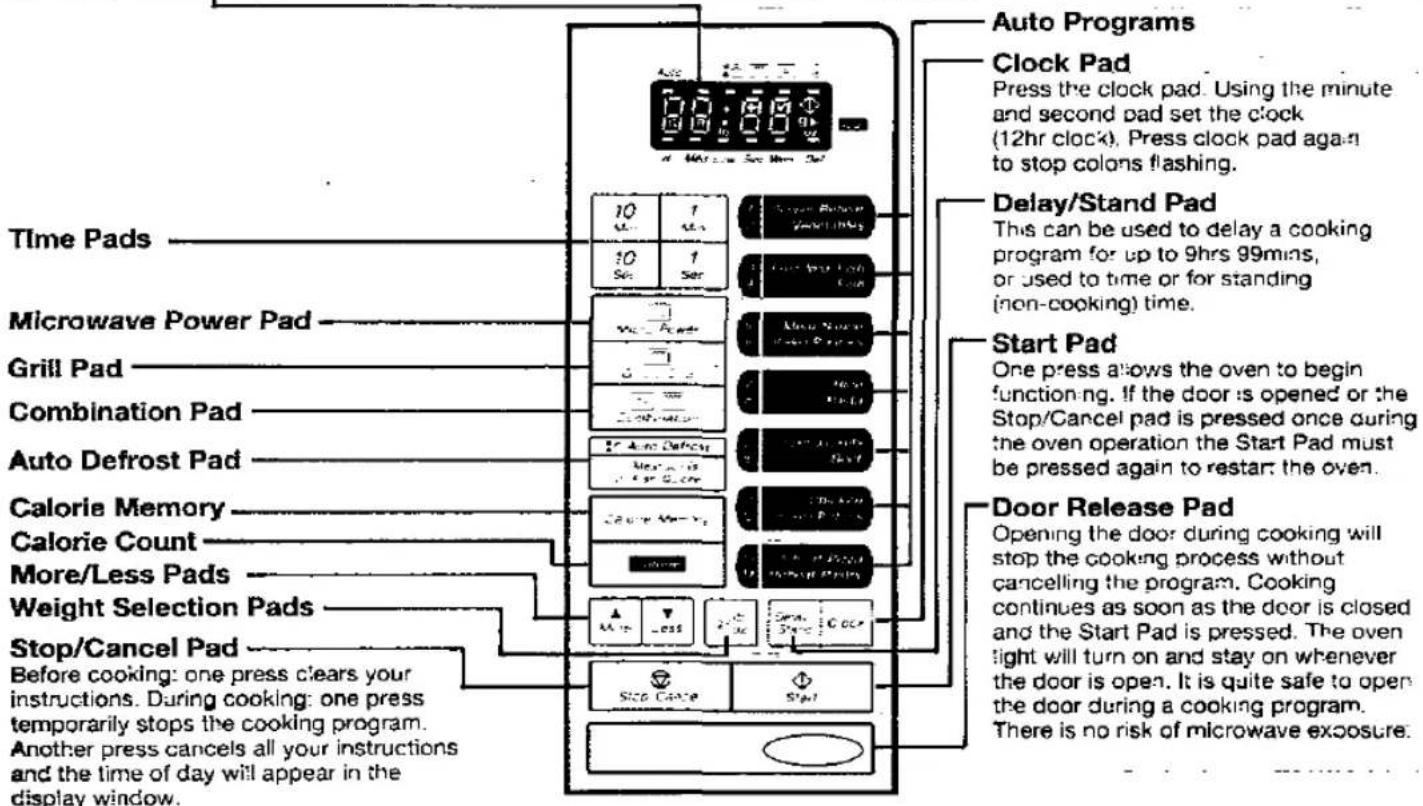

Time Pads

Microwave Power Pad

Grill Pad

Combination Pad

Auto Defrost Pad

Weight Selection Pads

Stop/Cancel Pad

Before cooking: one press clears your instructions. During cooking: one press temporarily stops the cooking program. Another press cancels all your instructions and the time of day will appear in the display window.

10 Max 1 Min 10 Sec 1 Sec A-2 P-A- S-1 P-2 Cor-2 P-C- Vest-2 P- F-2 P- Auto Defor- A S/10 0.02 Stop-Carce: 10 Max 10 Sec 10 Max 10 Min 10 Max 10 Min 10 Stop-Carce: 10 Max 10 Stop-Carce: 10 Max 10 Min 10 Stop-Carce: 10 Max 10 Min 10 Stop-Carce: 10 Max 10 Min

Auto Programs

Clock Pad

Press the clock pad. Using the minute and second pad set the clock (12hr clock). Press clock pad again to stop colons flashing.

Delay/Stand Pad

This can be used to delay a cooking program for up to 9hrs 99mins, or used to time or for standing (non-cooking) time.

Start Pad

One press allows the oven to begin functioning. If the door is opened or the Stop/Cancel pad is pressed once during the oven operation the Start Pad must be pressed again to restart the oven.

Door Release Pad

Opening the door during cooking will stop the cooking process without cancelling the program. Cooking continues as soon as the door is closed and the Start Pad is pressed. The oven light will turn on and stay on whenever the door is open. It is quite safe to open the door during a cooking program. There is no risk of microwave exposure.

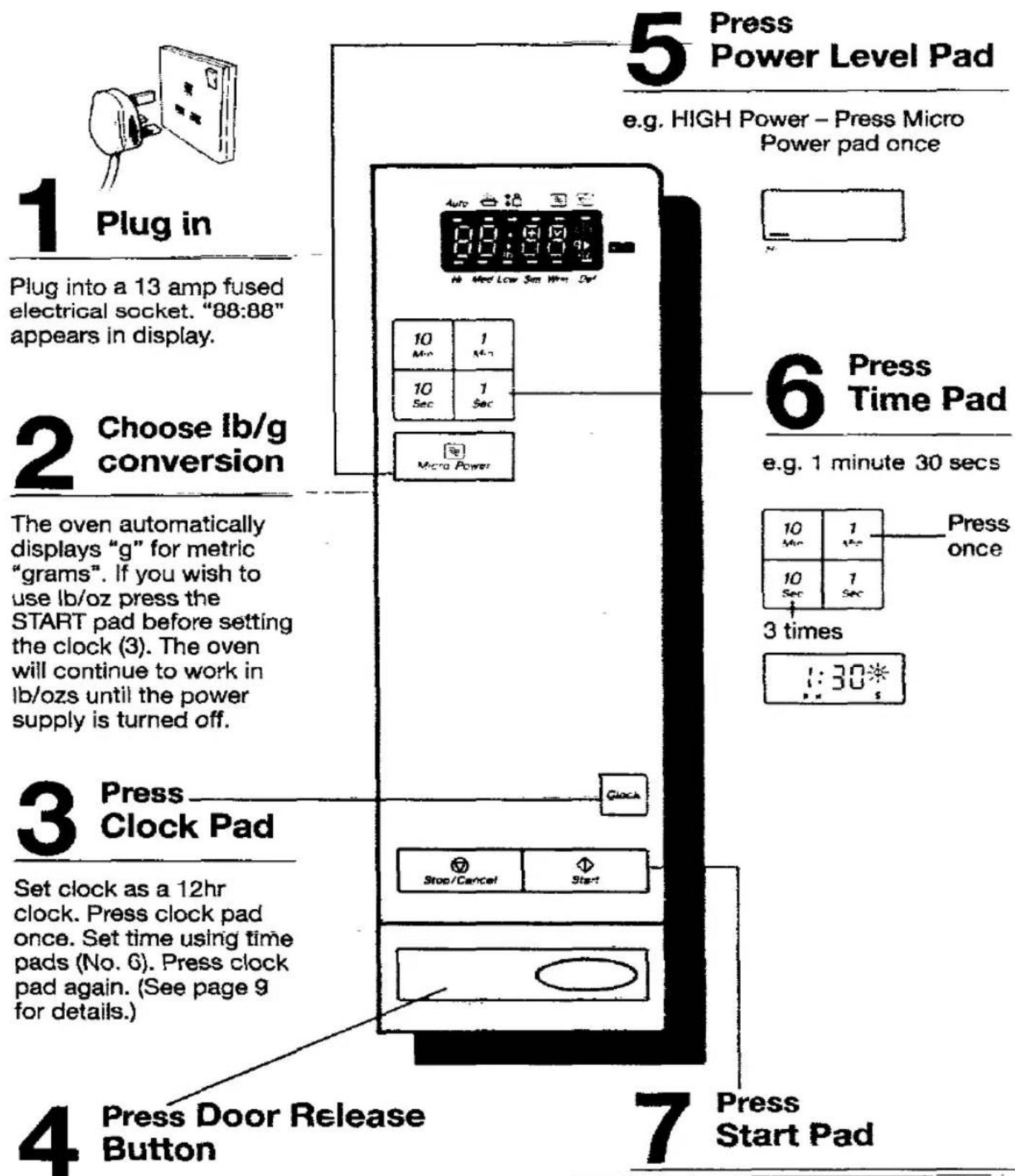

1 Plug in Plug into a 13 amp fused electrical socket. "88:88" appears in display. 2 Choose lb/g conversion The oven automatically displays "g" for metric "grams". If you wish to use lb/oz press the START pad before setting the clock (3). The oven will continue to work in lb/ozs until the power supply is turned off. 3 Press Clock Pad Set clock as a 12hr clock. Press clock pad once. Set time using time pads (No. 6). Press clock pad again. (See page 9 for details.) 4 Press Door Release Button 5 Press Power Level Pad e.g. HIGH Power - Press Micro Power pad once 10 Min 1 Min 1 10 Sec 1 Sec Micro Power 6 Press Time Pad e.g. 1 minute 30 secs 10 Min 1 Min 1 10 Sec 1 Sec Clock 7 Press Start Pad 3 times :30*

Open the door and place a microwave safe bowl of water on the glass turntable in the oven. Then close the door.

The time will be displayed in the window and count down. The oven will beep at the end of the cooking program and the display window will return to time of day.

Quick Guide To Operation

Feature	How to Operate
To Set Clock
To Use Power and Time Setting
To Use Grill
To Cook by Combination
To Cook using Auto Programs NN-K802/852	Press the Desired Category Pad (nos 1-8 Model NNK 802/852). e.g.
To Reheat using “Sensor Reheat” Pad NN-K802/852	Select Reheat 1 or 2
To Defrost using “Auto Defrost” Pad	1. Meat Joints 2. Fish/Quiche
To Use as a Kitchen Timer
To Set Standing Time	Set the Desired Cooking Program then select required STAND time before pressing START e.g.
To Set Delay/Stand	Set Delay time before selecting the Desired Cooking Program e.g.

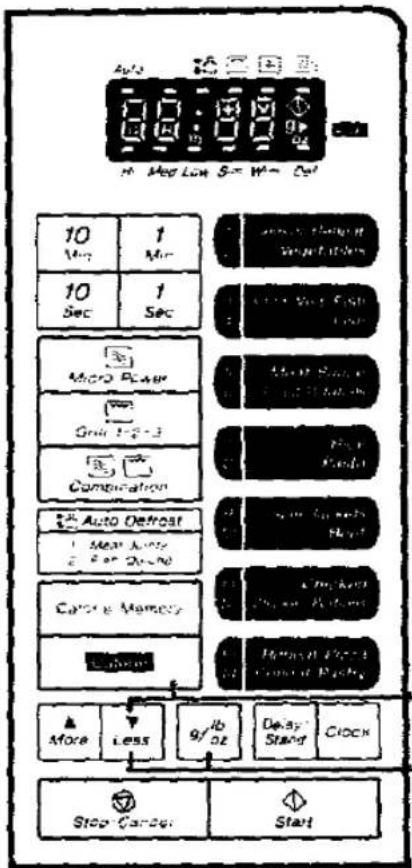

To Use Calorie Counter NN-K802/852


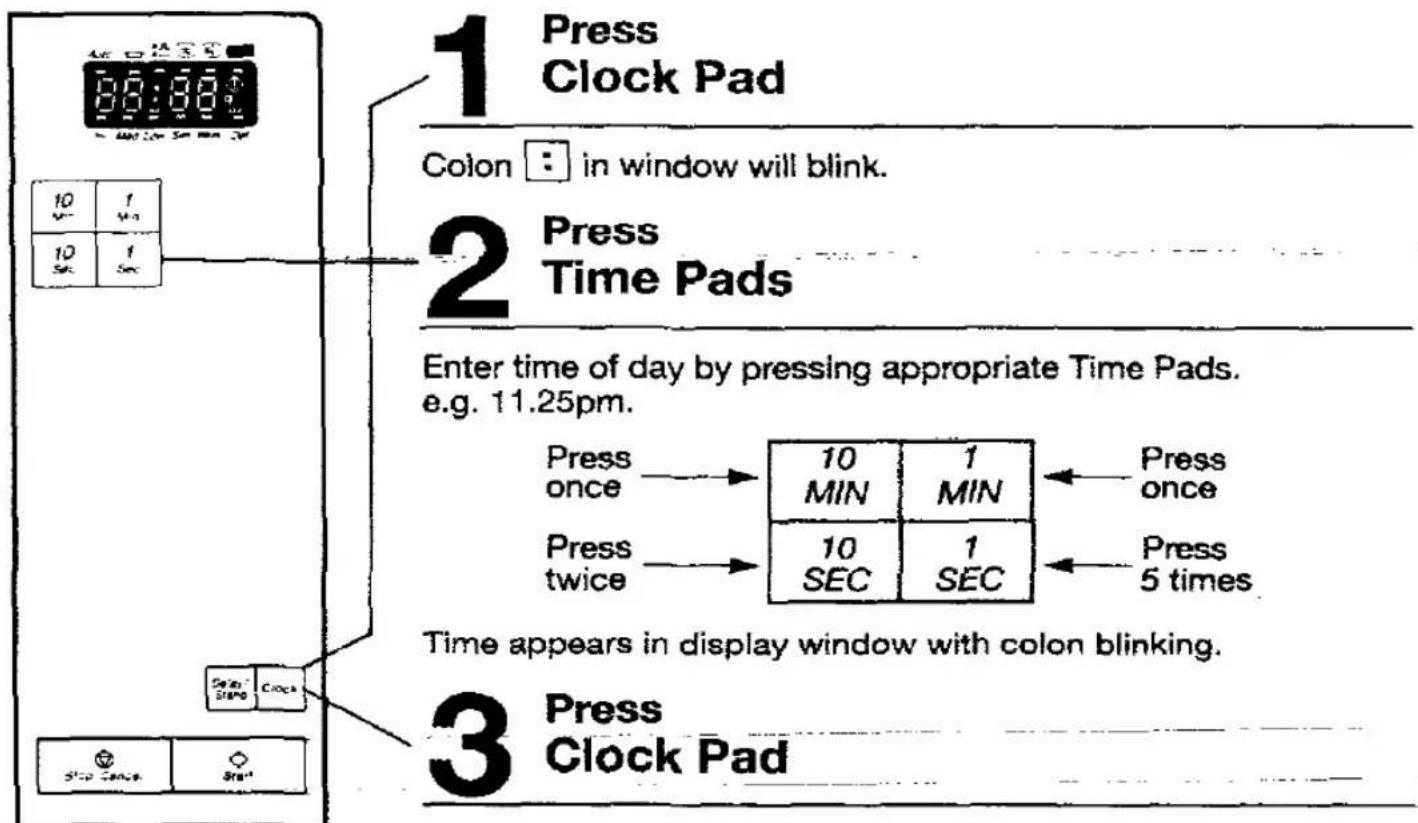

1 Press Clock Pad

Colon ☐ in window will blink.

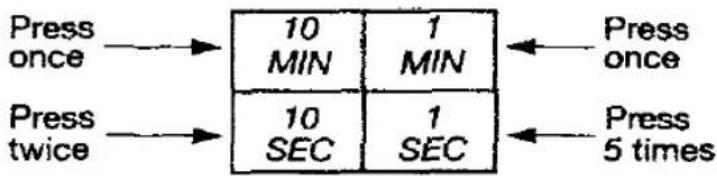

2 Press Time Pads

Enter time of day by pressing appropriate Time Pads. e.g. 11.25pm.

Time appears in display window with colon blinking.

3 Press Clock Pad

Colon stops blinking.

N.B.

1. To reset time of day, repeat step 1 through to step 3.
2. The clock will keep the time of day as long as the oven is plugged in and electricity is supplied.
3. This is a 12 hour clock. ie 2pm = 2:00 not 14:00. The oven will not function if a 24 hour clock is set.

Using the Power and Time Settings

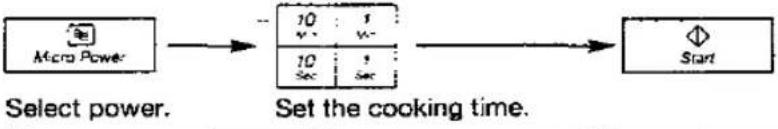

1 Select Power

Press Micro Power pad to select correct power.

2 Set Time

Set cooking time by pressing Time Pads.

Press	Power Level
once	High
twice	Defrost
3 times	Medium
4 times	Low
5 times	Simmer
6 times	Warm

3 Press Start

Press Start Pad.

The Cooking Program will start and the time in the display will count down.

Microwave Cooking

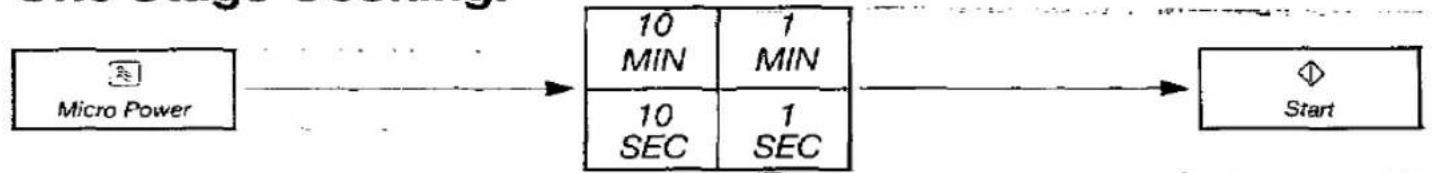

One Stage Cooking:

Select power level
Select cooking time

Two Stage Cooking:

eg. High power 10 minutes followed by Simmer power 20 minutes;

Select High power and program 10 minutes then select second power (Simmer) with second cooking time (20 minutes) then press Start.

Three Stage Cooking:

eg. High power 5 minutes, Delay 5 minutes, High power 2 minutes;

Select first Power level and cooking time, then press DELAY pad and select DELAY time, then select final power level and final cooking time. Then press Start.

Using The Delay/Stand Feature

The Delay/Stand Pad is used as a timing pad only either before, during or after a cooking program. When the Delay/Stand Pad is selected with a time, there is no microwave power in the oven during this time.

1. To Set a Standing Time:

Set the desired Cooking Program


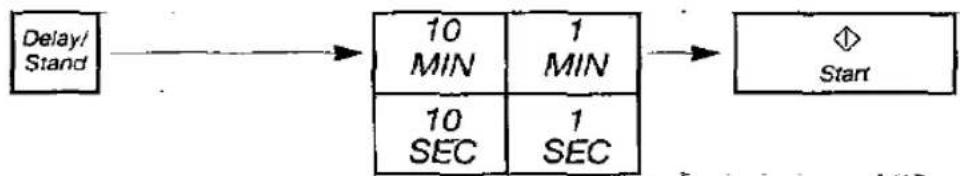

Press the Stand pad

Set desired standing time (max 9hrs 99mins)

Press Start pad. Cooking program will commence after which the standing time will count down.

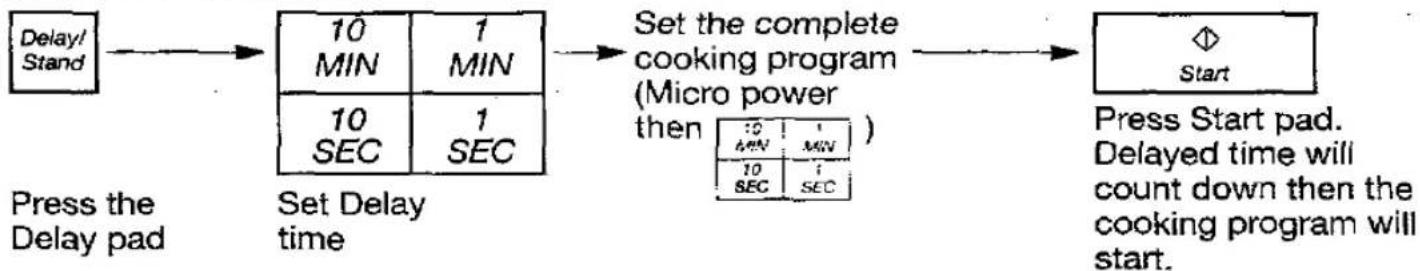

2. To Set a Delay Start:

N.B.

1. If the oven door is opened during the stand or delay time, the time in the display window will continue to count down.
2. Delay Start cannot be used before an Auto Program.
3. When the Delay/Stand program is used, the time pads work as hour pads and minute pads.

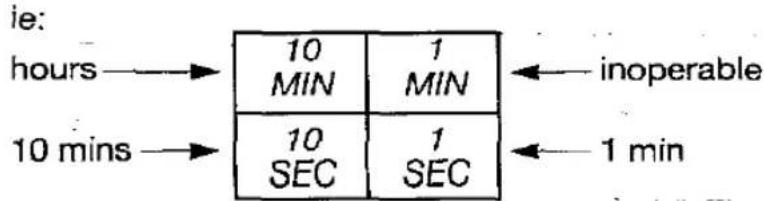

ie: hours → 10 mins → 10 MIN 1 MIN 10 SEC 1 SEC ← inoperable ← 1 min

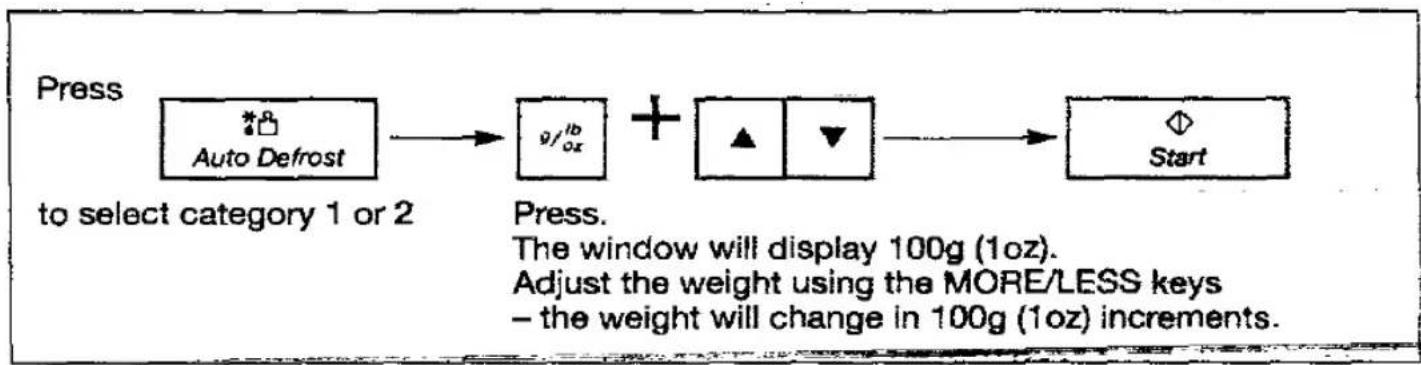

Defrosting Using Auto Defrost

This feature allows you to defrost joints of meat, fish and quiche etc, all automatically. See Cookbook for Defrosting guidelines.


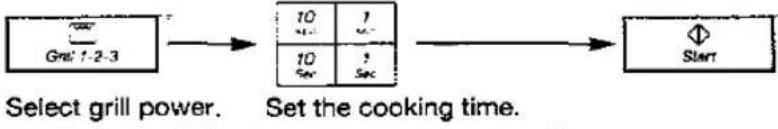

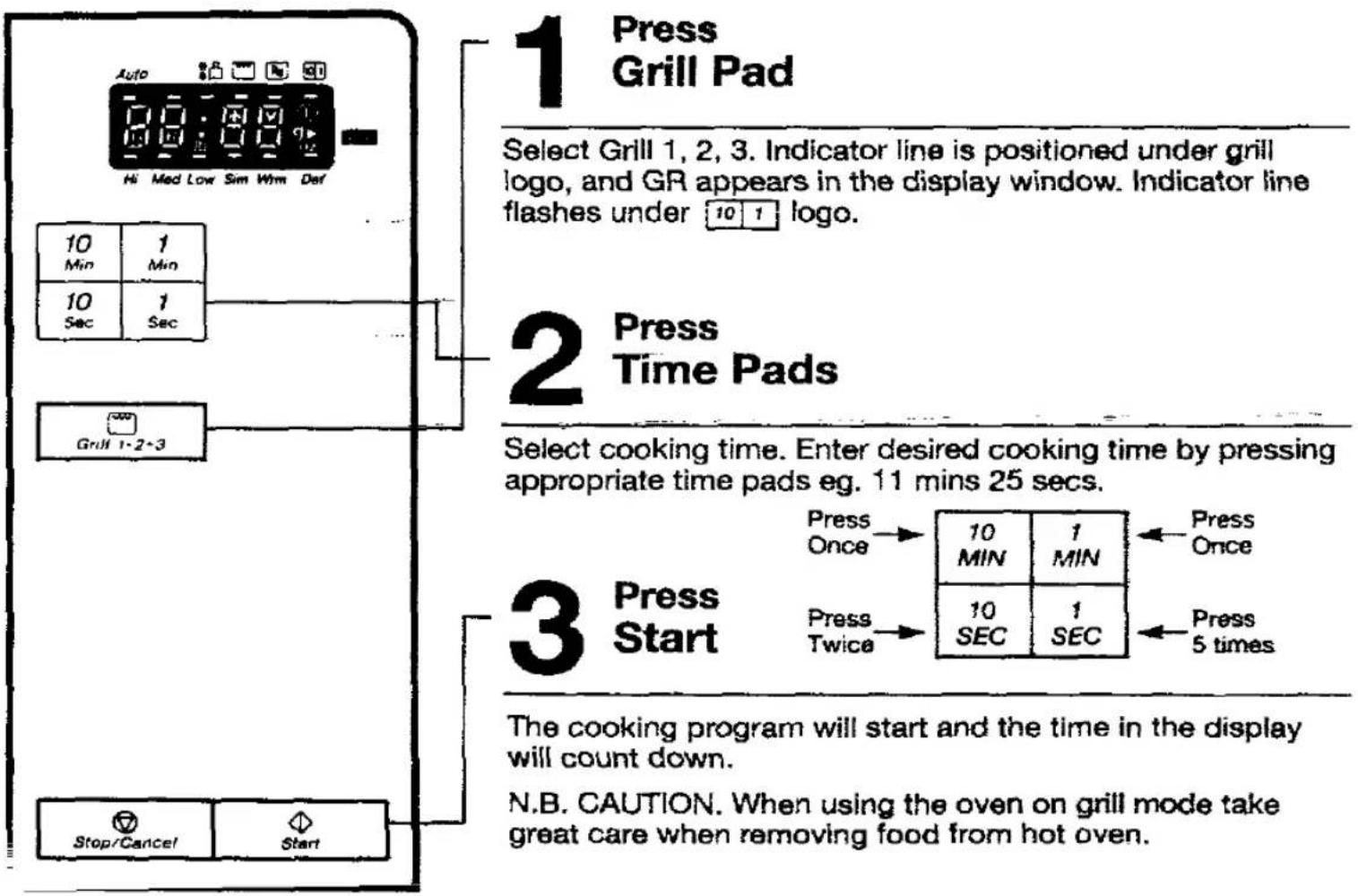

How To Use The Grill


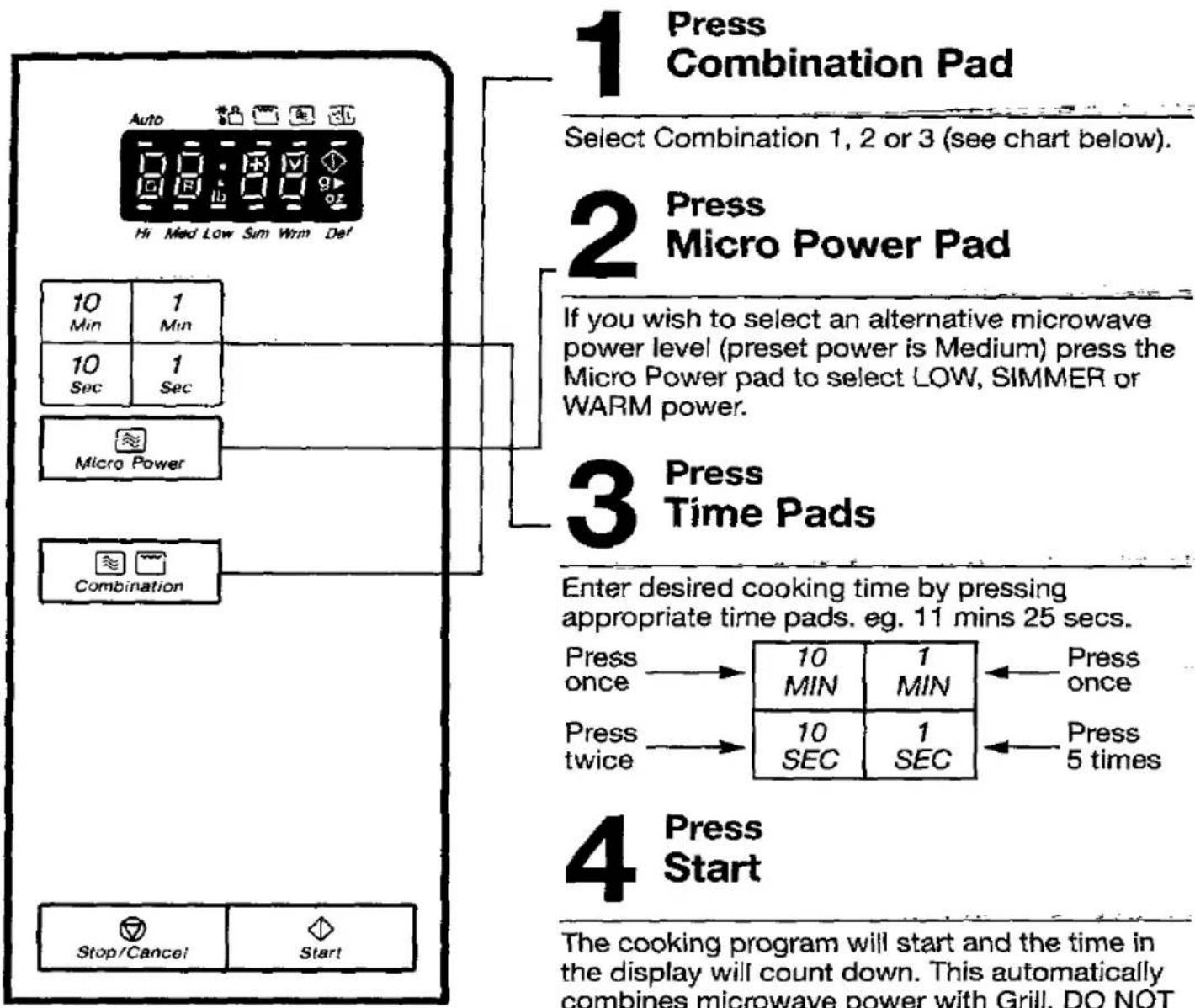


    subgraph 1
        A1["Auto"] --> A2["Hi Med Low Sim Wrm Def"]
        A2 --> A3["10 Min 1 Min"]
        A3 --> A4["10 Sec 1 Sec"]
        A4 --> A5["Micro Power"]
        A5 --> A6["Combination"]
    end

    subgraph 2
        B1["Select Combination 1, 2 or 3 (see chart below)."]
        B2["If you wish to select an alternative microwave power level (preset power is Medium) press the Micro Power pad to select LOW, SIMMER or WARM power."]
    end

    subgraph 3
        C1["Enter desired cooking time by pressing appropriate time pads. eg. 11 mins 25 secs."] --> C2["Press once → 10 MIN 1 MIN"]
        C2 --> C3["Press twice → 10 SEC 1 SEC"]
        C3 --> C4["Press 5 times"]
    end

    subgraph 4
        D1["The cooking program will start and the time in the display will count down. This automatically combines microwave power with Grill. DO NOT"]
    end

The cooking program will start and the time in the display will count down. This automatically combines microwave power with Grill. DO NOT press Grill pad.

Press the Combination pad 1, 2 or 3 times to select the correct GRILL setting and then if necessary adjust the microwave power to LOW, SIMMER or WARM by pressing the Micro Power pad. Set the cooking time and then press START.
Combination Program	Number of presses on Combination Pad	Grill Setting	Microwave Power (pre-set)
1	1	High	Medium
2	2	Medium	Medium
3	3	Low	Medium

Auto Sensor Cooking - NN-K802/52 only

4-23 Med Low Sum When Del More Less Start

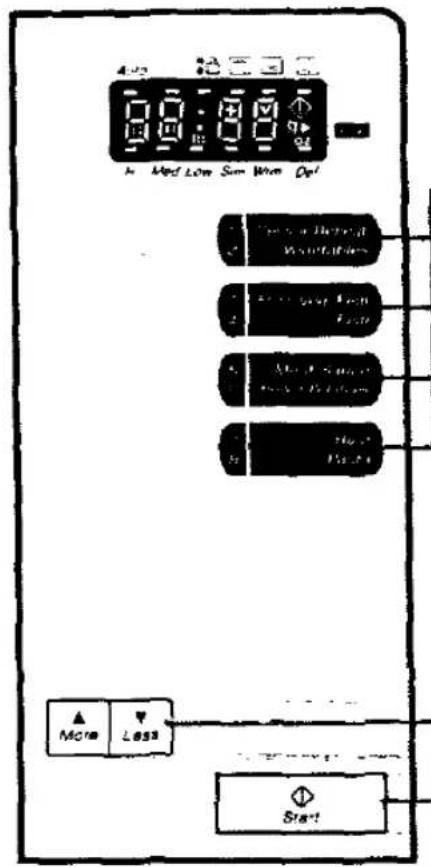

Auto Sensor cooking allows you to cook a whole range of foods without having to select the power level and cooking times yourself.

1 Press appropriate pad (Programs 1-8 only)

When you desire the lower category, press pad twice. The Category number will appear in the window.

2 Adjust to taste

Press ▲ or ▼ Less pad if you wish to alter cooking results. The More/Less pads adjust the cooking times by approximately 10%.

3 Press Start Pad

The Category number will remain in the display window until the oven calculates the cooking time after detecting a burst of steam. See cookbook for preparing food and Minimum/Maximum weight to use.

Auto 50 MAC Low Sat Hot Det 1. Master or 34465 Buel 2. L/D/ACD Chicken Poyers 3. Relaxed Poyers Relaxed Poyers More Less 9/oz Stop Cancel Start

1 Press appropriate pad

When you desire the lower category, press pad twice. The category number will appear in the window. The gram or pounds and ozs symbols will be flashing in the window.

2 Press weight pads (Programs 9-14 only)

Press the weight pad to set desired weight of food using more/less pads to adjust weight up and down. (N.B. See Page 12 for programs 1-8)

3 Press Start Pad

Auto Hi Wed Low Sun Wm Det Vegetables Fry Wed Fun Rice Rice Fry Cut Chips Crasps Jackets Chicken Chicken Porcans Fried Burgers Fried Breeze Pcs French Sticks Renest Casp Inc Renest Pastry Renest Pizza ▲ ▼ 9/10/32 Candy Starch Clock Stop Cancel Start

NN-K602/652

1 Press appropriate pad (Programs 1-14)

When you desire the lower category, press pad twice. The category number will appear in the window. The gram or pounds and ozs symbols will be flashing in the window.

2 Press weight pads

Press the weight pad to set desired weight of food using more/less pads to adjust weight up and down.

3 Press Start Pad

To Use The Calorie Counter - NN-K802/52 only

This feature allows you to calculate the calorific value of foods and the cumulative calories consumed per day easily. The Maximum number of calories is 9999 so it is recommended that the value is calculated per person or no more than 4.

Auto 10 May 1 Mar 10 Sec 1 Sec Micro Cache Grid 1-2-3 Combination Auto Defrost 1 Mean Value 2 For Drive Carry Memory Stop Carbag More Less 9/16 oz Delay Stand Clock Start

For your convenience, calorific values of various foods may be stored according to category – (groupings of foods of similar calorific value).

Please be aware that calculations for kcals consumed based on these categories may vary from actual by up to 10% for foods with low calorific values.

WARNING: If you are calorie counting as part of a course of medical treatment, please ensure that the actual calorific values for foods provided by your Doctor/Dietician are used and DO NOT rely on the categories described in the chart provided.

To calculate calorie value of food:

1 2 3

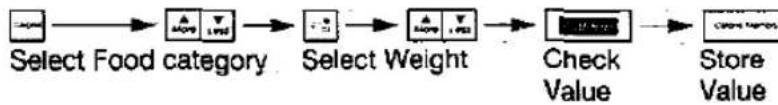

Press the Calorie pad and use the More/Less pads to select the correct Food category from the Calorie Chart. The oven display will show "10". Use the count up/down pads to select the required category.

Set the weight of the food using the weight pad and More/Less pads. The oven automatically displays 10g and the More/Less pads can be used to adjust up or down. N.B. when using the calorie count feature, weight can ONLY be entered in Metric (grams).

Press Calorie pad again. The calories of that food will appear in the display window.

To calculate the cumulative calories, eg for one day: 1 Calculate calorie value of each food as above steps 1, 2 and 3.

2

After each calculation press pad – this will store the calorie amount. Press Stop/Cancel pad once for display window to return to time of day. Repeat as many times as necessary.

Entering other calorie values not on chart or values on convenience foods

1. Work out the correct calorie value from the information given on the food product.
2. Press Calorie pad.
3. Use time pads 10 MIN 1 MIN to enter calorie value, eg 387 calories.

10 MIN 1 MIN Press 3 times Press 8 times -10 SEC 1 SEC Press 7 times

1. Press □ pad if you wish to add this value to the cumulative calories for that day.

To recall cumulative calories

Press Calorie Memory Pad at any time.

To cancel cumulative calories

While total calories are shown in the display window, press Calorie Memory pad again. While the number is blinking, press Stop/Cancel pad and the display window will revert to time of day.

Over fill

If the total number of calories cumulated comes to 9999, "FULL" will appear in display window.

1. Switch the oven off before cleaning and unplug at socket if possible.
2. Keep the inside of the oven, door seals and door seal areas clean. When food splatters or spilled liquids adhere to oven walls and door seals and door seal areas wipe off with a damp cloth. Mild detergent may be used if they get very dirty. The use of harsh detergent or abrasives is not recommended.
3. After GRILL or COMBINATION cooking the ceiling and walls of the oven should be cleaned with a soft cloth squeezed in soapy water. Particular care should be taken to keep the window area clean particularly after cooking by GRILL or COMBINATION. Stubborn spots inside the oven can be removed by using a small amount of branded spray conventional oven cleaner sprayed onto a soft damp cloth. Wipe onto problem spots, leave for recommended time and then wipe off. Avoid the microwave feed guide area, oven door. DO NOT SPRAY DIRECTLY INSIDE THE OVEN.
4. The outside oven surface should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
5. If the Control Panel becomes dirty, clean with a soft, dry cloth. Do not use harsh detergents or abrasives on Control Panel. When cleaning the Control Panel, leave the

oven door open to prevent the oven from accidentally turning on. After cleaning touch STOP/CANCEL Pad to clear display window.

1. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated in colder weather conditions and in no way indicates a malfunction of the unit.
2. It is 'occasionally necessary to remove the glass turntable for cleaning. Wash the tray in warm soapy water.
3. The roller ring and oven cavity floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent and hot water then dry with a clean cloth. The roller ring may be washed in mild soapy water. Cooking vapours collect during repeated use but in no way affect the bottom surface or the roller ring wheels.

After removing the roller ring from cavity floor for cleaning, be sure to replace it in the proper position.

1. When GRILLING or cooking by COMBINATION some foods may splatter grease onto the oven walls. If the oven is not cleaned occasionally to eliminate this grease, it can accumulate and cause the oven to 'SMOKE' during use. These marks will be more difficult to clean later.

Questions And Answers

Q: My microwave oven causes interference with my TV. Is this normal?
Q: Why does my oven light dim?
Q: Sometimes warm air comes from the oven vents. Why?

A: Some radio and TV interference might occur when you cook with the microwave oven. The interference is similar to the interference caused by small appliances such as mixers, vacuums, blow dryers, etc. It does not indicate a problem with our oven.

A: When cooking with a power other than HIGH, the oven must cycle to obtain the lower power levels. The oven light dims and clicking noises can be heard when the oven cycles.

A: The heat given off from the cooking food warms the air in the oven cavity. This warmed air is carried out of the oven by the air flow pattern in the oven. There are no microwaves in the air. The oven vents should never be blocked during cooking.

253

Building-in Your Oven

1. In case of flting into an oven housing, please use Panasonic's Trim Kit NN-K852, NN-K652, NN-TK752 NN-K802, NN-K602, NN-TK702

2. Microwave ovens should not be built into a unit directly above a top front venting conventional cooker. This will invalidate your one year guarantee. If building in above a conventional oven a gap of at least 15cm (6 inches) should be left as it is important that the microwave draws in cool air. A microwave which is built under a work surface must have adequate air circulation and must have a vent in the work surface. Read Trim-Kit instructions carefully before installation.

Technical Specifications

		NN-K852B/K802B	NN-K652B/602B
Power Consumption:	Microwave:	1,420W	1,420W
	Maximum:	2,800W	2,720W
Output:	Microwave:	800W (IEC-705)	800W (IEC-705)
	Heater:	1,380W	1,340W
Outside Dimensions:	306mm (H) × 310mm (W) × 360mm (D)
Oven Cavity Dimensions:	200mm (H) × 330mm (W) × 330mm (D)
Operating Frequency:	2,450MHz
Weight:	18kg
Power Source Republic of Ireland
Rated Voltage:	220V, 50Hz

All other specifications unchanged.

Weight and Dimensions shown are approximate.
