BEDIENUNGSANLEITUNG VL-2X IDX

VL-2X

2ch Sequential Quick Charger

Instruction Manual

Thank you for purchasing the VL-2X 2 channel sequential charger with DC output. The VL-2X is designed to charge V-Mount Lithium Ion batteries. Prior to using the charger, IDX recommends to read this Instruction Manual and keep this manual for future reference.

WARNING

May cause sudden serious injury and death
- Do not connect to an AC power source that exceeds the voltage specification slated on the unit.
- Use only with the compatible batteries listed in this manual.
- Do not short the contact pins with any metal object.
- Do not carry or store with metal equipment.
- Do not immerse in water
- Do not attempt to open the outer casing or break apart.
- Do not subject the unit to extreme physical impact or pressure, or
place any object across the terminals that could cause it to short.
- Do not attempt to use if damaged.
● Protect the power cord from any damage.

CAUTION

May cause sudden serious injury and death
● The unit should be used under the conditions listed in this manual.
- Do not expose the unit to extremely high temperatures.
- Use the approved power cord / appliance connector /
plug conforming to the proper ratings (voltage, ampere) and
safety regulations of each country if applicable.
- Keep the unit away form excessively dry or humid environments
- Stop charging immediately if the charging does not
complete within the designated time.
● In case of abnormal smell, leak, color change or case
deformity during use, turn the power off and unplug the cable from the cables to avoid possible injury.
from the socket to avoid possible injury. This is a place A product in a domestic environment this
- This is a class A product in a domestic environment this
product may cause radio interference in which case the use may be required to take adequate measures.

Features

● Universal AC input for world-wide use.
- Sequential quick charge
● Built in 36W camera power supply.
● Auto safety & protection features
● Recovery charge mode for low voltage batteries.
● Auto-stop charging if battery fails, to reach 100%
within the designated time
● Over voltage protection stops charging when the
Battery voltage exceeds the designated charge level
● Protection circuitry activates when a battery
Fault is detected
● NR Tung Lithium ion batteries can be charged
- 3-NP-type lithium-ion batteries can be charged via optional A-E2NB charger adapter.

Specifications

● Recommended batteries : IDX V Mount Lithium Ion batteries
IDX NP Type Lithium ion battery (Using A-E2NP)
● AC adaptor input voltage : AC100V\~240V 50 / 60Hz Automatic
● AC adaptor : UT60-150400 ( Shenzhen Uniontop Electronics Co., Ltd )
● Power consumption : MAX 140VA
- Operating temperature: 0\~40°C / 32\~104°F
Operating humidity: 80% - 90% DU
- Operating humidity : 20% - 30% /ft
● Charging method : Constant current and constant voltage
● Charging output : 16.8V 1.9A / MAX 2.7A
● Recovery charge current : approx.400mA
● DC output : MAX 36W (15V = 2.4A)
● Battery protection timer : Recovery charge approx 120 min
Quick charge approx 520 min
● Dimensions: approx. 87.4 (W)×183.3 (H)×126.6 (D)mm
approx. 3.44 (W)×7.22 (H)×4.88 (D) inches
● Weight: Charges body approx. 420g / 0.95lbs
- Weight : Charger body approx. 450g / 0.55lbs
AC adaptor approx. 320g/0.70lbs
● Charge time standard

CUE-D75 E-HL9/E-HL10DS/CUE-D95/DUO-95 ELITE/CUE-D150/DUO-150

ансы 170min арsecу 210min арsecу 300min

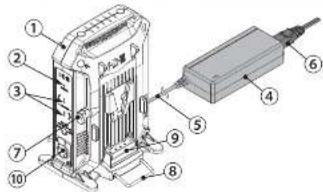

Location and Function of Parts

Technical diagram of a device with numbered components, likely an industrial or electronic assembly.

① Charger body

② Power LED (POWER)
② Charge LED (CHARGE)
⑤ Charge LED (CHANGE)
④ AC adaptor
⑤ DC plug / DC cable
⑥ AC plug / Power cord
② Button price level
⑦ Battery release lever
⑧ Support stand
⑨ Charging connector
d0 DC out ( XLB connector 4pin female )

Safety Features

VI-2X is equipped with various Internal Safety Features that protect both the battery and charger from serious damage.
• The charmer clarle recovery charming if the unless of mounted battery is under 12V (Solid Rad)
The charger will stop charging if the battery unless does not reach 12V after 120mins of charging (Elachina Amhar).
The charger will stop charging in the battery. Voltage should not reach the current charging (lighting / minimum). The charge close charging substation is if the battery is not fully charged after EXining from quick charging state / Clearing / Ambear.
The charger stops charging automation if the battery is not fully charged after 32 hours. The charger stops charging if the mounted battery is unusual (Flashing Amber)

Operating Instructions

① How to Use the Support Stand

• Swing the support stands out until firmly locked.

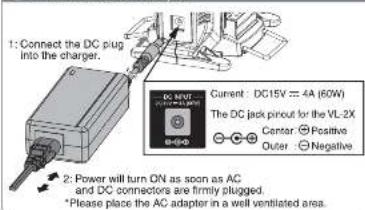

② Connect the AC Adapter

1: Connect the DC plug into the charger. 2: Power will turn ON as soon as AC and DC connectors are firmly plugged. *Please place the AC adapter in a well ventilated area.

③ Charger Operation

1: install the battery as shown.
2: When the battery pack is mounted, a status LED will
turn ON. If the condition of the battery is OK
charging will automatically start
3: Charging will automatically stop
when the battery is fully charged.

*Please mount the battery until

the battery release lever is firmly locked.

(No text)

*For your safety, Do not carry the charger

while the battery is attached

4: When removing the battery from the charger, firmly press the release lever while lifting the battery straight up.

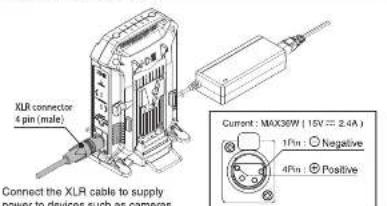

④ DC output Operation

XLR connector 4 pin (male) Connect the XLR cable to supply power to devices such as cameras Current : MAX36W (15V = 2.4A) 1Pin : Negative 4Pin : Positive

Connect the XLR cable to supply

power to devices such as cameras

While the VL-2X operates as a charger, the DC output function is disabled

While the DC output is in operation, charging is disabled.

*Please make sure to check the power consumption of connected device prior

to using the VL-2X's DC output.

⑤ Status LED Indicator

POWER LED CHARGE LED LED indicator states Indication Status Light Off ○ No battery or charging standby Solid Red ● Recovery / quick charge in progress Flashing Red ★ Charger fault Solid Green ● Fully charged Flashing Amber ● • Battery protection timer activated while recovery charging • Over voltage protection circuitry activated

Design and specifications are subject to change without notice.

Manufacturer : IDX Company,Ltd. 6-28-11 Shukugawara, Tama-ku, Kawasaki-shi, Kanacawa-ken, 214-0021 Japan
Tel: [phone] Fax: [phone] E-mail: [e-mail]
IMPORTOR FOR EU : IDA Technology Europe, Ltd. (Off. 3, Langley Park, Wodorside Drive, Langley, Birl Til: 11 1750 517022; Frou: 11 1750 516000; E-mail: https://www.bdl.com/
16. 444-1753-547682 - Fax: [phone] - E-mail: iia.europe@iacy Importer for USA : IDY System Technology, Inc. 19001 Harbogenate Way, Suite 105, Torrance, CA 90601 USA
Tel: [phone] Fax: [phone] E-mail: [e-mail]
Importer for USA : IDX System Technology, Inc. 19001 Harborgate Way, Suite 105, Torrance, C Tel: [phone] Fax: [phone] E-mail: [e-mail]

http://www.idx.tv

201602
