BEDIENUNGSANLEITUNG G500V5F11H510-GU 3M

PELTOR™ Törbjudas använda arbetmaskinera Head & Face Protection

3M™ Headgear G500

The 3M ^TM Headgear G500 provides a versatile and comfortable solution for wearers who require both face and hearing protection. The G500 has special design features making it easy to combine the headgear with other 3M safety products such as face shields, passive earmuffs or communication headsets.

Key Features:

• Ratchet for size adjustment
• Printable front cover for customised solutions
- Replaceable sweatband
- Compatible with a wide range of 3M ^™ Peltor ^™ passive and communications earmuffs
• Change visors quickly and easily
- Slimline ear muffs Class 4

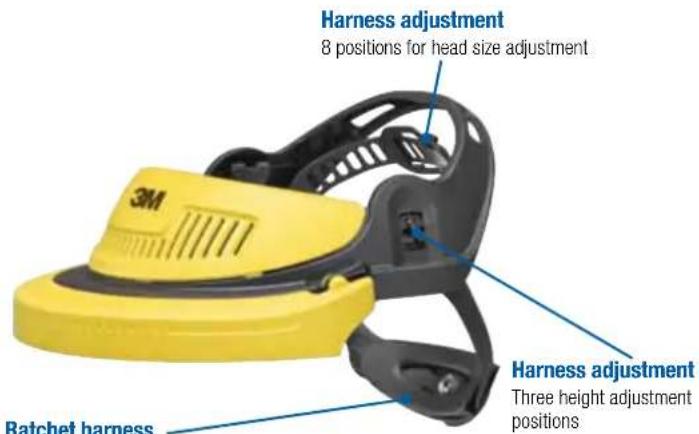

Harness adjustment 8 positions for head size adjustment 3M Harness adjustment Three height adjustment positions Ratchet harness

Ratchet harness
This solution with its ergonomically designed neck support, makes it possible to obtain maximum comfort for long periods of time. The adjustment dial is made of a TPE-material for maximum grip

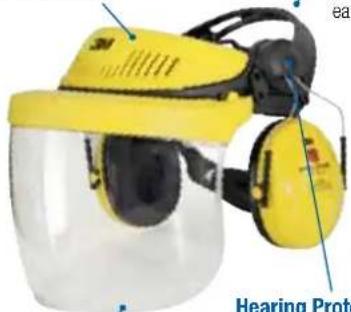

3M™ Headgear G500 Industrial Combination

Frontcover

Ventilation for increased comfort. The frontcover is also designed as a cable holder in combination with Peltor Communication products

Yellow and black safety helmet with clear visor, labeled 'Hearing Prot' (no other text or symbols visible)

Clear faceshield

5F-1 (Polycarbonate) high impact visor, 1.5mm thick, Anti Fog coated on both sides tested to AS/NZS 1337.1.

Hearing Protection

Thanks to the robust design of the headband, G500 can be used both with and without earmuffs. The slot is 30 mm wide made to take the Peltor P3E-attachment.

Spare Parts and Accessories:

Product code Description

5F-1 Polycarbonate Face shield, Clear

HYG50 Plastic sweat band

H9P3E Earmuffs

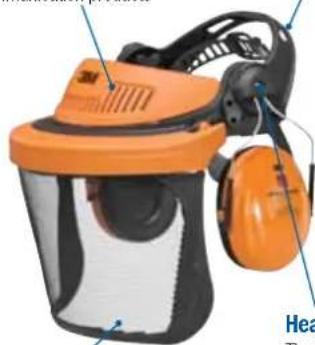

3M™ Headgear G500 Forestry Combination

Frontcover

Ventilation for increased comfort.

The frontcover is also designed as a cable holder in combination with Peltor Communication products

Headband

Three height adjustment positions

Close-up of an orange and black industrial spray gun device with labeled components (no readable text or symbols)

Mesh Visor

5C (Stainless Steel) Australian Standard under development.

Hearing Protection

Thanks to the robust design of the headband, G500 can be used both with and without earmuffs. The slot is 30 mm wide made to take the Peltor P3E-attachment.

Spare Parts and Accessories:

Product code Description

5B Face shield, Polyamide mesh

5C Face shield, Stainless steel mesh

5J Face shield, Stainless steel mesh, etched

HYG50 Plastic sweat band

Product Code 3M Description

G500V5FH510-GU Headgear Combination Industry Polycarbonate

G500V5CH510-OR Headgear Combination Forestry Mesh

Peltor™ G2000 Helmet

Attractive design and excellent protection is the best way to summarise the Peltor G2000 helmet. The helmet goes well beyond the requirements for formal testing and is comfortable with its low back and relatively low profile.

It was designed to accommodate additional accessories, visor and hearing protection.

Fully compliant with AS/NZS 1801

Material: UV-stabilised ABS.

Colours: Yellow, white, orange, red, blue and green

Weight: 340 g

Size: 54-62 cm

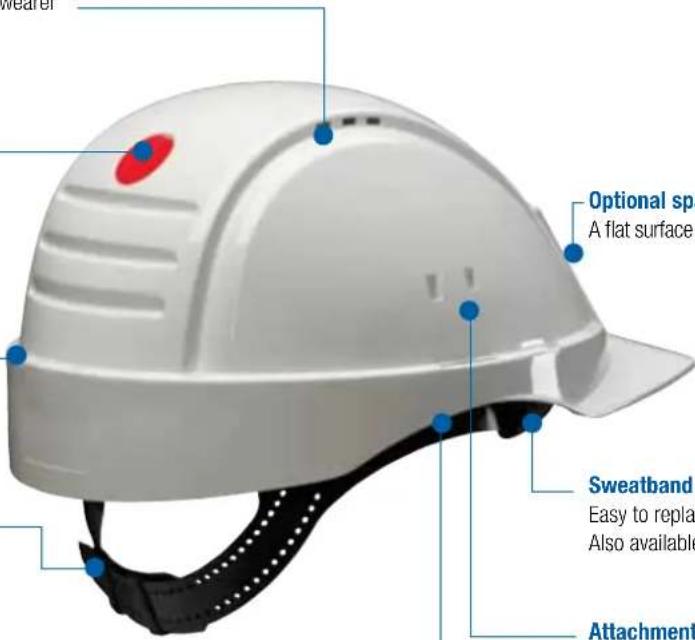

White hard hat with red circular button and black base (no text or symbols visible)

Ratchet headband
For easier and quicker adjustment.

Features and Benefits:

Ventilation

Comfort and good ventilation are a must, particularly in warm environments. The G2000 allows free airflow between the helmet and its harness. Combined with ventilation inlet in the top of the helmet, this helps to increase wearer acceptance.

Peltor™ Uvicator™ Sensor

The disc indicates when it's time to replace your helmet.

Neck protection

Extended edge on the back of the helmet provides extra protection for the sensitive neck area.

Headband

This important feature determines how steadily the helmet sits on the head. Easy to adjust.

Optional space A flat surface Sweatband Easy to replace Also available Attachment

Optional space for customised print
A flat surface for printing a logotype or brand name.

Sweatband

Easy to replace for highest comfort and hygiene. Also available in soft leather.

Attachment point for accessories

An adjustable snap attachment in the balance point of the helmet to allow simple attachment of accessories, such as muffs, headsets and visors

Optimal profile for ear muffs

The G2000 features a special profile design to enable helmet mounted ear muffs to achieve optimal fit and maximum adjustability for individual needs.

Product Code 3M Description

G2000CUV-GU Safety Helmet Assembly Uvicator Yellow

G2000CUV-OR Safety Helmet Assembly Uvicator Orange

G2000NUV-OR Safety Helmet Assembly Uvicator W.Ratchet Harness Orange

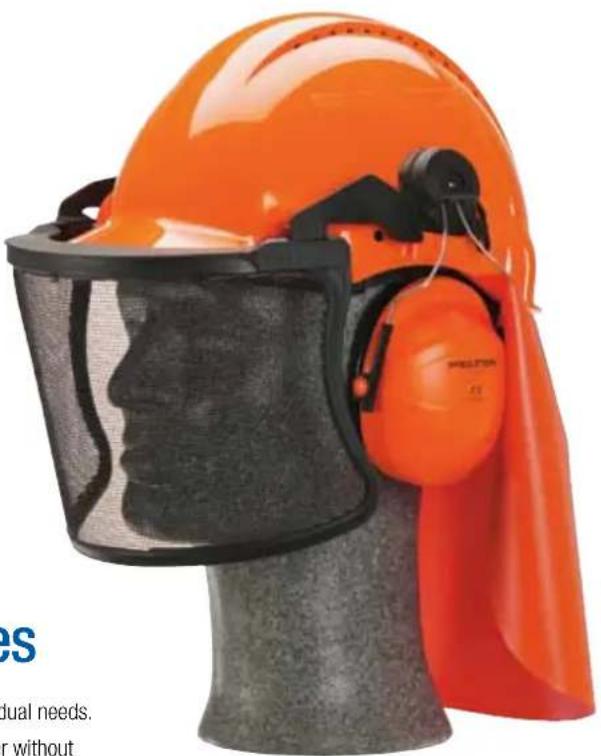

Peltor™ Lumberjack

The Peltor lumberjack system combines head, face and hearing protection. This unit was developed for the logging and gardening industry. It has a uniquely designed front visor shield which helps eliminate sawdust and rain from falling between the mesh screen and hard cap. The mesh visor and earmuffs can be swiveled both up or down. The rain guard protects your neck from debris and rain

Orange safety helmet and protective gear assembly on a human head (no text or symbols visible)

Peltor™ Helmet Accessories

A variety of accessories are available to adapt Peltor helmets to individual needs. Like all Peltor products, the accessories are designed to work together without compromising protection. This is a necessity for good protection with high comfort.

Close-up of an orange safety helmet with a pressure gauge (no visible text or symbols)

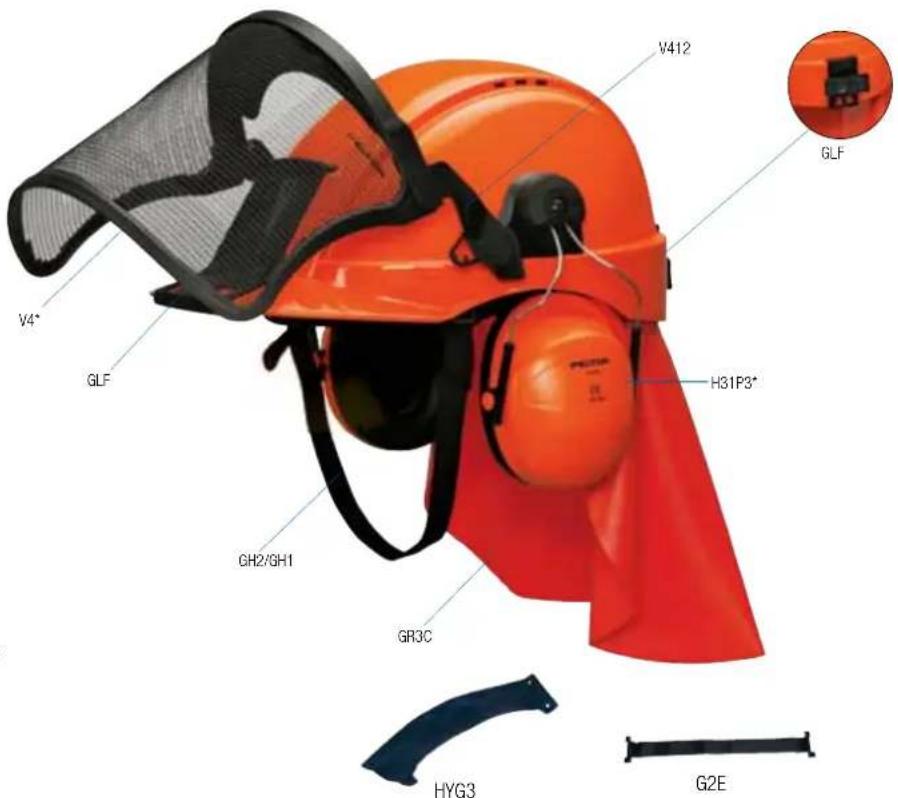

Helmet accessories and spare parts

GH2 Chinstrap, G2000

G2E Extra strap for 6-point lining, G2000

HYG3 Standard sweatband, all

GLF Lamp and cord holder, G2000

GR3C Rain protection, all

P3GV/2 Helmet attachment for visor 24mm

V412 Linkage kit

V412 GLF V4* GLF H31P3* CH2/GH1 GR3C HYG3 G2E

Head Protection

Portrait of a person wearing an orange safety helmet and hooded jacket, with industrial cranes in the background (no visible text or symbols)

Peltor™ Mesh Visors

Mesh visors give effective protection and have long durability. The Peltor etched stainless steel visors are extremely durable with greater safety, comfort and visibility in working mode. The polyamide visor is extremely light and does not conduct electricity.

Simple illustration of a mesh container with a handle and spout (no text or symbols)

V4A

• Made of steel with a matt finish.
• The design ensures excellent strength and stability.
• A visor for extremely harsh working environments.
Steel mesh: 0.3 1.8×1.8 mm. Light reduction: 35%. Weight: 90 g.

The Visor Systems include, mesh visor, helmet frame and linkage kit, which will attached to either a P3E 30mm or a P3G 24mm slotted adaptor. They are designed to be used with or without Peltor earmuffs.

Simple illustration of a cylindrical container with a handle and spout (no text or symbols)

V4C

• Made of stainless steel with a matt finish.
- Uniquely low light reduction, thanks to the rectangular grid providing excellent protection from flying chips and splinters.
• Excellent stability, even after long use.

Stainless steel mesh: 0.24 1.8×2.5 mm. Light reduction: 25%. Weight: 80 g.

Simple illustration of a cylindrical container with a handle and spout (no text or symbols)

V4B

• Made of black polyamide with a matt finish.
- Extremely lightweight and non-conductive – a necessary feature in some environments (e.g. working with electric power cables).
Polyamide mesh: 0.3 1.0×1.0 mm. Light reduction: 45%. Weight: 70 g.

Peltor™ Clear Visors

The Visor Systems include visor, helmet frame and cap attachments, which will fit most hard hats by selecting the correct adapters. They are designed to be used with or without Peltor earmuffs.

Visors provide great protection against high speed particles and UV/IR radiation.

V2C

• Excellent high impact-resistant colourless transparent visor.
- Made from high quality polycarbonate, which features good impact and scratch resistant properties.
- Lets through 90% of the light.

Material: Polycarbonate. Temperature range: -40^ to +130^

Thickness: 1 mm. Weight: 110 g

They are scratch resistant and anti-fog treated on both sides for the maximum field of view. The visor peak and visor are designed to slope to minimise glare and debris.

Visors comply with Australian Standards AS/NZS 1337.1

White ceramic cup with black lid and two small protrusions (no text or symbols visible)

V4F

• Excellent high impact-resistant colourless visor.
- Made from high quality polycarbonate, offering high impact and scratch resistant protection.

Material: Polycarbonate. Temperature range: -40^ to +130^

Thickness: 1 mm. Weight: 110 g

V4D

• Colourless visor.
• Made of cellulose acetate, which is highly resistant to chemicals.
• The visor has good optical properties and is fog treated on both sides.

Material: Anti-fog cellulose acetate. Temperature range: -40^ to +100^

Thickness: 1 mm. Weight: 120 g

V4K

• Like the V4F, but a larger model, giving a greater area to protect against splashes, flying particles etc.
  • High Impact Protection

Material: Polycarbonate. Temperature range: -40^ to +130^

Thickness: 1.2 mm. Weight: 180 g

105 90 75 60 S120 R 1,5T B Made 1 Mutin P365: ME TR: 18.0 104 255/5.0 ME 24 1.0 15.0/13

customers can contact 3M TechAssist on 024.464 (AI) - 0889.264.257 (NT)

3M customers can contact 3M TechAssist on 1800 024 464 (AU) 0800 364 357 (NZ) to answer questions on product information, technical advice and guidance with product selection.
