INSTRUCTION SHEET

ICOMP-COOL

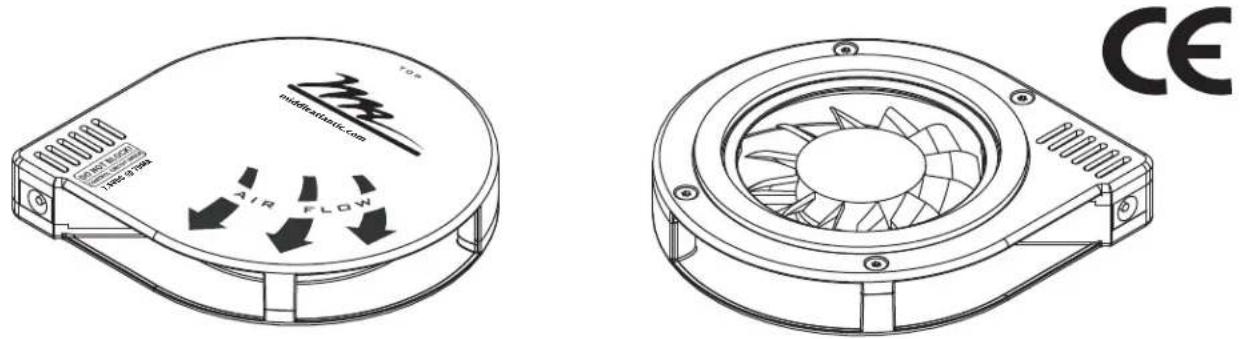

QUIET-COOL SERIES™ COMPONENT COOLER

THANK YOU

Thank you for purchasing the Quiet-Cool Series™ ICOMP-COOL Component Cooler. Please read these instructions thoroughly before installing this product.

PRODUCT FEATURES

• Extends equipment life.
• Removes heat directly from the source.
• Up to ten individual ICOMP-COOLs can be run from one power supply.

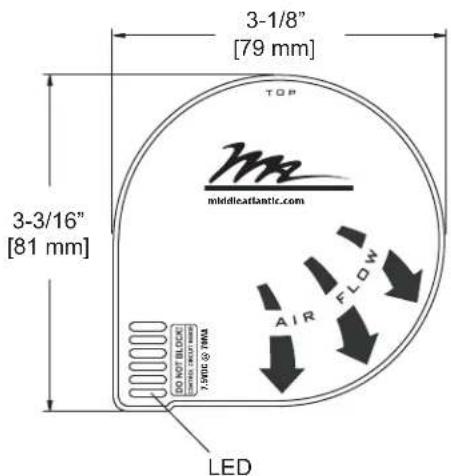

5/8" [16 mm]

3-1/8" [79 mm] TOP middleatlantic.com 3-3/16" [81 mm] AIR FLOW 7.5WDC & TWA DO NOT BLOCK [200] [200] [200] LED

SPECIFICATIONS

MODEL	POWER REQUIREMENTS	CFM dBA @ 1 METER
ICOMP-COOL 7.5 VDC @ 70mA		8Per Fan19
ICOMP-COOL-E 7.5 VDC @ 70mA		8Per Fan19
ICOMP-COOL-3	7.5 VDC @ 210mA	8Per Fan24

• Fan turns on at 87°F [30.5°C] and turns off at 85°F [29.4°C]
• LED illuminates green when fan activates, and red when fan deactivates

Middle Atlantic Products

1-00245

Rev B

PARTS

FAN UNIT

QTY

• ICOMP-COOL 1
• ICOMP-COOL - 3 3
• ICOMP-COOL - E 0

ADHESIVE BACKED FEET

QTY

• ICOMP-COOL 8
• ICOMP-COOL - 3 24
• ICOMP-COOL - E 8

WIRE TIE MOUNT

QTY

• ICOMP-COOL 5
• ICOMP-COOL - 3 15
• ICOMP-COOL - E 5

POWER SUPPLY

• ICOMP-COOL 1
• ICOMP-COOL - 3 1
• ICOMP-COOL - E 0

WIRE TIE

• ICOMP-COOL 5
• ICOMP-COOL - 3 15
• ICOMP-COOL - E 5

JUMPER CORD

• ICOMP-COOL 0
• ICOMP-COOL - 3 2
• ICOMP-COOL - E 1

INSTALLATION

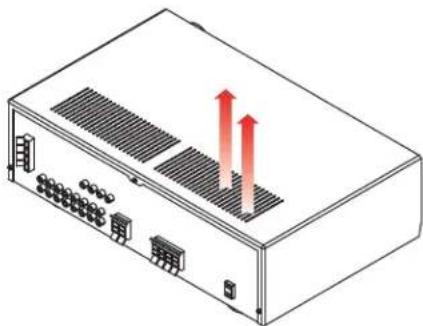

1) Locate the hot spot on your component. (FIGURE A)
2) Clean area with provided alcohol wipe.
3) Remove paper covering adhesive ring. (FIGURE B)

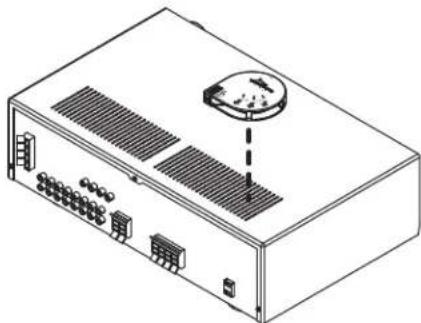

4) Position ICOMP-COOL with power jack facing rear of component. (FIGURE C) Press down to adhere.

TIP: If your cabinet does not have doors or sides, you may prefer to position the unit so the air flows in a different direction.

5) Select appropriate wall plug for your region and install in provided power supply.
6) Connect ICOMP-COOL to power source using provided Power Supply.

NOTE: Wire Ties and Wire Tie Mounts are provided for cable management.

Isometric line drawing of a server rack with ventilation grilles and two red arrows indicating airflow or heat (no text or symbols)

FIGURE A

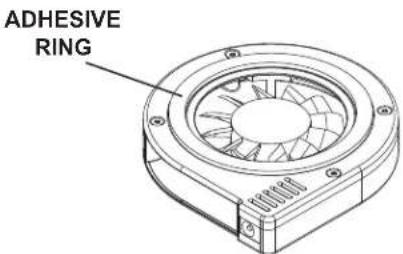

ADHESIVE RING

FIGURE B

Isometric line drawing of a server rack with ventilation slots and a central display (no text or symbols)

FIGURE C

NOTE: If extra clearance between components is required to accommodate the ICOMP-COOL, apply Adhesive Backed Feet on the feet of the upper component with adhesive side up. (FIGURE D)

Two Feet are provided for each location, but only one per location may be required.

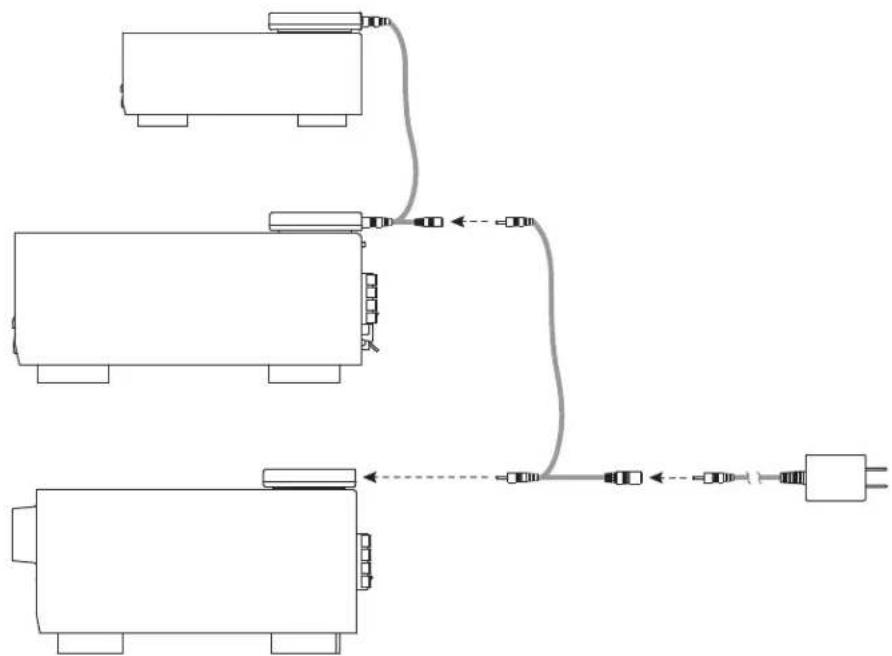

ICOMP-COOL-3 INSTALLATION (FIGURE E)

1) Install individual ICOMP-COOL units on equipment as required.
2) Using provided Jumper Cords, chain individual ICOMP-COOL units together.
3) Connect Power Supply to power source.

ADHESIVE FOOT d.

FIGURE D

FIGURE E

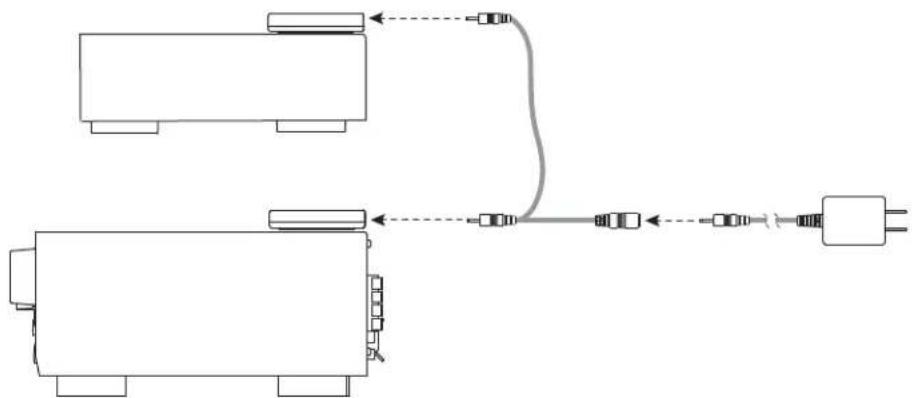

ICOMP-COOL-E INSTALLATION (FIGURE F)

1) Using provided Jumper Cord, connect ICOMP-COOL-E to pre-installed ICOMP-COOL.

FIGURE F

WARRANTY

Middle Atlantic Products (the "Company") warrants the Quiet-Cool Series™ ICOMP-COOL to be free from defects in material or workmanship under normal use and conditions for a period of (3) years from date of shipment by the Company.

The Company's entire liability to the purchaser, and the purchaser's (or any other party's) sole and exclusive remedy, under this warranty shall be limited, at the Company's option, to either (a) return of and refund of the price paid for, or (b) repair or replacement at the Company's factory of the products purchased, or any part or parts thereof, which the Company has determined to be defective after inspection thereof at the Company's factory.

This warranty does not cover damage due to acts of God, accident, misuse, abuse or negligence by parties other than the Company, or any modification or alteration of the products. In addition, this warranty does not cover damage due to improper handling, assembly, installation or maintenance.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL THE COMPANY BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF THE USE OF THE PRODUCTS PURCHASED, EVEN IF THE COMPANY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE COMPANY'S LIABILITY TO THE PURCHASER (OR ANY OTHER PARTY) HEREUNDER, IF ANY, SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF THE PRODUCTS PAID TO THE COMPANY.

Corporate Headquarters

Corporate Voice 973-839-1011 - Fax [phone]

International Voice [phone] - Fax [phone]

middleatlantic.com - [e-mail]

Middle Atlantic Canada

Voice 613-836-2501 - Fax [phone]

middleatlantic.ca - [e-mail]

Factory Distribution

USA: NJ - CA - IL Canada: ON - BC

At Middle Atlantic Products we are always listening. Your comments are welcome.

Middle Atlantic Products is an ISO 9001 and ISO 14001 Registered Company.
