BEDIENUNGSANLEITUNG TC-2160 PANASONIC

Panasonic

Operating Instructions

Colour Television TC-2160

U.K. STANDARD

Please read these instructions completely, before operating this set.

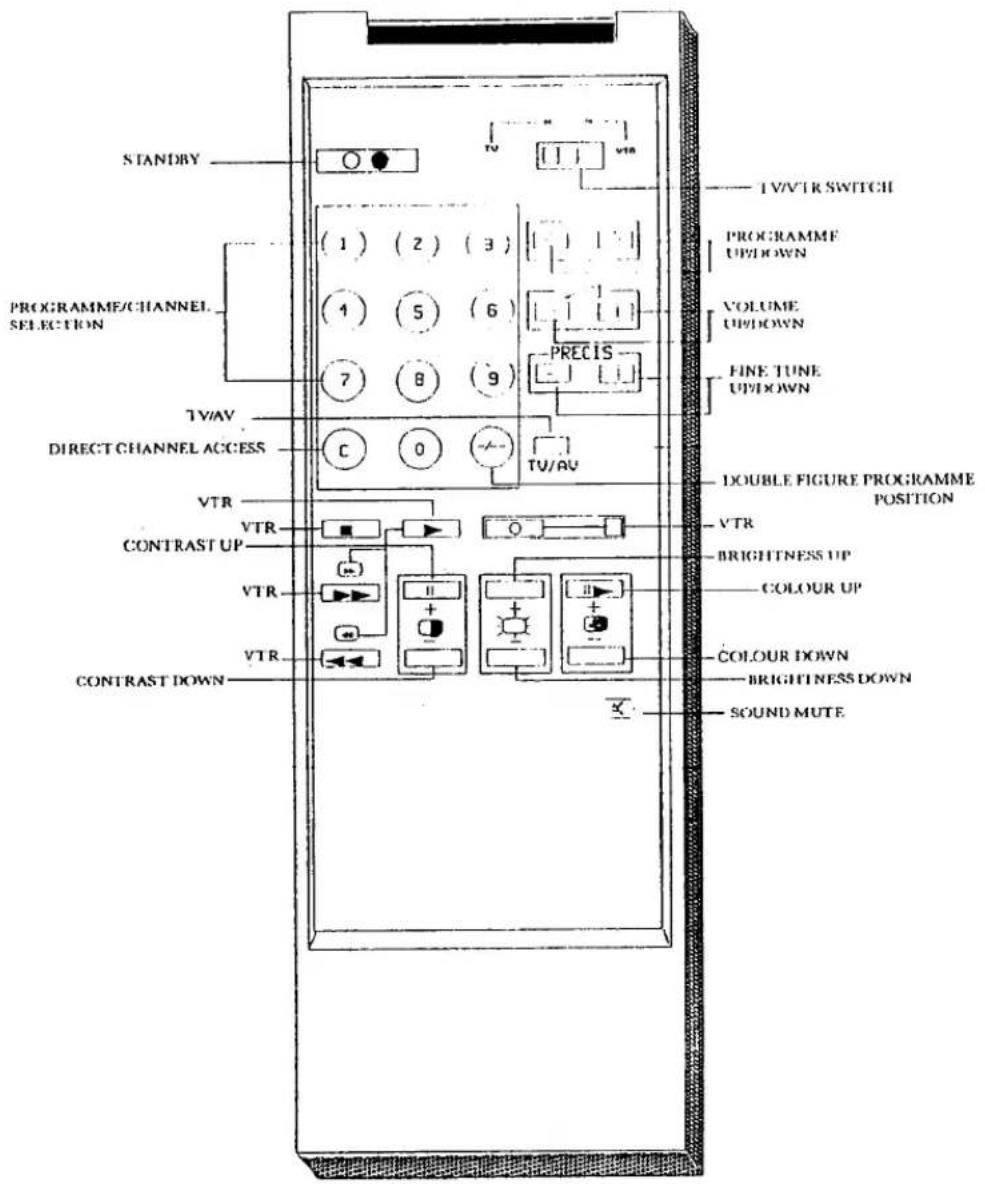

REMOTE CONTROL TRANSMITTER
EUR51203

STANDBY PROGRAMME/CHANNEL SELECTION TV/AV DIRECT CHANNEL ACCESS VTR CONTRAST UP VTR CONTRAST DOWN TV/VTR SWITCH PROGRAMME UP/DOWN VOLUME UP/DOWN FINE TUNE UP/DOWN C 0 -/-- TV/AV VTR CONTRAST UP VTR CONTRAST DOWN DOUBLE FIGURE PROGRAMME POSITION VTR BRIGHTNESS UP COLOUR UP COLOUR DOWN BRIGHTNESS DOWN SOUND MUTE

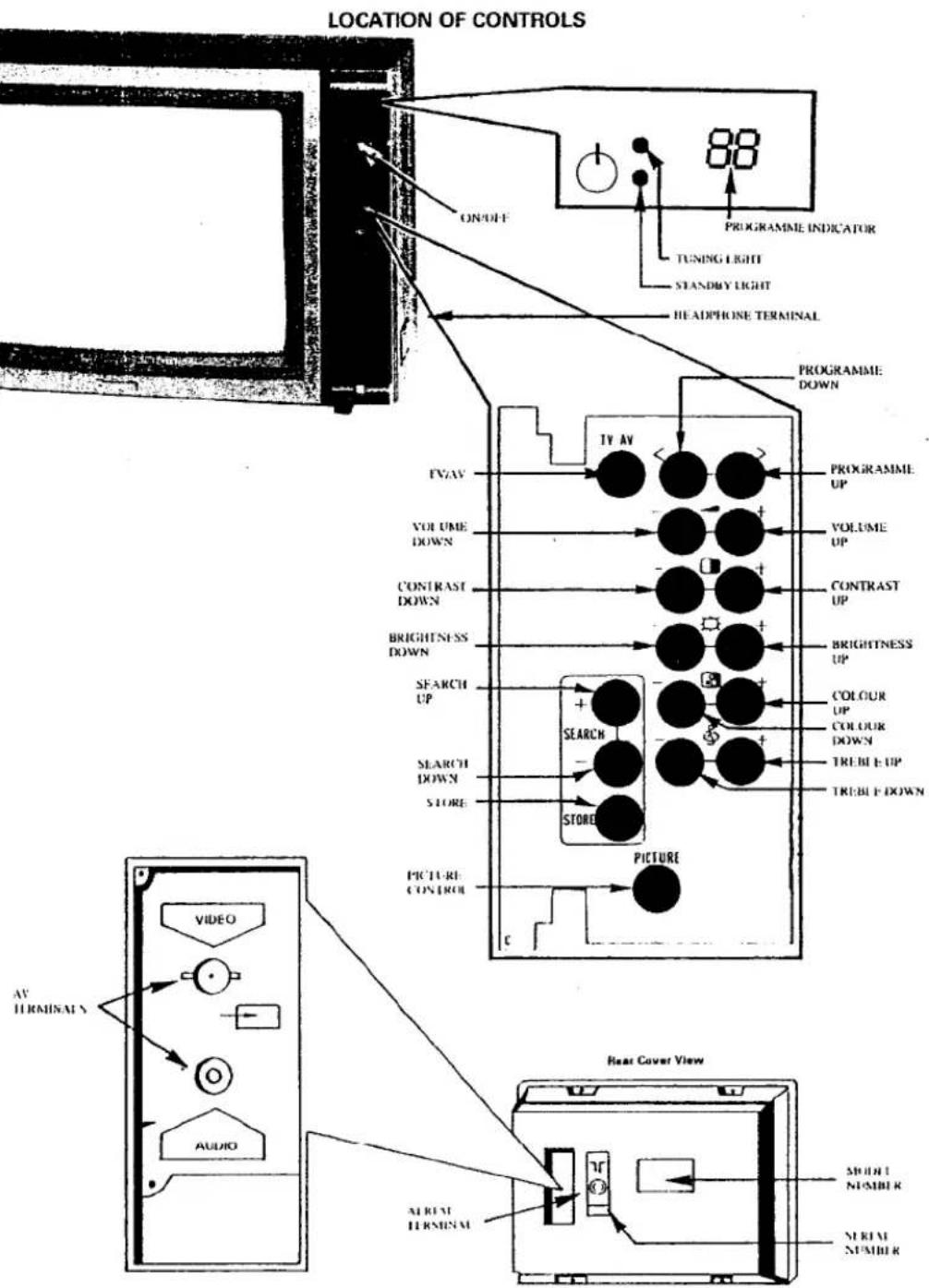

LOCATION OF CONTROLS ON/OFF 88 PROGRAMME INDICATOR TUNING LIGHT STANDBY LIGHT HEADPHONE TERMINAL PROGRAMME DOWN IV AV PROGRAMME UP VOLUME UP CONTRAST UP BRIGHTNESS UP COLOUR UP COLOUR DOWN TRIBLE UP TRIBLE DOWN SEARCH UP SEARCH STORE STOCKE PICTURE CONTROL PICTURE c AV TERMINALS VIDEO AUDIO Rear Cover View MODEL NUMBER MODEL NUMBER

Welcome to the PANASONIC family of customers. It is our desire that you have many years of

enjoyment from your new colour television set. In keeping with the state of the art, we have built into your unit quality, reliability and performance. However, for performance, a television receiver should be properly situated in the home and properly adjusted. Proper installation practices and adjustments are well known,

and easy to accomplish. As more and more switchable automatic circuits are built into the product, it becomes more

beneficial for the customer to know how to take advertising by the book. This instruction book applies, in general, to all PANASONIC colour television receivers. We hope that this booklet will help you get the most out of your unit. You will find that PANASONIC is

"just slightly ahead of our time". This TV receiver is designed exclusively for the broadcast system in the U.K. It will not receive broadcast systems in other countries.

CAUTION: Please remove the plug from the wall outlet when the receiver is not in use for a prolonged period of time, especially when retiring at night.

WARNING: To prevent damage which may result in fire or shock hazard, do not expose this TV receiver to rain or excessive moisture.

WARNING HIGH VOLTAGE. Live parts are accessible when the rear cover is removed, (do not remove screws). Do not remove the rear cover under any circumstances.

IMPORTANT The wires in this mains lead are coloured in accordance with the following code:

BLUE: NEUTRAL

BROWN: LIVE

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug please check as follows:

please check as follows: * The wire which is coloured blue must be connected to the terminal marked "N" or coloured black.
* The wire which is coloured brown must be connected to the terminal marbled or coloured red. If a 13 amp BS1363 plug is used a 5 amp rating fuse must be fitted.

INSTALLATION AND CARE:

POWER SUPPLY

This television receiver is designed to operate on 240 volts 50 Hz a.c. mains.

RECEIVER LOCATION.

RECEIVER LOCATION. Adequate ventilation is essential to prevent failure of the electrical components. Avoid direct sunlight on the cabinet, and on the face of the picture tube. Adjust lamps or the position of the set to avoid undesirable reflections of light and place the set on a completely horizontal surface. Ensure that there are no external magnetic materials e.g. loudspeakers near the T.V.

CABINET AND SCREEN WACE (switch off) TV set and removing the box. The cabinet can be kept in good condition simply by wiping with a clean, damp and soft

cloth. Do not use solutions containing benzal, petrolam or any hand. The cabinet should be cared for as you would any fine furniture. The screen face may be cleaned with a damp, soft, lint free cloth and mild soap.

Disconnect the TV from the mains before cleaning the cabinet or screen face.

NOTES: FOR USE OF INFRA RED REMOTE CONTROL TRANSMITTER

Notes: For use of the control transmitter should not be placed in direct sunlight or heat.
1) The remote control transmitter should not be provided. 2) Direct sunlight or intense light to the infra red window of the receiver may
lead to malfunction of the remote control transmitter.

3) Pressing more than two buttons at a time, can lead to operating malfunction.

NOTE:

NOTE: If the power is removed from the set by any means other than switching off using the ON/OFF SWITCH ie. the mains plug is removed while the TV is working, it is recommended that before resuming viewing, the TV is first switched off and then on again using the ON/OFF SWITCH to avoid any malfunction.

PLEASE NOTE:

Items beginning with this symbol refer to TV use.

Items beginning with this symbol refer to TV and remote control use.

Items beginning with this symbol refer to remote control use.

The TV memory will store the "last used" position for many of the functions available. Please ensure that these are adjusted to their normal settings if they have been set to an exceptionally high or low level previously.

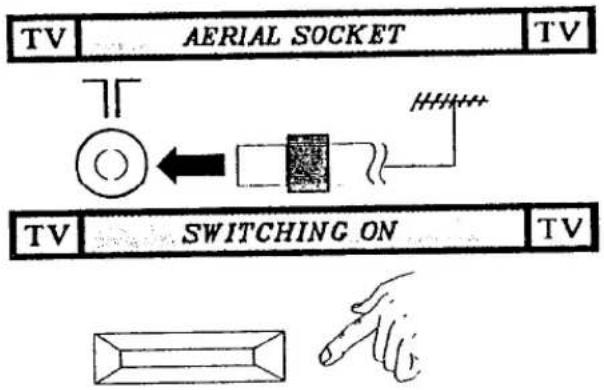

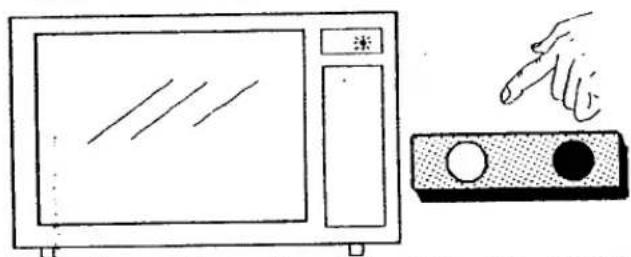

Push to turn the receiver on,

Push again to turn the receiver off.

STANDBY LED DISPLAY

Illustration of a microwave oven and a hand pressing a button (no text or symbols)

Press to switch the TV off for short periods.

Press again to switch on.

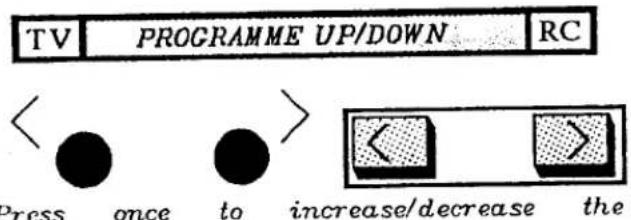

TV PROGRAMME UP/DOWN RC < Press once to increase/decrease the

PROGRAMME position by one.

e.g. to select programme 1 :

DISPLAYED ON TV PROGRAMME INDICATOR

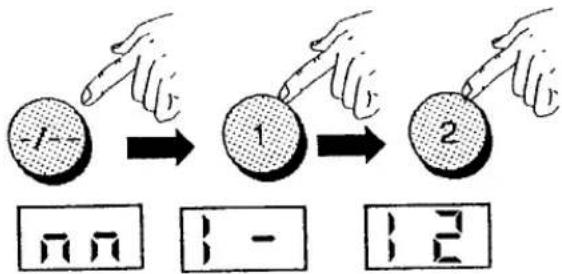

e.g. to select programme 12

-1 → 1 → 2 ππ 1 - 1 2

DISPLAYED ON TV PROGRAMME INDICATOR

1. Select programme position. (0 to 29)

1. Press Search up or down.

SEARCH

1. When the desired channel is found (eg BBC1 for channel 1), press the store button.

STORE

1. Repeat steps 1 to 3 as required.

1. Select the desired programme number. (0 to 29)

1. Press the button marked "CS"

1. Select the required channel number and store.

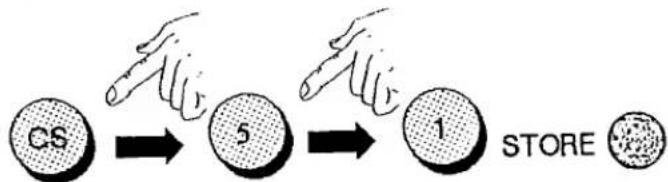

e.g. to select channel 51

DISPLAYED ON TV PROGRAMME INDICATOR.

IMPORTANT

If during the use of VTR/TV GAMES, OR CABLE TV, the signal is removed, when the signal is restored, it may be necessary to reselect the programme position.

If you still experience difficulties after this, please contact your local PANASONIC dealer.

Adjust to suit individual taste.

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols

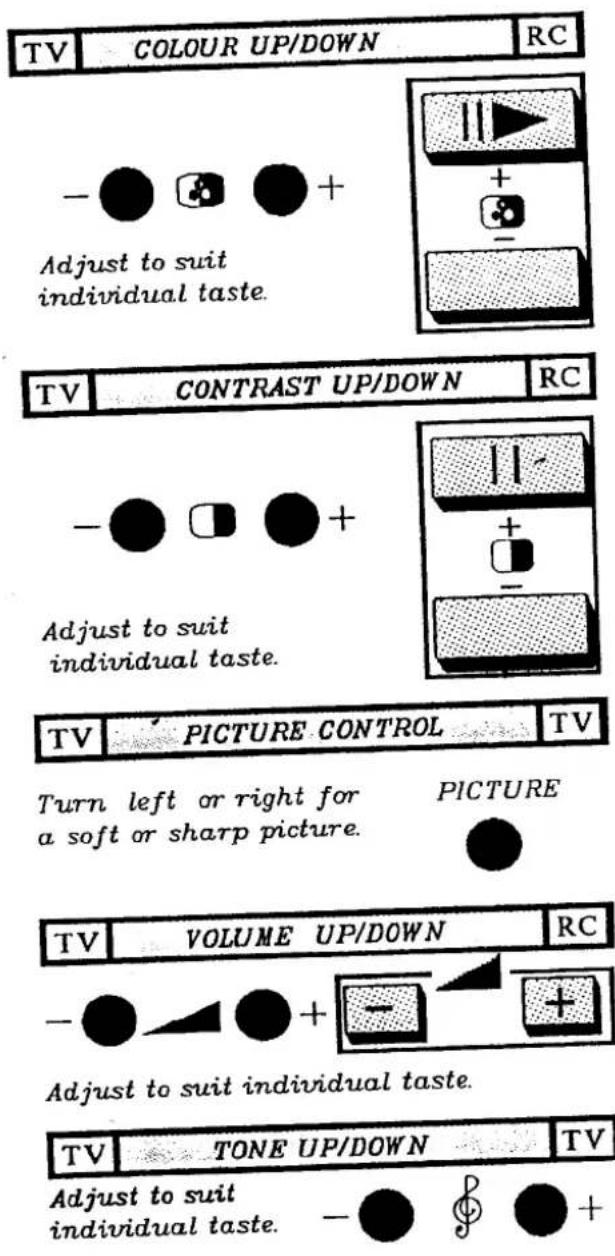

TV COLOUR UP/DOWN RC - ● + Adjust to suit individual taste. TV CONTRAST UP/DOWN RC - ● + Adjust to suit individual taste. TV PICTURE CONTROL TV Turn left or right for a soft or sharp picture. PICTURE TV VOLUME UP/DOWN RC - ● + Adjust to suit individual taste. TV TONE UP/DOWN TV Adjust to suit individual taste. - ● +

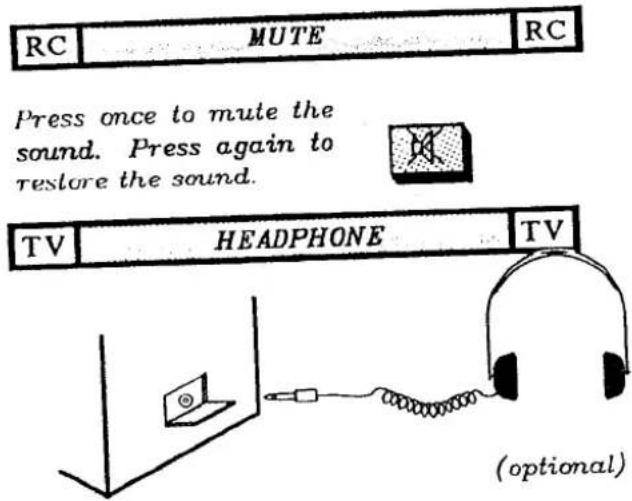

RC MUTE RC Press once to mute the sound. Press again to restore the sound. TV HEADPHONE TV (optional)

A standard 1/4.ins. headphone socket is available for the connection of 8-300 Ohm impedance headphones. NOTE: The TV speakers will be automatically disconnected while the headphones are connected.

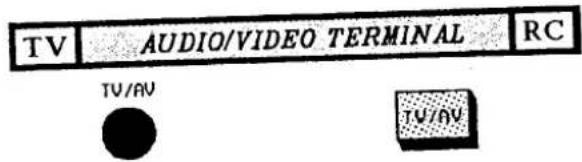

TV AUDIO/VIDEO TERMINAL RC TV/AV TV/AV

To select the audio/video terminals (R.C.A. and B.N.C.) for use with video recorders/computers etc. press the TV/AV button. To switch back to TV mode press once again.

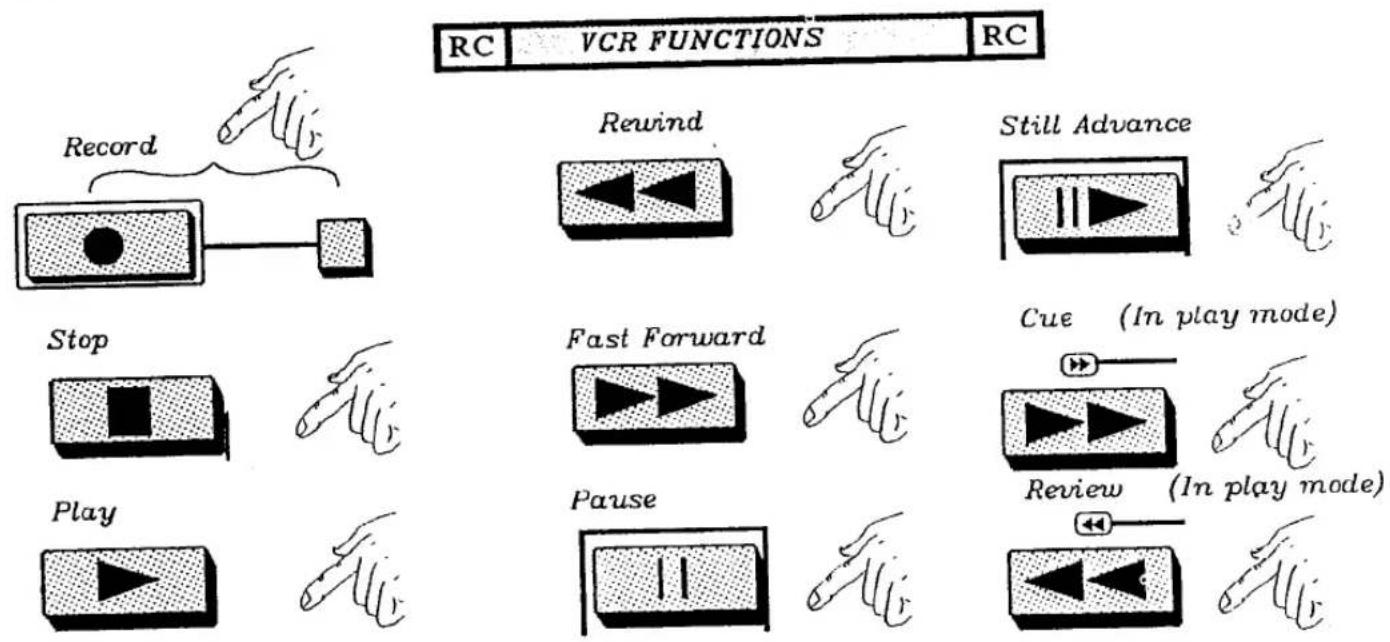

RC VCR OPERATION RC

Your infrared remote control will also operate functions on selected Panasonic VCR's. (For model types please contact your local dealer.) IMPORTANT: First set the TV/VTR switch to the VTR position, then press the button shown below to perform the required operation.

NOTE: To view the VCR select "AV" if using a direct connection. If using a RF connection please select programme 0 and ensure that this programme is tuned to the VCR. Refer to the VCR operating instruction book.

SLEEP FEATURE

When the TV station transmission stops i.e. at the end of the evening, when the broadcast station stops transmitting, if the set is not switched off it will automatically go to "STANDBY" after approximately thirty minutes.

NOTE: This feature only operates if the receiver is in TV mode and will not operate in AV mode.

SERVICE

To obtain service please contact your local PANASONIC dealer, and quote: the model number and serial number (both are located at the rear of the TV).

TV GAMES/MICROCOMPUTERS

The extended use of "TV GAMES/MICROCOMPUTERS" with any television set can cause a permanent "shadow" on the television picture tube. This background image is viewable on normal programmes in the form of stationary TV GAMES/MICROCOMPUTER objects. This type of irreversible picture tube deterioration, that may be caused can be limited by observing the following steps:

a) Reduce the brightness/contrast setting to a minimum viewing level during TV GAMES/MICROCOMPUTER operation.
b) Do not operate the television set with the "TV GAMES/MICROCOMPUTER" for a continuous extended period of time.
c) Be sure to turn the TV off when not in actual use. The marking or retained image on the picture tube resulting from "TV GAMES/MICROCOMPUTER" use, is not an operating defect and as such is not covered by the PANASONIC warranty.

TROUBLE SHOOTING.

In case of difficulty... before you call for service, determine the symptoms and make a few simple checks as follows:

SYMPTOMS	CHECKS
No brightness.No sound.	Power line.Brightness andVolume buttons.
Snow on screen.Noisy sound.	Aerial connection orindoor aerial.
No colour.Normal or weak sound.	Colour button.Aerial connection.
Normal picture.No sound.	HeadphoneVolume button.
Multiple image.Normal sound.	Direction andlocation or aerial.
Interference on screen.Distorted noisy sound.	Appliances, lights, carselectrical equipment etc.
Remote control malfunctionsor reduction in theoperating distance.	Replace batteries.Check battery terminals.Clean indicator window.

\*\* BATTERY CAUTION \*\*

1. Do not use an old battery with a new one
2. No not use batteries other than the type specified.
3. Be sure that the batteries are inserted correctly.
4. Do not attempt to recharge batteries.
5. Be sure that the batteries are correctly located and tie
   level with the case before replacing the cover.

BATTERY INSTALLATION AND ADJUSTMENT.

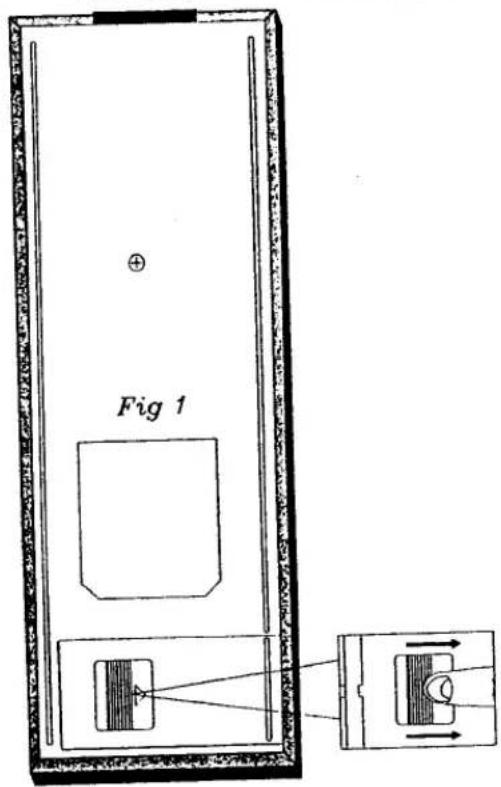

1. Push down the stopper and remove the cover as in fig 1.

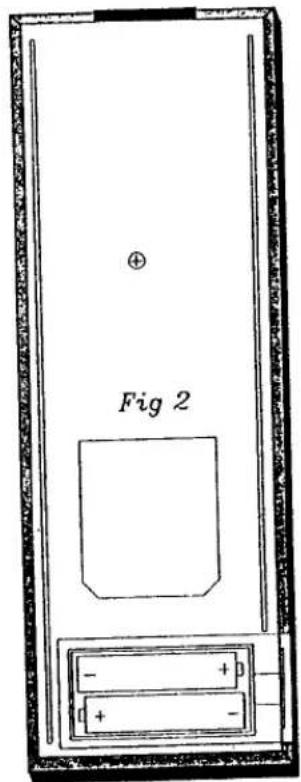

2. Insert two "R03" size batteries (UM-4 or equivalent) in the
   correct position as in fig 2.

Fig 1

Fig 2 - + - + -

SPECIFICATIONS

Power source	240V, 50Hz AC
Power consumption	89W (normal use)
Aerial impedance	75 Ohm unbalanced coaxial
Television System	CCIR: 625 Lines PAL I
Receiving channels	UHF CH21-CH69
Tuning system	Quartz Frequency Synthesizer
Channel indication	7-segment green LED
Picture tube	51cm 90deg FST
Audio Output	3 Watts Maximum
Speaker	8X16cm oval woofer
	3cm round tweeter
Terminals	1 BNC Video in 1Vp-p 75 Ohms Unbalanced
	1 RCA Audio in 400mV 47K Ohms
	Headphone
Dimensions	Height 446mm
	Width 607mm
	Depth 476mm
Net Weight	26.9 Kg.

Weights and dimensions shown are approximate. Specifications are subject to change without notice.

Standard accessories

One Remote Controller EUR51203

Two RO3 size Batteries.
