TX-W32R4DP TX-W28R4DP

Colour Television

(U.K. Standard)

DOLBY SURROUND

PRO·LOGIC

DIGITAL

8-BIT

Technology

Quintrix WIDE

Operating Instructions

Dolby, Pro Logic and the ☐ are trademarks of Dolby Laboratories.

Manufactured under license from Dolby Laboratories

WELCOME

Dear Panasonic Customer,

Welcome to the Panasonic family of customers. We hope that you have many years of enjoyment from your new colour television. This is a very advanced television; however, the Quick Start Guide will allow you to use the TV as quickly as possible. You can then read the instructions completely and retain them for future reference.

CONTENTS

Warnings and Precautions 3

Accessories 4

Inserting the Remote Control Batteries 4

Basic Controls 5

Quick Start Guide....6

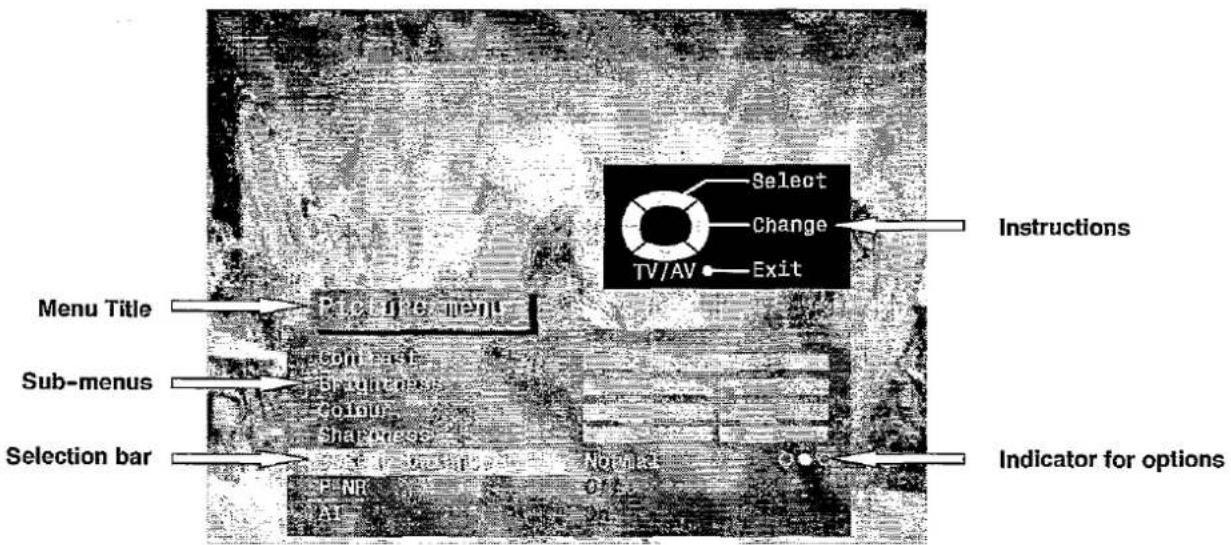

Using the On Screen Displays 12

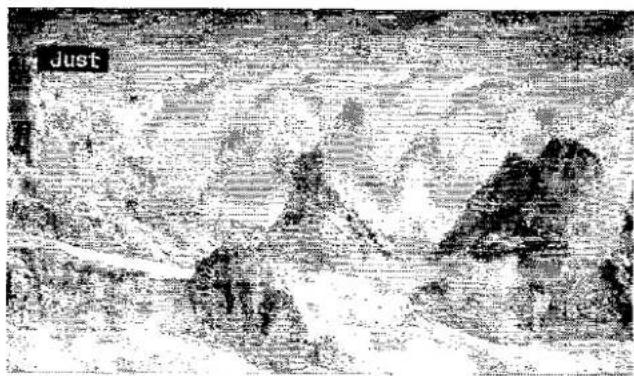

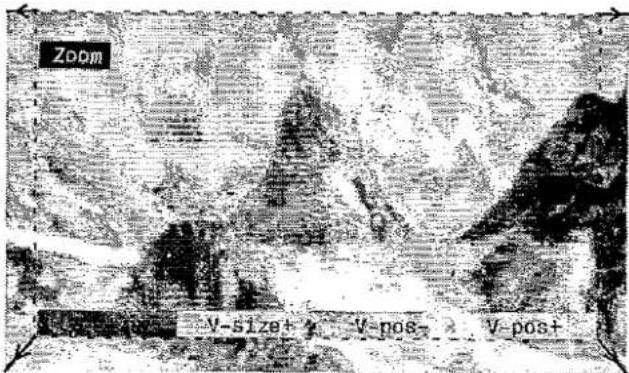

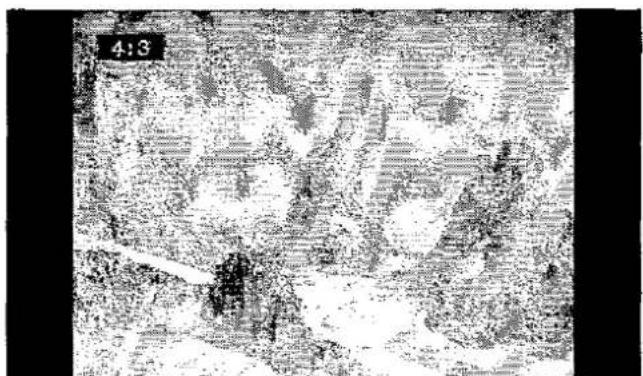

Aspect Control 13

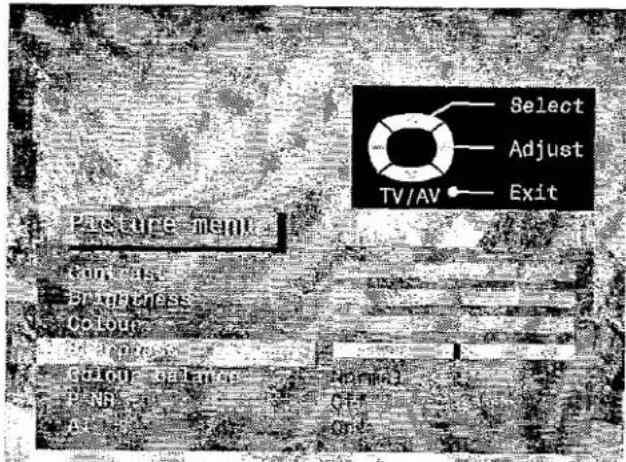

Picture Menu 15

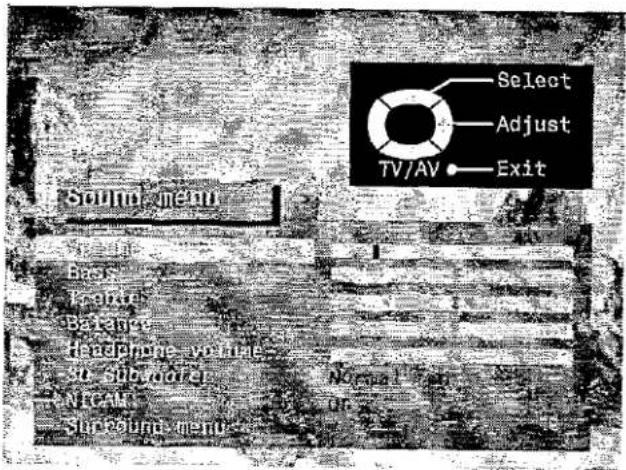

Sound Menu 16

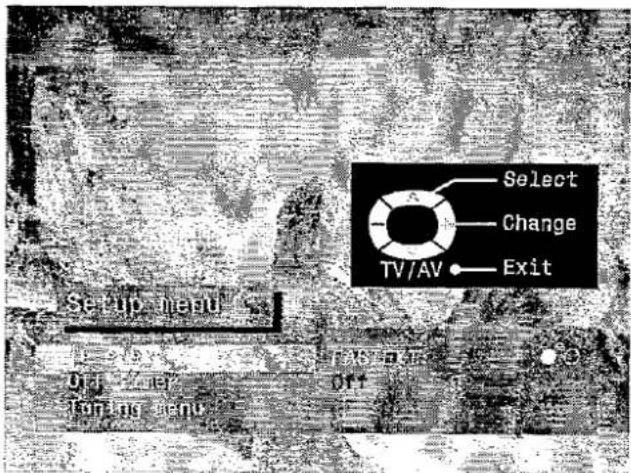

Setup Menu 17

Tuning Menu - overview 18

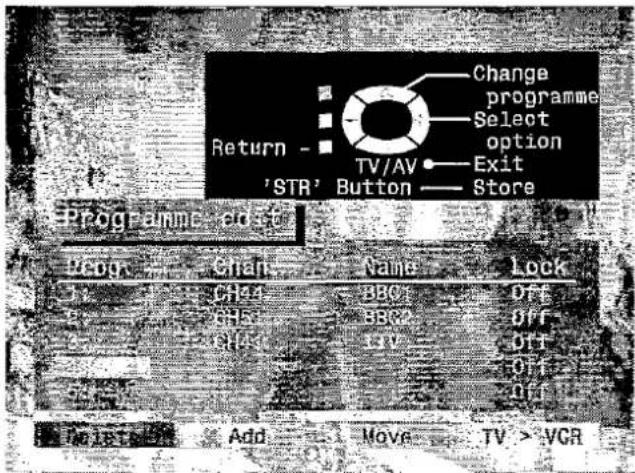

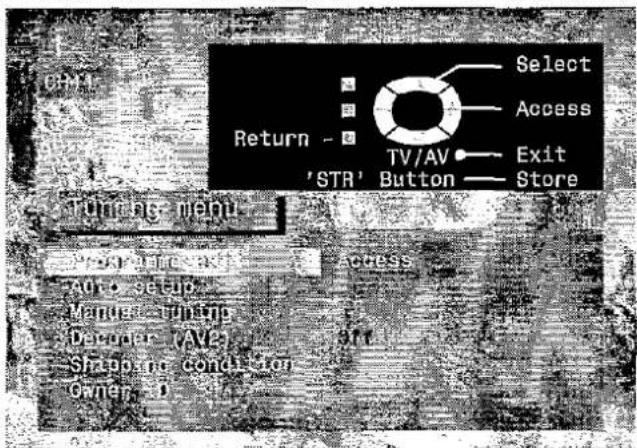

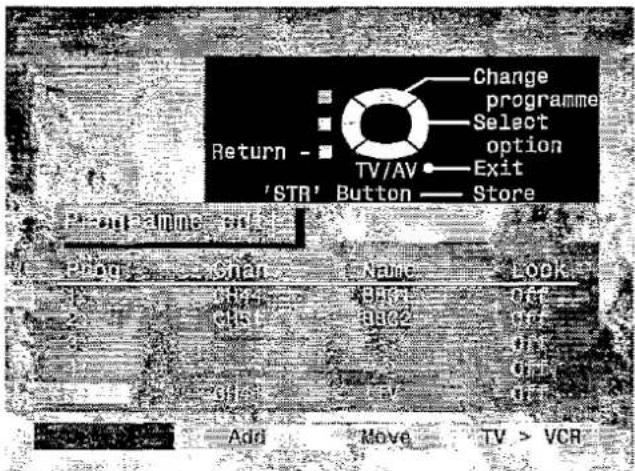

Tuning Menu - Programme edit 19

Tuning Menu - Auto setup 23

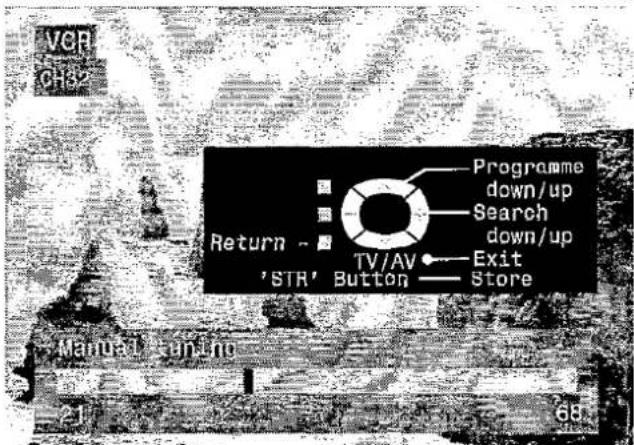

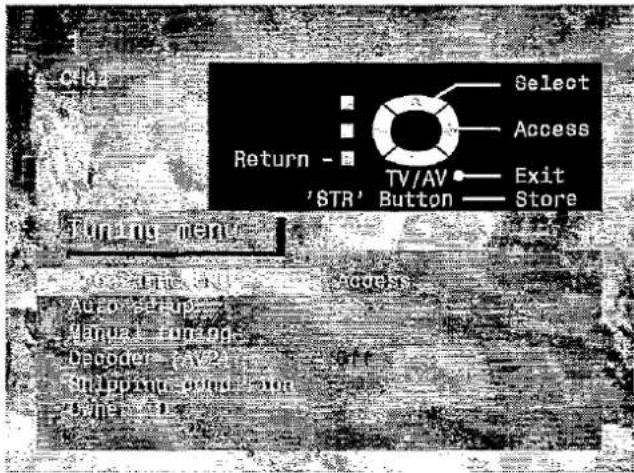

Tuning Menu - Manual tuning 24

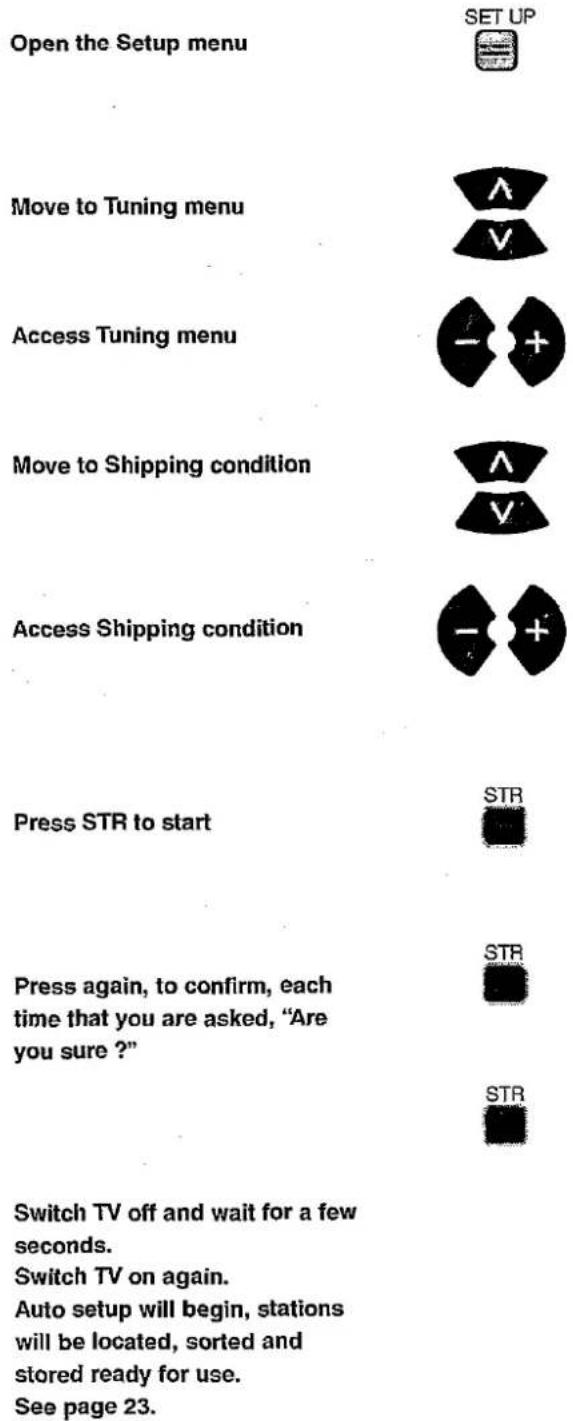

Tuning Menu - Shipping condition 25

Tuning Menu - Owner I.D. 26

AV Select and Setup 27

Q-Link 28

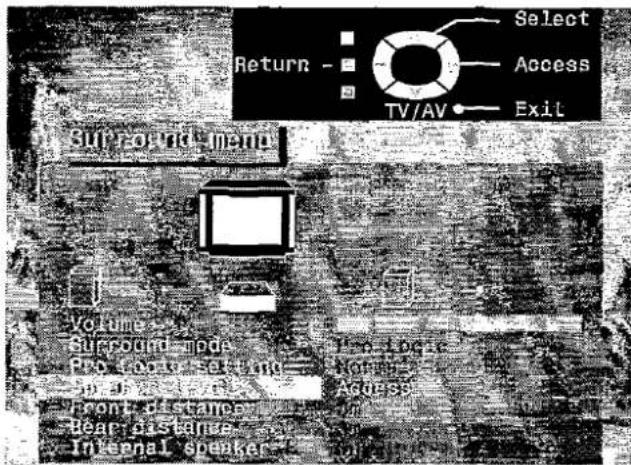

Dolby Pro Logic Surround Menu 30

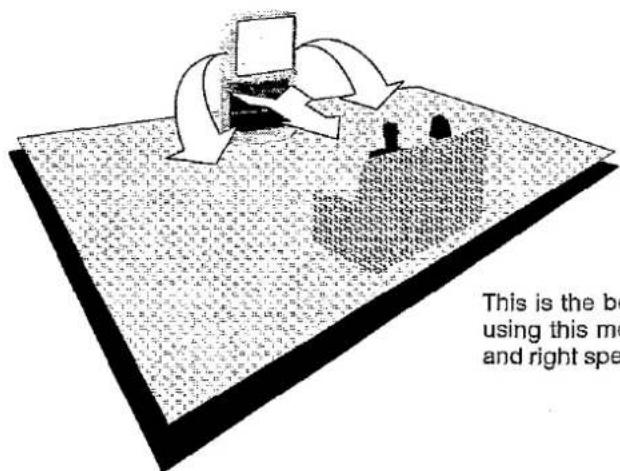

Pro Logic mode 31

Simulated mode 32

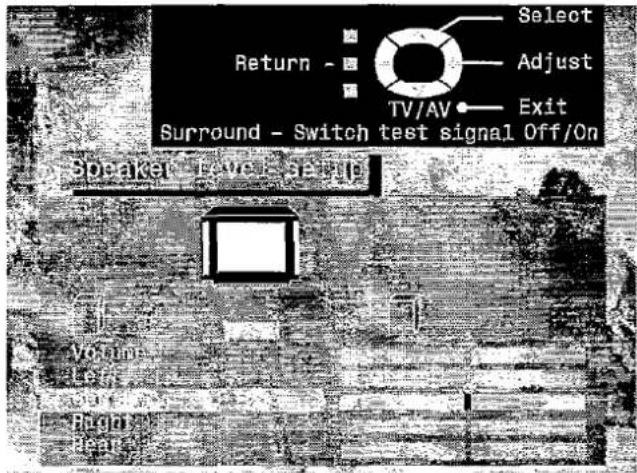

Speaker level setup 32

VCR and Satellite Receiver Installation 33

VCR/DVD Operation 34

Teletext Operation 35

Audio / Video (AV) Connections 37

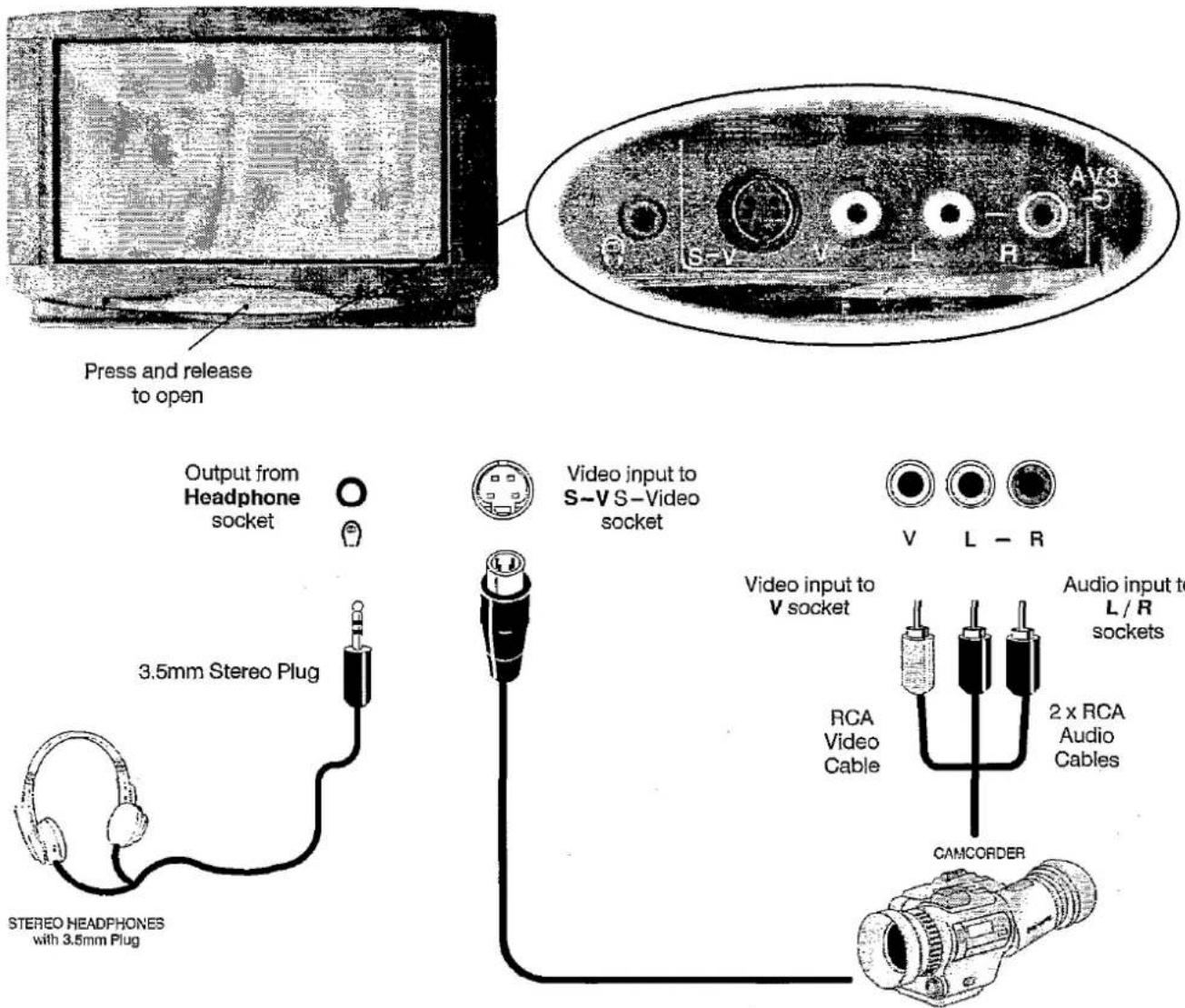

Via the front AV3 4 pin S—Video, RCA Audio / Video and Headphone Sockets .... 37

Scart and S-Video Terminal Information ....37

Via the rear AV1 / AV2 21 Pin (Scart) and RCA Audio Out terminals....38

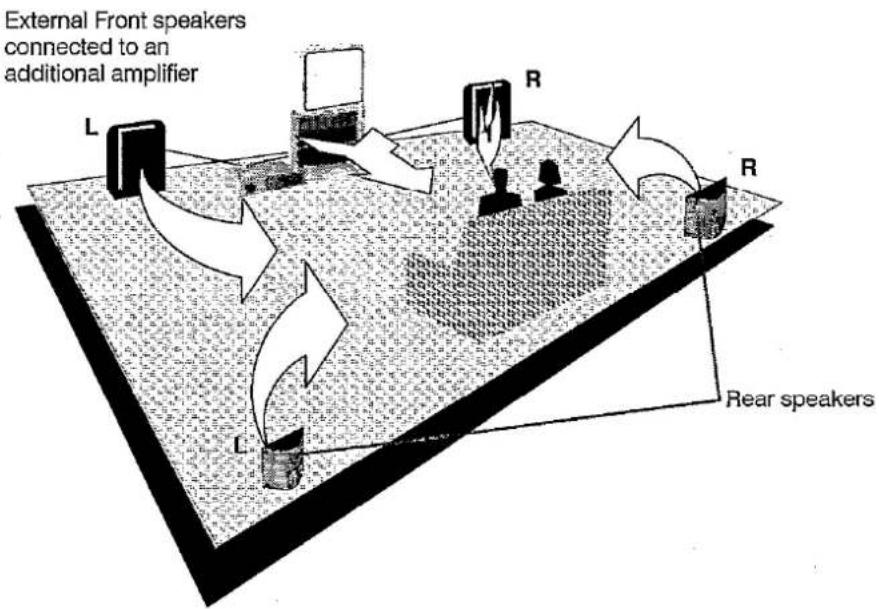

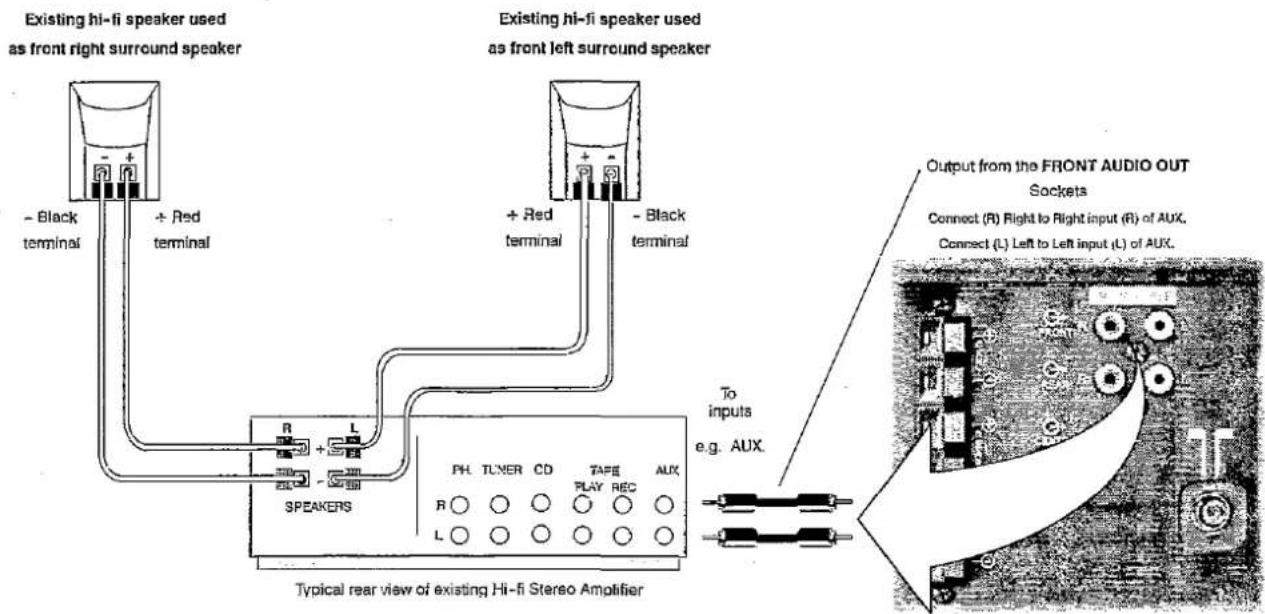

Using external amplifiers and speakers ..... 39

Trouble-shooting 40

For your guidance 41

Specifications 41

WARNINGS AND PRECAUTIONS

• This TV set is designed to operate on 220 - 240V, 50Hz A.C.
• To prevent damage which might result in electric shock or fire, do not expose this TV set to rain or excessive moisture.
• WARNING : HIGH VOLTAGE !!!
  Do not remove the rear cover as live parts are accessible when it is removed. There are no user serviceable parts inside.
• Avoid exposing the TV set to direct sunlight and other sources of heat.
• The On/Off switch on this model does not fully disconnect the TV from the mains supply. Remove the mains plug from the wall socket when the TV set is not used for a prolonged period of time.

• CABINET AND PICTURE TUBE CARE

Remove the mains plug from the wall socket. The cabinet and picture tube can be cleaned with a soft cloth moistened with mild detergent and water. Do not use solutions containing benzol or petroleum. TV sets can produce static electricity, care must be taken whenever touching the TV screen.

- Adequate ventilation is essential to prevent failure of electrical components, we recommend that a gap of at least 5cm is left all around this television receiver even when it is placed inside a cabinet or between shelves.

FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY

This appliance is supplied with a fitted three pin mains plug for your safety and convenience. A 5 amp fuse is fitted in this plug. If the fuse is replaced then the replacement fuse must be 5 amp rated and should be approved by ASTA or BSI to BS1362.

Check for the ASTA mark

or the BSI mark

on the body of the fuse.

If the fitted plug has a removable fuse cover you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained. Replacement fuse covers can be purchased through your local Panasonic dealer.

The plug fitted to this appliance incorporates a mains filter circuit. If this is removed or replaced with a non-filtered plug this television will no longer meet the European standards for Electromagnetic Compatibility (EMC). If the fitted plug is unsuitable for the socket outlet in your home an appropriate adapter should be used.

Nonetheless, if the fitted plug is replaced, the fuse should be taken out and the cut-off plug disposed of safely. There is danger of severe electrical shock if the cut off plug is inserted into any 13 amp. socket.

If a new plug is to be fitted please observe the wiring code as shown below. If in any doubt please consult a qualified electrician.

How to replace the fuse (for plug type shown in example 1):

Lift out the removable fuse compartment with a screwdriver and replace the fuse, then refit securely into the mains plug (See example 1).

How to replace the fuse (for plug type shown in example 2):

Lift open the fuse compartment, in the mains plug, with a screwdriver, and replace the fuse, then press the fuse cover down securely. (See example 2).

Example 1.

Simple line drawing of a handheld device with a lever and handle (no text or symbols)

Example 2.

Diagram of a device with labeled ports and internal components, showing connections between a connector and a display panel.

IMPORTANT :- The wires in the mains lead of this appliance are coloured in accordance with the following code :-

BLUE : NEUTRAL

BROWN : LIVE

As the colours of the wires in the mains lead of this appliance may not correspond to the markings identifying the terminals in your plug, proceed as follows :-

1. The BLUE wire must be connected to the terminal marked 'N' or coloured black.
2. The BROWN wire must be connected to the terminal marked 'L' or coloured red.

IMPORTANT NOTE: Under no circumstances should either of these wires be connected to the Earth terminal of the three pin plug, marked with the letter 'E' or the earth symbol.

ACCESSORIES

Check that you have the accessories and items shown

Operating Instruction book TQB8E2474

Remote Control Transmitter EUR511210

Batteries for the Remote Control Transmitter. (2 x R6 (UM3) size)

Panasonic TX-W32R4DP TX-W28R4DP

Illustration of a traditional abacus with beads and a handle (no text or symbols)

CRT Guarantee

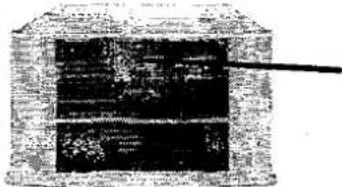

TS-400DP (Video cabinet / Speaker pack), comprising :

VS-W32D2DP Video cabinet

Scanned document fragment with dense text and a pen-like line, likely a form or template

Centre speaker - (Built in)

TV Guarantee

Speaker cables (12 metres each)

Rear surround speakers (x2)

Questionnaire

Two identical line drawings of a twisted rope or rope knot, no text or symbols present

INSERTING THE REMOTE CONTROL BATTERIES

①

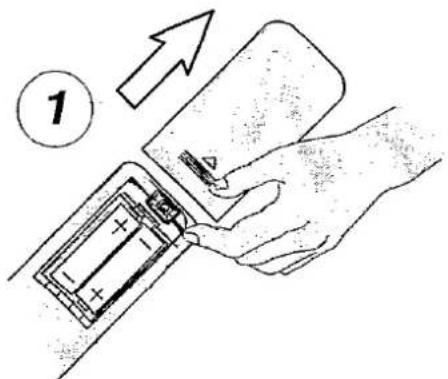

Slide off the battery cover

2 Pneumo Pneumo Pneumo

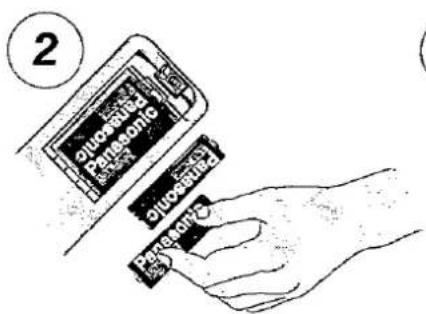

Insert batteries - note correct polarity (+ and -)

3 Citrostatic Pensions

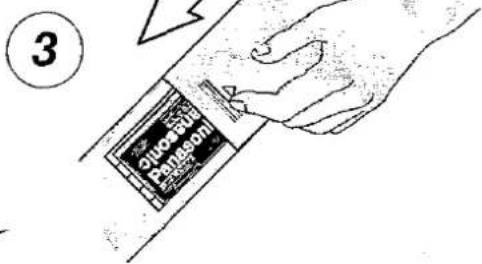

Replace the cover

Notes:

• Make sure that the batteries are fitted the correct way round.
- Do not mix old batteries with new batteries. Remove old, exhausted batteries immediately.
- Do not mix different battery types, i.e. Alkaline and Manganese. Do not use rechargeable (Ni-Cad) batteries.

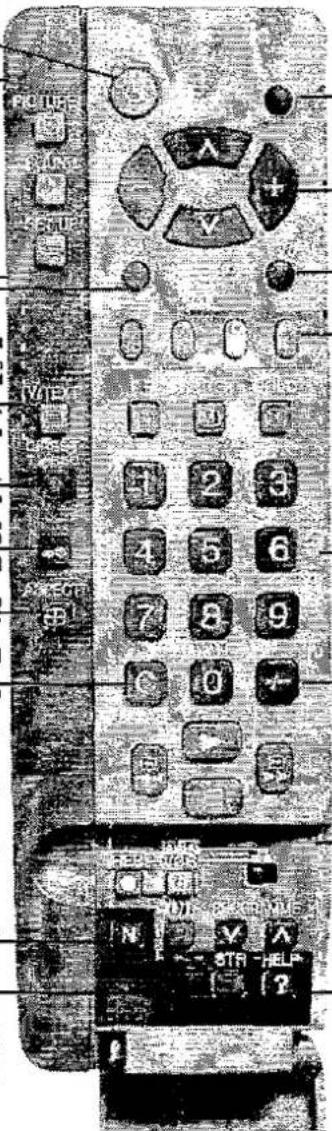

BASIC CONTROLS : FRONT PANEL AND REMOTE CONTROL

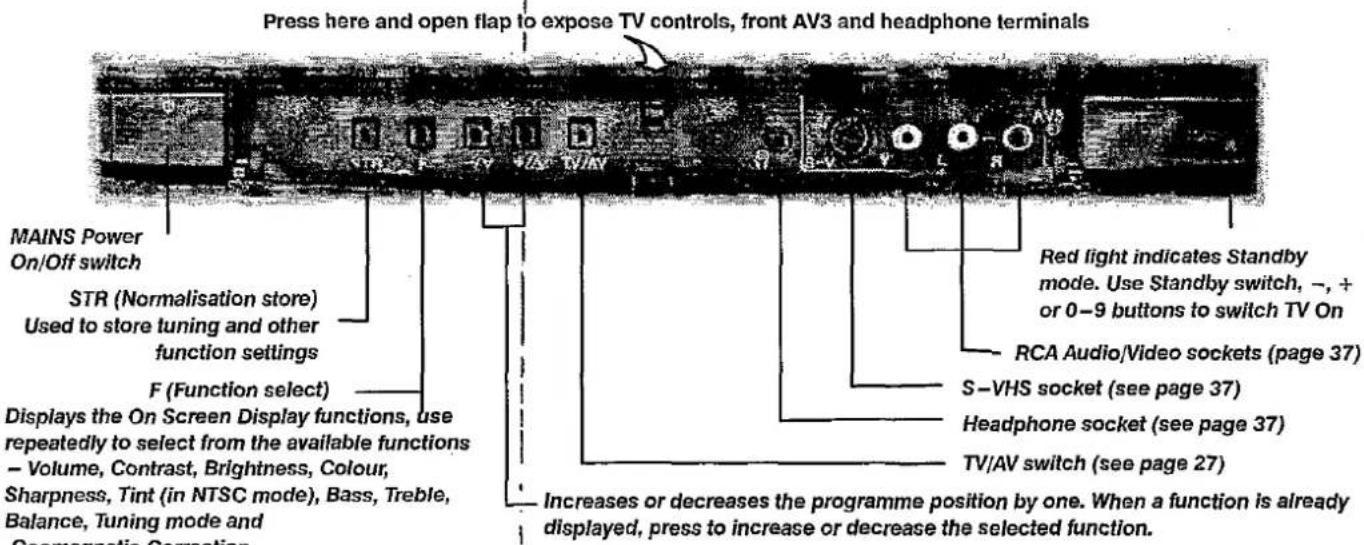

Press here and open flap to expose TV controls, front AV3 and headphone terminals MAINS Power On/Off switch STR (Normalisation store) Used to store tuning and other function settings F (Function select) Displays the On Screen Display functions, use repeatedly to select from the available functions - Volume, Contrast, Brightness, Colour, Sharpness, Tint (in NTSC mode), Bass, Treble, Balance, Tuning mode and Cosmagnetic Correction Red light indicates Standby mode. Use Standby switch, -, + or 0–9 buttons to switch TV On RCA Audio/Video sockets (page 37) S-VHS socket (see page 37) Headphone socket (see page 37) TV/AV switch (see page 27) Increases or decreases the programme position by one. When a function is already displayed, press to increase or decrease the selected function.

(TX-W32R4DP only) Your geographical location may cause the picture to be slanted. Accessing the Geomagnetic Correction menu will allow you to correct the picture.

Standby ON/OFF switch Switches TV On or Off standby.

Menu buttons

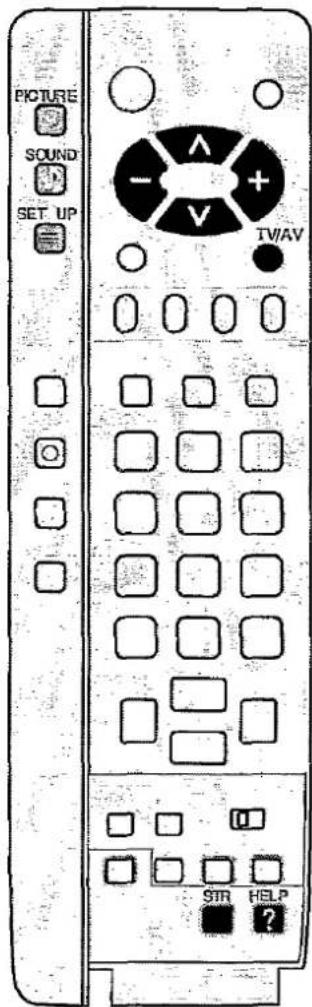

Press to access the Picture, Sound and Setup menus (see page 12)

Status button

Press to display programme position, programme name, channel number, time, NICAM mode and programme table

Teletext buttons (see page 35)

Direct TV Record button (see page 28)

Surround on/off

Aspect control button (see page 13)

Direct channel access During normal TV viewing or when in the Tuning, Programme edit or Manual tuning menus, press and then enter channel number using the numeric buttons

The N button will recall settings stored with STR STR (Normalisation store)

Black-and-white image of a vintage mobile phone keypad with visible function keys and buttons

Sound mute On/Off

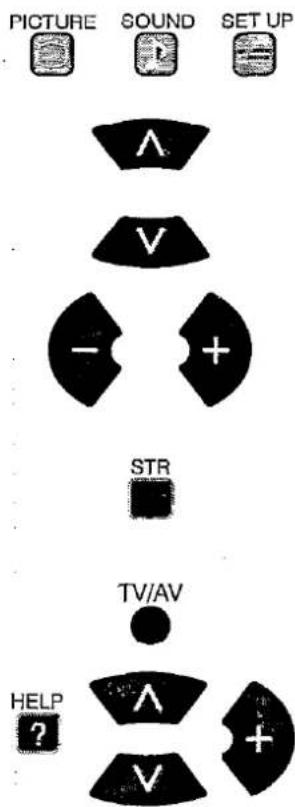

Cursor buttons to make selections and adjustments

Switch between viewing TV or AV input (see page 27)

Coloured buttons used for Programme Edit functions (see page 19) Teletext functions (see page 35) AV selection (see page 27)

Programme / channel change buttons (0-9) and Teletext page buttons (see page 35) When in Standby mode, switches TV on.

Programme position for selection of two digit programmes (10-99) using numeric buttons

VCR / DVD buttons (see page 34)

The Help button provides a demonstration of On Screen Display menus

QUICK START GUIDE

Connection and setting up options

1. If connecting the TV using an RF cable only, proceed to option 1.
2. If connecting the TV using Scart and RF cables, proceed to option 2.
3. If connecting the TV to a Q-Link (or Q-Link compatible) VCR, proceed to option 3 on page 7.

What is Q-Link?

Q-Link allows direct communication between the TV and a Q-Link (or Q-Link compatible) VCR, this will enable features such as

downloading of tuning information from the TV to the VCR.

1. Connection of TV using an RF cable only

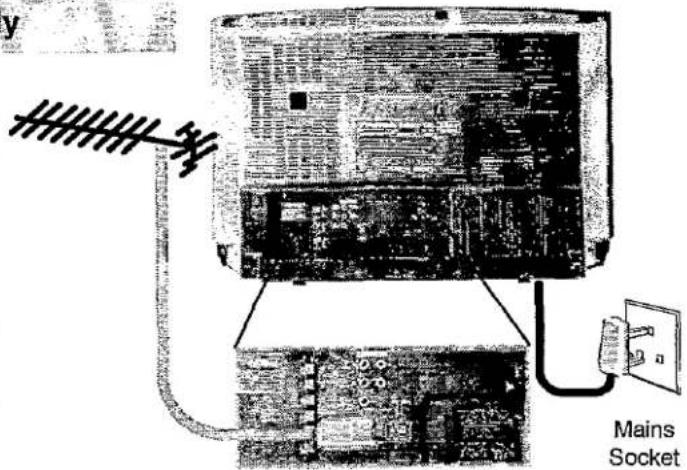

Connect the RF cable into the TV Aerial socket ( 7Γ ).

y Mains Socket

2. Connection of TV and VCR using Scart and RF cables

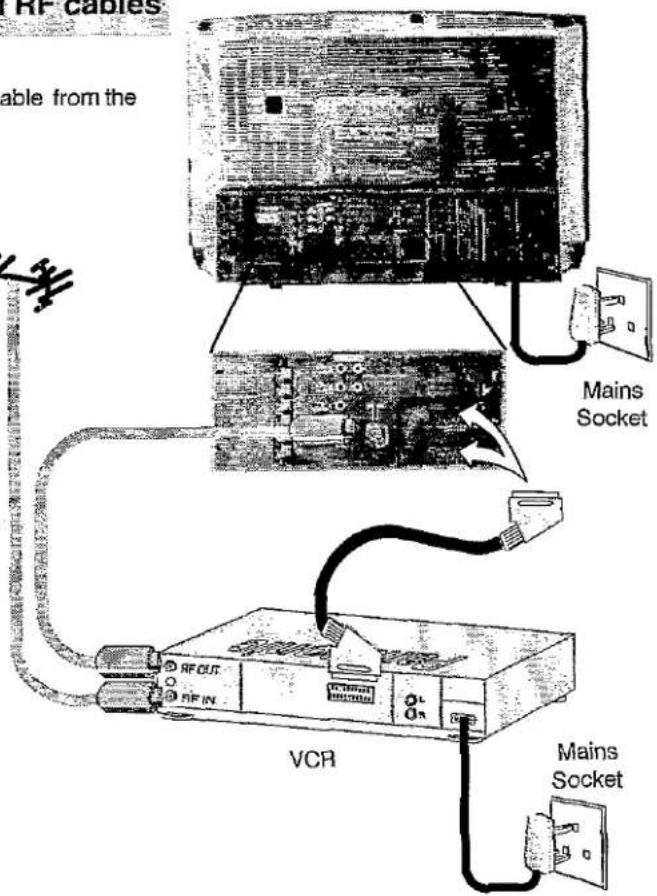

Connect the RF cable to the Aerial In socket of the VCR and an RF cable from the VCR Aerial Out socket to the TV Aerial socket (7Γ).

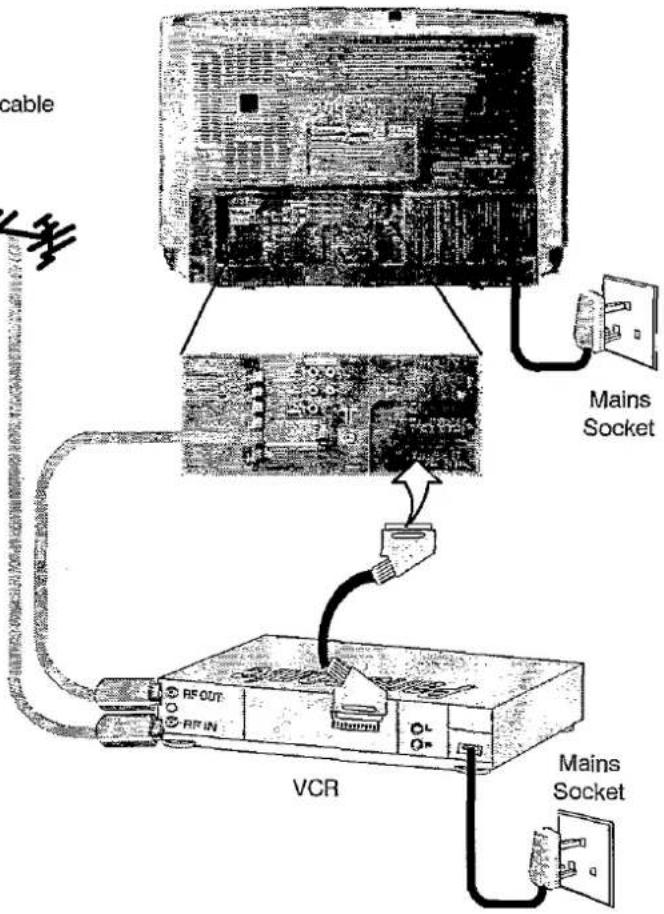

Scart Connections

The VCR can also be connected to the TV using a Scart cable if you are using a Scart equipped VCR.

Use the TV's AV1 Scart socket for a VCR.

Use the TV's AV2S Scart socket for an S-Video VCR.

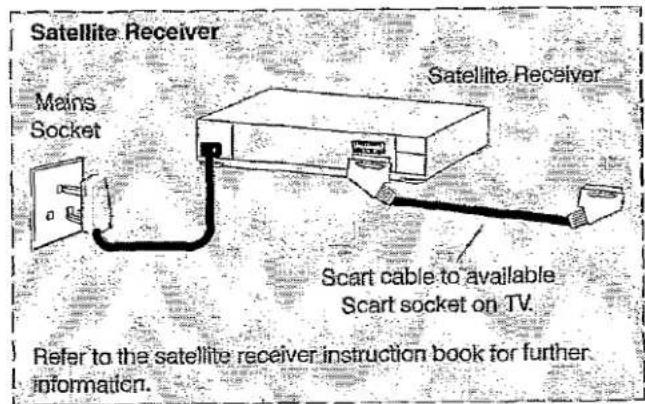

Satellite Receiver Mains Socket Satellite Receiver Scart cable to available Scart socket on TV. Refer to the satellite receiver instruction book for further information.

RF cables able from the Mains Socket VCR Mains Socket

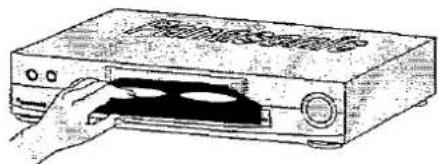

Notes :

Additional equipment and cables are not supplied.

Further details of Audio/Video connections can be found on pages 37 and 38.

QUICK START GUIDE

3. Q-Link connection of TV and VCR using Scart and RF cables

When using a "NEXTVIEWLINK" VCR the main features possible are the following :

• Preset Download - Downloading of tuning information from the TV to the VCR.

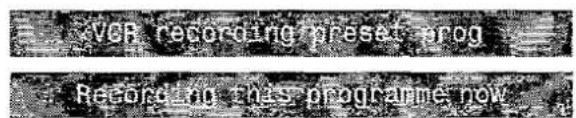

• Direct TV Record - For immediate recording of the current program (What You See Is What You Record).

When using a "Q-Link" VCR the main features possible are the following :

• Preset Download - Downloading of tuning information from the TV to the VCR.
• Direct TV Record – For immediate recording of the current program (What You See Is What You Record).
  • TV/VCR Auto Power On - When the VCR plays a tape the TV will automatically switch On and select the AV2 input.
  • VCR Auto Power Standby - When the TV is switched into Standby, the VCR will also switch into Standby.
• VCR Image view On - If the TV is in Standby mode and the VCR sends a menu to be displayed on the TV screen (e.g. Main menu), the TV will automatically switch On and the menu will be displayed.

This TV will also communicate with other VCR's that bear the following logo's :

• "DATA LOGIC" (a trademark of Metz Corporation).
• "Easy Link" (a trademark of Philips Corporation).
• "Megalogic" (a trademark of Grundig Corporation).
• "SMARTLINK" (a trademark of Sony Corporation).

These VCR's may support some or all of the above functions.

Refer to the VCR operating instruction book.

Further information on Q-Link can be found on page 28.

Connect the RF cable to the Aerial In socket of the VCR and an RF cable from the VCR Aerial Out socket to the TV Aerial socket ( 7Γ ).

Scart Connection

The VCR must be connected to the AV2 Scart socket of this TV using a 'fully wired' Scart cable.

For connection to the appropriate Scart socket on the VCR, refer to the VCR operating instruction book.

Satellite Receiver Mains Socket Satellite Receiver Scart cable to available Scart socket on TV. Refer to the satellite receiver operating instruction book for further information.

cable Mains Socket VCR Mains Socket

Notes :

Additional equipment and cables are not supplied.

Further details of Audio/Video connections can be found on pages 37 and 38.

Further information for VCR and Satellite Receiver installation with this TV can be found on page 33.

QUICK START GUIDE

Connect the speakers

The TV must be switched Off.

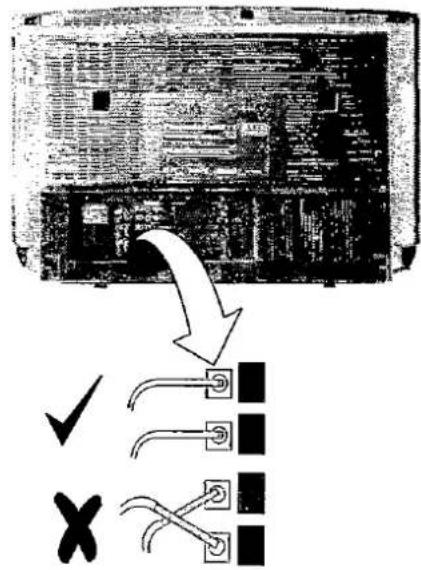

1. Twist the wire ends before inserting.

t the wire ends before inserting.

1. Insert into terminals.

Ensure that bare speaker wires are not touching.

Insert wire

Diagram showing a device with labeled buttons and a downward arrow indicating action or process flow.

Rear Surround Speakers

Wall mounting point

Hand holding a small electronic component with a downward arrow indicating force or direction (no text or symbols)

Rear of TV

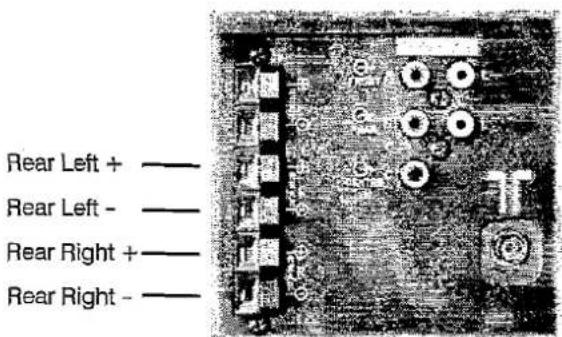

Rear Left + — Rear Left - — Rear Right + — Rear Right - —

Speaker stand mounting bracket, slide off to expose the speaker terminals.

(Speaker stands are not supplied)

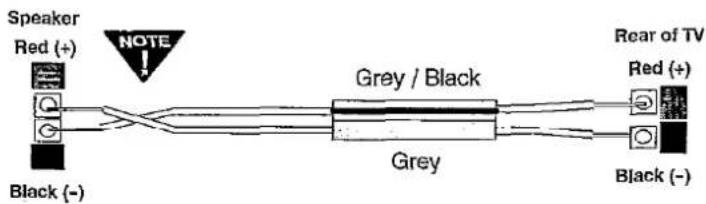

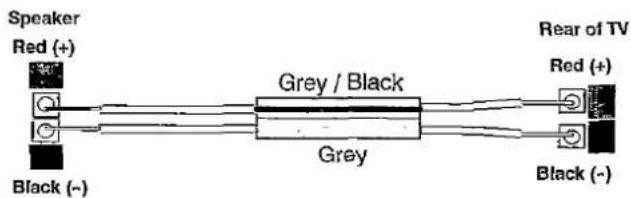

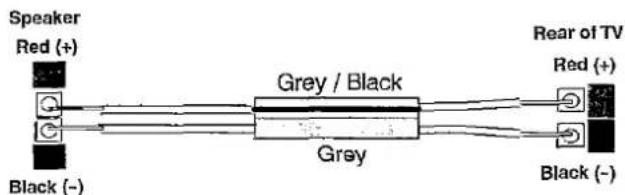

The REAR speakers can be connected in one of two ways A or B :

With both speakers connected in the same way then the sound will be 'true' to the original sound signal.

With the wiring to one speaker 'crossed over' then an additional, artificial ambience effect will be created.

Speaker Red (+) Grey / Black Rear of TV Red (+) Grey Black (-) Black (-)

Speaker Red (+) Grey / Black Rear of TV Red (+) Black (-) Grey Black (-)

Speaker Red (+) NOTE Black (-) Grey / Black Grey Rear of TV Red (+) Black (-)

QUICK START GUIDE

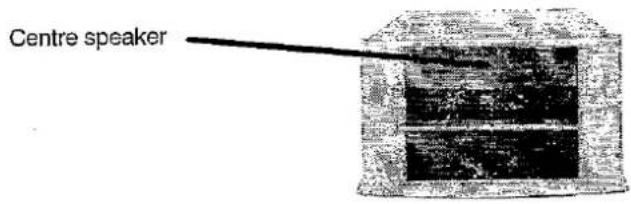

Centre speaker (Built into Video cabinet)

Centre speaker

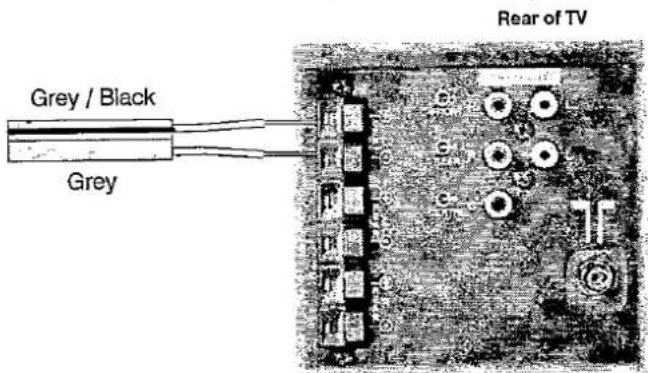

Centre Speaker (Grey cable) Connect Grey / Black to Red (+) Connect Grey to Black (-)

Grey / Black Grey Rear of TV

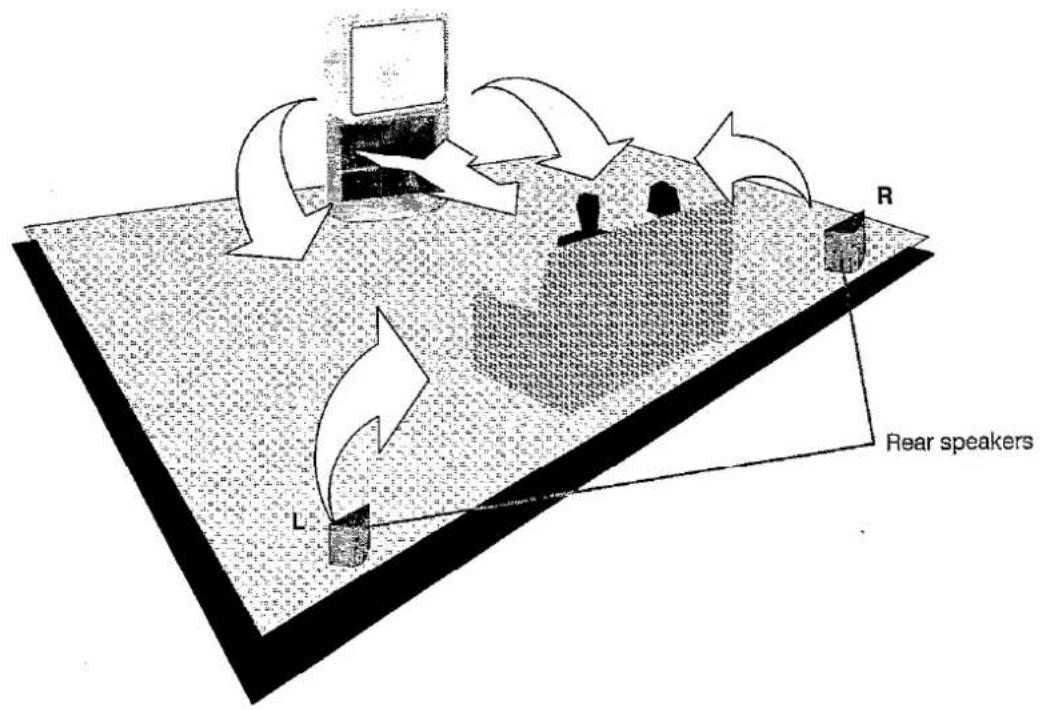

Position the speakers

R L Rear speakers

QUICK START GUIDE

1

Ensure that the VCR is in Standby mode.

Switch ON your Satellite Receiver; to ensure reliable tuning select either SKY ONE or SKY NEWS.

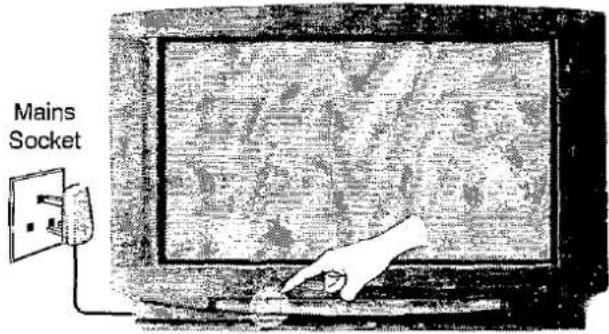

Plug the TV into mains socket and switch ON.

Mains Socket

2

Programmes will appear immediately if your dealer has programmed the TV for you.

If the TV has not been programmed for you then Auto setup will begin. TV stations will be located, sorted into order and stored ready for use.

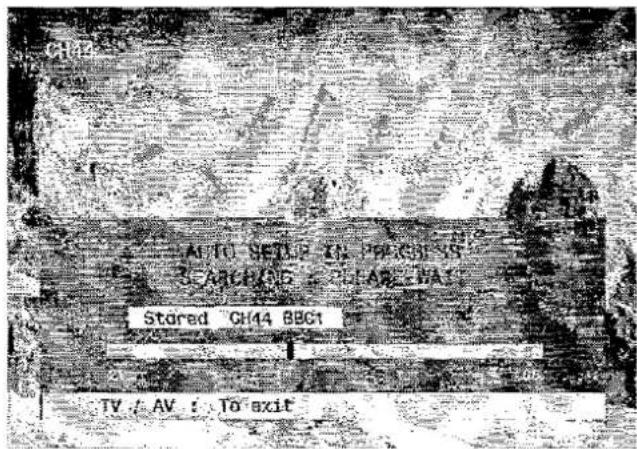

CH2 AUTO SETTLE OF PAGLICERS CHARGE 10 CAR LAT Stored "CH44 BBC1" TV: AV: To exit

3

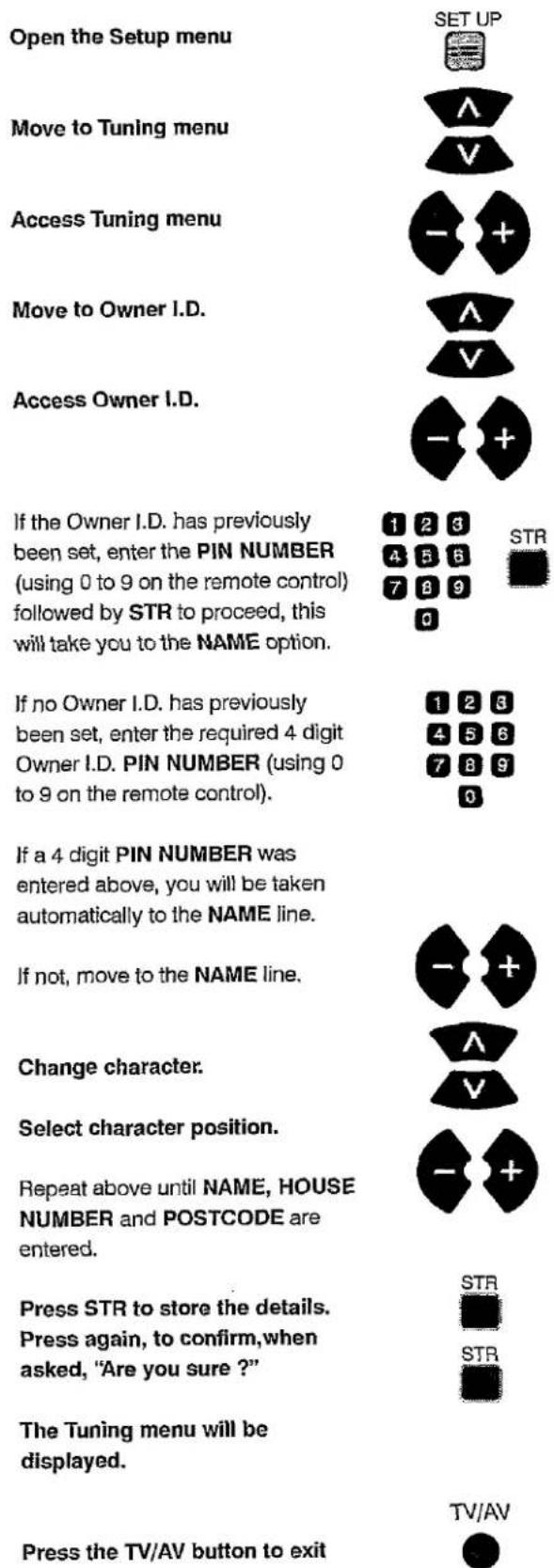

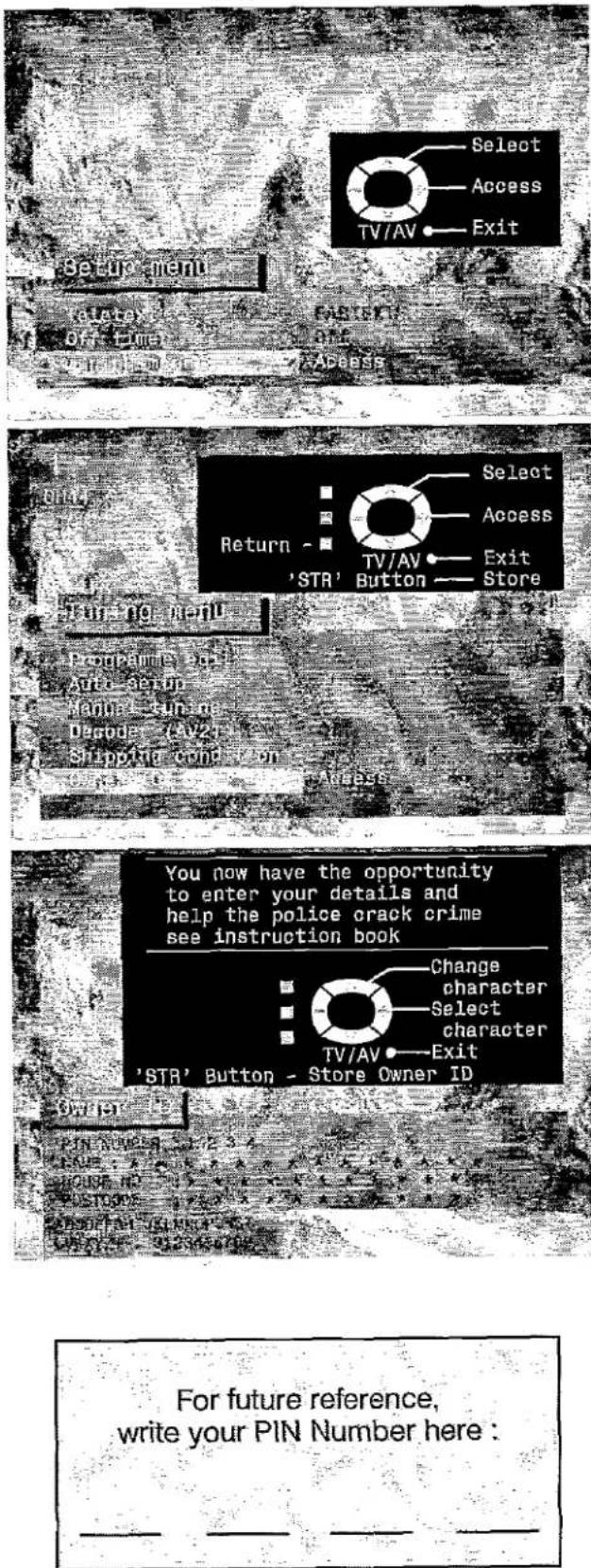

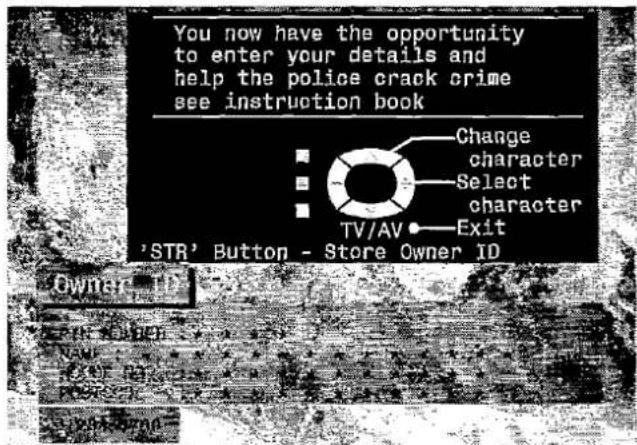

Owner ID

As an added feature, this TV has the option of adding a security code(Owner ID) and personal details into its memory, so that in the unfortunate event of theft it will help the Police to trace the owner.

Enter required 4 digit Owner ID PIN NUMBER.

(using 0 to 9 on the remote control).

You now have the opportunity to enter your details and help the police crack crime see instruction book Change character Select character TV/AV Exit 'STR' Button - Store Owner ID Owner ID EAT 10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

4

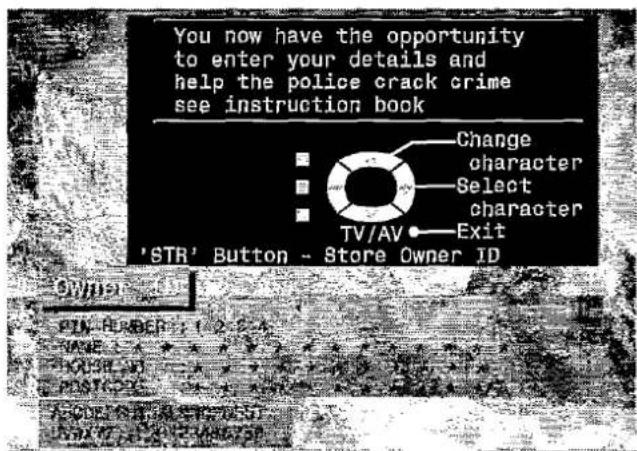

Enter NAME, HOUSE NUMBER and POSTCODE.

If a 4 digit PIN NUMBER was entered above, you will be taken automatically to the NAME line.

If not, move to the NAME line.

Change character.

Select character position.

Repeat above until NAME, HOUSE NUMBER and POSTCODE are entered.

Press STR to store the details.

Press STR again, when you are asked "Are you sure?"

- + ∧ ∨ - +

You now have the opportunity to enter your details and help the police crack crime see instruction book Change character Select character TV/AV Exit 'STR' Button - Store Owner ID OWN TITLE NUMBER: 10264 NAME: COLOR: 01 PRACTICE: ADDRESS: $500,000.00 PHONE BY: $123,800.00

For further information on Owner I.D., see page 26.

A space is provided on page 26 to write down the PIN NUMBER for future reference.

QUICK START GUIDE

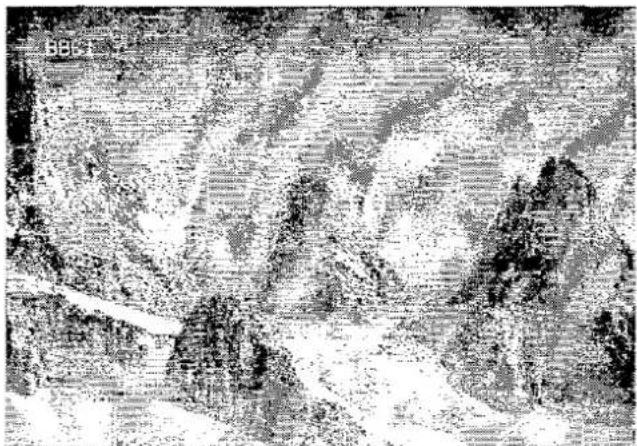

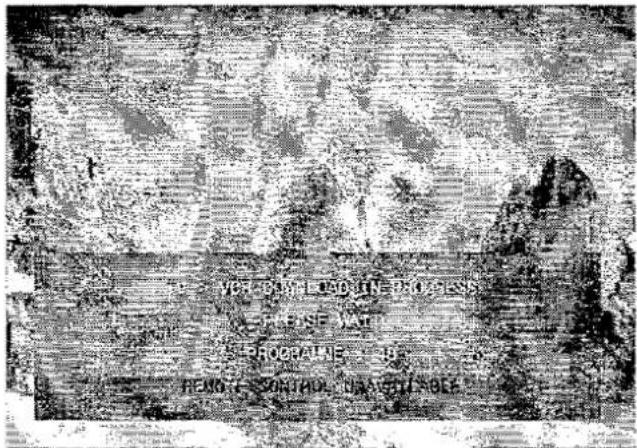

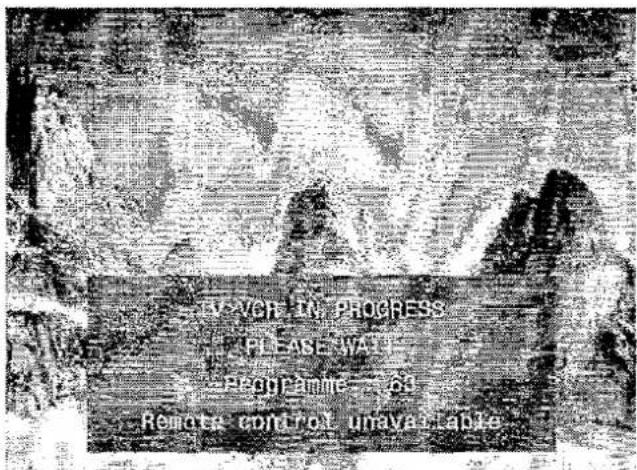

5 TV to VCR Download

If a "Q-Link", "NEXTVIEWLINK" or compatible VCR has been connected to the AV2 socket before starting Step 1, programme information will be downloaded to the VCR.

Downloaded tuning information will match the television's.

Not all VCRs support this download of programme information, some may require to be started manually.

Refer to the VCR operating instruction book.

If a VCR other than those described above has been connected, then there will be no download operation, the TV is now ready for use:—

VER CHAPES 150 IN DROPENS FRESE VAT GROADELIE REMO GROTHOL, UN AUSTOLES

READY TO GO...

Adjust Volume

Change Programme Position

Scanned text of a document with dense, fragmented Chinese characters and a large 'BB' watermark at the top left.

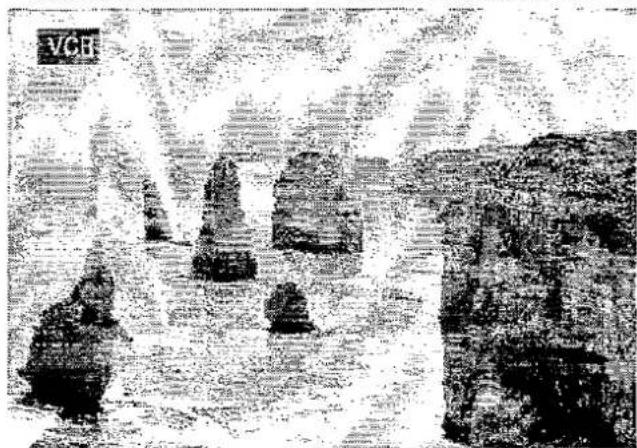

Notes :

If the VCR has not accepted download data from the TV, you may need to select the Download option from the VCR's menu system. Refer to the VCR operating instruction book.

If Q-Link is not operating correctly, check the following :

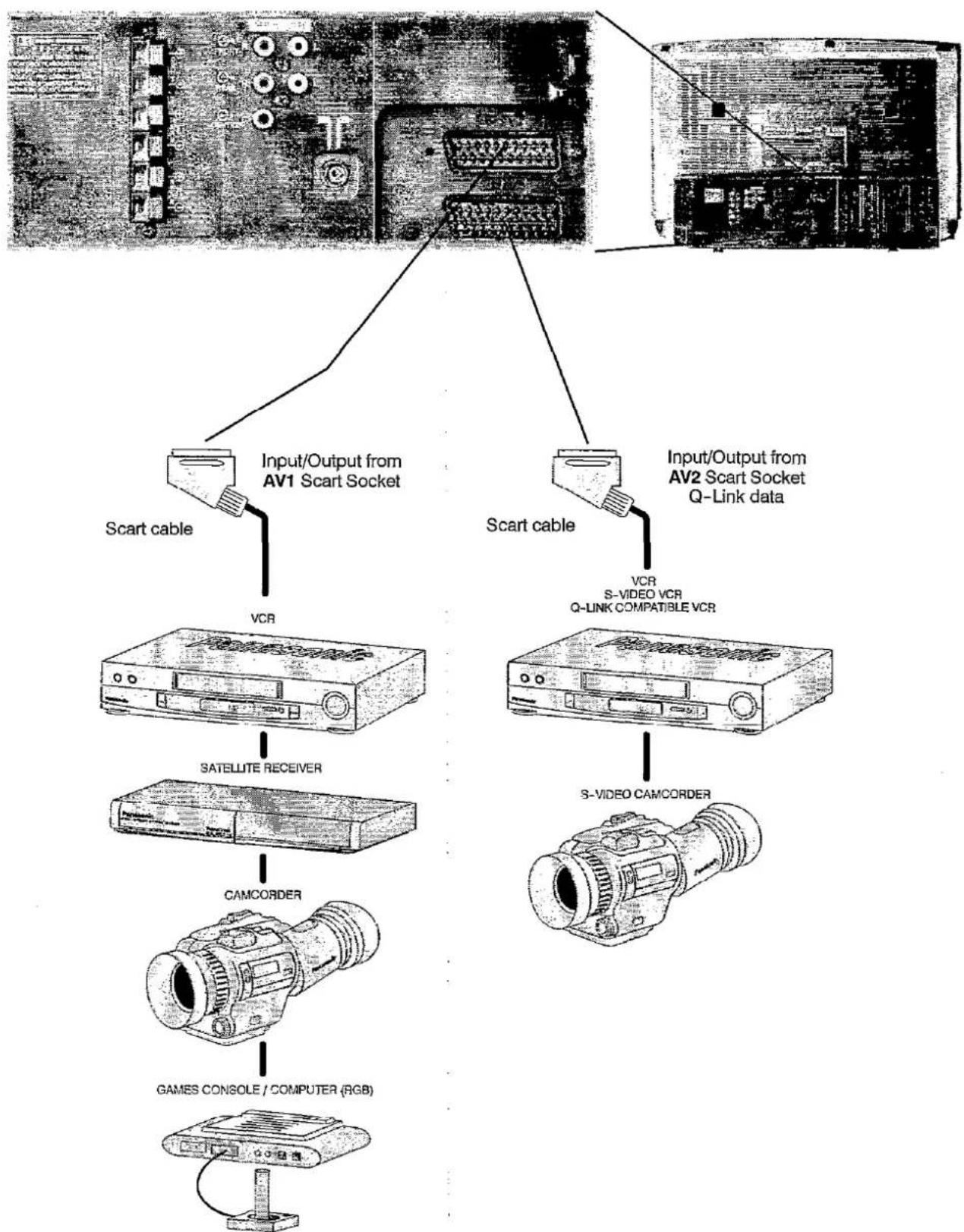

• The Scart cable is connected to the TV's AV2 Scart socket.
• The Scart cable is connected to the VCR's compatible (Q-Link, NEXTVIEWLINK or similar technology) Scart socket.
  • The Scart cable is a "fully wired" type.

For further information on Q-Link and connecting equipment, see pages 28, 37 and 38.

- The sorted programme order depends upon the TV signal, the broadcasting system, and reception conditions. If the order is not to your preference it can be rearranged. Refer to the Programme edit menu - see page 19 for details.

Prog. Position	All channels	No CH5	No CH5 / S4C	No CH4 / CH5	No S4C	No CH4 / S4C	No CH4 / S4C / CH5
1	BBC1	BBC1	BBC1	BBC1	BBC1	BBC1	BBC1
2	BBC2	BBC2	BBC2	BBC2	BBC2	BBC2	BBC2
3	ITV	ITV	ITV	ITV	ITV	ITV	ITV
4	CH4	CH4	CH4	S4C	CH4	CH5	SAT
5	S4C	S4C	SAT	SAT	CH5	SAT	○
6	CH5	SAT	○	○	SAT	○	○
7	SAT	○	○	○	○	○	○
Note:○ The next available channel will appear, if no other stations are available then the Programme position will remain unused.

USING THE ON SCREEN DISPLAYS

This TV has a comprehensive system of On Screen Display menus to access adjustments and options

Menu Title Sub-menus Selection bar Select Change TV/AV Exit Instructions Conometric Strathness Colour Sharpness F-100 Normal 0/2 A1 2n Indicator for options

Some selections, for example, Contrast, Brightness, Colour and Sharpness will allow you to increase or decrease their level.

Some selections, for example, Off timer, allow a change of setting to be made.

Some selections, for example Tuning menu, will lead to a further menu.

The PICTURE, SOUND and SET UP buttons are used to open the main menus and also to return to the previous menu.

The up and down cursor buttons are used to move the cursor up and down the menus.

The left and right cursor buttons are used to access menus, adjust levels or to select from a range of options.

The STR button is used to store settings after adjustments have been made or options have been set.

The TV/AV button is used to exit the menu system and return to the normal viewing screen.

The HELP button will run a demonstration of the menus available. Press the HELP button and select one of the options.

PICTURE SOUND SET UP TVAV STR HELP

ASPECT CONTROLS

The widescreen TV will allow you to enjoy viewing the picture at its maximum size, including widescreen 'cinema format' pictures.

Note: 4:3 and Just modes are not available when viewing an RGB source.

Press the ASPECT button to move through the five aspect options: Panasonic Auto, 4:3, Zoom, Full and Just

ASPECT

Panasonic Auto

Some broadcasts are transmitted together with a wide screen identification signal (WSS). If the TV receives this signal then it will automatically switch to wide screen 16:9 modo, maximum display.

The automatic widescreen switching depends upon reception conditions and the strength of the signal. If the signal is poor and therefore the WSS is weak then it is possible that the picture may not expand to full size and that the TV will display black areas around the edges.

If the original source signal was a standard 4:3 aspect ratio then you might prefer to view it in its original size; the red and green keys that appear will allow you to choose between viewing at standard 4:3 size or expanded in Just mode.

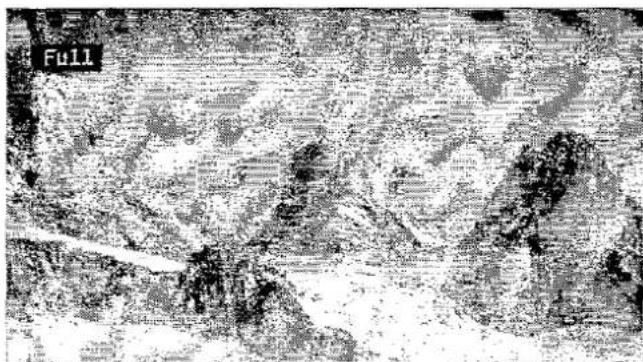

Full

Full will display the picture at its maximum size but with slight elongation.

4:3

4:3 will display a 4:3 picture at its standard 4:3 size and can be selected if you wish to view in this format.

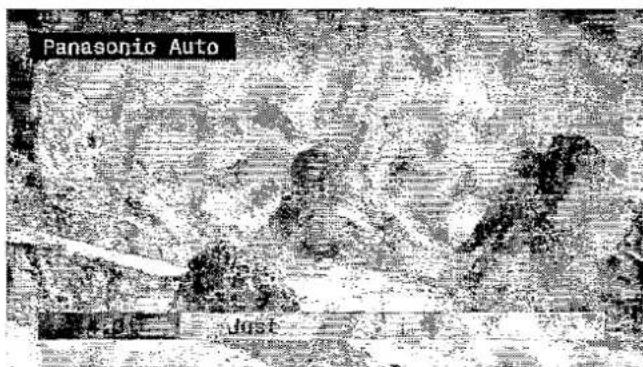

Panasonic Auto Last

Panasonic Auto

Full

Full

4:3

4:3

ASPECT CONTROLS

Zoom

Zoom mode magnifies the central section of the picture.

The picture can be moved and enlarged vertically using the coloured keys. The former adjustment is useful for viewing any sub-titles which may appear outside the picture.

The on screen selector keys that appear for some aspect functions will clear after a few seconds. If you subsequently wish to select an operation then press the Aspect key once more for the keys to reappear.

The widescreen aspect ratios of different films and programmes can vary. If these are wider than a standard 16:9 aspect picture then a black band may be visible at the top and bottom of the screen.

If, in Panasonic Auto mode, you experience problems with the screen display size when playing back widescreen format recordings from your VCR then it is possible that the tracking control of your VCR requires adjustment (your VCR instruction book will contain adjustment details).

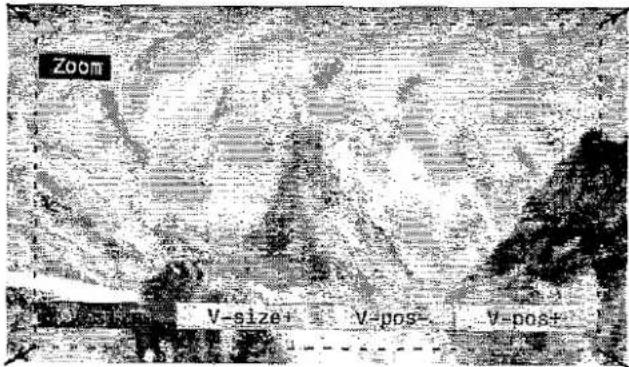

Zoom V-size+ V-pos- V-pos+

Zoom

Zoom V-size+ V-pos- V-pos+

Blue key has been pressed to move picture upwards

Just

Just mode will display a 4:3 picture at maximum size but with aspect correction applied to the centre of the screen so that elongation is only apparent at the left and right edges of the screen. The size of the picture will depend on the original signal.

Just

Just

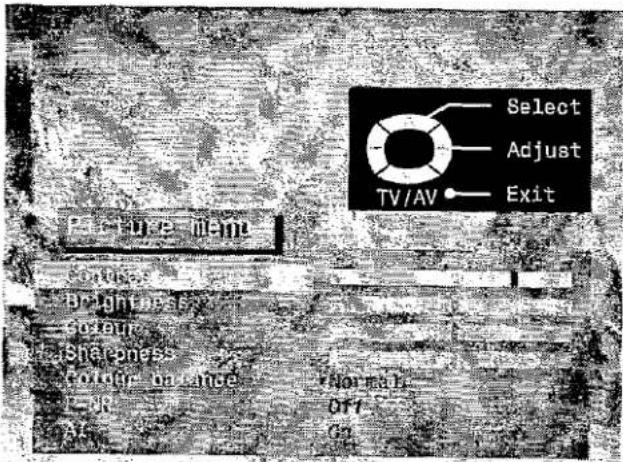

PICTURE MENU

Open the Picture menu

Move to your choice

Increase or decrease levels or set options

Press the TV/AV button to exit the Picture menu


TV/AV

Picture mem Select Adjust TV/AV Exit Brightness Colour Sharpness Colour balance OFF Alt Normal Off

Contrast

Brightness

Colour

Sharpness

Tint

The Contrast, Brightness, Colour and Sharpness levels can be adjusted to suit your own preferences.

The Tint adjustment will only appear as a menu item if you have an NTSC signal source connected to the TV and will allow adjustment of the hue.

Select Adjust TV/AV Exit Picture meml Controls Brightness Colour Close-up Close-up balance P NR A Select Adjust TV/AV Close-up Close-up

Colour balance

The Colour balance setting allows you to set the overall colour tone of the picture.

P-NR

P-NR will automatically reduce unwanted picture noise.

AI

AI automatically analyses the incoming picture and processes it to give improved contrast and optimum depth of field.

Scanned text of contract clauses with a large scale bar and watermark, likely from a legal or administrative document.

Open the Sound menu

Move to your choice

Increase or decrease levels or set options

Press the TV/AV button to exit the Sound menu

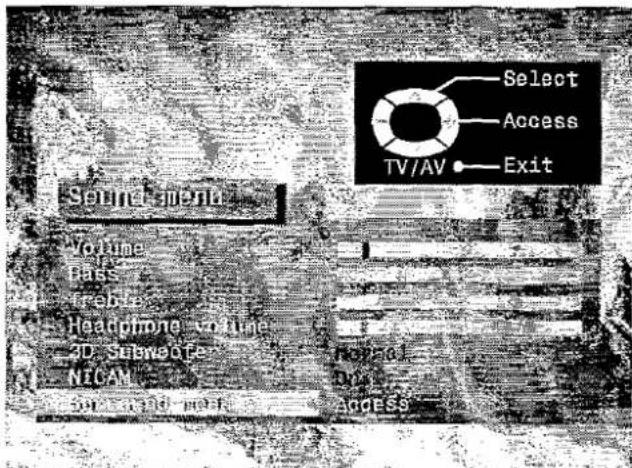

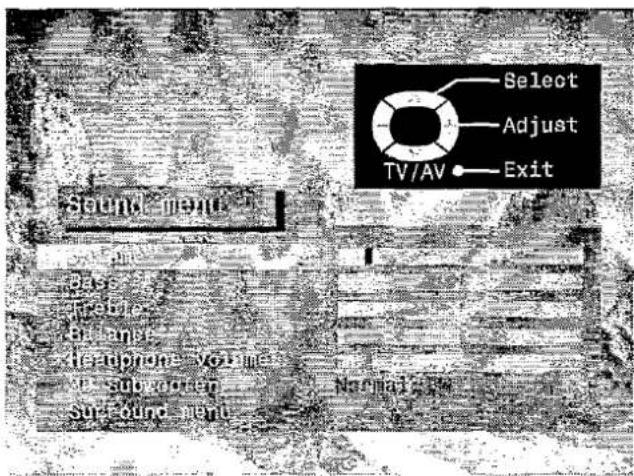

Select Adjust TV/AV Exit Sound menu Back Frontier Balance Headphone volume Subwoofer Nicale Surround menu

Volume

The Volume adjustment sets the overall output volume.

Bass adjustment will emphasise the lower, deeper frequencies and can be increased or decreased.

Bass

Treble adjustment will emphasise the sharper, higher frequencies and can be increased or decreased.

Treble

Balance

(This function will only operate with the Surround feature switched Off - See page 31). Balance affects the levels of sound between the left and right speakers. Adjustment can be made so that the level from the speakers will suit your listening position.

3D Subwoofer

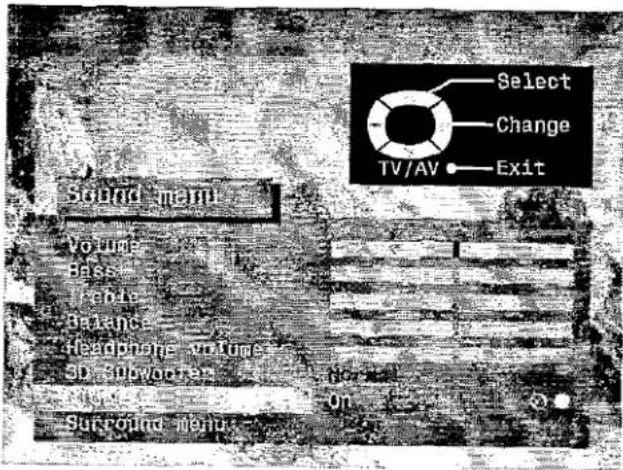

NICAM

The headphone volume can be adjusted independently of the TV speakers so that everyone can enjoy listening at their own comfort level.

To add additional bass response the 3D subwoofer has three options :

Off - Switched Off.

Normal - Medium bass response.

Full - Super deep bass response.

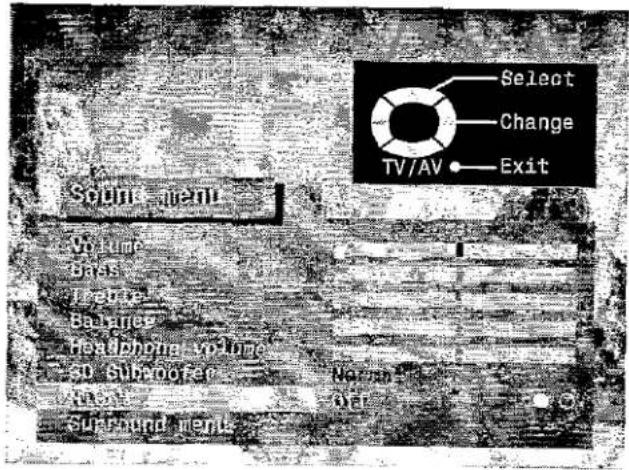

Select On to provide stereo sound reproduction. Select Off for FM Mono sound output.

If Nicam Mono is being transmitted select either FM Mono (Off), Nicam Mono I (M1) or Nicam Mono II (M2). The options depend upon the signal being transmitted.

If reception deteriorates it is advisable to switch to FM Mono (Off).

When Nicam transmissions are not being received the sound will be FM Mono (Off) only.

Sound mem Volume Bass Foble Balance Headphone volume 3D Subwoofer On Surround menu Select Change TV/AV Exit

Select Change TV/AV Exit Sound vent Volume Brass Tapele Balance Headphone volume 3D Subwoofer Vine Surround vent Normal Off

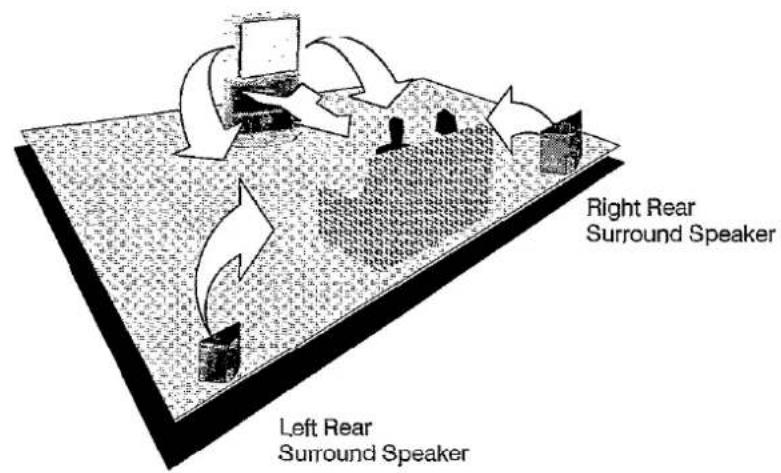

Leads to the Surround menu for Dolby Pro Logic and simulated modes of operation, as described on pages 30 to 32.

SETUP MENU

The Setup menu provides access to various advanced features and also to the Tuning menu

Open the Setup menu

Move to your choice

Increase or decrease levels, set options or access further menus

Press the TV/AV button to exit the Setup menu

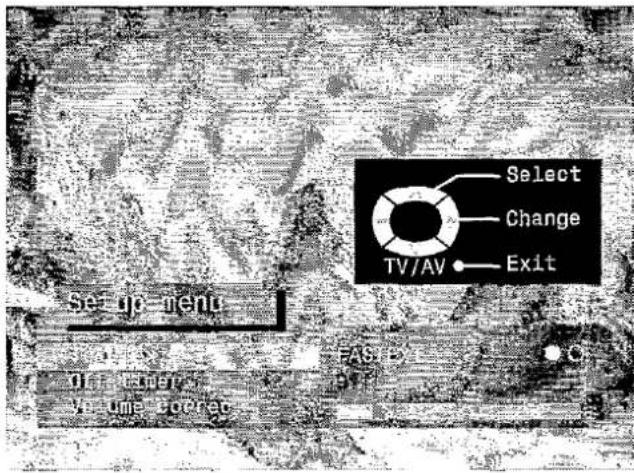

Select Change TV/AV Exit Stop Menu Off View Off Turing Menu

Teletext

The Teletext option allows you to choose between FASTEXT or LIST mode. See page 35.

●○○○○○○ Off timer

Off timer will switch the TV off within a preset time which you can choose from between 0 to 90 minutes in 15 minute intervals.

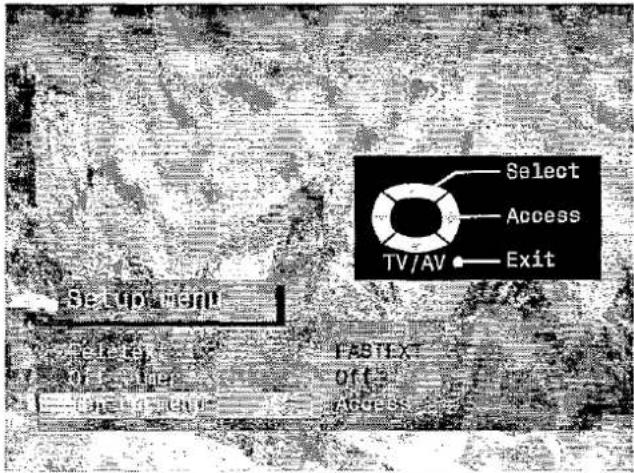

The Tuning menu provides an entry to many other features including Programme edit and Auto setup. See page 18.

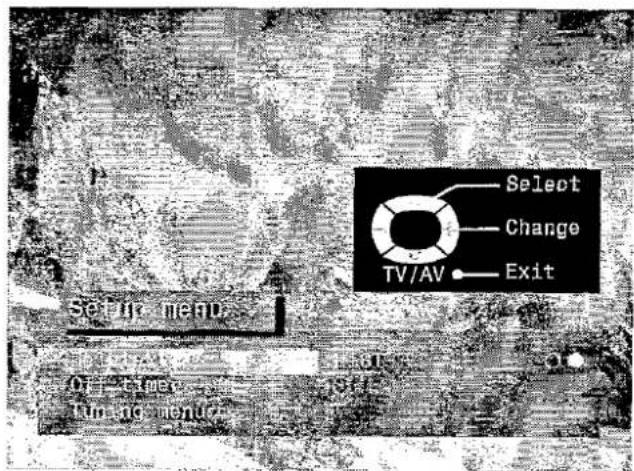

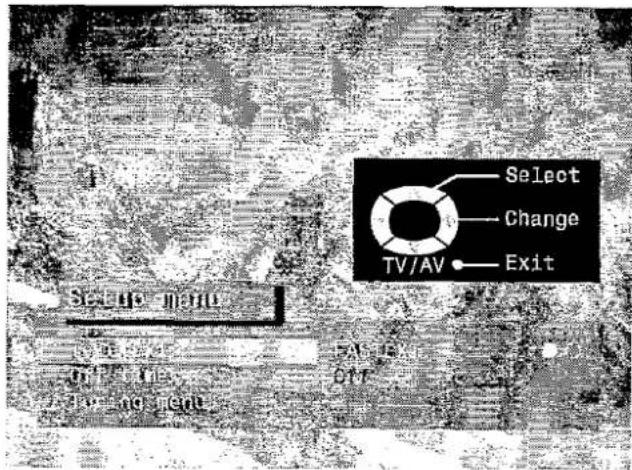

Volume correction

Volume correction (in AV mode only) allows you to adjust the volume level of individual stations.

Select Change TV/AV Exit Set Up megD Off - Timed Timing menu

Select Change TV/AV Exit

TUNING MENU - overview

Open the Setup menu

Move to Tuning menu

Access Tuning menu

Move to your choice

Increase or decrease levels, set options or access further menus

Press the TV/AV button to exit

SET UP

TV/AV

Accessing the Programme edit menu will allow stations to be moved, added, deleted, named or locked.

See page 19.

The Auto setup menu allows you to automatically return the TV.

See page 23.

The Manual tuning menu allows individual programme positions to be tuned manually. See page 24.

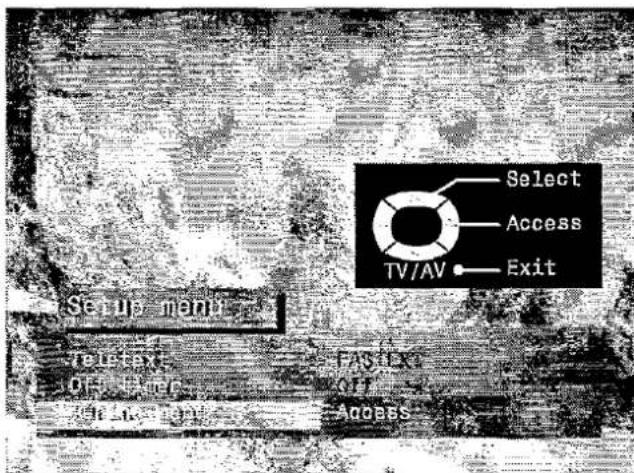

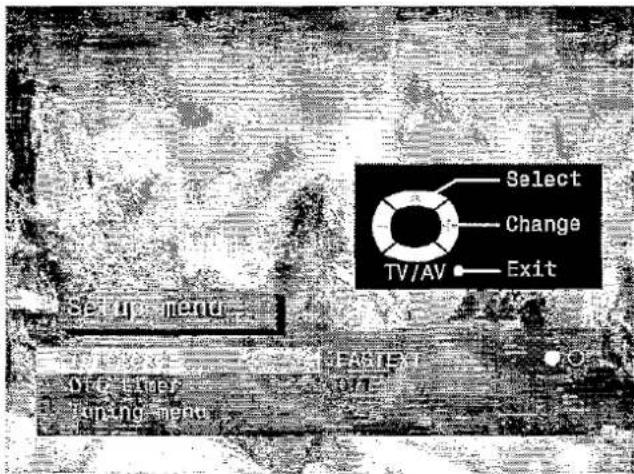

●○ Decoder (AV2)

This option is used when a decoder is connected via AV2. Set to On if a scrambled signal is to be processed by the decoder. Set to Off after use.

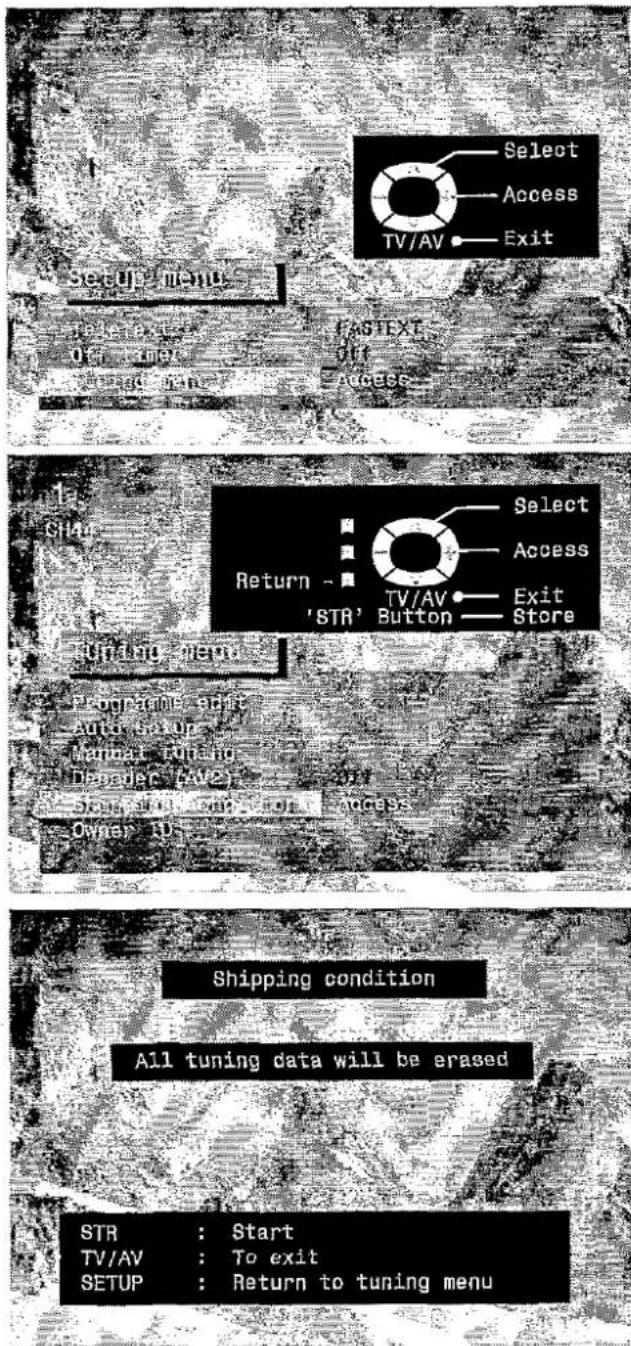

Allows you to clear all tuning information and reset all control levels back to factory settings. See page 25.

Allows you to enter a security code and address information.

See page 26.

Select Change TV/AV Exit Setup menu FASTEXT Off - Input Main menu

Setup menu Select Access TV/AV Exit Teleflex FASLAX Off Access

Select Access Return - TV/AV Exit 'STR' Button Store Turn-up menu Auto Setup Language: Top 20p Decoder: AV24 On Luggage condition Owner: 1

TUNING MENU - PROGRAMME EDIT

The Programme edit menu allows you to edit the programme position settings

Open the Setup menu

Move to Tuning menu

Access Tuning menu

Move to Programme edit menu

Access Programme edit menu

Make required changes (see sections below)

Press STR button to store changes

If you have finished in the Programme edit menu, press the TV/AV button to exit

SET UP ∧ ∨ - + ∧ ∨ - +

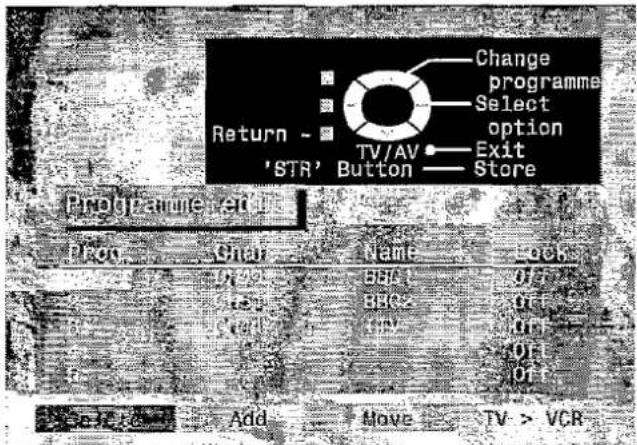

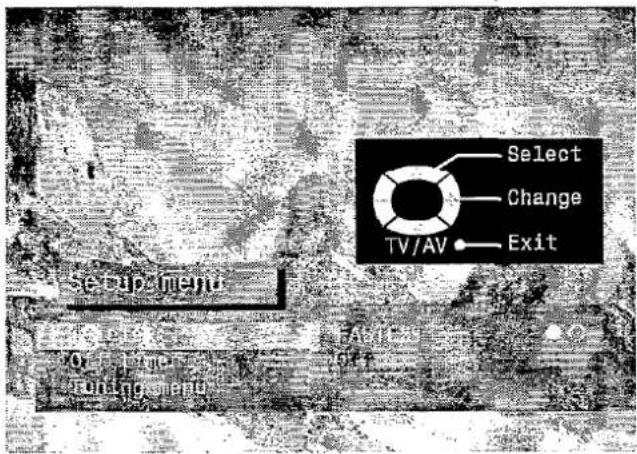

To delete an unwanted programme position

Ensure that the cursor is in the Prog. Column

Choose the programme position

Press the Red button on remote control

Press the Red button again to confirm

If you have finished in the Programme edit menu, press the TV/AV button to exit

Select Change TV/AV Exit Setup menu 0+1+2+3+4+5+6+7+8+9+10+11+12+13+14+15+16+17+18+19+20+21+22+23+24+25+26+27+28+29+30+31+32+33+34+35+36+37+38+39+40+41+42+43+44+45+46+47+48+49+50+51+52+53+54+55+56+57+58+59+60+61+62+63+64+65+66+67+68+69+70+71+72+73+74+75+76+77+78+79+80+81+82+83+84+85+86+87+88+89+90+91+92+93+94+95+96+97+98+99+100

Setup menu Select Access TV/AV Exit FASTIVX OFF-1 OFF-2 Access

OMM Return - 'STR' Button Select Access TV/AV Exit Store Turns menu Auto setup Menu setup Decuper (AV) Shipping condition Owner D

Change programme Select option Return - TV/AV Exit 'STR' Button Store Programme 10.1 Plan Chair Name Lock 12:45 BBA1 Off 13:45 BBA2 Off 14:45 CBA Off 15:45 CBA Off 16:45 CBA Off 17:45 CBA Off 18:45 CBA Off 19:45 CBA Off 20:45 CBA Off 21:45 CBA Off 22:45 CBA Off 23:45 CBA Off 24:45 CBA Off 25:45 CBA Off 26:45 CBA Off 27:45 CBA Off 28:45 CBA Off 29:45 CBA Off 30:45 CBA Off 31:45 CBA Off 32:45 CBA Off 33:45 CBA Off 34:45 CBA Off 35:45 CBA Off 36:45 CBA Off 37:45 CBA Off 38:45 CBA Off 39:45 CBA Off 40:45 CBA Off 41:45 CBA Off 42:45 CBA Off 43:45 CBA Off 44:45 CBA Off 45:45 CBA Off 46:45 CBA Off 47:45 CBA Off 48:45 CBA Off 49:45 CBA Off 50:45 CBA Off 51:45 CBA Off 52:45 CBA Off 53:45 CBA Off 54:45 CBA Off 55:45 CBA Off 56:45 CBA Off 57:45 CBA Off 58:45 CBA Off 59:45 CBA Off 60:45 CBA Off 61:45 CBA Off 62:45 CBA Off 63:45 CBA Off 64:45 CBA Off 65:45 CBA Off 66:45 CBA Off 67:45 CBA Off 68:45 CBA Off 69:45 CBA Off 70:45 CBA Off 71:45 CBA Off 72:45 CBA Off 73:45 CBA Off 74:45 CBA Off 75:45 CBA Off 76:45 CBA Off 77:45 CBA Off 78:45 CBA Off 79:45 CBA Off 80:45 CBA Off 81:45 CBA Off 82:45 CBA Off 83:45 CBA Off 84:45 CBA Off 85:45 CBA Off 86:45 CBA Off 87:45 CBA Off 88:45 CBA Off 89:45 CBA Off 90:45 CBA Off 91:45 CBA Off 92:45 CBA Off 93:45 CBA Off 94:45 CBA Off 95:45 CBA Off 96:45 CBA Off 97:45 CBA Off 98:45 CBA Off 99:45 CBA Off 100:45 CBA Off

TUNING MENU - PROGRAMME EDIT

To add a programme position

Choose the programme position where the new programme is to be inserted

Press the Green button

Press the Green button again to confirm

This blank programme can then be tuned, named or locked.

Press STR to store

If you have finished in the Programme edit menu, press the TV/AV button to exit

Change programme Select option Return - TV/AV Exit 'STR' Button Store Programme exit Proc Chan Name Lock CH4 BBC Off CH5 BBC2 Off CH4 1V Off Add Move TV > VCR

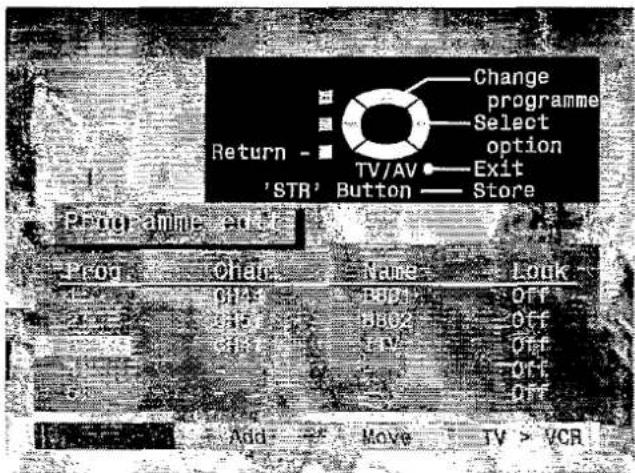

To move a programme to another position

Choose the programme position to be moved

Press the Yellow button on remote control

Choose new position

Press the Yellow button again to confirm

If you have finished in the Programme edit menu, press the TV/AV button to exit

Change programme Select option Return - TV/AV Exit 'STR' Button Store Programme end Prog Chan Name Look GTA3 B001 Off GTC4 B002 Off GTRF CIV Off Add Move TV > VCR

Change programme Select option Return - TV/AV Exit 'STR' Button Store Program Name Look 10000 BAC1 Off 20000 BAC2 Off 30000 40000 50000 60000 70000 80000 90000 100000 Add Move TV > VCR

TUNING MENU - PROGRAMME EDIT

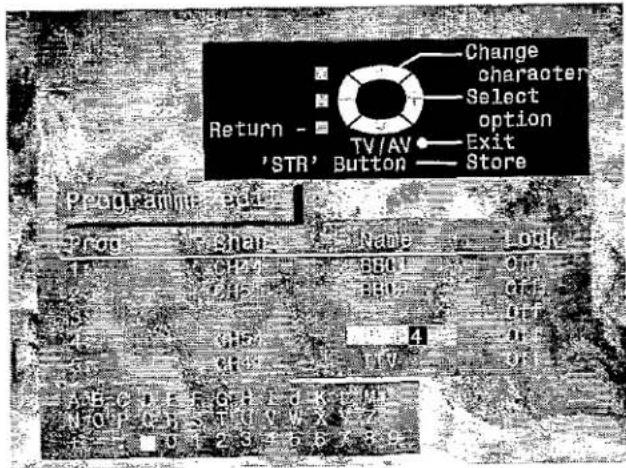

To rename a programme position

Choose the programme position

Move to the Name column

Choose the new character

Move to the next character position

Continue until renaming is done

Press STR to store

If you have finished in the Programme edit menu, press the TV/AV button to exit

Change character Select option Return - TV/AV 'STR' Button Exit Store Programme Sel Prod Share Name Look 1 CP4V BBU Off 2 CP50 BBV Off 3 QHE7 4 Off 4 CP68 TIV Off A B C D E F G H J K L M N O P Q R S T U V W X 27 ■ 0 1 2 3 4 5 6 7 8 9

TUNING MENU - PROGRAMME EDIT

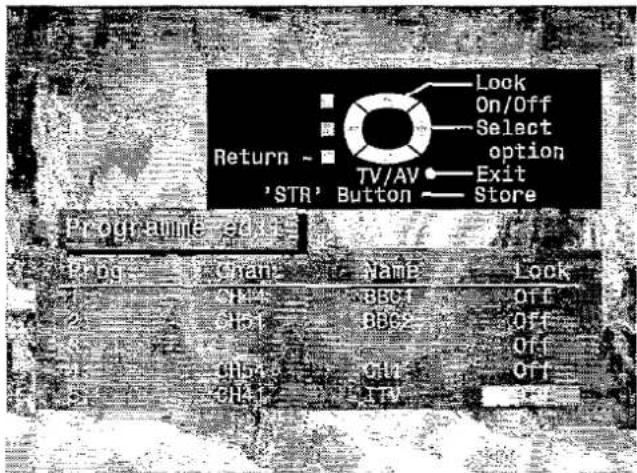

To lock a programme position to prevent access

Choose the programme position

Move to the lock column

Choose between lock On or lock Off

Press STR to store

If you have finished in the Programme edit menu, press the TV/AV button to exit

Note : When a programme position is locked, Direct Channel Access using the 'C' and numeric keys on the remote control is not available.

Look On/Off Select option Return - TV/AV Exit 'STR' Button Store Program - Service Prog Channel Name Lock 1 CH 4 BBC 1 Off 2 CH 1 BBC 2 Off 3 CH 2 CH 3 Off 4 CH 4 CH 5 Off 5 CH 6 CH 7 Off

To copy programme information to a compatible VCR connected to AV2

Move to the Prog. column

Press the Blue button on the remote control. Programme data will now be sent to the VCR. This might take a while, depending on the number of stations stored.

If you have finished in the Programme edit menu, press the TV/AV button to exit

STOP IN PROGRESS PLEASE WAIT Help Panme - 64 Remote control unavailable

TUNING MENU - AUTO SETUP

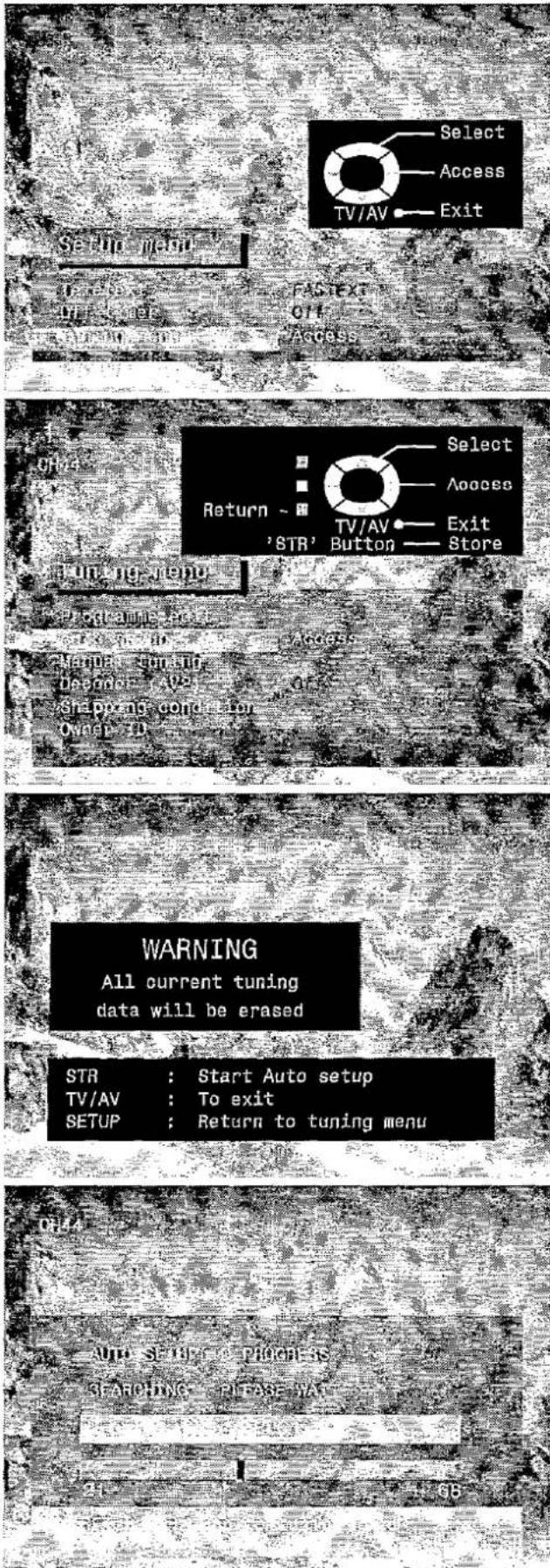

The Auto setup menu will allow you to automatically retune the TV to your local stations. It is useful if you move to a different region

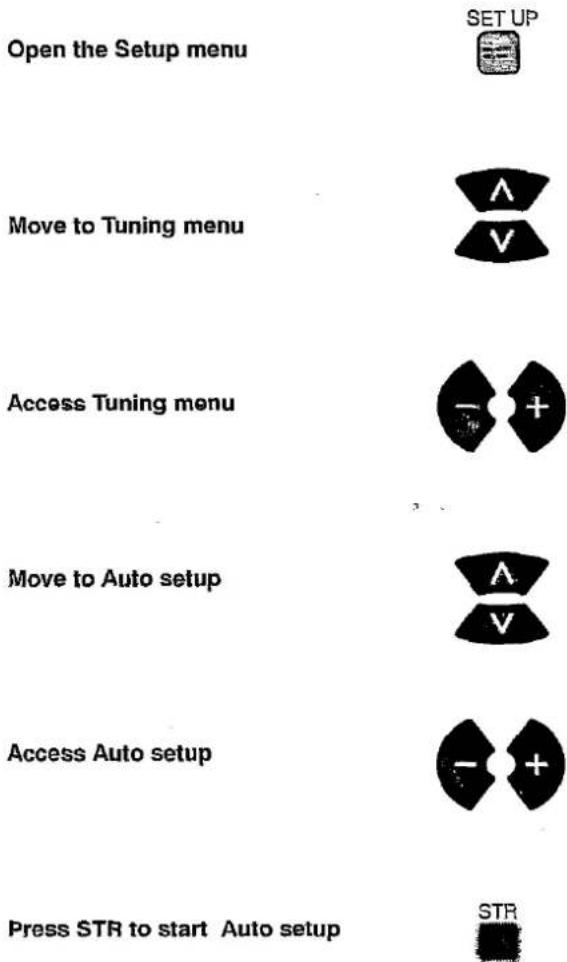

Open the Setup menu SET UP Move to Tuning menu A V Access Tuning menu - + Move to Auto setup A V Access Auto setup - + Press STR to start Auto setup STR

The TV will search for, locate and sort into order your local stations. If a compatible VCR is connected via the AV2 socket, programme data will be sent to the VCR via Q-Link (see page 28).

Once this operation is completed the TV will display programme position 1.

Select Access TV/AV Exit Setup menu Take out Up to enter FASTEXT Off Access Chid Return - 'STR' Select Access TV/AV Exit Store Tuning menu Playable act Up to enter Access Temp. tuning Device: AV2 Shipping cond con Over 3D WARNING All current tuning data will be erased STR : Start Auto setup TV/AV : To exit SETUP : Return to tuning menu CHA Auto SETTING PROCESS SEARCHING PLEASE WAIT 21 GB

TUNING MENU - MANUAL TUNING

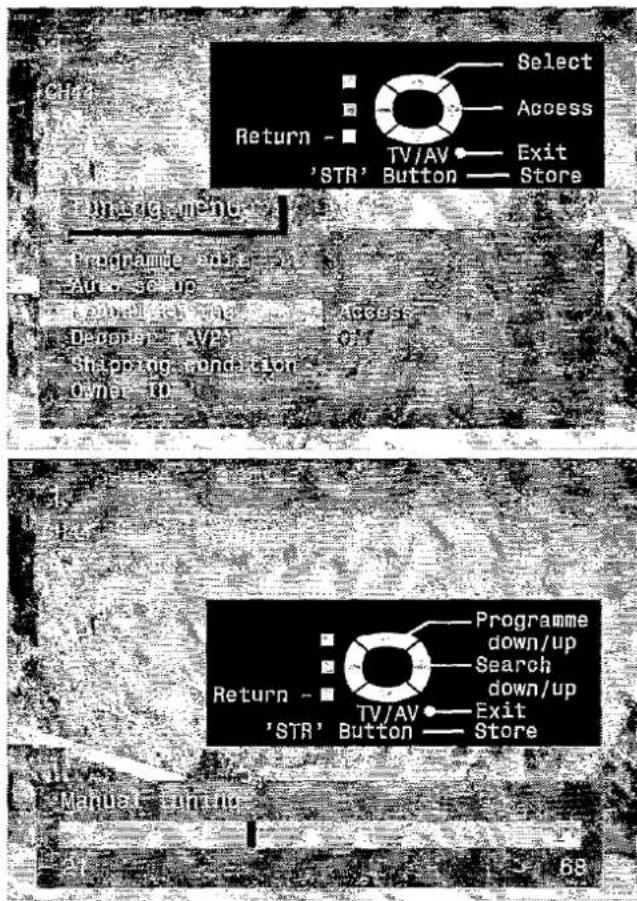

Manual tuning of the programme positions is available either from the On Screen Display menu or from the front panel controls

Manual tuning menu

Open the Setup menu	SET UP
Move to Tuning menu	A
	V
Access Tuning menu	- +
Move to Manual tuning	A
	V
Access Manual tuning	- +
Select the programme position to be tuned	A
	V
Press repeatedly until required station is found	- +
When the desired station is found, press STR to store.	STR
The programme position will flash	TV/AV
Press the TV/AV button to exit.

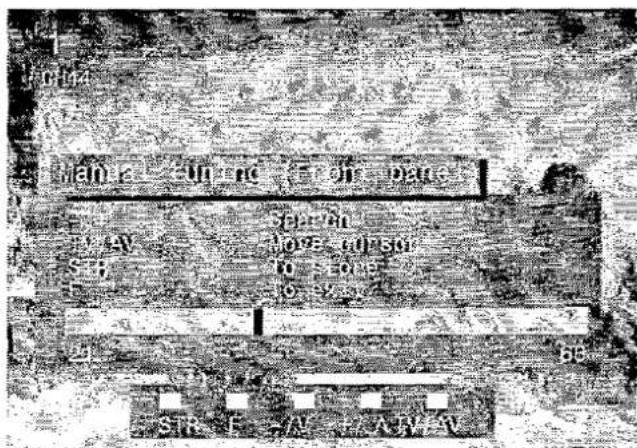

Manual tuning (Front panel)

Press the F button (Front panel)until "Tuning mode" is reached	F
Press the - or + button to access Tuning mode	-/V +/-A
Press the TV/AV button to move between "Change programme" and "Search"	TV/AV
Press the - or + button to change programme position or start search	-/V +/-A
When the desired station is found, press STR to store. The programme position will flash	STR
Repeat above procedure to tune additional programmes or press the F button to exit	F

CH2 Return - 'STR' Select Access TV/AV Exit Store On dc menu - Programme store Auto set up Level switch and access Decker - AV2 Shipping condition - Owner ID Programme down/up Search down/up Return - 'STR' TV/AV Exit Store Manuel through At 68

Important note : On passing channel 68, tuning will restart at channel 21.

21 68

Man e un pc 10 in bus T: 5V S: 109- to 80m To: 20m to: 5m at S: 10A AT: 10A at S: 10A AT: 10A

TUNING MENU - SHIPPING CONDITION

Shipping condition allows you to reset the TV to its original condition, i.e. no channels tuned in

This is useful, for example, if you move to a different area when you will probably want the TV to tune itself to your new local stations.

This can be done either through the Shipping condition menu or through the Auto setup menu.

The Shipping condition menu will reset all data, clearing all tuning information and resetting all control levels back to factory settings. You may need to adjust your VCR or programme position '0' VCR after operating the Shipping condition menu - refer to page 33.

Open the Setup menu Move to Tuning menu Access Tuning menu Move to Shipping condition Access Shipping condition Press STR to start Press again, to confirm, each time that you are asked, "Are you sure?" Switch TV off and wait for a few seconds. Switch TV on again. Auto setup will begin, stations will be located, sorted and stored ready for use. See page 23. SET UP STR STR STR

Setup menu Select Access TV/AV Exit FASTEXT out access 1. CHAP Return - 'STR' Button Select Access Exit Store Uping here Programs and Auto Group Manual Running Decoder (AV2) Start up to 0 or 0.5x Owner ID Shipping condition All tuning data will be erased STR : Start TV/AV : To exit SETUP : Return to tuning menu

TUNING MENU - OWNER I.D.

Owner I.D. allows you to enter a security code and address information so that in the unfortunate event of theft it will help the Police to determine the owner.

If the Owner I.D. information was not entered after Auto setup or it is necessary to alter some of the I.D. information it can be re-accessed via the Tuning menu.

Open the Setup menu SET UP Move to Tuning menu ^ V Access Tuning menu - + Move to Owner I.D. ^ V Access Owner I.D. - + If the Owner I.D. has previously been set, enter the PIN NUMBER (using 0 to 9 on the remote control) followed by STR to proceed, this will take you to the NAME option. 1 2 3 4 5 6 7 8 9 0 STR If no Owner I.D. has previously been set, enter the required 4 digit Owner I.D. PIN NUMBER (using 0 to 9 on the remote control). 1 2 3 4 5 6 7 8 9 0 If a 4 digit PIN NUMBER was entered above, you will be taken automatically to the NAME line. If not, move to the NAME line. - + Change character. ^ V Select character position. - + Repeat above until NAME, HOUSE NUMBER and POSTCODE are entered. Press STR to store the details. Press again, to confirm,when asked, "Are you sure?" STR The Tuning menu will be displayed. Press the TV/AV button to exit TV/AV

Setup menu State off time PASS TV/AV Select Access Exit Add Return - 'STR' Button Select Access Exit Store Turn to menu Adequate exit Auto serum Handi Turn out Decode (AV) Shipping condition Access You now have the opportunity to enter your details and help the police crack crime see instruction book Change character Select character TV/AV Exit 'STR' Button - Store Owner ID Own 10 PIN NUMBER - 723 HOME NO - 1 POSTORE - 1 For future reference, write your PIN Number here :

AV SELECT AND SETUP

The AV Select menu will allow you to choose which AV source to view

Press the TV/AV button

Press the appropriate coloured remote control button (whilst the options remain on screen)

The options will disappear

You may wish to make adjustments in the Setup or Sound menus

TV/AV

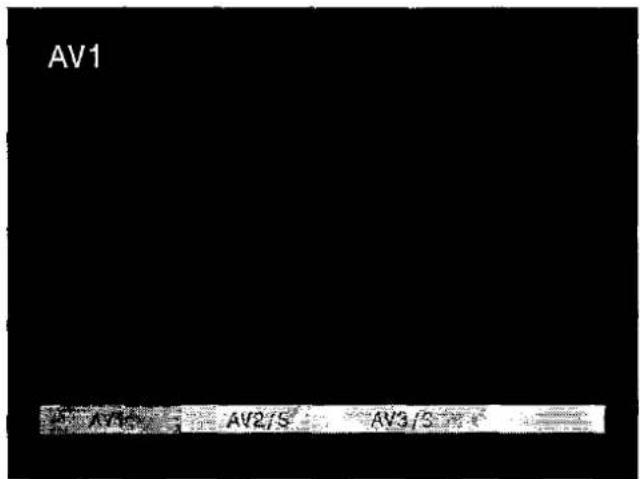

AV1 AV1/5 AV2/S AV3/S

Setup menu

Open the Setup menu

Move to your choice

Access adjustments or options

Press the TV/AV button to exit

SET UP

TV/AV

Sound menu

Open the Sound menu

Move to your choice

Access adjustments or options

Press the TV/AV button to exit

SOUND

TV/AV

Select Change TV/AV Exit Set up - menu OFF-STOP Volume Covered FAS 12 C

Select Adjust TV/AV Exit Sound menu Base Flexible Bit anger Telephone volume AP sub-garden Sur sound menu Nashgate

Q-LINK

Q-Link allows the television to communicate with a compatible VCR

For Q-Link communication to work, the TV must be connected to a VCR with the "Q-Link", "NEXTVIEWLINK", "DATALOGIC", "Easy Link", "Megalogic" or "SMARTLINK" logo using a 'fully wired' Scart cable between the AV2 socket of the television and the appropriate socket on your VCR.

For connection to the appropriate Scart socket on the VCR, refer to the VCR operating instruction book.

When using a "NEXTVIEWLINK" VCR the main features possible are the following :

• Preset Download - Downloading of tuning information from the TV to the VCR.
• Direct TV Record - For immediate recording of the current program (What You See Is What You Record).

When using a "Q-Link" VCR the main features possible are the following :

• Preset Download - Downloading of tuning information from the TV to the VCR.
• Direct TV Record - For immediate recording of the current program (What You See Is What You Record).
  • TV/VCR Auto Power On - When the VCR plays a tape the TV will automatically switch On and select the AV2 input.
  • VCR Auto Power Standby - When the TV is switched into Standby, the VCR will also switch into Standby.
• VCR Image view - When the VCR plays a tape the TV will automatically switch On and select the AV2 input.

This TV will also communicate with other VCR's that bear the following logo's :

• "DATA LOGIC" (a trademark of Metz Corporation).
- "Easy Link" (a trademark of Philips Corporation).
• "Megalogic" (a trademark of Grundig Corporation).
- "SMARTLINK" (a trademark of Sony Corporation).

These VCR's may support some or all of the above functions.

Refer to the VCR operating instruction book.

Preset Download

This allows the programme order from the TV to be downloaded to the VCR, this helps to ensure that correct recordings are made, there are several ways to perform this operation:

1. During installation as explained in the 'Quick Start Guide' beginning on page 6.
2. When Auto setup is started from within the Tuning menu, see page 23.
3. When TV to VCR manual download is started from within 'Programme edit', see page 22.
4. Preset download started from the VCR, refer to the VCR operating instruction book.

Important Note:

Not all VCRs support this type of data communication system. Some may support certain features, but not others. Refer to the VCR operating instruction book.

If Q-Link is inoperative, first confirm that your Scart cable is a full function type. Ask your dealer for further details.

What You See Is What You Record (DIRECT TV RECORDING)

This will allow the immediate recording of the program currently shown on the Television.

DIRECT

TV REC

Press the DIRECT TV REC button on the remote control

If the VCR is in Standby mode with a useable tape inserted, it will automatically switch on when you press the DIRECT TV REC button.

If a "Q-Link" VCR is connected a message will appear on the TV screen showing what is being recorded, or if it is not possible to record. Some "Q-Link" compatible VCR's will only display the message when on the VCR programme position(0) or in AV mode. Refer to the VCR operating instruction book.

VER recording preset program Record on the programme now

VCR is recording the programme signal from its own tuner. If you wish you can switch off the TV and leave the VCR recording in the normal way.

VCR is recording the programme signal from the television. You must not change programme position or switch off the TV: if you do, the VCR will automatically stop recording and switch off.

The write protection tab on the back of the cassette has been removed.

Examples of other messages that might be displayed are:

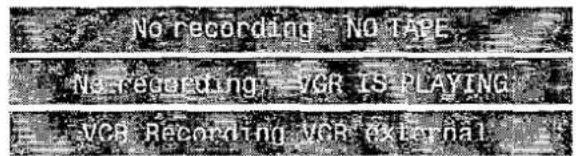

No recording NO TAPE No recording VCR IS PLAYING VCR Recording VCR External

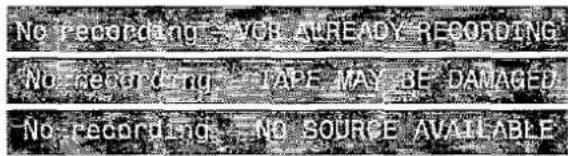

No recording - VCR AUREADY RECORDING No recording - TAPE MAY BE DAMAGED No recording - NO SOURCE AVAILABLE

TV / VCR Auto Power On

(With a Panasonic Q-Link VCR connected, this additional feature is available).

- If you insert a tape in the VCR and press the Play button, the TV will automatically switch On and select the AV2 input so that you can view the tape.

Some other VCR's may support this feature. Refer to the VCR operating instruction book.

VCR Auto Power Standby

(With a Panasonic Q-Link VCR connected, this additional feature is available).

When the TV is switched into 'Standby mode', the VCR will also switch into 'Standby mode' providing that the VCR is in 'Rewind' or 'Stop'mode, or there is no tape currently in the VCR.

- If the 'Auto Power Standby' command is received by the VCR whilst a tape is rewinding, the VCR will not switch into 'Standby mode' until after rewinding has finished.

Some other VCR's may support this feature. Refer to the VCR operating instruction book.

VCR Image View On

(With a Panasonic Q-Link VCR connected, this additional feature is available).

If the TV is in Standby mode and the VCR sends a menu to be displayed on the TV screen (e.g. Main menu), the TV will automatically switch On and the menu will be displayed.

Some other VCR's may support this feature. Refer to the VCR operating instruction book.

SURROUND MENU

Normally stereo reproduction uses left and right speakers, but Dolby Pro Logic Surround also uses a centre channel and a rear channel. The centre channel sharpens sound perspective and dialogue clarity whilst the rear channel is used to immerse the viewer in ambience and special effects.

To use Dolby Pro Logic Surround when receiving television programmes that have been encoded with Dolby Surround information, you must be able to receive NICAM Stereo transmissions. If NICAM Stereo transmissions are not transmitted in your area then the Dolby Surround information will not be present and Pro Logic decoding will produce a centre channel only output (unless you are playing back from a stereo VCR, Digital Versatile Disc etc.).

Dolby Pro Logic Surround operates best with videos, laserdiscs and TV programmes that bear the Dolby Surround logo, but can also be used to good effect with stereo sources not encoded in Dolby Surround and mono sources, affording compatibility with any source.

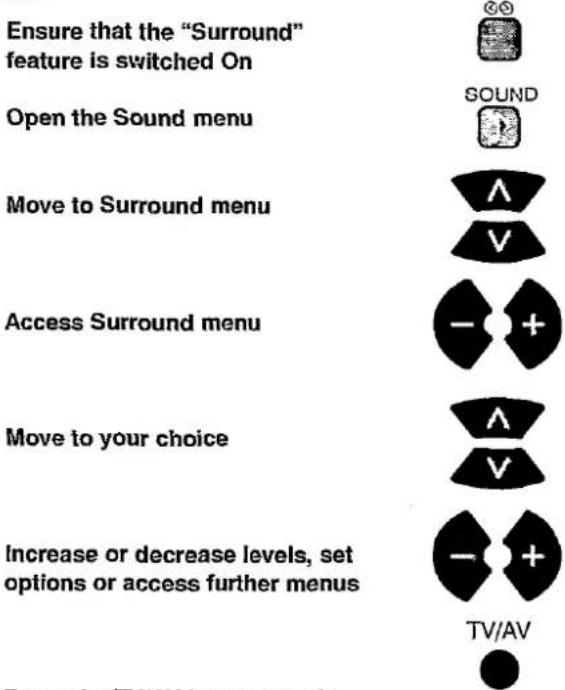

Ensure that the "Surround" feature is switched On Open the Sound menu Move to Surround menu Access Surround menu Move to your choice Increase or decrease levels, set options or access further menus TV/AV

Press the TV/AV button to exit

The volume adjustment sets the overall Surround output volume.

Surround mode

Surround setting

Choosing Pro Logic allows selection of Normal, Phantom or 3 Stereo modes, as described on page 31.

Choosing Simulated allows selection of Disco, Movie or Stadium modes, as described on page 32.

Seine tone Volume Pass Freeble Headphone volume 3D Subwoofer NICAM Set sound mask Select Access TV/AV Exit

Return - Select Access TV/AV Exit Surround menu Volume - Surround mode Pro view setting - Front distance - Bear distance - Internal speaker

Allows adjustment of the output levels for each channel, as described on page 32.

Front distance

Allows setting of the distance from the listening position to the front speakers.

Rear distance

Allows setting of the distance from the listening position to the rear speakers. If the rear surround speakers are closer to you than the centre speaker, you may hear dialogue "leakage" from the rear surround speakers. It may be necessary to reduce the output level of the rear channel to rectify this phenomenon.

Internal speaker

Normally set to On, but, when separate external amplified front speakers are connected, then the internal speakers can be switched Off. See page 39 for connection details.

PRO LOGIC MODE

Choosing Surround Pro Logic mode allows three possible modes of operation :

Normal, Phantom or 3 Stereo.

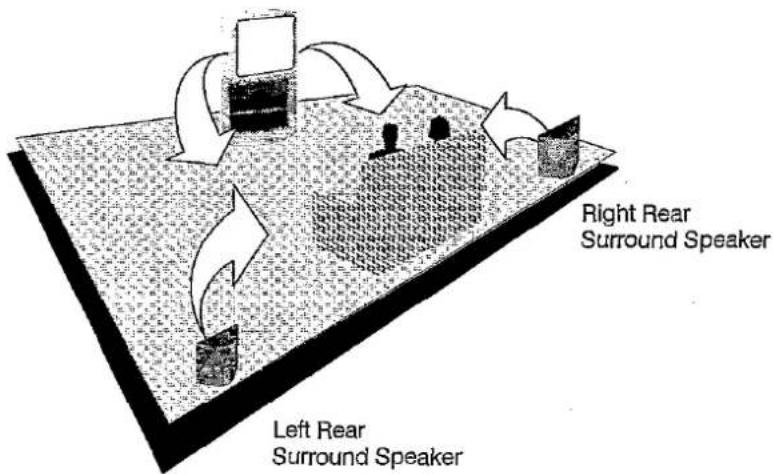

Dolby Pro Logic Normal mode

Left Rear Surround Speaker Right Rear Surround Speaker

NOTE

Pressing the Surround switch will switch the surround mode into 2 channel stereo only (and vice-versa)

When the Surround function is switched to the Off position, it will allow a Balance control as an extra option in the sound menu

Dolby Pro Logic Phantom mode

Right Rear Surround Speaker Left Rear Surround Speaker

Dolby Pro Logic 3 Stereo mode

This is the best using this model and right spe

This is the best mode to use if rear speakers are not connected. When using this mode, the surround information is redirected to the front left and right speakers.

SIMULATED MODE

Simulated surround modes allow various types of surround effects to be produced by mimicking both the direct sound, as heard by the audience, and the sound reflected back from the surrounding walls e.g. ceiling and floor space in a space such as a Disco. There are three different effects to choose from, each reflecting a different atmosphere.

Setting	Effect	Appropriate sources
Disco	A room so full of music that it seems to engulf the listener.	Disco, Dance or Jazz music.
Movie	Playback of software (films) not encoded with Dolby surround.	All movies or music software recorded without Dolby surround.
Stadium	A large sports stadium packed for a live game.	Any live sports occasion.

SPEAKER LEVEL SETUP

Black-and-white image of a vintage remote control panel with labeled buttons and function keys

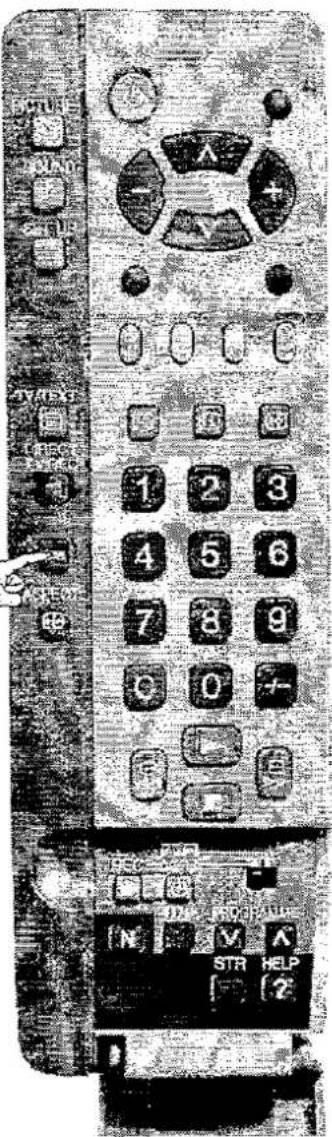

The speaker output levels from the different options, e.g. Left, Centre, Right and Rear should be adjusted, from your usual listening position, to obtain the best results. The level can be set using either the TV sound or the provided test signal.

When using external stereo equipment, it is advisable to set the speaker levels to the midpoint position.

Speaker level setup shown in Pro Logic Normal mode, the adjustments available will vary according to the current mode chosen.

Select Return - Adjust TV/AV Exit Surround - Switch test signal Off/On Speaker Level set-up Volume High Depray

The adjustments available will vary according to the mode chosen.

VCR AND SATELLITE RECEIVER INSTALLATION

Your new TV is supplied with programme position '0' set to receive an RF signal from your VCR, although a Scart connection is preferable if the VCR is so equipped.

However, if for some reason your VCR is tuned to a different RF channel then you will not receive any picture or sound from your VCR on programme position '0' of the TV. It will be necessary to either adjust the RF channel of your VCR (some VCR's allow adjustment of their RF channel via their remote control unit) or to adjust the tuning of the TV's programme position '0' or both until it receives the RF output channel of your VCR.

It is intended that this advice is used in conjunction with the instruction books for your additional equipment.

Use the AV1 Scart terminal for a VCR.

Use the AV2S Scart terminal for an S-Video VCR.

Use the AV2S Scart terminal for a Q-Link, NEXTVIEWLINK or compatible VCR.

To tune your TV to the VCR

Switch on the VCR, insert and play a pre-recorded tape with known content

Open the Setup menu

Move to Tuning menu

Access Tuning menu

Move to Manual tuning

Access Manual tuning

Select programme position '0' VCR

Start searching for the VCR playback of the known content tape

When the VCR playback is found, press STR to store

Press the TV/AV button to exit.

See below for installation of VCR and Satellite Receiver.

Notes :

• If picture patterning occurs on programme position '0' it may be necessary to adjust the RF output channel of the VCR, refer to the VCR instruction book.
• If a Satellite Receiver and a VCR are going to be used with RF cable connections it is important to avoid both units being set on the same channel. Refer to the Satellite Receiver and VCR instruction books for precise tuning information.

Illustration of a hand inserting into a CD into a computer case (no text or symbols visible)

Select Access TV/AV Exit Se 100 H:91 FASTX Of Other Of Use Access

VER CH32 Return - Programme down/up Search down/up TV/AV Exit 'STR' Button Store Manual opening 21 68

Black-and-white photo of a rocky landscape with visible text labels and a logo in the top-right corner.

VCR / DVD OPERATION

The Remote Control is capable of operating some functions of selected Panasonic VCRs and DVD (Digital Versatile Disc) equipment. Some VCR and DVD equipment have different functions, so to ensure compatibility please refer to the equipment's instruction book or consult your dealer for details.

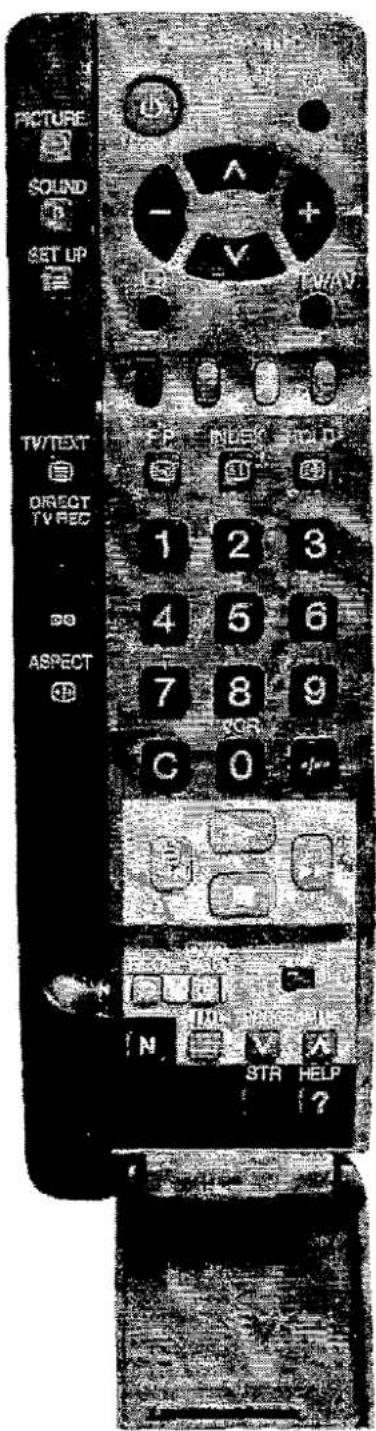

PICTURE SOUND SET UP TVTEXT DIRECT TV REC ASPECT N STR HELP ?

[XX78]	StandbyPress to switch the VCR or DVD to standby mode.Press again to switch back on.
	VCR / DVD switchUse this switch to select whether controls operate DVD equipment or your VCR.
	PlayPress to playback the tape or DVD.
	StopPress to stop the tape or DVD.
	Skip / Fast Forward / CueVCR: Press to fast forward the tape. In Play mode, press to view the picture rapidly forward (Cue).DVD: Press once to skip to the next track. In play mode press and hold to view the picture rapidly forward.
	Skip / Rewind / ReviewVCR: Press to rewind the tape. In Play mode, press to view the picture rapidly in reverse (Review).DVD: Press once to skip to the previous track. In play mode press and hold to view the picture rapidly in reverse.
	Pause / StillPress in playback mode, the picture will pause.Press again to restart play.
	Programme Up / DownPress to increase or decrease the VCR programme position by one.
	RecordPress this button to start recording.

TELETEXT OPERATION

• Teletext features may vary depending on the Broadcasting Companies and is only available if the channel selected is transmitting Teletext.
• Pressing the Picture button whilst in Teletext operation will display the contrast function with a cyan bar, press ◀ to alter the setting as required.

Pressing the Setup button whilst in Teletext operation will display special function options at the bottom of the screen.

- When in Teletext mode, the volume may still be altered to the desired listening level.

What is LIST mode?

In LIST mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these numbers can be altered and stored in the TV's memory.

What is FASTEXT?

In FASTEXT mode, four differently coloured subjects are situated at the bottom of the display. To access more information about one of these subjects, press the appropriately coloured button. This facility enables fast access to information on the subjects shown.

TV/TEXT

TV / Teletext mode

Press the TV/TEXT button.

The screen will display the Teletext page.

Press again when you wish to return to TV. mode.

Page Selection

Pages can be selected in two ways :

a. Press the Up / Down buttons to increase or decrease the page number by one.

b. By entering the page number, using 0 -9 on the remote control.

Full / Top / Bottom

Press the SET UP button to display special functions, followed by the Green button.

Press the Green button again to expand the BOTTOM half.

Press again to return to normal (FULL) size.

Reveal

Press the SET UP button to display special functions, followed by the Red button to reveal hidden words e.g. quiz page answers. Press again to hide.

Red / Green / Yellow / Blue buttons

In FASTEXT mode these correspond to the differently coloured subjects. In LIST mode they correspond to the differently coloured page numbers.

List Store

In LIST mode the four page numbers can be altered (programme positions 1 - 25 only). To do this, press one of the four coloured buttons and enter the new page number.

Press and hold STR, the page numbers will change to white indicating that the page is stored.

Hold

To hold the Teletext page when viewing multi-page information.

Press again to return to automatic page update.

TELETEXT OPERATION

It is not possible to change the programme position when in News flash, Update or Sub Coded Page Access operation.

0

Favourite Page (F.P.)

Stores a favourite page in memory for instant recall. To store such a page, the TV must be in LIST mode, and the programme position must be from 1 - 25. Press the Blue button, select the page number, then press and hold the STR button. The page number is now stored.

Press F.P. to recall this page.

Update Display

Press the SET UP button to display special functions, followed by the Yellow button to view the TV picture whilst searching for a Teletext page. When found, the screen will display the page number at the top left. Press the Yellow button to view the page. Press TV / TEXT again to return to normal TV operation.

News Flash

When a news flash page has been selected, press SET UP, Yellow, to view the TV picture. When an update is received, the page number will be displayed on screen. Press the Yellow button to display the News Flash Press TV / TEXT to return to normal TV. operation.

Update

Press SET UP, Yellow to see the update of information on certain pages. When an update is received, the page number will be displayed at the top left of the screen. Press the Yellow button to view the page. Press TV / TEXT to return to normal TV. operation.

Sub Coded Page Access

When Teletext information exceeds more than one page, it may take some time for the automatic changing of the sub pages to reach the sub page you require. It is possible to enter your required sub page and continue watching the normal programme until the correct sub page is found. Select the required page number using buttons 0 - 9.

q
Press the SET UP button followed by the Blue button; T**** will be displayed at the top right of the screen. Enter desired sub page number before the T**** disappears. To select page 6 enter 0, 0, 0 and 6.

(If in LIST mode, a 'T' will appear in the current box at the bottom). Press the Yellow button to view a normal TV programme. (Press SET UP, Yellow in LIST mode).

When the page is available, press the Yellow button to view the page. To clear the page perform one of the following :

• Press SET UP.
• Select a new page number.
• Press TV/TEXT to return to normal TV operation.

Index

When in FASTEXT operation

Press INDEX to return to the main index page. Depending on the way information is transmitted, this may have to be pressed more than once to return to the main index page.

Front AV3 RCA Audio / Video and Headphones Sockets

Press and release to open Output from Headphone socket 3.5mm Stereo Plug STEREO HEADPHONES with 3.5mm Plug Video input to S-V S-Video socket V L-R Video input to V socket RCA Video Cable Audio input to L/R sockets 2 x RCA Audio Cables CAMCORDER

Note :
Additional equipment and cables shown are not supplied with this TV set.

■ Scart socket information

AV1 Scart socket

Socket Earth	21-	-20	CVBS in (video)
CVBS out (video)	19-	-18	RGB status earth
CVBS earth	17-	-16	Status RGB
Red In	15-	-14	Earth
Red earth	13-	-12	--
Green In	11-	-10	--
Green earth	9-	-8	Status CVBS
Blue In	7-	-6	Audio In (L)
Blue earth	5-	-4	Audio earth
Audio out (L)	3-	-2	Audio in (R)
Audio out (R)	1-

Suitable inputs for AV1 include RGB (Red/Green/Blue).

AV2 Scart socket (S-Video, Q-Link)

Socket Earth	21-	-20	CVBS in (video)
CVBS out (video)	19-	-18	Earth
CVBS earth	17-	-16	--
S.C. - In	15-	-14	Earth
Earth	13-	-12	--
--	11-	-10	Q-Link data
Earth	9-	-8	Status CVBS
--	7-	-6	Audio in (L)
Earth	5-	-4	Audio earth
Audio out (L)	3-	-2	Audio in (R)
Audio out (R)	1-

AV2 - Pins 15 and 20 are dependent on AV2 S-VHS / VIDEO switching.

S-Video 4 pin socket

Rear AV1/AV2(S) 21 Pin Scart and RCA Audio Out Terminals

Notes:
Additional equipment and cables shown are not supplied with this TV set.
Do not connect a computer with TTL output (5V) to this set.

Audio out using external amplifiers and speakers

The Audio Out sockets on the rear of the TV allow you to create your own custom sound output system using additional external amplifiers and speakers. You may decide, for example, to use an external amplifier and speakers for the Front surround output.

Utilising an existing stereo hi-fi system comprising one amplifier, connected to the FRONT DOLBY SURROUND OUT sockets and two speakers to allow separate front left and right channels.

The internal speaker can be switched off in the Surround menu.

External Front speakers connected to an additional amplifier L R R L Rear speakers

Existing hi-fi speaker used as front right surround speaker - Black terminal + Red terminal R L SPEAKERS Existing hi-fi speaker used as front left surround speaker + Red terminal - Black terminal PH. TCNER CD TAPE AUX R ○ ○ ○ ○ ○ ○ L ○ ○ ○ ○ ○ To inputs e.g. AUX. Typical rear view of existing Hi-fi Stereo Amplifier Output from the FRONT AUDIO OUT Sockets Connect (R) Right to Right input (R) of AUX, Connect (L) Left to Left input (L) of AUX.

TROUBLE-SHOOTING

Symptoms		Checks
Picture	Sound
Snowy Picture	Noisy Sound	Aerial location, direction or connection
Multiple Images	Normal Sound	Aerial location, direction or connection
Interference	Noisy Sound	Electrical appliancesCars / MotorcyclesFluorescent lights
Normal Picture	No Sound	Volume levelSound mute switched on
No Picture	No Sound	TV set to AV modeNot plugged into A.C. outletNot switched onPicture / Sound controls set at minimum levelsCheck if in standby mode
No Colour	Normal Sound	Colour controls set at minimum levels
Poor or Distorted Picture	Weak or No Sound	Retune Channel(s)
Coloured Patches	Normal Sound	Magnetic Interference from unshielded equipmentReceiver moved while switched ON, switch TV off for 30 minutes.
Normal Picture	Weak or distorted sound	Sound reception may have deteriorated.Switch NICAM setting (Sound menu)to Off until reception improves.

FOR YOUR GUIDANCE

■ Service

Before requesting service, please refer to the trouble-shooting guide on previous page to determine the symptoms. To obtain service please contact your local Panasonic dealer quoting the model number and serial number (both are located at the rear of the TV).

■ TV Games / Home Computers

Extended use of TV games or home computers with any television set can cause a permanent 'shadow' on the screen. This type of irreversible picture tube damage, can be limited by observing the following points:

• Reduce the brightness and contrast levels to a minimum viewing level.
• Do not operate the television set for a continuous period of time while using TV games or home computers.
• This type of picture tube damage, is not an operating defect, and as such is not covered by the Panasonic warranty.

■ Last Position Memory

Certain functions have a last position memory, i.e. the setting at the time of switch-off will be the setting used when the receiver is switched on again:-

Programme	Tint (M.NTSC / NTSC only)
Headphone volume	Volume correction (in AV mode only)
AV Position	Contrast
Volume	Sharpness
NICAM	Aspect mode
Bass	Standby
Treble	Artificial Intelligence (AI)
Balance	Colour
Colour Balance	Brightness
Status	P-NR
Teletext mode	Decoder (AV2)
Surround mode	Speaker level setting
Speaker distance

■ Sleep Feature

If the set is not switched off when the TV station stops transmitting, it will automatically go to standby mode after 30 minutes. This function will not operate when the TV is in AV mode.

SPECIFICATIONS

		TX-W32R4DP	TX-W28R4DP
Power Source		220 - 240V 50Hz A.C.
Power Consumption		140W	135W
Standby Consumption		1.8W
Picture TubeVisible Diagonal		76 cm	66 cm
Audio OutputMusic Power		Front Left / Right 20W x 2, External Centre 20W,3D Subwoofer 26W, Surround 15W x 2
Dimensions	H	555.0 mm	518.0 mm
	W	862.0 mm	760.0 mm
	D	553.0 mm	496.8 mm
Weight (Kg)		50.5	38.0
Receiving Systems/ Band name		PAL I PAL 525/60 M.NTSC NTSC (AV input only)	UHF E21-68Playback of NTSC tape from some PAL Video recorders (VCR)Playback from M.NTSC Videorecorders (VCR)Playback from NTSC Videorecorders (VCR)
Aerial - Rear		UHF
Headphones - Front		3,5mm, 8Ω impedance
AV - Rear		AV1 - 21 pin terminal - Audio / Video in / out, RGB in.AV2 - 21 pin terminal - Audio / Video in/out, S-Video in, Q-Link
Dolby Surround Out - Rear		5 x Dolby Surround Out RCAExternal Speaker connections - 2 x Rear, 1 x Centre, 1 x 3D subwoofer
AV - Front		AV3 - S-Video in, 2 x RCA Audio in, 1 x RCA Video in.

Specifications are subject to change without notice. Weight and dimensions shown are approximate.
Dolby, Pro Logic and the ☐ are trademarks of Dolby Laboratories.
Manufactured under license from Dolby Laboratories.

NOTES

NOTES

742
