BEDIENUNGSANLEITUNG Resistance Unit for Aluminum Rollers CycleOps
CycleOps
Resistance Unit for Aluminum Rollers
NOTE: If you purchased 9502 with resistance unit already installed skip to "How to Use" section
Note: The two nuts on resistance unit should rest against roller frame.


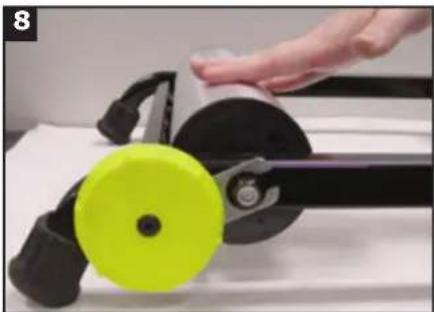

Close-up of a hand pressing down on a mechanical device with a yellow and black wheel (no text or symbols visible)Flip roller right side up. Spin drum by hand to ensure clearance. If unit does not have proper clearance or contacts roller, (use spacer), repeat steps 5 through 8.
Saris Cycling Group
5253 Verona Road
Madison, WI 53711
800-783-7257
www.sariss.com
Note: Roller resistance unit is shipped in resistance level 5. This has the closest gap to the roller drum. The spacing setup should be completed in this setting to prevent the drum from contacting the resistance unit during use.
How to Use:
There are 6 settings on your AL Resistance Unit.
0-turns the resistance unit off 1-least amount of resistance 5-greatest amount of resistance
Rotate knob counter-clockwise to adjust resistance.
Note: The AL Resistance unit ONLY works on the CycleOps AL Rollers.
