GV-EBL2702 Series 2MP H.265 Super Low Lux WDR Pro IR Bullet IP Camera

Exterior view of a white geolithian security camera with attached mechanical component (no text or symbols visible)

• 1/2.8" progressive scan super low lux CMOS
• Min. illumination at 0.004 lux
• Dual streams from H.265, H.264, and MJPEG
• Up to 30 fps at 1920 x 1080
• Vandal resistance (IK10 for metal casing)
• Ingress protection (IP67)
• Day/Night function (with removable IR-cut filter)
- In telligent IR
• IR distance up to 60 m (197 ft)
• Built-in micro SD card slot (SD/SDHC/UHS-I) for local storage
• DC 12V / PoE (IEEE 802.3af)
• Wide Dynamic Range Pro (WDR Pro)
- Smart streaming
- Defog
- Text overlay
- Tampering Alarm
• 3D noise reduction
• IP address filtering
- Recording assigned by GV-Edge Recording Manager (Windows & Mac)
• S upports iPhone, iPad, Android & 3GPP
• 31 languages on Web interface
• ONVIF (Profile S) conformant
* No memory card slot & local storage function for Argentina
* Smart streaming requires either GV-DVR / NVR V8.7.0 or GV-VMS V16.10.3

Introduction

The Target Bullet Camera is a lightweight camera designed for outdoor environments. It adheres to the IP67 standard and has full protection against dust and jets of water. The camera can support H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera is capable of providing a color live view not only in near darkness but also under contrasting light intensities with its super low lux CMOS image sensor and WDR pro.

Models

Model	Iris	Focal Length (mm)	Maximum Aperture	Image Format
GV-EBL2702-1F	Fixed	6	F/2.0	1/2.7”
GV-EBL2702-2F		3.8	F/1.8
GV-EBL2702-3F		2.8	F/2.0

Active Tampering Alarm

Focus Change

Interior hallway view with glass doors and patterned flooring (no visible text or symbols)

Camera Shift

Interior hallway view showing a doorway and wall-mounted horizontal beam (no visible text or symbols)

Overview

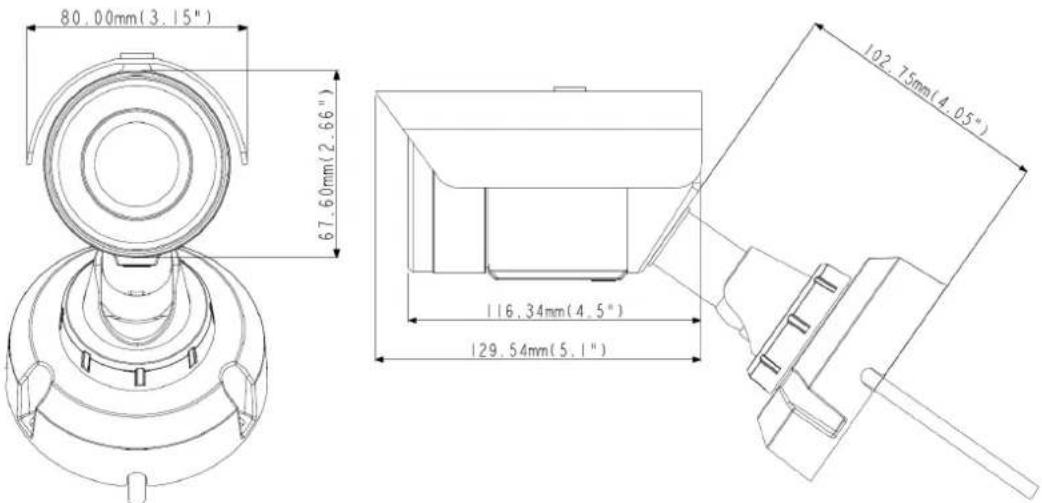

Dimensions

80.00mm(3.15") 67.60mm(2.66") 116.34mm(4.5") 129.54mm(5.1") 102.75mm(4.05)

Specifications

Camera		GV-EBL2702-1F	GV-EBL2702-2F	GV-EBL2702-3F
Image Sensor		1/2.8" progressive scan super low lux CMOS
Picture Elements		1920 (H) x 1080 (V)
Minimum Illumination	Color	0.005 Lux
	B/W	0.004 Lux
	IR ON	0 Lux
Shutter Speed		Automatic, manual (1/5 ~ 1/16000 sec)
White Balance		Automatic, manual (2800K ~ 8500K)
Gain Control		Automatic
S/N Ratio		56 dB
WDR		WDR Pro
Dynamic Range		Up to 130 dB
Lens
Megapixel		Yes
Day/Night		Yes (with removable IR-cut filter)
Lens Type		Fixed
Focal Length		6 mm	3.8 mm	2.8 mm
Maximum Aperture		F/2.0	F/1.8	F/2.0
Mount		M12, Pitch 0.5 mm
Horizontal FOV		52°	73°	100°
Image Format		1/2.7"
Operation	Focus Fixed
	Zoom Fixed
	Iris	Fixed
IR LED Quantity		6 IR LEDs
Max. IR Distance		60 m (197 ft)
Operation
Video Compression		H.265, H.264, MJPEG
Video Stream		Stream 1 from H.265 or H.264Stream 2 from H.265, H.264 or MJPEG
Frame Rate		50 Hz: 25 fps at 1920 x 108060 Hz: 30 fps at 1920 x 1080*The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes)
Image Setting		Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation, Shutter Speed, D/N Sensitivity, Backlight Compensation, WDR, Defog, Low Lux Enhancement, Denoise and Metering
Audio Support N/A

Video Resolution
	4 : 3	1280 x 960, 640 x 480
Main Stream	16 : 9	1920 x 1080 (Default), 1280 x 720, 640 x 360
	5 : 4	1280 x 1024, 640 x 512
	4 : 3	640 x 480, 320 x 240
Sub Stream	16 : 9	640 x 360 (Default), 448 x 256
	5 : 4	640 x 512, 320 x 256
Network
Interface		10/100 Ethernet
Protocol		DHCP, DynDNS, FTP, HTTP, HTTPS, NTP, ONVIF (Profile S), QoS (DSCP), RTSP, SNMP, SMTP, TCP, UDP, UPnP, 3GPP/ISMA
Mechanical
Temperature Detector		Yes
Camera Angle Adjustment	Pan	0° ~ 360°
	Tilt	90° ~ 180°
Connectors	Power	2-pin terminal block, PoE
	Ethernet	Ethernet (10/100 Base-T), RJ-45 cable
	Local Storage	Micro SD card slot (SD/SDHC/UHS-I, Class 10)*UHS-II and SDXC card type is not supported.
LED Indicator		2 LEDs: Power, Status
General
Environment Temperature	Start-up	-20°C ~ 60°C (-4°F ~ 140°F)
	Operation	-30°C ~ 60°C (-22°F ~ 140°F)
Humidity		10% to 90% (no condensation)
Power Source		12V DC / PoE (IEEE 802.3af)
Max. Power Consumption		9.10 W
Dimensions		129.54 x 80 x 102.75 mm (5.1" x 3.15" x 4.05")
Weight		809 g (1.78 lb)
Ingress Protection		IP67
Vandal Resistance		IK10 for metal casing
Regulatory		CE, FCC, RCM, LVD, RoHS compliant
Power over Ethernet
PoE Standard		PoE (IEEE 802.3af Power over Ethernet / PD)
PoE Power Supply Type		End-span, Mid-span
PoE Power Output		Per Port 48V DC, 350mA, Max. 15.4 watts
Web Interface
Installation Management		Web-based configuration
Maintenance		Firmware upgrade through Web Browser or Utility
Access from Web Browser		Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Picture in Picture, Picture and Picture, Privacy Mask, Text Overlay, Digital PTZ
Language		Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian / Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish
Application
Software Supported		GV-DVR / NVR (V8.7.3.0), GV-VMS (V16.11.0.0), GV-Control Center (V3.4.0.0), GV-Edge Recording Manager (V1.2.1.0), GV-Center V2 (V16.11.0.0), GV-Recording Server / Video Gateway (V1.3.0.0), GV-Redundant / Failover Server (V1.1.0.0)
Smart Device Access		GV-Eye for iOS and Android
Remote Live Viewing		Browser (IE, Chrome, Firefox, Safari), Mobile App
CMS Server support		GV-Control Center, GV-Center V2, GV-Vital Sign Monitor

Note:
1. It's required to apply patch files to all the supported software mentioned above.
2. The signal range and data throughput may vary depending on the network conditions and environmental factors.
3. Specifications are subject to change without notice.

Packing List

1. Target H.265 Bullet Camera 9. Screw for Mounting Kit x 3
2. Sun-Shield Cover 10. Nut for Mounting Kit x 3
3. Screw for Sun-Shield Cover x 2 11. Hex Wrench
4. Screw for Supporting Rack x 3 12. Download Guide
5. Screw Anchor x 3 13. Warranty Card
6. Silica Gel bag x 2
7. Washer x 2
8. Terminal Block

Note: The power adapter can be purchased upon request.

Accessories

Modol No.	Name		Details
GV-Mount300-1	Convex Corner Adapter Kit		Dimensions: 238.6 x 395.2 x 210 mm(9.4" x 15.5" x 8.2")Weight: 4.27 kg (9.41 lb)
GV-Mount310-1	Concave Corner Adapter Kit		Dimensions: 111.2 x 369.9 x 210 mm(4.37" x 14.5" x 8.2")Weight: 2.96 kg (6.53 lb)
GV-Mount400-1	Pole Mount Bracket Kit(∅ 4" ~ 6")		Dimensions:Bracket: 68.4 x 240 x 163 mm(2.69" x 9.44" x 6.41")Weight: 1.70 kg (3.75 lb)Steel Strap Diameter: ∅ 4" ~ 6"
GV-Mount410-1	Pole Mount Bracket Kit(∅ 6" ~ 7.5")		Dimensions:Bracket: 68.4 x 240 x 163 mm(2.69" x 9.44" x 6.41")Weight: 1.70 kg (3.75 lb)Steel Strap Diameter: ∅ 6" ~ 7.5"
GV-PA191 PoE Adapter	Power Over Ethernet (PoE)Adapter		Dimensions (H x W x D): 43 x 69 x 40 mm(1.69" x 2.72" x 1.57")Weight: 130 g (0.29 lb)
GV-POE Switch		The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
Power Adapter		Contact our sales representatives for the countries and areas supported.
