BEDIENUNGSANLEITUNG Proline Avyna
Model 12-i / Model 14-i


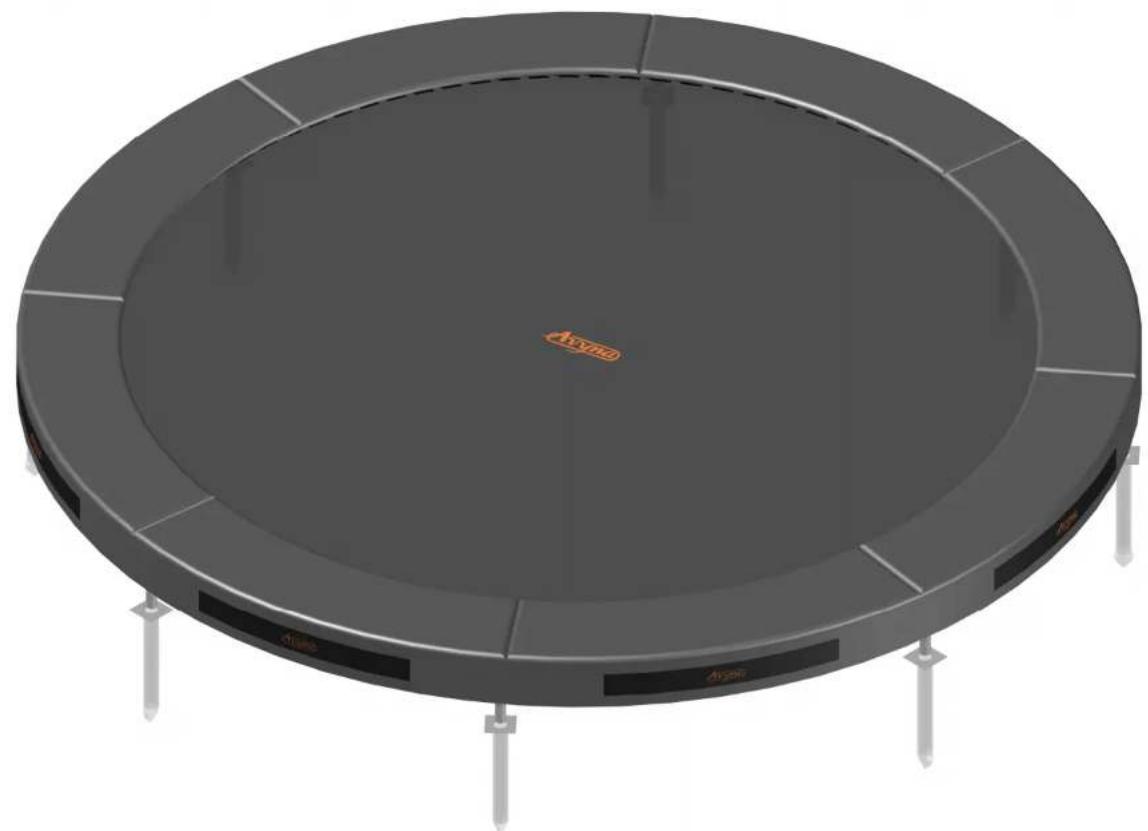

3D rendering of a circular trampoline with visible branding and support legs (no text or symbols on the platform itself)Model 12-i / Model 14-i
| Model 12-i Model 14-i∅365cm ∅430cm | ||||||
| Quantity | QuantityPart number | Part number | ||||
| Jumping mat | 1 TEPL-12-222 | ![]() | 1 TEPL-14-222 | ![]() | ||
| Galvanized springL=215mm ∅3.2mm | 80 TEPL-200-211/B | 96 | TEPL-200-211/B | |||
| Safety pad 1 | TEPL-12-333-i (green)orAVGR-12-333-i (gray)orCAM-12-333-i(camouflage) | ![]() | 1 | TEPL-14-333-i (green)orAVGR-14-333-i (gray)orCAM-14-333-i(camouflage) | ![]() | |
| Fastener for Safety pad | 8 TEPL-ELAS | ![]() | 8 TEPL-ELAS | ![]() | ||
| 8IngrdTEPLpPIN | ![]() | 8 | TEPL-PIN | ![]() | ||
| Inground pin safety pad | 24TEPL-ELAS | |||||
| C-tube | 4 | TEPL-12-113 | ![]() | 4 | TEPL-14-113 | ![]() |
| TEPL-12-1144K-tube | ![]() | 4 | TEPL-14-114 | ![]() | ||
| TEPL-12-1154H-tube | ![]() | 4 | TEPL-14-115 | ![]() | ||
Model 12-i / Model 14-i
| Model 12-i Model 14-i∅365cm ∅430cm | ||||||||
| Quantity | QuantityPart number Part | number | ||||||
| TOOL-SPRING1 | Tool for spirir![]() | 1 | TOOL-SPRING | ![]() | ||||
| Users Manual | 1 | 2980002PL | 1 | 2980002PL | ||||
| Warning Card | 1 | 2980301PL | 1 | 2980301PL | ||||
| Tie rip for warning card | 1 | 29990001 | 1 | 29990001 | ||||


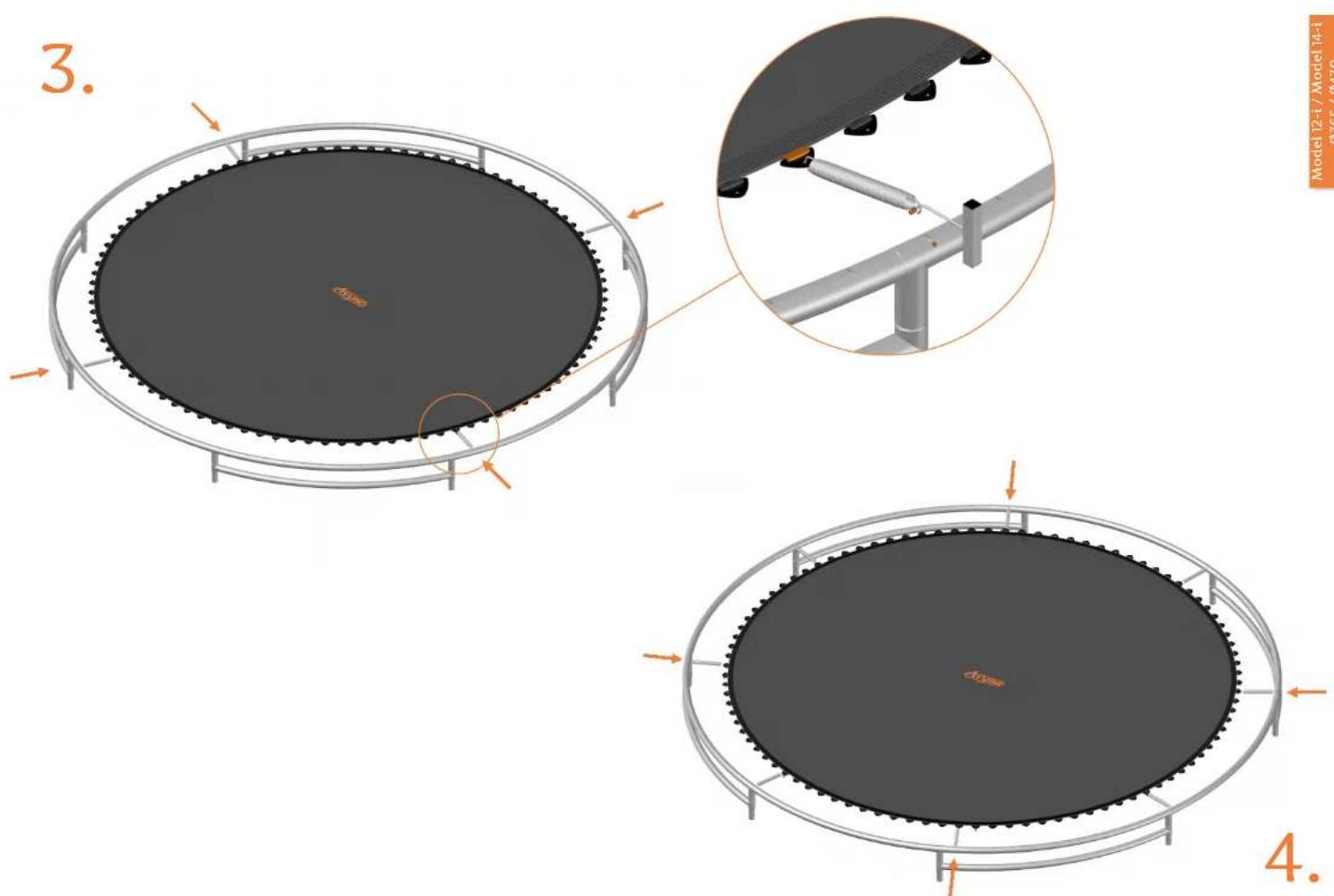

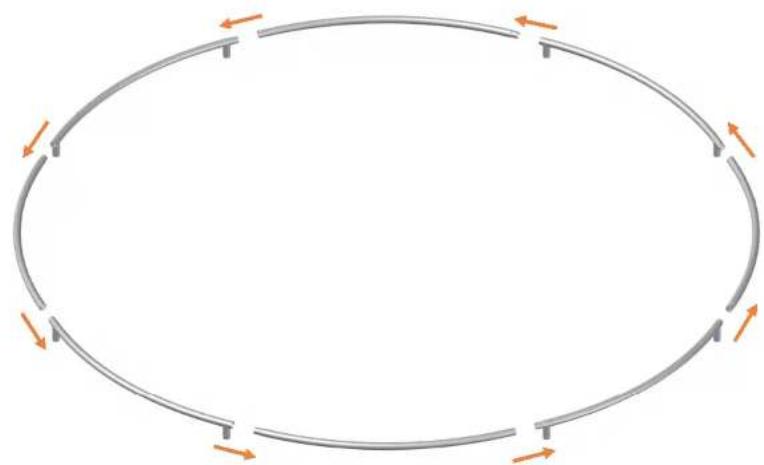

3. Model 12-1 / Model 14-1 0756 1/0870 4.


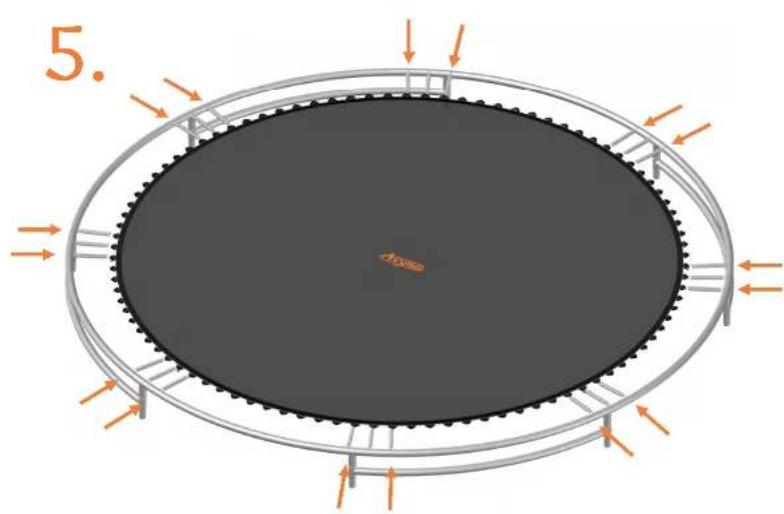

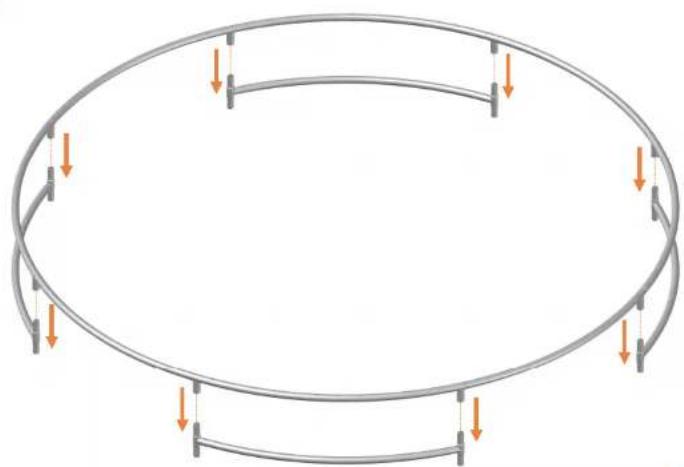

5.


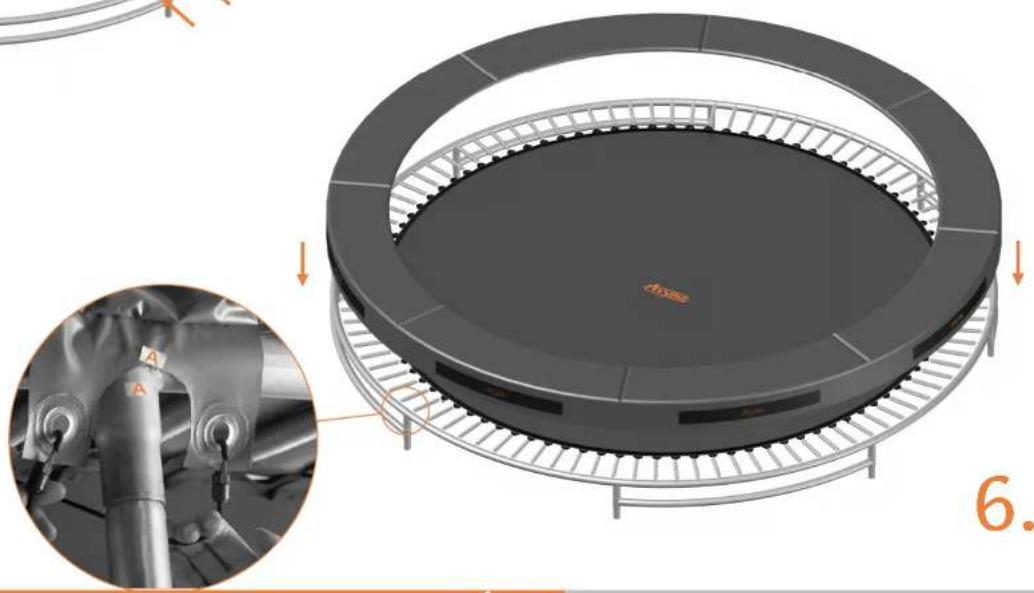

Technical illustration of a circular trampoline with metal frame structure, showing internal components and a close-up inset (no text or symbols)6.


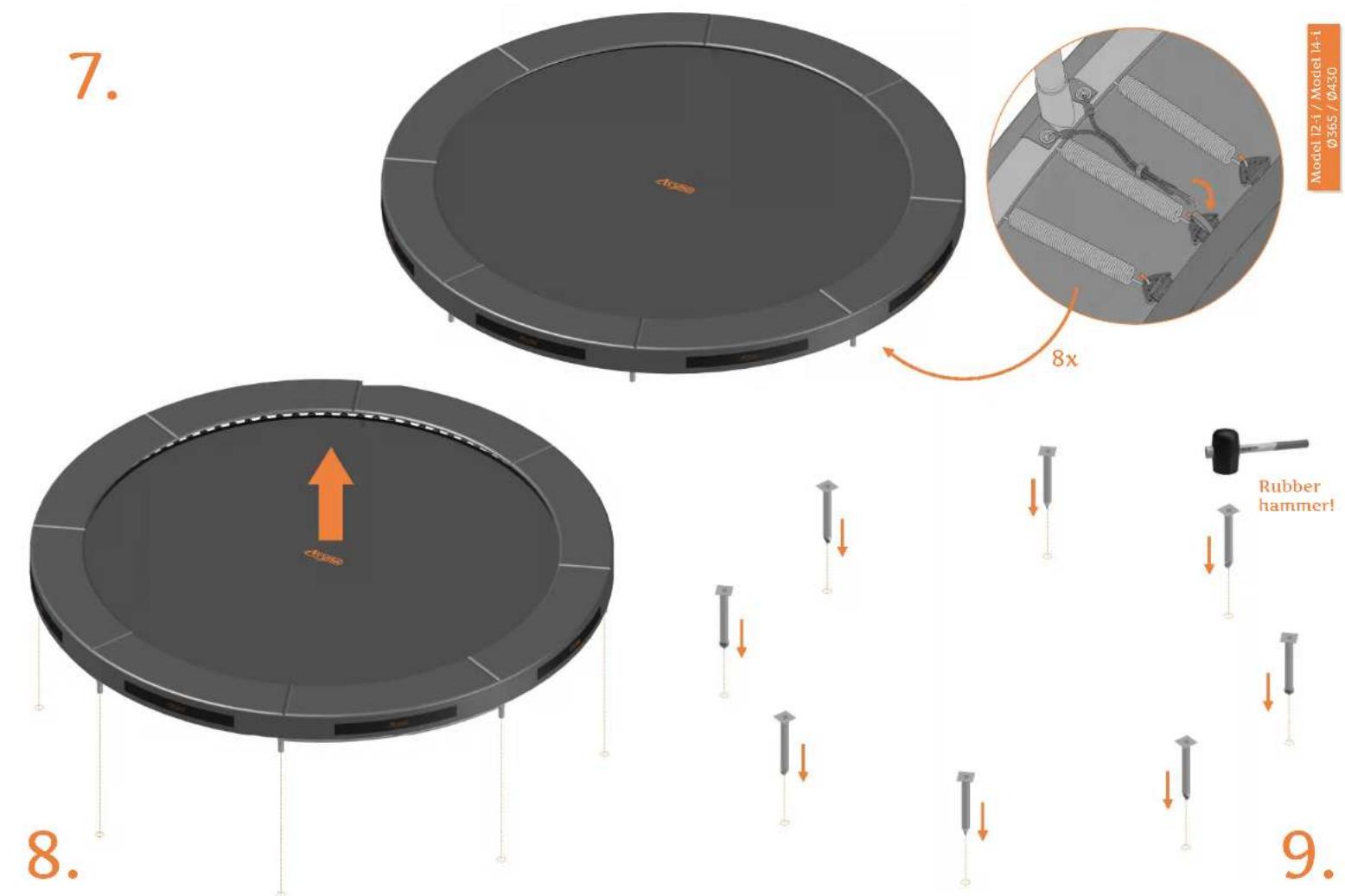

7. 4x 8x Model 12-1 / Model 14-1 Ø365 / Ø430 Rubber hammer! 8. 9.


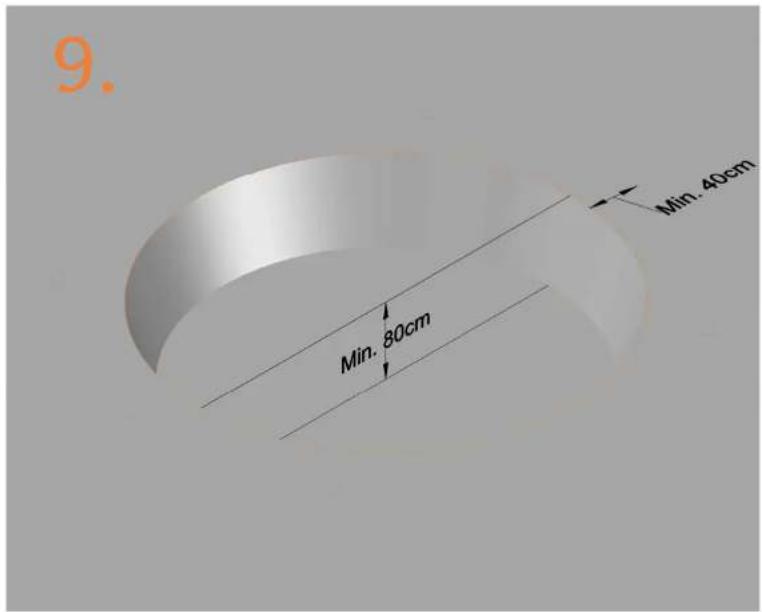

9. Min. 40cm Min. 80cm
| Model 12-i Model 14-i∅365cm ∅430cm | |||||||||
| Quantity | QuantityPart number Part number | ||||||||
| Pole with sleeve for safety net | 8 | TEGR-12-802a (green)orAVGR-12-802a (gray) | ![]() | 8 | TEPL-14-802a (green)orAVGR-14-802a (gray) | ![]() | |||
| TEPL-12-802b8Pole for | safety net | 2b8 | |||||||
| Inground pin for safety net | 8 | tool-08-10-12-14-sn too | -08-10-12-14-sr | 8 | ![]() | ||||
| Safety net | 1 | TEGR-12 (green)orAVGR-12 (gray) | 1 | TEGR-14 (green)orAVGR-14 (gray) | |||||
| Straps for safety net | TEPL-BAND16 | TEPL-BAND16 | |||||||
| TEPL-KNOOPJE2Closure for safety net | TEPL-KNOOPJE2 | ||||||||


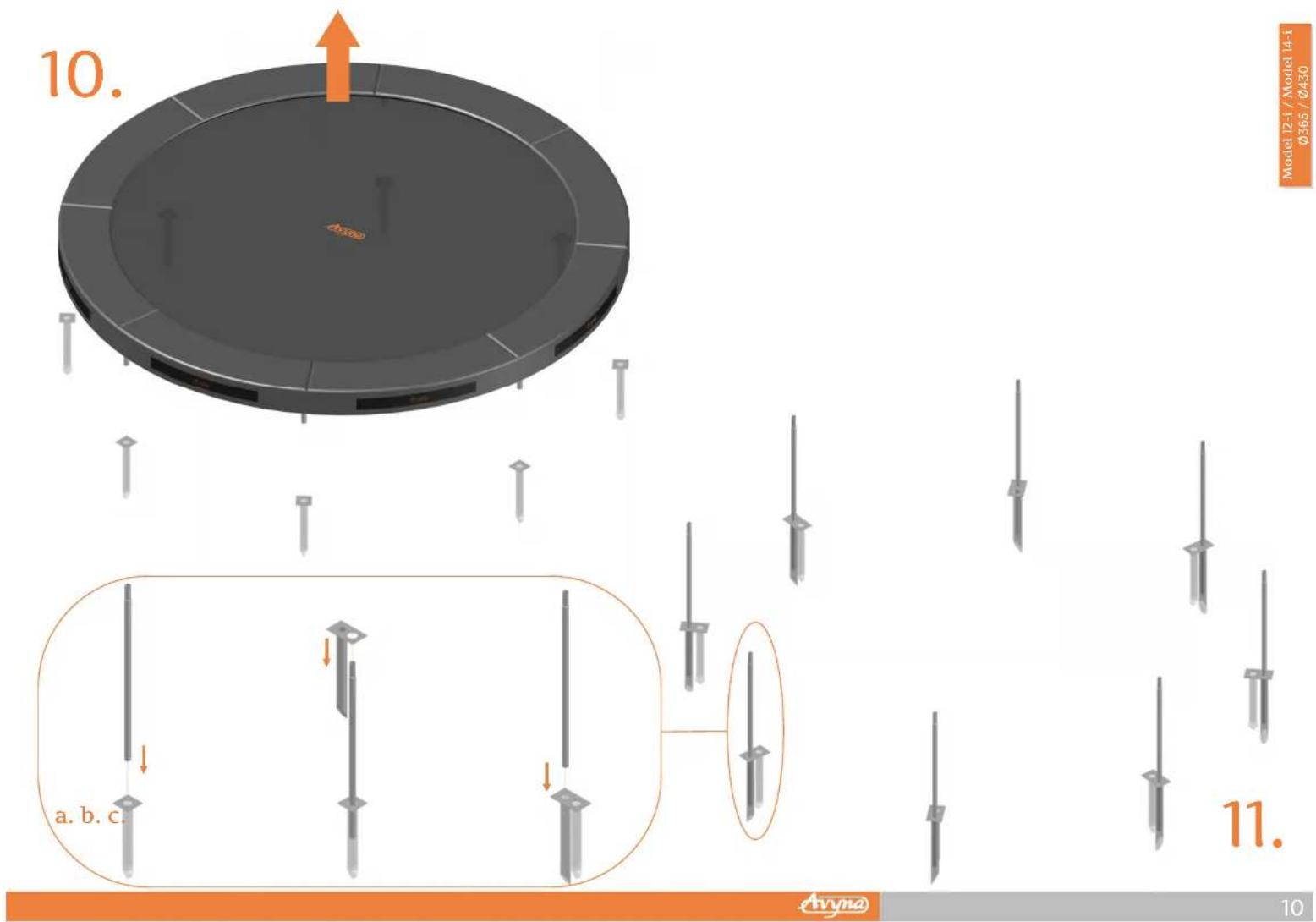

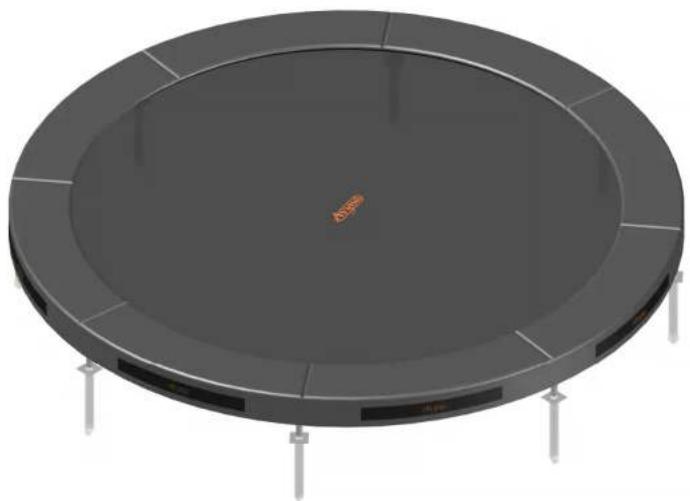

10. Model 12-1 / Model 14-1 Ø365 / Ø430 a. b. c. 11. 10


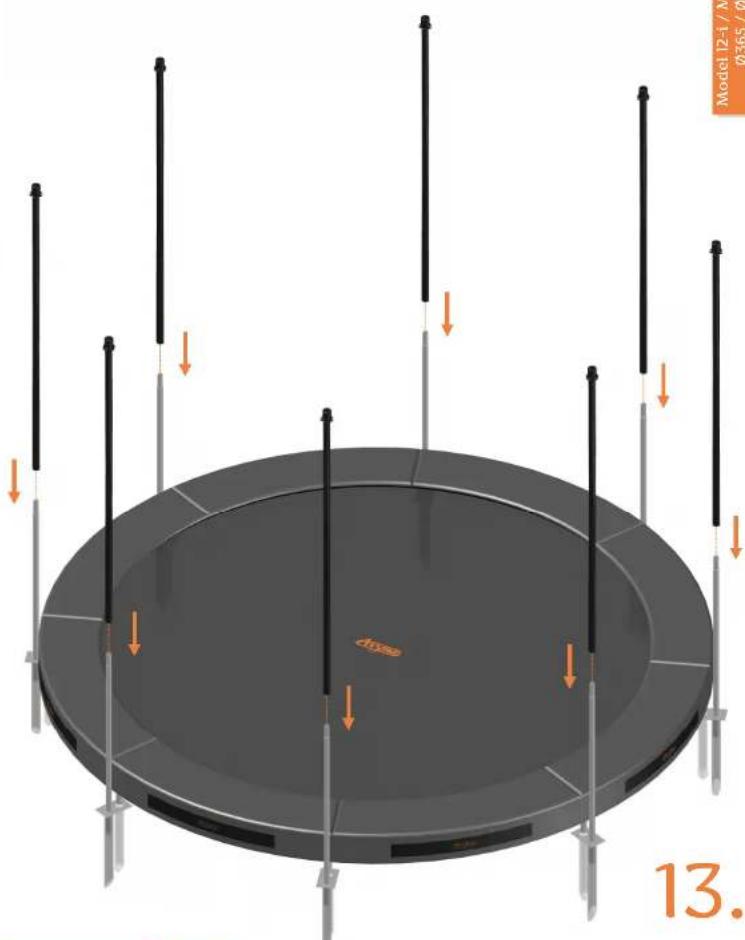

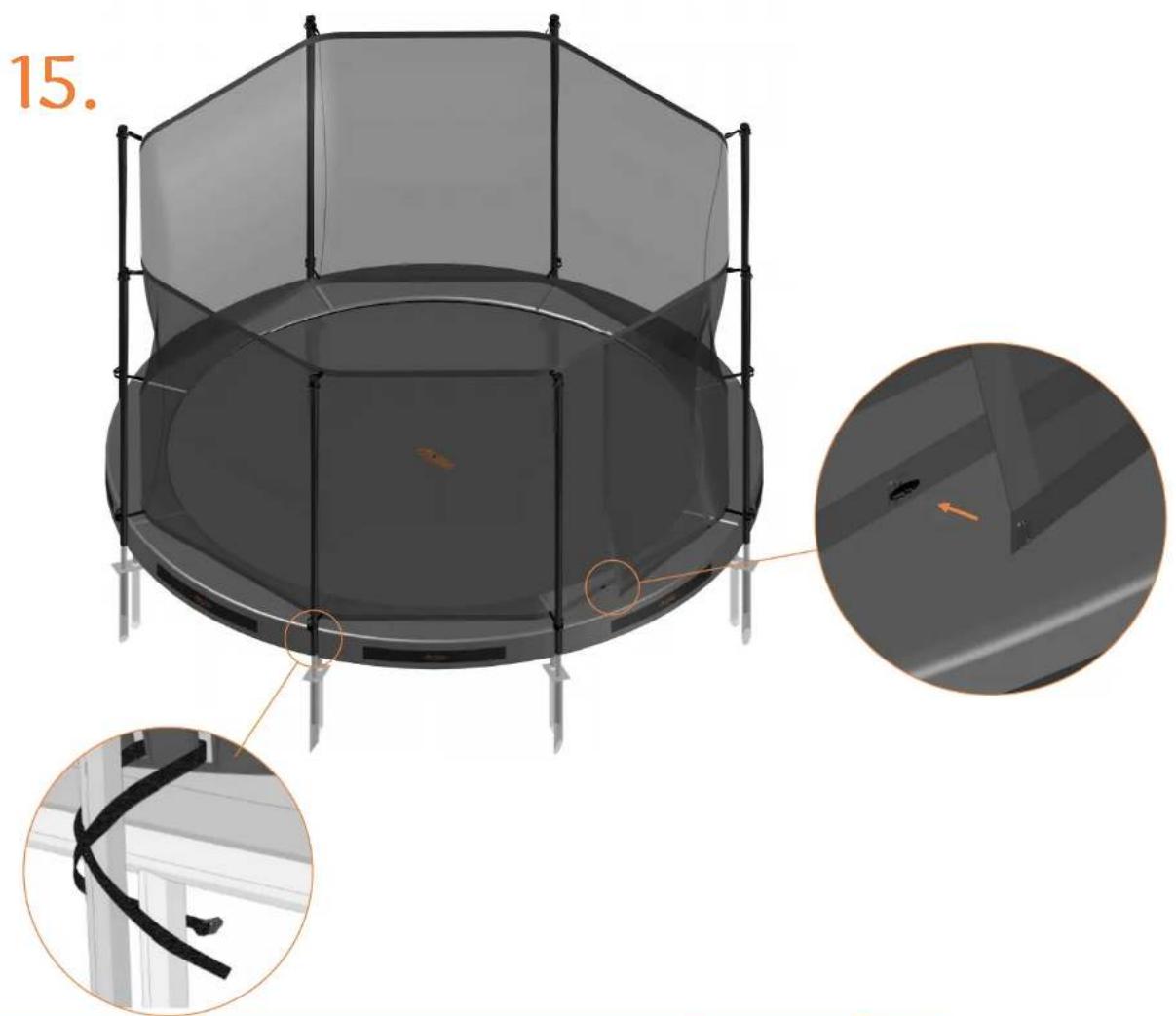

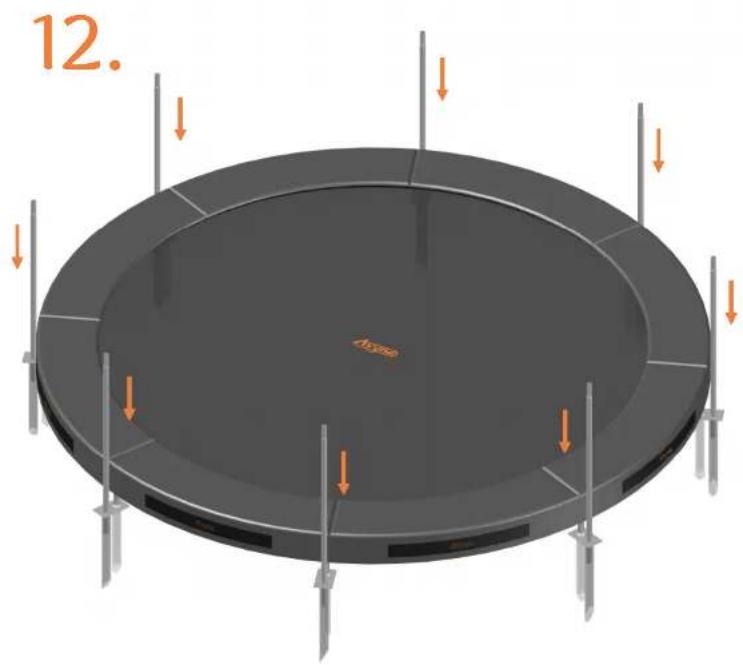

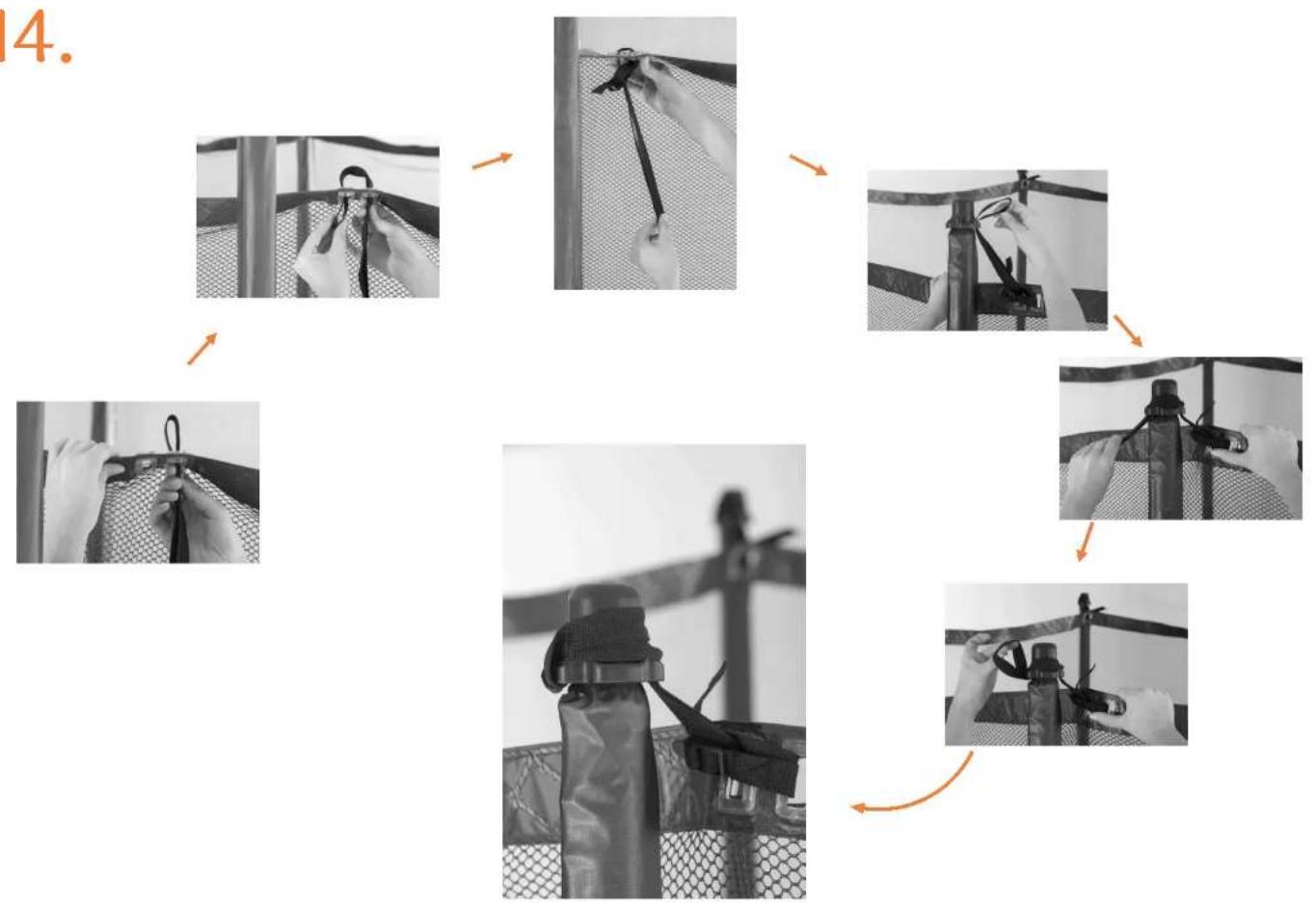

3D diagram of a circular platform with vertical poles and orange arrows indicating force or movement, labeled '13.' (no text or symbols on the diagram itself)flowchart
