BEDIENUNGSANLEITUNG Pegaso 450 G3

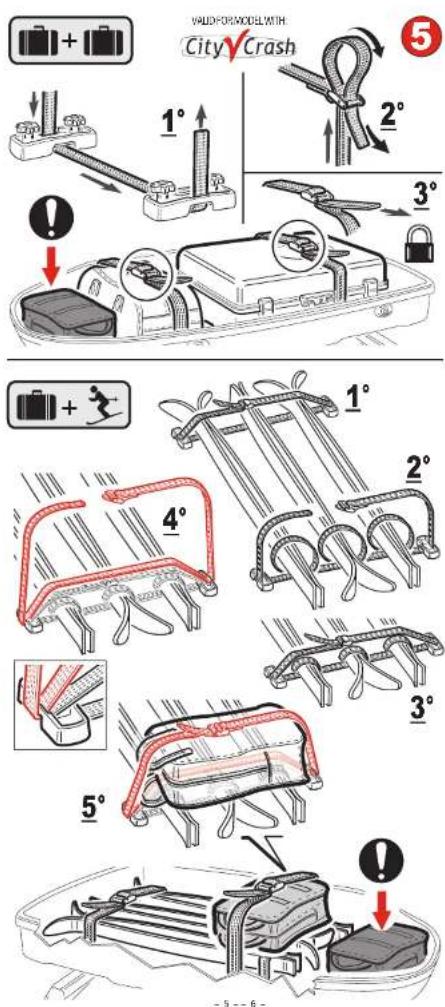

VALID-FORMOBLWITH CityCrash 5 1° 2° 3° 4° 5° -5 - 6 -

piega

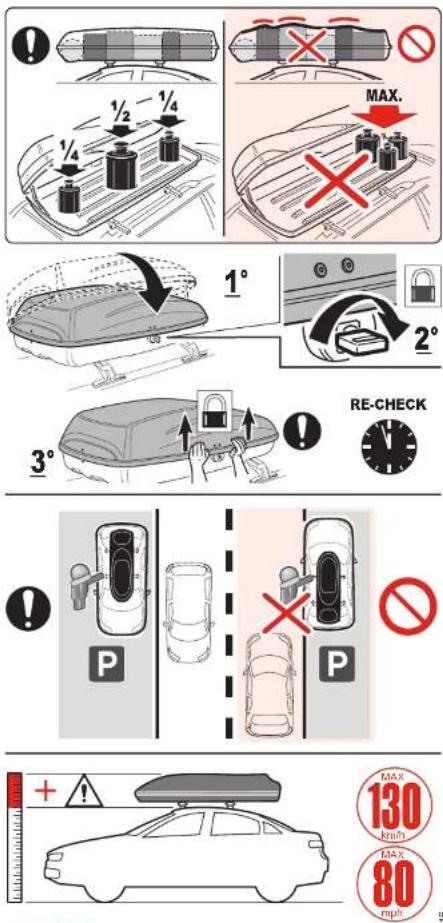

MAX. 1/2 1/4 1/4 RE-CHECK 3° P P MAX 130 km/h MAX 80 mpa

G3 S.p.A. Via S. Allende, 15 42020 MONTECAVOLO DI QUATTRO CASTELLA (RE) - ITALY E-mail: [e-mail] - www.g3spa.it
piega

piega

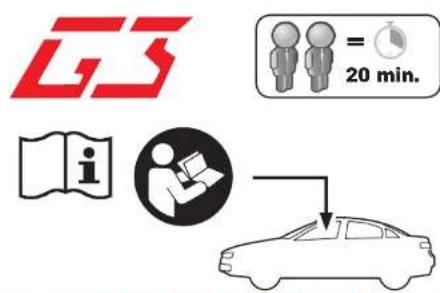

G3 = 20 min. i •

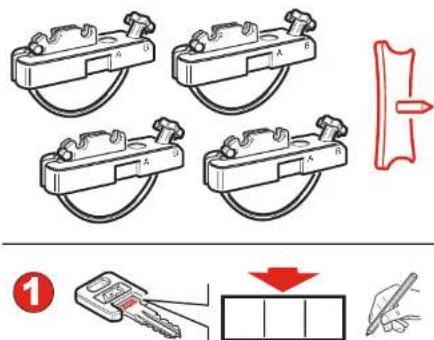

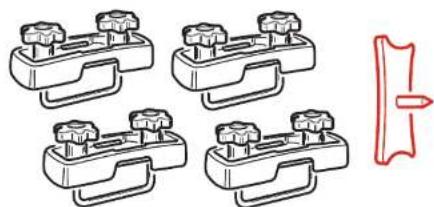

FIXING KIT - 1 (cod. K9.009)

Four identical mechanical clamp components with mounting holes, shown in a row alongside a red arrow symbol (no text or labels)

FIXING KIT-2 (cod. K9042)

Diagram illustrating four different types of electrical switch components with a red arrow indicating direction and a numbered step showing the process.

-1-
piega

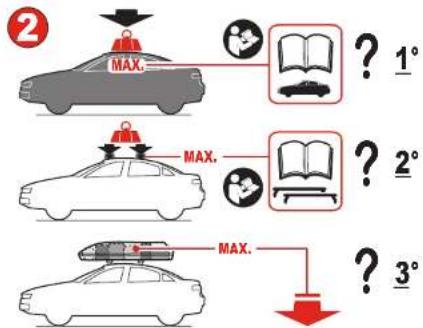


			DUAL SET
SPARK 320	7 kg / 15.43 lbs 50 kg / 110.23 lbs
SPARK 400	10 kg / 22.04 lbs 75 kg / 165.34 lbs		•
SPARK 420	12 kg / 26.45 lbs 75 kg / 165.34 lbs		•
SPARK 480	13 kg / 28.66 lbs 75 kg / 165.34 lbs		•
SPARK 520 all versions	16.4 kg / 36.15 bc 75 kg / 165.34 lbs		•
SPARK.ECO 320	7.5 kg / 16.53 lbe 50 kg / 110.23 lbs
SPARK.ECO 400	10 kg / 22.04 lbs 75 kg / 165.34 lbs
SPARK.ECO 480	13 kg / 28.66 lbs 75 kg / 165.34 lbs
SPARK.ECO 520	16 kg / 35.27 lbs 75 kg / 165.34 lbs
ABSOLUTE 320	7.5 kg / 16.53 lbs 50 kg / 110.23 lbs
ABSOLUTE 400	11 kg / 24.25 lbs 75 kg / 165.34 lbs		•
ABSOLUTE 480	13 kg / 26.66 lbs 75 kg / 165.34 lbs		•
ALL-TIME 320	7.5 kg / 16.53 lbs 50 kg / 110.23 lbs
ALL-TIME 400	11 kg / 24.25 lbs 75 kg / 165.34 lbs
ALL-TIME 480	13 kg / 26.66 lbs 75 kg / 165.34 lbs
REEF 270	6.5 kg / 14.33 bbs 50 kg / 110.23 lbs
REEF 390	10.5 kg / 23.14 lbs 75 kg / 165.34 lbs		•
REEF 580	16 kg / 35.27 lbs 75 kg / 165.34 lbs		•
HELIOS 320	7.5 kg / 16.53 lbs 50 kg / 110.23 lbs
HELIOS 400 all versions	10 kg / 22.04 lbs 75 kg / 165.34 lbs		•
HELIOS 480 all versions	13 kg / 26.66 lbs 75 kg / 165.34 lbs		•
KRONO 320 all versions	7.5 kg / 16.53 lbs 50 kg / 110.23 lbs
KRONO 400	10 kg / 22.04 lbs 75 kg / 165.34 lbs
KRONO 480	13 kg / 26.66 lbs 75 kg / 165.34 lbs
ARJES 280	9 kg / 19.84 lbs 50 kg / 110.23 lbs
ARJES 320	7.5 kg / 16.53 lbs 50 kg / 110.23 lbs
ARJES 480	13.5 kg / 20.76 lbs 75 kg / 165.34 lbs		•
HYDRA 280	9 kg / 19.84 lbs 50 kg / 110.23 lbs
HYDRA 320	7.5 kg / 16.53 lbs 50 kg / 110.23 lbs
HYDRA 480	13.5 kg / 20.76 lbs 75 kg / 165.34 lbs
PEGASO 320	7.5 kg / 16.53 lbs 50 kg / 110.23 lbs
PEGASO 340	10 kg / 22.04 lbs 75 kg / 165.34 lbs		•
PEGASO 450	13.5 kg / 20.76 lbs 75 kg / 165.34 lbs		•
SIRIO 320	7.5 kg / 16.53 lbs 50 kg / 110.23 lbs
SIRIO 340	10 kg / 22.04 lbs 75 kg / 165.34 lbs
SIRIO 450	13.5 kg / 29.76 bbs 75 kg / 165.34 lbs
CARGO 3	10.5 kg / 23.14 lbs 75 kg / 165.34 lbs
CARGO 4	11 kg / 24.25 lbs 75 kg / 165.34 lbs
CARGO 5	12.5 kg / 27.56 bbs 75 kg / 165.34 lbs
CARGO 6	16 kg / 35.27 lbs 75 kg / 165.34 lbs

-2-

piega

3

MIN. = 570 mm / 22.44 inch MAX. = 840 mm / 33.07 inch

Diagram illustrating vehicle safety warning with a car and two scenarios: one showing a warning sign, the other showing no warning sign.

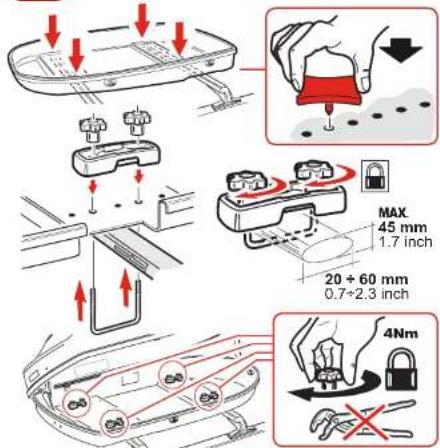

4A

FIXING KIT-1

MAX 45 mm 1.7 inch 20 + 60 mm 0.7+2.3 inch 4Nm

G3

Diagram showing three car safety symbols: no sign, crossed-out cross, and crossed-out cross with arrows indicating direction.

-3

piega

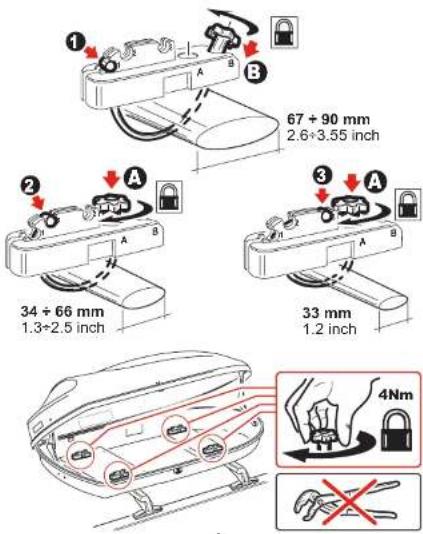

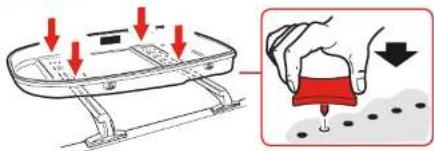

4B

FIXING KIT - 2

Diagram illustrating a hand using a tool to press down a device with red arrows indicating downward motion.

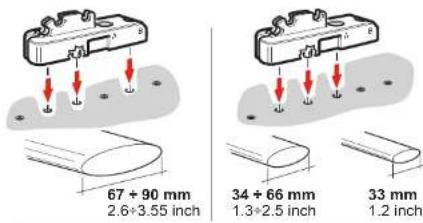

67 + 90 mm 2.6+3.55 inch 34 + 66 mm 1.3+2.5 inch 33 mm 1.2 inch

67 + 90 mm 2.6+3.55 inch 34 + 66 mm 1.3+2.5 inch 33 mm 1.2 inch 4Nm
