1430 / 1431 Door Closers with Fusible Link Holder Arms

1430 ADJUSTABLE FROM SIZE 3 THRU 6

1431 ADJUSTABLE FROM SIZE 1 THRU 4. FOR PHYSICALLY HANDICAPPED

REDUCED OPENING FORCE

NOTE: DOOR CLOSER SERIES, WEEK AND YEAR OF PRODUCTION ARE STAMPED ON END CAP.

1400 - DESIGNATE DOOR CLOSERS ADJUSTABLE SIZES 3 THRU 6.

1401 - DESIGNATE DOOR CLOSERS ADJUSTABLE SIZES 1 THRU 4.

FOR INSTALLATION ASSISTANCE CALL SARGENT AT 1-800-727-5477 • www.sargentlock.com

SARGENT®

ASSA ABLOY

ASSA ABLOY, the global leader in door opening solutions

SELECT PROPER APPLICATION FROM ILLUSTRATIONS BELOW AND FOLLOW INSTRUCTIONS ON GIVE

N P

STANDARD APPLICATION (TYPE 25-F ARM)

USE PAGE 2 CLOSER MOUNTED ON HINGE SIDE OF DOOR

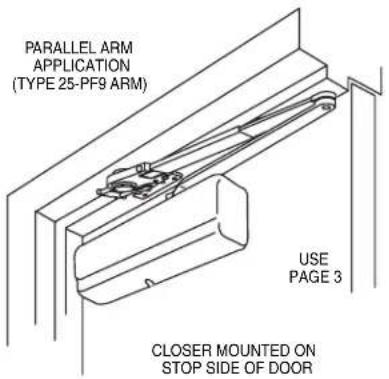

PARALLEL ARM APPLICATION (TYPE 25-PF9 ARM) USE PAGE 3 CLOSER MOUNTED ON STOP SIDE OF DOOR

TOP JAMB APPLICATION (ARM TYPES 25-F, 25-FZ, 25-FZA)

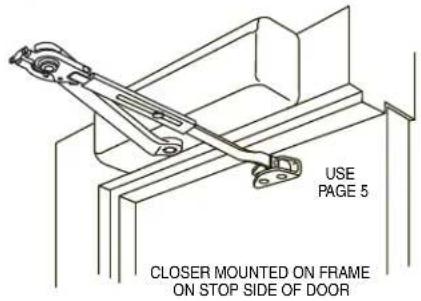

USE PAGE 5 CLOSER MOUNTED ON FRAME ON STOP SIDE OF DOOR

STANDARD APPLICATION

INSTALLATION INSTRUCTIONS

MAX DOOR OPENING	DIM. A DIM. B
120°6 3/4" 12 1/8"
160°** 4 3/4" 10 1/8"

*IF BUTT, FRAME AND WALL CONDITIONS PERMIT DOOR WILL OPEN 180°

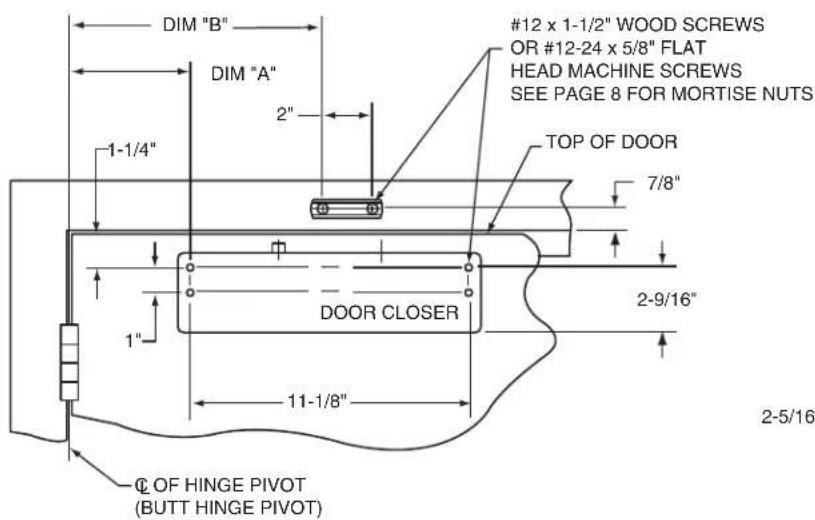

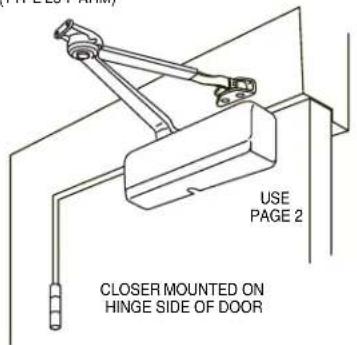

CLOSER MOUNTED ON HINGE SIDE OF A DOOR

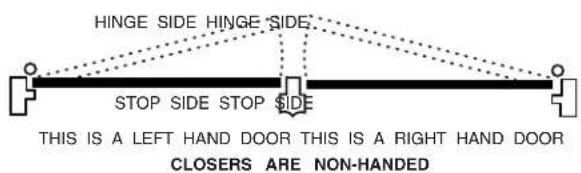

HINGE SIDE HINGE SIDE STOP SIDE STOP SIDE THIS IS A LEFT HAND DOOR THIS IS A RIGHT HAND DOOR CLOSERS ARE NON-HANDED

DIM "B" DIM "A" 1-1/4" 2" #12 x 1-1/2" WOOD SCREWS OR #12-24 x 5/8" FLAT HEAD MACHINE SCREWS SEE PAGE 8 FOR MORTISE NUTS TOP OF DOOR 7/8" DOOR CLOSER 2-9/16" 1" 11-1/8" 2-5/16" C OF HINGE PIVOT (BUTT HINGE PIVOT)

RIGHT HAND DOOR ILLUSTRATED SAME DIMENSIONS APPLY FOR LEFT HAND DOOR.

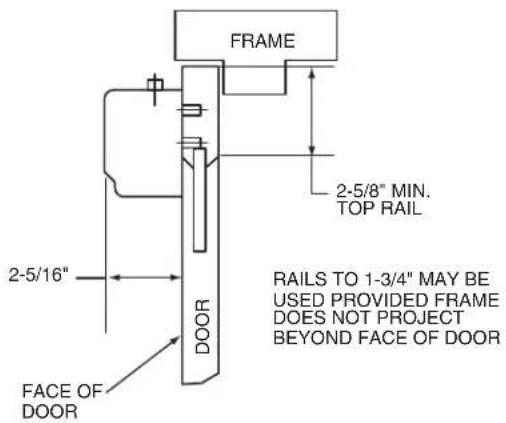

FRAME 2-5/8" MIN. TOP RAIL 2-5/16" DOOR FACE OF DOOR RAILS TO 1-3/4" MAY BE USED PROVIDED FRAME DOES NOT PROJECT BEYOND FACE OF DOOR

A7141B

Copyright © 2009, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

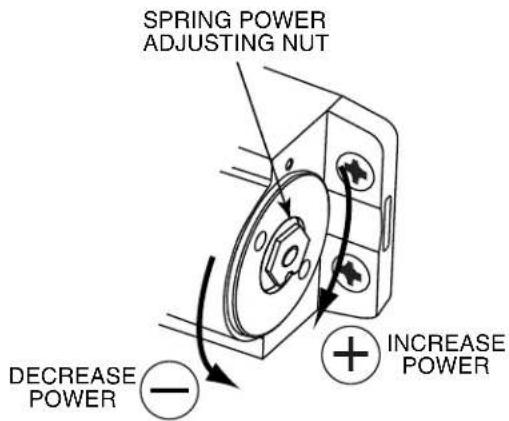

SPRING ADJUSTMENT ADJUST SPRING POWER ACCORDING TO CHART.

SPRING POWER ADJUSTING NUT DECREASE POWER INCREASE POWER

CW-CLOCKWISE CCW-COUNTER CLOCKWISE

NUMBER OF TURNS OF SPRING POWER ADJUSTING NUT*USE CHART AS GUIDE ONLY
DOORWIDTH(INCHES)	APPROXIMATE DOOR WEIGHT(POUNDS)	1430DOOR CLOSERS	1431*DOOR CLOSERS
24	80	1-3 CCW
30	110		1-3 CCW
32	115		FACTORY** SET
36	130	FACTORY** SET
40	150		4-7 CW
42	155	1-3CW	7-10 CW
44	165
46	170	4-7CW
48	180
OVER 48		7-10 CW

* FOR EXTERIOR DOORS USE 1430 CLOSERS ONLY. ** CLOSERS ARE FACTORY SET FOR INTERIOR DOORS.

FOR EXTERIOR DOORS AND WHERE STRONG DRAFT EXISTS INCREASE SPRING POWER AS NEEDED BY TURNING SPRING ADJUSTING NUT CLOCKWISE. IF NECESSARY, DECREASE SPRING POWER TO MEET REQUIREMENTS BY TURNING SPRING ADJUSTING NUT COUNTER CLOCKWISE.

A

USING ILLUSTRATION ON A PAGE 1 SELECT DEGR OF DOOR OPENING DESIRED AND ATTACH CLOSE TO DOOR WITH SHORT END TOWARD HINGE

ED

OPEN DOOR AND INSERT RECTANGULAR ROD INTO HOLD OPEN ARM THEN CLOSE THE DOOR AND TIGHTEN ARM SCREW SECURELY WHEN HOLD OPEN ARM IS AT RIGHT ANGLE TO DOOR.

B

ATTACH FOOT TO FRAME WITH PIVOT AWAY FROM HINGE AS ILLUSTRATED BELOW.

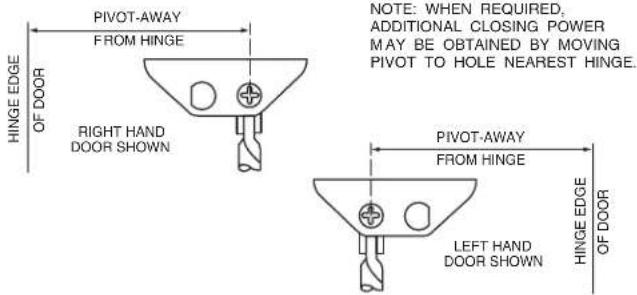

PIVOT-AWAY FROM HINGE HINGE EDGE OF DOOR RIGHT HAND DOOR SHOWN NOTE: WHEN REQUIRED, ADDITIONAL CLOSING POWER MAY BE OBTAINED BY MOVING PIVOT TO HOLE NEAREST HINGE. PIVOT-AWAY FROM HINGE LEFT HAND DOOR SHOWN HINGE EDGE OF DOOR

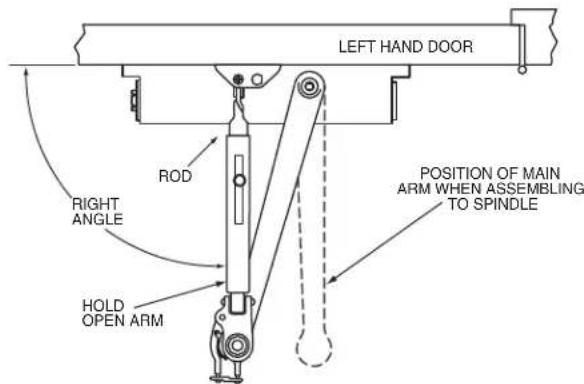

LEFT HAND DOOR ROD RIGHT ANGLE HOLD OPEN ARM POSITION OF MAIN ARM WHEN ASSEMBLING TO SPINDLE

C

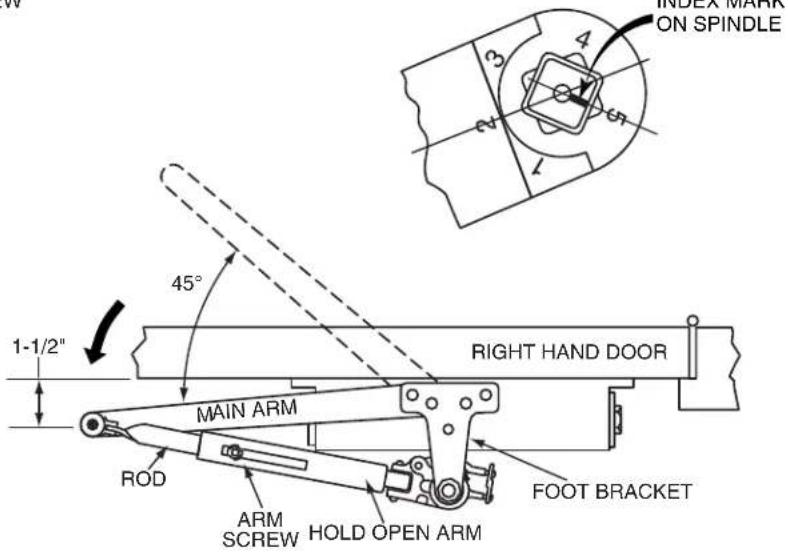

ASSEMBLE MAIN ARM TO CLOSER WITH INDEX MARK ON SPINDLE ALIGNED AS SHOWN BELOW. ATTACH ARM WITH WASHER AND SCREW.

E

ADJUST AND REGULATE DOOR CLOSER AS DIRECTED ON PAGE 7

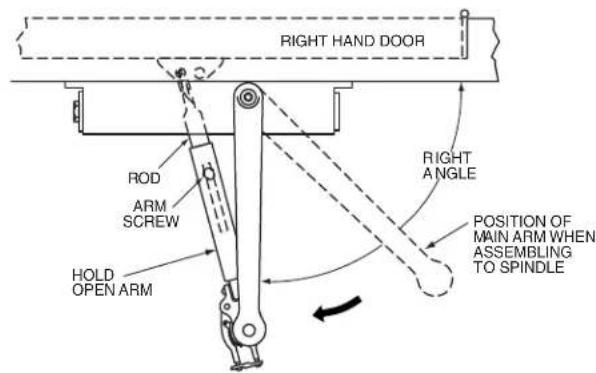

RIGHT HAND DOOR POSITION OF MAIN ARM WHEN ASSEMBLING TO SPINDLE INDEX MARK ON SPINDLE 2 MAIN ARM ROD ARM SCREW RIGHT ANGLE HOLD OPEN ARM

ACCESSORIES INFORMATION

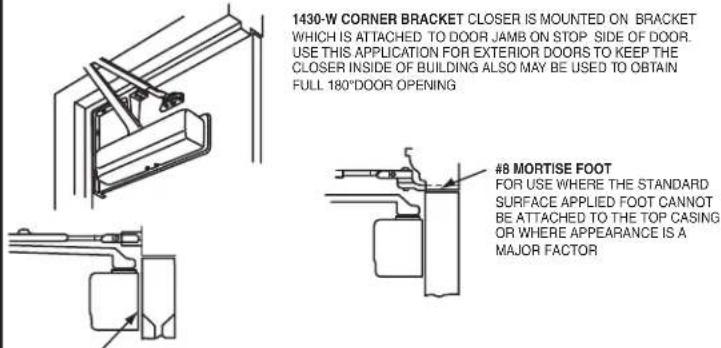

1430-W CORNER BRACKET CLOSER IS MOUNTED ON BRACKET WHICH IS ATTACHED TO DOOR JAMB ON STOP SIDE OF DOOR. USE THIS APPLICATION FOR EXTERIOR DOORS TO KEEP THE CLOSER INSIDE OF BUILDING ALSO MAY BE USED TO OBTAIN FULL 180°DOOR OPENING #8 MORTISE FOOT FOR USE WHERE THE STANDARD SURFACE APPLIED FOOT CANNOT BE ATTACHED TO THE TOP CASING OR WHERE APPEARANCE IS A MAJOR FACTOR

1430-J COVER PLATE MAY BE USED WHEN CLOSER IS MOUNTED ON A NARROW RAIL TO IMPROVE APPEARANCE WHEN CLOSER IS VIEWED THRU GLASS

MORTISE NUTS FOR BOLTING THRU THE DOOR ARE FURNISHED WHEN ORDERED

PAGE 2

Copyright © 2009, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

A7141B

SARGENT®

ASSA ABLOY

ASSA ABLOY, the global leader in door opening solutions

PARALLEL ARM APPLICATION

INSTALLATION INSTRUCTIONS

MAX DOOR OPENING	DIM. A DIM. B
110°4	" 9 1/2"
180°1 1/4" 6 3/4"

CLOSER MOUNTED ON STOP SIDE OF A DOOR

HINGE SIDE HINGE SIDE STOP SIDE STOP SIDE

THIS IS A LEFT HAND DOOR THIS IS A RIGHT HAND DOOR CLOSERS ARE NON-HANDED

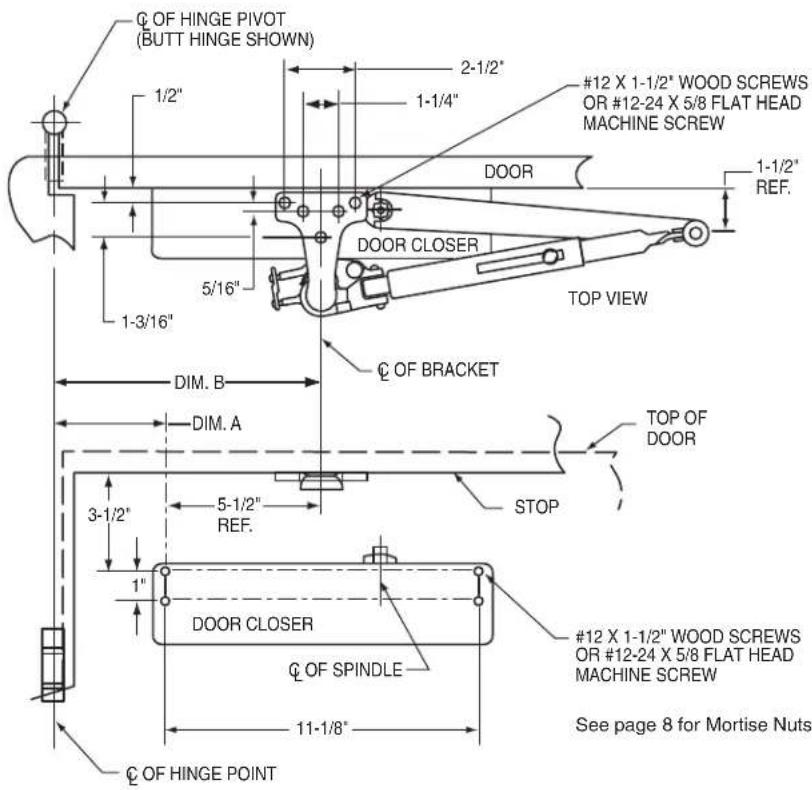

C OF HINGE PIVOT (BUTT HINGE SHOWN) 1/2" 1-1/4" 2-1/2" #12 X 1-1/2" WOOD SCREWS OR #12-24 X 5/8 FLAT HEAD MACHINE SCREW DOOR 1-1/2" REF. 1-3/16" 5/16" DOOR CLOSER TOP VIEW DIM. B DIM. A STOP 3-1/2" 5-1/2" REF. 1" DOOR CLOSER C OF SPINDLE 11-1/8" C OF HINGE POINT #12 X 1-1/2" WOOD SCREWS OR #12-24 X 5/8 FLAT HEAD MACHINE SCREW See page 8 for Mortise Nuts

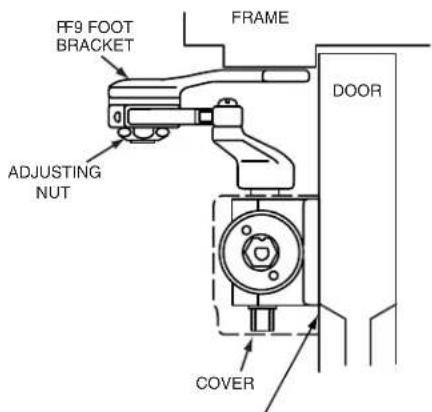

FF9 FOOT BRACKET FRAME ADJUSTING NUT DOOR COVER

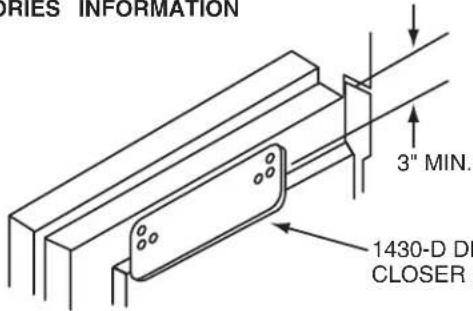

USE 1430-D DROP BRACKET IF DOOR RAIL IS TOO NARROW (SEE ACCESSORIES ON THE NEXT PAGE)

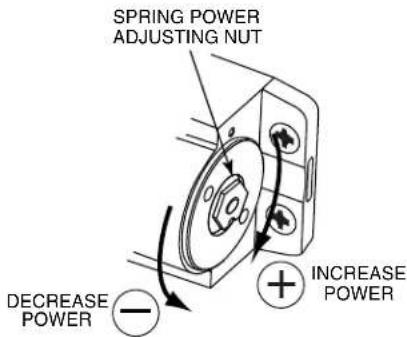

SPRING ADJUSTMENT ADJUST SPRING POWER ACCORDING TO CHART.

SPRING POWER ADJUSTING NUT DECREASE POWER INCREASE POWER

CW-CLOCKWISE COW-COUNTER CLOCKWISE

DOORWIDTH(INCHES)	APPROXIMATE DOOR WEIGHT(POUNDS)	1430DOOR CLOSERS	1431*DOOR CLOSERS
24	80	1-3 CCW
30	110	FACTORY** SET	FACTORY** SET
32	115
36	130		4-7 CW
40	150	1-3 CW
42	155		7-10 CW
44	165	4-7 CW
46	170
48	180	7-10 CW
OVER 48

FOR EXTERIOR DOORS AND WHERE STRONG DRAFT EXISTS INC SPRING POWER AS NEEDED BY TURNING SPRING ADJUSTING NUCLOCKWISE. IF NECESSARY, DECREASE SPRING POWER TO MEET REQUIREMENTS BY TURNING SPRING ADJUSTING NUT COUNTER CLOCKWISE.

* FOR EXTERIOR DOORS USE 1430 CLOSERS ONLY.

** CLOSERS ARE FACTORY SET FOR INTERIOR DOORS.

SARGENT®

ASSA ABLOY

ASSA ABLOY, the global leader in door opening solutions

Copyright © 2009, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

A7141B

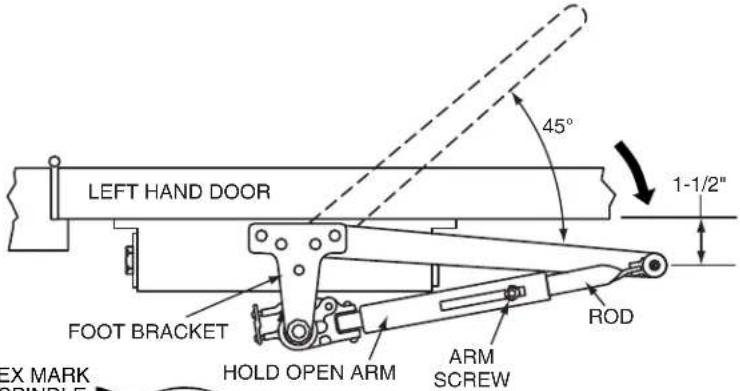

A	SELECT DEGREE OF DOOR OPENING REQUIRED AND ATTACH DOOR CLOSER BODY TO DOOR (LONG END TOWARD HINGE) AND FOOT BRACKET TO FRAME ACCORDING TO ILLUSTRATION ON PAGE 3.

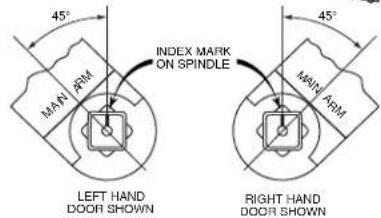

B	- ASSEMBLE MAIN ARM TO CLOSER SPINDLE WITH INDEX MARK ON END OF SPINDLE 45° FROM ARM AXIS, AS ILLUSTRATED BELOW.USE WRENCH ON THE BOTTOM END OF SPINDLE TO ROTATE IT INTO POSITION.- ATTACH ARM TO SPINDLE WITH WASHER AND SCREW.INDI ON SPINDL INDEV MARKCAUTION: CLOSER WILL NOT OPERATE PROPERLY IF MAIN ARM IS NOT INDEXED CORRECTLY
C	- OPEN DOOR AND INSERT RECTANGULAR ROD INTO HOLD OPEN ARM.- CLOSE DOOR AND TIGHTEN ARM SCREW SECURELY WHEN END OF MAIN ARM IS POSITIONED 1-1/2" AWAY FROM DOOR. SEE ILLUSTRATION ABOVE.
D	ADJUST AND REGULATE DOOR CLOSER AS DIRECTED ON PAGE 7
PAGE 4	[ACCESSO]MORTISE NUTS FOR BOLTING THRU THE DOOR ARE FURNISHED WHEN ORDERINGROP BRACKET.IS MOUNTED ON PLATE WHEN TOP RAIL IS TOO NARROW.SARGENTASSA ABLOY ASSA ABLOY, the global leader in door opening solutionsCopyright © 2009, Sargent Manufacturing Company, an ASSA ABLOY Group company.All rights reserved. Reproduction In whole or In part without the express written permission of Sargent Manufacturing Company is prohibited.A7141B

TOP JAM APPLICATION

INSTALLATION INSTRUCTIONS

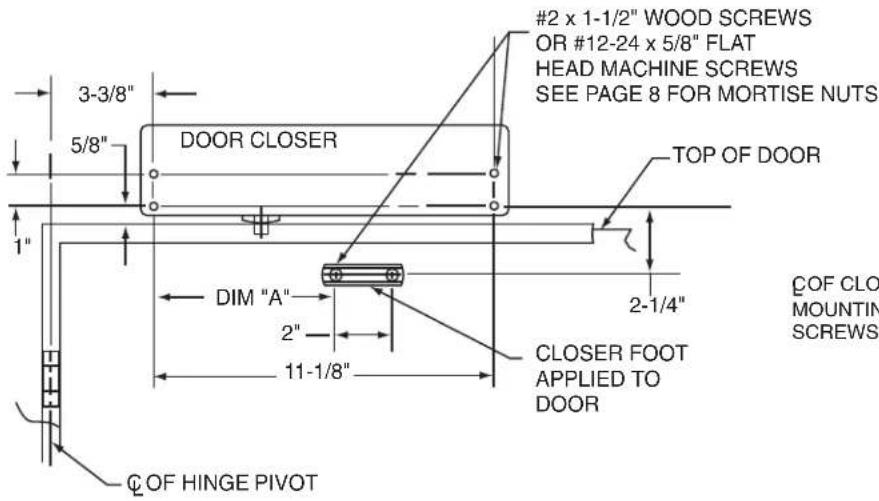

CLOSER MOUNTED ON FRAME ABOVE STOP SIDE OF A DOOR

LEFT HAND DOOR ILLUSTRATED

SAME DIMENSIONS APPLY FOR RIGHT HAND

DOOR MEASURE FROM HINGE C

HINGE SIDE HINGE SIDE STOP SIDE STOP SIDE

THIS IS A LEFT HAND DOOR THIS IS A RIGHT HAND DOOR CLOSERS ARE NON-HANDED

3-3/8" 5/8" DOOR CLOSER #2 x 1-1/2" WOOD SCREWS OR #12-24 x 5/8" FLAT HEAD MACHINE SCREWS SEE PAGE 8 FOR MORTISE NUTS TOP OF DOOR DIM "A" 2" 11-1/8" 2-1/4" CLOSER FOOT APPLIED TO DOOR #OF CLO MOUNTIN SCREWS #OF HINGE PIVOT

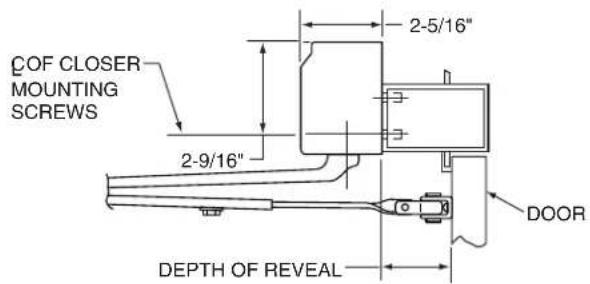

LOF CLOSER MOUNTING SCREWS 2-9/16" 2-5/16" DOOR DEPTH OF REVEAL

ARM ASSEMBLY TYPE	REVEAL DEPTH DIM. A		MAX DOOR OPENING	RANGE OF HOLD OPEN
"F" ARM	0" TO 2"	6"	°80°-130°
"FZ" ARM 2-1/8" TO 5"		6-3/4" 14
"FZA" ARM	5-1/8" TO 8"	7-1/2"

SPRING ADJUSTMENT

ADJUST SPRING POWER ACCORDING TO CHART.

SPRING POWER ADJUSTING NUT DECREASE POWER INCREASE POWER

FOR EXTERIOR DOORS AND WHERE STRONG DRAFT EXISTS INCREASE SPRING POWER AS NEEDED BY TURNING SPRING ADJUSTING NUT CLO WISE. IF NECESSARY, DECREASE SPRING POWER TO MEET REQUIREMENT BY TURNING SPRING ADJUSTING NUT COUNTER CLOCKWISE.

CW-CLOCKWISE CGW-COUNTER CLOCKWISE

NUMBER OF TURNS OF SPRING POWER ADJUSTINGUSE CHART AS GUIDE ONLY.
DOORWIDTH(INCHES)	APPROXIMATE DOOR WEIGHT(POUNDS)	1430DOOR CLOSERS	1431*DOOR CLOSERS
24	80	1-3 CCW
30	110		1-3 CCW
32	115		FACTORY** SET
36	130	FACTORY** SET
40	150		4-7 CW
42	155	1-3CW	7-10 CW
44	165
46	170	4-7CW
DCK- 48	180
ENTS OVER 48		7-10 CW

* FOR EXTERIOR DOORS USE 1430 CLOSERS ONLY.

** CLOSERS ARE FACTORY SET FOR INTERIOR DOORS.

SARGENT®

ASSA ABLOY

ASSA ABLOY, the global leader in door opening solutions

Copyright © 2009, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

A7141B

A USING ILLUSTRATION ON A PAGE 5 SELECT DEGREE OF DOOR OPENING DESIRED AND ATTACH CLOSER TO DOOR WITH SHORT END TOWARD HINGE

B ATTACH FOOT TO DOOR WITH PIVOT AWAY FROM HINGE AS ILLUSTRATED BELOW.

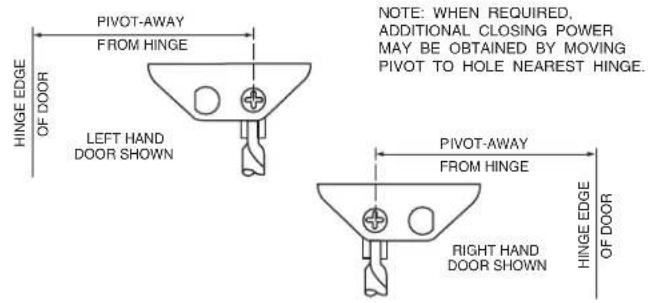

PIVOT-AWAY FROM HINGE NOTE: WHEN REQUIRED, ADDITIONAL CLOSING POWER MAY BE OBTAINED BY MOVING PIVOT TO HOLE NEAREST HINGE. HINGE EDGE OF DOOR LEFT HAND DOOR SHOWN PIVOT-AWAY FROM HINGE RIGHT HAND DOOR SHOWN HINGE EDGE OF DOOR

D OPEN DOOR AND INSERT RECTANGULAR ROD INTO HOLD OPEN ARM THEN CLOSE THE DOOR AND TIGHTEN ARM SCREW SECURELY WHEN MAIN ARM IS AT RIGHT ANGLE TO DOOR.

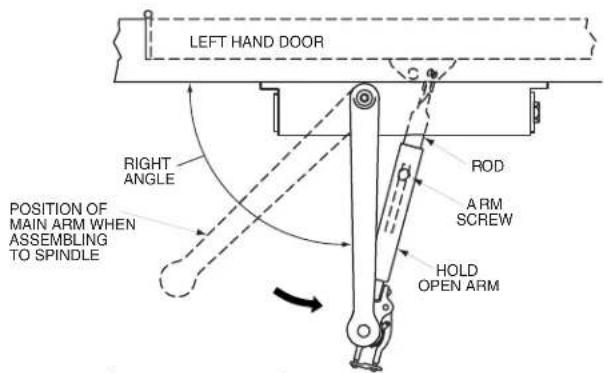

RIGHT HAND DOOR RIGHT ANGLE ROD ARM SCREW POSITION OF MAIN ARM WHEN ASSEMBLING TO SPINDLE HOLD OPEN ARM

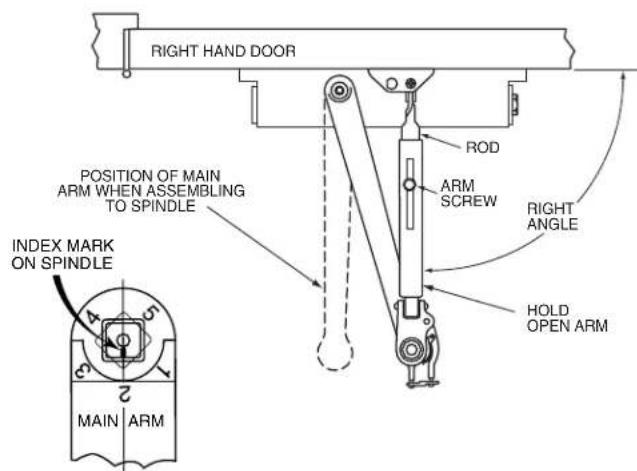

C ASSEMBLE MAIN ARM TO CLOSER WITH INDEX MARK ON SPINDLE ALIGNED AS SHOWN BELOW. ATTACH ARM WITH SCREW AND WASHER.

LEFT HAND DOOR RIGHT ANGLE POSITION OF MAIN ARM WHEN ASSEMBLING TO SPINDLE ROD ARM SCREW HOLD OPEN ARM

45° MAIN ARM INDEX MARK ON SPINDLE 45° LEFT HAND DOOR SHOWN MAIN ARM RIGHT HAND DOOR SHOWN

CAUTION: CLOSER WILL NOT OPERATE PROPERLY IF MAIN ARM IS NOT INDEXED CORRECTLY

E ADJUST AND REGULATE DOOR CLOSER AS DIRECTED ON PAGE 7

ACCESSORIES INFORMATION

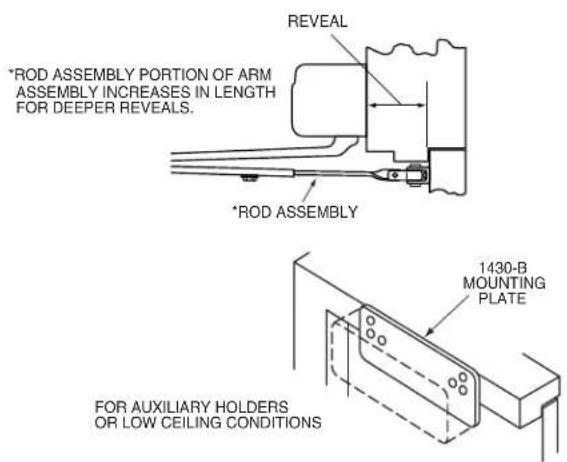

REVEAL *ROD ASSEMBLY PORTION OF ARM ASSEMBLY INCREASES IN LENGTH FOR DEEPER REVEALS. *ROD ASSEMBLY 1430-B MOUNTING PLATE FOR AUXILIARY HOLDERS OR LOW CEILING CONDITIONS

MORTISE NUTS FOR BOLTING THRU THE DOOR ARE FURNISHED WHEN ORDERED

FINAL ADJUSTMENT AND REGULATING PROCEDURE
SARGENT®
ASSA ABLOY

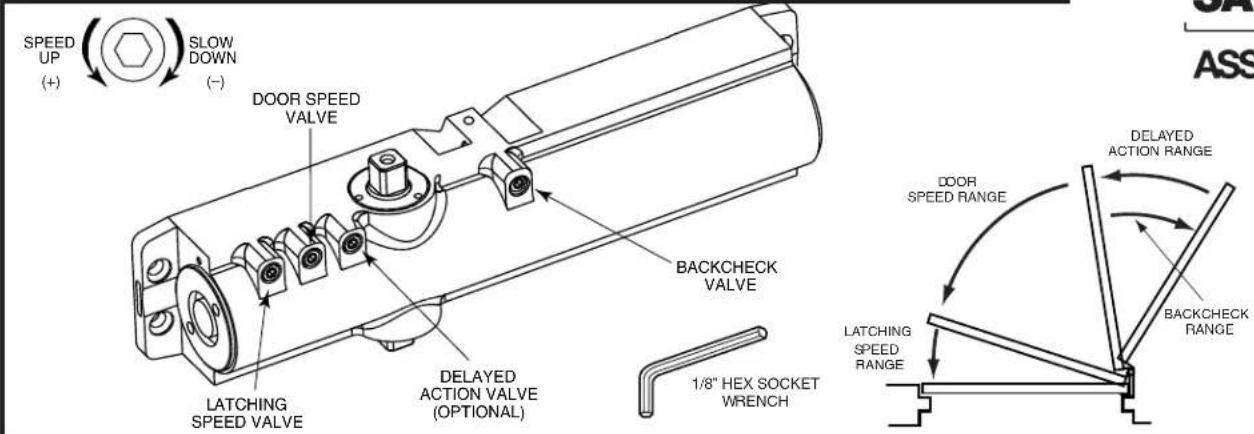

A REGULATING DOOR SPEED AND LATCHING SPEED

USE HEX SOCKET (ALLEN) WRENCH AND TURN VALVE CLOCKWISE TO SLOW DOWN OR COUNTER CLOCK-WISE TO SPEED UP DOOR MOVEMENT AS ILLUSTRATED ABOVE.

B | REGULATING BACKCHECK

TO REGULATE THE INTENSITY OF BACKCHECK ACTION, TURN VALVE CLOCKWISE TO INCREASE OR COUNTER CLOCKWISE TO DECREASE CHECKING.

CAUTION:

SET VALVE FOR SLIGHT CUSHIONING EFFECT. IT IS DAMAGING TO THE CLOSER IF THE CHECKING ACTION IS TOO ABRUPT.

C FOR MODELS WITH OPTIONAL DELAYED ACTION FEATURE

"DELAYED ACTION" PROVIDE SLOW DOOR CLOSING THROUGH DELAYED ACTION RANGE (SEE ILLUSTRATION ABOVE).

TURN VALVE CLOCKWISE TO SLOW DOWN OR COUNTER CLOCKWISE TO SPEED UP DOOR MOVEMENT.

D ADJUSTING FOOT FOR ADDITIONAL CLOSING POWER

(FOR STANDARD AND TOP JAMB APPLICATIONS ONLY)

MOVE FOOT PIVOT TO HOLE NEAREST HINGE

EST HINGE HINGE EDGE OF DOOR

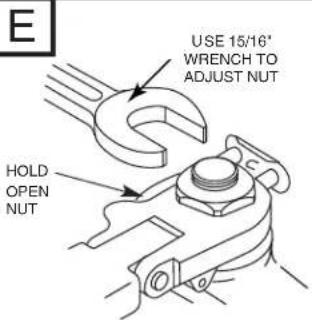

E USE 15/16' WRENCH TO ADJUST NUT HOLD OPEN NUT

ADJUSTMENT HOLD OPEN ARM SLIGHT TIGHTENING OR LOOSENING OF HOLD OPEN NUT CHANGES HOLDING POSITION OF DOOR.

NOTE: TO PROTECT WALL, TRIM AND CLOSER. USE A DOOR STOP, LOCATED 10° BEYOND HOLD OPEN POSITIONS BY NOT BEYOND THE MAX. DOOR OPENING SHOWN ON INSTRUCTIONS.

INSTALL COVER AS FOLLOWS

FOR STANDARD AND PARALLEL ARM APPLICATION

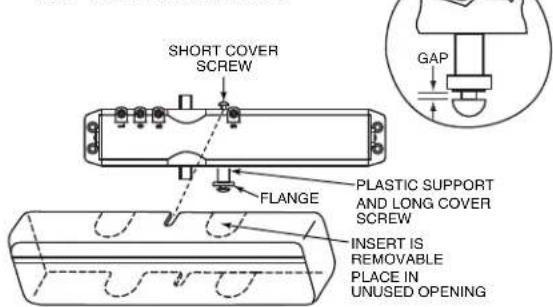

• SCREW SHORT COVER SCREW (#8-32 x 5/16") INTO TOP OF CASE APPROXIMATELY 2 TURNS.
• ASSEMBLE PLASTIC SUPPORT AND LONG COVER SCREW (#8-32 x 1-1/4") INTO BOTTOM OF CASE APPROXIMATELY 2 TURNS.
  • HOLD SUPPORT AGAINST CASE AND SLIDE COVER INTO GAP BETWEEN FLANGE AND SCREW HEAD.
• POSITION COVER ON CLOSER AND TIGHTEN SCREWS.

SHORT COVER SCREW FLANGE PLASTIC SUPPORT AND LONG COVER SCREW INSERT IS REMOVABLE PLACE IN UNUSED OPENING

RIGHT HAND ILLUSTRATED

FOR TOP JAMB APPLICATION

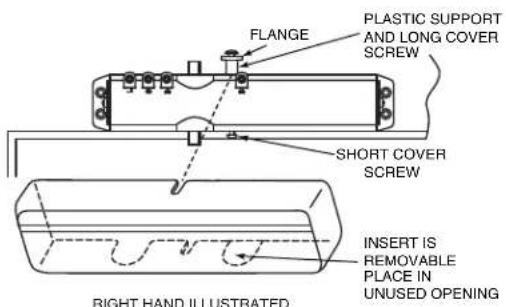

• ASSEMBLE PLASTIC SUPPORT AND LONG COVER SCREW (#8-32 x 1-1/4") INTO BOTTOM OF CASE APPROXIMATELY 2 TURNS.
• SCREW SHORT COVER SCREW (#8-32 x 5/16") INTO BOTTOM OF CASE APPROXIMATELY 2 TURNS.
• SLIDE COVER INTO GAP BETWEEN FLANGE AND SCREW HEAD. POSITION COVER ON CLOSER AND TIGHTEN SCREWS.

FLANGE PLASTIC SUPPORT AND LONG COVER SCREW SHORT COVER SCREW INSERT IS REMOVABLE PLACE IN UNUSED OPENING RIGHT HAND ILLUSTRATED

ASSA ABLOY, the global leader in door opening solutions
Copyright © 2009, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

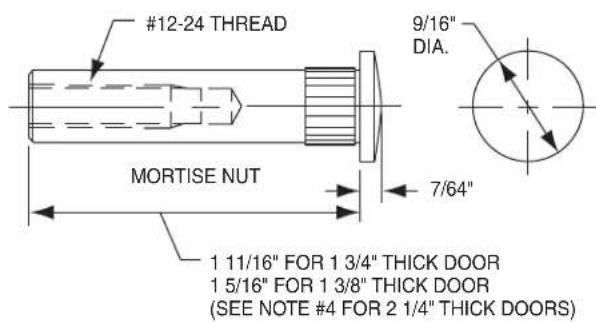

USING MORTISE NUTS WITH SARGENT DOOR CLOSERS

1. SEE INSTRUCTIONS OR DATA SHEET PACKED WITH DOOR CLOSER FOR DIMENSIONS LOCATING THE CLOSER BODY AND FOOT ON DOOR AND FRAME

2. MORTISE NUT SHOWN IS DESIGNED FOR AN UNREINFORCED METAL DOOR.

3. FOR TOP JAMB AND CORNER BRACKET APPLICATIONS: THE DOOR CLOSER FOOT WILL BE ATTACHED TO THE DOOR IN A MANNER SIMILAR TO THAT SHOWN FOR MOUNTING THE CLOSER BODY.

4. FOR DOORS 2 1/4" THICK: MORTISE NUT SHOWN FOR 1 3/4" THICK DOORS WILL BE FURNISHED ALONG WITH APPORPRIATE LENGTH THRU-BOLTS. DOOR CONSTRUCTION MUST PROVIDE A BRIDGE TYPE REINFORCEMENT TO PREVENT THE DOOR RAIL FROM COLLAPSING WHEN THRU-BOLTS ARE TIGHTENED.

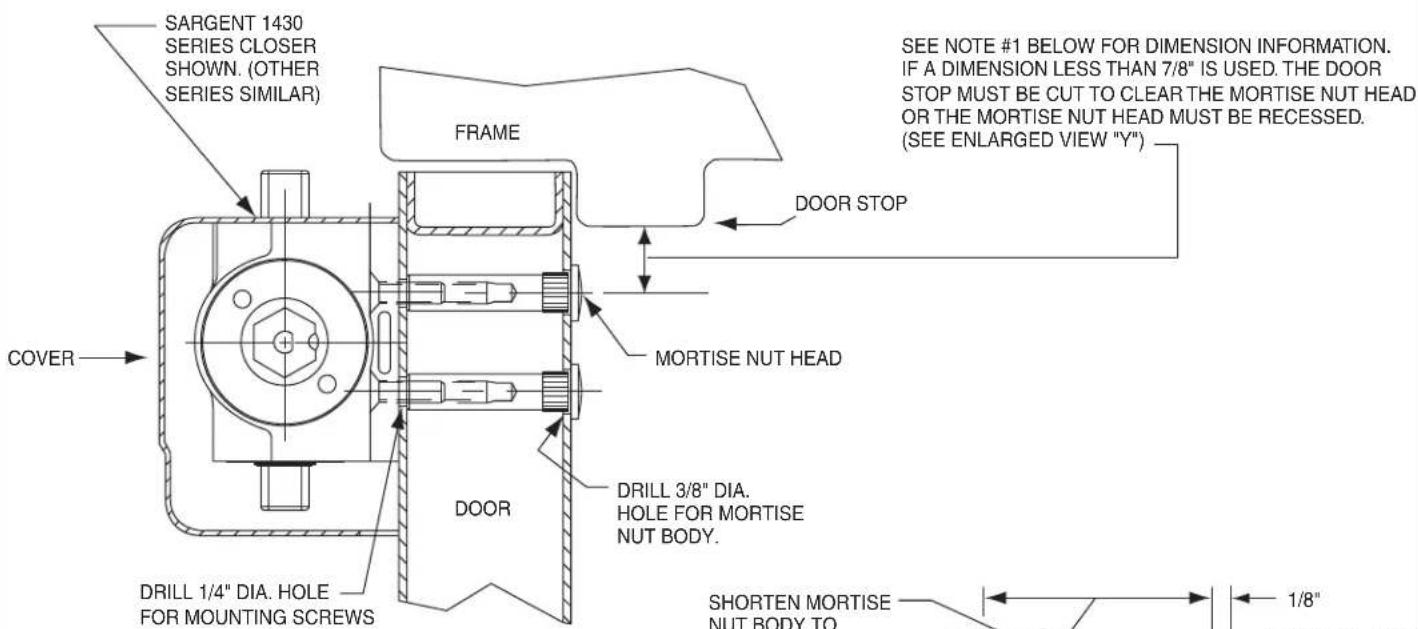

SARGENT 1430 SERIES CLOSER SHOWN. (OTHER SERIES SIMILAR) FRAME DOOR STOP COVER MORTISE NUT HEAD DRILL 3/8" DIA. HOLE FOR MORTISE NUT BODY. DRILL 1/4" DIA. HOLE FOR MOUNTING SCREWS SHORTEN MORTISE NUT BODY TO SEE NOTE #1 BELOW FOR DIMENSION INFORMATION. IF A DIMENSION LESS THAN 7/8" IS USED. THE DOOR STOP MUST BE CUT TO CLEAR THE MORTISE NUT HEAD OR THE MORTISE NUT HEAD MUST BE RECESSED. (SEE ENLARGED VIEW "Y") 1/8"

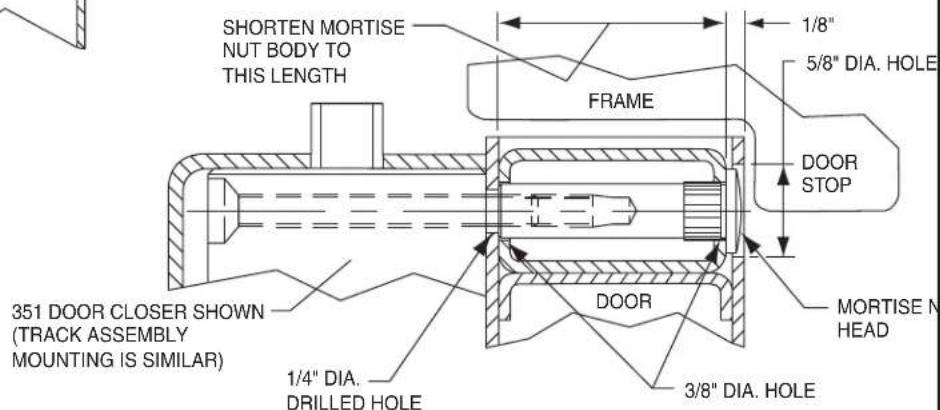

SHORTEN MORTISE NUT BODY TO THIS LENGTH FRAME 1/8" 5/8" DIA. HOLE DOOR STOP 351 DOOR CLOSER SHOWN (TRACK ASSEMBLY MOUNTING IS SIMILAR) 1/4" DIA. DRILLED HOLE DOOR MORTISE N HEAD 3/8" DIA. HOLE

#12-24 THREAD MORTISE NUT 9/16" DIA. 7/64" 1 11/16" FOR 1 3/4" THICK DOOR 1 5/16" FOR 1 3/8" THICK DOOR (SEE NOTE #4 FOR 2 1/4" THICK DOORS)
