KVR21N15D8/16

16GB 2Rx8 2G x 64-Bit PC4-2133

CL15 288-Pin DIMM

DESCRIPTION

This document describes ValueRAM's KVR21N15D8/16 is a 2G x 64-bit (16GB) DDR4-2133 CL15 SDRAM (Synchronous DRAM), 2Rx8, memory module, based on sixteen 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2133 timing of 15-15-15 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

FEATURES

• Power Supply: VDD=1.2V Typical
• VDDQ = 1.2V Typical
• VPP - 2.5V Typical
• VDDSPD=2.2V to 3.6V
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
- Dual-rank
- On-board I2 serial presence-detect (SPD) EEPROM
• 16 internal banks; 4 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
• Terminated control command and address bus
• PCB: Height 1.23" (31.25mm)
• RoHS Compliant and Halogen-Free

SPECIFICATIONS

CL(IDD)	15 cycles
Row Cycle Time (tRCmin)	46.5ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)	350ns(min.)
Row Active Time (tRASmin)	33ns(min.)
Maximum Operating Power	TBD W*
UL Rating	94 V - 0
Operating Temperature	0^ C to +85^ C
Storage Temperature	-55^ C to +100^ C

*Power will vary depending on the SDRAM used.

Continued >>

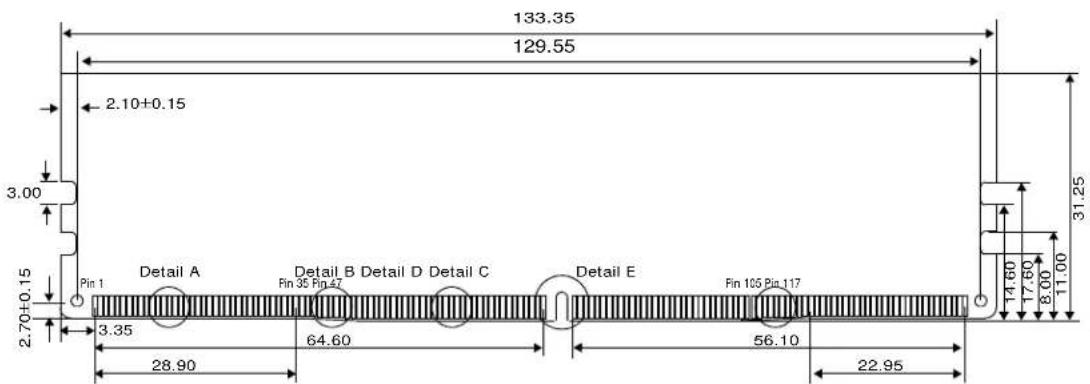

MODULE DIMENSIONS

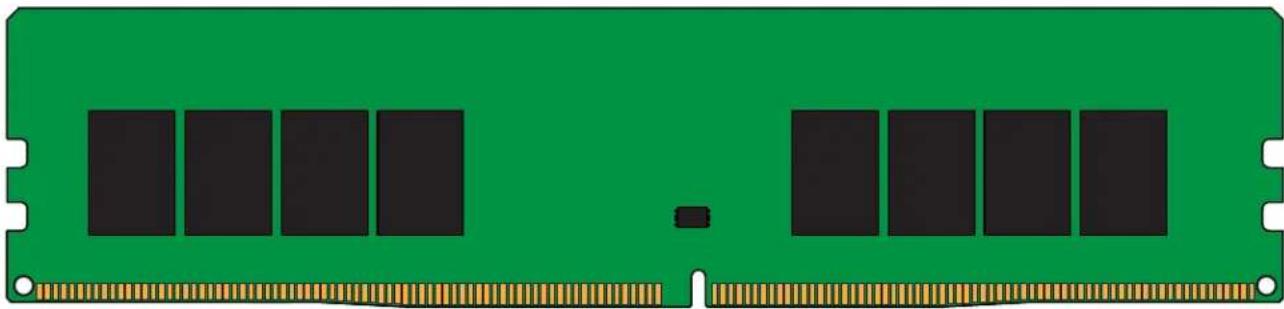

Green circuit board with black memory chips and a gold resistor, no text or symbols visible

Front

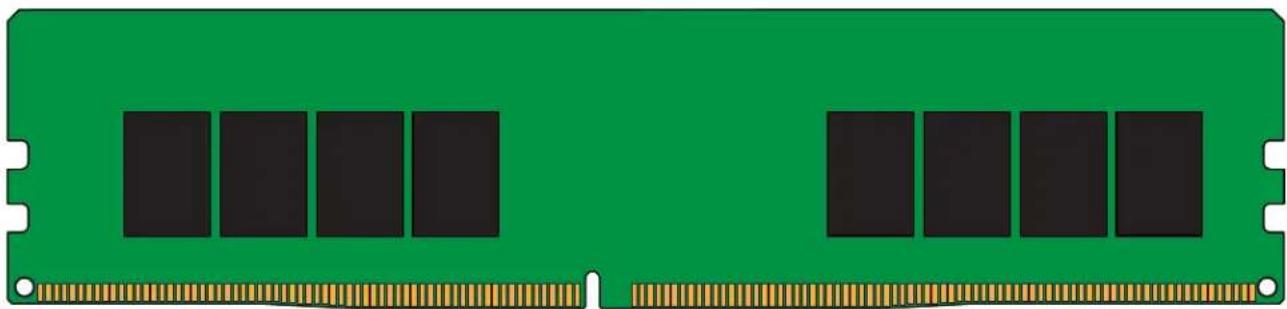

Green circuit board with black memory chips and gold resistor contacts (no text or symbols)

Back

133.35 129.55 2.10±0.15 3.00 2.70±0.15 Pin 1 Detail A Pin 35 Pin 47 Detail B Detail D Detail C Detail E Pin 105 Pin 117 64.60 28.90 56.10 22.95 14.60 17.60 8.00 11.00 31.25
