BEDIENUNGSANLEITUNG SDI-202 DAP-Audio
SDI-202
Ordercode: D1947
Stereo Active DI Box
Warning
CAUTION! Keep this device away from rain and moisture!
Every person involved with the installation, operation and maintenance of this system has to:
- be qualified
• follow the instructions of this manual
Description
The SDI-202 provides two independent high quality active interfaces, that lets you connect instrument, line, or speaker level signals to a mixer or other balanced inputs. The instrument mode has a high impedance input, which makes it possible to connect an instrument with a high output impedance, like an electric guitar or acoustical guitars with a piezo-ceramic pick-up element. This mode also allows you to connect electric devices with an unbalanced output like a keyboard or Dj mixer. The RCA inputs are ideal for this kind of setup. It also has a speaker mode, which allows you to connect guitar amplifiers direct with the SDI-202. The SDI-202 has a very clean and neutral sound with a wide variety of signal sources and over long signal runs in high noise environments. The SDI-202 will provide an even frequency response on any input signal connected, with the benefit of cancellation of interference, hum and buzz.
- Jack & RCA inputs
• 9V power supply ore 18-48V phantom power - Ground lift
• Instrument & speaker inputs

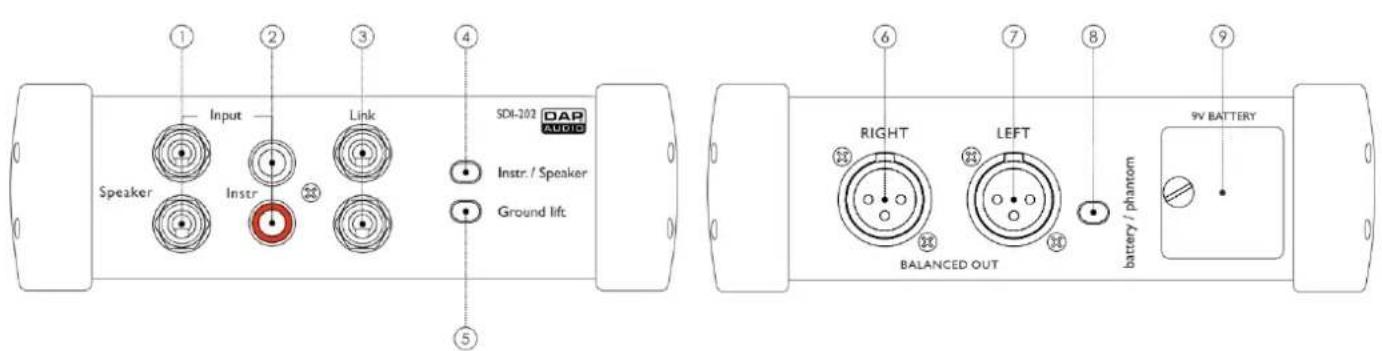

Overview


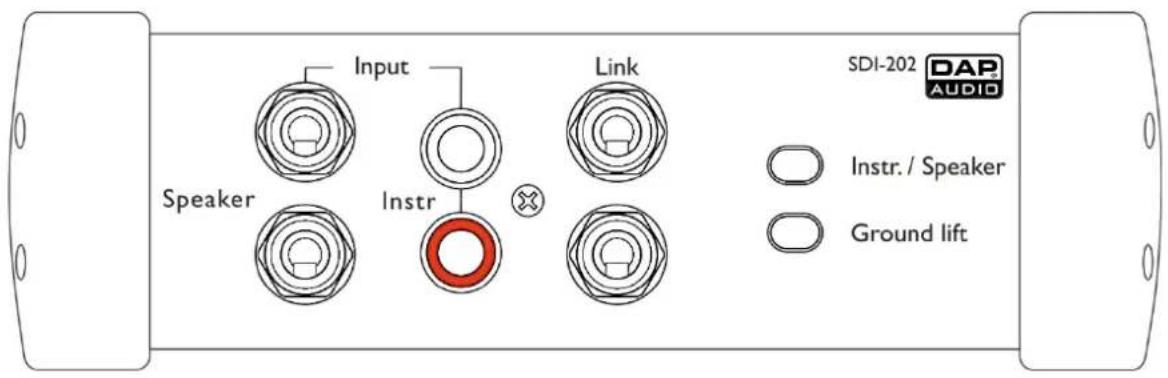

① ② ③ ④ Input Link SDI-202 DAP AUDIO Speaker Instr. Instr. / Speaker Ground lift ⑤ RIGHT LEFT BALANCED OUT battery / phantom ⑥ ⑦ ⑧ ⑨ 9V BATTERY① Unbalanced input 1/4" TRS sockets.
② Unbalanced stereo RCA pin jacks.
③ Link out.
④ Switch between speaker or unbalanced instrument input.
⑤ Ground lift switch.

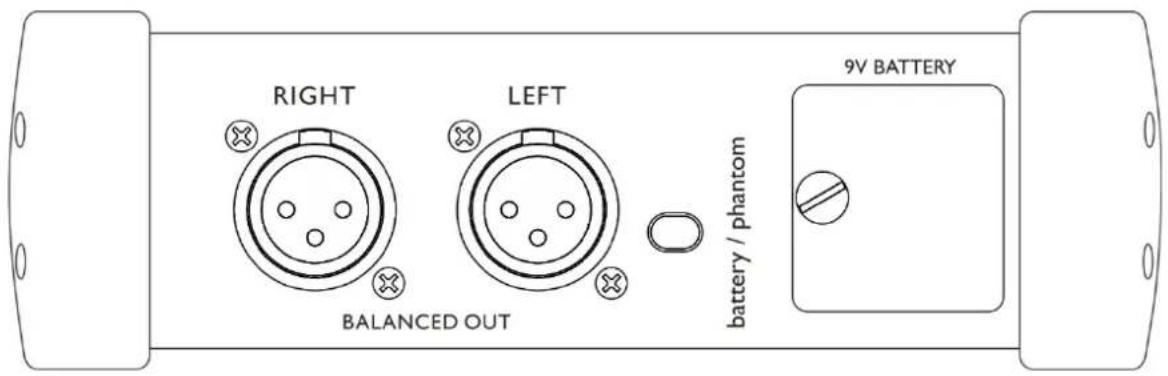

⑥ Balanced XLR output connector (R).
⑦ Balanced XLR output connector (L).
⑧ Switch between battery or phantom power.
(9V battery – LED blinks, +48V phantom power – LED is lit continuously)
⑨ Battery compartment.

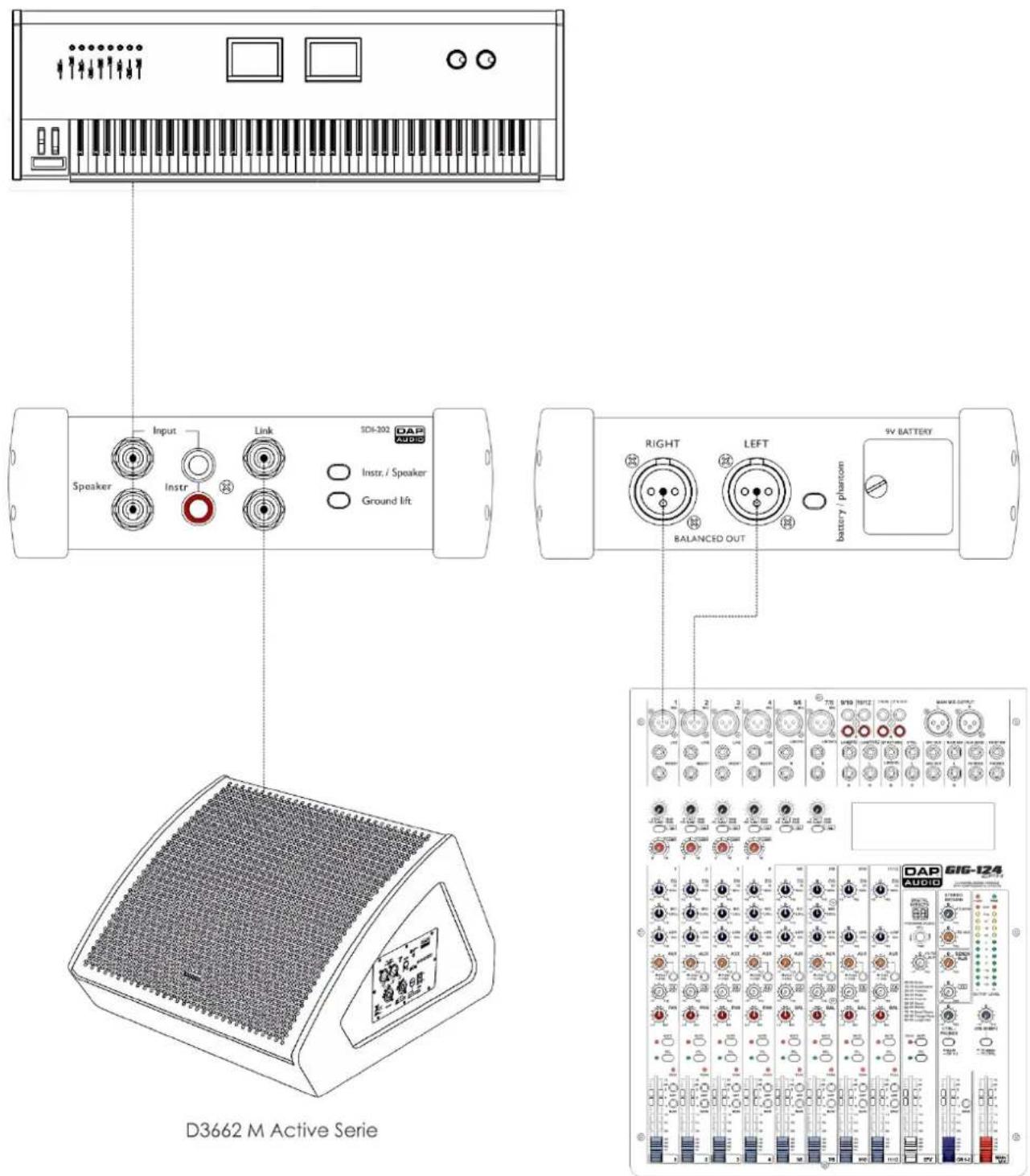

Connection Example


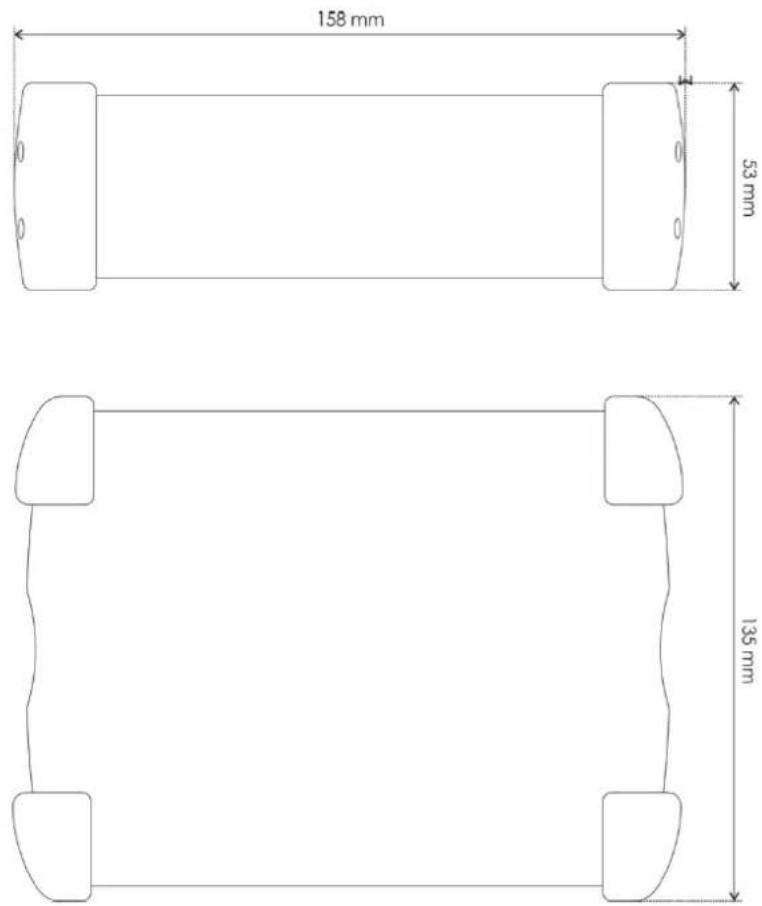

Dimensions
Specifications
| Frequency Response: | 10Hz-40KHz |
| Noise Level: | <-105db |
| Distortion (THD): | < 0.005% at 1khz, 0dbu output |
| Inputs: | 6,3 TRS Jack, RCA |
| Link out: | 6,3 TRS Jack |
| Output: | XLR Male balanced |
| Power supply: | 9V Battery or 18 - 48V DC (phantom) |
| Input Impedance instrument: | 1MOhm |
| Input Impedance speaker: | 47 kOhm |
| Max input level instrument: | +9dBu / 2.18V |
| Max input level speaker: | +39dBu / 69V |
| Dimensions: | 53x158x135 mm (HxWxD) |
| Weight: | 0,7 Kg |
