RVA022NAA - Nicht kategorisiert Evolis - Kostenlose Bedienungsanleitung

Produkttyp	Desktop-Karten-Drucker
Marke	Evolis
Modell	RVA022NAA
Abmessungen (ca.)	200 x 300 x 200 mm
Gewicht (ca.)	2,5 kg
Stromversorgung	100-240 V AC, 50/60 Hz
Drucktechnologie	Thermaltransfer / Direkt Karte
Druckauflösung	300 dpi
Druckgeschwindigkeit	Bis zu 100 Karten/Stunde (einfarbig)
Kartenformate	CR-80 (85,6 x 54 mm), ISO ID-1
Kartendicke	0,25 - 0,76 mm
Farbbandkapazität	YMCKO: 200 Drucke/ Rolle
Schnittstellen	USB 2.0
Hauptfunktionen	Karten drucken, kodieren (optional)
Reinigung	Reinigungskarte und Reinigungsrolle (regelmäßig)
Sicherheitszertifikate	CE, FCC
Ersatzteile	Farbband, Druckkopf, Reinigungsset
Reparatur	Austausch des Druckkopfes und Reinigung
Lieferumfang	Drucker, Netzkabel, USB-Kabel, Kurzanleitung

Häufig gestellte Fragen - RVA022NAA Evolis

Wie installiere ich den Drucker?

Schließen Sie das Netzkabel an, verbinden Sie mit USB, legen Sie die Karte ein und installieren Sie den Treiber von der mitgelieferten CD oder der Evolis-Website.

Welche Kartentypen kann ich drucken?

Der Drucker unterstützt PVC-Karten im Format CR-80 mit einer Dicke von 0,25 bis 0,76 mm.

Wie reinige ich den Drucker?

Verwenden Sie die mitgelieferte Reinigungskarte und das Reinigungsband. Führen Sie die Reinigung nach jeweils 500 Drucken durch.

Das Farbband ist leer. Wo bekomme ich Ersatz?

Ersatz-Farbbänder (YMCKO, monochrom) sind bei autorisierten Händlern oder direkt bei Evolis erhältlich.

Kann ich beidseitig drucken?

Dieses Modell druckt nur einseitig. Für beidseitigen Druck ist ein Upgrade oder ein anderes Modell erforderlich.

Der Drucker zeigt eine Fehlermeldung an. Was tun?

Überprüfen Sie die Kartenzufuhr, das Farbband und die Abdeckung. Im Handbuch finden Sie Fehlercodes und deren Bedeutung.

Wie stelle ich die Druckqualität ein?

Im Treibermenü können Sie Auflösung und Dichte anpassen. Verwenden Sie die Standardeinstellungen für die beste Qualität.

Kann ich den Drucker an ein Netzwerk anschließen?

Dieses Modell hat nur USB. Für Netzwerkdruck benötigen Sie einen externen Druckserver.

Was mache ich bei einem Kartenstau?

Schalten Sie den Drucker aus, öffnen Sie die Abdeckung und entfernen Sie die Karte vorsichtig. Überprüfen Sie die Führungsschienen.

Wie lange hält der Druckkopf?

Der Druckkopf hält ca. 50.000 bis 100.000 Drucke, abhängig von der Nutzung und Umgebung.

BEDIENUNGSANLEITUNG RVA022NAA Evolis

EVOUS HIGHTRUST® Advanced consumables for quality printing SECURED CARDS V 1.1 – SEPTEMBER 2011

SECURED CARDS

V 1.1 - SEPTEMBER 2011

Group photo of a man in business attire standing in front of a group of peers (no visible text or symbols)

evolis

TABLE OF CONTENTS

1. Introduction 3

2. The lamination 3

What is the lamination? 3

Why use the lamination? 3

Type of films 4

Type of cards 4

To help you in your choice 4

1. The hologram on cards 6

What is a hologram? 6

Why use a hologram as a security feature? 6

Holographic Evolis designs 7

Evolis Custom hologram solution 8

To help you in your choice 12

evolis

1. INTRODUCTION

For official document such as National ID cards, driving licenses, or to reinforce the security of your business or organization, a simple ID badge is not enough.

In a way to protect your interests and your identity, the setting up of a secured identification can be necessary.

Each secured identity solution is unique and involve a number of question to ask before full implementation, for example:

• Lifespan and card resistance
- Level of security: a simple secured identification with impossible to forge but visible elements or a high secured level with hidden or invisible for human eye elements?
- Conception: protection of the front card only or of the both sides?
• The kind of information to include on cards.

2. THE LAMINATION

What is the lamination

The lamination consists in the reinforcement of the card surface, applying a patch or a film to protect the card from wear and tear and UV ravs and to fight fornerv.

evolis

Protective layer (lamination film)

Printed data (picture and text)

RFID chip

evolis WORKS COUNCIL MEMBER CARD John Smith Manager

Example of card with lamination patch:

A patch or a film can have different thicknesses depending of the protection you want for your cards.

If you choose to apply a film instead of a patch, it will cover the whole card's surface.

Type of films

• Patches: these are thick films aiming at protecting a card from 3 to 10 years, depending on patch thickness 0.6 mil (15 microns) or 1.0 mil (25 microns). They are recommended for applications requiring high durability and high tamper resistance. The patches do not cover the entire card surface.
• Varnishes: the ribbons apply a thin layer (about 4 microns) to the cards, edge-to-edge.

evolis

To help you in your choice

First of all, you have to take account the lifespan and the card resistance. Is a varnish enough? Do you need a superior card resistance?

According to the type of material you choose, your cards will be more durable.

Estimated lifespan:

• Topcoat: 2 to 3 years
• Varnishes and patches 0.6 mil thick: until 5 years.
• Patches 1.0 mil: up to 10 years.

Normal durability

These films can be translucent (protection against UV radiation as standard) or with holograms. Our lamination patches can be standard, with identical patches on the ribbon, or alternated (for dual-sided lamination). Multiple design layouts can be combined to match different requirements:

evolis

3. THE HOLOGRAMS ON CARDS

What is a hologram?

A hologram is a three-dimensional image, created with photographic projection. Unlike 3D or virtual reality on a two-dimensional computer display, a hologram is a truly three-dimensional and free-standing image that does not simulate spatial depth or require a special viewing device.

To reproduce the image of an object, the hologram is illuminated by coherent light, ideally the original reference beam. The hologram produces two sets of diffracted waves; one set forms a virtual image coinciding with the original object position and the other set forms a real image on the other side of the plate. Both are three-dimensional.

A hologram is an optical device which produces an image:

• Which exhibits variable colours (rainbow)
• With variable image content
  * Which can be animated
• Which appears as stereoscopic.

Why use a hologram as a security feature?

evolis

Holographic Evolis design

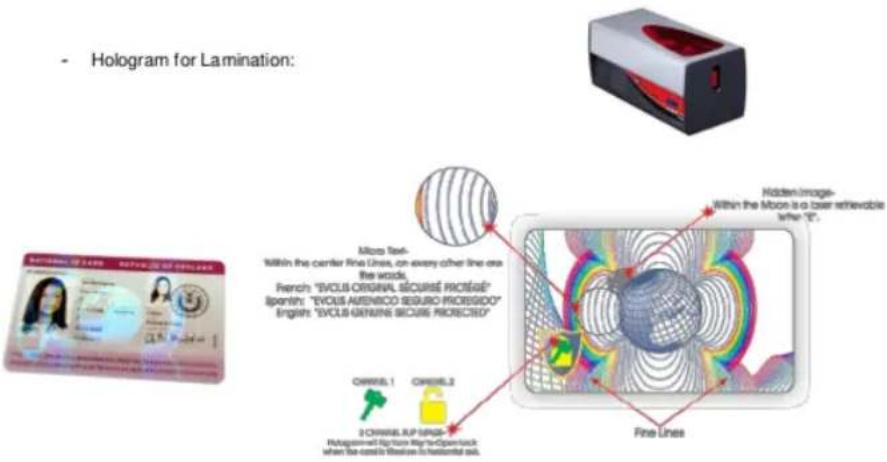

There are two ways to apply holograms with Evolis printers. First, you can use a printer equipped with a laminator station, such as Securion. Thank to this printer you could apply varnish films or patches, thicker than an overlay, allowing a better lifespan of your cards.

- Hologram for Lamination: Micro Test- Within the center line lines, on every other line one the words. French "EVUS ORIGINAL SECURÉ PROCESÉ" [spanth: "EVUS AURENICO SESURO PROCESIO" English: "EVUS GENUINE SECURÉ PROCESÉD" Hidden Image- Within the Moon is a laser retrievable life."E. FINE Lines CHANNEL 1 CHANNEL 2 3 CHANNEL AUP SINGLE- Rutagosome will happen by to Open-lock when the case is visible in horizontal out.

evolis

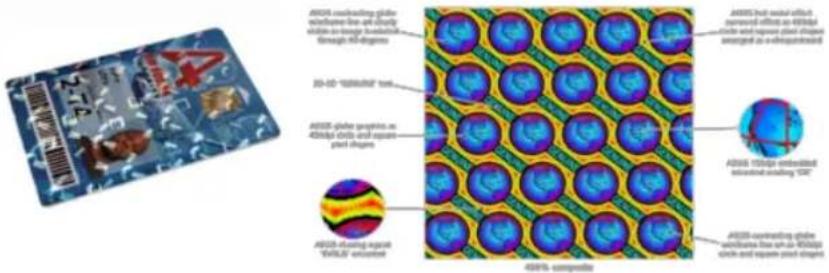

- Hologram for Thermal Transfer:

A405G nucleating globe wifthane-line-art clearly edible-to-image wavelength through 40 degrees 20-30 "16000bit" tape A405G sphere propria as 45bit/arc cells and square pixel shapes A405G thinning repeat "VHOLD" enclosed A405G hybrid embedded extramed underlying "UC" A405G-containing globe wifthane line-solar-95000 circles and squares pixel shapes

These two card personalization systems provide flexibility and enable to obtain within a few minutes a finished card-in-hand with hologram.

Evolis Custom Hologram Solution

Adding security to your badge may require a custom hologram film. Managed as a special project at Evolis, this film will be designed according to your company requirements.

Customized hologram will help you to reach a significant security level thanks to its unique and registered design. Custom hologram for plastic cards must meet two fundamental requirements:

evolis

- The security levels :

LEVEL 1 When the secured document will be viewed by the public

This hologram has features that are visible and discernible to the average person who has no training or instruction. The images, lines or text are immediately obvious to the viewer. Supports OVERT features

LEVEL 2 When the secured document will be subject to inspection

This hologram includes features that are not immediately discernible to the average person. These elements are only discernible when an examiner utilizes an additional tool and possesses some level of training. The tools used to expose the feature are simple items such as a magnifying glass, flashlight, or laser pen.

Supports OVERT - COVERT features

LEVEL 3 When the secured document is subject to forensic examination

This hologram includee features that are visible or discembie only with complex laboratory equipment. Persons investigating these features require more extensive training. Supports OVERT - COVERT - FORENSIC features

LEVEL 4 When the risk of counterfeiting is extreme

This hologram includes features that are technically unique and often have only one source of production. These sources produce a variety of unique optical technologies that do not rely solely on the holographic process. Supports OVERT – COVERT – FORENSIC – UNIQUE features

evolis

Explanation of the features used:

1. Single Axle CLR (Covert Laser Retrievable)

Images or characters that are undesphensible to the human eye. They are decoded by illuminating the coded area with a laser device and looking for the refracted light projected back at a specific angle.

(Level 2 - Coast)

1. Rainbow Coloring - Images, lines or characters that retract light using the full color spectrum. The color changes as viewing angle changes.

(Level 1 - Over)

1. Hellone Other Effect - Propriety banknote software is used to create unique effects which cannot be created with standard laser origination methods. Same software used for item 3 Line Width Modulation.

(Level 2 - Overt/Cohort)

1. 2010 or Multiple Plane Effect - Images, lines or characters that are composed of elements on the surface plane, above the surface plane or in the background. Elements above the surface plane or in the background exhibit a sense of depth and parallax.

(Level 1 - Over)

1. Line Width Modulation (LVM) - Various image and text effects that can be created by the mathematical manipulation of width, length and height of lines.

(Level 3 - Over/ Forensic / Level 4 - Unique)

1. Animated Geometrical Shapes Morph-Geometric shapes that morph color as they are rotated. (Level 1 - Over)

(Level 3 - Overt/ Forensic / Level 4 - Unique)

1. Multiple Channel (Bellech) Effect - Two or more distinct images that occupy the same area of the hologram. These images shift from one to the other when viewed from

1. Guttoche Pattern - A series of high resolution lines, curves and meshes or any combination of these elements. These designs are generated by

evolis

The following board shows you the other security features proposed by Evolis.

	Gray Scale Coloring - Images, lines or characters that have no color refraction, but are composed of black, white or neutral variations of gray(Level 1 - Over)		Dual Axis CLR (Covert Laser Retrievalis) - Images or characters that are undecipherable to the human eye. They are decoded by illuminating the coded area with a laser device and looking at the refracted light projected back at a specific angle. Dual Axis CLRs have more than one set of images or characters that are viewed at ninety degree angles from each other.(Level 2 - Covert)
	True Coloring - Images that refract their true colors only when viewed at a very specific angle(Level 1 - Over)		Micro Test - is diffractive or non diffractive text, whose size can be as small as 175 microns. And can be deeply viewed only with an eye loop or a magnifying glass(Level 2 - Covert)
	Sterogram - An optical illusion of depth and movement created from one or more flat, two-dimensional images(Level 1 - Over)		Font Specific Ted: Lines made from random fonts or words that look like ordinary lines until magnified to reveal the true object.(Level 2 - Covert)
	Windframe Ted: Outline of words and objects that can be combined with other effects to make a more complex image(Level 1 - Over)		Holographic Watermark - A translucent relief of an image or text that causes some part of the image or test to appear convex(Level 2 - Covert)
	Latent Effect - Images, lines or characters that are designed to refract light at a very severe angle. The		Hybrid Micro Optical Structures - The intentional manipulation of the critical structures that compose

evolis

To help you in your choice

High Security

According to the type of material you choose, your cards will be more durable and secured.

Estimated lifespan and security level:

• Generic Holographic Overlay: Intermediate security level.
• Generic Holographic Patch: High security level.
• Custom Hologram: Maximum security level.

Evolis proposes a large range of solutions to provide you different levels of durability and security for your printing.
