BEDIENUNGSANLEITUNG T3 Torgoen

TORGOEN SWISS

PROFESSIONAL PILOT WATCHES

INSTRUCTION Manual

60 NAUT. 55 45 LTR 50 LTR 50 55 60 MTR 45 LTR 50 9:00 8:00 1:10 7:00 35 LBS 30 20 10 5:00 4:30 3:30 2:23 1:18 9:00 8:45 7:23 6:30 5:30 4:00 3:30 2:23 1:18 9:00

SETTING INSTRUCTION FOR T2 & T3

CONTENT

Instructions for Using Your Computer Watch

Setting Instruction for T2 & T3

P.91 - P.98

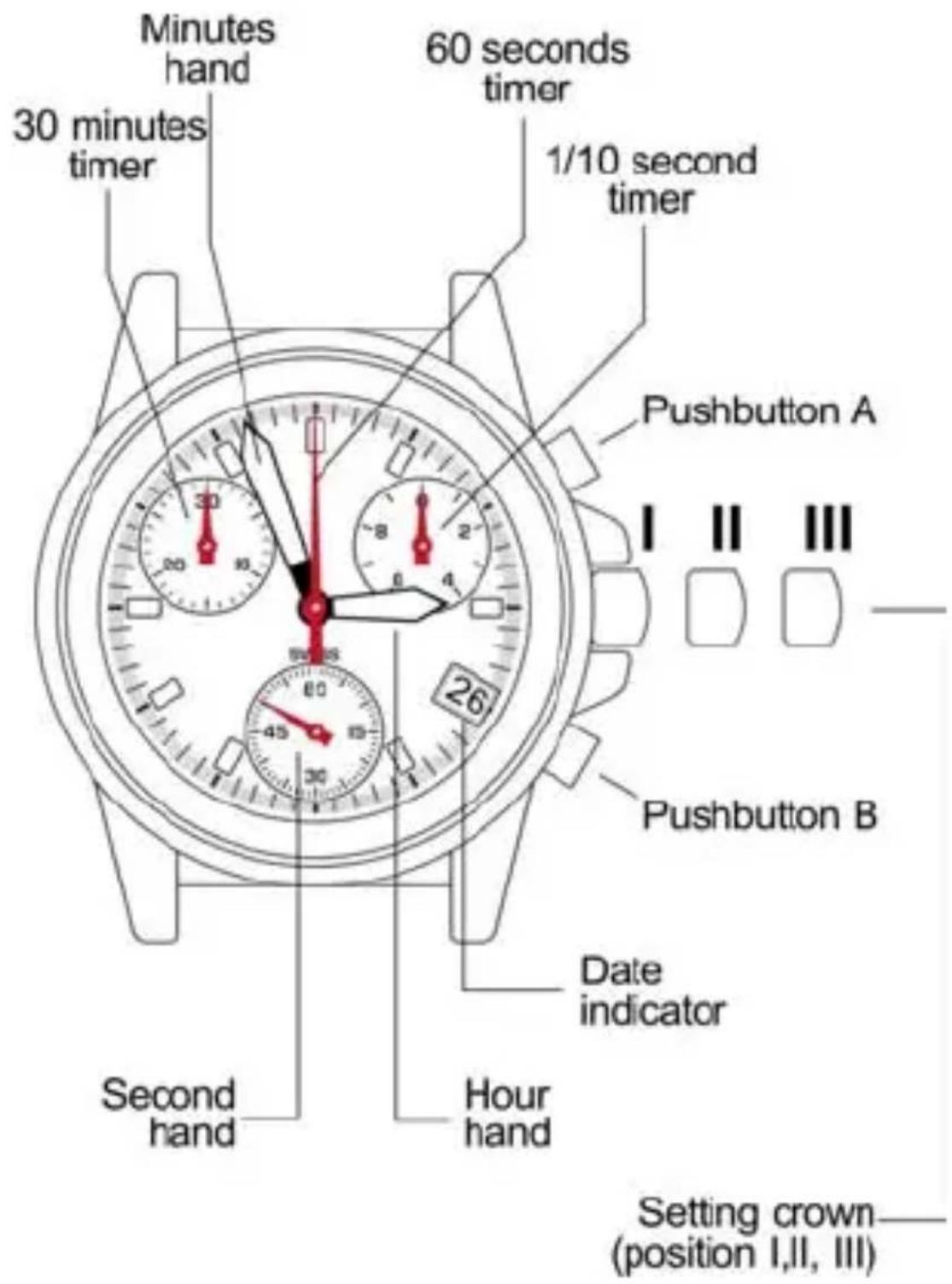

Watch hands

Minutes hand 30 minutes timer 60 seconds timer 1/10 second timer Pushbutton A I II III Pushbutton B Date indicator Second hand Hour hand Setting crown—— (position I,II, III)

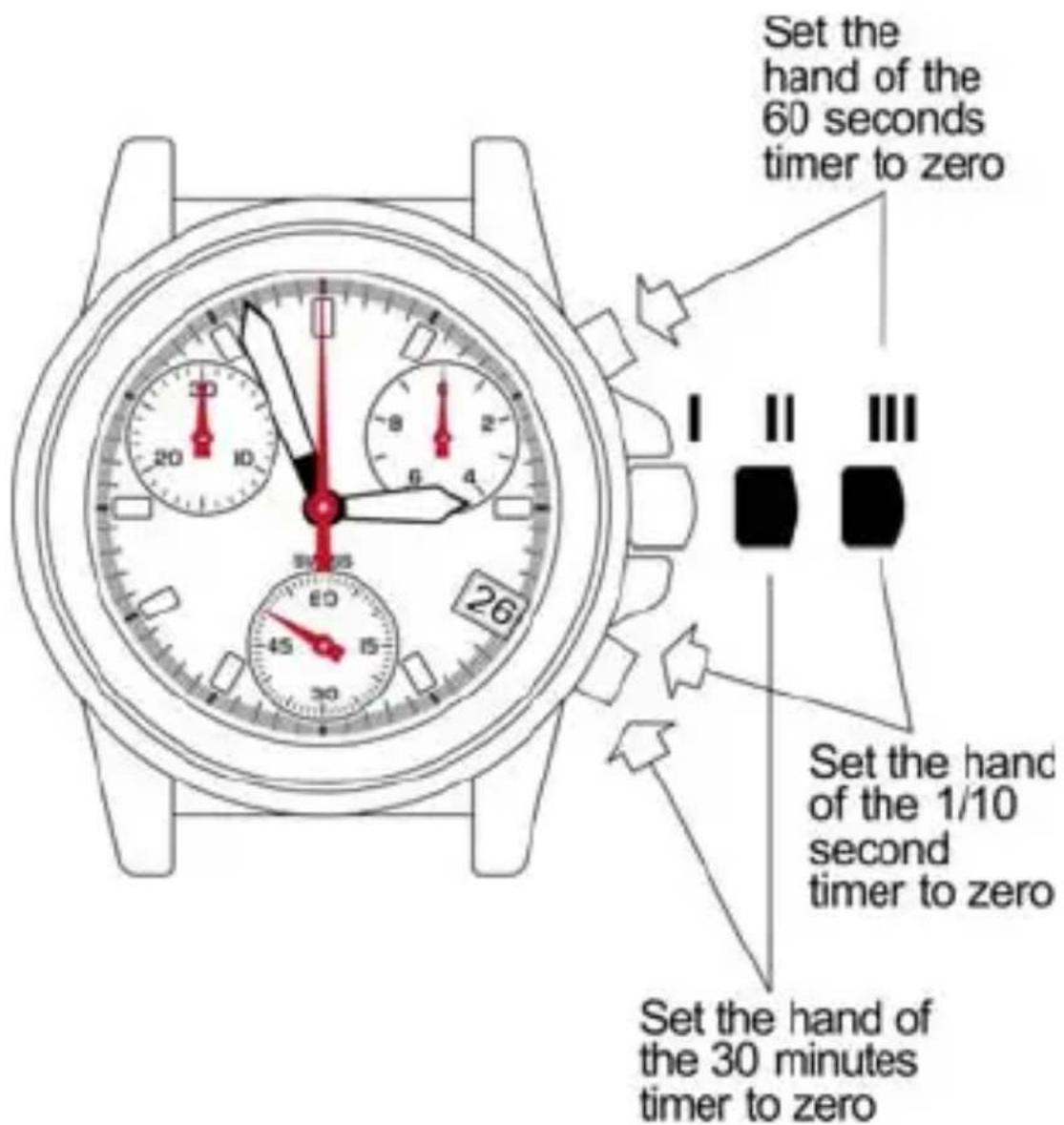

SETTING THE TIMERS TO ZERO

Setting crown in position II or III

Set the hand of the 60 seconds timer to zero Set the hand of the 1/10 second timer to zero Set the hand of the 30 minutes timer to zero

CORRECTION MODE

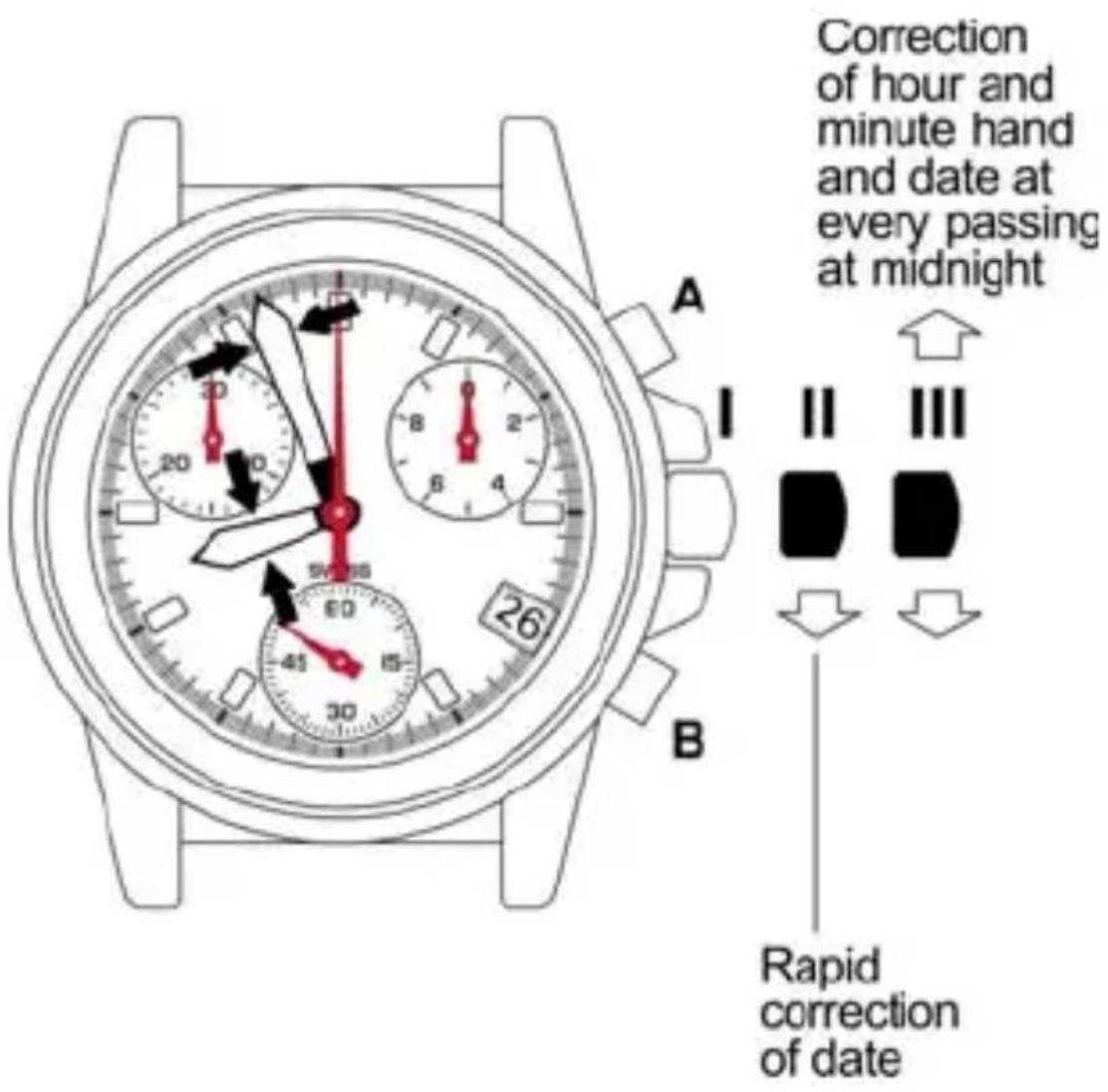

Setting the time

Correction of date

Correction of hour and minute hand and date at every passing at midnight A I 26 B Rapid correction of date

Note:
Setting crown in position III: STOP-SECOND

TIMING MODE

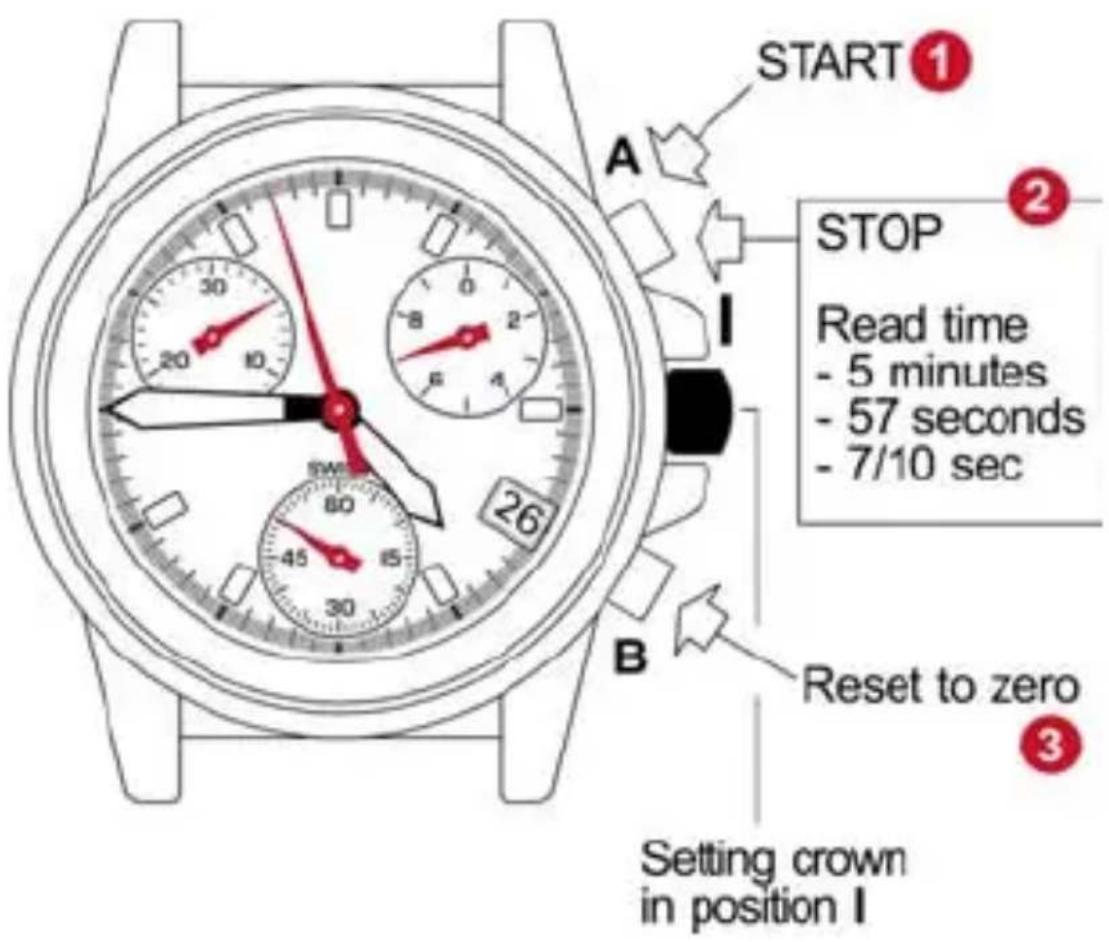

Simple timing function

START① A STOP I 26 B Reset to zero 3 Setting crown in position I Read time - 5 minutes - 57 seconds - 7/10 sec

1 to 3 order of functions

WARNING

Before starting the time, put back the chronograph hands to their original position.

If necessary, see paragraph SETTING THE TIMERS TO ZERO.

TIMING MODE

ADD function

1 to X order of functions

TIMING MODE

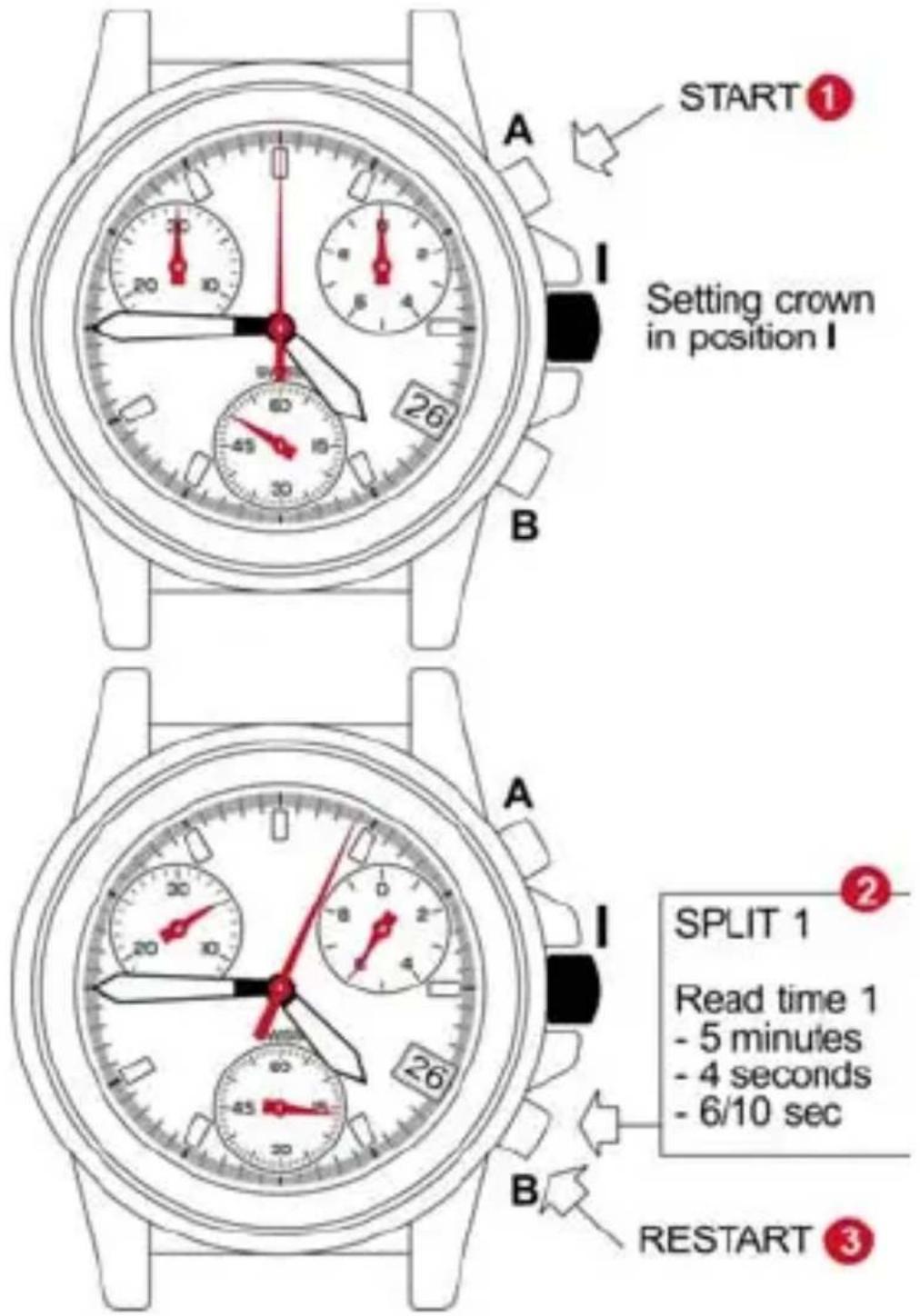

SPLIT-TIME or INTERMEDIATE TIMES function

START① I Setting crown in position I 26 B A I SPLIT 1 Read time 1 - 5 minutes - 4 seconds - 6/10 sec 26 B RESTART③

1 to 3 order of functions

TIMING MODE

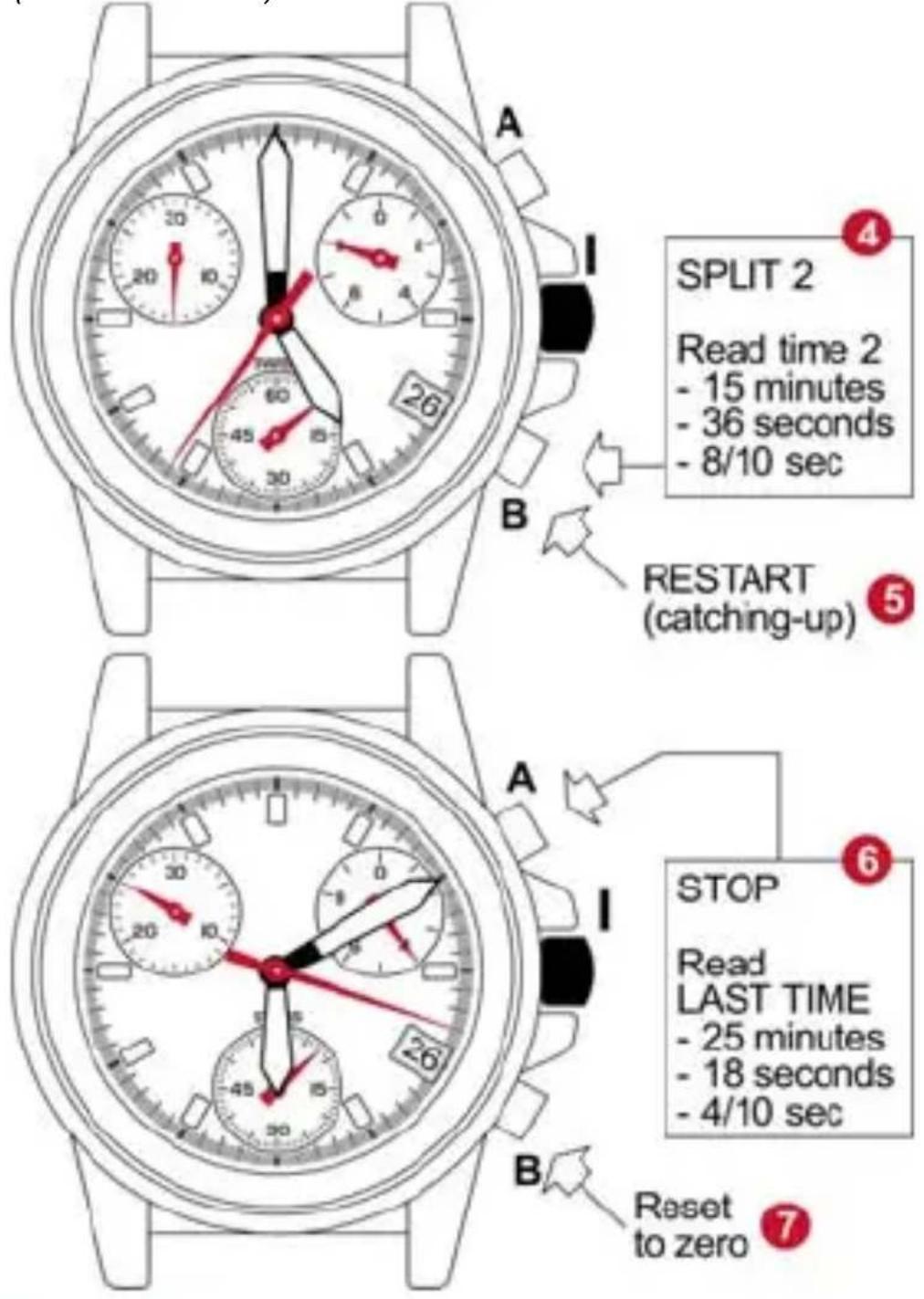

SPLIT-TIME or INTERMEDIATE TIMES function (cont. and end)

SPLIT 2 Read time 2 - 15 minutes - 36 seconds - 8/10 sec RESTART (catching-up) STOP Read LAST TIME - 25 minutes - 18 seconds - 4/10 sec Reset to zero

4 to 7 order of functions
