BEDIENUNGSANLEITUNG HTS12C IROX

iROX PERFECT TIMING

Cable Free Sensor

HTS12C THERMO-TIME

USER'S MANUAL

25

INTRODUCTION

Congratulations on your purchase of the cable free sensor

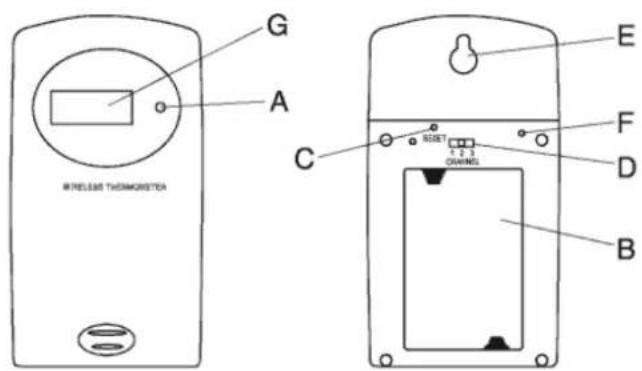

MAIN FEATURES: REMOTE UNIT

G A C E F D B #RELEAS THERMIGETER

A LED INDICATOR

Flashes once when the remote unit transmits a reading Flashes twice when low battery is detected on sensor unit

B BATTERY COMPARTMENT

Accommodates two AA-size batteries

C RESET BUTTON

Press to reset all setting if you have selected different channel.

D CHANNEL SELECTOR

Select the channel before you install batteries.

E WALL-MOUNT RECESSED HOLE

Supports the remote until in wall-mounting

F °C/°F BUTTON

G LCD DISPLAY

26

BEFORE YOU BEGIN

For best operation,

1. Insert batteries for remote units before doing so for the main unit.
2. Place the main unit as close as possible next to the remote unit.
3. Position the remote unit and main unit within effective transmission range, which, in usual circumstances, is 20 to 30 meters.
   Note that the effective range is vastly affected by the building materials and where the main and remote units are positioned. Try various set-ups for best result. Though the remote units are weather proof, they should be placed away from direct sunlight, rain or snow.

BATTERY INSTALLATION: REMOTE UNIT

1. Remove the screws on the battery compartment.
2. Select the channel
3. Install 2 batteries (UM-3 or "AA" size 1.5V) strictly according to the polarities shown.
4. Replace the battery compartment door and secure its screws.

TRANSMISSION COLLISION

Signals from other household devices, such as door bells, home security systems and entry controls, may interfere with those of this product and cause temporarily reception failure. This is normal and does not affect the general performance of the product. The transmission and reception of temperature readings will resume once the interference recedes. Different channel may be reduce the interference.

PRECAUTIONS

This product is engineered to give you years of satisfactory service if you handle it carefully. Here are a few precautions:

1. Do not immerse the unit in water.
2. Do not clean the unit with abrasive or corrosive materials. They may scratch the plastic parts and corrode the electronic circuit.
3. Do not subject the unit to excessive force, shock, dust, temperature or humidity, which may result in malfunction, shorter electronic life span, damaged battery and distorted parts.
4. Do not tamper with the unit's internal components. Doing so will invalidate the warranty on the unit and may cause unnecessary damage. The unit contains no user-serviceable parts.
5. Only use fresh batteries as specified in the user's manual. Do not mix new and old batteries as the old ones may leak.
6. Always read the user's manual thoroughly before operating the unit.

SPECIFICATIONS

Proposed operating range : -10.0^ to +50.0^ (14.0°F TO 122.0.°F)

RF Transmission Frequency : 433 MHz

No. of Remote unit : 3

RF Transmission Range : Maximum 30 meters (open area)

Temperature sensing cycle : around 43\~47 seconds

Power

use 2 pcs UM-3 or "AA" 1.5V battery

Dimension

55.5 x 101 x 24 mm

60g (without battery)

CAUTION

- The content of this manual is subject to change without further notice.

- Due to printing limitation, the displays shown in this manual may differ from the actual display.

- The contents of this manual may not be reproduced without the permission of the manufacturer.

EC-DECLARATION OF CONFORMITY

Product : TS12C / HTS12C

This product contains the approved transmitter and complies with the essential requirements of Article 3 of the R&TTE 1999/5/EC Directives, if used for its intended use and that the following standard(s) has/have been applied:

Efficient use of radio frequency spectrum

(Article 3.2 of the R&TTE Directive)

applied standard(s) EN 300 220-1,3:2000

Electromagnetic compatibility

(Article 3.1.b of the R&TTE Directive)

applied standard(s) EN 301 489-1,3:2000

Additional information:

The product is therefore conform with the Low Voltage Directive 73/23/EC, the EMC Directive 89/336/EC and R&TTE Directive 1999/5/EC (appendix II) and carries the respective CE marking.

RTTE Compliant Countries :

All EU countries, Switzerland CH

And Norway N

7-Jul-03

QA MANAGER: H.Y.WANG

K.S plastic factory

Guan Lan/Shen Shen/China

C€0125!
