BEDIENUNGSANLEITUNG G1 Stührling
WATER RESISTANT
E
Your new watch is a water-resistant watch.
Check the marking on the back of the watch, find below the relevant usage recommendation.
* Water Resistant 3ATM OR 30M (100 Feet)
Shall with stand splashes of water while washing the hand. But should not be worn while swimming or diving.
* Water Resistant 5ATM or 50M (165 Feet)
Suitable for showering or swimming in shallow water.
* Water Resistant 10ATM or 100M (330 Feet)
Suitable for swimming, snorkeling, but should not be worn while scuba diving.
* Diver's 20ATM or 200M (660 Feet)
Meets the higher requirements of water resistant and suitable for scuba diving.
We don't recommend swimming or diving with your watch unless it has a screw down crown and is water resistant to at least 10ATM or 100 Meters)
GENERAL CARE FOR A WATER RESISTANT WATCH
F
* DO NOT OPERATE ANY BUTTONS WHEN THE WATCH IS WET OR IN WATER.
* DO NOT WEAR THE WATCH IN A HOT SHOWER OR SAUNA. EXTREME HEAT CAN DAMAGE THE WATCH.
* AFTER USE IN SALT WATER OR CONTACT WITH SAND OR MUD, RINSE THE WATCH IN A STREAM OR FRESH WATER AND DRY IT WITH SOFT CLOTH.
* LEATHER STRAPS ARE MORE EASILY DAMAGED BY FREQUENT EXPOSURE TO WATER. AFTER EVERY USE IN WATER, WIPE THE STRAP WITH A SOFT CLOTH, TO IMPROVE THE LIFE OF THE STRAP.
IMPORTANT
THIS WATCH IS EQUIPPED WITH A QUARTZ MOVEMENT, POWERED BY A SILVER OXIDE BATTERY.
* BATTERY LIFE: ABOUT 2 YRS.
STÜHRLING
ORIGINAL
INSTRUCTION MANUAL - G1
(GRAND DATE)

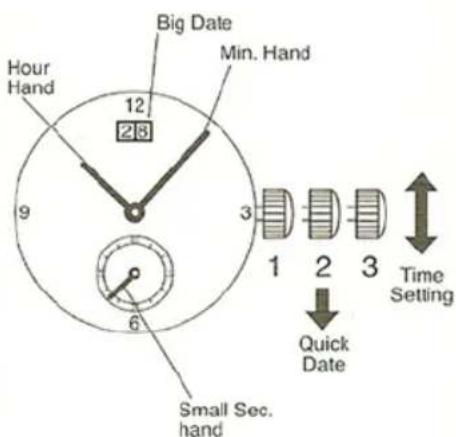

WATCH DISPLAY
A
VERSION-A
B
CROWN POSITION 1
Home Position, watch runs
CROWN POSITION 3
Time Setting Position
- Gently pull the Crown to this position
- If the watch is fitted with a Screw-down Crown, unscrew the crown and then gently pull the Crown.
- Rotate the Crown to Set the time.
- The watch stops in this position.
DATE SETTING
C
VERSION-A (CROWN POSITION 2)
• Gently pull the Crown to this position
- If the watch is fitted with a Screw-down Crown, unscrew the crown and then gently pull the Crown.
- Rotate the Crown backward to set the date.
VERSION-B (CROWN POSITION 2)
- Gently pull the Crown to this position
- If the watch is fitted with a Screw-down Crown, unscrew the crown and then gently pull the Crown.
- Rotate the Crown forward to set left digit of date rotate backward to set the right digit of the date.

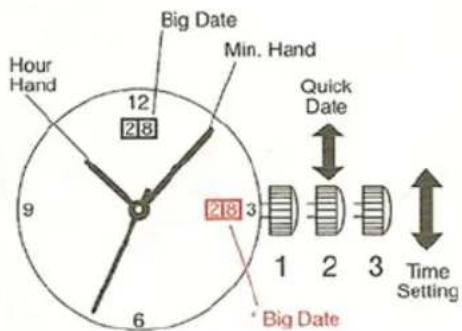

WATCH DISPLAY
D
VERSION-B

