BEDIENUNGSANLEITUNG Railway Station 5553990 Muji

MUJI

ALARM CLOCK (JAPANESE STATION)

Instructions

• Thank you for purchasing MUJI products.
- Please read carefully before using/assembling this product.
- Please keep these instructions.

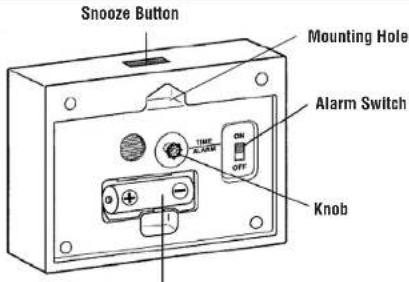

Snooze Button Mounting Hole Alarm Switch Knob

Battery

1 Inserting Battery and Setting the Clock

Make sure to insert the battery in the proper polarity.

2 Setting the Time

Pull and turn the knob to set the time. Push in the knob after setting.

3 Setting the Alarm

Set the time for alarm by turning the pushed knob in counterclockwise direction.

4 Turning on the Alarm Switch

On: Alarm is activated at specific time. Off: Deactivate the alarm.

5 Snooze Function

Push the snooze button while the alarm is activated. Snooze function can be used for approximately 40 min.

Alarm Hand

This clock can be used stand-alone or mounted.

In the case of mounting:
Please check "Advice for mounting the clock."
In the case of stand-alone use:
Please place on a horizontally level surface.

Specifications

Temporal Precision:

Operating temperature:

Battery type:

Battery life:

Alarm :

Alarm Precision:

±20 sec. per month

-10℃/+14°F\~+50℃/+122°F

Zink Carbon Battery AA/R6P

Approximately 1 year

Snooze Function

±5 min

*Specifications are subject to change without notice.

*Included battery is for sample use and may have a shorter battery life.

For your own safety, please use the product correctly. Various symbols are displayed here to prevent both injury to yourself and others around you, as well as property damage.

⚠ Warning This symbol is displayed were there is a possibility of serious injury or death.
Caution This symbol is displayed where there is a possibility of injury or property damage.

Warning

CHOKING HAZARD-This product contains small parts. Keep out of reach of children.

Caution

Do not place the product in any place where it will be subjected to direct sunlight or high temperatures, humidity, dust content, moisture, oil, smoke or gas.

Keep away from fire.

Keep the product away from magnets or magnetized items. Do not use abrasive cleaning agents such as benzene or paint thinner to clean the product.

Please wipe off dust or soiling with a soft and dry cloth.

Do not drop the battery or subject it to a large impact.

Do not diassemble the product.

Caution

Advice for mounting the clock

Make sure that the clock is securely mounted.

There is the danger that the clock may fall down and cause injuries or damage to the casing. After confirming the location,

materials and structure of the wall, please select mounting fixtures that will properly bear the weight of the clock.

When using mounting fixtures to mount the clock, please check that the clock is securely mounted by lightly moving it up and down, to the right and left and forwards.

A clock is a precision instrument. Avoid dropping on the ground or subjecting to any severe shock this may cause a malfunction.

Do not disassemble or modify this may result in a malfunction.

Do not disassemble

Precautions for BatteryPrecautions fo

Warning

Avoid contact with Battery Acid.

If battery acid enters the eyes or mouth, immediately rinse your eyes out with clean water and gargle with cold running water for at least fifteen (15) minutes and get medical help immediately. If battery acid contacts skin or clothing, wash immediately with soap and water. If irritation persists, get medical attention.

Keep out of reach of children.

Keep away from flames, matches, lighters, cigarettes or other ignition sources.

Do not short-circuit, disassemble, heat or expose to fire. These actions may result in the leakage of liquid, heating or an explosion.

Caution

If the batteries are not used properly, there is the risk of bodily injury or damage to the clock and its surroundings due to heating, breakage or the leakage of liquid.

Do not insert the plus(+) and minus(-) ends of the battery in reverse.

Use the batteries specified by the manufacturer.

Remove worn-out batteries from equipment immediately and dispose of promptly.

Do not attempt to recharge a battery unless the battery specifically is marked "rechargeable."

If the battery is not going to be used for more than 2 weeks, it is recommended that it be removed from the device and stored in a cool, dry, clean place.

Please make sure to see a plus sign for positive and a minus sign for negative when installing the batteries.

Trouble Shooting

When the product is not working properly, please check the points listed in this table first. Please buy new batteries each time and do not use stored batteries.

Problem	Possible causes	Solutions
The hand(s) are not moving.	The battery is not insertedThe battery has not been inserted the correct way round.Conduction failure of the battery contacts.	Insert new designated battery after checking that it is the right way round.Please wipe the surface of the contact points. Also turn the batteries 2-3 times after inserting.
The alarm does not ring.	The alarm switch is switched to the OFF position.	Switch the alarm switch to the ON position.
The hands stop moving after reaching the time set for the alarm.	The power of the battery is running low.	Replace the battery with a new battery.

This product complies with the EMC requirements of the European Community.

The symbol on the product, packaging, and/or accompanying document indicates that this product should not be disposed with normal household waste. This product shall be taken to the applicable collection point for recycling. The correct disposal of your old product will help prevent potential negative consequences for the environment and human health. For more information about recycling of this product, please contact the shop where you purchased the product, or your local authority.

This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste. Please inform yourself about the local rules on separate collection of batteries. The correct disposal of batteries helps to prevent potentially negative consequences for the environment and human health.
