BEDIENUNGSANLEITUNG Battenkill Large Arbor Trout III Orvis

ORVIS®

ROD AND TACKLE

Battenkill Large Arbor Trout

INTRODUCTION

With the proven drag system of our Battenkill Mid Arbor Trout Reel and the benefits of a large arbor reel, the BLA reel offers maximum line pick up, optimum drag consistency, and superior fish-stopping power.

• Centre line drag with a carbon and stainless steel surface to fight big fish
• Precision-machined and anodised from 6061 aircraft-grade aluminum
• Heavily ventilated for optimum weight and balance on your fly rod
• Indexed and numbered drag knob for repeatable drag adjustment
• Easily interchangeable spool

DRAG OPERATION

BLA Trout reels feature a dependable centre line drag system. To adjust the drag, turn the knob (figure 1) clockwise to increase resistance, and counterclockwise to decrease it. The minimum drag setting should never be less than the pressure required to prevent over-running of the line on fast runs. Additional drag may be applied by palming the spool rim with your fingers or palm. The easy drag adjustment is infinitely variable, providing wide-ranging and controllable settings.

Close-up of a metallic circular mechanical component with numbered slots (0, 3, 6, 9) and a central hub labeled ORVIS° (no text beyond labels)

FIGURE 1

SPOOL REMOVAL

The spool release is located in the middle of the reel spool. To remove, depress the spool release latch while simultaneously lifting the spool out of the reel body.

RETRIEVAL CONVERSION

All Battenkill Large Arbor reels have the drag factory installed for left-hand wind (figure 2). To change your reel to right-hand wind, unclip the one-way retainer (part #20) by squeezing the retaining tags. Remove one-way bearing (part #21) and flip over. Re

Close-up of a mechanical component with a central hexagonal bolt and surrounding holes (no text or symbols visible)

FIGURE 2

ROUTINE MAINTENANCE

Your new Battenkill Large Arbor reel has been properly lubricated prior to shipping. However, it should be cleaned and lubricated after extensive use or after contact with dirt or sand. Your reel should receive routine cleaning and maintenance at least twice each year. Lightly lubricate all moving components—handle, centre spindle, and gear shaft with all-purpose grease, which is available in tackle shops. Do not put the reel away wet, or into a wet reel case or tackle box. For extended storage, remove both line and backing and loosen the drag.

GUARANTEE

Your Battenkill Large Arbor Trout reel is unconditionally guaranteed against defects in materials and workmanship.

If you have any problems, simply send your reel and a £7.95 check to the following address:

The Orvis Company Inc., Clearwater House, Unit 28 North Way, Andover, Hampshire SP10 5RW

If the reel is in any way defective in material or workmanship, your £7.95 repair check will be returned to you at once.

Your reel will be completely serviced (cleaned, lubricated, and returned to you postpaid) for a fee of £7.95, plus cost of parts.

Damaged reels can be repaired on an individual basis and repair work will be billed at the hourly shop rate, plus parts. We will provide a written estimate upon receipt of the reel prior to any work being done.

QUESTIONS?

If you have any questions about the operation and maintenance of your new reel, Orvis Technical Advisors are always available. Email: [e-mail]

ORVIS

ROD AND TACKLE

Battenkill Large Arbor Trout

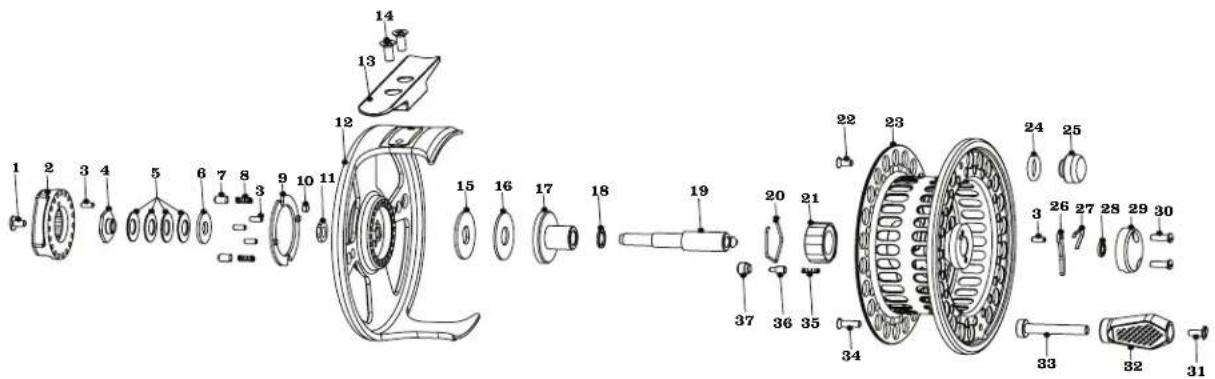

Exploded view diagram of a mechanical assembly with numbered parts for identification

REEL ASSEMBLY

1 Drag Knob Screw
2 Drag Knob
3 Pin
4 Drag Nut
5 Spring Washer
6 Spacer
7 Drag Knob Clicker
8 Drag Knob Clicker Spring
9 Plastic Plate
10 Drag Knob Stopper

11 Spindle Nut
12 Frame
13 Foot
14 Foot Screw
15 Push Plate
16 Drag Washer
17 Bushing
18 Washer
19 Spindle
20 Spring Clip

21 One-Way Bearing
22 Counter Weight Screw
23 Spool
24 O-Ring
25 Counter Weight
26 Quick-Release Key
27 Quick-Release Spring
28 Quick-Release Cover Pad
29 Quick-Release Cover
30 Quick-Release Cover Screw

31 Knob Screw
32 Handle Knob
33 Spindle
34 Knob Screw 1
35 Clicker Spring
36 Clicker
37 Clicker Housing

BATTENKILL LARGE ARBOR TROUT Capacity Chart
LINE WEIGHT	I	II	III
WF1 100
WF2 75
WF3 50	125
WF4	100
WF5		75	150
WF6			125
WF7			100

Battenkill Large Arbor Trout Fly Reel Specifications

I Reel | weight: 3.9 oz. | 3 inches

II Reel | weight: 4.1 oz. | 3 ¼ inches

III Reel | weight: 4.4 oz. | 3 5/8 inches

Capacity in Yards

All capacities are quoted using 20-lb Dacron ^® backing and a standard weight-forward floating fly line.
