BEDIENUNGSANLEITUNG Lexima LX 105 Banax

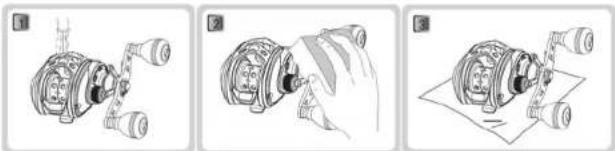

Cleaning

1 Lightly rinse all parts of the reel including spool with freshwater to remove salt, sand or debris.

② Wipe down with a soft rags, sponge or towel after rinsing. ③ Dry reel in the shade. Now it's ready to lubricate your reels

Tips

Do not wind a handle while the spool is removed, it could cause damage gear assembly.

② Be careful not to get your fingers caught between the level winder and body, it could damage clutch and/or stopper.

Do not wind a handle while thumb bar is not fully depressed (half-clutch).

4 If the fishing line is thinner than recommended, a line could get jammed between spool and body.

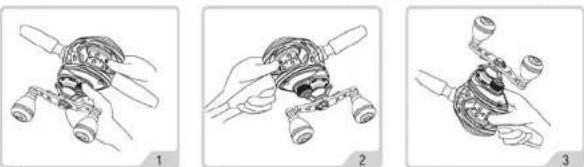

Casting

① Adjust proper brake strength of the tension knob per your lure weight. ② Press your thumb to thumb bar. ③ Twist the rod to the side facing the handle upward.

Illustration of a hand holding a device with a magnified inset showing curved lines (no text or symbols)

Illustration of a hand holding a mechanical component with two protruding parts (no text or symbols)

4 The starting point for the cast should be with the rod back over your shoulder, roughly in the two o'clock position. The release point (thumb off spool) should be approx. at the eleven o'clock point.

⑤ As the lure makes contact with the water, thumb the spool to a dead stop to prevent backlash. Then crank the handle to engage the retrieve mechanism.

banax

INSTRUCTION MANUAL

LEXIMA series Baitcast reels

Postal: PO Box 35605, Browns Bay, Auckland 0630 / Ph: 09 476 9304. 0800 256 221 / www.banadishing.co.nz

It is recommended that your reel be periodically cleaned and lubricated to maintain the best performance. Banax is ready to service and repair your Banax fishing reels according to our products warranty policy.

Product warranty policy:

Banax Fishing New Zealand provides a ONE(1) year warranty from the date of purchase on Banax reels imported by us, against defects in material, assembly, and/or workmanship. This warranty is extended only to the original purchaser in new Zealand. To request warranty repair services (within one year of purchase date), a dated sales receipt must be accompanied with warranty claim. Please send your reels to Banax authorized service centre with a purchase receipt, postage pre-paid, brief note of problem or service type and your contact information (name, postal address, phone number, email address, etc.). Thank you for your purchasing Banax products.

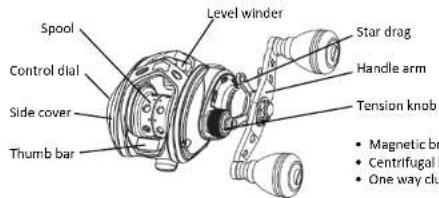

Parts and functions

Spool Control dial Side cover Thumb bar Level winder Star drag Handle arm Tension knob • Magnetic br • Centrifugal cl • One way clu

• Above is a typical picture of baitcast reel, it may not be exactly same to your product.

Magnetic brake system

The brake system using the magnetic field of the magnets with the spool rotation in the side cover attached to the spool. You can adjust the braking force at step 0 to 10 by control dial on palm side cover. The higher the strength of the magnetic field provides a higher braking force which prevents backlash. You can adjust the dial In the proper step regarding to the lure weight and various fishing conditions. The magnetic brake system prevents the backlash without complicated setting because the magnetic force is continuously generated all the time.

Adjustment of Internal / External Centrifugal Brake

Internal centrifugal brake holder

Technical line drawing of a mechanical component with no visible text or symbols

Internal centrifugal brake system

① The friction between the brake shoes on the spool side and brake ring prevents the backlash.
② You can adjust brake force up to 7 steps (0-6 step).
③ By stepping up the exposed brake shoes, the brake force is increased proportional to the friction generated between brake shoes and brake ring.

Control dial on palm side cover

Simple line drawing of an eye shape with a central lens (no text or symbols)

External centrifugal brake system

1 External centrifugal brake can be easily adjusted up to 4 step from the control dial on palm side cover.
2 Free step: Brake free with zero brake shoe.
3 step: Brake force occurred by the friction between 3 brake shoes and brake ring.
④ 6 step: Brake force occurred by the friction between 6 brake shoes and brake ring.
5 9 step: Brake force occurred by the friction between 9 brake shoes and brake ring.
6 By stepping up the exposed brake shoe, the brake force is increased proportional to the friction generated between brake shoes and brake ring.

Adjustment of Twin Brake System

Technical illustration of internal centrifugal and magnetic holder components (no text or symbols)

Twin brake system is an effective system combined with centrifugal and magnetic brake system. In the early casting, centrifugal brake force is largely generated to prevent early backlash. In the second half casting, magnetic brake force is largely generated to prevent later backlash.

Twin brake system can adjust the brake force up to max. 77 step, thus allows you best casting performance in various fishing situations.

Note:

① In case of centrifugal brake, often enough to have an oiling with cotton swabs on the inside of brake ring. ② If there is no oil on the brake ring, it could cause defects on brake performance.

Adjustment of Tension knob

Technical line drawing of a mechanical component with no visible text or symbols

Tension knob is used to add the proper amount of friction to the spool rotation. Turn the tension knob clockwise to increase friction, counter-clockwise to decrease friction. You can also reduce the occurrence of backlash by the proper setting of tension knob which control the spool rotation.

Brake setting step

Considering the lure weight, adjust the tension knob to high-level friction as the first step. Once you get used to cast, try increasing the casting distance by reducing the tension knob setting.

Lubricants A

Brake ring L/D Oil by cotton seals Grosse Washer Bearing Ice oil

Open the side cover and clean the inner ball bearing, brake ring and washer, and then oil each part. In case of centrifugal brakes, please make sure that the oil does not flow on the entire inner brake ring.

Cleaners: cotton swabs, tooth brush, paper towels or soft rags

Remove spool assembly. Clean spool assembly and shaft with toothbrush or cotton swabs. Oil ball bearing and spool shaft. Lightly oil on both side of end face of the spool shaft.

Note:
① Do not grease spool shaft, it could affect free-spool adversely.

Tension knob, ball bearing, washer

Remove tension knob. Grease washer at inside of tension knob. Clean and oil ball bearing for optimal free-spool and casting performance.

Note:

1 Do not oil drag washer, it could affect decreasing of drag power. 2 Excess oil and grease could affect reel performance adversely. Apply a few drops of oil

3 Regular oiling will increase the life expectancy of your reels. 4 Use low viscosity oil and grease designed for reels.
