Produkttyp	Fahrzeug-Ladestation
Marke	RAM Mount
Modell	GDS-DOCK-D2CU
Stromversorgung	USB Typ-C, bis 48 W (5 V/2 A, 5 V/3 A, 12 V/1,5 A, 12 V/3 A)
Datenübertragungsrate	bis zu 480 Mbit/s
Kompatibilität	IntelliSkin™
Befestigung	Integrierte Magnete
Garantie (elektronisch)	3 Jahre
Garantie (nicht-elektronisch)	Lebenslang
Reinigung	Kontaktreiniger oder Alkohol, Bürste
Erforderliches Zubehör	Original GDS USB-Kabel (im Lieferumfang)
Hersteller	National Products, Inc.
Kontakt	[e-mail]
Webseite	www.rammount.com
Geeignet für	Fahrzeugmontage
Anschluss	USB Typ-C (hinten)

Häufig gestellte Fragen - GDS-DOCK-D2CU RAM Mount

Wie schließe ich das GDS Desktop Dock an?

Stecken Sie das mitgelieferte Original GDS USB-Kabel in den rückseitigen Anschluss des Docks und verbinden Sie es mit einem geeigneten USB-C-Netzteil. Ihr Gerät erkennt die Stromquelle innerhalb von zwei Sekunden.

Welche Ladeleistungen unterstützt das Dock?

Das Dock unterstützt USB-C-Leistungsprofile von 5 V/2 A, 5 V/3 A, 12 V/1,5 A und 12 V/3 A, was einer maximalen Ladeleistung von 48 W entspricht.

Warum lädt mein Gerät nicht?

Überprüfen Sie, ob das Kabel fest eingesteckt ist und das Netzteil funktioniert. Stellen Sie sicher, dass der IntelliSkin™-Stecker richtig mit Ihrem Gerät verbunden ist und korrekt in der Dockaufnahme sitzt. Reinigen Sie bei Bedarf die Pogo-Pins und Kontakte.

Wie reinige ich die Kontakte?

Verwenden Sie Kontaktreiniger oder Alkohol auf einem Wattestäbchen für die Pogo-Pins und eine steife Bürste für die IntelliSkin-Kontakte. Bei industrieller Nutzung regelmäßig reinigen.

Kann ich jedes USB-C-Netzteil verwenden?

Nein, Sie müssen ein Netzteil mit geeigneten Ladespezifikationen für Ihr Gerät verwenden. Das Dock selbst unterstützt verschiedene Profile, aber das Netzteil muss die erforderliche Leistung liefern.

Ist das Dock mit allen IntelliSkin-Hüllen kompatibel?

Ja, das GDS Desktop Dock unterstützt jede IntelliSkin™-Verbindung und hält sie mit integrierten Magneten sicher an Ort und Stelle.

Welche Garantie gilt für das Produkt?

Auf alle elektronischen Komponenten gewähren wir 3 Jahre Garantie, auf nicht-elektronische Komponenten eine lebenslange Garantie. Die Garantie gilt nur in den USA und für gewerbliche Käufer.

Unterstützt das Dock Datenübertragung?

Ja, es unterstützt Datenübertragungsraten von bis zu 480 Mbit/s.

Kann ich das Dock auch im Auto verwenden?

Ja, das Produkt ist als Fahrzeug-Support konzipiert. Es kann in Fahrzeugen montiert werden und lädt Ihre Geräte über die IntelliSkin-Verbindung.

Wo finde ich weitere Informationen und Zubehör?

Besuchen Sie unsere Website unter www.rammount.com oder kontaktieren Sie uns per E-Mail unter [e-mail].

BEDIENUNGSANLEITUNG GDS-DOCK-D2CU RAM Mount

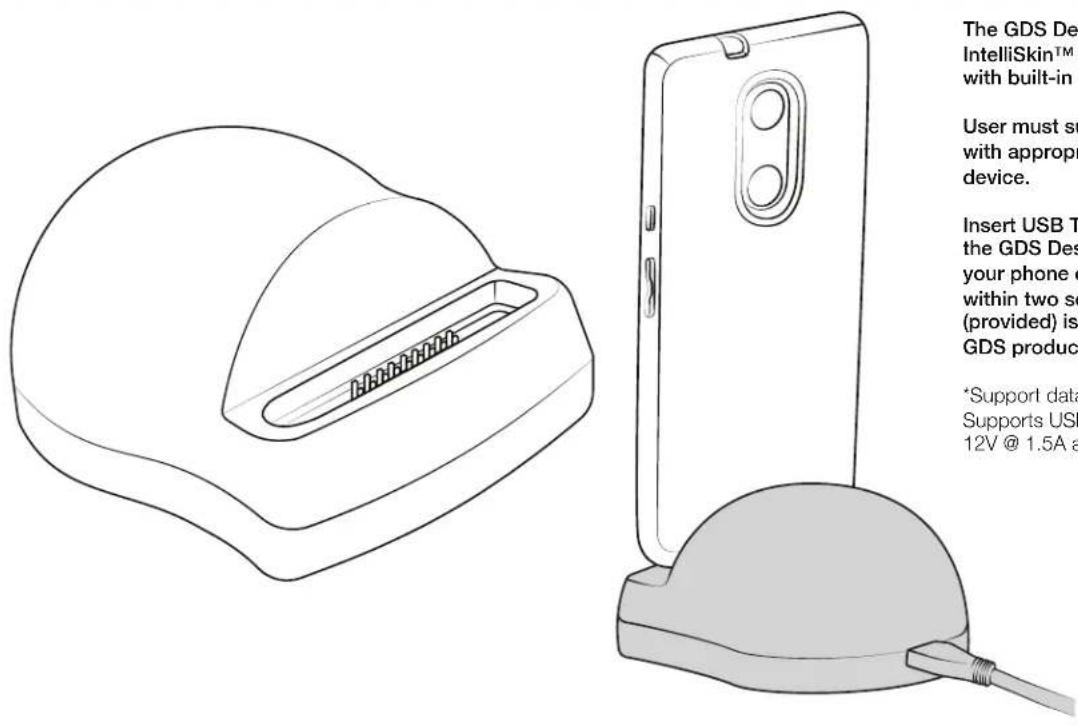

The GDS Desktop Dock will support any IntelliSkin™ connection, and will hold it in place with built-in magnets.

User must supply a USB Type-C wall charger with appropriate charging specifications for the device.

Insert USB Type-C cable into the rear port of the GDS Desktop Dock. When plugged in, your phone or tablet will detect power source within two seconds. Genuine GDS USB cable (provided) is required for proper operation of GDS products.

*Support data transfer speeds of up to 480 Mbps Supports USB C power profiles 5V @ 2A, 5V @ 3A, 12V @ 1.5A and 12V @ 3A or charging up to 48W.

RPR-INS-GDS-DOCK-D2C

This document, including images, may not be reproduced partly or fully without the expressed written consent of National Products, Inc.

RAM®

MOUNTS

Phone: [phone]

www.rammount.com

[e-mail]

GDS® Desktop Dock Charger

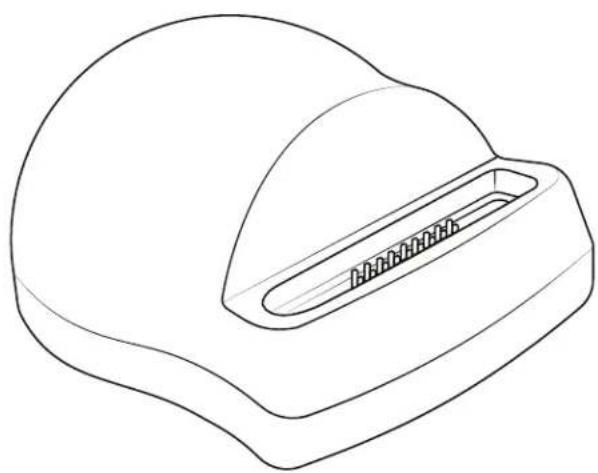

Line drawing of a mechanical component with internal slots and a curved body (no text or symbols)

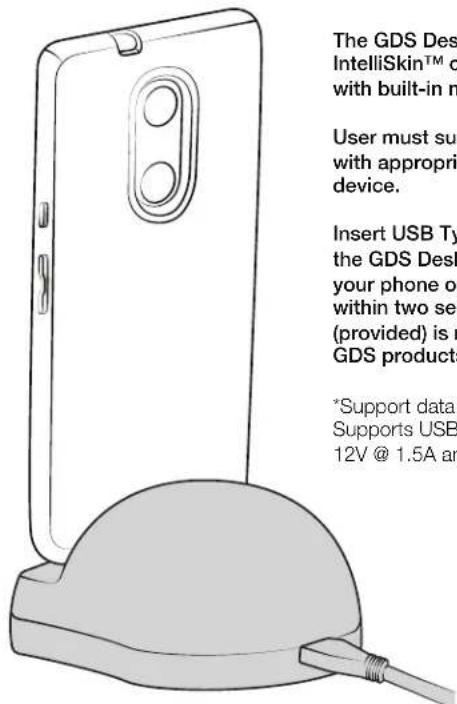

The GDS Desktop Dock will support any IntelliSkin™ connection, and will hold it in place with built-in magnets.

User must supply a USB Type-C wall charger with appropriate charging specifications for the device.

Insert USB Type-C cable into the rear port of the GDS Desktop Dock. When plugged in, your phone or tablet will detect power source within two seconds. Genuine GDS USB cable (provided) is required for proper operation of GDS products.

*Support data transfer speeds of up to 480 Mbps Supports USB C power profiles 5V @ 2A, 5V @ 3A, 12V @ 1.5A and 12V @ 3A or charging up to 48W.

RPR-INS-GDS-DOCK-D2C

While RAM ^® products are designed to function flawlessly, there is always the potential that the product may not function as expected. Most often product issues can be resolved by the customer prior to sending the product in for warranty or replacement. If you experience issues, please follow the guidelines below prior to contacting customer support for assistance.

Troubleshoot:

(Follow these steps if you encounter any charging issues with your GDS Dock)

• Verify that the dock's power cord is securely plugged into the dock as well as the wall power source. Assure that the power source is functional by testing with an alternate electronic device.
• Verify that the IntelliSkin ^TM connector is securely connected to your device.
• Verify that the IntelliSkin is seated properly in the receptacle of the GDS dock.
• After verifying the above steps, see GDS General Care and Maintenance below to verify that your dock and IntelliSkin has been properly cleaned.

GDS General Care & Maintenance

• For any accidental spills or accumulated dirt on the pogo pins of the dock, use contact cleaner or alcohol on a cotton swab to gently clean. Clean the contacts on the IntelliSkin, using contact cleaner or alcohol with a stiff brush.
• For industrial and heavy use environments, clean pogo pins and contacts on a regular basis.

3 year warranty on all electronic components / Lifetime Warranty on all non-electronic components

The exclusive NPI Lifetime Warranty states that all GDS non-electronic components and parts are warranted against defect in materials and workmanship for the life of the product or part. NPI's Lifetime Warranty covers the product or its components only. The mount device is not covered under the Lifetime Warranty and will not be replaced if damaged as a result of mount failure. This warranty is expressly limited to persons in the United States, and all foreign countries who purchase GDS for resale or use in the ordinary course of the buyer's business. This warranty does not cover any product or part that has been abused, worn out, heated, ground or otherwise altered, used for a purchase other than that for which it was intended, or used in a manner inconsistent with any instructions regarding its use.

GDS®, IntelliSkin™, GDS Tech™, GDS Technology™, GDS Green™ and GDS Compatible™ are trademarks or registered trademarks of National Products Inc. The distinctive D shape™ of the GDS connector is a trademark of National Products Inc. Patents and Trademarks: www.rammount.com/ip

IntelliSkin™

GDS
TECHNOLOGY™

Distinctive "D" shape

To see more mounting options, visit rammount.com

This document, including images, may not be reproduced partly or fully without the expressed written consent of National Products, Inc.

RAM®

MOUNTS

Phone: [phone]

www.rammount.com

[e-mail]

GDS® Desktop Dock Charger

While RAM ^® products are designed to function flawlessly, there is always the potential that the product may not function as expected. Most often product issues can be resolved by the customer prior to sending the product in for warranty or replacement. If you experience issues, please follow the guidelines below prior to contacting customer support for assistance.

Troubleshoot:

(Follow these steps if you encounter any charging issues with your GDS Dock)

• Verify that the dock's power cord is securely plugged into the dock as well as the wall power source. Assure that the power source is functional by testing with an alternate electronic device.
• Verify that the IntelliSkin ^TM connector is securely connected to your device.
• Verify that the IntelliSkin is seated properly in the receptacle of the GDS dock.
• After verifying the above steps, see GDS General Care and Maintenance below to verify that your dock and IntelliSkin has been properly cleaned.

GDS General Care & Maintenance

• For any accidental spills or accumulated dirt on the pogo pins of the dock, use contact cleaner or alcohol on a cotton swab to gently clean. Clean the contacts on the IntelliSkin, using contact cleaner or alcohol with a stiff brush.
• For industrial and heavy use environments, clean pogo pins and contacts on a regular basis.

3 year warranty on all electronic components / Lifetime Warranty on all non-electronic components

The exclusive NPI Lifetime Warranty states that all GDS non-electronic components and parts are warranted against defect in materials and workmanship for the life of the product or part. NPI's Lifetime Warranty covers the product or its components only. The mount device is not covered under the Lifetime Warranty and will not be replaced if damaged as a result of mount failure. This warranty is expressly limited to persons in the United States, and all foreign countries who purchase GDS for resale or use in the ordinary course of the buyer's business. This warranty does not cover any product or part that has been abused, worn out, heated, ground or otherwise altered, used for a purchase other than that for which it was intended, or used in a manner inconsistent with any instructions regarding its use.

GDS®, IntelliSkin™, GDS Tech™, GDS Technology™, GDS Green™ and GDS Compatible™ are trademarks or registered trademarks of National Products Inc. The distinctive D shape™ of the GDS connector is a trademark of National Products Inc. Patents and Trademarks: www.rammount.com/ip

IntelliSkin™

GDS
TECHNOLOGY™

Distinctive "D" shape
