BEDIENUNGSANLEITUNG Uno nero Stompa

Stompa Highsleeper

Assembly instructions - please keep for future reference

Factory code:

T1002-03 - Nero

Dimensions

Width - 208.2 cm

Depth - 98.2/105.1 cm

Height - 174.4 cm

Important - Please read these instructions fully before starting assembly

If you need help or have damaged or missing parts, call the Customers Helpline: 0844 8008475

Safe and Care Advice

Important - Please read these instructions fully before starting assembly

• Check you have all the components and tools listed on page 2,4 and 5.
• Remove all fittings from the plastic bags and separate them into their groups.

• Keep children and animals away from the work area, small parts could choke if swallowed.
  • Make sure you have enough space to lay out the parts before starting.

• Do not stand or put weight on the product, this could cause damage.

• Assemble the item as close to its final position (in the same room) as possible.
• Assemble on a soft level surface to avoid damaging the unit or your floor.
• Parts of the assembly will be easier with 2 people.

• We do not recommend the use of power drills/drivers for inserting screws,

as this could damage the unit. Only use hand screwdrivers.

- Dispose all packaging carefully and responsibly.

Glue safety - Take care when using glue, please follow the advice below

Skin contact: Remove contamination by washing with soap and water. This procedure should also be followed prior to eating and drinking.

Eye contact: Rinse immediately with clean water for 15 minutes and seek medical advice.

If swallowed: Seek medical advice immediately.

Care and maintenance

- Only clean using a damp cloth and mild detergent, do not use bleach or abrasive cleaners.

- From time to time check that there are no loose screws on this unit.

• This product should not be discarded with household waste. Take to your local authority waste disposal centre.

(GB) IMPORTANT, READ CAREFULLY - RETAIN FOR FUTURE REFERENCE

• Current legislation requires that the bunkbed must be fitted with a ladder or platform for the upper bunk bed.
  • The bunk bed meets the european EN 747-1:2007 standards for security and durability.

- Mattress: This bed is designed to use a mattress size 200 cm long and 90 cm wide. The total thickness must not exceed 16.1 cm. The label on the ladder side indicates maximum height of mattress to be used in this bed.

• Important: High beds and the upper bed of a bunk are not suitable for children under six years due to the risk of injury from falls.
  Do not use the bed if any structural part is broken or missing.
• Be aware that children can strangle in items such as ropes, strings, cords, harnesses and belts attached to or hung on a bunk bed/high bed.

WARNING

• Children can become trapped between the bed and the wall.
• To avoid risk of serious injury the distance between the top safety barrel and the wall shall not exceed 75 mm or shall be more than 230 mm.

Note: if required the next page can be cut out and used as reference throughout the assembly. Keep this page with these instructions for future reference.

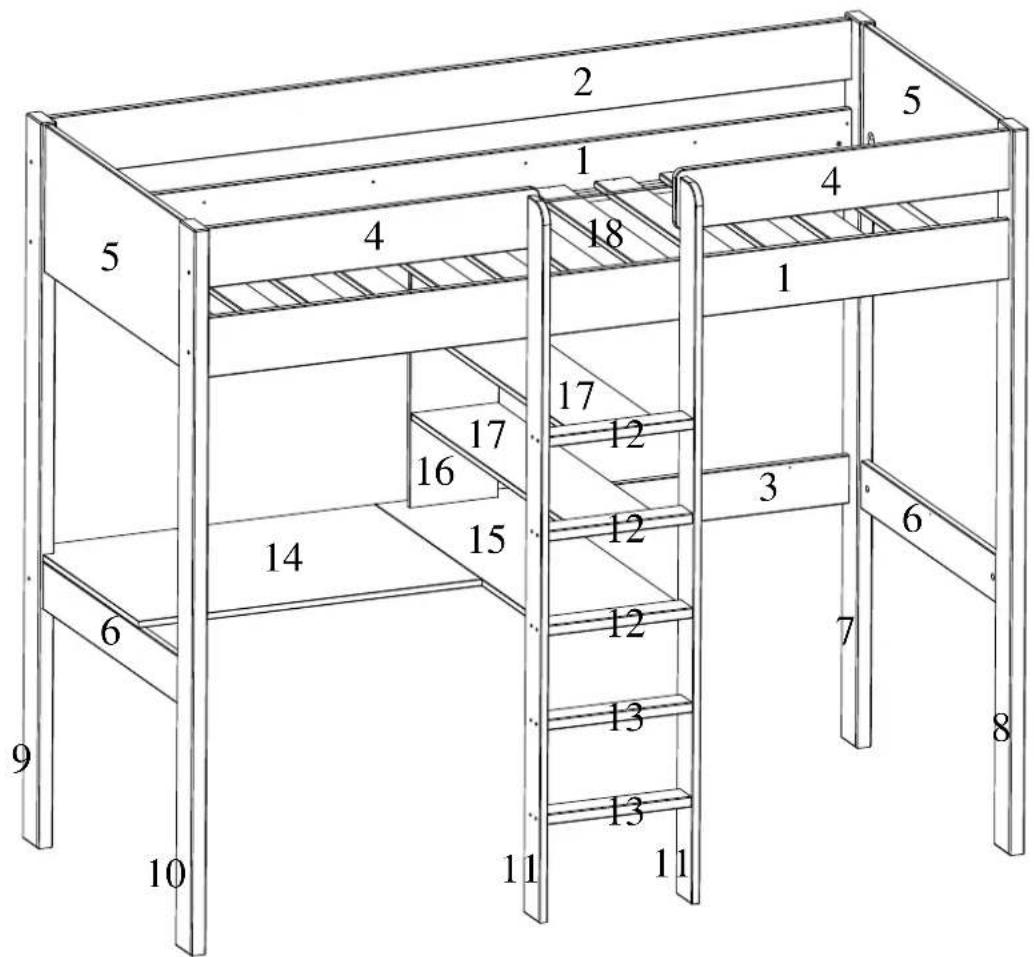

2 5 1 4 1 4 18 5 4 1 1 17 12 3 6 17 16 12 14 15 12 13 13 7 8 6 9 10 11 11

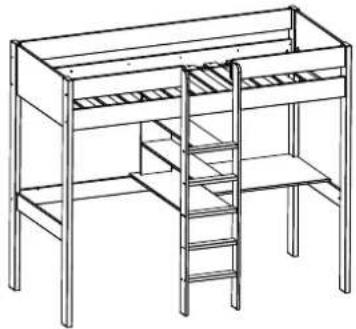

Line drawing of a two-level dormer structure with ladder and shelf (no text or symbols)

Components

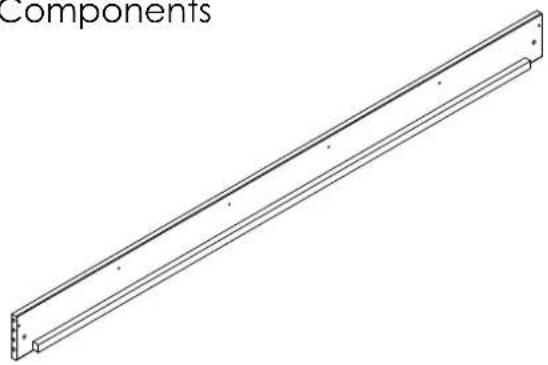

Isometric line drawing of a long rectangular metal beam with evenly spaced notches (no text or symbols)

1 Bed rail x2 (200,6x14,5x2 cm)

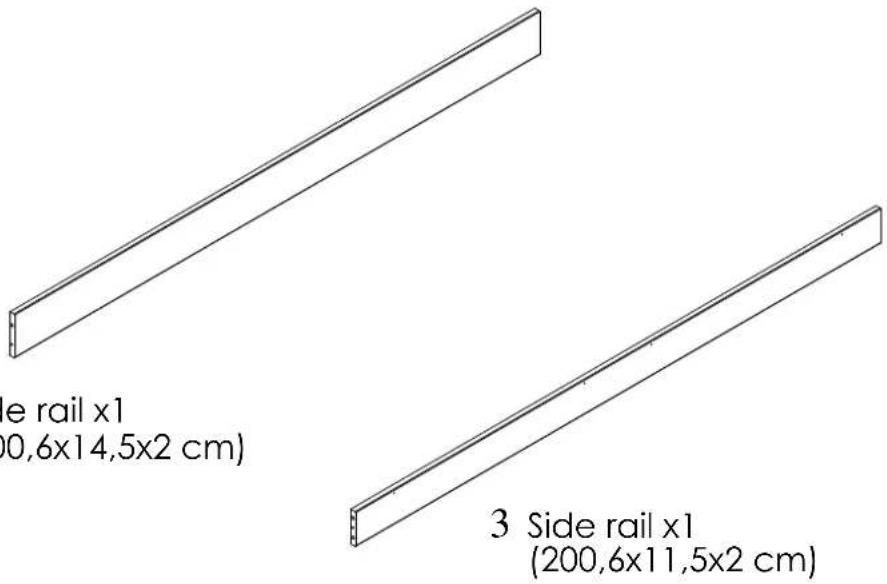

Side rail x1 (200,6x14,5x2 cm) 3 Side rail x1 (200,6x11,5x2 cm)

2 Side rail x1 (200,6x14,5x2 cm)

Simple line drawing of a rectangular beam or support structure (no text or symbols)

4 End rail x2 (88,3x14,5x2 cm)

Isometric line drawing of a rectangular plate with two circular holes and a central hole (no text or symbols)

5 End rail x2 (80,2x35,5x1,9 cm)

Simple line drawing of a rectangular metal beam with three holes at both ends (no text or symbols)

6 End rail x2 (80,2x11,5x2 cm)

7 Leg x1 (174,4x9x3,8 cm)

8 Leg x1 (174,4x9x3,8 cm)

9 Leg x1 (174,4x9x3,8 cm)

10 Leg x1 (174,4x9x3,8 cm)

11 Ladder side x2 (172x9x2 cm)

12 Step x3 (36x6,8x2,5 cm)

13 Step x2 (36x6,8x2,5 cm)

Simple line drawing of a rectangular panel or panel with a notch on the left edge (no text or symbols)

14 Large desk top x1 (95,7x34,8x1,6 cm)

Simple line drawing of a rectangular panel with no text or symbols

15 Small desk top x1 (85,8x62,5x1,6 cm)

16 Vertical shelf support x1 (69,9x22,1x1,6 cm)

Simple line drawing of a rectangular metal plate with two side holes (no text or symbols)

17 Shelf x2 (90x21,8x1,6 cm)

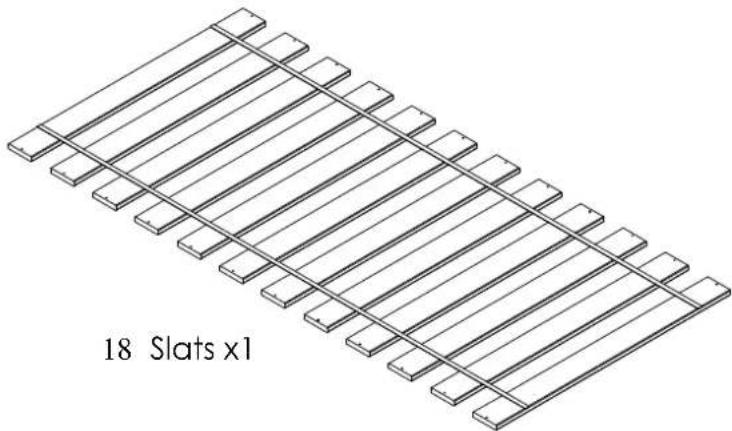

Isometric view of a grid-like structure with 18 slats, labeled '18 Slats x1' (no other text or symbols)

T1002-03

Two identical line drawings of human figures in standing poses, no text or symbols present

60 min

Tools needed (not supplied)

A			10x40	x48
B			6,3x70	x4
C	6,3x8			x2
D			M6x75	x4
E			M6x10x13	x4
F			15x12	x4
G			7x34	x4
H			7x60	x4
J			D35	x4

K		7x50 x20
L		55x12,5x5 x6
M 3,5x40 x24
P D15x18x3 x4
R D15x18 x10
		GLUE	x1
		4mm	x1

A1		8x30 x14
B1	15 × 12 × ^
C1	7 × 34 × ^
D1	3,5 × 35 × ^
E1	5 × 38 × ^

F1		D4x17	x4
G1	D8x13 x6
H1	21x21x1 x4
		3,5x15J1	x8

1

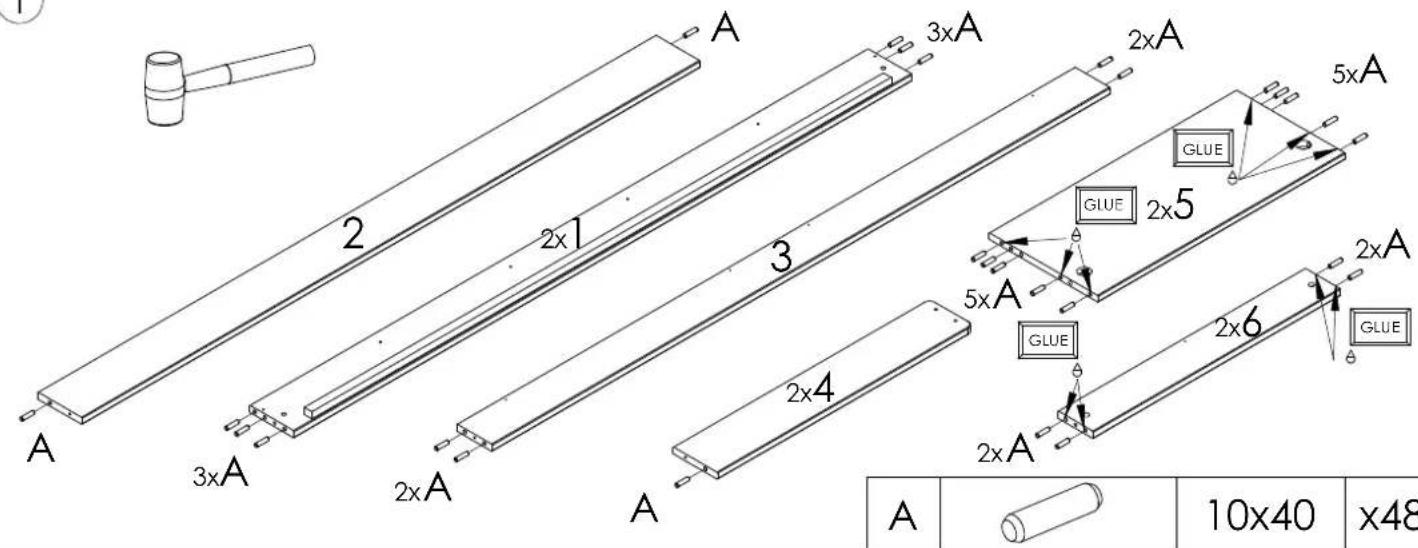

A 3xA 2x1 3 2xA 5xA GLUE GLUE 2x5 5xA 2xA 2x4 2xA GLUE 2x6 2xA GLUE A 3xA 2xA A 10x40 x48

A

10×40

×48

T1002-03

2

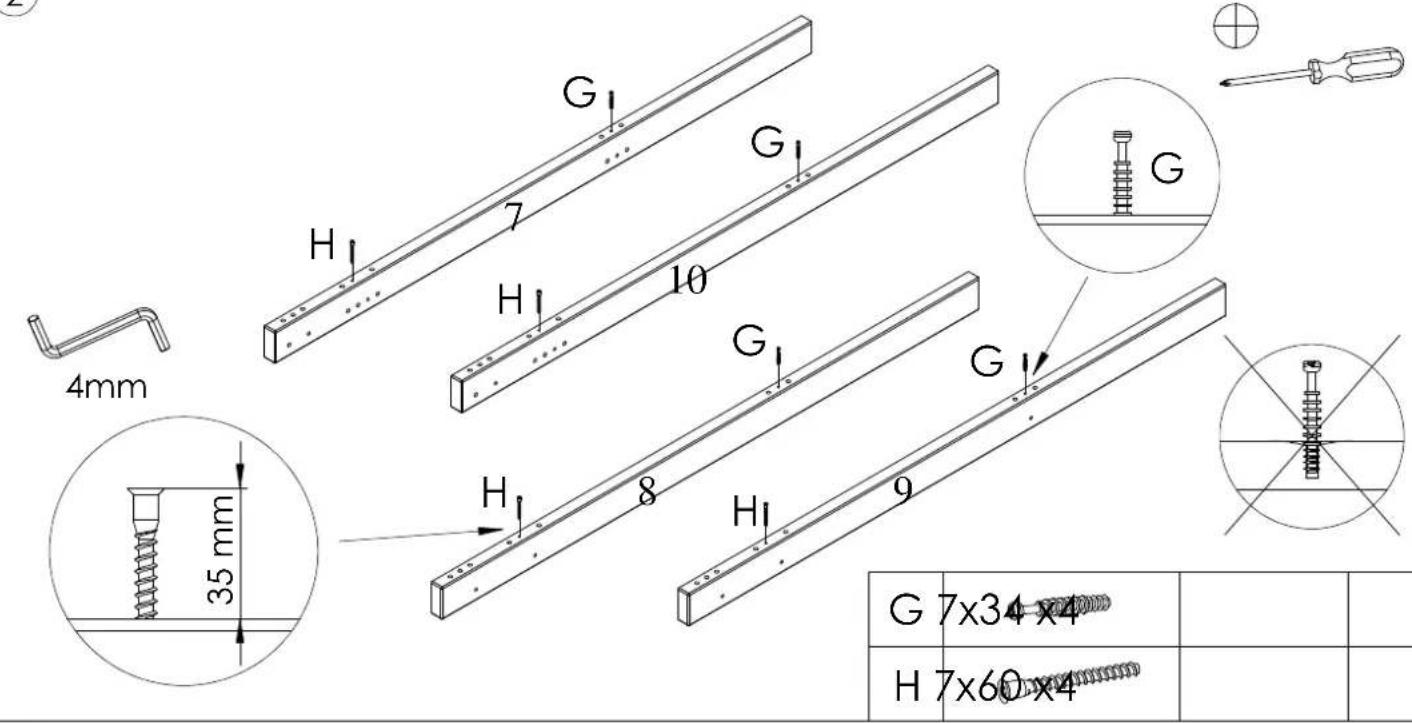

G H 7 G 10 4mm 35 mm G H 8 H 9 G 7x34 x4 H 7x60 x4

3

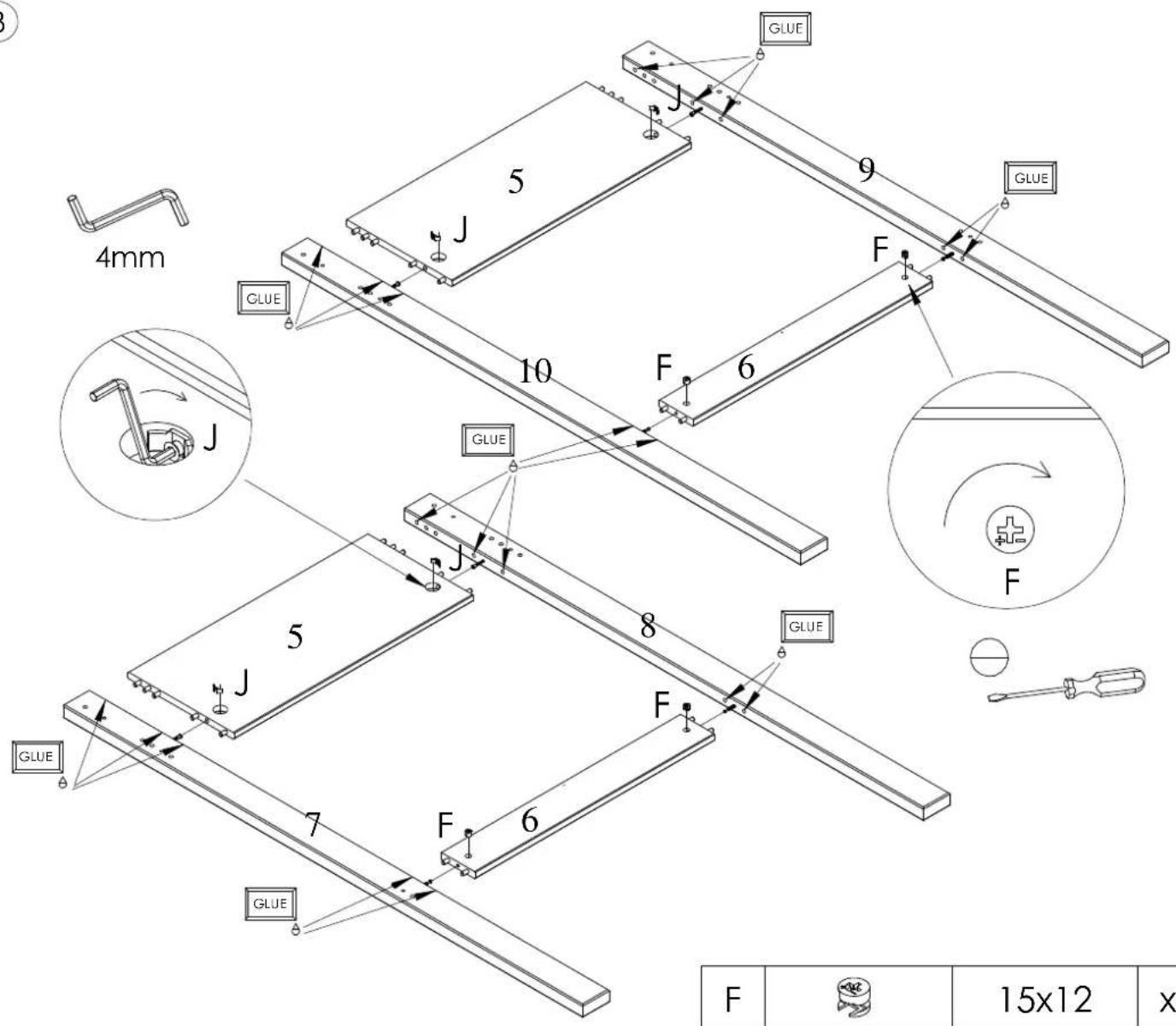

4mm GLUE J 5 9 F 10 6 GLUE J GLUE F 8 GLUE J 7 F 6 GLUE GLUE F 15x12 x

F		15x12	x4
J D35			x4

T1002-03

4

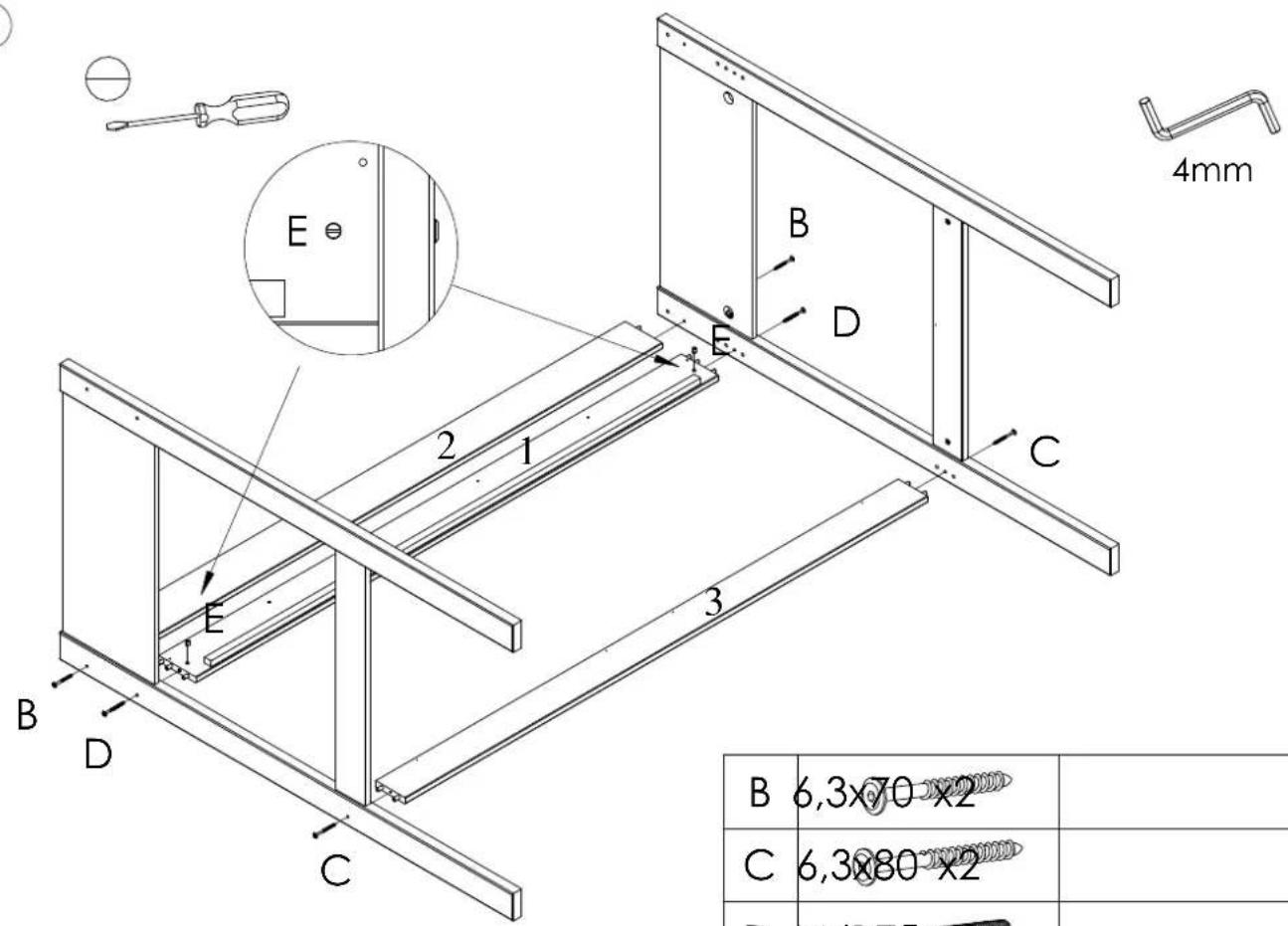

4mm B 6,3×70 x2 C 6,3×80 x2 B D C E E D 2 1 3 B D B

B	6,3×70×2
C	6,3×80×2
D	M6×75×2
E	M6×10×13×2

5

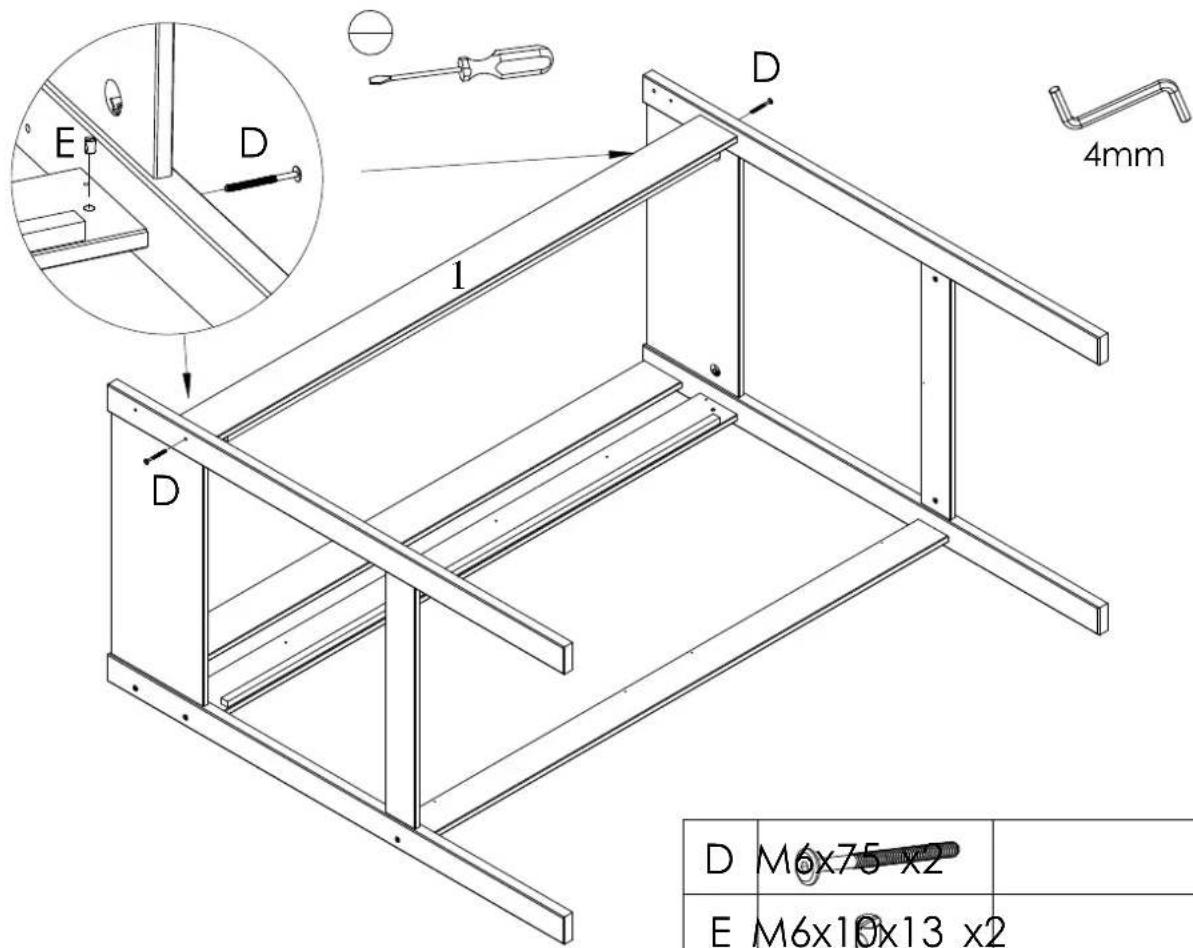

D E D 1 D 4mm D M6x75 x2 E M6x10x13 x2

D	M6x75 x2
E	M6x10x13 x2

T1002-03

8/13

6

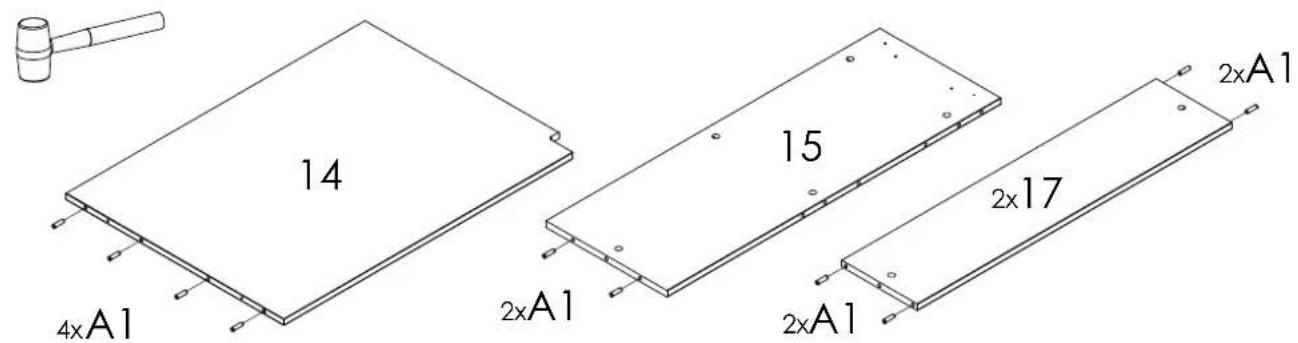

14 4xA1 2xA1 15 2xA1 2x17 2xA1

A1 8x30 x14

7

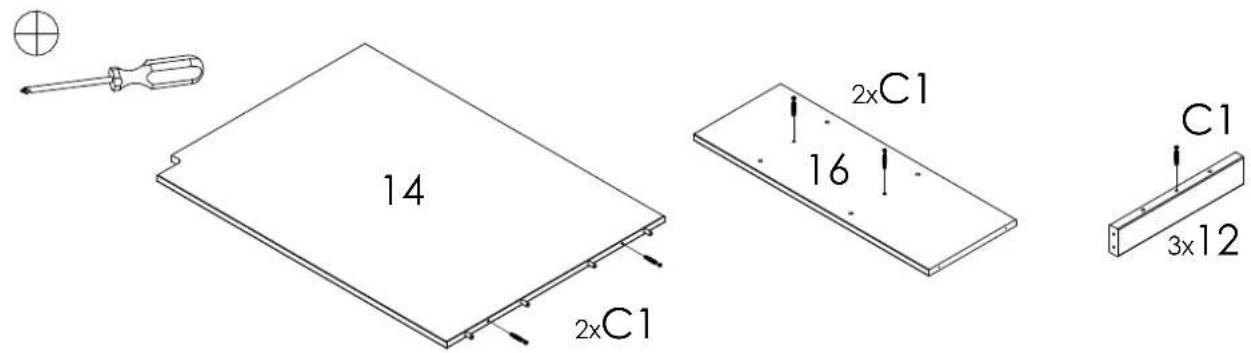

14 2xC1 16 2xC1 C1 3x12

C1 7x34 x7

8

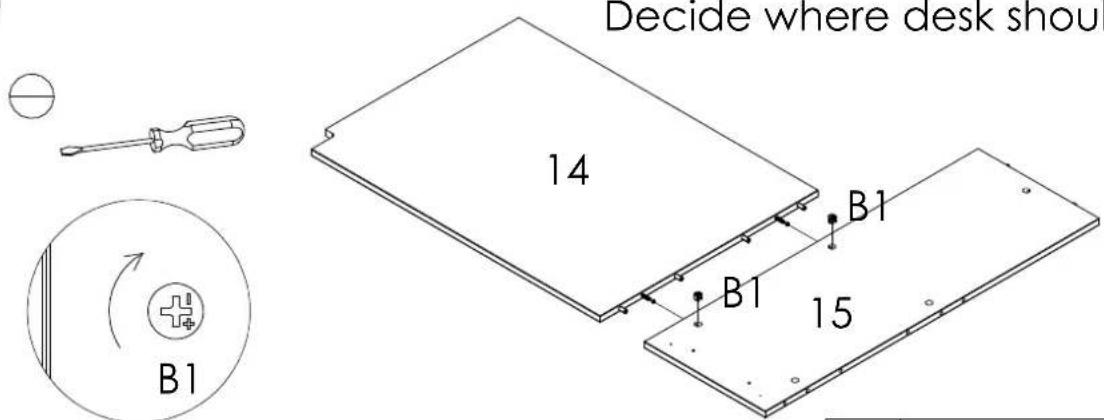

Decide where desk should 14 B1 B1 15 B1

B1 15×12×2

9

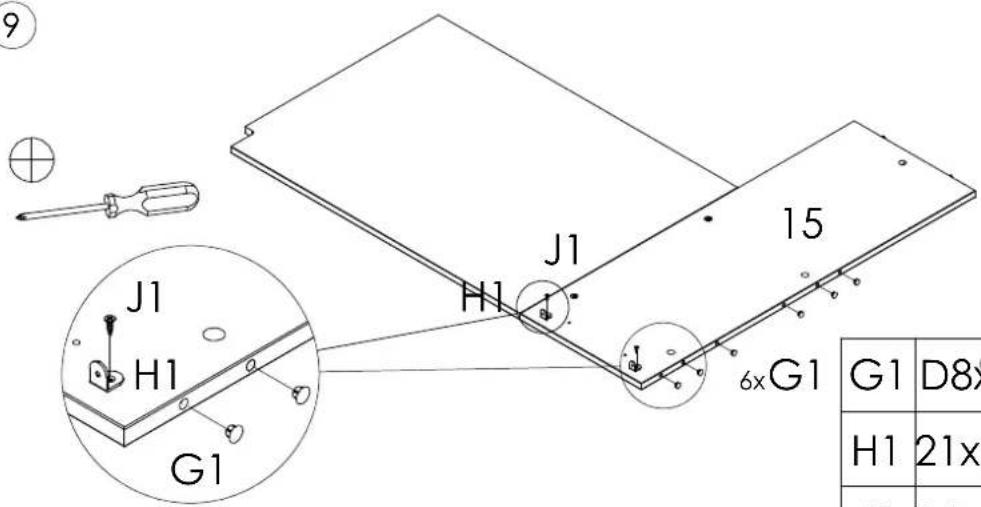

9 J1 H1 G1 J1 H1 15 6xG1 G1 D8 H1 21x

G1	D8x13 x6
H1	21x21x16	x2
J1	3,5x15 x2

T1002-03

10

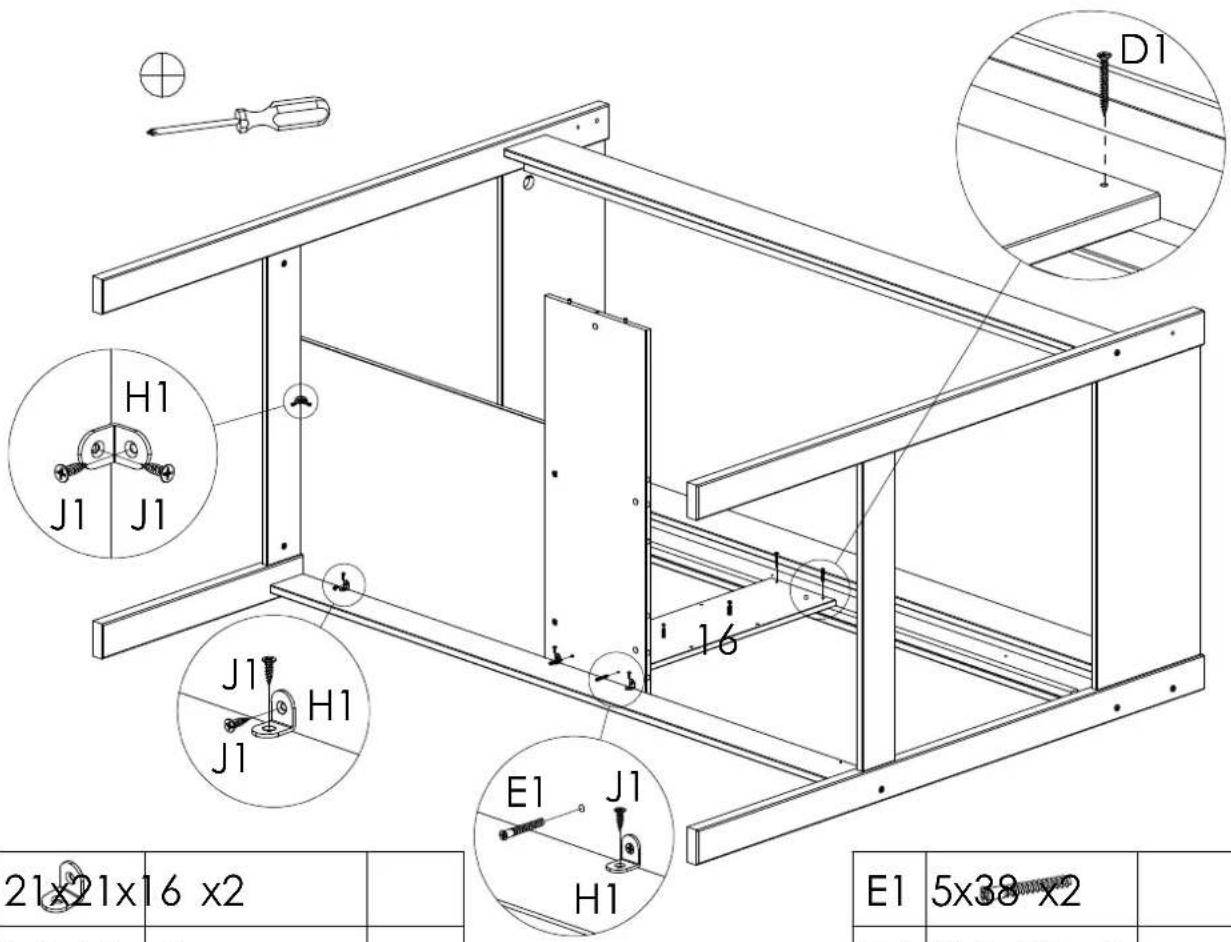

D1 H1 J1 J1 J1 H1 J1 E1 J1 H1 21x21x16 x2 E1 5x38 x2

H1	21×21×16×2
J1	3.5×15×6

E1	5×38×2
D1	3,5×35×2

11

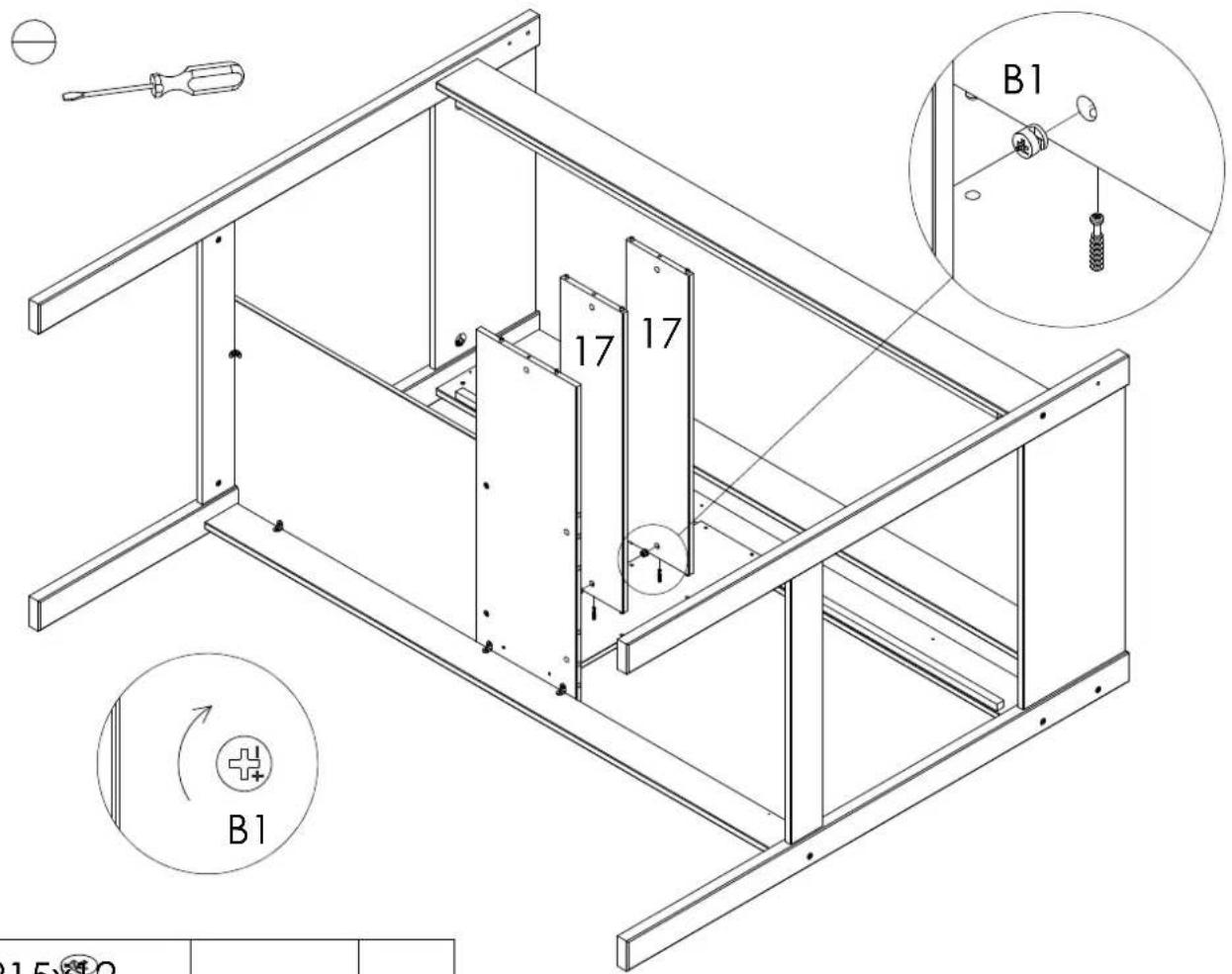

B1 17 17 B1 15①②

B1

x215x12

T1002-03

10/13

12

Always placed inside the ladder

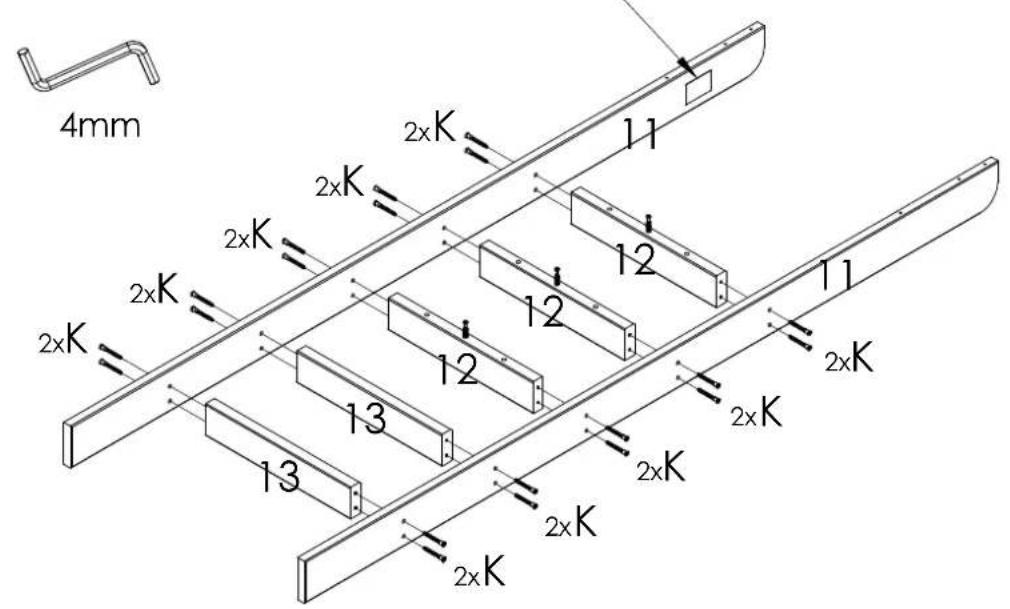

4mm 2xK 11 2xK 2xK 2xK 2xK 12 12 11 2xK 2xK 13 13 2xK 2xK 2xK

K 7x50 x20

13

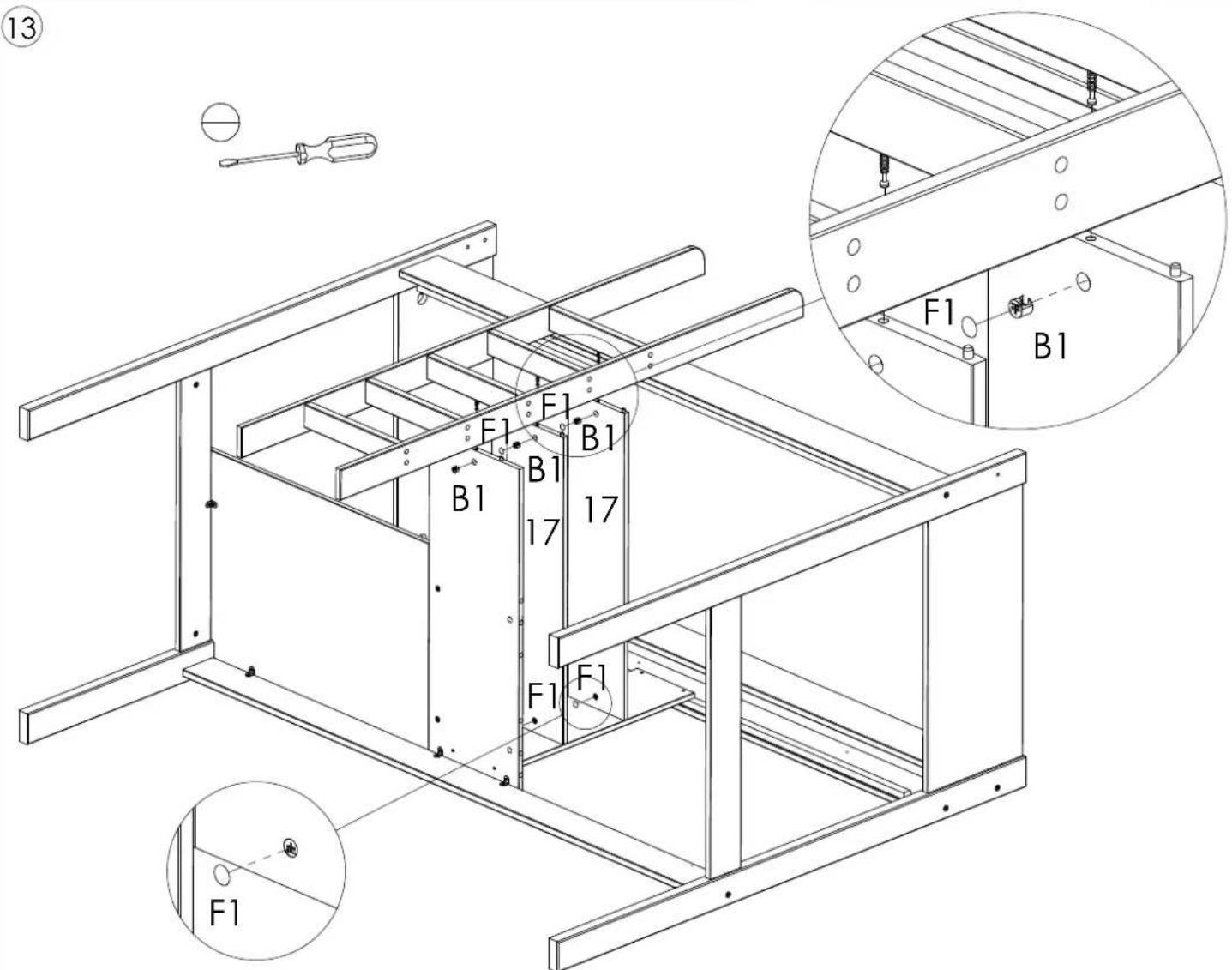

13 F1 B1 F1 B1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F2 F2 F2 F2 F2 F2 F2 F2 F2 F2 F2 F2 F2 F2 F2 F2 F2 F2 F2 F2 F2 F2 F2 F2 F2 F2 F2 F2 F2 F2 F2 F2 F2 F2

F1 D4x17-x4

B1 15×12×3

T1002-03

11/13

14

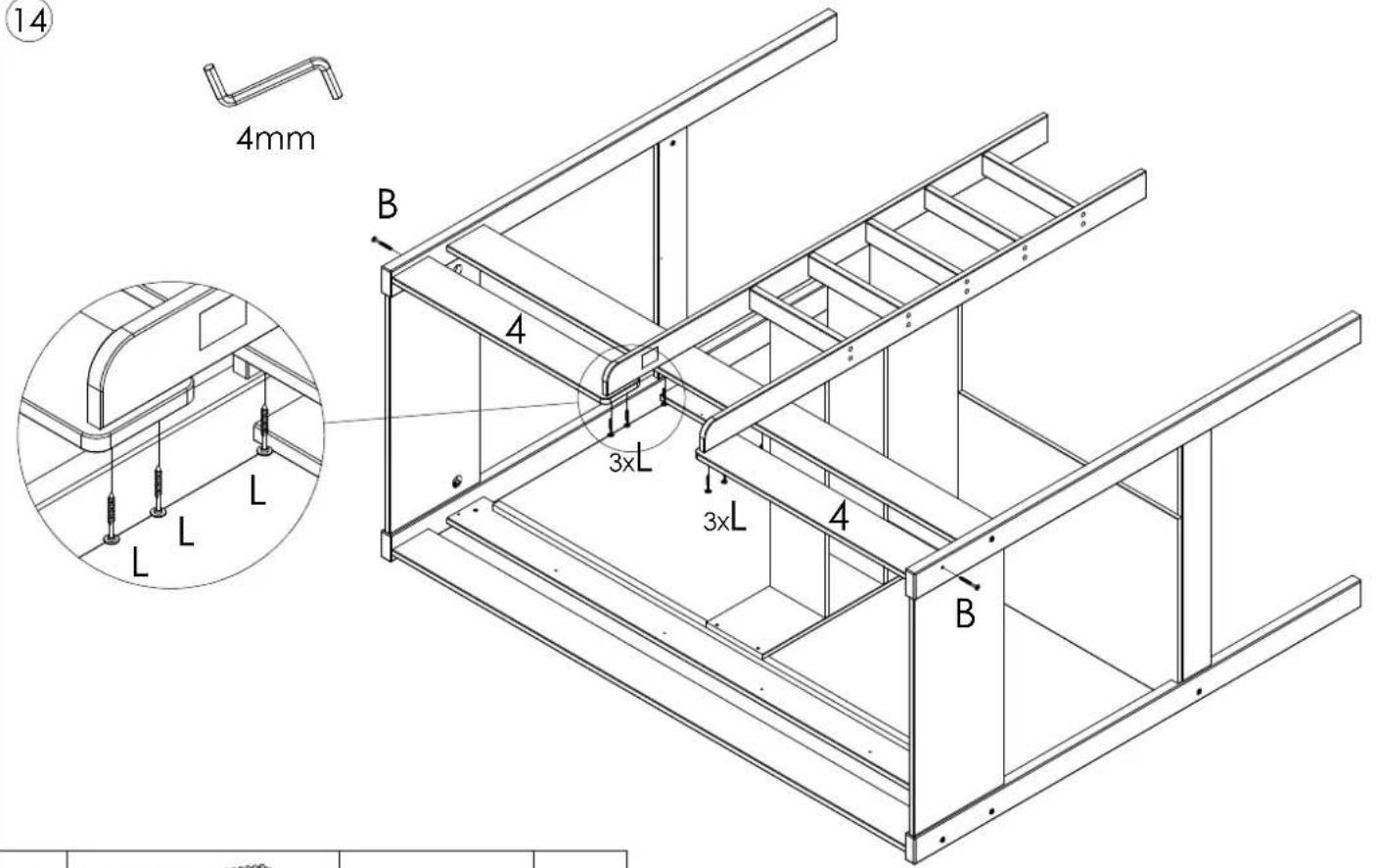

4mm B 4 3xL 3xL 4 B

B	6,3×70×2
			×6L

15

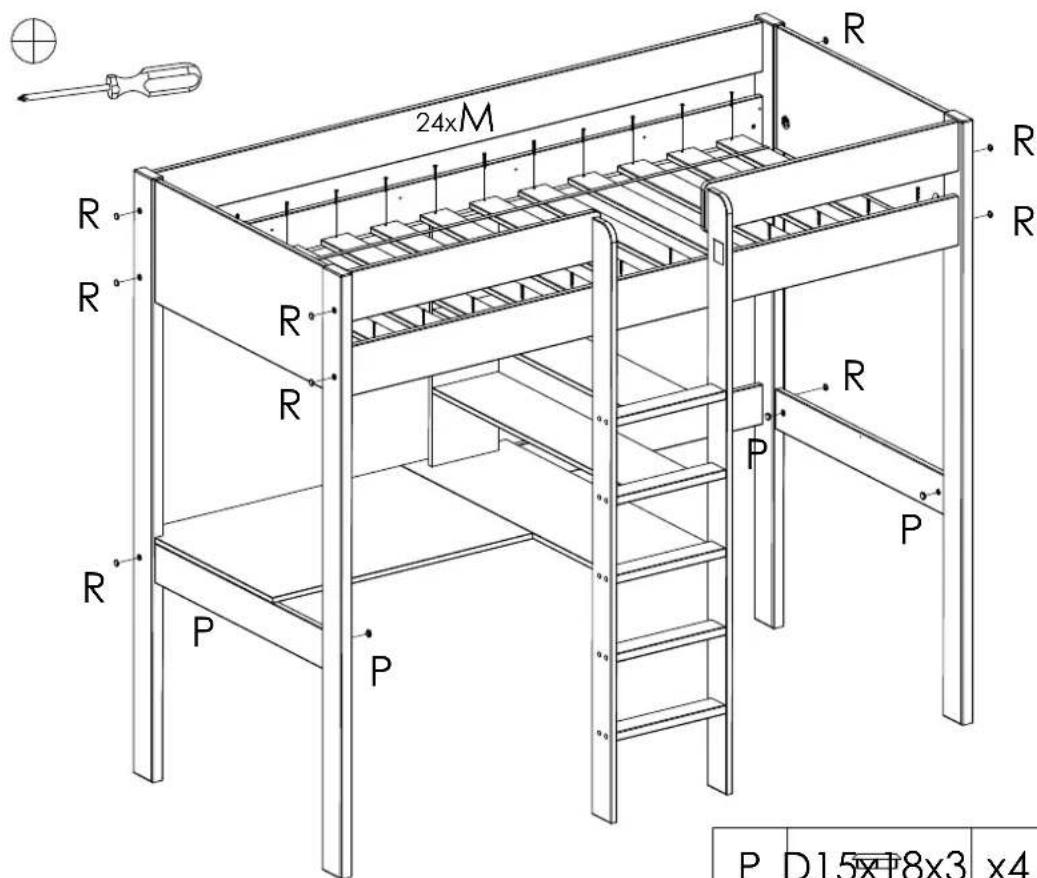

24xM R R R R P P P P D15×18×3 x4

M

3,5×40×24

P	D15×18×3	x4
R	D15×18 x10
