BEDIENUNGSANLEITUNG Delta Force Zempire

Care Instructions -

1. Ensure guy ropes are cut at all times during use
2. Never pack your lent away well. If you must lose your lent down when well, ensure that it is dried completely as soon as possible to prevent mildew forning.
3. If mildeo does for in on your lent, wash off with warm water and a soft brush to prevent further growth, do not use soap or detergents.
4. Do not use an open flame inside your vent. The fabric has been treated with a fire retardant but is in no way fire proof
5. Clean all pegs and poles before storing
6. This tent is not designed to withstand storm conditions. During strong winds, it is recommended that the tent be taken down.
7. Do not leave your tent pitched unnecessarily for extended periods of time, UV light damages the fly and will shorten the life of your tent

Condensation -

It is important that lower vents are opened at all times to reduce the risk of condensation. During humid or damp conditions, it is recommended that inner door covers are opened to expose the mesh layer to allow additional airflow throughout your tent.

Do not use foam soabs or non-bonded melts directly on the bend floor. This will cause condensation between the met and floor and if not dried cut can lead to mildew ferning.

5 Year Tent Guarantee -

Please take time to read about the protections we offer you

All our tents come with a guarantee designed to protect you as our valued customer. Flow Imports Ltd, the makers of Zempire Camping Equipment tents, will repair or replace this tent, at their discretion should it fail due to faulty materials or manufacture for a period of 5 years from the date of sale.

The Guarantee is subject to the following conditions:

1. The Guarantee only applies to an original purchaser who purchased this tent from an approved retail outlet.

2. The Guarantee does not apply if the text has been used for anything other than reasonable personal ramping use. Commercial use (e.g., rental) or continuous use as a residence are expressly excluded

3. Damage due to normal west and lean, accident, acts of God, negligence (other than by Flow Imports Ltd), failure by the purchaser to ensure instructions for setting up and care are observed, deterioration due to abnormal exposure to ultraviolet light, insect or mildew attack, or any other cause reasonably beyond the control of Flow Imports Ltd are not covered

4. If redress is sought under the terms of this Guarantee, then the tent must be returned by the purchaser to the outlet from where it was purchased within the Guarantee period, in a clean, dry state and with proof of purchase

5. All transport costs and any other indirect costs are excluded from the Guarantee.

6. Flow Imports Ltd reserves the right to make a reasonable charge for repairs which it determines are not within the scope of the Guarantee

7. The Guarantee does not limit, modify or exclude any rights under any law if doing so would contravene that law or make any part of this Guarantee invalid. However, Flow Imports Ltd: a) excludes the (to extent permitted by applicable law) all conditions and warranties that might otherwise be implied; and b) limits its liability for breach of any such condition or Guarantee that it cannot exclude together with its liability under the Guarantee, to repairing or replacing the Goods or paying the cost of having the Goods repaired or replaced (see Flow Imports' option).

This tent has been made with meticulous care and attention to detail. Providing it's properly looked after and correctly stored, it will help you enjoy all that nature has to offer for years to come.

Get out more - you owe it to yourself.

For a detailed description of all the features and specifications of this product please visit our website.

WWW.ZEMPIRECAMPING.COM

Tested in New Zealand. Made with care in China

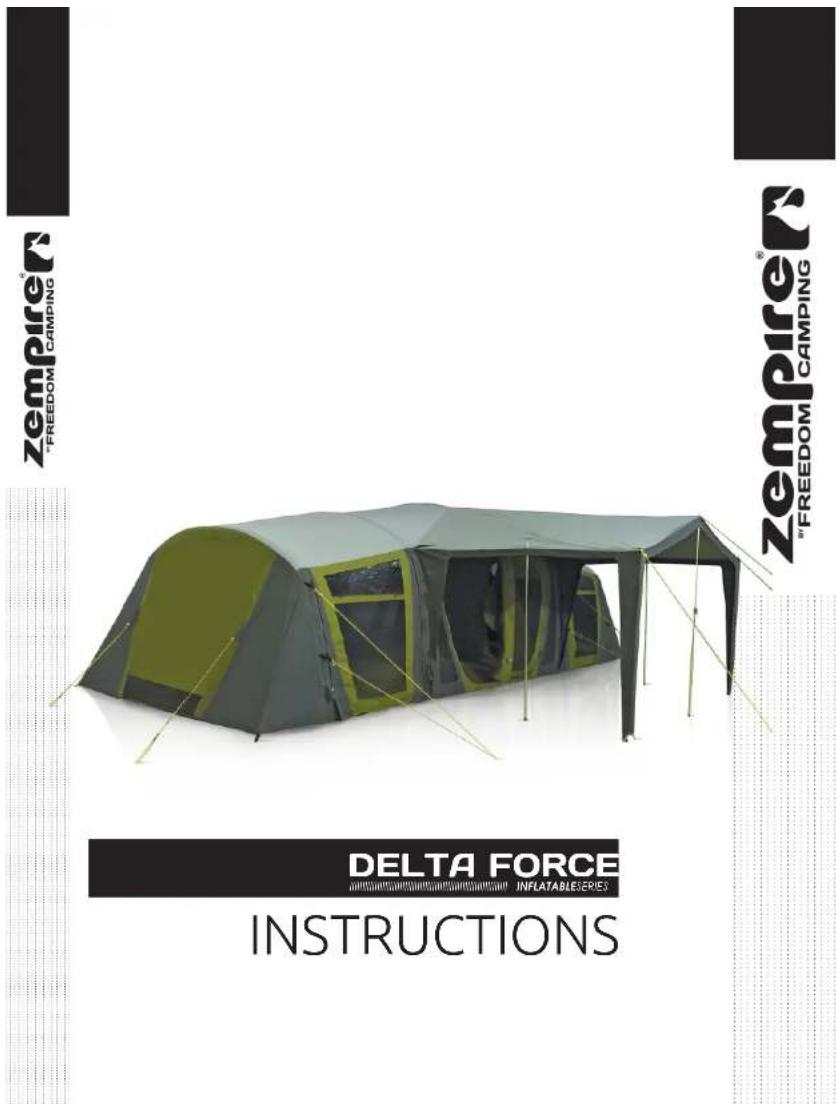

Zempiret® "FREEDOM CAMPING" DELTA FORCE INFLATABLESERIES INSTRUCTIONS

DELTA FORCE

INSTRUCTIONS

Pure structural diagram of a frame with a central block and an arrow indicating rotation, alongside a small circular diagram (no text or symbols)

Diagram of a tent with attached equipment, showing structural layout and height measurement (no text or symbols)

Line drawing of a tent structure with windows and doors, alongside a small inset illustration (no text or symbols)

Line drawing of a tent with a red arrow indicating motion (no text or symbols)

Line drawing of a two-wheeled tent structure with no text or symbols

Line drawing of a tent structure with windows and doors, no text or symbols present

1. Lay out your tent. Peg the 4 corners and the central living area as shown

2. Close of the 5 taps on each tube at the rear of tent

3. Open the valve in the centre tube and connect the pump. Setup as follows:

- Pump

- Pressure Gauge

- Pressure Release Valve

- Hose

1. Inflate to 9PSI. During hot weather is it recommended that 7PSI is used

2. Close isolation taps inside the tent

CLOSE

1. Connect the steel awning poles together

A1 to A2 (x4)

RA to RB

RC to RD

R2 to R3 to R4 to R5

1. Insert R2 end of ridge pole into the pocket on inside of awning above central air pole

2. Insert spike of RA / RB pole through hole at end of R5 and then through eyelet at end of awning. Extend A4/A5 pole so roof sits taught

3. Insert spikes of A1/A2 poles through eyelets on either side of awning and guy out at 45 Degrees

4. RC / RD pole should be used to support the centre of the ridge pole during windy conditions

5. Peg out all remaining peg points

PACKDOWN

1. Remove and clean awning poles. Do not store poles inside each other

Line drawing of a tent with open windows and fabric underneath (no text or symbols)

1. Open all isolation taps inside of tent

OPEN

1. Move to rear of tent

Line drawing of a tent structure with windows and doors, no text or symbols present

1. Open all 5 air release taps. These taps should remain open during pack down process

Air release caps. These ld remain open ck down

1. Remove and clean all pegs

2. Fold awning over body of tent

3. Fold bedrooms over centre room

8. Fold in 1/3s

9. Roll towards valves (Rear)

CARING FOR YOUR TENT

• Never store your tent wet.
• If you must pack your tent down while still wet, hang to dry as soon as possible to prevent mildew damage.
• Remove dirt, tree sap, and bird droppings with a soft brush and warm water before packing down.
• Do not use detergents to clean your tent. This will damage the waterproofing of the tent fabric.
• When rolling up your tent ensure there is no condensation on the floor.
• If you do get mildew forming on your tent, remove the pours with warm water and a soft brush to prevent further growth.
• It is not advisable to re-coat your canvas as a precautionary measure. This will reduce the breathability and duarbilty of your tent. ZEMPIRE Canvas is pre-coated and will stay waterproof and breathable for many years.
• When storing your tent over the winter, do not store directly on concrete floors.

OPEN

WEATHERING YOUR TENT

When you first get your new tent you will need to weather it. This is a process of soaking the fabric to ensure that all the thread swells up filling stitch holes and creating a watertight surface.

When you pitch your tent for the first time soak the fabric with a garden hose until the fabric looks visibly damp. Allow to dry and repeat for two or three times.

Your tent will get more watertight the more you use it. Do not be concerned if you have a small amount of water coming through the seams on the first few times you get heavy rain.

NATURAL FIBRE

Zempire Canvas is made of a combination of Natural Cotton for breathability and water fastness and Polyester for strength.

Please note that as Cotton is a natural fibre you will notice variances of both colour and thickness of the thread. This is normal and is a characteristic of a natural and breathable fibre.
