Produkttyp	Geschirrspüler
Marke	Amana
Modell	Master Clean DU6000BR
Abmessungen (H x B x T)	ca. 84,5 cm x 60,0 cm x 60,0 cm
Gewicht	ca. 45 kg
Stromversorgung	120 V, 60 Hz, 10 A
Wasserverbrauch (Normalwaschgang)	ca. 11,9 Gallonen (ca. 45 Liter)
Waschprogramme	Pots & Pans, Normal Wash, Light Wash, China & Crystal, Rinse & Hold, Cancel & Drain
Trocknungsoptionen	Heated Dry, Natural Dry
Wassertemperatur-Boost	Ja, mit Kontrollleuchte
Lärmpegel	Leiser Betrieb durch Whisper Wall™-Isolierung
Korbausstattung	Oberkorb und Unterkorb
Bestückungsmöglichkeit	12 Maßgedecke (Standard)
Reinigungsmittelzufuhr	Reinigungsmittelfach mit Dosierhilfe
Klarspülernachfüllung	Ja, einstellbare Dosierung
Filter	Selbstreinigendes Sieb (Soft Food Dispenser)
Wartung und Reinigung	Regelmäßige Reinigung des Siebs und der Sprüharme
Frontfarbwechsel	Möglich (Anleitung enthalten)
Sicherheit	Kindersicherung (nicht erwähnt, aber typisch)
Garantie	2 Jahre Teile und Arbeit (laut Handbuch)

Häufig gestellte Fragen - Master Clean DU6000BR AMANA

Welche Spülprogramme hat der Amana Master Clean DU6000BR?

Der Geschirrspüler bietet Pots & Pans (starke Verschmutzung), Normal Wash (normal), Light Wash (leicht), China & Crystal (empfindlich), Rinse & Hold (Vorspülen) und Cancele & Drain (Abbruch).

Wie stelle ich die Trocknungsoptionen ein?

Wählen Sie vor Programmbeginn Heated Dry (schnelle Trocknung, +33 Minuten) oder Natural Dry (energiesparend, längere Zeit). Die entsprechende Kontrollleuchte leuchtet.

Kann ich die Frontfarbe ändern?

Ja, die Frontblende ist austauschbar. Eine Anleitung finden Sie im Handbuch.

Welches Reinigungsmittel soll ich verwenden?

Verwenden Sie handelsübliches Geschirrspülmittel (Pulver, Gel oder Tabs). Beachten Sie die Dosierungsanleitung im Handbuch.

Warum leuchtet die Wasser-Tempo-Boost-Anzeige?

Die Anzeige leuchtet, wenn das Gerät die Wassertemperatur auf das optimale Niveau bringt. Dies kann die Waschzeit um bis zu 16 Minuten verlängern.

Wie reinige ich den Geschirrspüler?

Entfernen Sie regelmäßig das Sieb und reinigen Sie es unter fließendem Wasser. Sprüharme können bei Bedarf ausgebaut und gereinigt werden.

Kann ich den Programmstart abbrechen?

Ja, drücken Sie Cancele & Drain. Das Gerät pumpt das Wasser ab und schaltet sich aus. Eventuell wird Reinigungsmittel freigesetzt – spülen Sie es ggf. mit Rinse & Hold aus.

Welche Gegenstände sind spülmaschinengeeignet?

Im Handbuch finden Sie eine Liste: Keramik, Glas, Edelstahl, hitzebeständige Kunststoffe. Nicht geeignet: Holz, Antihaftbeschichtungen, feines Kristall ohne Angabe.

Wie belade ich den Geschirrspüler richtig?

Stellen Sie Teller und Schüsseln in den Unterkorb mit der Schmutzseite zur Mitte. Gläser und Tassen in den Oberkorb. Besteck im Besteckkorb. Vermeiden Sie Blockaden der Sprüharme.

Was tun bei schlechten Spülergebnissen?

Überprüfen Sie die Wassertemperatur (mind. 50°C), die Reinigungsmittelmenge, den Füllstand des Klarspülers und ob die Sprüharme frei sind. Reinigen Sie das Sieb.

BEDIENUNGSANLEITUNG Master Clean DU6000BR AMANA

Amana™

Master Clean™ DU6000BR Dishwasher

Stylized illustration of a hand holding a tool over a blue circular background with horizontal lines (no text or symbols)

Amana

A Raytheon Company

Use and Care Manual

Read this manual carefully and keep it handy to help you operate and maintain your new dishwasher properly.

Table of Contents

Important Safety Instructions .....2

Operating the Dishwasher .....3-5

Checking Water Temperature ...4

Choosing Detergent....4

Using a Rinse Agent....5

Preparing Dishes for Washing....5

Dishwasher-Safe Items 6

Loading the Dishwasher....7-9

Loading the Top Rack .....7,8

Loading the Bottom Rack .....9

Maintenance and Cleaning .....10

Changing Front Color Panels ....10

Before You Call for Service ....11, 12

When Service is Required .....16

Warranty 16

Record in the space below the model, manufacturing (Mfg.) and serial numbers from the nameplate, which is located at the front of the left inside wall of the dishwasher.

Model No. ____

Mfg. No.

Serial No. ____

Date Installed

Sold By

Retain your sales receipt for proof of purchase should warranty questions arise. The receipt is required for warranty service. Complete the registration card that came with the dishwasher and return the card to Amana Refrigeration, Inc.

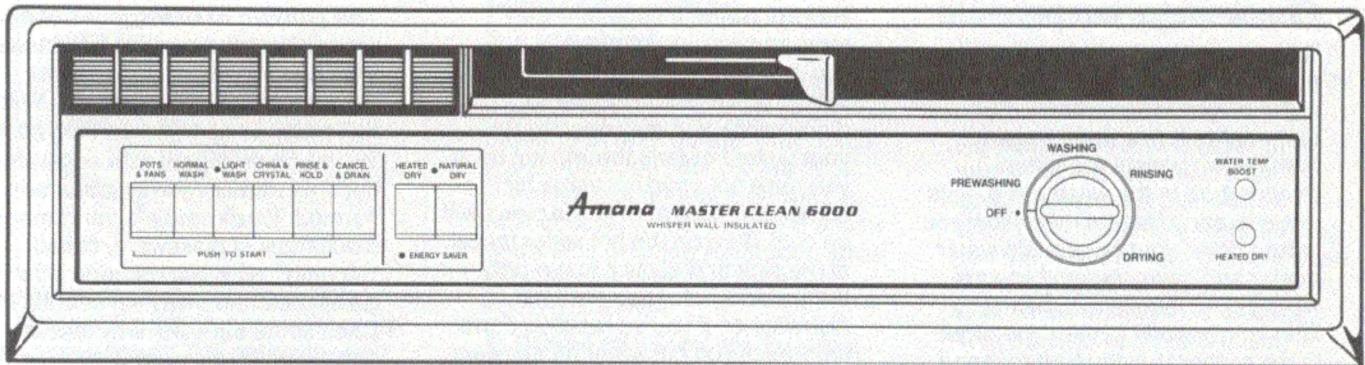

How to operate your dishwasher

• Load your dishwasher and add detergent. See loading instructions on pages 7-9. See page 4 for detergent usage instructions.
  1 Close door and move latch to extreme right.
  2 Select drying option.

HEATED DRY NATURAL DRY

ENERGY SAVER

HEATED DRY. Turns drying heater on for fast drying. Adds 33 minutes to wash cycle time. Available on all wash cycles except Rinse & Hold. The HEATED DRY light will light up during the HEATED DRY cycle.

NATURAL DRY (no-heat drying). Saves energy because the drying cycle does not operate. Dishes dry naturally over a longer period, such as overnight. Available on all wash cycles. The HEATED DRY light will light up during the NATURAL DRY cycle.

If you need your dishes sooner, open the dishwasher door after the cycle is complete to reduce the natural drying time.

Use of this option reduces the electrical energy used by this model approximately 9.2% for the Normal Cycle.

You Will See Water Vapor:

• Through the vent next to the door latch when water is pumped out
• Through the vent next to the door latch during drying operations

Clicking Sounds You May Hear:

• Soft food dispenser shredding action
• Drain valve opening to pump water out
• Timer control as cycle progresses
  • Detergent cup opening

3 Select the cycle option to start dishwasher.

If your dishwasher drains into a food waste disposer, operate the disposer until it is empty before starting the dishwasher.

Push the Cycle Selector Button all the way in to start the dishwasher.

POTS & PANS—For items such as pots, pans and casserole dishes with dried-on or baked-on soils. Everyday dishes may be included.

It is important to follow the loading instructions on pages 7-9.

NORMAL WASH—For loads of everyday dishes, glasses and cookware with medium soils. Designed to yield high performance on normal loads.

LIGHT WASH—For most loads of everyday dishes, with light soils or soils that have not dried on. It saves hot water over the higher performance cycles.

CHINA & CRYSTAL—For lightly-soiled china and crystal. This cycle is similar to Light Wash Cycle except the wash action is softened by pumping air along with the water to protect your delicate items. Pre-rinse before loading. Be sure you have followed the loading instructions on pages 7-9. RINSE & HOLD—For rinsing partial loads which will be washed later. Do not use detergent.

CANCEL & DRAIN—For cancelling operation after dishwasher has started. As the timer rapidly advances to a drain period and then to OFF:

• Water Temp Boost and Heated Dry indicator lights glow. This is normal.
- Detergent and rinse agent are released into the tub. If you do not plan to run another cycle immediately, use Rinse & Hold to rinse them off.

CYCLE INDICATOR DISPLAY—Shows where the dishwasher is in the cycle. The indicator will pause during the main detergent wash portion of the cycles.

WATER TEMP BOOST LIGHT

Your dishwasher has a system to assure proper water temperature for good cleaning. During the wash cycle, a heater is energized to maintain hot water. If the water is not at the proper temperature at the end of the wash cycle, washing and water heating will continue until the correct water temperature is reached, or up to 16 additional minutes in the main wash cycle. During the temperature boost period, the indicator light glows.

HEATED DRY LIGHT

Light glows during HEATED DRY cycle and during the NATURAL DRY cycle.

WASH CYCLES	Water Use Gallons (Approx.)	Cycle Sequence					Wash Cycle Time (approx. minutes)
Pots & Pans	11.90	Wash/Rinse	Rinse	Rinse	Wash	Rinse Rinse	67*
Normal Wash	11.90	Wash/Rinse	Rinse	Rinse	Wash	Rinse Rinse	47*
Light Wash	10.20	Rinse	Rinse	Wash	Rinse	Rinse Rinse	43*
China & Crystal	7.82	Rinse	Rinse	Wash	Rinse	Rinse Rinse	43
Rinse & Hold	3.40	Rinse	Rinse				8

*These cycle times may be increased up to 16 minutes if necessary for your dishwasher to heat the water to the proper temperature for good washability. The water temp boost light will be energized during this period.
