IC-1201A - Empfänger ICOM - Kostenlose Bedienungsanleitung

Produkttyp	1200-MHz-FM-Empfänger (Transceiver)
Frequenzbereich	1240,0000 – 1300,0000 MHz
Betriebsart	FM (F3)
Abstimmbereich	IC-1201A: 10 oder 20 kHz; IC-1201E: 12,5 oder 25 kHz
Speicherkanäle	20 Speicherkanäle + 1 Rufkanal
Ausgangsleistung	HIGH: 10 W, LOW: 1 W
Empfindlichkeit	Weniger als 0,22 µV für 12 dB SINAD
Stromversorgung	13,8 V DC ±15 % (negative Masse)
Stromaufnahme (Senden HIGH)	6,0 A
Stromaufnahme (Empfang, stummgeschaltet)	800 mA
Abmessungen (B×H×T)	140 × 40 × 200 mm (ohne hervorstehende Teile)
Gewicht	1,5 kg
AFC-Funktion	Automatische Frequenzregelung (R-AFC, TR-AFC)
RIT/VXO	Manuelle Feineinstellung der Empfangs- (RIT) oder Sende-/Empfangsfrequenz (VXO)
Scan-Funktionen	Programmierter Scan und Speicherscan, Speicher-Überspringen

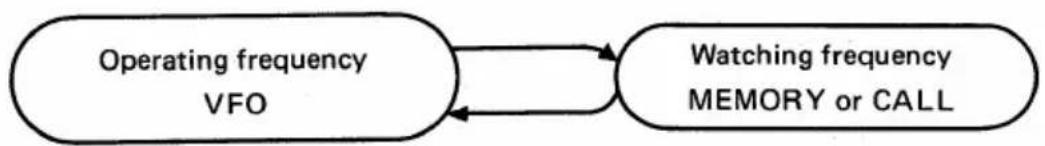

Prioritätsüberwachung	VFO ↔ Speicher oder Rufkanal, alle 5 s
Pocket-Beep	30-s-Alarm bei Empfang des programmierten Subton-Tons (mit UT-40)
Tonsquelch	Öffnet Squelch bei passendem Subton (mit UT-40)
Dimmer	Vier Helligkeitsstufen für das Display
Tastentöne	Ein-/ausschaltbar
Tastensperre	Sperrt Abstimmregler und Tasten (außer Lautstärke, Squelch, PTT)
Reinigung	Mit einem trockenen, weichen Tuch; keine chemischen Mittel wie Benzin oder Alkohol
Sicherheitshinweise	Nicht an Wechselstrom anschließen; max. 16 V DC; vor Regen, Schnee und Flüssigkeiten schützen; nicht in direktem Sonnenlicht oder staubiger Umgebung aufstellen; Kühlkörper kann heiß werden
Sicherung	10 A (Gleichstromleitung)
Backup-Batterie	Lithium, Lebensdauer ca. 5 Jahre, Austausch durch autorisierten Händler

Häufig gestellte Fragen - IC-1201A ICOM

Das Gerät lässt sich nicht einschalten.

Überprüfen Sie die Polarität des Stromanschlusses – vertauschte Pole führen zu Funktionsstörungen. Möglicherweise ist die Sicherung durchgebrannt; ersetzen Sie diese nach Fehlerbehebung durch eine 10-A-Sicherung.

Kein Ton aus dem Lautsprecher.

Der Squelch-Regler könnte zu weit im Uhrzeigersinn gedreht sein – stellen Sie ihn auf die Rauschschwelle ein. Wenn das optionale UT-40 installiert ist, schalten Sie die Tonsquelch-Funktion aus.

Kontakt mit einer anderen Station ist nicht möglich.

Stellen Sie sicher, dass der Transceiver nicht auf Duplex geschaltet ist. Drücken Sie die DUP-Taste, bis die Anzeige 'DUP' oder 'DUP–' verschwindet, um den Simplex-Modus zu wählen.

Der Repeater kann nicht erreicht werden.

Prüfen Sie die programmierte Offset-Frequenz und die Subton-Frequenz (nur IC-1201A). Korrigieren Sie die Werte im SET-Modus. Beachten Sie, dass Offset- und Subton-Frequenzen für jeden Speicherkanal separat eingestellt werden.

Die Frequenz lässt sich nicht einstellen.

Die Tastensperre (LOCK) könnte aktiviert sein – drücken Sie die LOCK-Taste, um sie auszuschalten. Falls der Rufkanalmodus (CALL) aktiv ist, drücken Sie die CALL-Taste. Bei aktivierter RIT-/VXO-Funktion drücken Sie den Abstimmregler, um sie auszuschalten.

Der Scan startet nicht.

Der Squelch muss geschlossen sein – drehen Sie den SQL-Regler auf die Rauschschwelle. Bei programmiertem Scan dürfen die Scangrenzen A und B nicht identisch sein. Entfernen Sie ggf. die Speicher-Überspringen-Funktion von allen Kanälen.

Alle programmierten Speicher sind gelöscht.

Ein Datenfehler im CPU-RAM kann durch leere Backup-Batterie oder statische Entladung verursacht werden. Setzen Sie die CPU zurück (halten Sie SQL/MONITOR und LOCK gedrückt, schalten Sie ein) und programmieren Sie die Speicher neu. Ersetzen Sie die Backup-Batterie durch einen autorisierten Händler.

Wie setze ich die CPU zurück?

Schalten Sie das Gerät aus. Halten Sie die Tasten [SQL/MONITOR] und [LOCK] gedrückt und schalten Sie das Gerät wieder ein. Alle programmierten Daten werden gelöscht und die Frequenz 1295.000 MHz erscheint.

Wie reinige ich das Gerät?

Verwenden Sie ein trockenes, weiches Tuch. Vermeiden Sie chemische Reinigungsmittel wie Benzin oder Alkohol, da diese die Oberfläche beschädigen können.

Die Sicherung ist durchgebrannt – was tun?

Ermitteln Sie zuerst die Ursache des Kurzschlusses. Ersetzen Sie die Sicherung nur durch eine 10-A-Sicherung vom gleichen Typ. Ziehen Sie vor dem Wechseln das Netzkabel ab.

BEDIENUNGSANLEITUNG IC-1201A ICOM

INSTRUCTION MANUAL

1200 MHz

FM TRANSCEIVER

IC-1201A

IC-1201E

サービス課 保管用

Icom Inc.

CAUTIONS

Before using the transceiver, read all the instructions carefully and completely.

SAVE THIS INSTRUCTION MANUAL – This instruction manual contains important safety and operating instructions for the IC-1201A/E.

NEVER connect the transceiver to an AC outlet. This will ruin the transceiver.

NEVER connect more than 16 V DC power to the transceiver. Check the source voltage before connecting the power cable.

NEVER allow children to touch the transceiver during operation.

NEVER expose the transceiver to rain, snow or any liquids.

AVOID using or storing the transceiver in places with temperatures below -10^ (+14^) or over +60^ (+140^) .

DO NOT place the transceiver in excessively humid environments.

AVOID placing the transceiver in direct sunlight, such as on the dashboard.

AVOID placing in excessively dusty environments.

BE CAREFUL! The heatsink may become hot when operating the transceiver for long periods.

TABLE OF CONTENTS

CAUTIONS i

TABLE OF CONTENTS..... ii

FOREWORD ..... iii

UNPACKING.... iii

1 FEATURES.... 1

2 PANEL DESCRIPTION..... 2

2-1 FRONT PANEL..... 2

2-2 FUNCTION DISPLAY .. 4

2-3 REAR PANEL.....5

2-4 MICROPHONE....5

3 INSTALLATION 6

4 MODE CONSTRUCTION .... 9

5 BASIC OPERATIONS..... 11

5-1 FREQUENCY SETTING 11

5-2 RECEIVING ..... 12

5-3 TRANSMITTING.....12

5 - 4 REPEATER OPERATION ..... 14

6 RELATED FUNCTIONS..... 16

6 - 1 AFC, RIT AND VXO OPERATIONS.... 16

6-2 MEMORY OPERATIONS 18

6-3 SCAN FUNCTIONS....20

6-4 PRIORITY WATCH....24

6-5 CALL CHANNEL MODE.... 26

6-6 DIMMER CONTROL...27

6 - 7 BEEP ON/OFF ..... 27

6-8 LOCK FUNCTION.....27

7 POCKET BEEP AND TONE SQUELCH.... 28

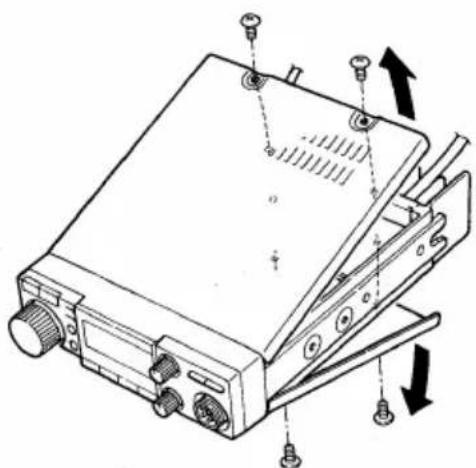

7 - 1 UT-40 INSTALLATION . 28

7 - 2 POCKET BEEP FUNCTION.... 29

7-3 TONE SQUELCH FUNCTION.... 29

8 MAINTENANCE.... 30

8 - 1 TROUBLESHOOTING... 30

8-2 CPU RESETTING ..... 31

8 - 3 MISCELLANEOUS MAINTENANCE..... 32

9 INSIDE VIEWS 33

10 SPECIFICATIONS ..... 34

11 OPTIONS 35

SCHEMATIC/BLOCK DIAGRAM..... SEPARATE

FOREWORD

Thank you for purchasing the IC-1201A/E 1200 MHz FM TRANSCEIVER from Icom.

Please read this instruction manual thoroughly before operating your new IC-1201A/E. For further information, please feel free to contact your nearest Icom Dealer or Service Center.

UNPACKING

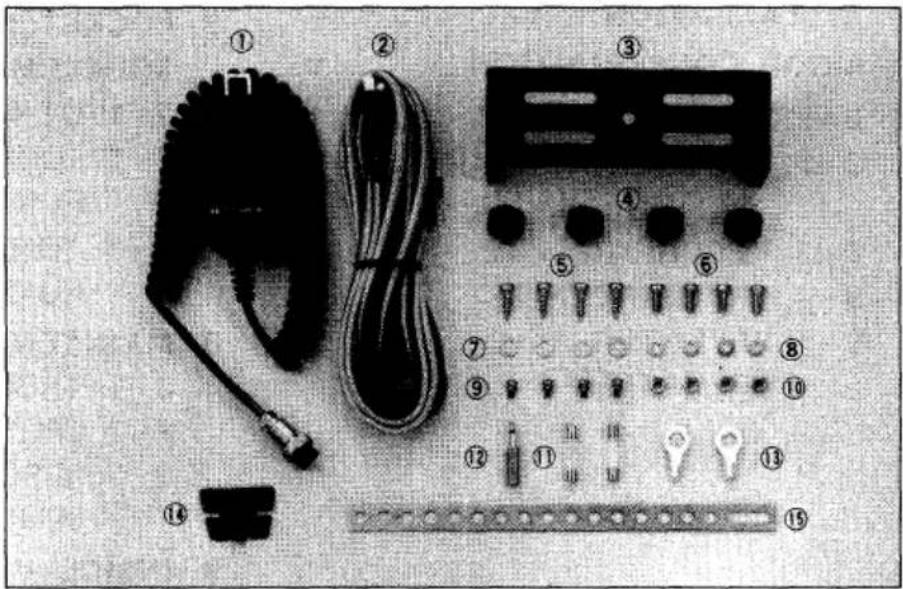

Accessories included Qty.

① Microphone* 1

② DC power cable 1

③ Mobile mounting bracket 1

④ Mounting bracket knobs 4

⑤ Self-tapping screws (AO 5 x 16). 4

⑥ Screws (M5 × 12) 4

⑦ Flat washers (M5)....4

⑧ Flat washers (M4).... 4

⑨ Set screws (A) 4 × 8 4

⑩ Nuts (M5) 4

⑪ Fuses (10 A)....2

⑫ External speaker plug. 1

⑬ Cable lugs 2

⑭ Microphone hanger....1

⑮ Support bracket.... 1

* HM-12 for IC-1201A (U.S.A. version)

HM-15 for IC-1201E (Europe version)

FEATURES

1

- AFC FUNCTION

Icom's advanced AFC* system automatically and immediately tunes the receive frequency or both transmit and receive frequencies to the frequency of the transmitting station when transmitting station is off frequency.

* Automatic Frequency Control

●HIGH SENSITIVITY

A GaAs FET MGF1502 is used for the RF front end circuit. The FET ensures low noise figure characteristics and superior sensitivity at less than 0.22 V for 12 dB SINAD.

•20 MEMORY CHANNELS

The IC-1201A/E contains 20 fully programmable channels and 1 call channel. Each channel can store all information required to work a repeater.

•SCAN FUNCTIONS

The IC-1201A/E is equipped with 2 scan functions: programmed scan and memory scan. A memory skip function is also included. In addition, priority watch waits for a call from a station while you're in contact with another station.

•STABLE OUTPUT POWER

The IC-1201A/E utilizes a newly designed Icom power module (SC-1066). This module steadily transmits 10 W of clean powerful output.

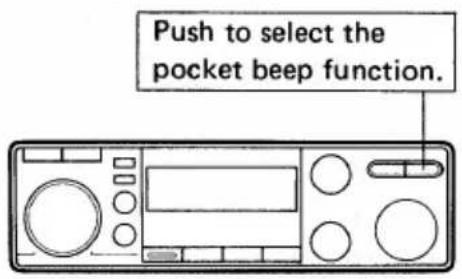

- POCKET BEEP FUNCTION

When the optional UT-40 TONE SQUELCH UNIT is installed, a 30 sec. alarm is emitted when a subaudible tone identical to your pre-programmed tone is received. This is especially convenient for busy schedules, etc.

- COMPACT BODY

Compact at just 140(W) x 40(H) x 200(D) mm [5.5(W) x 1.6(H) x 7.9(D) in]*, the IC-1201A/E will fit anywhere in your vehicle, making it the ideal traveller.

* Projections not included.

2

PANEL DESCRIPTION

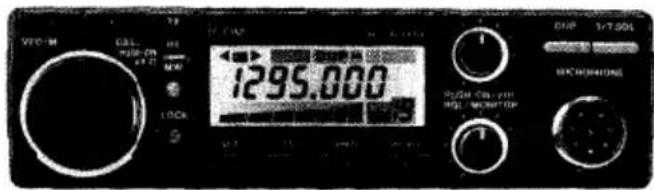

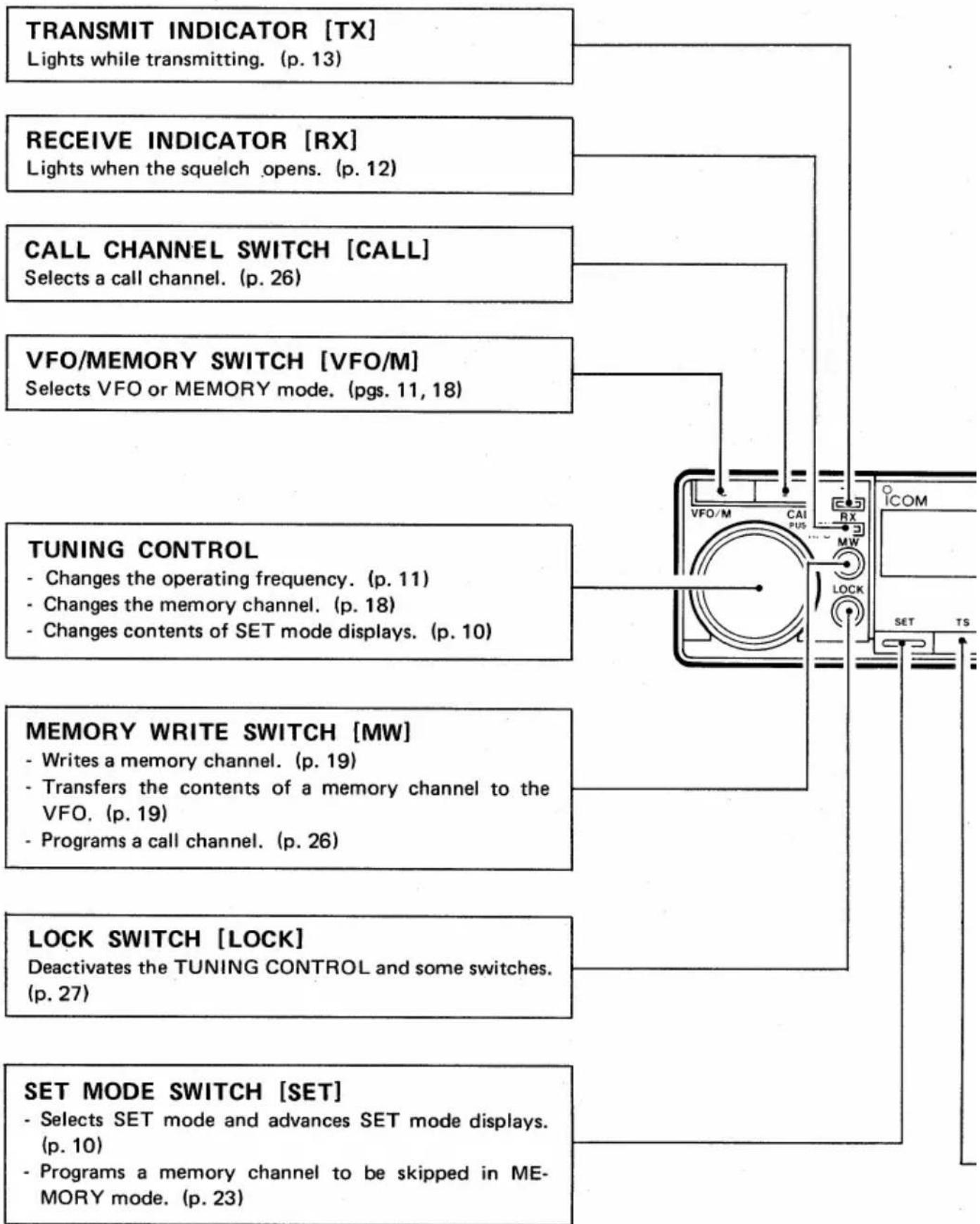

2-1 FRONT PANEL
    A["TRANSMIT INDICATOR [TX"]
Lights while transmitting. (p. 13)] --> B["RECEIVE INDICATOR [RX"]
Lights when the squelch opens. (p. 12)]
    B --> C["CALL CHANNEL SWITCH [CALL"]
Selects a call channel. (p. 26)]
    C --> D["VFO/MEMORY SWITCH [VFO/M"]
Selects VFO or MEMORY mode. (pgs. 11, 18)]
    D --> E["TUNING CONTROL<br>- Changes the operating frequency. (p. 11)<br>- Changes the memory channel. (p. 18)<br>- Changes contents of SET mode displays. (p. 10)"]

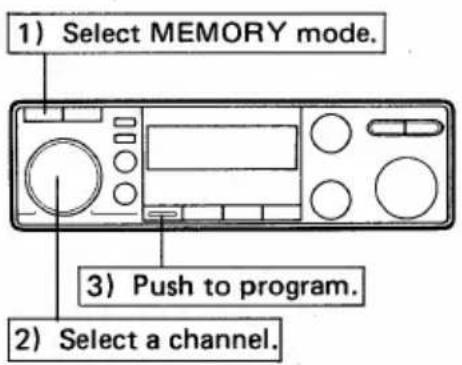

    E --> F["MEMORY WRITE SWITCH [MW"]
- Writes a memory channel. (p. 19)
- Transfers the contents of a memory channel to the VFO. (p. 19)
- Programs a call channel. (p. 26)]
    F --> G["LOCK SWITCH [LOCK"]
Deactivates the TUNING CONTROL and some switches. (p. 27)]
    G --> H["SET MODE SWITCH [SET"]
- Selects SET mode and advances SET mode displays. (p. 10)

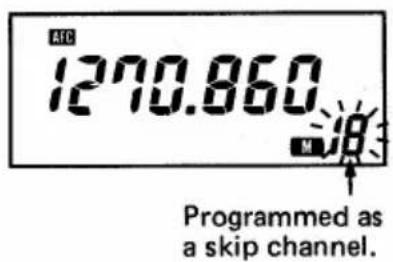

- Programs a memory channel to be skipped in MEMORY mode. (p. 23)]


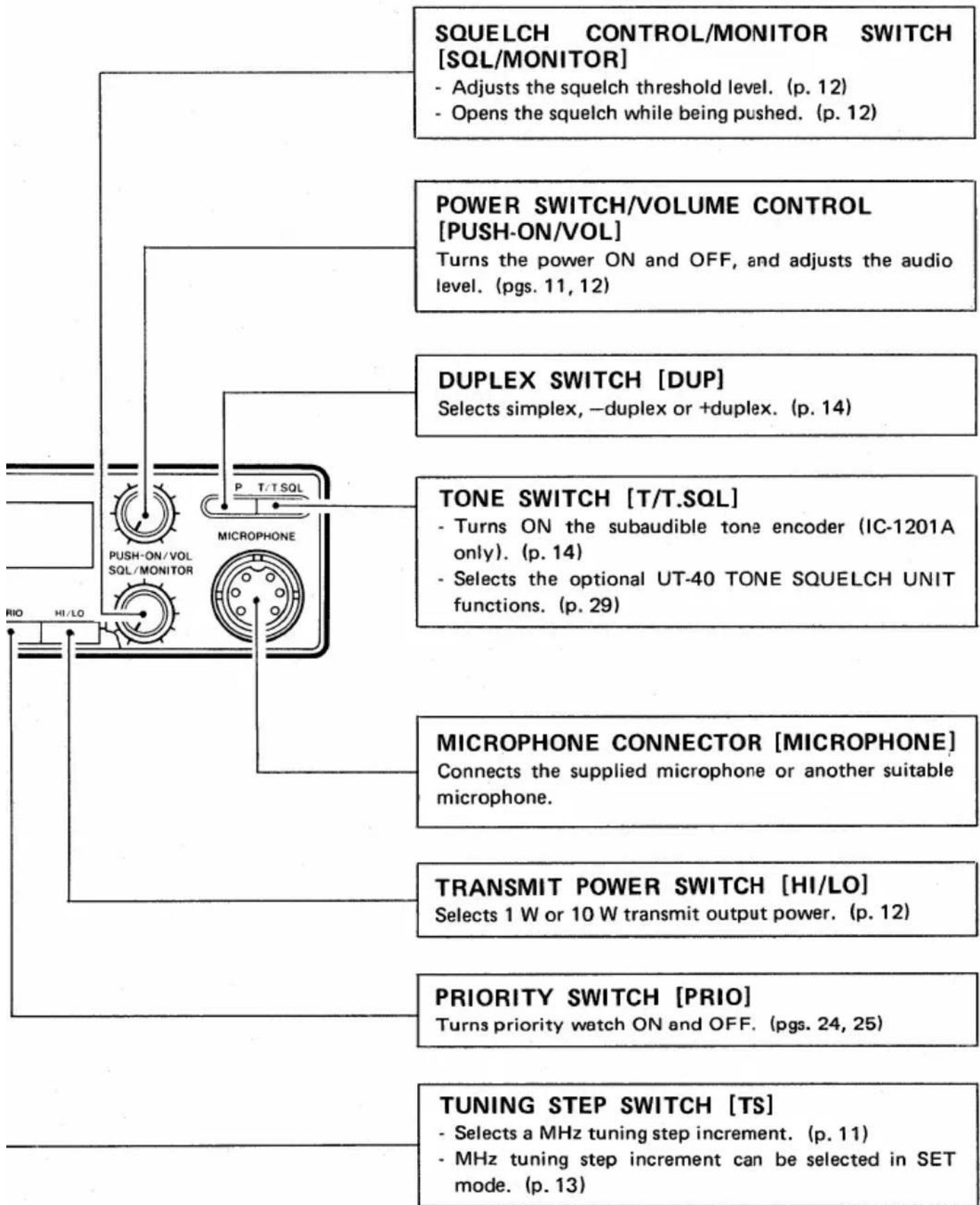

    A["Microphone"] --> B["PUSH-ON/VOL SQL/MONITOR"]
    A --> C["TONE SWITCH [T/T.SQL"]]
    A --> D["MICROPHONE CONNECTOR [MICROPHONE"]]
    A --> E["TRANSMIT POWER SWITCH [HI/LO"]]
    A --> F["PRIORITY SWITCH [PRIO"]]
    A --> G["TUNING STEP SWITCH [TS"]]

    B --> H["SQUELCH CONTROL/MONITOR SWITCH [SQL/MONITOR"]
    B --> I["POWER SWITCH/VOLUME CONTROL [PUSH-ON/VOL"]]
    B --> J["DUPLEX SWITCH [DUP"]]
    B --> K["TONE SWITCH [T/T.SQL"]]
    B --> L["TRANSMIT POWER SWITCH [HI/LO"]]
    B --> M["PRIORITY SWITCH [PRIO"]]

    H --> N["Adjusts the squelch threshold level. (p. 12)"]
    H --> O["Opens the squelch while being pushed. (p. 12)"]

    I --> P["Turns the power ON and OFF, and adjusts the audio level. (pgs. 11, 12)"]

    J --> Q["Selects simplex, -duplex or +duplex. (p. 14)"]

    K --> R["Turns ON the subaudible tone encoder (IC-1201A only). (p. 14)"]
    K --> S["Selects the optional UT-40 TONE SQUELCH UNIT functions. (p. 29)"]

    L --> T["Connects the supplied microphone or another suitable microphone."]

    M --> U["Turns priority watch ON and OFF. (pgs. 24, 25)"]

    G --> V["Selects a MHz tuning step increment. (p. 11)"]
    G --> W["MHz tuning step increment can be selected in SET mode. (p. 13)"]

2 PANEL DESCRIPTION

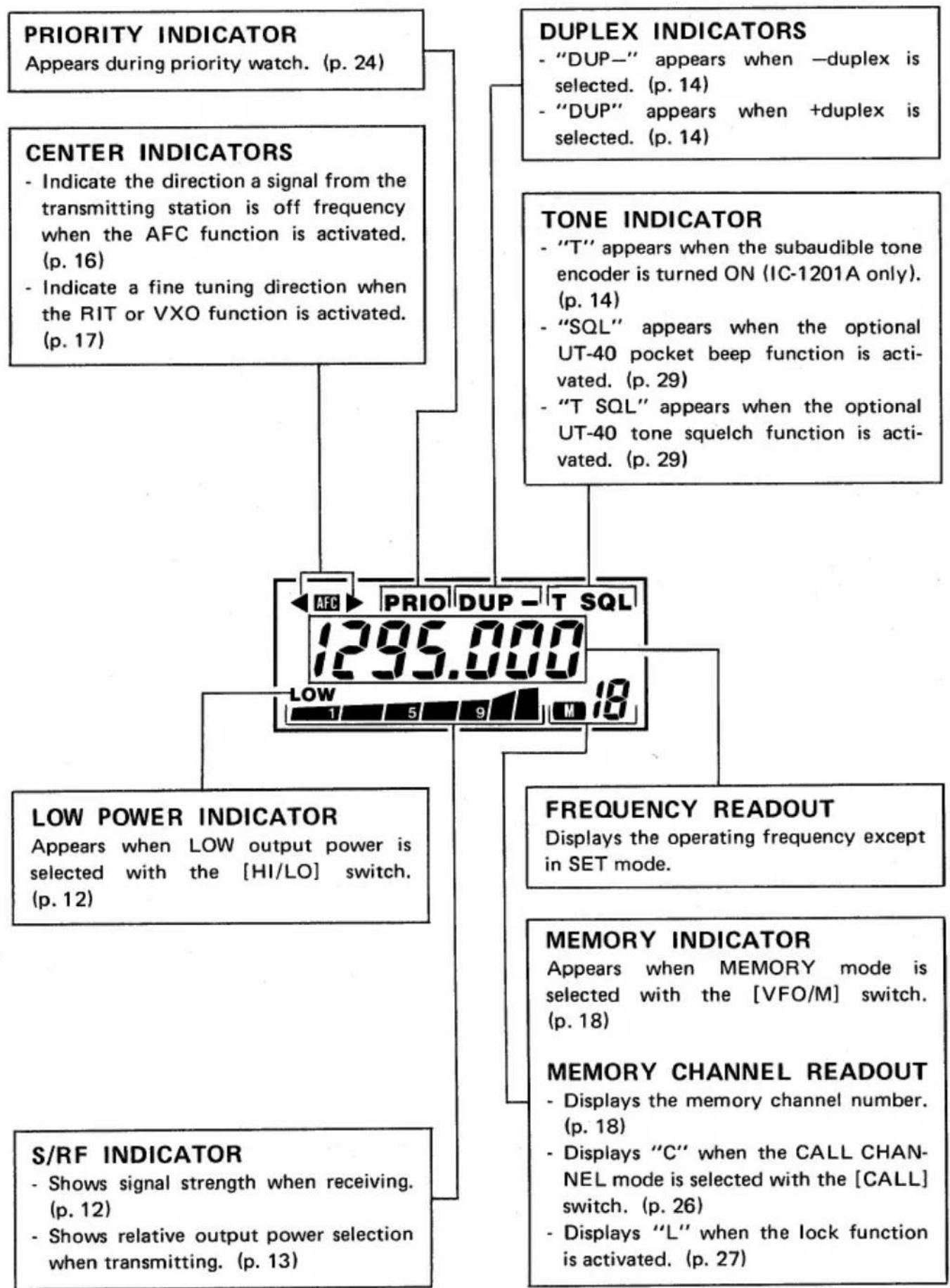

2-2 FUNCTION DISPLAY


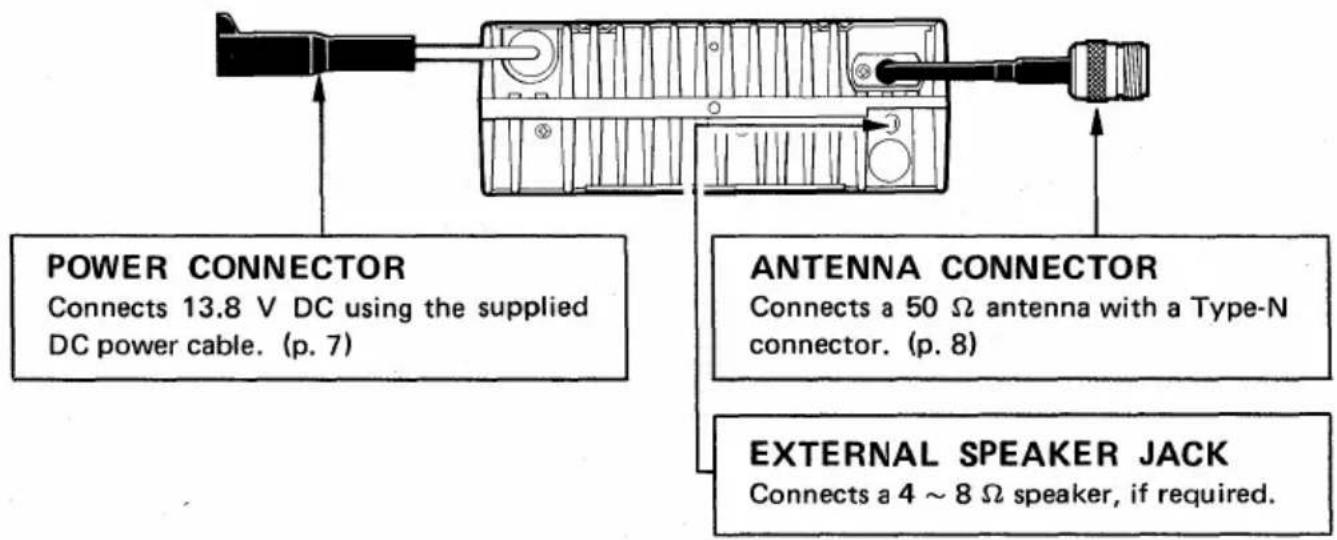

2-3 REAR PANEL

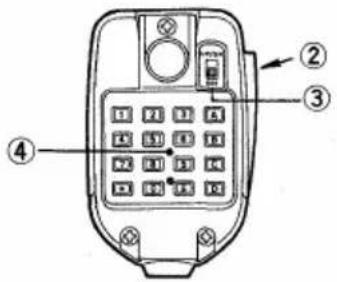

2-4 MICROPHONE

① FREQUENCY UP/DOWN SWITCHES [UP], [DN]

• Push either switch to change the operating frequency. (p. 11)
• Push either switch to change a memory channel. (p. 18)
• Push and hold either switch to start scanning. (pgs. 20, 22)

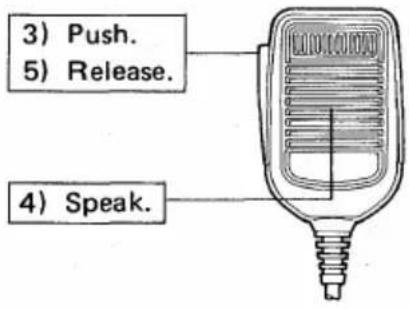

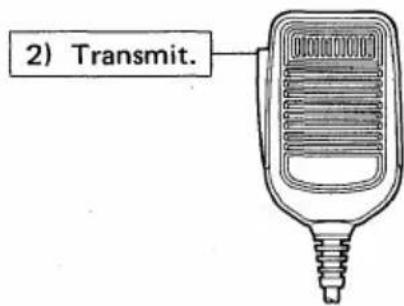

② PTT SWITCH

Push and hold to transmit. (p. 13)

HM-12

HM-15

③ UP/DOWN ON/OFF SWITCH [UP/DN ON OFF]

Deactivates the [UP] and [DN] switch.

④ TONE CALL SWITCH [TONE] (HM-15 only)

Push and hold to transmit a 1750 Hz tone call signal to access a repeater. (p. 14)

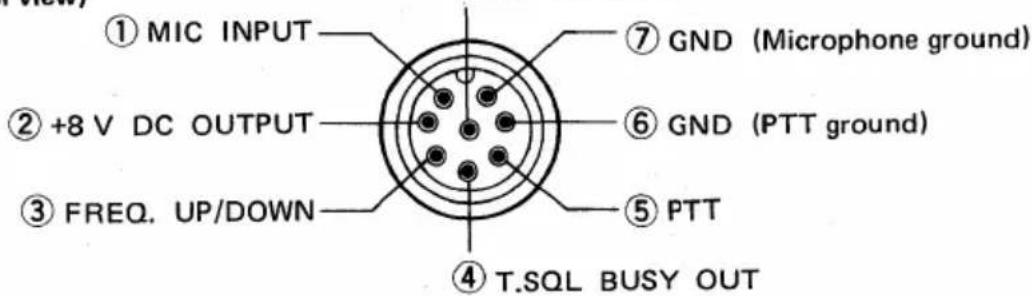

• MIC CONNECTOR (Front panel view)

3

INSTALLATION

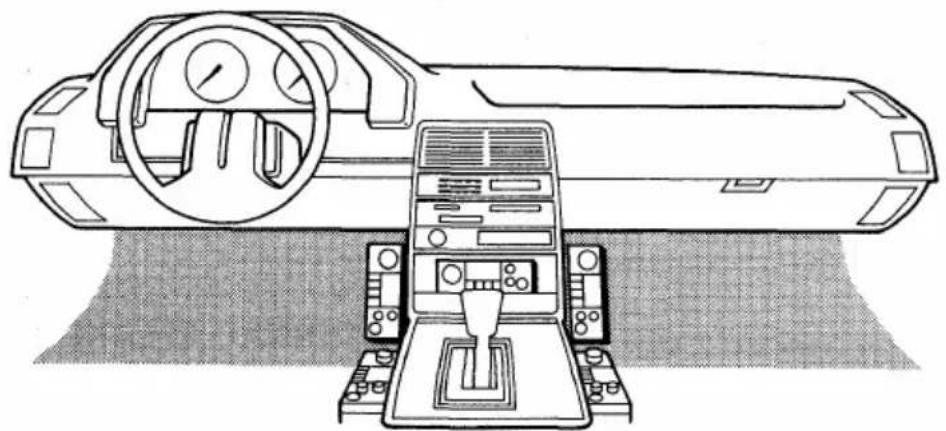

(1) LOCATION

Select a location for the transceiver that does not interfere with driving in any way. We recommend the location shown in the figure below.

Line drawing of a car interior with steering wheel and control panel (no text or symbols)

CAUTION

AVOID placing the transceiver in direct sunlight.

NEVER place the transceiver where normal operation of the vehicle may be hindered or where it could cause bodily injury.

DO NOT place the transceiver where hot or cold air blows directly on it.

(2) MOUNTING

After mounting the transceiver, be sure all screws have been tightened.

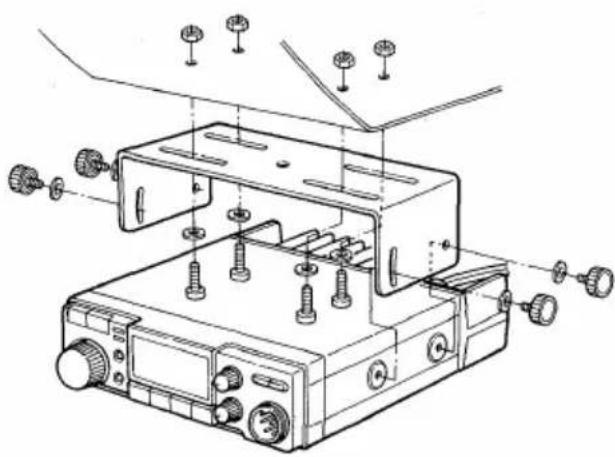

• MOUNTING THE TRANSCEIVER

Technical line drawing of an electronic device with multiple screw and housing components (no text or labels)

Technical line drawing of a mechanical component with no visible text or symbols

Adjust installation angle for good visibility.

1) Drill holes where the mounting bracket is to be installed.

- Hole size:

approx. 5.5 \~ 6 mm for nuts.

approx. 2 \~ 3 mm for self-tapping screws.

2) Insert the supplied screws, nuts and washers through the mounting bracket and tighten.

3) If the mounting location is not flat, use the supplied mounting support bracket.

4) Adjust the angle for the clearest view of the FUNCTION DISPLAY.

(1 inch = 25.4 mm)

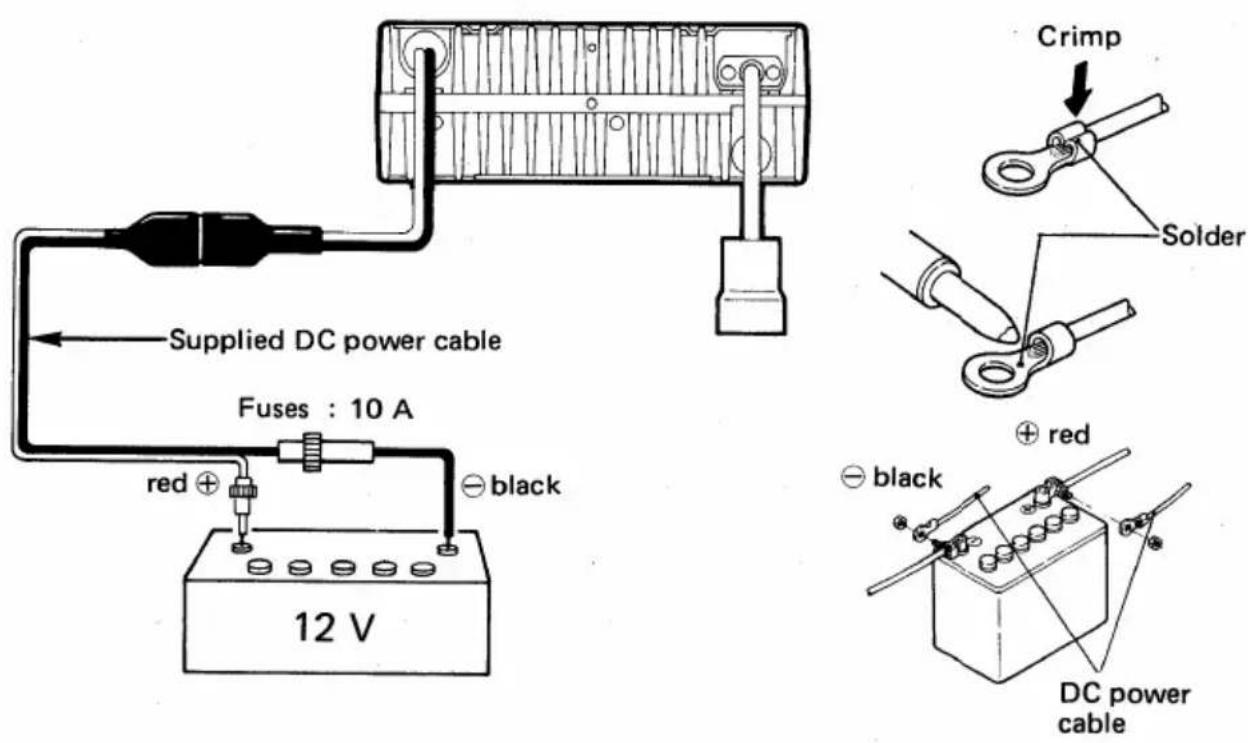

(3) BATTERY CONNECTION

CAUTION:

NEVER connect the transceiver directly to a 24 V battery. DO NOT use the cigarette lighter socket for power connections. To prevent voltage drops, solder or crimp the cable lag when connecting the DC power cable to the battery.

(4) EXTERNAL POWER SUPPLY

Use a 13.8 V DC power source with more than 6 A capability. The optional PS-45 AC POWER SUPPLY is suitable for base station operation.

When using the transceiver as a base station, make sure a ground terminal of the power supply is grounded. Use the heaviest gauge wire or strap available and make the connection as short as possible.

3 INSTALLATION

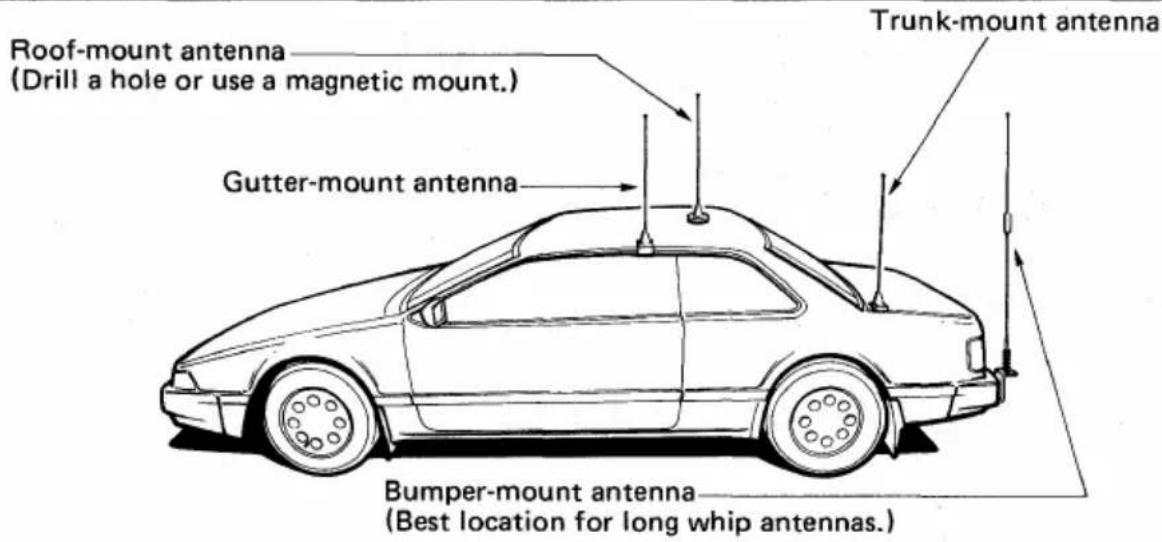

(5) ANTENNA LOCATION

To obtain maximum performance from the transceiver, select a high-quality antenna and a good location.

(6) ANTENNA CONNECTOR

A Type-N antenna connector is used for the transceiver.

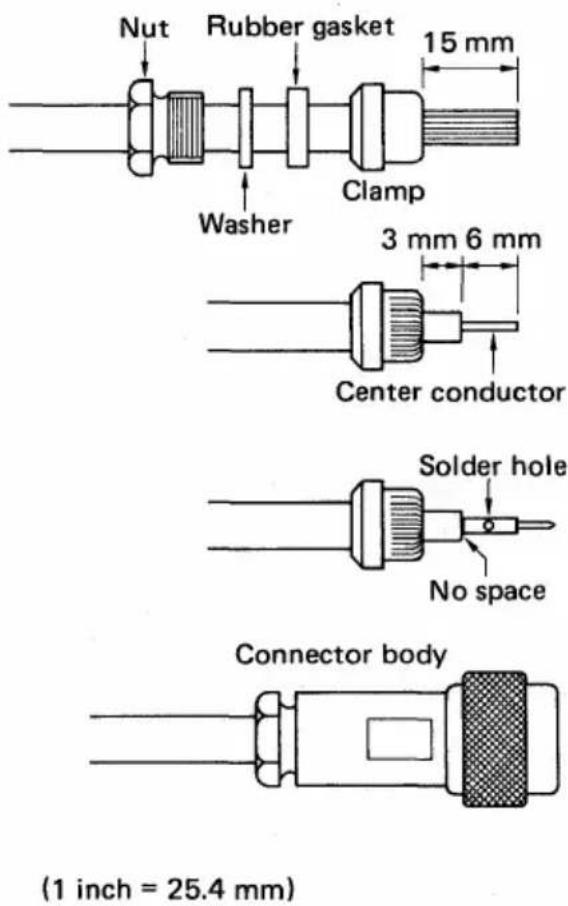

1) Slide the nut, washer, and rubber gasket over the coaxial cable and cut the end of the cable evenly.

2) Cut and remove 15 mm of the outer vinyl jacket, and fold the braid back over the clamp. The clamp end should be flush with the end of the vinyl jacket. Evenly trim the the braid ends.

Cut and remove 6 mm of the dielectric (the center conductor insulation).

3) Soft solder the center conductor. Install a center conductor pin and solder it.

4) Carefully slide the plug into place aligning the center conductor pin on the cable with the hole in the insulator inside the connector body.

5) Complete the assembly by screwing the nut into the connector body.

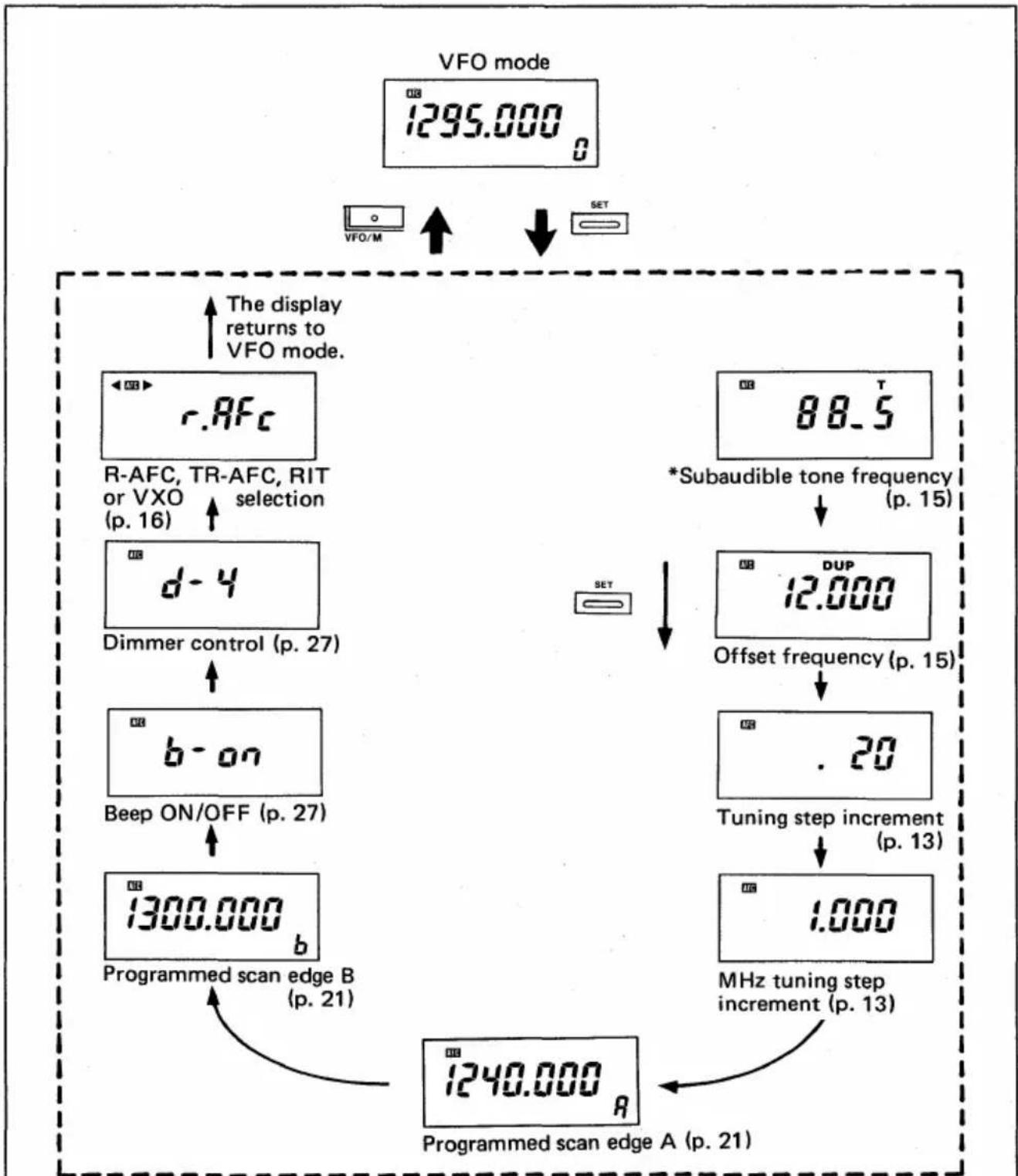

MODE CONSTRUCTION

4

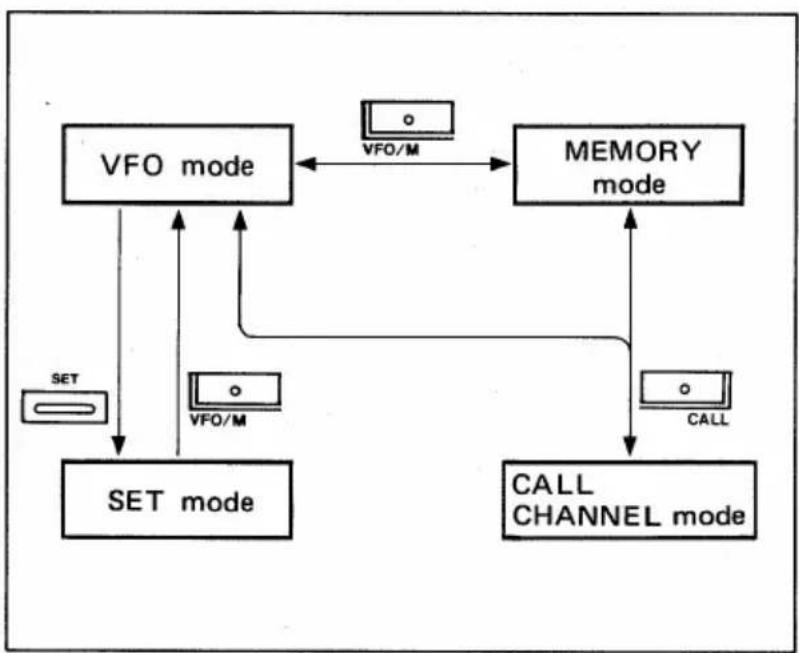

The IC-1201A/E has 4 different modes for versatile multi-function operations.

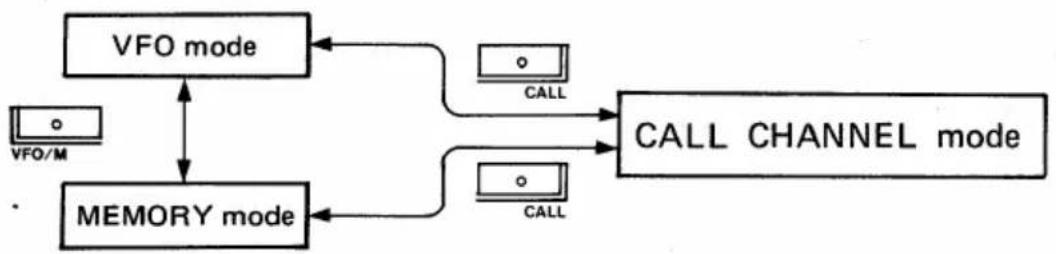

(1) VFO MODE

(2) MEMORY MODE

(3) CALL CHANNEL MODE

(4) SET MODE

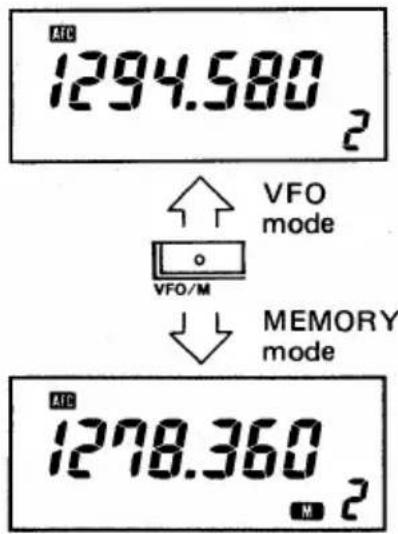

This mode is used for normal operations over the entire band.

This mode is used for operating the transceiver using memory channel contents. You can use 20 memory channels for programming (i.e., repeater frequencies, your ground frequency, etc.).

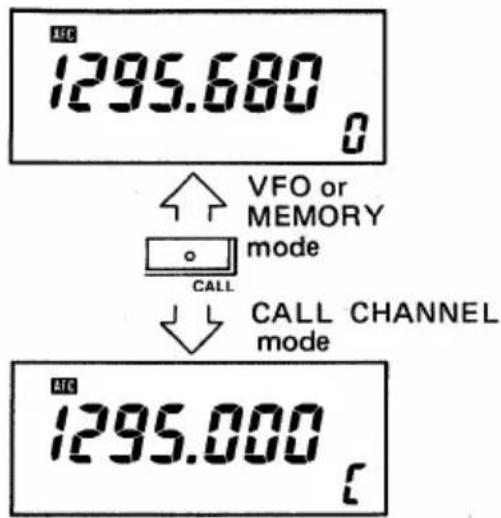

This mode provides 1 call channel operation separate from the memory channel. You can program the most often used frequency into this channel.

Use SET mode to program data. (p. 10)

Push the [SET] switch to select SET mode in the VFO mode. The display you last used appears.

■ MODE CONSTRUCTION CHART

4 MODE CONSTRUCTION

■ SET MODE CONSTRUCTION CHART

Push the [SET] switch while in VFO mode to select SET mode. The previously set position appears.


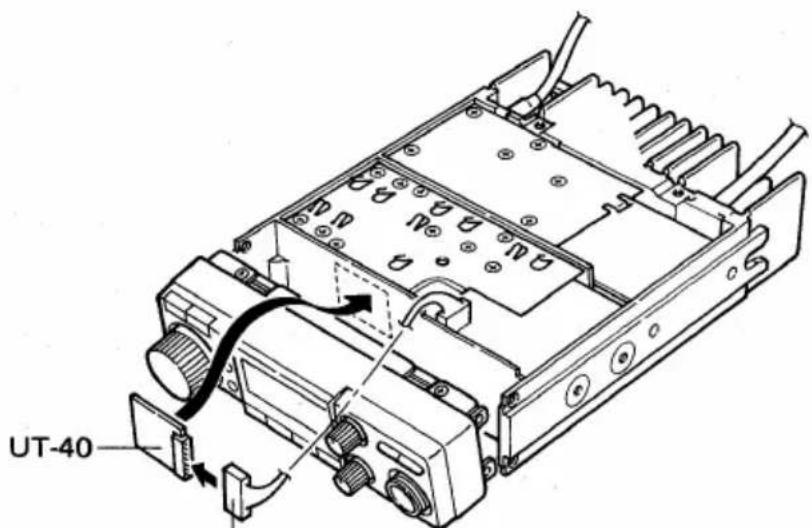

* Only appears in the IC-1201A. An optional UT-40 is required in the IC-1201E.

BASIC OPERATIONS

5

5-1 FREQUENCY SETTING

The frequency can be set with the TUNING CONTROL or the [UP] or [DN] switch on the microphone.

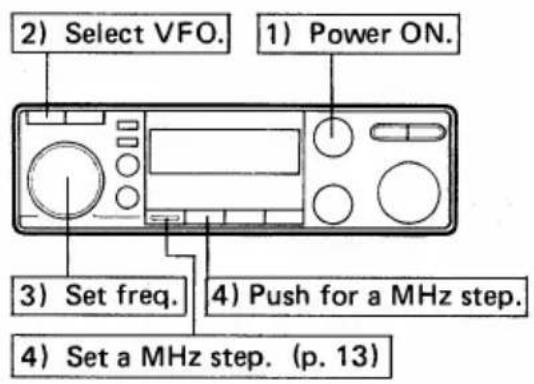

1) Push the [PUSH-ON/VOL] control to turn ON power.
2) When "M" or "C" appears on the FUNCTION DISPLAY, push the [VFO/M] switch to select VFO mode.

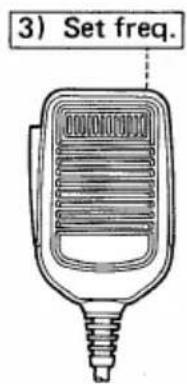

3) Rotate the TUNING CONTROL or push the [UP] or [DN] switch on the microphone to change the operating frequency.
- Select a tuning step increment in SET mode. (p. 13)

NOTE: When the decimal point disappears the TUNING CONTROL does not change the operating frequency since the RIT or VXO function is activated. In this case, push the TUNING CONTROL to turn OFF the function. (p. 17)

4) Push the [TS] switch to select a MHz tuning step increment.
- The TUNING CONTROL changes the frequency in a MHz step.
- The [UP] or [DN] switch on the microphone does not change the frequency in a MHz step.
- Push the [TS] switch again to return to the previous tuning step.

5 BASIC OPERATIONS

5-2 RECEIVING

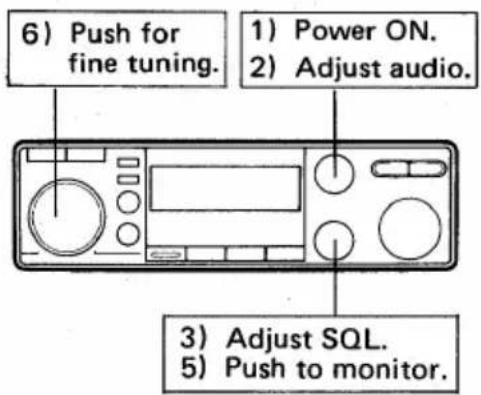

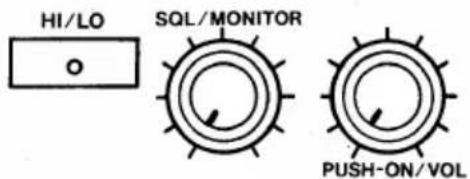

1) Push the [PUSH-ON/VOL] control to turn power ON and rotate the [SQL/MONITOR] control maximum counterclockwise.

• The [RX] indicator lights.

2) Rotate the [PUSH-ON/VOL] control to the desired audio level.
3) Rotate the [SQL/MONITOR] control to the squelch threshold point.
4) Set the desired frequency with the TUNING CONTROL or the [UP] or [DN] switch on the microphone.
5) To monitor the operating frequency momentarily, push the [SQL/MONITOR] control.

- The squelch opens while the [SQL/MONITOR] control is pushed.

6) Use the R-AFC, TR-AFC, RIT or VXO function, if required. (p. 16)

5-3 TRANSMITTING

CAUTION: Transmitting without an antenna may damage the transceiver.

NOTE: To prevent interference, listen on the frequency before transmitting.

1) When "DUP—" or "DUP" appears on the FUNCTION DISPLAY, push the [DUP] switch until it disappears to select a simplex mode.

- Select duplex mode for repeater operation. (p. 14)

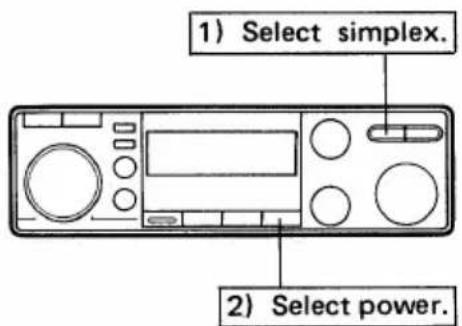

2) Push the [HI/LO] switch to select output power.

• HIGH : 10 W LOW : 1 W
- "LOW" appears only when LOW power is selected.

BASIC OPERATIONS

5

3) Push and hold the [PTT] switch on the microphone.

• The [TX] indicator lights and the S/RF INDICATOR shows relative output power selection.

4) Speak into the microphone using your normal voice level.

- Do not hold the microphone too closely to your mouth or speak too loudly. This may distort the signal.

5) Release the [PTT] switch to return to receiving.

USING SET MODE

■ SETTING TUNING STEP INCREMENTS

1) Select VFO mode. (p. 11)

2) Push the [SET] switch until a tuning step increment flashes on the FUNCTION DISPLAY as shown at left.

- IC-1201A : 10 or 20 kHz IC-1201E : 12.5 or 25 kHz

3) Rotate the TUNING CONTROL for the desired tuning step increment.

4) Push the [SET] switch again.

5) Rotate the TUNING CONTROL to select MHz tuning step increments as shown below:

FUNCTION DISPLAY	MHz TUNING STEP INCREMENT
1.000	1 MHz
5.000	5 MHz
10.000	10 MHz

6) Push the [VFO/M] switch to set increments and to return to VFO mode.

5 BASIC OPERATION

5-4 REPEATER OPERATION

When you want to contact a station through a repeater, set the transceiver to duplex. To access a repeater which requires a tone, see below.

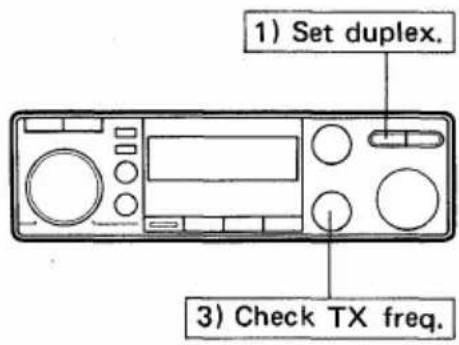

1) Push the [DUP] switch once to set -duplex or push again to set +duplex.

- "DUP—" or "DUP" appears on the FUNCTION DISPLAY.

$$ \begin{array}{l} \text {"DUP - "}: \text { Transmit freq. } = \ \text { Receive freq. } - \text { Offset freq. } \ \text {"DUP"}: \text { Transmit freq. } = \ \text { Receive freq. } + \text { Offset freq. } \end{array} $$

2) Push the [PTT] switch to transmit on the repeater input frequency.

3) To check transmit frequency (repeater input frequency), push the [SQL/MONITOR] control.

• The squelch opens.

- This allows checking of the signal strength of your contacted station directly without going through a repeater.

- SUBAUDIBLE TONE (IC-1201A only)

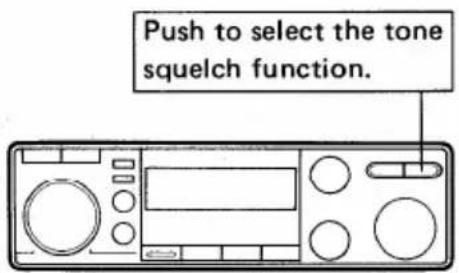

Push the [T/T.SQL] switch to turn the subaudible tone encoder ON and OFF.

"T" appears on the FUNCTION DISPLAY.

• 1750 Hz TONE CALL (IC-1201E only)

Push and hold the [TONE] switch on the microphone for about 1 \~ 3 sec. to transmit 1750 Hz tone call signals.

USING SET MODE

■ SETTING A SUBAUDIBLE TONE FREQUENCY

The display shows that the subaudible tone frequency is set at 88.5 Hz.

Select one of 38 subaudible tone frequencies for some repeater operations. When the optional UT-40 is installed, select one of 37 subaudible tone frequencies.

1) Select VFO mode. (p. 11)
2) Push the [SET] switch until "T" flashes on the FUNCTION DISPLAY as shown at left.
3) Rotate the TUNING CONTROL to select the desired subaudible tone frequency.
4) Push the [VFO/M] switch to return to VFO mode.

USING SET MODE

■ SETTING AN OFFSET FREQUENCY

The display shows that the offset frequency is set at 12 MHz.

When duplex operation has been selected, the transceiver transmits on a frequency equal to the receive frequency plus or minus the offset frequency.

1) Select VFO mode. (p. 11)
2) Push the [SET] switch until "DUP" flashes on the FUNCTION DISPLAY as shown at left.
3) Rotate the TUNING CONTROL to select the desired offset frequency.
- Use the [TS] switch to select a MHz tuning step increment. (p. 13)
4) Push the [VFO/M] switch to set the frequency and to return to VFO mode.

6

RELATED FUNCTIONS

6-1 AFC, RIT AND VXO OPERATIONS

(1) PRESETTING

When the transmitting station is off frequency, select one of four functions in SET mode as described below.

■ R-AFC FUNCTION

Automatically fine tunes receive frequency to the frequency of the transmitting station. Use this function when the transmitting station uses the AFC function.

■ TR-AFC FUNCTION

Automatically fine tunes both transmit and receive frequencies to the frequency of the transmitting station. Use this function when the transmitting station does not use the AFC function.

RIT FUNCTION

Manually fine tunes receive frequency.

VXO FUNCTION

Manually fine tunes both transmit and receive frequencies.

USING SET MODE

■ SELECTING THE R-AFC, TR-AFC, RIT OR VXO OPERATION

The display shows that R-AFC is selected.

1) Select VFO mode. (p. 11)
2) Push the [SET] switch to select the desired operation until "r.AFc", "tr.AFc", "rit" or "UHo" appears as shown at left.
3) Rotate the TUNING CONTROL to select the desired function described below:

FUNCTION	DISPLAY	FINE TUNING
		TRANSMIT FRE-QUENCY	RECEIVE FRE-QUENCY
R-AFC	r.AFc	—	Auto
TR-AFC	tr.AFc	Auto	Auto
RIT	rit	—	Manual
VXO	UHo	Manual	Manual

4) Push the [VFO/M] switch to set the operation and to return to VFO mode.

RELATED FUNCTIONS

6

(2) AFC OPERATION

1) Select R-AFC or TR-AFC using SET mode. (p. 16)

2) Push the TUNING CONTROL to activate the AFC function.

- AFC automatically and immediately fine tunes receive frequency or both receive and transmit frequencies to the frequency of the transmitting station.

- “◀” or “▶” flashes while AFC tunes or when the off frequency is within approx. ±5.5 \~ 7.0 kHz.

- The decimal point does not disappear.

3) Push the TUNING CONTROL again to cancel the function.

(3) RIT OR VXO OPERATION

1) Select the RIT or VXO function using SET mode.

2) Push the TUNING CONTROL to activate the RIT or VXO function.

• The decimal point disappears.
- “◀” and/or “▶” appear.
- “◀” or “▶” shows the fine tuning direction.
• RIT or VXO operates in a range of ±5.5 kHz.
- “◀” or “▶” flashes when RIT or VXO exceeds operation range of ±5.5 kHz.

3) Rotate the TUNING CONTROL for fine tuning.

4) Push the TUNING CONTROL again to cancel the function.

6 RELATED FUNCTIONS

6-2 MEMORY OPERATIONS

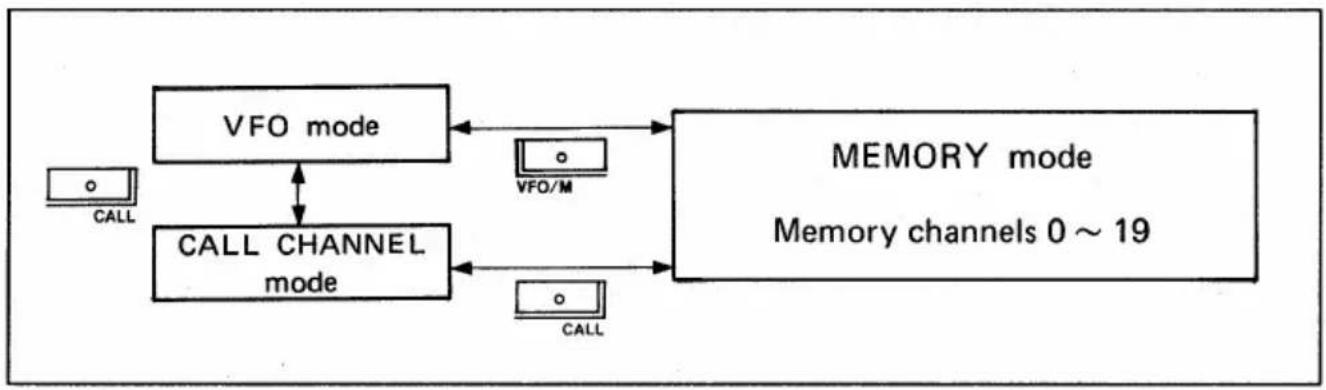

The transceiver has 20 memory channels. Each memory channel independently stores an operating frequency, offset frequency, subaudible tone frequency (the IC-1201A or IC-1201E with the optional UT-40), and memory skip function.

(1) MEMORY READING

1) Push the [VFO/M] switch to select MEMORY mode.

- "M" appears on the FUNCTION DISPLAY.

2) Rotate the TUNING CONTROL to select the desired memory channel.

- The [UP] or [DN] switch on the microphone also changes the memory channel.

3) Push the [VFO/M] switch again to return to VFO mode.

RELATED FUNCTIONS

6

(2) MEMORY WRITING

In VFO mode

Push and hold.

1) Push the [VFO/M] switch to select MEMORY mode.
2) Rotate the TUNING CONTROL to select the desired memory channel.
3) Push the [VFO/M] switch to select VFO mode.
- "M" disappears from the FUNCTION DISPLAY.
4) Select the operating frequency. (p. 11)
- Repeater or other information contents can be programmed. (pgs. 14, 29)
5) Push and hold the [MW] switch until three beeps are emitted from the speaker.
• The information is now programmed.

(3) MEMORY TRANSFERRING

In MEMORY mode

Push and hold.

Copy and transfer the displayed memory contents into VFO. This function is useful for searching for signals around the memory channel frequency.

The memory channel contents are not erased.

1) Push the [VFO/M] switch to select MEMORY mode.
2) Rotate the TUNING CONTROL to select the desired memory channel.

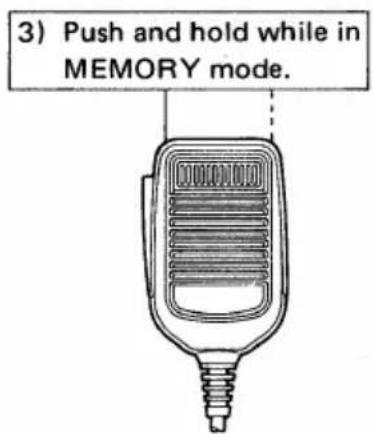

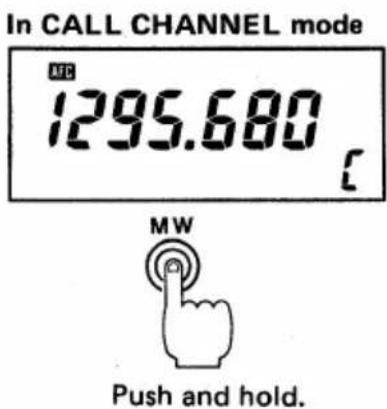

3) Push and hold the [MW] switch until three beeps are emitted from the speaker.
- The memory contents have been transferred into VFO.
- The transceiver returns to VFO mode.

6 RELATED FUNCTIONS

6-3 SCAN FUNCTIONS

There are two scan functions: programmed scan and memory scan. The memory skip function can be used with memory scan.

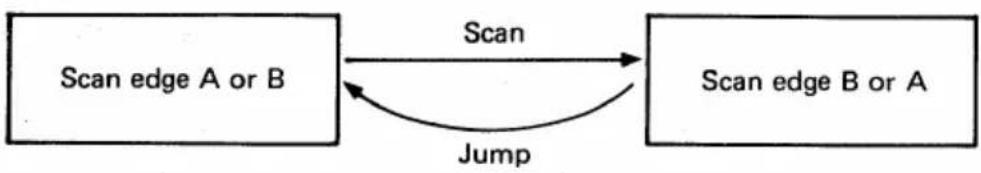

(1) PROGRAMMED SCAN

The programmed scan function scans between two frequencies.

NOTE: Programmed scan does not function when:

- priority watch is activated. (p. 24)

- scan edge A and B are equal. (p. 21)

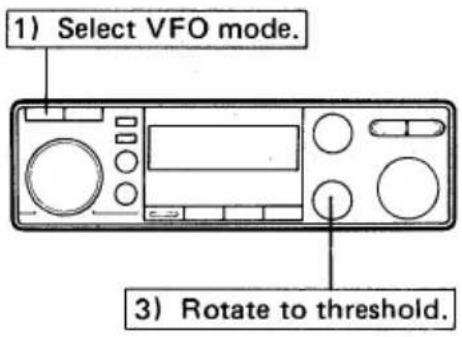

1) Select VFO mode. (p. 11)

2) Set scan edge frequencies using SET mode. (p. 21)

3) Rotate the [SQL/MONITOR] control to the squelch threshold point.

• The [RX] indicator goes out.

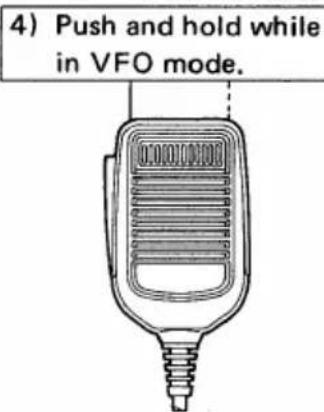

4) Push and hold the [UP] or [DN] switch on the microphone for about 0.5 sec. to start the scan, and then release the switch.

• [UP] : upwards scan.

[DN]: downwards scan.

• The decimal point flashes.

5) When receiving a signal, scan stops.

• After 15 sec., scan resumes.

- 2 sec. after the signal disappears, scan starts again.

6) To cancel the scan, push the [UP] or [DN] switch on the microphone.

- The TUNING CONTROL and some other switches also cancel the scan.

USING SET MODE

■ SETTING SCAN EDGES

1) Select VFO mode. (p. 11)

2) Push the [SET] switch until "A" flashes in the right corner of the FUNCTION DISPLAY as shown at left.

3) Rotate the TUNING CONTROL to set the desired "A" scan edge frequency.

- Use the [TS] switch together with the TUNING CONTROL to advance the frequency in a MHz step.

4) Push the [SET] switch once.

- "b" flashes on the FUNCTION DISPLAY.

5) Rotate the TUNING CONTROL for the other "b" scan edge.

6) Push the [VFO/M] switch to set scan edges and return to VFO mode.

6 RELATED FUNCTIONS

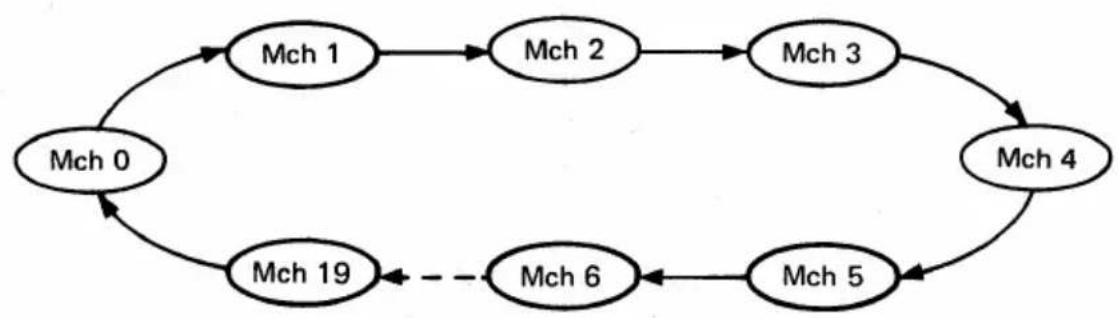

(2) MEMORY SCAN

The memory scan function scans all memory channels in succession. To skip certain channels, use the memory channel skip function. (p. 23)


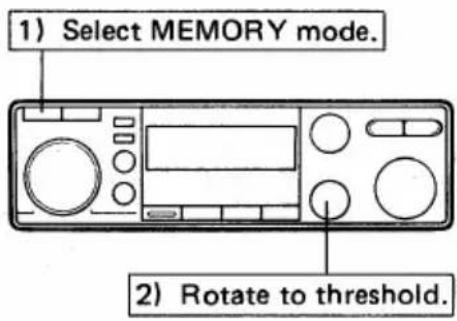

1) Select MEMORY mode with the [VFO/M] switch. (p. 18)
2) Rotate the [SQL/MONITOR] control to the squelch threshold point.

• The [RX] indicator goes out.

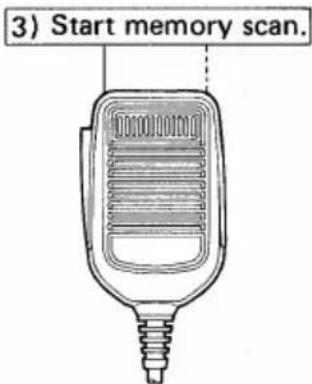

3) Push and hold the [UP] or [DN] switch on the microphone for about 0.5 sec. to start the scan, and then release the switch.

• [UP] : upwards scan.
[DN]: downwards scan.
- Both "M" and the decimal point flash.

4) When receiving a signal, scan stops.

• After 15 sec., scan resumes.
- 2 sec. after the signal disappears, scan starts again.

5) To cancel the scan, push the [UP] or [DN] switch on the microphone.

- The TUNING CONTROL and some other switches also cancel the scan.

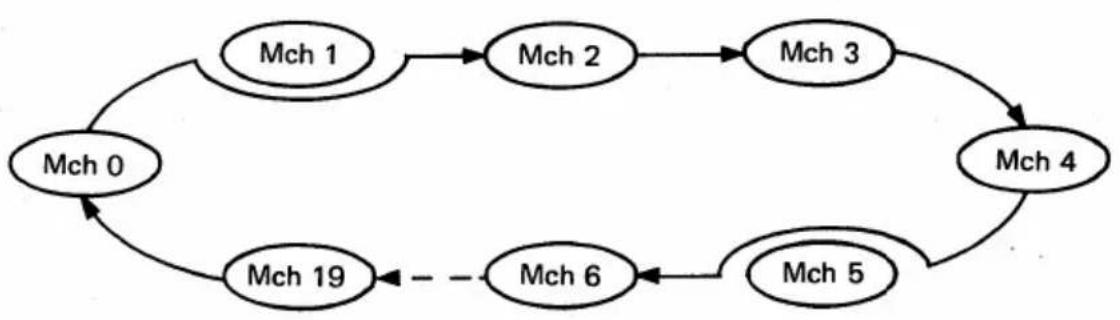

(3) MEMORY SKIP FUNCTION

This function is used to skip memory channels you do not wish to scan during memory scan.

The memory skip function can also be used for priority watch (VFO memory channels). (p. 24)

1) Select MEMORY mode with the [VFO/M] switch. (p. 18)

- "M" appears on the FUNCTION DISPLAY.

2) Select the memory channel to be skipped with the TUNING CONTROL.

3) Push the [SET] switch to program the selected memory channel to be skipped.

• Memory channel number flashes.

- To cancel the skip function, push the [SET] switch again.

4) Rotate the TUNING CONTROL to select other memory channels or push the [VFO/M] switch to return to VFO mode.

6 RELATED FUNCTIONS

6-4 PRIORITY WATCH

(1) VFO ↔ MEMORY OR CALL CHANNEL

Every 5 sec., priority watch monitors a frequency you programmed while you operate on the VFO frequency.

- Transmitting accepted while watch continues.

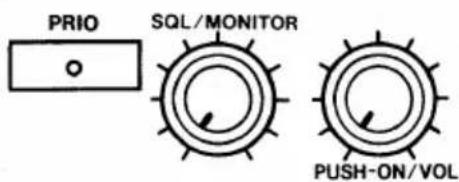

- [PRIO] cancels watch.

While receiving on watching frequency:

- Transmitting not accepted.

- [PRIO] returns to operating frequency.

1) Set the desired operating frequency in VFO mode. (p. 11)
2) Select a memory channel or the call channel to be watched. (pgs. 18, 26)

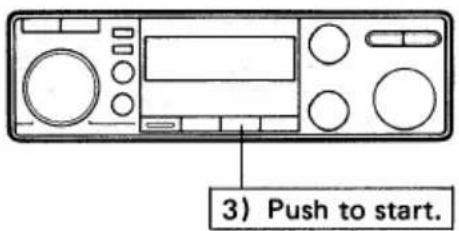

3) Push the [PRIO] switch to start priority watch.

- "PRIO" appears on the FUNCTION DISPLAY.

4) When a signal is received on the watching frequency (memory or call channel), priority watch stops for 15 sec.

• "PRIO" flashes.
  • After 15 sec., priority watch resumes.
• 2 sec. after the signal disappears, priority watch starts again.

5) To cancel priority watch, push the [PRIO] switch when the operating frequency is displayed.

(2) VFO MEMORY CHANNELS

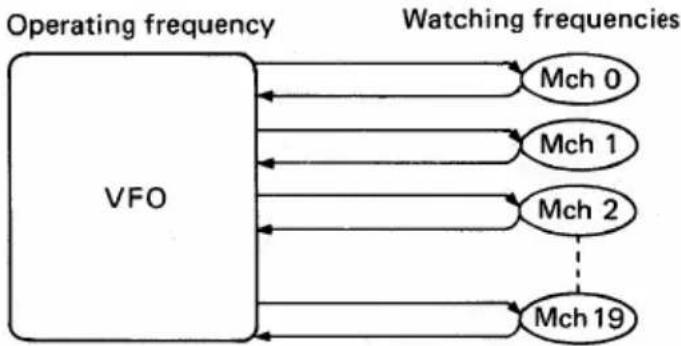

Priority watch can also watch each memory channels in approx. 5 sec. consecutive intervals.

- Transmitting accepted while watch continues.

- [PRIO] cancels watch.

While receiving on watching frequency:

- Transmitting not accepted.

- [PRIO] returns to operating frequency.

1) Set the desired operating frequency in VFO mode. (p. 11)

2) Push the [VFO/M] switch to select MEMORY mode.

- The memory skip function can be used. (p. 23)

3) Push and hold the [UP] or [DN] switch on the microphone for about 0.5 sec. to start memory scan. (p. 22)

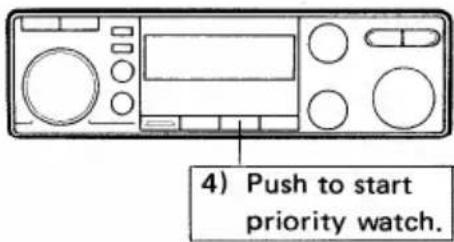

4) Push the [PRIO] switch to start priority watch.

- "PRIO" appears on the FUNCTION DISPLAY.

• Memory channels change every 5 sec.

5) When a signal is received on the watching frequency (memory channel), priority watch stops for 15 sec.

- "PRIO" flashes.

• After 15 sec., priority watch resumes.

- 2 sec. after the signal disappears, priority watch starts again.

6) To cancel priority watch, push the [PRIO] switch when the VFO frequency is displayed.

6 RELATED FUNCTIONS

6-5 CALL CHANNEL MODE

The transceiver has an independent CALL CHANNEL mode which provides easy selection of your most used frequency.

CALL CHANNEL mode can be selected from VFO and MEMORY modes.

(1) CALL CHANNEL READING

1) Push the [CALL] switch to select CALL CHANNEL mode.

• "C" appears in the place of the MEMORY CHANNEL READOUT.
  • The TUNING CONTROL is deactivated.

2) Push the [CALL] switch again to return to the previous mode.

- The [VFO/M] switch also leaves CALL CHANNEL mode.

(2) CALL CHANNEL PROGRAMMING

1) Push the [VFO/M] switch to select VFO mode.
2) Select the frequency as a call channel.

- Repeater or other information can be programmed. (pgs. 14, 29)

3) Push the [CALL] switch to select CALL CHANNEL mode.
4) Push and hold the [MW] switch until three beep tones are emitted from the speaker.

- The selected frequency is programmed into the call channel.

RELATED FUNCTIONS 6

6-6 DIMMER CONTROL

The display shows the brightest intensity.

The intensity of the FUNCTION DISPLAY backlight is adjustable as follows:

1) Select VFO mode. (p. 11)
2) Push the [SET] switch until "d-1", "d-2", "d-3" or "d-4" appears on the FUNCTION DISPLAY.
3) Rotate the TUNING CONTROL for the desired lighting intensity.
4) Push the [VFO/M] switch to set the intensity and to return to VFO mode.

6-7 BEEP ON/OFF

The display shows that beep is ON.

The speaker emits a beep tone each time a switch is pushed. Turn ON or OFF beep tones as follows:

1) Select VFO mode. (p. 11)
2) Push the [SET] switch until "b-on" or "b-oFF" appears on the FUNCTION DISPLAY.
3) Rotate the TUNING CONTROL to select beep ON and OFF.
4) Push the [VFO/M] switch to set the condition and to return to VFO mode.

6-8 LOCK FUNCTION

This function deactivates the TUNING CONTROL and switches on the front panel.

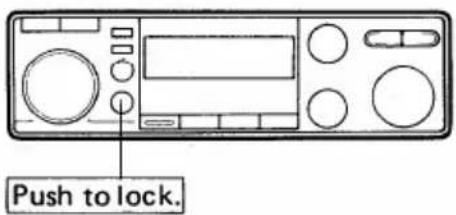

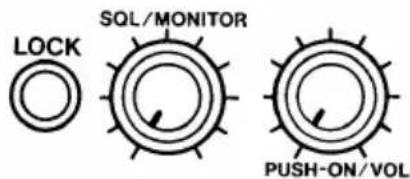

1) Push the [LOCK] switch to lock switches and the TUNING CONTROL.
- The [SQL/MONITOR], [PUSH-ON/VOL] controls and [PTT] switch are not locked.

2) Push the [LOCK] switch again to unlock.

7

POCKET BEEP AND TONE SQUELCH

7-1 UT-40 INSTALLATION

Technical diagram of an electronic device with mounting holes and directional arrows indicating movement (no text or symbols)

Fig. 1

Install the optional UT-40 TONE SQUELCH UNIT for pocket beep and tone squelch functions.

CAUTION: Turn OFF power and disconnect the DC power cable before removing covers from the transceiver.

1) Remove 4 screws from the top and bottom covers and remove the covers. (Fig. 1)

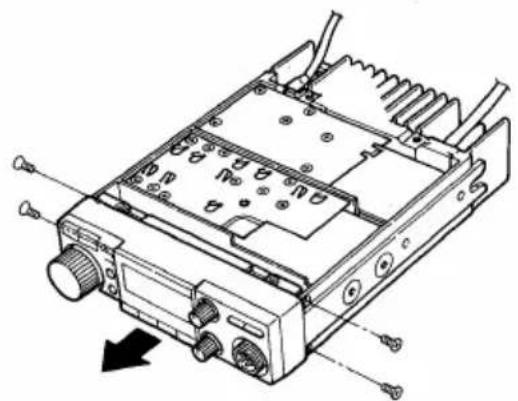

2) Remove 4 screws from the left and right sides of the front panel. (Fig. 2)
3) Remove the front panel. (Fig. 2)
4) Connect P5 plug (10 pins) from the IC-1201A/E PLL UNIT to the UT-40 connector. (Fig. 3)
5) Peel off white sheet from the back of the UT-40.
6) Install the UT-40 in the proper position. (Fig. 3)
7) Replace the front panel, covers and screws.

Technical line drawing of an electronic device chassis with ports and connectors (no text or symbols)

Fig. 2

Fig. 3

POCKET BEEP AND TONE SQUELCH 7

7-2 POCKET BEEP FUNCTION

The pocket beep function alerts you using 30 sec. beep tones and "SQL" flashing when a signal with the same subaudible tone as pre-programmed is received. The optional UT-40 is necessary.

NOTE: Some repeaters are equipped with filters that filter out subaudible tones. Using the pocket beep or tone squelch function when contacting other stations may not always be possible.

1) Set the desired subaudible tone frequency. (p. 15)

2) Push the [T/T.SQL] switch until "SQL" appears on the FUNCTION DISPLAY.

3) When a same subaudible tone as preprogrammed is received, beep tones are emitted from the speaker.

- "SQL" flashes on the FUNCTION DISPLAY.

4) Push any switch on the front panel or the [PTT] switch on the microphone to stop beep tones.

- The tone squelch function is automatically activated.

7-3 TONE SQUELCH FUNCTION

When a signal with the same subaudible tone as pre-programmed is received, the squelch opens. The optional UT-40 is necessary.

1) Set the desired subaudible tone frequency. (p. 15)

2) Push the [T/T.SQL] switch until "T SQL" appears on the FUNCTION DISPLAY.

3) When the same subaudible tone as pre-programmed is received, the squelch opens.

- Push the [SQL/MONITOR] control to open the squelch, if desired.

8-1 TROUBLESHOOTING

PROBLEM	POSSIBLE CAUSE	SOLUTION	REF.
1. Power does not come ON.	Polarity of the power connection is reversed.Blown fuse.	Reconnect the power cable observing the proper polarity.Check the cause, then replace the fuse.	p. 7p. 32
2. No sound comes from the speaker.	The [SQL/MONITOR] control is turned too far clockwise.The optional tone squelch is turned ON, if the UT-40 is installed.	Set the [SQL/MONITOR] control at the threshold point.Turn OFF the tone squelch function.	p. 12p. 29
3. No contact possible with another station.	The transceiver is set to duplex.	Set to simplex.	p. 12
4. Repeater cannot be accessed.	Wrong offset frequency is programmed.Wrong subaudible tone frequency is programmed.	Correct the offset frequency.Correct the subaudible tone frequency.Be sure the offset and subaudible tone frequencies are independently programmed on each memory channel.	p. 15p. 15
5. Frequency cannot be set.	The [LOCK] switch is turned ON.CALL CHANNEL mode is selected.RIT or VXO function is activated.	Turn OFF the [LOCK] switch.Push the [CALL] switch to leave CALL CHANNEL mode.Push the TUNING CONTROL.	p. 27p. 26p. 17
6. Scan does not operate.	Squelch is open.Scan edge A equals B.All memory channels are programmed as the skip channel.	Set the squelch threshold point.Reset scan edges.Cancel the memory skip function in the desired channel.	p. 12p. 21p. 23
7. All programmed memories have been erased.	Data error occurred in the CPU RAM because of the following problems:- The backup battery is empty.- The CPU has been damaged by static.	Replace the backup battery.Reset the CPU.	p. 31p. 31

8-2 CPU RESETTING

(1) AUTOMATIC RESETTING

The CPU automatically resets under the following conditions when power is ON:

• The backup battery is empty.
• Static or a magnetic field has caused a data error in the CPU RAM.

(2) MANUAL RESETTING

NOTE: Resetting the CPU erases all programmed information.

1) Turn OFF power.
2) Push and hold the [SQL/MONITOR] control and [LOCK] switch.
3) Turn ON power to reset the CPU.
• "1295.000" appears.

(3) MINIMUM TUNING STEP SELECTION

To exchange 10 or 20 kHz tuning step increments for 12.5 or 25 kHz increments, (and vice-versa) reset the CPU.

- 10 kHz → 12.5 kHz

1) Turn OFF power.
2) Push and hold the [SQL/MONITOR] control and [HI/LO] switch.

3) Turn ON power.

- Tuning step increment is now 25 kHz. Select a 12.5 kHz tuning step increment, if required. (p. 13)

- 12.5 kHz → 10 kHz

1) Turn OFF power.
2) Push and hold the [SQL/MONITOR] control and [PRIO] switch.
3) Turn ON power.

- Tuning step increment is now 20 kHz. Select 10 kHz tuning step increment, if required. (p. 13)

8 MAINTENANCE

8-3 MISCELLANEOUS MAINTENANCE

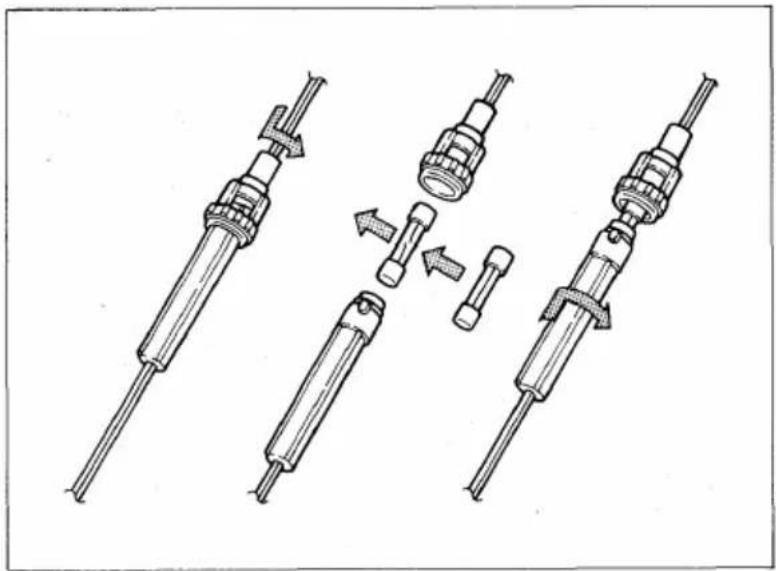

■ FUSE REPLACEMENT

Locate the problem if possible before replacing a blown fuse.

- DC line fuses : 10 A

Technical line drawing of four different mechanical components or assemblies, showing exploded and assembled views (no text or symbols present)

BACKUP BATTERY

The IC-1201A/E has a lithium backup battery for retaining memory information.

The usual life of the backup battery is approximately 5 years. When the battery is exhausted, the transceiver transmits and receives normally but the transceiver cannot retain memory information.

NOTE: Battery replacement should be done by an authorized Icom Dealer or Service Center.

CLEANING

When the transceiver becomes dusty or dirty, wipe it clean with a dry, soft cloth. Avoid the use of chemical agents such as benzine or alcohol as they may damage the surfaces of the transceiver.

ADJUSTMENT

Your IC-1201A/E has been thoroughly adjusted and checked at the factory before being shipped. Your transceiver warranty does not cover problems caused by unauthorized internal adjustments.

INSIDE VIEWS

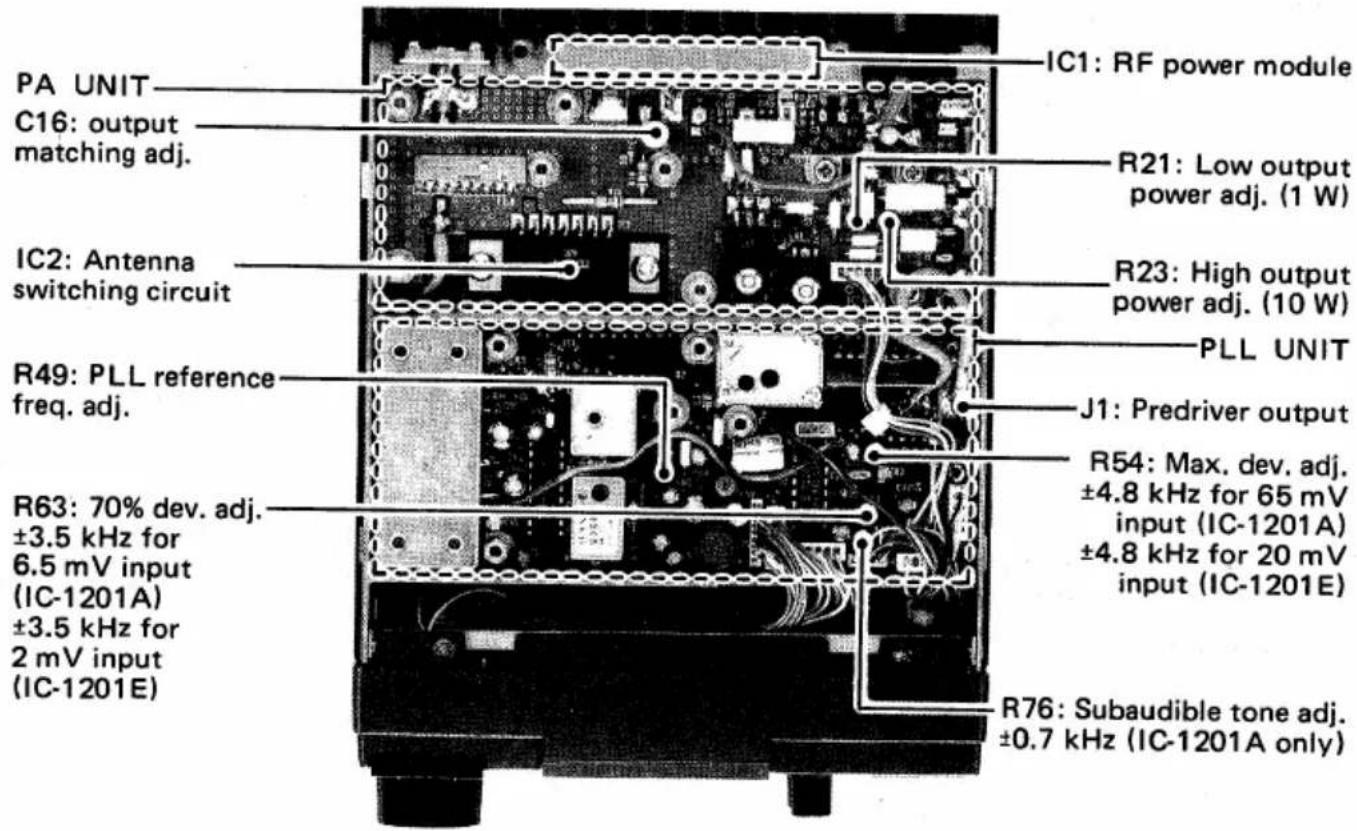

TOP VIEW (PA AND PLL UNITS)

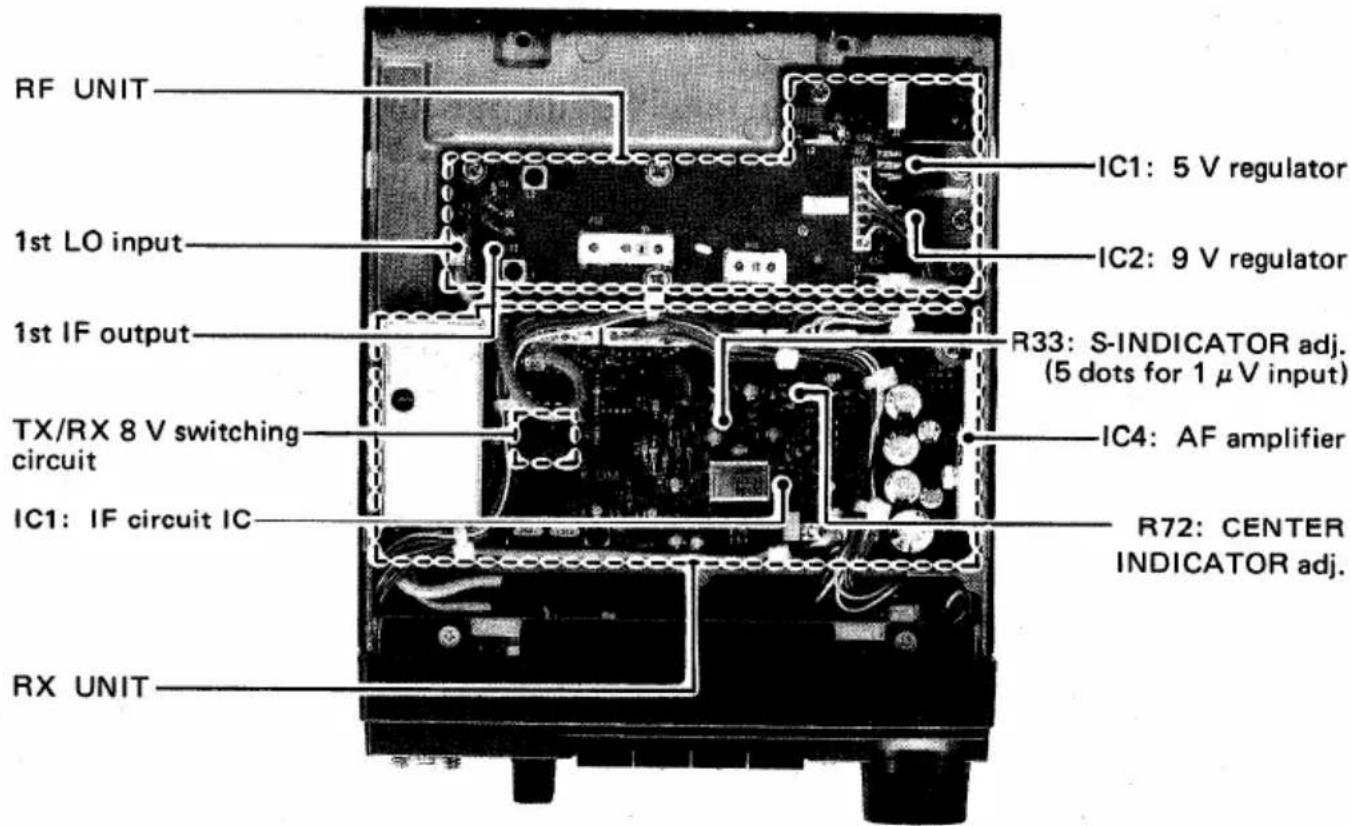

■ BOTTOM VIEW (RF AND RX UNITS)

10

SPECIFICATIONS

GENERAL

• Frequency coverage : 1240.0000 \~ 1300.0000 MHz
• Tuning step increment : IC-1201A 10 or 20 kHz IC-1201E 12.5 or 25 kHz
● Memory channels : 20 and 1 call channel
- Mode : FM (F3)
- Antenna impedance : 50 Ω (unbalanced)
• Power supply requirement : 13.8 V DC ±15 % (negative ground)
- Current drain (at 13.8 V DC) :

• Usable temperature range
  • Frequency stability
• Dimensions
• Weight

Transmit	HIGH	6.0 A
	LOW	3.0 A
Receive	Squelched	800 mA
	Max. audio output	1.2 A

: -10^ +60^ (+14^ +140^)
: ±10 ppm (-10°C \~ +60°C; +140°F \~ +140°F)
: 140(W) × 40(H) × 200(D) mm
5.5 (W) x 1.6(H) x 7.9(D) in (projections not included)

: 1.5 kg (3.2 lb)

■ TRANSMITTER

• Output power : HIGH 10 W
  LOW 1 W
• Modulation system : Variable reactance frequency modulation
  • Max. frequency deviation : ±5 kHz
• Spurious emissions : Less than -50 dB (at HIGH output power)
  Less than -40 dB (at LOW output power)
• Microphone impedance : 600 Ω

RECEIVER

- Receive system : Triple-conversion superheterodyne

• Intermediate frequencies : 1st 136.6 MHz

2nd 17.2 MHz

3rd 455 kHz

- Sensitivity : Less than 0.22 μV for 12 dB SINAD

- Spurious response rejection : Less than -60 dB (except 1/2 IF)

- Audio output power : More than 2.4 W at 10% distortion with an 8 Ω load

• Audio output impedance : 4 \~ 8 Ω

All stated specifications are subject to change without notice or obligation.

OPTIONS

Black rectangular monitor with a flat base, isolated on white background (no text or symbols)

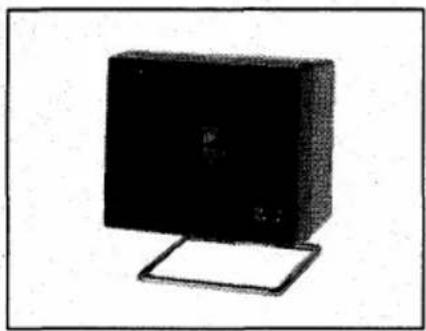

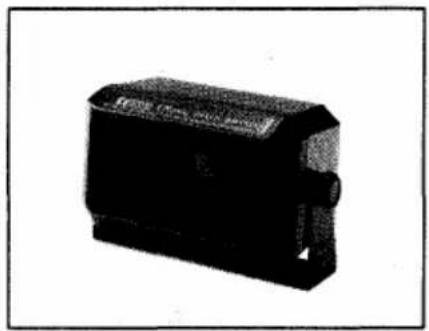

SP-7 EXTERNAL SPEAKER

Black rectangular electronic device with visible ports and label (no readable text or symbols)

SP-8 EXTERNAL SPEAKER

Black rectangular electronic component with a small protrusion and a small arrow pointing to its side (no visible text or symbols)

SP-10 EXTERNAL SPEAKER

Black electronic device with no visible text or symbols on its body, labeled 'Intel' and 'Power Supply Unit 10-24'

PS-45 AC POWER SUPPLY (13.8 V DC 8 A)

Black-and-white photo of a desktop microphone with a curved neck and coiled cable (no visible text or symbols)

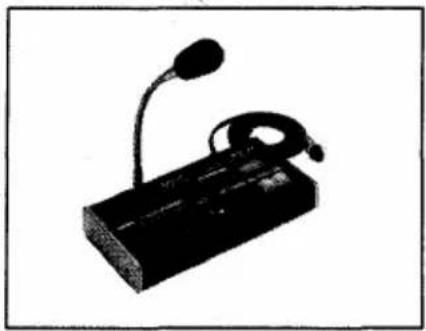

SM-8 DESK MICROPHONE

Black-and-white illustration of a desktop computer with a neck and microphone (no text or symbols)

SM-10 COMPRESSOR/GRAPHIC EQUALIZER DESK TOP MICROPHONE

An OPC-102 cable must be purchased separately.

Illustration of a medical device with a curved tube, black connectors, and a cable (no text or symbols)

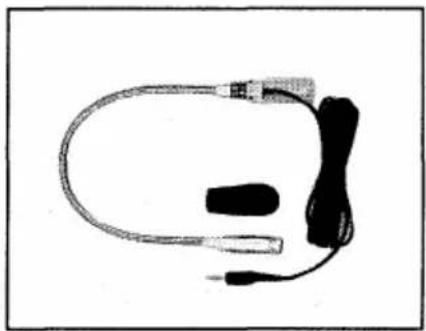

HS-15 FLEXIBLE MOBILE MICROPHONE

Black cable and plug device with connector (no text or symbols visible)

HS-15SB SWITCHBOX (for the HS-15)

Close-up of a black electronic component with visible pins and connectors (no text or symbols)

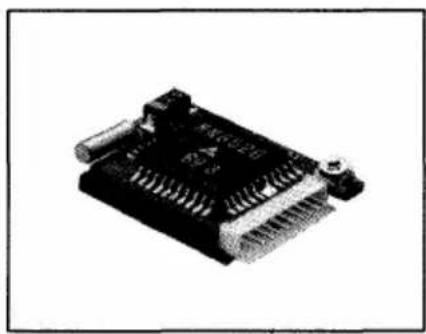

UT-40 TONE SQUELCH UNIT

AH-1200	1200 MHz MOBILE ANTENNA
AHB-1200	TRUNK MOUNT (for AH-1200)
WR-200	SWR & POWER METER (Optional WRC-1300 is necessary.)
WRC-1300	DIRECTIONAL COUPLER (1200 ~ 1300 MHz, max. 20 W)
HM-16	SPEAKER-MICROPHONE
HM-17	SPEAKER-MICROPHONE (Tone call switch included)

Count on us!

IC-1201A/E ERRATA

Please note the following 3 corrections in the IC-1201A/E instruction manual.

■ Page iii Second line from the bottom

WRONG

• HM-12 for IC-1201A (U.S.A. version)

RIGHT

• HM-14 for IC-1201A (U.S.A. version)

■ Page 5 2 - 4 MICROPHONE

Replace with the following information.

① UP/DOWN SWITCHES

Push either of these switches to change the operating frequency or memory channel.

Push and hold either of those switches to start scanning.

② PTT SWITCH

Push to transmit.

③ UP/DOWN ON/OFF SWITCH

Prevents accidental changes of the [UP] and [DN] switches.

④ DTMF KEYBOARD (HM-14 only)

Produces DTMF signals while transmitting.

⑤ TONE CALL SWITCH(HM-15 only)

Transmits a 1750 Hz tone signal.

■ Page 14 5-4 REPEATER OPERATION

Replace the tone information located at the bottom of the page with the following information.

• SUBAUDIBLE TONE

Push the [T/T.SQL] switch to turn the subaudible tone encoder ON and OFF.

"T" appears on the FUNC-TION DISPLAY.

(U.S.A. version)

•DTMF TONE

Push and hold the [PTT] switch and then push the required number on the microphone back panel.

(U.S.A. version)

• 1750 Hz TONE CALL

Push and hold the [TONE] switch on the microphone for approx. 1 \~ 3 sec. to transmit a 1750 Hz tone.

Line drawing of a device casing with buttons and mounting holes (no text or symbols)

(Europe version)
