Operation Guide 5434/5451

CASIO®

• Your watch may differ somewhat from the one shown in the illustration.
• Some models may use a combination of hands and rotating disks to indicate information. The word "hand" in this section is used to mean both analog hands and rotating disks.

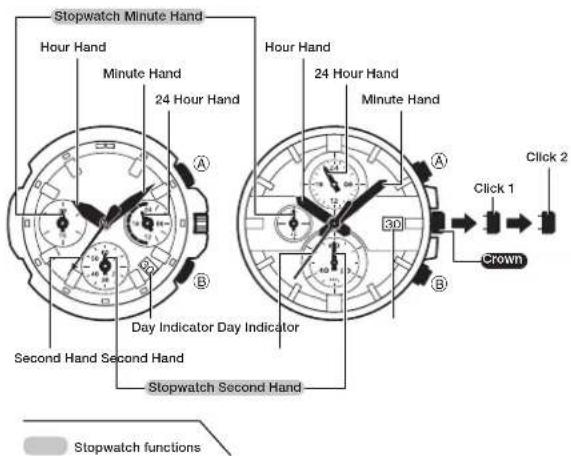

5434 5451

Stopwatch Minute Hand Hour Hand Minute Hand 24 Hour Hand Day Indicator Day Indicator Second Hand Second Hand Stopwatch Second Hand Hour Hand 24 Hour Hand Minute Hand A B C01 30 Click 1 Crown Click 2 Stopwatch functions

To adjust the time setting

When the second hand is at 12 o'clock, pull the Crown out to Click 2.

Rotate the Crown to change the time setting.

Push the Crown back in.

To change the day indicator setting

Pull the Crown out to Click 1.

Rotate the Crown to set the day.

Push the Crown back in.

Note

Note

• Take care that you set the correct AM or PM time.
- When changing the time, move the minute hand four or five minutes past your final setting, and then back it up to the setting you want.

The day indicator setting uses a 31-day month. Make adjustments for months of shorter lengths.

Avoid changing the day indicator setting between the hours of 9 p.m. and 1 a.m. Otherwise, the day indicator may not change correctly at midnight.

Crown Operations

Some water-resistant models (100 meters, 200 meters) have a screw-in crown. When you need to perform a crown operation, rotate it towards you to unscrew it. Then pull the crown out. Avoid applying undue force when pulling. The watch loses its water resistance while the crown is unscrewed. After performing a crown operation, fully screw the crown back in.

If your watch has a rotary bezel...

You can rotate the bezel to align its ▼ mark with the minute hand. Then you will be able to tell how much time has elapsed since aligning the ▼ mark.

Using the Stopwatch

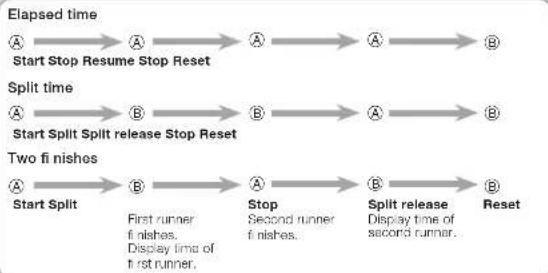

The stopwatch measures elapsed time in 1-second increments up to 29 minutes, 59 seconds.

    subgraph Elapsed time
        A2["A"] --> B2["A"] --> C2["A"] --> D2["B"]
    end

    subgraph Split time
        A3["A"] --> B3["B"] --> C3["B"] --> D3["A"] --> E3["B"]
    end

    subgraph Two finishes
        A4["A"] --> B4["B"] --> C4["A"] --> D4["B"] --> E4["B"]
    end

    A2 --> B2
    B3 --> C2
    C3 --> D3
    D3 --> E3
    E3 --> E4

    A2 --> B2
    B3 --> C2
    C3 --> D3
    D3 --> E3

    A2 --> B4
    B4 --> C4
    C4 --> D4
    D4 --> E4

    style A2 fill:#f9f,stroke:#333
    style B2 fill:#f9f,stroke:#333
    style C2 fill:#f9f,stroke:#333
    style D2 fill:#f9f,stroke:#333
    style E2 fill:#f9f,stroke:#333

Important!

- Do not operate the stopwatch with the crown pulled out.

Note

- An elapsed time operation will stop automatically at the end of 30 minutes.

Correcting the 0 Positions of the Hands

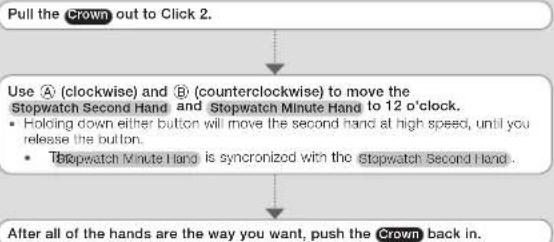

Perform the following procedure if the stopwatch hands do not return to their 0 (zero) positions when you reset the stopwatch.

Important!

- Timekeeping stops while the crown is pulled out. Correct the current time setting after performing the above operation.

Specifications

Accuracy: ± 20 seconds average per month

Stopwatch: Measuring Capacity: 29'59" (30 minutes)

Measuring Unit: 1 second

Measurements: Elapsed time; split time; two finishes

Battery: One silver oxide battery (Type: SR920SW)

Battery Life: Approximately 3 years (30 minutes stopwatch operation per day)
