BEDIENUNGSANLEITUNG ER 1621 T ELECTROLUX

I N F O

i

INSTRUCTION BOOKLET

REFRIGERATOR

ER 1621 T

CONTENTS

Warnings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 3
Conservation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 5
Positioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 5
Before using . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 5
The electrical connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 6
Door reversal directions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 7
Your appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 8
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 9
Setting the temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 9
Fresh food refrigeration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 9
Positioning the door shelves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 9
Defrosting. .page 9
Health and safety guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 10
Maintenance and cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 11
Internal cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 11
External cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 11
When the appliance is not in use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 11
Changing the light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 11
What happens if something goes wrong? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 12
Guarantee conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 13
Electrolux Service Centres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 14

TECHNICAL SPECIFICATIONS

DIMENSIONS	Height	85 cm
	Width	54.5 cm
	Depth	60 cm
POWER SUPPLY VOLTAGE AND FREQUENCY		220-240 V / 50 Hz
TOTAL POWER ABSORBED		110 W
AVERAGE DAILY UNITS ELECTRICITY		0.75 kWh
GROSS CAPACITY		160 l
NET CAPACITY		154 l

WARNINGS

IT IS MOST IMPORTANT THAT THIS INSTRUCTION BOOK SHOULD BE RETAINED WITH THE APPLIANCE FOR FUTURE REFERENCE. SHOULD THE APPLIANCE BE SOLD OR TRANSFERRED TO ANOTHER OWNER, OR SHOULD YOU MOVE HOUSE AND LEAVE THE APPLIANCE, ALWAYS ENSURE THAT THE BOOK IS SUPPLIED WITH THE APPLIANCE IN ORDER THAT THE NEW OWNER CAN GET TO KNOW THE FUNCTIONING OF THE APPLIANCE AND THE RELEVANT WARNINGS.

THESE WARNINGS ARE PROVIDED IN THE INTEREST OF SAFETY. YOU MUST READ THEM CAREFULLY BEFORE INSTALLING OR USING THE APPLIANCE.

■ This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the product.
■ Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.
■ This product should be serviced by an authorised Electrolux Service Centre, and only genuine spare parts should be used.
■ It is dangerous to alter the specifications or modify this product in any way.
■ Care must be taken to ensure that the appliance does not stand on the electrical supply cable.
- Electrolux domestic refrigerators, freezers and fridge/freezers are designed to be used specifically for the storage of edible foodstuffs only.
■ There are working parts in this product which heat up. Always ensure that there is adequate ventilation as a failure to do this will result in possible food loss. See installation instructions.
■ Parts which heat up should not be exposed. Wherever possible, the back of the appliance should be close to a wall but leaving the required distance for ventilation as stated in the installation instructions.
■ Before defrosting, cleaning or maintenance work is carried out, be sure to switch off the appliance and unplug it.
■ Frozen food must NOT be re-frozen once it has thawed out.
- Do not place carbonated or fizzy drinks in the freezer as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.

■ The cooling plate or refrigerated freezer shelves in this appliance contain channels through which the refrigerant passes. If these are punctured this would cause substantial damage to the appliance and result in food loss. DO NOT USE SHARP INSTRUMENTS to scrape off frost or ice. Under NO circumstances should solid ice be forced off the lining or shelves. Solid ice should be allowed to thaw, when defrosting the appliance. See Defrost instructions.
■ The appliance should be left for 2 hours after installation before it is turned on in order to allow the refrigerant to settle.
■ This appliance is heavy. Care should be taken when moving it.
- Do not remove items from the freezer if your hands are damp/wet, as this could cause skin abrasions or "frost/freezer burns".
■ Ice lollies can cause "frost/freezer burns" if consumed straight from the freezer.
■ Manufacturers' storage recommendations should be strictly adhered to. Refer to relevant instructions.
■ Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Refer to your local Electrolux Service Centre and always insist on genuine spare parts.

CONSERVATION

In the interests of the Environment:

When disposing of your old fridge, freezer or fridge/freezer.

Help to keep your country tidy – use authorised disposal sites for your old appliances.

For maximum efficiency:

Make sure that the appliance is cleaned properly.

Make sure that the door is closed properly.

Do not position the appliance near to sources of heat.

Do not over-fill your appliance, air MUST be allowed to circulate.

INSTALLATION

Warning

IF YOU ARE DISCARDING AN OLD APPLIANCE THAT HAS A LOCK OR CATCH ON THE DOOR, YOU MUST ENSURE THAT IT IS MADE UNUSABLE TO PREVENT YOUNG CHILDREN BEING TRAPPED INSIDE.

Depending upon the position you choose for your appliance, you may wish to reverse the way in which the door opens. To do this, refer to instructions on "Door reversal directions" paragraph.

Positioning

For this appliance to work efficiently, it should be located away from heat sources, e.g. cookers, radiators, boilers, direct sunlight etc. This also includes locations or rooms where the ambient temperature reaches above 32 degrees C or drops below 10 degrees (e.g. conservatories).

You should also ensure that air can circulate freely around the back and the top of the cabinet. There must also be at least 100 mm distance between the top of the cabinet and any overhanging kitchen furniture.

There should also be a gap of 25 mm either side and at the top of the appliance. Do not obstruct the space underneath. The back of the cabinet may be placed close to the wall but must not touch it. DO NOT install in places with restricted ventilation.

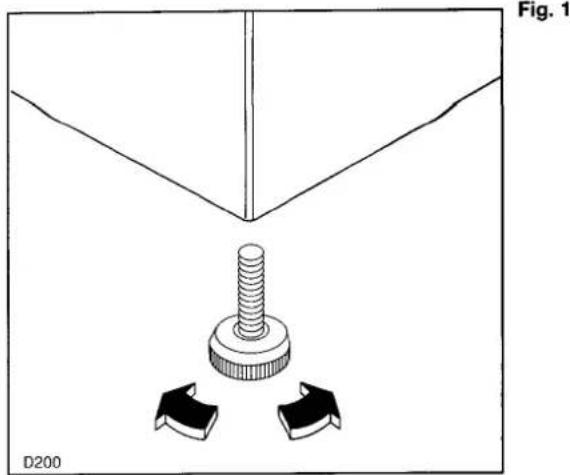

Adjust the level of the appliance by screwing out the adjustable foot, or feet, at the bottom of the cabinet using your fingers or a spanner (see Fig. 1).

Technical diagram showing a screw fastener inserted into a housing, with three directional arrows indicating movement (no text or symbols)

Before using

Remove all securing tapes. Wash inside the appliance with lukewarm water and bicarbonate of soda (5 ml. to 0.5 litre of water). Do not use soap or detergent as the smell may linger. Dry thoroughly.

The electrical connections

WARNING: THIS APPLIANCE MUST BE EARTHED.

The manufacturer declines any liability should this safety measure not be observed.

If the plug that is fitted to your appliance is not suitable for your socket outlet, it must be cut off and the appropriate plug fitted.

Remove the fuse from the cut off plug.

The cut off plug should then be disposed of to prevent the hazard of shocks in case it should be plugged into a 13amp socket in another part of your home.

Important

The wires in the mains lead are coloured in accordance with the following code:

Green and Yellow	- Earth
Blue	- Neutral
Brown	- Live

If you fit your own plug, the colours of the wires in the mains lead of your appliance may not correspond with the markings identifying the terminals in your plug, proceed as follows:

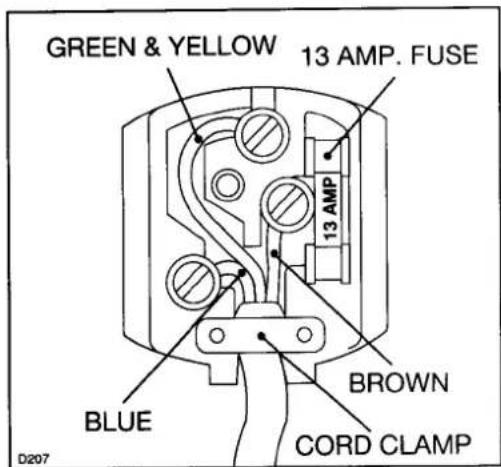

GREEN & YELLOW 13 AMP. FUSE 13 AMP BLUE BROWN CORD CLAMP D207

Fig. 2

Connect the Green and Yellow (earth) wire to the terminal in the plug which is marked with the letter «E» or the earth symbol ⏻, or coloured green and yellow.

Connect the blue (neutral) wire to the terminal in the plug which is marked with the letter «N» or coloured black.

Connect the brown (live) wire to the terminal in the plug which is marked with the letter «L» or coloured red.

The plug moulded onto the lead incorporates a fuse. For replacement, use a 13amp BS1362 fuse. Only ASTA or BSI approved fuses should be used.

The plug must not be used if the fuse cover/carrier is lost. The cover/carrier is indicated by the coloured insert at the base of the plug.

A replacement cover/carrier must be obtained from your local Electrolux Service Centre whose address is listed in the Customer Care Booklet which accompanies your instruction manual.

This appliance complies with the E.E.C. Directive No. 87/308 of 2.6.87 relative to radio interference suppression.

Please ensure that when the appliance is installed it is easily accessible for the engineer in the event of a breakdown.

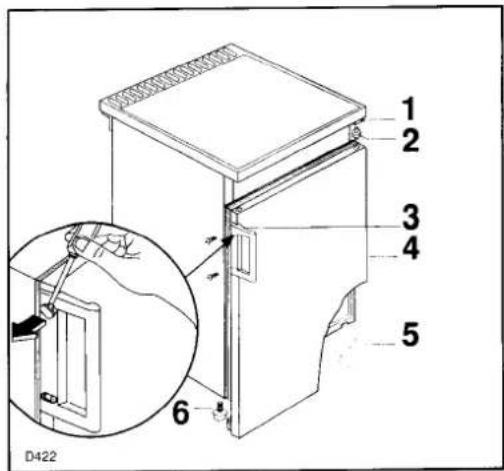

Door reversal directions (Fig. 3)

Before carrying out the operations described below, pull out the mains plug from the wall socket.

To carry out this reversal go through the following steps:

Gently lay the freezer on its back with the top held away from the floor by 5-8 cm (2-3 inches) of packing.

Remove the bottom door hinge (5).

Remove the freezer door (4) by opening it and pulling it gently downwards to remove it from the top hinge pin (2).

Unscrew the top hinge pin (2) from the top hinge (1) and replace it in the opposite hole on the left hand side.

Unscrew the foot at the base (6) of the appliance and refit it on the opposite side.

Refit the freezer door and the bottom hinge to the left hand side.

Remove the door handle (3) and fit it on the opposite side by removing the plastic plugs from the fixing holes and fitting them in the vacated holes on the opposite side. (Protect the paintwork with masking tape).

When the bottom hinge is screwed in, a certain amount of force is exerted on the screws.

It is therefore advisable to lubricate the screw tips before starting this operation.

Attention

After completion of the door reversal operation, verify that the door gasket is sealing onto the cabinet.

1 2 3 4 5 6 D422

Fig. 3

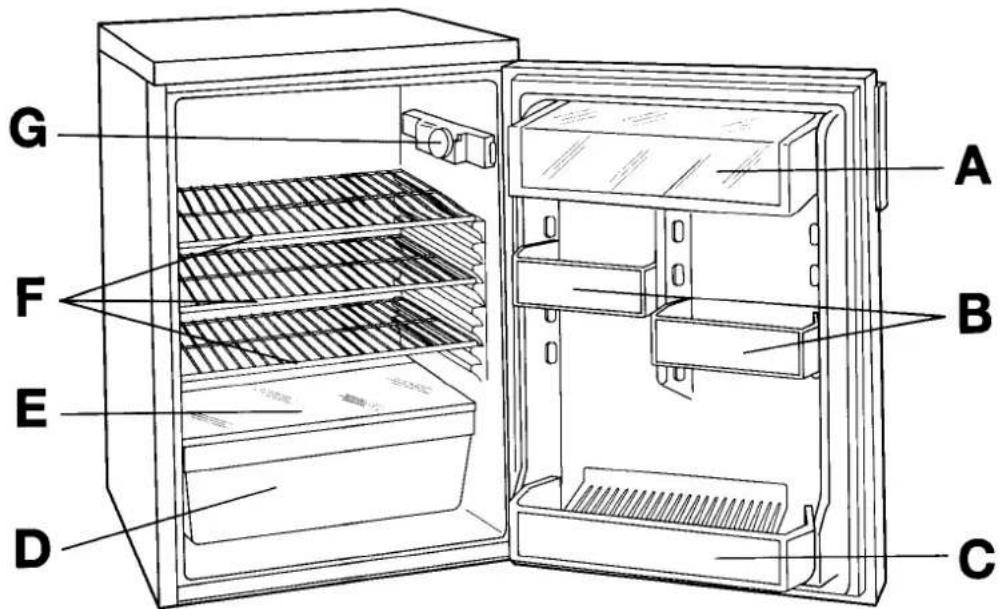

YOUR APPLIANCE

G F E D A B C

A - Dairy compartment
B - Can storage shelves with egg trays
C - Bottle storage shelf
D - Salad drawers
E - Glass shelf (for storing fresh meat)
F - Storage shelves
G - Thermostat control

OPERATION

Setting the temperature

The temperature inside the refrigerator is regulated by a thermostat with 6 temperature positions and one «OFF» (O) position.

Position 1 = minimum coldness

Position 6 = maximum coldness

Turn the thermostat dial to the required position; the intermediate position is usually the most suitable (3-4).

The thermostat setting can vary as the temperature inside the refrigeration compartment depends on the following factors:

• room temperature
• how often the door is opened
• how much food is stored
• position of the appliance

Important

If the fridge is not defrosting correctly, it is possible that because a very low temperature has been selected, the motor is working continuously, which prevents the defrost cycle from operating.

To ensure correct defrosting, a lower number should be selected on the thermostat and you should notice that the motor cuts out from time to time, which is correct.

If you wish to return to a lower temperature, turn the thermostat to a higher number, however you should turn the setting lower occasionally to allow automatic defrosting.

Fresh food refrigeration

To obtain the best performance, do not store warm food or evaporating liquids in the refrigerator; do cover or wrap the food, particularly if it has a strong flavour.

Do not cover the shelves with any protective material, such as paper, cardboard or plastic, which may obstruct the air circulation through them.

To help you use your refrigerator correctly, here are some more useful hints:

Raw meat (beef, pork, lamb & wild fowl): wrap in polythene bags and place on top of the salad crisper.

Meat can only be stored safely in this way for one or two days at the most.

Fruit & vegetables: these should be thoroughly cleaned and placed in the bottom salad crisper.

Butter & cheese: these should be placed in special air-tight containers or wrapped in aluminium foil or poly-thene bags to exclude as much air as possible.

Milk bottles: these should have a cap and should be stored in the bottle rack on the door.

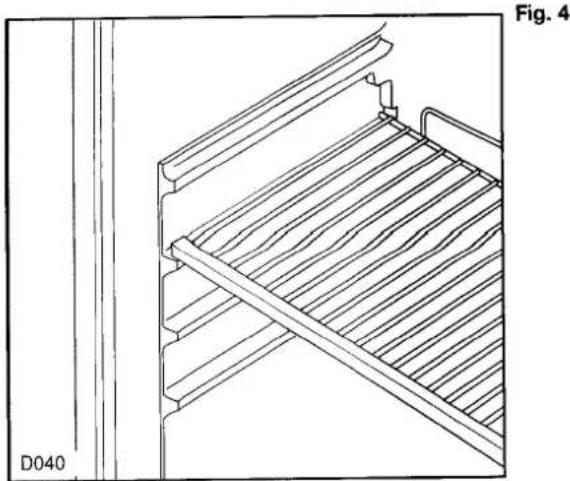

The walls of the refrigerator are equipped with runners so that shelves can be positioned as desired.

Technical line drawing of a wooden fence structure with diagonal bracing, labeled D040 (no text or symbols beyond label)

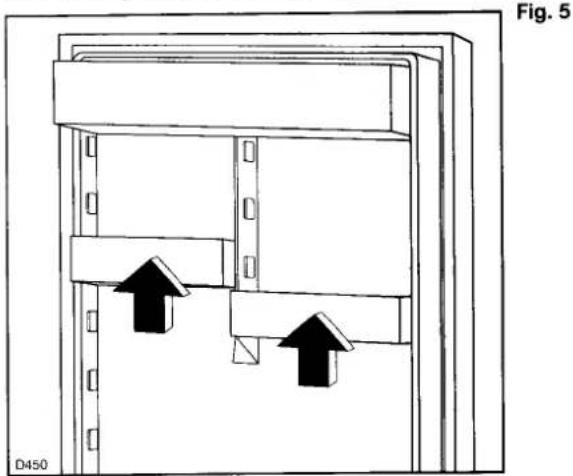

Positioning the door shelves

To permit storage of food packages of various sizes, the door shelf can be adjusted in height.

To do this proceed as per Fig. 5.

Diagram of a mechanical assembly with two upward-pointing arrows indicating motion or force directions (no text or symbols present)

Defrosting

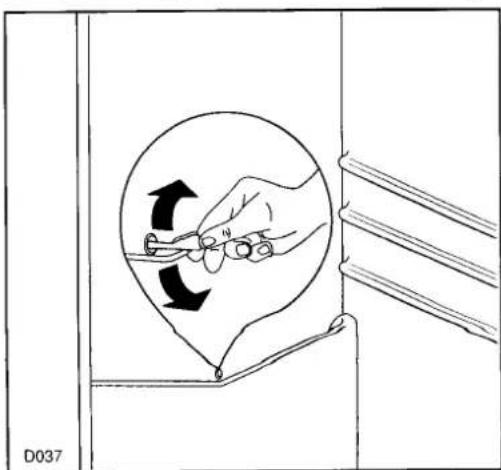

The refrigerator automatically defrosts every time the compressor stops. The water is discharged, via the pipe, into a tray located at the back of the appliance above the compressor, where it evaporates.

Important: To avoid defrost water overflowing into the fridge, periodically clean the water discharge hole in the centre of the V shaped drip collector at the back of the refrigerator compartment behind the fruit and vegetable drawers. Use the special cleaner provided which you will find already inserted into the discharge hole (Fig. 6).

Diagram showing a hand holding a tool inside a circular device with directional arrows, next to a bracket (no text or symbols)

Fig. 6

©

WHAT HAPPENS IF SOMETHING GOES WRONG?

Before contacting your local Electrolux Service Centre, check the following points:

The appliance does not work...

Check that:

■ There is power at the socket.
■ Ensure that there is not a power cut by checking the household lights.
■ The fuse has not blown.
■ The air circulation passages are not covered.
■ The thermostat dial is in the correct position.

Vibration or abnormal noises...

• You may hear faint gurgling or bubbling sounds when the refrigerant is pumped through the coils of tubing at the rear, to the cooling plate/evaporator. When the compressor is on, the refrigerant is being pumped round, and you will hear a whirring or pulsating noise from the compressor.
  A thermostat controls the compressor, and you will hear a faint "click" when the thermostat cuts in and out.

Traces of water on the bottom of the fridge compartment...

Check that:

■ The defrosting water discharge hole is not obstructed.

The light does not come on...

Check that:

■ The bulb is fitted correctly.
■ Replace the bulb if it has blown.

Fridge does not defrost...

Check that:

■ The thermostat setting is not too high (see page 9).

Other points to check...

Check that:

■ Have you turned the thermostat to the correct setting?
■ Have door been left open causing the temperature to rise?

If, after the above checks, there is still a fault, call your local Electrolux Service Centre. Please make sure you give the model and serial number of the appliance. This information can be found on the rating plate inside the fridge compartment on the left side behind the vegetable drawer, or on the guarantee certificate.

Original spare parts can be purchased from Electrolux Service Centres.

In-guarantee customers should ensure that the above checks have been made as the engineer will make a charge if the fault is not a mechanical or electrical breakdown.

Please note that proof of purchase is required for any in-guarantee service calls.

PEACE OF MIND FOR TWELVE MONTHS

Guarantee conditions

We, Electrolux, undertake that if, within twelve months of the date of the purchase, this Electrolux appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option, repair or replace the same FREE OF ANY CHARGE for labour, materials or carriage on condition that:

■ The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.
■ The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer's operating and maintenance instructions.
■ The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not authorised by us.

All service work under this guarantee must be undertaken by a Electrolux service representative or authorised agent.

Any appliance or defective part replaced shall become the property of Electrolux.

This guarantee is in addition to your statutory and other legal rights.

Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these hours in which case a charge will be made.

Exclusions

This guarantee does not cover:

■ Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or removable parts of glass or plastic, or vacuum cleaner drive belts, brushes or dust bags.
■ Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the United Kingdom.
■ Appliances found to be in use within a commercial environment, plus those which are the subject of rental agreements.
■ Products of Electrolux manufacture which are NOT marketed by Electrolux.
■ EEC Countries - The standard guarantee is applicable but is subject to the owner's responsibility and cost to ensure the appliance meets the standards set by the country to which the product is taken. Proof of purchase may be required. Electrolux Aftersales Service in the country concerned, will be pleased to advise further.

Electrolux After Sales Service Service Centre Addresses 21/03/94

CENTRE	POSTAL DISTRICTS	SERVICE APPTS.	ADDRESS
ABERDEEN	AB	0224-696569	Electrolux After Sales ServiceNortheast Appliance Service, 8 Cornhill ArcadeAberdeen, AB2 5UT
ARGYLLE	PA24-61	0505-321316	Electrolux After Sales ServiceT.D.C. Refrigeration, 40 Arran PlaceLinwood, Renfrewshire, PA3 3QU
BARNSTAPLE	EX18-23	0271-328826	Electrolux After Sales ServiceMc Bain Refrigeration, Unit 4 Upcott AvenuePottington Industrial Estate, Barnstaple, Devon, EX31 1HN
BORDERS	TD	0573-224411	Electrolux After Sales ServiceJames Stewart & Son, 2-8 Wood MarketKelso, Borders, TD5 7AX
BOURNE	PE1-15PE34,38NG31-34	0778-394424	Electrolux After Sales ServiceBourne Electrical, Pinfold Road, Manning Road Industrial EstateBourne, Linconshire, PE10 9HT
CANVEY	E EC EM N MW W WCAL CB HA HP LU MK SGUB WDIP NR CM CO IG RM SSPE16-19, 30-33, 35-37	081-443-3464081-965-9699081-965-96990268-6941440268-694144	Electrolux After Sales Service2-4 SandhurstKings Road, Canvey Island, SS8 0QY
CARDIFF	CF NP-1-4, 6, 9-44 SA1-18SA21-32	0222-460131	Electrolux After Sales ServiceGuardian Industrial Estate, Clydesmuir RoadTremorfa, Cardiff, CF2 2QS
CUMBRIA	CA	0288-594747	Electrolux After Sales ServiceETB Services, Carlisle Enterprise Centre, James Street,Carlisle, CA2 5AP
DUMFRIES &GALLOWAY	DG1-14	0387-65166	Electrolux After Sales ServiceAllan Crossan (service), 93 Irish Street, Dumfries, Scotland, DG1 2PQ
DUNDEE	DD1-14PH8-18	0250-876285	Electrolux After Sales ServiceI Brogan Domestic, 1 Lochinblair GardensDunkeld Road, Blairgowrie, Perthshire, PH10 6GA
FIFE	KY1-16PH1-7	0592-610590	Electrolux After Sales ServiceM & H Appliances, 8 Eddison House, Fullerton RoadQueensway Industrial Estate, Glenrothes, Fife, KY7 5QR
GLASGOW	G KA ML PA1-23	041-647-4381	Electrolux After Sales Service20 Cunningham Road, Clyde Estate, Rutherglen, Glasgow, G73 1PP
GUERNSEY	All Codes	0481-46931	Guernsey ElectricityPO Box 4., Vale Guernsey, Channel Island
HAVERFORDWEST	SA33-39SA41-44SA61-73	0473-710914	Electrolux After Sales ServiceC Butherway, 1 Church Road, HaverfordwestDyfed, Wales, SA62 6AG
HEREFORD	HR1-9 LD1-8 SY1, SY18NP5 NP7-8	0432-340334	Electrolux After Sales ServiceDomestic Repair Centre, Unit 3 Bank BuildingsCattle Market, Hereford, HR4 9HX
HULL	YO4 YO11-18 YO25HU1-19 DN14	0482-585678	Electrolux After Sales ServiceJohn Sizer, Unit 1 Boulevard Unit, Factory Estate, Hull, HU3 4AY
INVERNESS	IV1-28, 30-36, 40-49, 51-56PH19-26, 30-44 KW1-14	0463-792952	Electrolux After Sales ServiceHighland Appliances, Unit 3B3 Smithton Industrial EstateSmithton, Inverness, IV1 2PD
ISLE OF WIGHT	P030-41	0983-872552	Electrolux After Sales ServiceWyatts Electrical Service, 4 Forelands RoadBembridge, Isle of Wight, PO35 5XW
JERSEY	ALL CODES	0534-505050	Jersey Electricity CompanyPO Box 45 Queens Road, St Helier,Jersey, Channel Islands, JE4 8NY

Electrolux After Sales Service Service Centre Addresses 21/03/94

CENTRE	POSTAL DISTRICTS	SERVICE APPTS.	ADDRESS
LAMPETER	SA19,20 SA40 SA45-48SY23-25	0570-423020	Electrolux After Sales ServiceLampeter Domestic Appliance ServiceUnit 16 Lampeter Industrial Estate, Lampeter, SA4 7DY
LANCASTER	LA1-23	0772-316175	Electrolux After Sales ServiceNL Services, Unit 333 Ranglet Road, Walton SummitBamber Bridge, Preston, Lancashire, PR5 8AR
LEEDS	BD DN1-7, 10-12 HD HG HXLS S WF YO1-3, 5-8 DENG-1-22, 25	0532-608511	Electrolux After Sales Service64-66 Cross Gates RoadLeeds, LS15 7NN
LINCOLN	DN21 sub codes 1,2 & 5 onlyLN 1;2,4-6LN3 sub codes 4,5 onlyLN8-10 NG23,24 PE20-25	0522-514603	Electrolux After Sales ServiceBrian Hudson, Unit 8 Stonefield ParkClifton Street, Lincoln, LN5 8AA
NEWTON ABBOTT	EX1-17PL1-9,16,19-21, TQ	0626-65909	Electrolux After Sales ServiceSouth West Domestic Service, Unit 2 Zealley Industrial EstateKingsteighnton, Newton Abbott, South Devon, TQ12 3SJ
NORTH WALES	LL	0745-591616	Electrolux After Sales ServiceGMS (Cymru), Unit 2 Coed - Parc, Abergle RoadRhuddlan, Clwyd, Wales, LL18 5UG
NORTHERN	DL TS DH YO21,22DH NE SRFY PR WN BBBL M OL SKCH CW L WA	0325-301400091-493-20250282-7746210282-774621051-2541724	Electrolux After Sales ServicePO Box 40 Preston Road, Aycliffe Industrial EstateNewton Aycliffe, Co. Durham, DL5 6XA
NORTHERNIRELAND EAST	BT1-30, 36-57, 63-67	0232-741742	Electrolux After Sales ServiceUnit C3, Edenderry Industrial Estate326, Crumlin Road, Belfast, BT14 7EE
NORTHERNIRELAND WEST	BT31-35, 60-62, 68-82, 92-94	0861-510400	Electrolux After Sales ServiceG & O (Armagh) Service, Owenmore House, Kilwee Business Park, Upper Dunmurray Lane, Belfast, BT17 OHD
NUNEATON	B DY ST TFWR WS WVGL NN OX SNCV LE	021-358-7076021-358-50510993-7044110203-354424	Electrolux After Sales ServiceUnit 23-24 Alliance Business Park, Townsend Drive,Nuneaton, Warwickshire, CV11 6RX
REDRUTH	TR1-20,26,27PL10-15,17,18,22-35	0209-314407	Electrolux After Sales ServiceCornwall Domestic Service, Unit 7D Pool Industrial Estate, Wilson Way, Redruth, Cornwall, TR15 3QW
SHREWSBURY	SY1-6 SY8-17 SY19-22	0743-450279	Electrolux After Sales ServiceBLI Service, 6 Harlescott Bam, Harlescott Lane,Shrewsbury, Shropshire, SY1 3SY
SOUTHHUMBERSIDE	DN8,9 DN15-20DN21 subcodes 3,4 onlyDN31-40 - LN3 subcode 6 onlyLN11-13	0472-267978	Electrolux After Sales ServiceJohn Robinson (Electrical), Unit 74 New Enterprise Centre, King Edward Street, Great Grimsby, DN31 3JP
SOUTHERN	BN16-18, GU27, BH DT SO SPBA BS PO1-22 TA TR21-25	0705-6674110272-211876	Electrolux After Sales ServiceLimberline Road, Hilsea, Portsmouth, Hampshire, PO3 5JJ
TONBRIDGE	CT DA ME SL GU1-26 RG TNBN1-15 RHTW BR CR SE SW SM KT	0732-3577220732-357722081-6589069	Electrolux After Sales Service61-63 High Street, Tonbridge, Kent, TN9 1SD
