Panasonic

Operating Instructions

Colour Television

TX-25MD1

TX-21MD1

(U.K. Standard)

Silhouettes of people standing in front of a large abstract geometric shape (no text or symbols)

Dear Panasonic Customer,

Welcome to the Panasonic family of customers. We hope that you have many years of enjoyment from your new colour television. This is a very advanced television, however, the Quick Start Guide will tell you how to have the TV operating quickly; you can then read the following pages to fully utilise the advanced features.

CONTENTS

Warnings and Precautions....2

Accessories 3

Battery Installation ....3

Quick Start Guide 4

Basic Controls 6

On Screen Display Menus .... 7

Main Menu....9

Sound Menu 10

Setup Menu ....11

Tuning Menu 12

Manual Tuning 13

Auto Setup Menu 14

Station Naming 15

Programme Edit 16

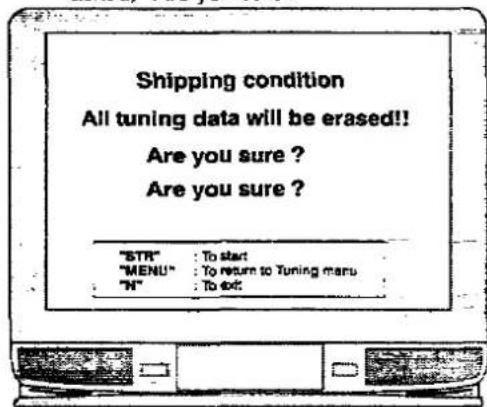

Shipping Condition 18

AV Select and Setup 19

Telotext Operation 20

VCR and Satellite Receiver Guidance ... 23

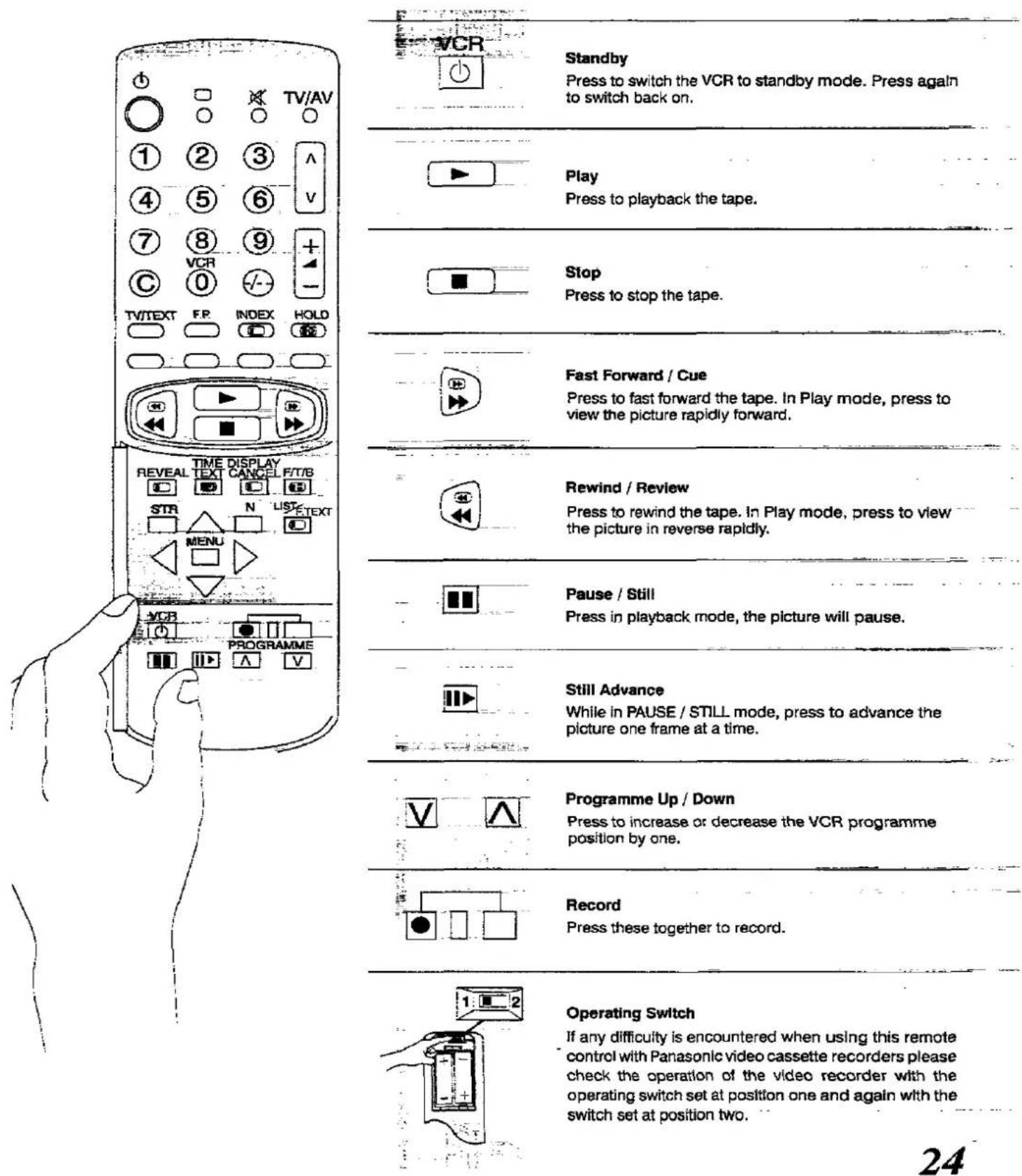

VCR Operation 24

Audio / Video (AV) Connections ..... 25

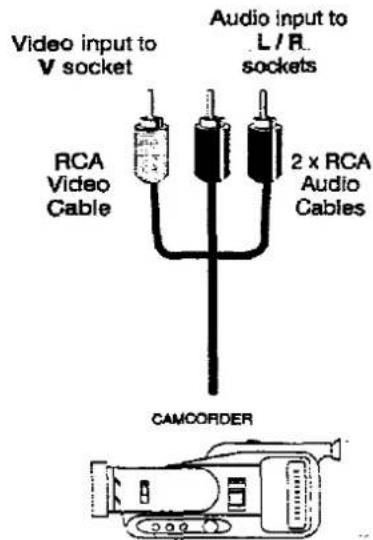

Via the front AV3 Video and Audio (RCA) 25

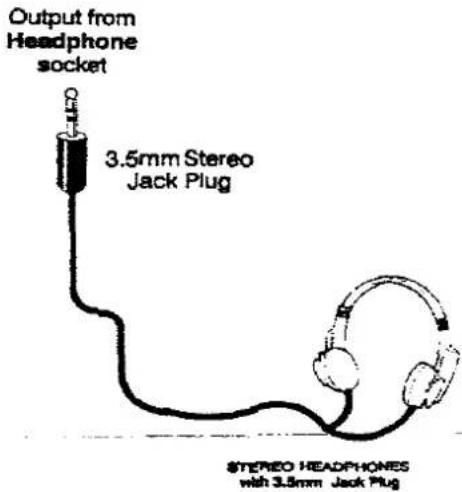

Connection of Stereo Headphones ..... 25

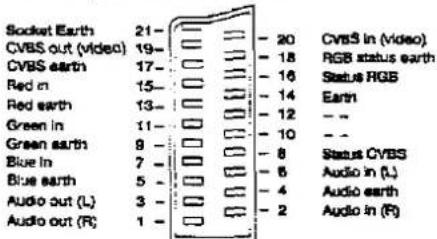

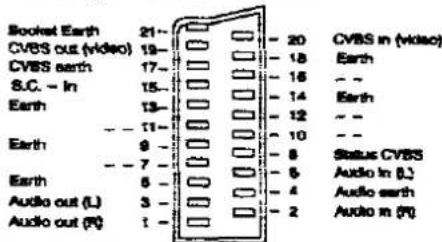

SCART Terminal Information ..... 25

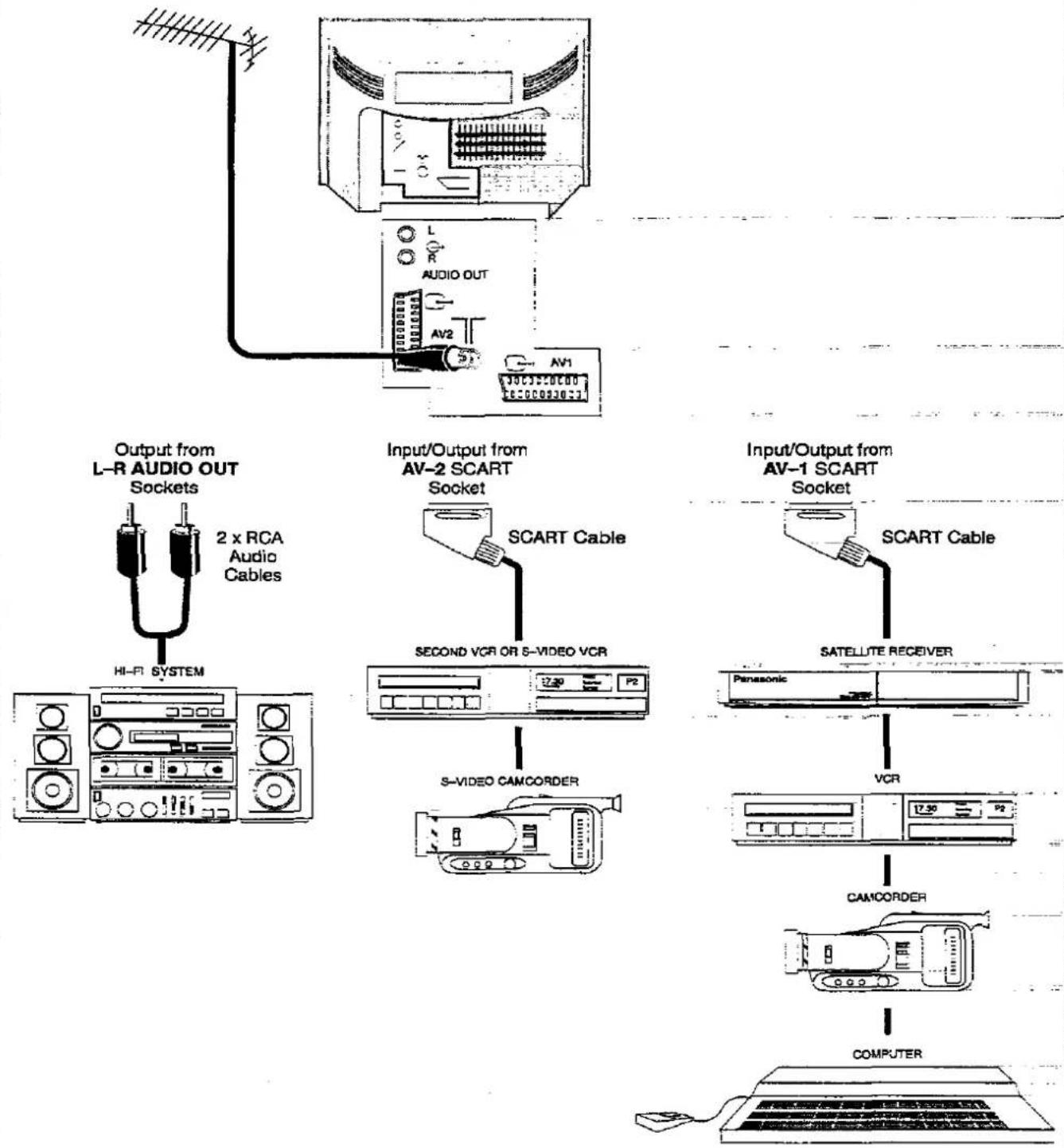

Via the Rear AV1 / AV2 21 Pin (SCART) and

RCA Audio Out 26

Trouble-shooting 27

For your guidance .... 28

Specifications 28

• This TV is designed to operate on A.C. 220 - 240V, 50Hz.
- This TV is capable of receiving the following transmission standard, PAL I.
- To prevent damage which might result in electric shock or fire, do not expose this TV set to rain or excessive moisture.
• WARNING : HIGH VOLTAGE !!!
Do not remove the rear cover as live parts are accessible when it is removed. There are no user serviceable parts inside.
- Avoid exposing the TV set to direct sunlight and other sources of heat.
- Remove the mains plug from the wall socket when the TV set is not used for a prolonged period of time.

• CABINET AND PICTURE TUBE CARE
Remove the mains plug from the wall socket. The cabinet and picture tube can be cleaned with a soft cloth moistened with mild detergent and water. Do not use solutions containing benzol or petroleum. TV sets can produce static electricity, care must be taken whenever touching the TV screen.
- Adequate ventilation is essential to prevent failure of electrical components. We recommend that a gap of at least 5cm is left all around this TV even when it is placed inside a cabinet or between shelves.

FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY

This appliance is supplied with a fitted three pin mains plug for your safety and convenience. A 5 amp fuse is fitted in this plug. If the fuse is replaced then the replacement fuse must be 5 amp rated and should be approved by ASTA or BSI to BS1362.

Check for the ASTA mark

or the BSI mark

on the body of the fuse.

If the fitted plug has a removable fuse cover you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained. Replacement fuse covers can be purchased through your local Panasonic dealer.

If the fitted plug is unsuitable for the socket outlet in your home then the fuse should be removed and the plug cut off and disposed of safely. There is danger of severe electrical shock if the cut off plug is inserted into any 13 amp socket.

If a new plug is to be fitted please observe the wiring code as shown below. If in any doubt please consult a qualified electrician.

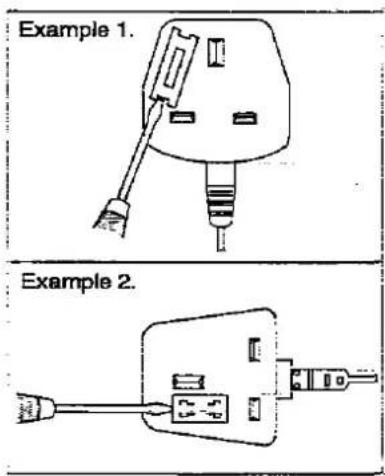

How to replace the fuse (for plug type shown in example 1):

Lift out the removable fuse compartment with a screwdriver and replace the fuse, then refit securely into the mains plug (See example 1).

How to replace the fuse (for plug type shown in example 2):

Lift open the fuse compartment, in the mains plug, with a screwdriver, and replace the fuse, then press the fuse cover down securely. (See example 2).

Example 1. Example 2.

IMPORTANT: The wires in the mains lead of this appliance are coloured in accordance with the following code:

BLUE : NEUTRAL

BROWN : LIVE

As the colours of the wires in the mains lead of this appliance may not correspond to the markings identifying the terminals in your plug, proceed as follows:—

1. The BLUE wire must be connected to the terminal marked 'N' or coloured black.
2. The BROWN wire must be connected to the terminal marked 'L' or coloured red.

IMPORTANT NOTE: Under no circumstances should either of these wires be connected to the Earth terminal of the three pin plug, marked with the letter 'E' or the earth symbol.

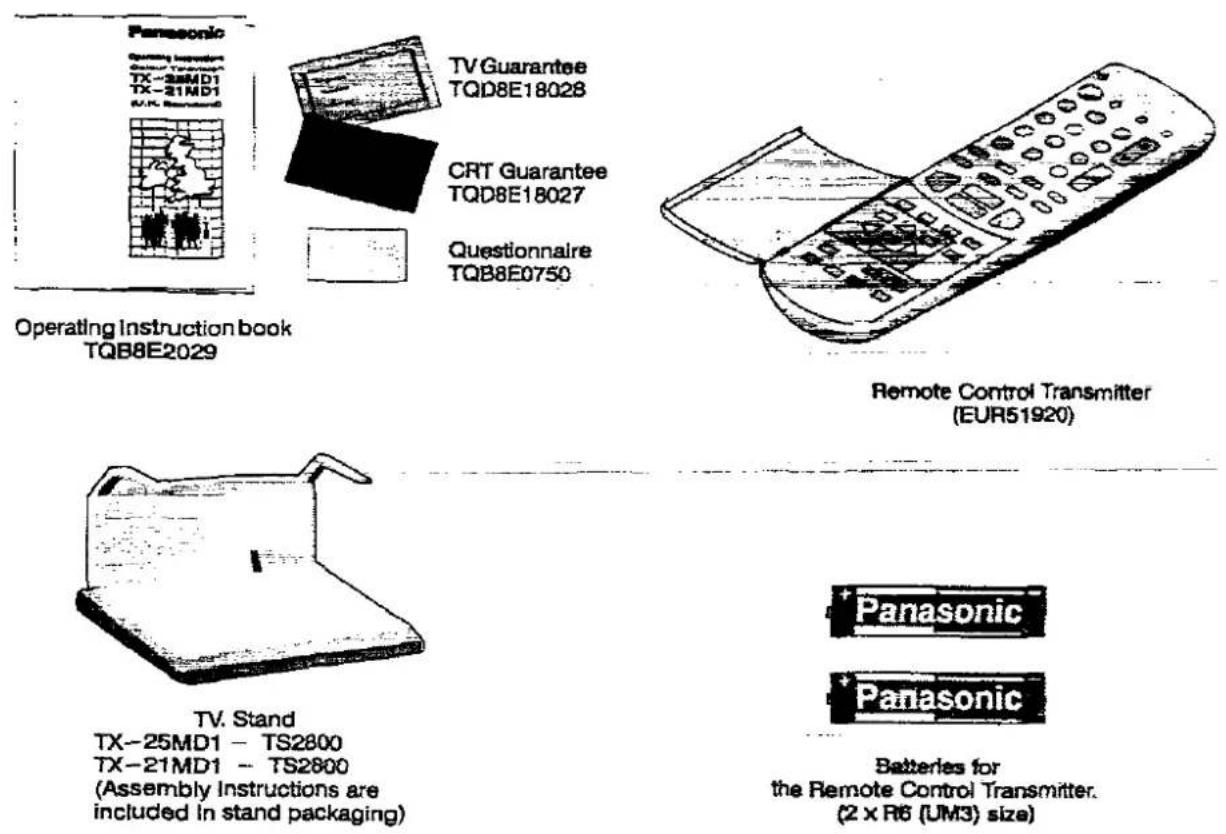

Check that you have the accessories and items shown

Panasonic

Panasonic

FITTING REMOTE CONTROL BATTERIES

Line drawing of a hand holding a smartphone with a small object inserted (no text or symbols)

Slide off the battery cover

Hand holding a battery with a hand operating it, no text or symbols visible

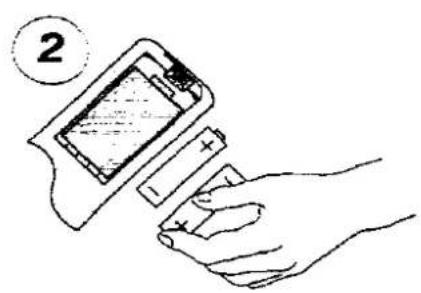

Insert batteries - note correct polarity

3

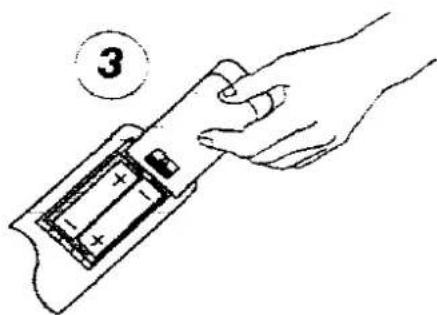

Replace the cover

Note:

■ Make sure that the batteries are fitted the correct way round.
- Do not mix old batteries with new batteries. Remove old, exhausted batteries immediately.
- Do not mix different battery types, i.e. Alkaline and Manganese. Do not use rechargeable (Ni-Cad) batteries.

1.2.3....

Panasonic

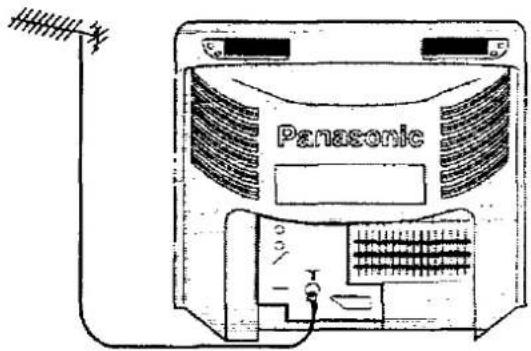

TV only

Connect Aerial co-axial cable direct to TV RF IN socket.

Panasonic VCR RF OUT RF IN DCR: 9220111 Ov Ov Ov Ov B

OR

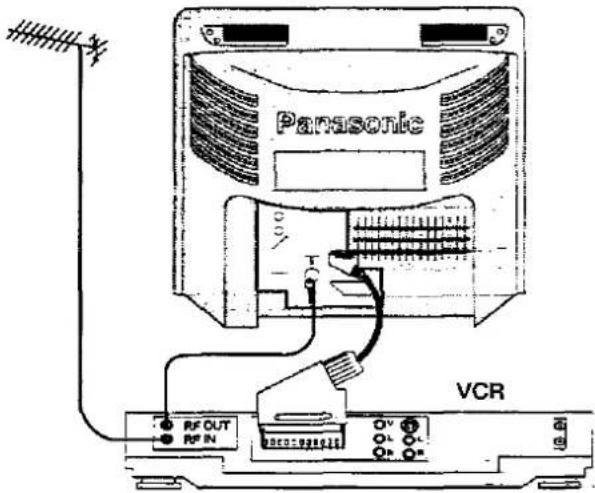

USING A VCR

Connect Aerial co-axial cable to RF Input socket of VCR and a RF coaxial cable from VCR RF Out socket to TV RF IN socket.

The VCR can also be connected to the TV using a SCART to SCART lead if you are using a stereo VCR. Use the AV1 21 pin terminal for a VCR. To connect an S-Video VCR use the AV2S 21 pin terminal.

Further information for VCR and Satellite Receiver installation with this TV can be found on page 23.

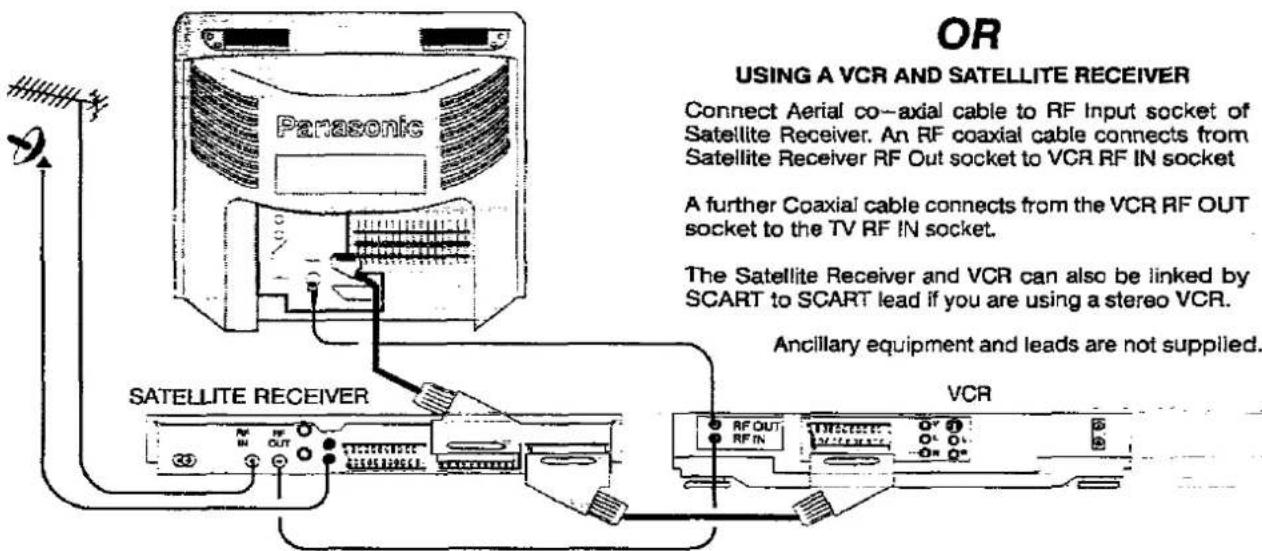

OR USING A VCR AND SATELLITE RECEIVER Connect Aerial co-axial cable to RF Input socket of Satellite Receiver. An RF coaxial cable connects from Satellite Receiver RF Out socket to VCR RF IN socket A further Coaxial cable connects from the VCR RF OUT socket to the TV RF IN socket. The Satellite Receiver and VCR can also be linked by SCART to SCART lead if you are using a stereo VCR. Ancillary equipment and leads are not supplied.

OR

USING A VCR AND SATELLITE RECEIVER

Connect Aerial co-axial cable to RF Input socket of Satellite Receiver. An RF coaxial cable connects from Satellite Receiver RF Out socket to VCR RF IN socket

A further Coaxial cable connects from the VCR RF OUT socket to the TV RF IN socket.

The Satellite Receiver and VCR can also be linked by SCART to SCART lead if you are using a stereo VCR.

Ancillary equipment and leads are not supplied.

Illustration of a hand inserting a device into a computer monitor (no text or symbols)

Switch ON your VCR *1.

Switch ON your Satellite Receiver*2

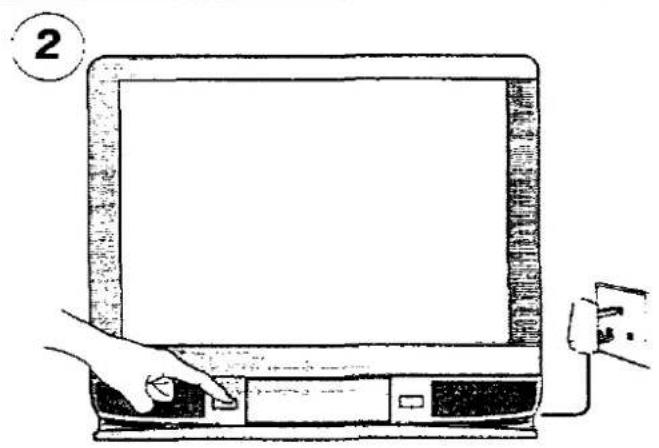

Plug the TV into mains socket and switch on.

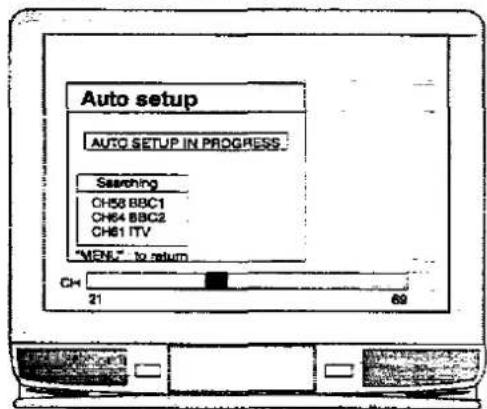

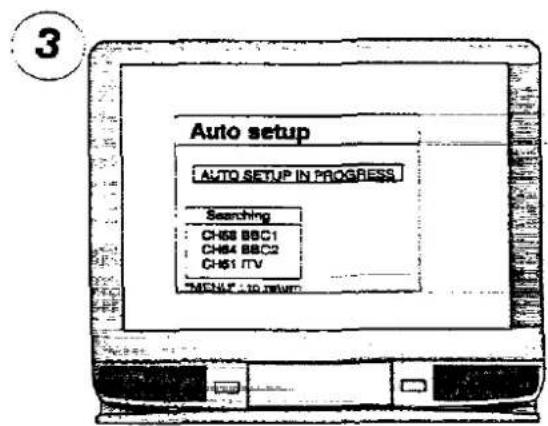

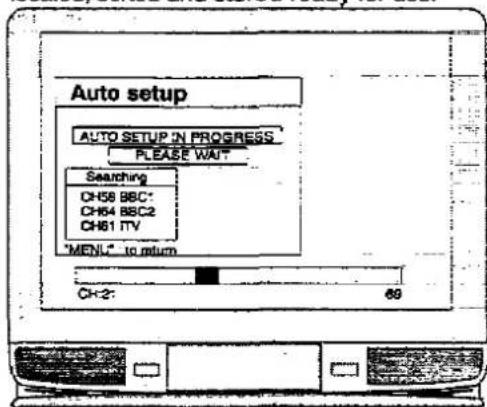

3 Auto setup AUTO SETUP IN PROGRESS Searching CH58 BBC1 CH64 BBC2 CH61 ITV "MOHIL" to return

Programmes will appear immediately if your dealer has programmed the TV for you.

If the TV has not been programmed for you then Auto setup will begin. TV stations will be located, sorted Into order and stored ready for use ^4 .

*4 Switch the VCR Test Signal 'off'.

... READY TO GO!

*1 We recommend that you have the VCR's test signal 'on' – refer to your VCR Instruction book to locate the VCR Test Signal switch (usually on the rear of the VCR).
*2 We recommend that your Satellite Receiver is set to either SKY ONE or SKY NEWS to ensure reliable tuning.
*3 The sorting order depends upon the TV signal, the broadcasting system, and reception conditions. If the order is not to your preference it can be rearranged. Refer to the Programme Edit menu – see page 16 for details.
*4 If your VCR Test Signal appears as a programme position it can be deleted using the Programme Edit menu.

IT IS IMPORTANT THAT you use only programme position '0' for your VCR. If your VCR does not appear to operate on programme position '0' (the VCR position), refer to page 23 for guidance.

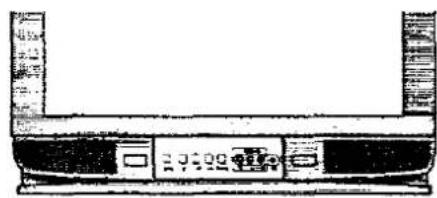

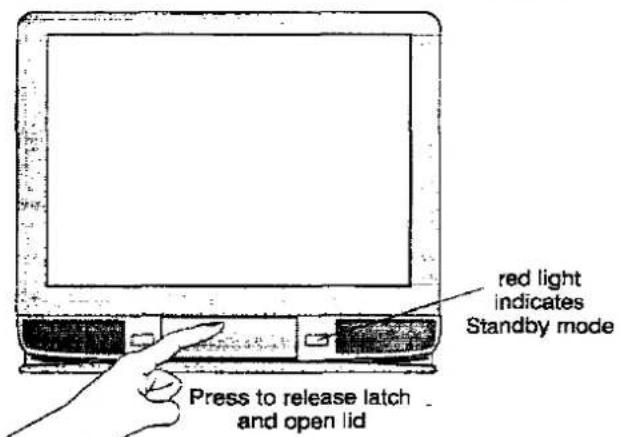

red light indicates Standby mode Press to release latch and open lid

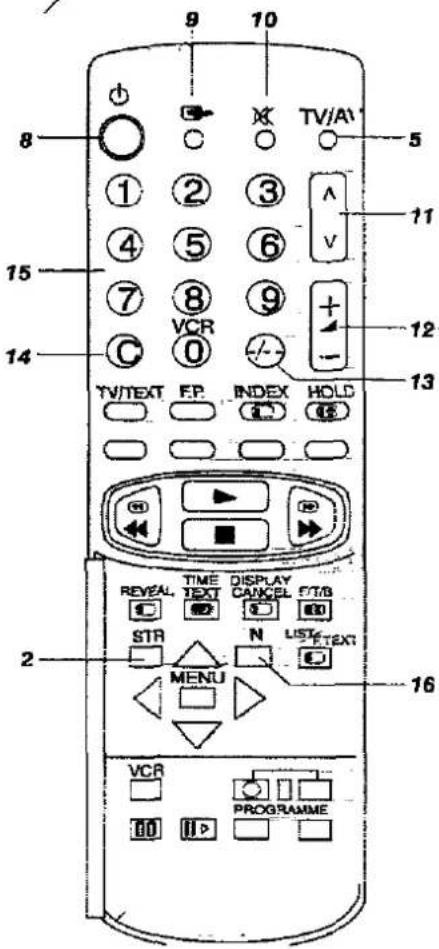

1 2 3 4 5 6 AV3-6 V A TV-AV V R

9 10 8 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ C VCR TV/TEXT FP. INDEX HOLD REVEAL TIME DISPLAY TEXT CANCEL FTB STR N LISTF TEXT MENU 2 VCR PROGRAMME 11 5 12 - 13 14 15

1 Mains On/Off switch

2 Normalisation Store (STR) adjust the Volume, Bass, treble, Colour, Brightness, Sharpness, (Tint in M.NTSC / NTSC), to your normal settings. Press STR when either the Main or Sound menus are displayed to store them in memory.

3 Function select (F) Displays the on screen functions. Press repeatedly to select from the available functions of Volume, Brightness, Contrast, Brightness, Colour, Sharpness, Bass, Treble and Manual Tuning (see note below).

4 + / - |A |V Increase or decrease the channel settings. If a function is displayed you can adjust the level.

5 TV/AV switches between TV and Audio/Video operations.

6 Headphone socket for connection of stereo headphones with 3.5mm plug.

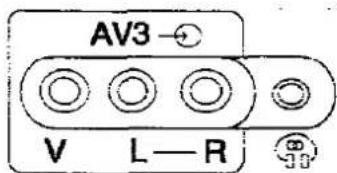

7 RCA Audio/Video sockets for the connection of Audio/Video equipment, e.g. VCR.

8 Standby to switch TV on or off Standby mode. Set can also be switched on from Standby by pressing a 0-9 programme button or by pressing + / - /ʌ /ʌ on the front control panel. NOTE TV cannot be switched on using the Mains On/Off switch if it is in Standby mode.

9 Status displays the Programme position, name and channel number also the time and Teletext system (if available) and Audio Systems.

Press ◀ ▶ to display complete Programme / Channel table.

10 Sound Mute to instantly mute or restore sound. Screen will display 'Mute' if in use.

11 Programme Up/Down to increase or decrease programme position.

12 + / - Increases or decreases the Volume

13 Programme position to select programme positions from 10–60.

14 Direct channel access allows direct access to local channels via the 0-9 keys.

15 0-9 to select programme numbers or Teletext pages.

16 Normalisation (N) to recall the levels previously set with the store (STR) key.

Although you will normally use tuning methods provided by the tuning menus that appear later in this book, it is possible to operate basic tuning control by repeatedly pressing the 'F' key on the front panel until the Tuning mode is reached. Pressing the front panel - or + keys will lead to the Tuning procedure menu. Following the on screen instructions will allow you to tune and save any programme positions.

Tuning procedure (Front panel)
- +	To start search
"TV / AV"	Select programme position
"STR"	To store position
"F"	To exit

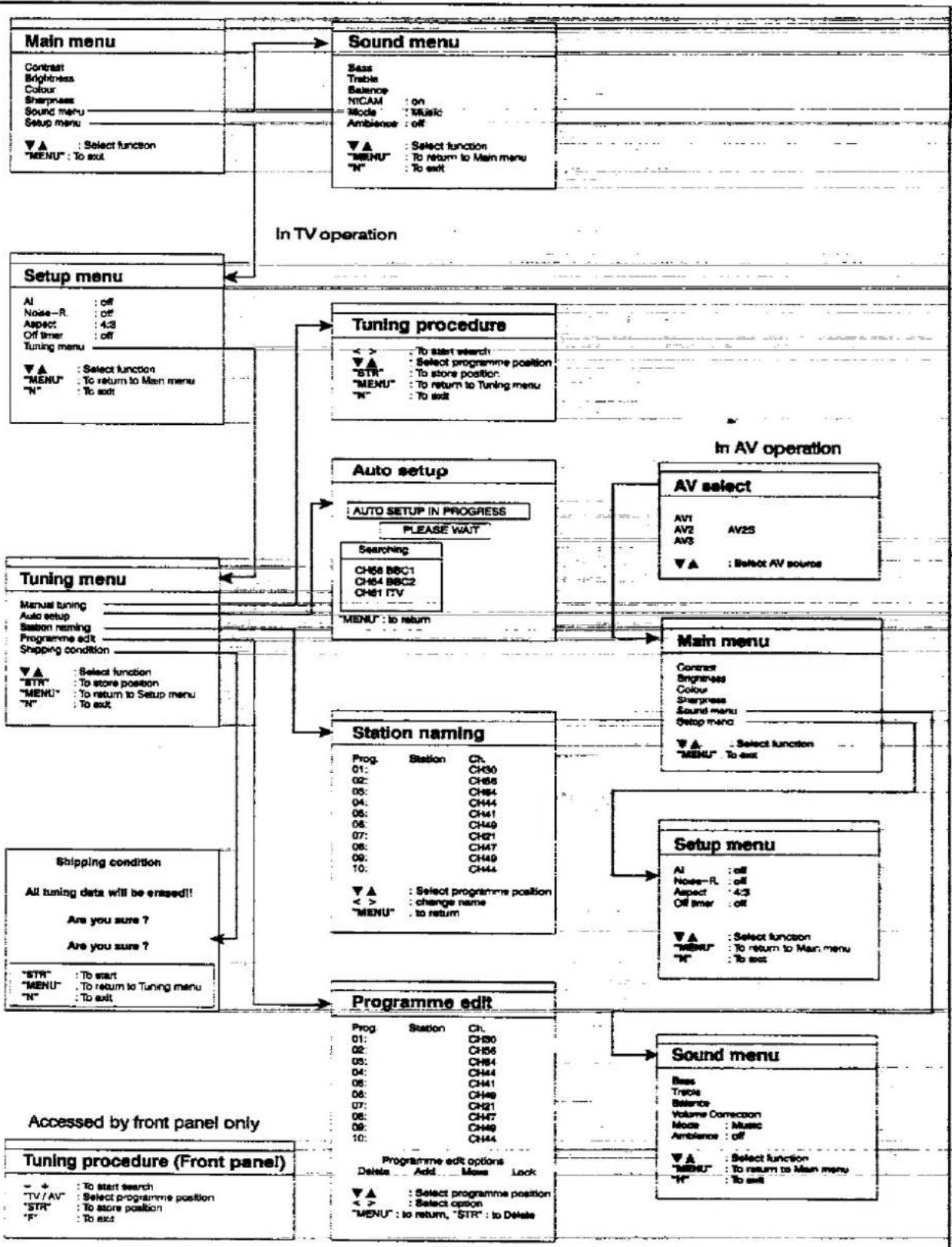

ON SCREEN DISPLAY MENUS

The advanced features of this television are set up using on-screen menus, which are contained in the menu structure starting from the Main menu as shown below.

    subgraph In_TV_operation
        B -->|Select function| K["Sound menu"]
        B -->|Select programm position| L["Setup menu"]
        B -->|Select option| M["Programme edit options"]
    end

    subgraph In_AV_operation
        D -->|Select programm position| N["AV select"]
        D -->|Select programm position| O["Main menu"]
        D -->|Select programm position| P["Setup menu"]
    end

    subgraph AccessedByFrontPanelOnly
        I -->|Select programm position| Q["Sound menu"]
        I -->|Select programm position| R["Programme edit options"]
    end

    style A fill:#f9f,stroke:#333
    style J fill:#f9f,stroke:#333

This TV has a comprehensive system of On Screen Display menus to access adjustments and options.

All menus (except AV select) start from the Main menu. If you follow the on screen instructions you will be able to move to further menus. The menu structure is shown on the previous page.

TV/AV ① ② ③ ^ 4 ⑤ ⑥ ⑦ ⑧ ⑨ + C VCR 0 -/- - TV/TEXT F.P. INDEX HOLD STR N MENU VAME

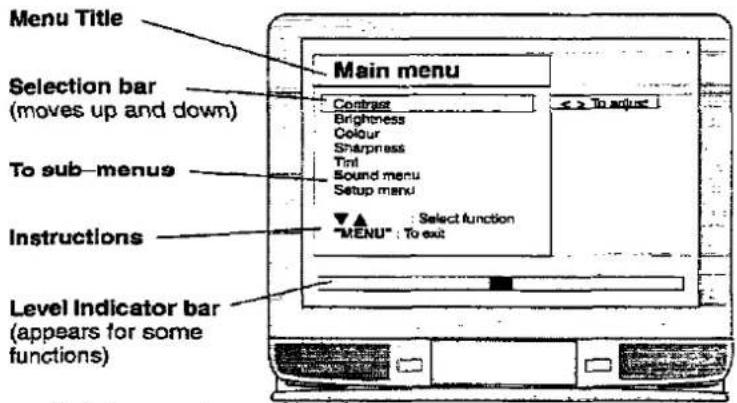

Menu Title Main menu Selection bar (moves up and down) To sub-menus Instructions Level Indicator bar (appears for some functions)

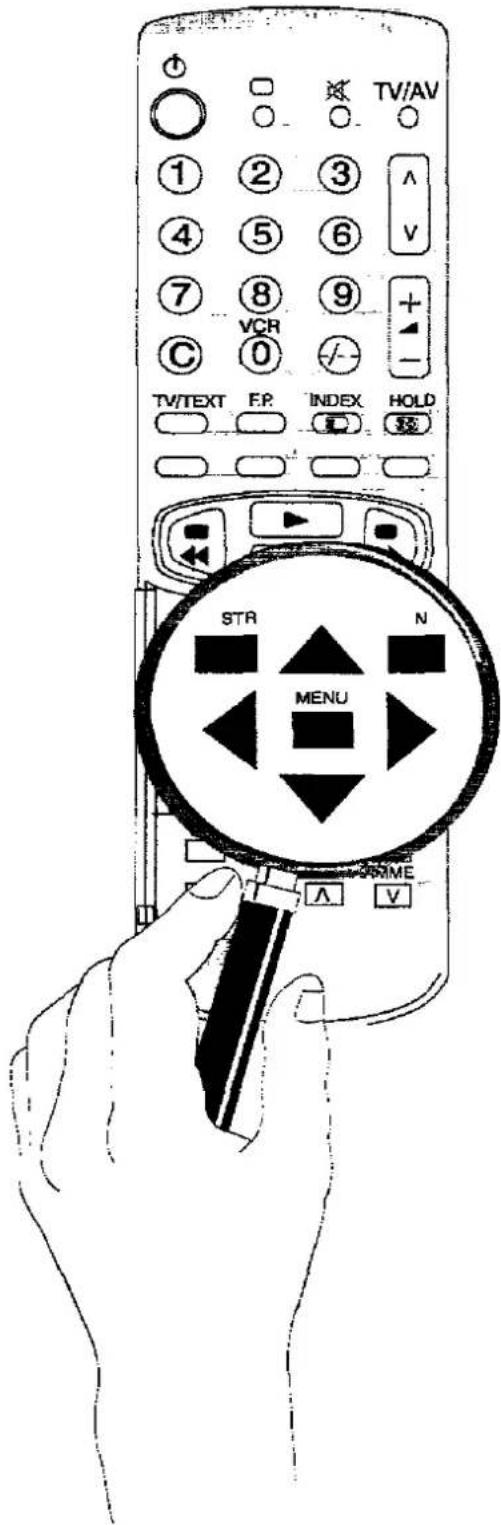

The following remote control keys can be used to access and adjust settings from the On Screen Display menus.

Some selections, for example, Contrast, Brightness, Colour and Sharpness will display a coloured adjustment bar.

Some selections, for example, Mode, allow a choice to be made.

	The 'MENU' key is used to open the Main menu and also to return to either the Main menu or a previous menu.
	The ▲▼ keys are used to move the selector up and down the menu.
	The ◀▶ keys are used to access your selected function and either adjust levels or to make a choice.
	The 'STR' key is used to store settings after your adjustment or choice has been made.
	The 'N' key is used to leave the menu system and return to the normal viewing screen.

Notes :

The levels of Contrast, Brightness, Colour, Sharpness and Tint are adjusted by using the coloured bar, that will appear on selection, as a guide.

Tint function will only appear on the Main menu if M.NTSC or NTSC inputs are connected.

The coloured adjuster bars will disappear after a short time if no adjustment is made.

If Sound or Setup menus are selected then they will lead to further menus as detailed on pages 10 and 11.

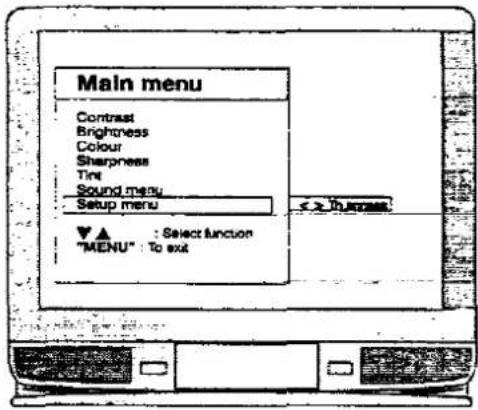

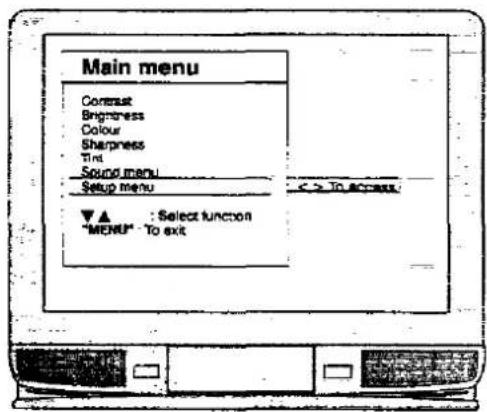

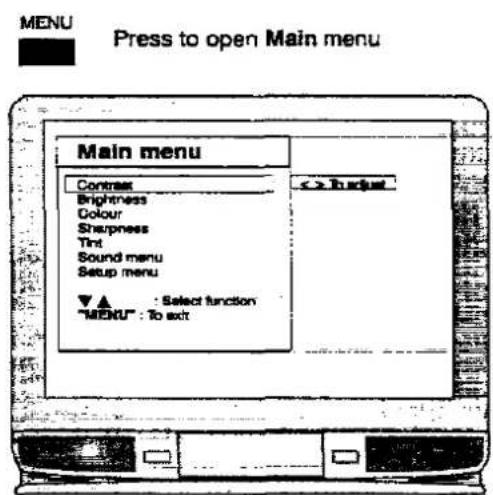

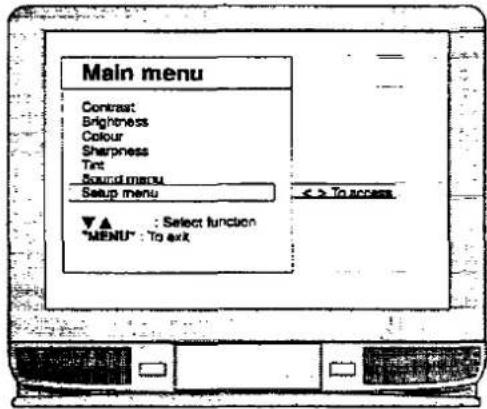

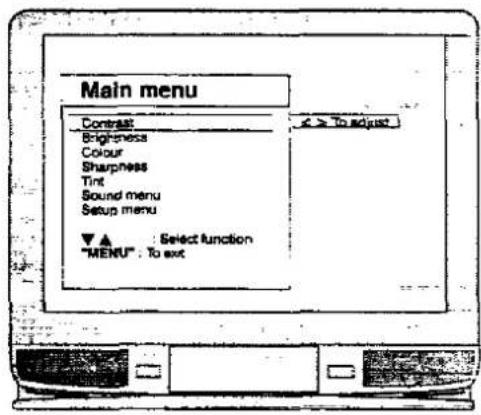

To open Main menu

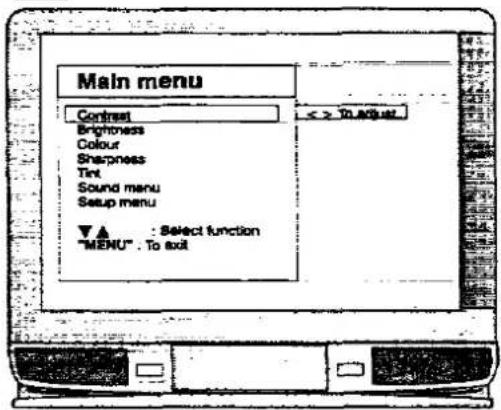

Main menu Contrast brightness Colour Sharpness Tint Sound menu Setup menu ▼▲ : Select function "MENU". To exit

▼ ▲ To move selector up or down to the function that you wish to access ◀ ▶ To access your choice

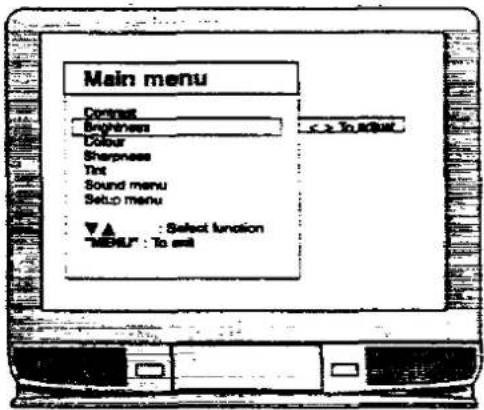

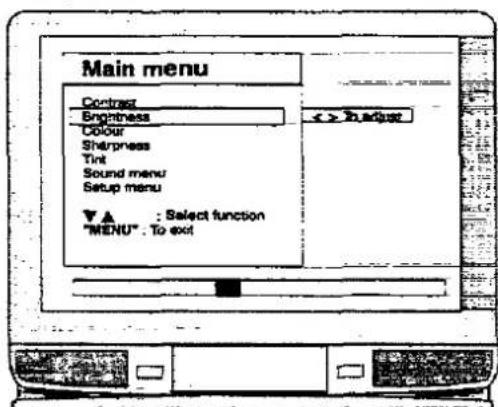

Main menu Dress Brightness Colour Sharpness Tint Sound menu Setup menu ▼▲ : Select function "MENU": To set

◀ ▶ To increase or decrease level using colour bar as guide or to access Sound or Setup menus

Main menu Contrast Brightness Colour Sharpness Tint Sound menu Setup menu ▼▲ : Select function "MENU". To exit

MENU To return to viewing screen

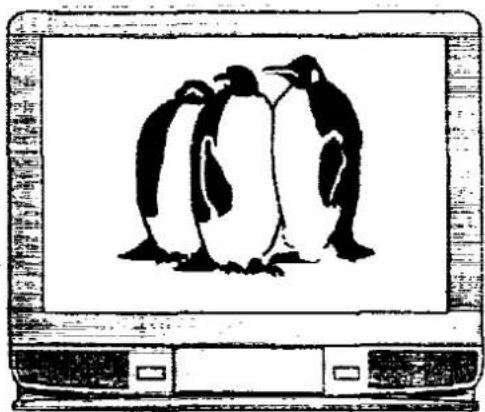

Illustration of three penguins standing together on a screen, enclosed in a laptop (no text or symbols visible)

Notes :

Bass - adjusts the bass response.

Treble - adjusts the treble response.

Balance - adjusts the sound output levels between the left and right channels.

Volume Correction - (in AV mode only) allows different volume levels to be set for TV and AV signals.

NICAM - Select either NICAM : on for stereo sound reproduction or NICAM : off for FM Mono sound output.

If NICAM Mono is being transmitted select either FM Mono, NICAM Mono I (M1) or NICAM Mono II (M2). The outputs depend upon the signal being transmitted. It is advisable to switch to FM Mono if reception deteriorates. When NICAM transmissions are not being received the sound will be FM Mono only.

Mode - the sound quality can be set to Music or Speech, as required, by selecting the appropriate choice.

Ambience - a dynamic sound enhancer that gives a feeling of greater acoustic presence.

MENU Press to open Main menu Main menu Contrast < > To adjust Brightness Colour Sharpness Tint Sound menu Setup menu ▼ ▲ : Select function "MENU" : To exit

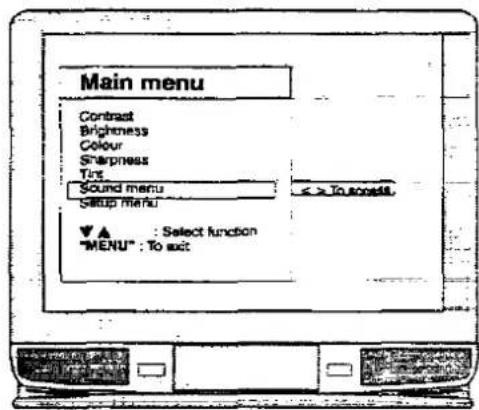

▼ ▲ To move selector to the Sound menu

Main menu Contract Brightness Colour Sharpness Ting Sound menu Setup menu ▼▲ : Select function "MENU": To exit

◀ ▶ To increase or decrease level using colour bar as guide or to choose from options

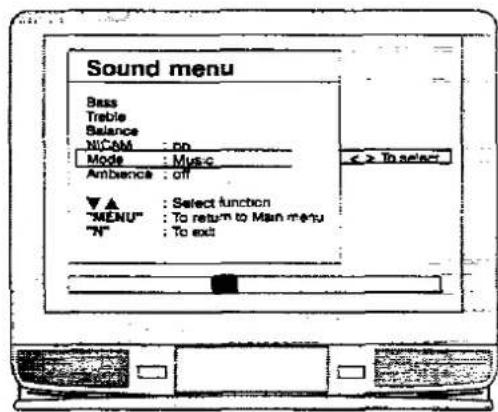

Sound menu Bass Treble Balance NICOM : on Mode : Music Ambience : off ▼▲ : Select function "MENU" : To return to Main menu "N" : To exit

OR MENU To return to Main menu N 'N' to return to viewing screen

Illustration of three penguins standing on a screen, with no visible text or symbols

Notes :

A.I. (Artificial Intelligence) allows the TV to automatically analyze the incoming picture and process it to give the best contrast, optimum field of depth and vivid colour tones.

Noise-R (Picture Noise Reduction) automatically reduces unwanted picture interference.

Aspect (Picture Format) select 16:9 if receiving a 16:9 format signal through the AV 21 pin terminals. Select 4:3 for normal picture format.

Off Timer allows you to select either 30,60 or 90 minutes time before TV switches off to Standby mode.

Tuning menu allows access to the tuning menu detailed on next page.

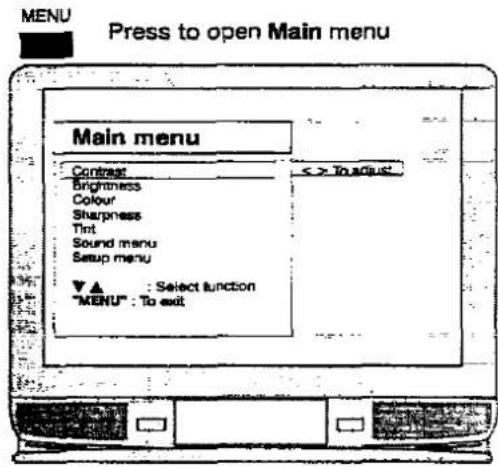

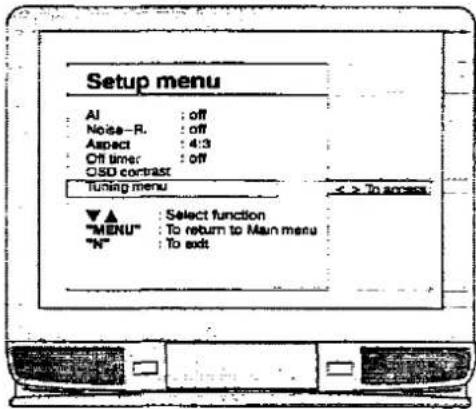

MENU Press to open Main menu Main menu Contrast Brightness Colour Sharpness Tint Sound menu Setup menu ▼▲ : Select function "MENU": To exit

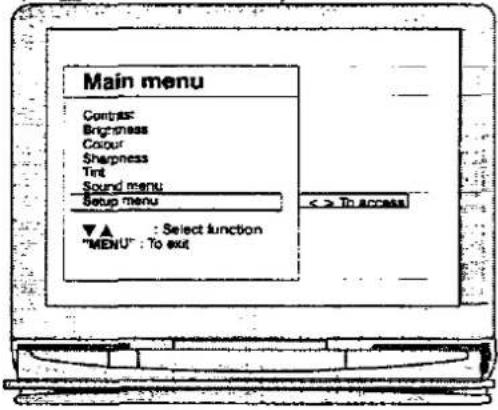

2 To move to Setup menu To access Setup menu Main menu Comcast Brightness Colour Sharpness Tint Sound menu Setup menu To access Select function "MENU": To exit

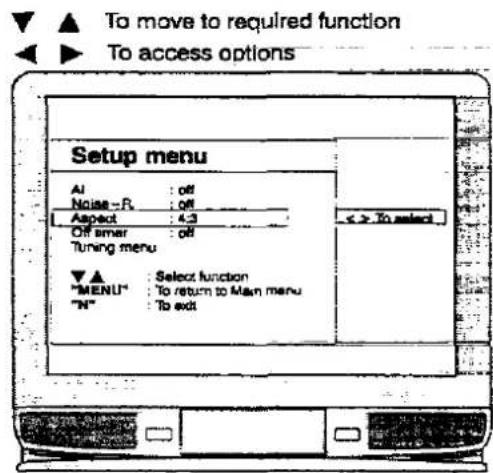

To move to required function To access options Setup menu AI : off Noise - R : off Aspect : 4:3 Off smear : off Tuning menu Select function "MENU" To return to Main menu "N" To exit

MENU To return to Main menu N 'N' to return to viewing screen

Notes :

This TV will either have been programmed by your dealer ready for use or it will have automatically tuned itself to your local stations when it was installed.

However, there may be circumstances when you want to either re-initialise the auto tuning or to tune in known stations manually.

Both methods, Auto setup and Manual Tuning, as well as Station naming and Programme edit are accessed through the Tuning menu.

MENU

Press to open Main menu

Main menu Contrast brightness colour sharpness tint sound menu setup menu ▼ ▲ Select function "MENU": To exit

2

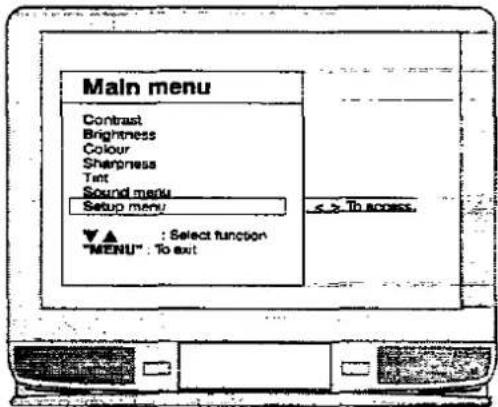

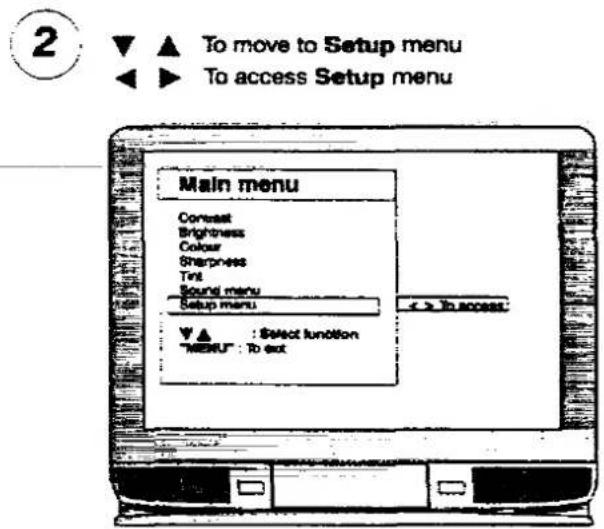

▼ ▲ To move to Setup menu
◀ ▶ To access Setup menu
▼ ▲ To move to Tuning menu

Main menu Contrast Brightness Colour Sharpness Text Sound menu Setup menu ▼ ▲ : Select function "MENU" : To exit

3

▼ ▲ To select function
◀ ▶ To access the required function

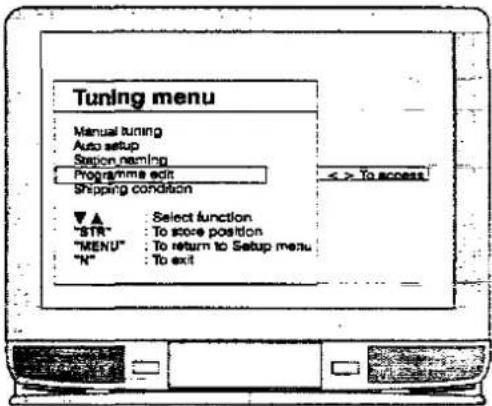

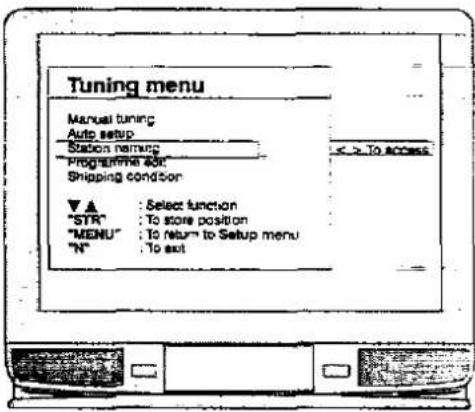

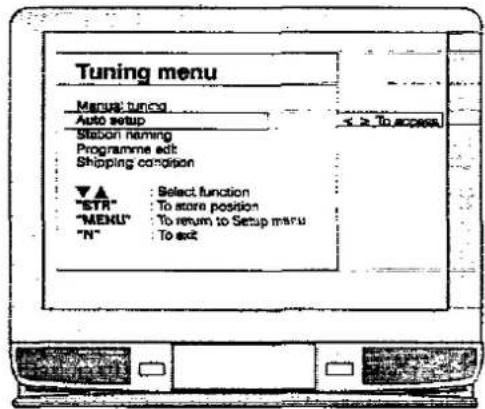

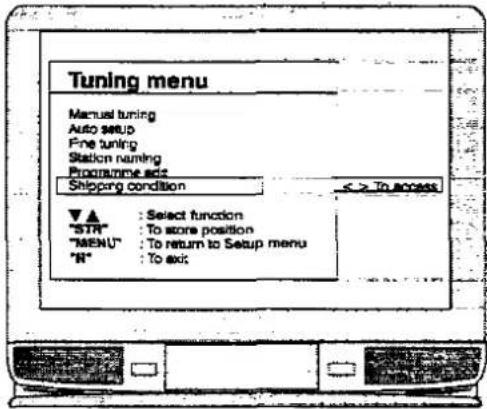

Tuning menu Manual tuning Auto setup Station naming Programme exit Shipping condition ▼A : Select function "STR" : To store position "MENU" : To return to Setup menu "N" : To exit

4

Proceed to your choice ;

Manual Tuning is described on page 13.

Auto Setup is described on page 14.

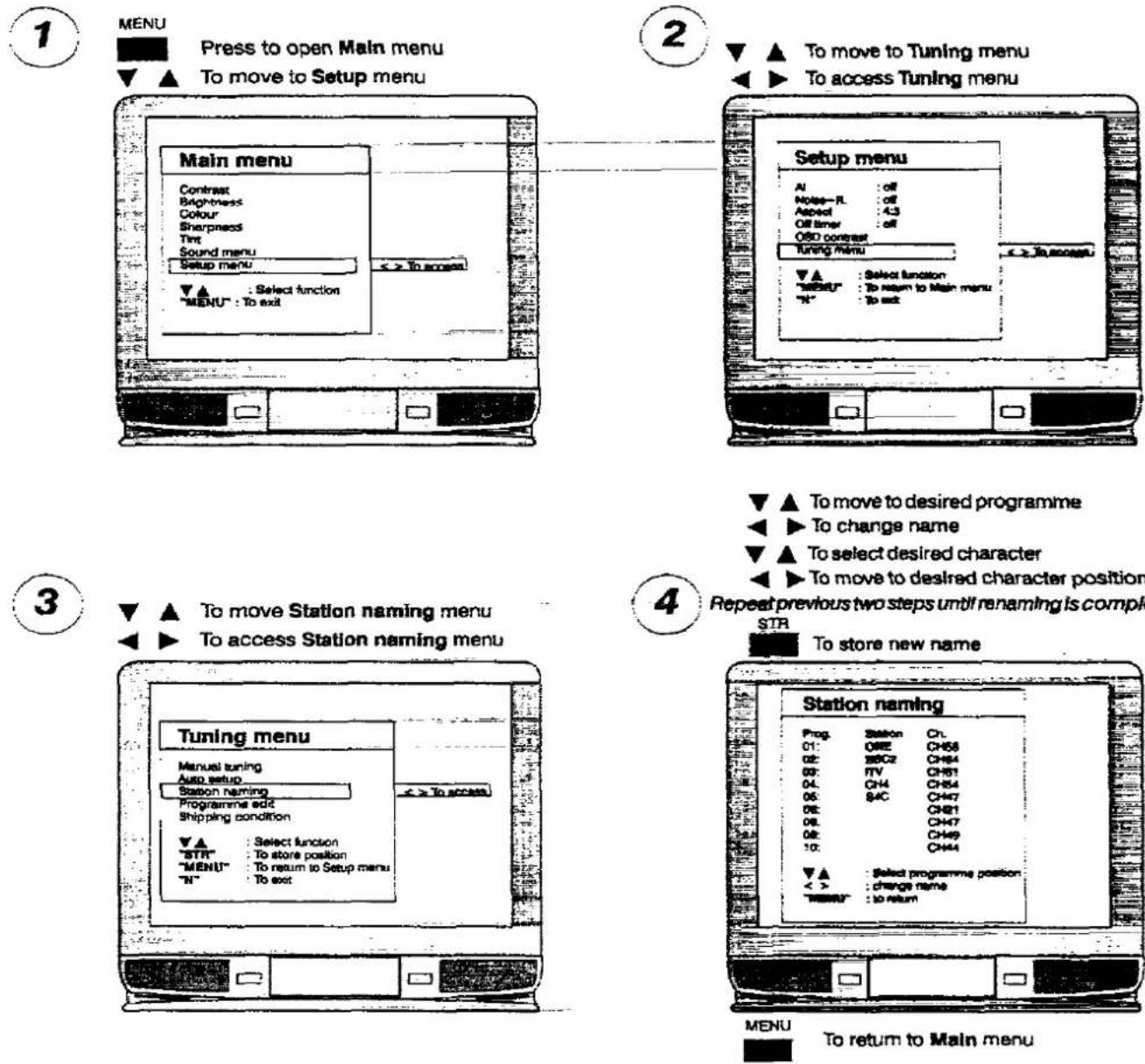

Station Naming is described on page 15.

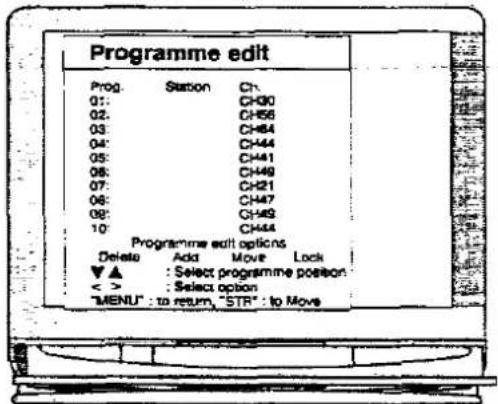

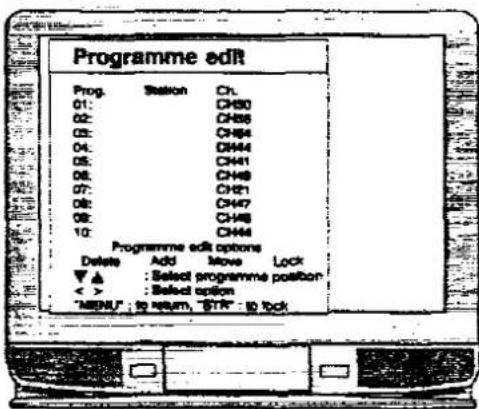

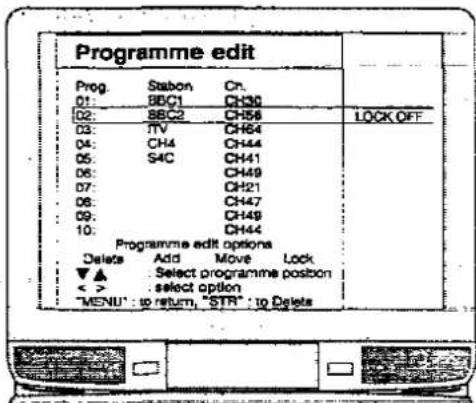

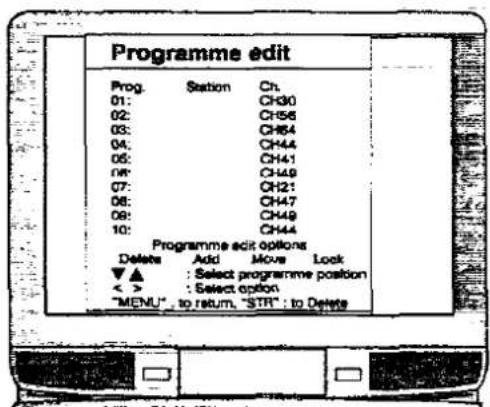

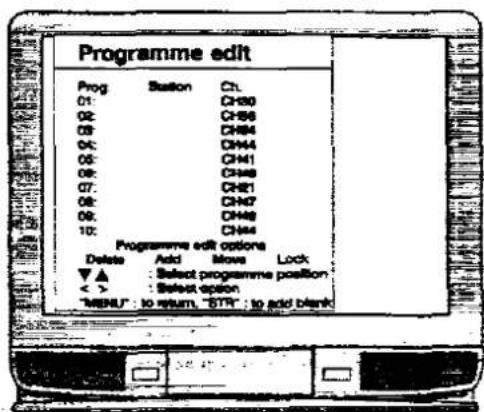

Programme Edit menu is described on page 16.

Notes :

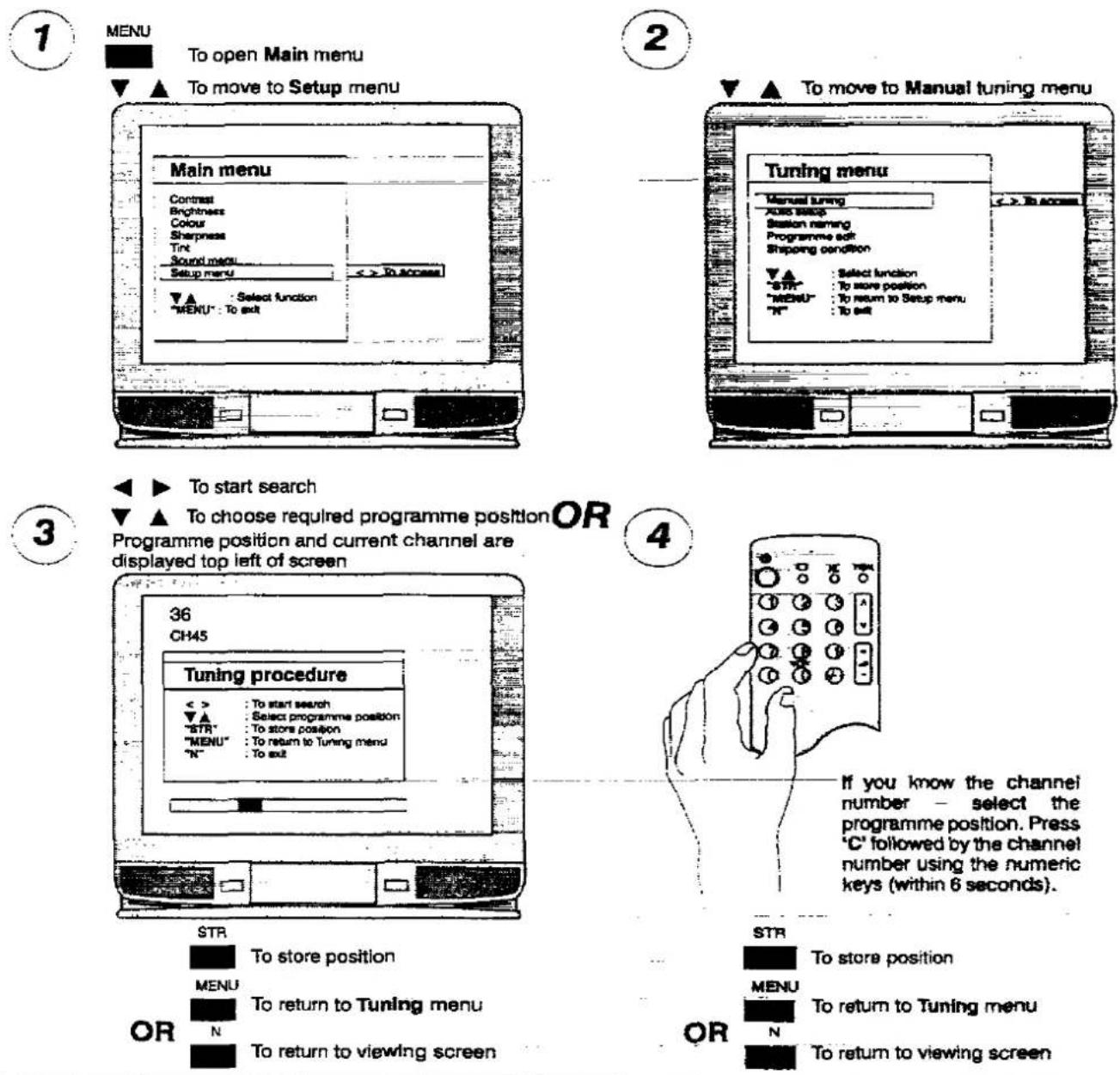

The required channels can be manually stored by either searching for the required channel using the on screen display or by keying in the channel number if known.

If your VCR does not operate on programme position '0' then it is probable that your VCR is not tuned to channel 36. This can be corrected by selecting programme position '0' and adjusting the RF output channel of your VCR, further details appear on page 23. IT IS IMPORTANT that you use only programme position '0' for your VCR'. Programme positions other than '0' are not suitable for use with your VCR

It is possible that in some areas, you may suffer interference patterning on screen when using your VCR with the RF output set to channel 36. This can be corrected by changing the RF output channel of your VCR to a different setting, further details appear on page 23.

Notes :

Your dealer may have programmed the TV ready for use. If this has not been done then the Auto setup menu will have run automatically the first time that you switched the TV on. Under normal circumstances there will be no need to access this menu. However, if, for example, you move to a different area then you will probably want the TV to tune itself to your new local stations.

This can be done either through the Auto setup menu or through the Shipping Condition menu. Details of Shipping condition menu appear on page 18.

It is possible, especially in areas where you are able to receive more than one transmitter, that you may prefer to rearrange the order of the selection of stations. This can be achieved through the Programme edit menu, as detailed on pages 16 and 17.

Press to open Main menu

To move to Setup menu

Main menu Comcast Brightness Colour Sharpness Tint Sound menu Setup menu ▼▲ : Select function "MENU" To exit C > 10 access

◀ ▶ To access Tuning menu ▼ ▲ To access Auto setup menu ◀ ▶ To start Auto setup menu

Tuning menu Manual tuning Auto setup Station naming Programme edit Shipping condition ▼▲ : Select function "STR" To store position "MENU" To return to Setup menu "N" To exit

Auto setup tuning will begin, stations will be located, sorted and stored ready for use

Auto setup AUTO SETUP IN PROGRESS. Searching CH58 BBC1 CH64 BBC2 CH61 ITV "MERL" to return CH 21 69

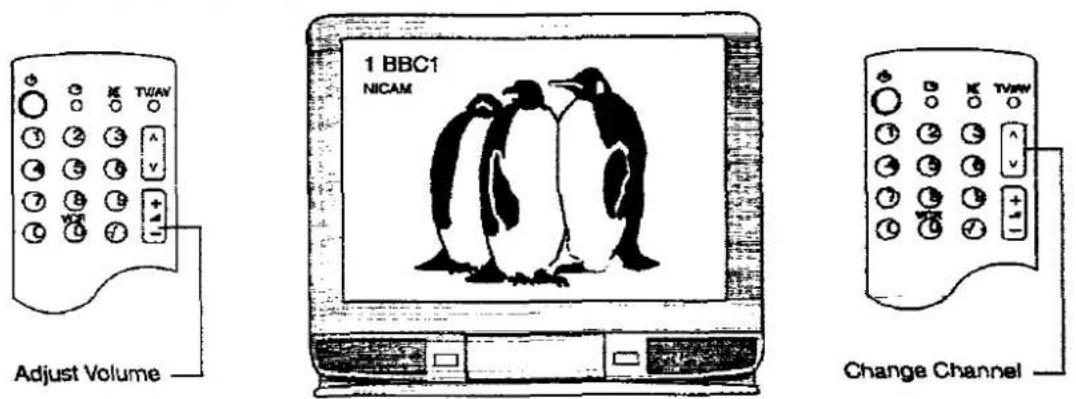

Illustration of three penguins standing on a screen, no text or symbols present

MENU

To stop Auto Setup at any time

Notes :

Each channel may be given an individual name so that you can remember the channels by name as well as programme number. For example you could rename 'BBC-1' to 'ONE' if you wished.

▼ ▲ To move to desired programme
◀ ▶ To change name
▼ ▲ To select desired character
◀ ▶ To move to desired character position

Notes :

The named programme positions can be moved to another place in the programme order or deleted from the order. New programmes can be added to the order. Programmes positions can also be locked to prevent access.

Access to programme position '0'–VCR is prevented in this menu.

1

Press to open Main menu

To move to Setup menu

Main menu Contrast: Brightness Colour Sharpness Tint Sound menu: Setup menu ▼▲ : Select function "MENU": To exit < > To access

2

▲ To move to Tuning menu

▶ To access Tuning menu

Setup menu AI : off Noise-R. : off Aspect : 4:3 Off timer : off OISO contrast Tuning menu ▼▲ : Select function "MENU" : To return to Main menu "N" : To exit < > To access

3
▼ ▲ To move Programme edit menu
◀ ▶ To access Programme edit menu

Tuning menu Manual tuning Auto setup Station naming Programme edit Shipping condition ▼▲ Select function "STR" To store position "MENU" To return to Setup menu "N" To exit

4
▼ ▲ To select the desired programme position. Programme position '0' is reserved for VCR operation.

Programme edit Prog Stabon Cn. 01: BBC1 CH30 02: BBC2 CH56 LOCK OFF 03: TV CH64 04: CH4 CH44 05: S4C CH41 06: CH49 07: CH21 08: CH47 09: CH49 10: CH44 Programme edit options Delete Add Move Lock ▼▲.Select programme position < >-select option "MENU": to return, "STR": to Delete

Continue to options 5,6,7 or 8

Notes :

Option 5 allows station names and channels to be deleted

Option 6 allows new programmes and channels to be added

Option 7 allows programme positions to be moved

Option 8 allows programme positions to be locked

To select Delete

Press twice to delete selected station and channel

Programme edit Prog. Station Ch. 01: CH30 02: CH56 03: CH64 04: CH44 05: CH41 06: CH49 07: CH21 08: CH47 09: CH49 10: CH44 Programme edit options Delete Add Move Lock ▼▲ Select programme position < > : Select option "MENU" to return, "STR" to Delete

To return to normal TV operation.

To select Move

To move

To select the new programme position for the current channel

Programme edit Prog Station Ch 01: CH30 02: CH56 03: CH44 04: CH44 05: CH41 06: CH49 07: CH21 08: CH47 09: CH49 10: CH44 Programme edit options Delete Add Move Lock ▼▲ : Select programme position < > : Select option "MENU": to return, "STR": to Move

To end move operation.

To return to normal TV operation.

To select Add

Press twice to insert a blank channel in the current programme position.

The channel can then be tuned as described under Tuning menu

Programme edit Prog Bation C1. 01 C130 02 C156 03 C184 04 C144 05 C141 06 C148 07 C121 08 C147 09 C148 10 C144 Programme edit options Delete Add Move Lock ▼▲ : Select programme position < > : Select again "MENU": to empty, "BTR": to add blank

To return to normal TV operation.

To select Lock

To lock or unlock the current programme position.

Programme edit Prog. Station Ch. 01: CH30 02: CH36 03: CH34 04: CH44 05: CH41 06: CH49 07: CH21 08: CH47 09: CH48 10: CH44 Programme edit options Delete Add Move Lock ▼▲ : Select programme position < > : Select option "MENU": to return, "STR" to lock

To return to normal TV operation.

Notes :

Your dealer may have programmed the TV ready for use. If this has not been done then the Auto setup menu runs automatically the first time that you switch the TV on. Under normal circumstances there will be no need to access this menu. However, if, for example, you move to a different area then you will probably want the TV to tune itself to your new local stations.

This can be done either through the Shipping Condition menu or through the Auto setup menu.

The Shipping condition menu will reset all data, clearing all tuning information and resetting all control levels back to factory settings. You may need to adjust your VCR or programme position '0' VCR after operating the Shipping Condition menu, refer to page 23.

It is possible, especially in areas where you are able to receive more than one transmitter, that you may prefer to rearrange the order of the selection of stations. This can be achieved through the Programme edit menu, as detailed on pages 16 and 17.

Press to open Main menu

To move to Setup menu

Main menu Contrast Brightness Colour Sharpness Tint Sound menu Setup menu < > To access ▼▲ : Select function "MENU": To exit

2
▼ ▲ To access Tuning menu ▼ ▲ To select Shipping condition

Tuning menu Manual tuning Auto setup Fine tuning Station naming Programme act Shipping condition < > To access ▼▲ : Select function "STR" : To store position "MENU" : To return to Setup menu "N" : To exit

3
STR
To start Shipping condition.

Press again, to confirm, when you are asked, "Are you sure?"

Shipping condition All tuning data will be erased!! Are you sure ? Are you sure ? "STR" : To start "MENU" : To return to Tuning menu "N" : To exit

4

Switch TV off and wait for a few seconds. Switch TV on again.

Auto setup tuning will begin, stations will be located, sorted and stored ready for use.

Auto setup AUTO SETUP IN PROGRESS PLEASE WAIT Searching CH58 BBC1 CH64 BBC2 CH61 ITV "MENL" to return CK-2: 60

Walt for Tuning menu to reappear

Notes :

Some items of Audio/Visual equipment will automatically switch AV1 and AV2 into AV mode – the screen will display EC1 or EC2.

AV2S is suitable for S-Video cassette recorders or camcorders.

NTSC is the United States colour broadcast system (also used in some other countries). If you are using the AV function to replay an NTSC recording from a VCR the TV will automatically recognise the signal.

Examples of AV connections are shown on pages 25 and 26.

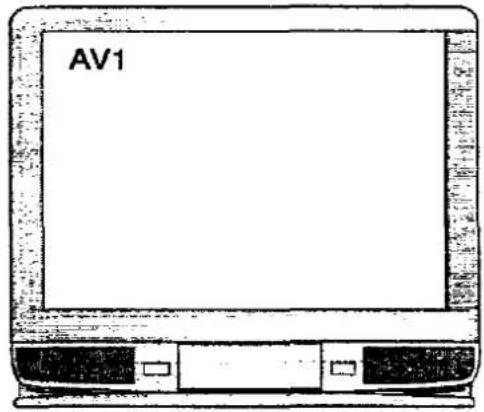

Press 'TV / AV' to switch to Audio/Video mode

AV1

▼ ▲ To select the desired AV source AV1, AV2 or AV3.
◀ ▶ If you wish to select AV2S

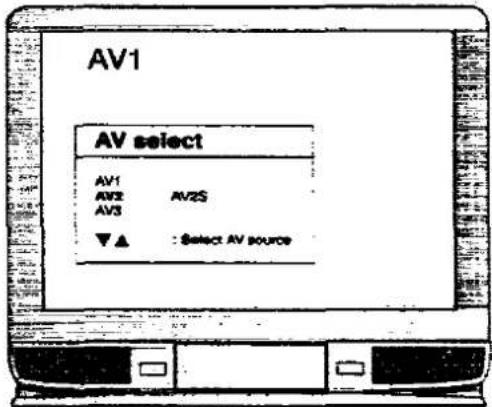

AV1 AV select AV1 AV2S AV3 ▼▲ : Select AV SOURCE

The menu will clear within a few seconds Press "TV / AV" if you wish to return to TV mode

You may wish to make adjustments within the Sound and Setup menus.

MENU

Press to open Main menu

To move to Setup or Sound menus

Main menu Contrast Brightness Colour Sharpness Tint Sound menu Setup menu ▼▲ : Select function "MENU" : To exit

By accessing the Sound menu and adjusting the Volume correction you can set a different volume level for the AV inputs

©

TELETEXT OPERATION

TV

Teletext

TV / Teletext mode

OR ① ② ③ ④ ⑥ ⑦ ⑦ ⑧ ⑨ ⑩

Page Selection

FASTEXT and LIST

In FASTEXT mode the four differently coloured buttons Red / Green / Yellow / Blue are situated at the bottom of the display showing different subjects.

In LIST mode the four differently coloured buttons Red/Green/Yellow/Blue are situated at the bottom of the display showing different page numbers. Each of these page numbers can be altered and stored.

LIST

2 STR 4

3 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ 5 120 200 300 400

List Store

In LIST mode the four page numbers can be altered (for channel positions 1 - 25 only).

To do this, press one of the coloured keys and enter the new page number.

Press and hold STR, the page numbers will change colour.

FASTEXT

List / F.text

When in List / Fastext operation

Press to change from FASTEXT mode to LIST mode and vice versa.

FASTEXT

Index

When in FASTEXT operation.

Press INDEX to return to the main index page. Depending on the way information is transmitted, this may have to be pressed more than once to return to the main index page.

Full page

F/T/B Warm and Sunny Top page

Full / Top / Bottom

Press to expand the TOP half of the page.

Press again to expand the BOTTOM half.

Press again to return to normal (FULL) size.

Hold

To hold the Teletext page when viewing multipage information.

Press again to return to automatic page update.

Display Cancel

News Flash

When a news flash page has been selected, press DISPLAY CANCEL to view the TV picture, when an update is received, it will be displayed on screen.

Press DISPLAY CANCEL to remove updated news.

Press TV / TEXT to return to normal TV.

Press DISPLAY CANCEL to view the TV picture whilst searching for a Teletext page.

When found, the screen will display the page number at the top left.

Press DISPLAY CANCEL to view the page.

Press TV / TEXT to return to normal TV.

Update

Press DISPLAY CANCEL to see the update of information on certain pages.

When an update is received, the page number will be displayed at the top left of the screen.

Press DISPLAY CANCEL to view the page.

Press TV / TEXT to return to normal TV.

2 3 ① ② ③ ④ ⑤ ⑦ ⑧ ⑨ ⑩ 4 STR

Favourite Page (F.P.)

Stores a favourite page In memory for instant recall. To store such a page, the TV must be in LIST mode, and the programme position must be from 1 – 25. Press the BLUE key, select the page number, then press STR. The page number is now stored.

Press F.P. to recall this page.

Note: Depending on the transmission sequence, when the F.P. key is pressed, the contents of the favourite page may take some time to appear. Only the page number is stored, not it's contents.

DISPLAY CANCEL

Sub Coded Page Access

When teletext information exceeds more than one page, it may take some time for the automatic changing of the sub pages to reach the sub page you require. It is possible to enter your required sub page and continue watching the normal programme until the correct sub page is found. Select the required page number using keys 0 --9.

Press TIME TEXT, **** will be displayed (top right of the screen).

Enter desired sub page number before the **** disappears.

To select page 6 enter 0, 0, 0 and 6.

If in LIST mode, a 'T' will appear in the current box at the bottom.

Press DISPLAY CANCEL to view a normal TV programme.

When the page is available, press DISPLAY CANCEL to view the page.

To clear the page perform one of the following :

- Select a new page number.

- Press TV/TEXT to return to normal TV operation.

©

The Remote Control is capable of operating some functions of selected Panasonic VCRs, please consult your dealer for details. Some VCRs have different functions, so to ensure compatibility, please refer to the VCR's instruction book.

TV/AV VCR Standby Press to switch the VCR to standby mode. Press again to switch back on. Play Press to playback the tape. Stop Press to stop the tape. Fast Forward / Cue Press to fast forward the tape. In Play mode, press to view the picture rapidly forward. Rewind / Review Press to rewind the tape. In Play mode, press to view the picture in reverse rapidly. Pause / Still Press in playback mode, the picture will pause. Still Advance While in PAUSE / STILL mode, press to advance the picture one frame at a time. Programme Up / Down Press to increase or decrease the VCR programme position by one. Record Press these together to record. Operating Switch If any difficulty is encountered when using this remote control with Panasonic video cassette recorders please check the operation of the video recorder with the operating switch set at position one and again with the switch set at position two. 24

AUDIO / VIDEO (AV) CONNECTIONS

Front AV3 RCA Audio/Video and Headphone Sockets

Front view of a portable electronic device with buttons and display (no visible text or symbols)

AV3 V L—R

Video input to V socket Audio input to L/R. sockets RCA Video Cable 2 x RCA Audio Cables CAMCORDER

Output from Headphone socket 3.5mm Stereo Jack Plug $STEREO HEADPHONES with 3.5mm Jack Plug

Notes :
Ancillary equipment and cables shown are not supplied with this TV set.

■ SCART Terminal Information
AV1 21 pin SCART terminal

Socket Earth 21- CVBS out (video) 19- CVBS earth 17- Red in 15- Red earth 13- Green in 11- Green earth 9- Blue in 7- Blue earth 5- Audio out (L) 3- Audio out (R) 1- - 20 - 18 - 16 - 14 - 12 - 10 - 8 - 6 - 4 - 2 CVBS in (video) RGB status earth Status RGB Earth -- -- Status CVBS Audio in (L) Audio earth Audio in (R)

Suitable inputs for AV1 include RGB (Red/Green/Blue).

AV2 21 pin SCART terminal

Booket Earth 21- CVBS out (video) 19- CVBS earth 17- S.C. - in 15- Earth 13- -- 11- Earth 9 - -- 7 - Earth 6 - Audio out (L) 3 - Audio out (R) 1 - -- 20 CVBS in (video) -- 18 Earth -- 16 -- -- 14 Earth -- 12 -- -- 10 Status CVBS -- 8 Audio In (L) -- 6 Audio earth -- 4 Audio in (R)

Pins 15 and 20 are dependent on AV2-S-VIDEO / VIDEO switching.

Rear AV1 / AV2 (S) 21 Pin SCART and RCA Audio Out Terminals

NOTES:
Ancillary equipment and cables shown are not supplied with this TV set.
Do not connect a computer with TTL output (5V) to this set.
Additional information can be found under AV Select.

Symptoms			Checks
Picture		Sound
			Aerial location, direction or connection
	Snowy Picture	Noisy Sound
			Aerial location, direction or connection
	Multiple Images	Normal Sound
			Electrical appliancesCars / MotorcyclesFluorescent lightsSwitch on Noise-R in Setup menu to reduce picture noiseSwitch NICAM to Mono to improve sound.
	Interference	Noisy Sound
			Volume levelSound mute switched on
	Normal Picture	No Sound
			TV set to AV modeNot plugged into A.C. outletNot switched onPicture / Sound controls set at minimum levelsCheck if in standby mode
	No Picture	No Sound
			Colour controls set at minimum levels
	No Colour	Normal Sound
			Retune Channel(s)
	Poor or Distorted Picture	Weak or No Sound
			Magnetic Interference from unshielded equipmentReceiver moved while switched ON, switch TV off for 30 minutes.
	Coloured Patches	Normal Sound

■ Service

Before requesting service, please refer to the trouble-shooting guide on previous page to determine the symptoms. To obtain service please contact your local Panasonic dealer quoting the model number and serial number (both are located at the rear of the TV).

■ TV Games / Home Computers

Extended use of TV games or home computers with any television set can cause a permanent 'shadow' on the screen. This type of irreversible picture tube damage, can be limited by observing the following points:

• Reduce the brightness and contrast levels to a minimum viewing level.
• Do not operate the television set for a continuous period of time while using TV games or home computers.
• This type of picture tube damage, is not an operating defect, and as such is not covered by the Panasonic warranty.

■ Last Position Memory

Certain functions have a last position memory, i.e. the setting at the time of switch-off will be the setting used when the receiver is switched on again:

Programme	TInt (M.NTSC / NTSC only)
AV Position	Contrast
Volume	Sharpness
NICAM On/Off	Aspect
Bass	Standby
Treble	Artificial Intelligence (AI)
Colour	Brightness
Status	Balance

Music/speech mode Ambience

■ Sleep Feature

If the set is not switched off when the TV station stops transmitting, it will automatically go to standby mode after 30 minutes. This function will not operate when the TV is in AV mode.

SPECIFICATIONS

		TX-25MD1	TX-21MD1
Power Source		220 - 240V 50Hz A.C.
Power Consumption		92W	75W
Picture Tube FST 110*		59cm visible diagonal	51cm visible diagonal
Audio Output		15W x 2 (MPO)
Dimensions	H	531 mm	480 mm
	W	601 mm	525 mm
	D	439 mm	480 mm
Weight (Kg)		25	20.2
Receiving Systems / Band name		PAL I (UHF E21-69),PAL 525/60 Playback NTSC tape from PAL Video recorders (VCR)M.NTSC Playback from M.NTSC Video recorders (VCR)NTSC (AV input only) Playback from NTSC Videorecorders (VCR)
Aerial - rear		UHF
Headphones - Front		3,5mm
AV - Rear		AV1 - 21 pin terminal - Audio / Video in / out, RGB in.AV2 - 21 pin terminal - Audio / Video in / out, S - Video in.2 x RCA Audio Monitor Out
AV - Front		AV-3 2 x RCA Audio in, 1 x RCA Video In

• Specifications are subject to change without notice. Weight and dimensions shown are approximate.

NOTES

597
