Dear Panasonic Customer

Welcome to the Panasonic family of customers. We hope that you have many years of enjoyment from your new colour television. This is a very sophisticated TV; the best way to understand the features is to read this book thoroughly, before operating the set.

How to use these Operating Instructions

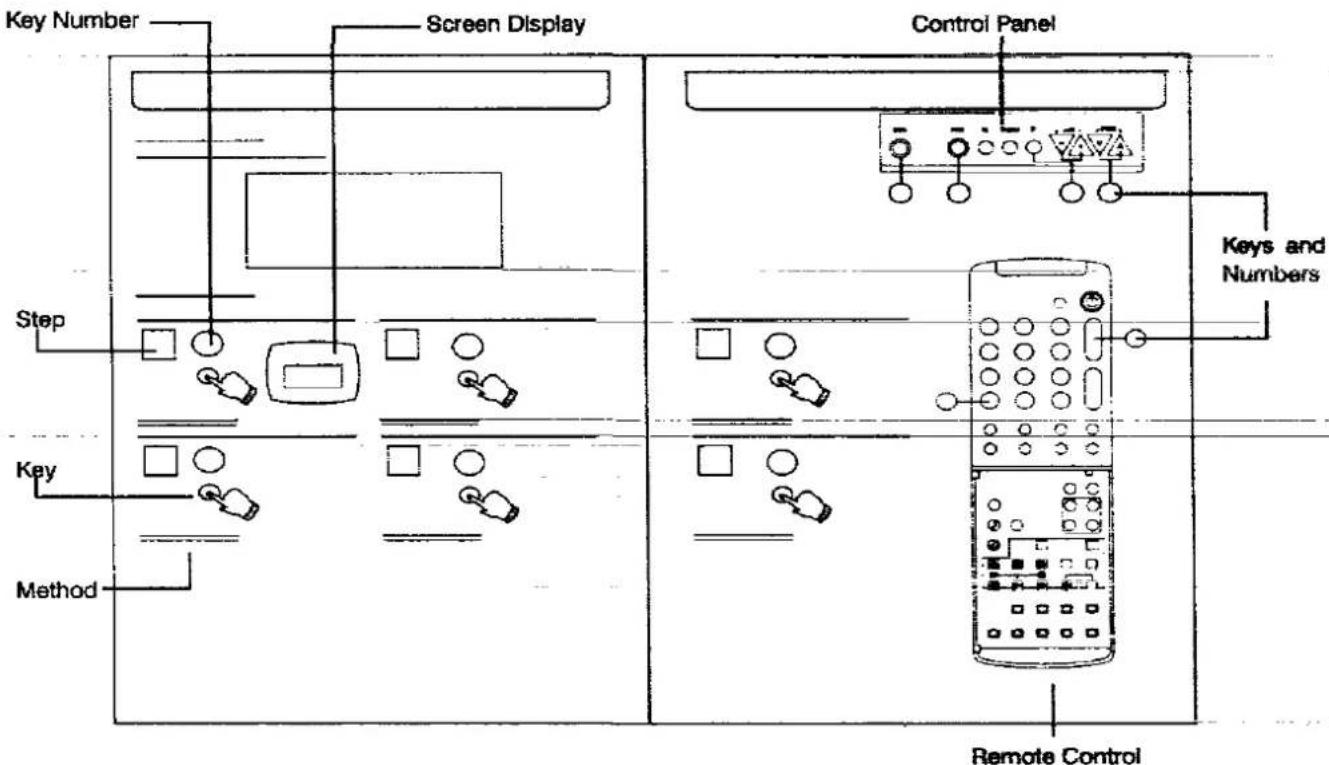

These Operating Instructions are laid out as shown below, please study the layout before proceeding any further.

Key Number Screen Display Control Panel Steps Key Method Keys and Numbers Remote Control

Contents

Preparation

Warnings and Precautions 2
General Information 2
Features of this TV 3
Accessories 3
Battery Installation and Replacement 4
Aerial Connection 5

Tuning Procedure

Switching the TV on / off 6

Tuning-In the channels

General Operation

Basic functions 8
Sound control functions
Video control functions 10

Features Operation

Advanced TV Operations 11
Teletext Operation 16
VCR Operation 20

Audio / Video (A/V) Connections

AV1 / AV2 21 pin terminals ..... 22
AV3 / AV4 4 pin S-Video and RCA Audio terminals 22
AV4 Video and Audio (RCA) terminals 23
Audio Monitor Out terminals 23
Headphones 23

Reference Information

Trouble-shooting 24
Specifications 25

Warnings and Precautions

This TV set is designed to operate on A.C. 240V, 50Hz.

CABINET AND PICTURE TUBE CARE

Remove the mains plug from the wall socket. The cabinet and picture tube can be cleaned with a soft cloth moistened

To prevent damage which might result in electric shock or fire, do not expose this TV set to rain or excessive moisture.

with mild detergent and water. Do not use solutions containing benzol or petroleum. TV sets can produce static electricity, care must be taken whenever touching the TV screen.

WARNING : HIGH VOLTAGE !!!

Do not remove the rear cover as live parts are accessible when it is removed. There are no user serviceable parts inside.

SPEAKER GRILLE CARE

Remove dust with a vacuum cleaner after attaching a brush adaptor. Do not let the vacuum cleaner pipe come into direct contact with the speaker (without the adaptor). Do not use any cleaning fluids or liquids on the speaker grilles.

Avoid exposing the TV set to direct sunlight and other sources of heat.

Care must be taken with the speaker grilles as they are easily pierced by sharp objects.

Remove the mains plug from the wall socket when the TV set is not used for a prolonged period of time.

Adequate ventilation is essential to prevent failure of electrical components.

FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY

This appliance is supplied with a fitted three pin mains plug for your safety and convenience. A 5 amp fuse is fitted in this plug. If the fuse is replaced then the replacement fuse must be 5 amp rated and should be approved by ASTA or BSI to BS1362.

Check for the ASTA mark 📄 or the BSI mark 🌐 on the body of the fuse.

If the fitted plug has a removable fuse cover you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained.

Replacement fuse covers can be purchased through your local Panasonic dealer.

If the fitted plug is unsuitable for the socket outlet in your home then the fuse should be removed and the plug cut off and disposed of safely. There is danger of severe electrical shock if the cut off plug is inserted into any 13 amp socket.

If a new plug is to be fitted please observe the wiring code as shown below. If in any doubt please consult a qualified electrician.

How to replace the fuse (for plug type shown in example 1):

Lift open the fuse compartment, in the mains plug, with a screwdriver, and replace the fuse, then press the fuse cover down securely. (See example 1).

How to replace the fuse (for plug type shown in example 2):

Lift out the removable fuse compartment with a screwdriver and replace the fuse, then refit securely into the mains plug (See example 2).

Example 1.

Simple line drawing of a plug with a connector and screw base (no text or symbols)

IMPORTANT: - The wires in the mains lead of this appliance are coloured in accordance with the following code :

BLUE : NEUTRAL BROWN : LIVE

As the colours of the wires in the mains lead of this appliance may not correspond to the markings identifying the terminals in your plug, proceed as follows:\~

1. The BLUE wire must be connected to the terminal marked 'N' or coloured black.
2. The BROWN wire must be connected to the terminal marked 'L' or coloured red.

IMPORTANT NOTE: Under no circumstances should either of these wires be connected to the Earth terminal of the three pin plug, marked with the letter 'E' or the earth symbol.

Features of this TV

Artificial Intelligence

S-Video Input

NICAM Digital Stereo Sound System

Audio Monitor Out

FASTEXT Teletext

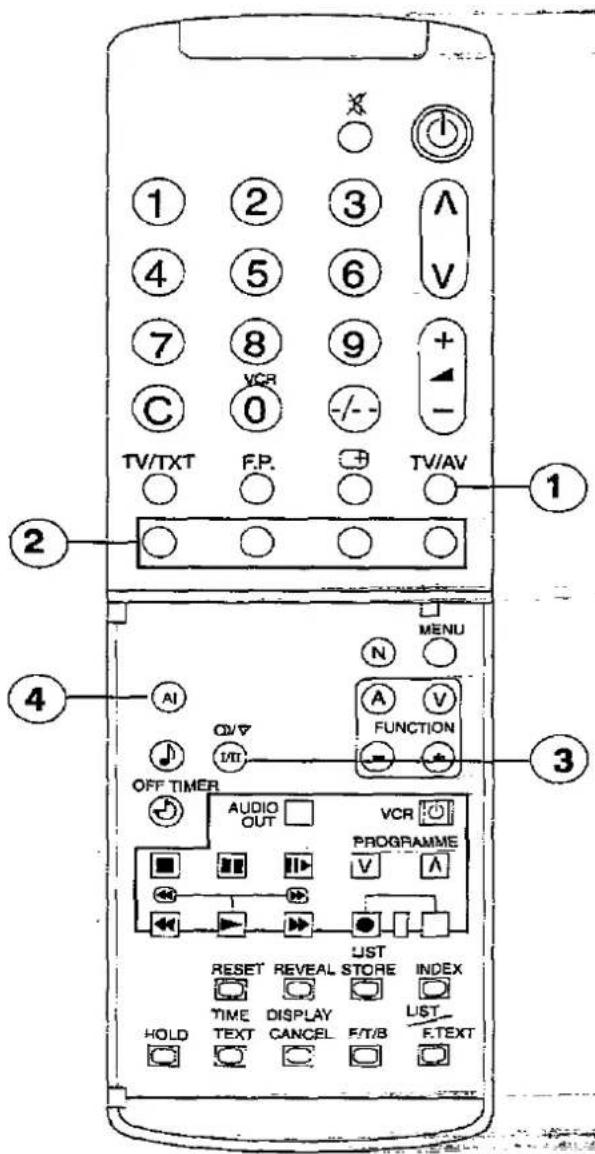

Multi-function Remote Control (TV / Teletext / VCR (Panasonic))

On Screen Displays

51 Position Tuning System (1 - 50 plus VCR)

AV In / Out (Rear) AV In (Front)

AV NTSC Reception

Accessories

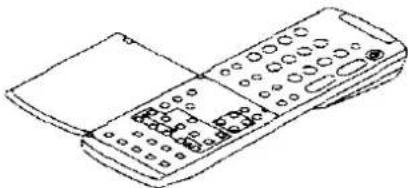

Check and identify the supplied accessories before setting up this T.V. set.

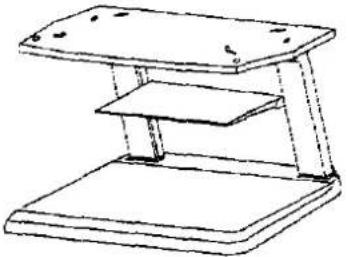

TV. StandTX-29A3 - TS2710TX-25A3 - TS2700(Assembly Instructions are included in stand packaging)	Remote Control Transmitter(TNQ8E0453-1)	Batteries for the Remote Control Transmitter.(2 x R6 (UM3) size)

Battery Installation and Replacement

Batteries : Use two R6 (UM3) dry cells (supplied).

Note : If there is a reduction in the operating distance of the remote control or it fails to operate, replace the batteries as follows.

A

Line drawing of a hand operating a device with an arrow indicating motion (no text or symbols)

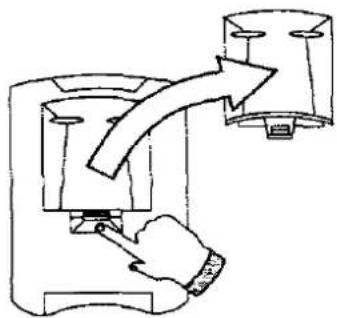

Remove the remote control battery compartment lid by prising it upwards.

B

Hand inserting a battery into a device (no text or symbols visible)

Insert the batteries correctly observing the polarities (+) and (-).

C

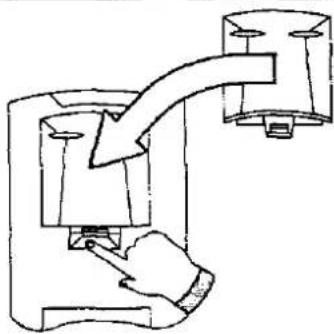

Hand inserting a device into a device with an arrow indicating the process (no text or symbols present)

Replace the cover.

Precautions

1. Do not use an old battery with a new one.
2. Ensure the batteries are inserted correctly.
3. Do not use rechargeable (Ni-Cad) batteries.
4. Do not mix battery types, i.e. Alkaline and Manganese.
5. Remove flat batteries and dispose of them immediately.

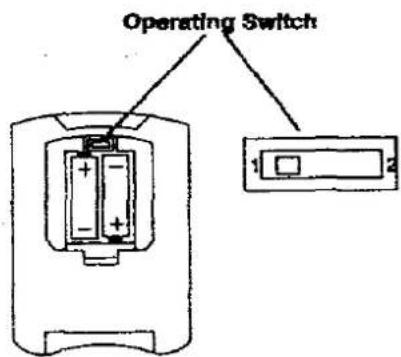

Operating Switch

Operating Switch 1 2

If any difficulty is encountered when using this remote control with Panasonic video tape recorders please check the operation of the video recorder with the operating switch set at position one and again with the switch set at position two.

Aerial Connection

Connecting the aerial

Connect your Aerial to the RF IN socket at the rear of the TV.

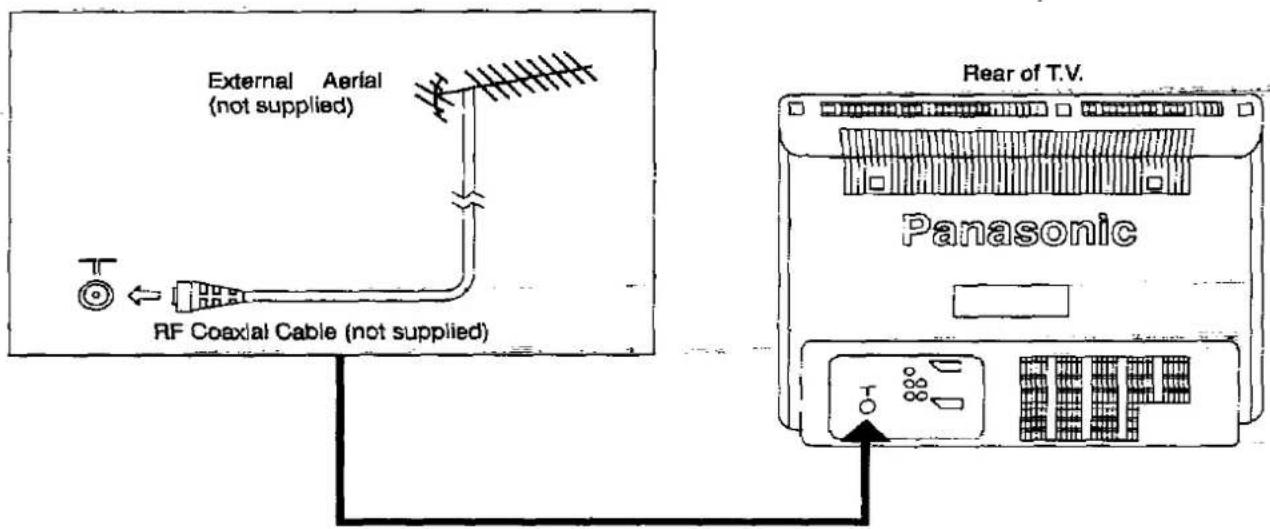

External Aerial (not supplied) RF Coaxial Cable (not supplied) Rear of T.V. Panasonic

Connecting the aerial via a Video Recorder

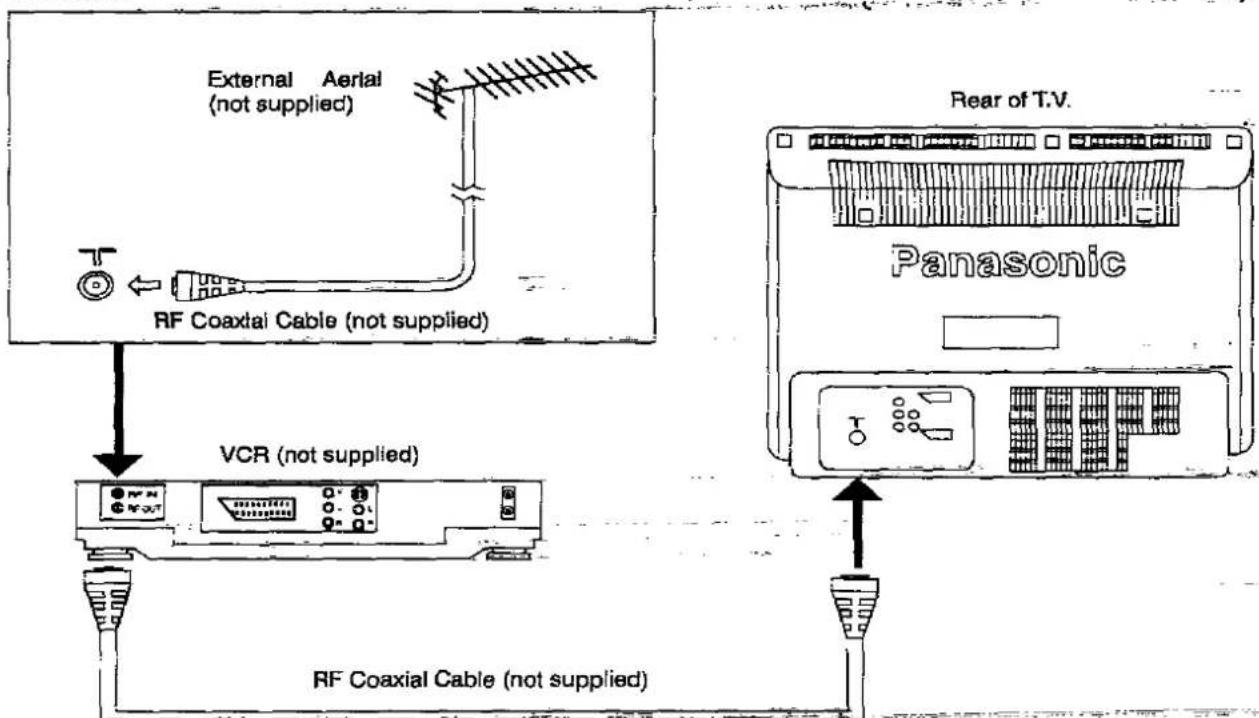

Connect your Aerial to the RF IN socket at the rear of the VCR. Connect an RF coaxial cable between the VCR RF OUT socket and the TV RF IN socket.


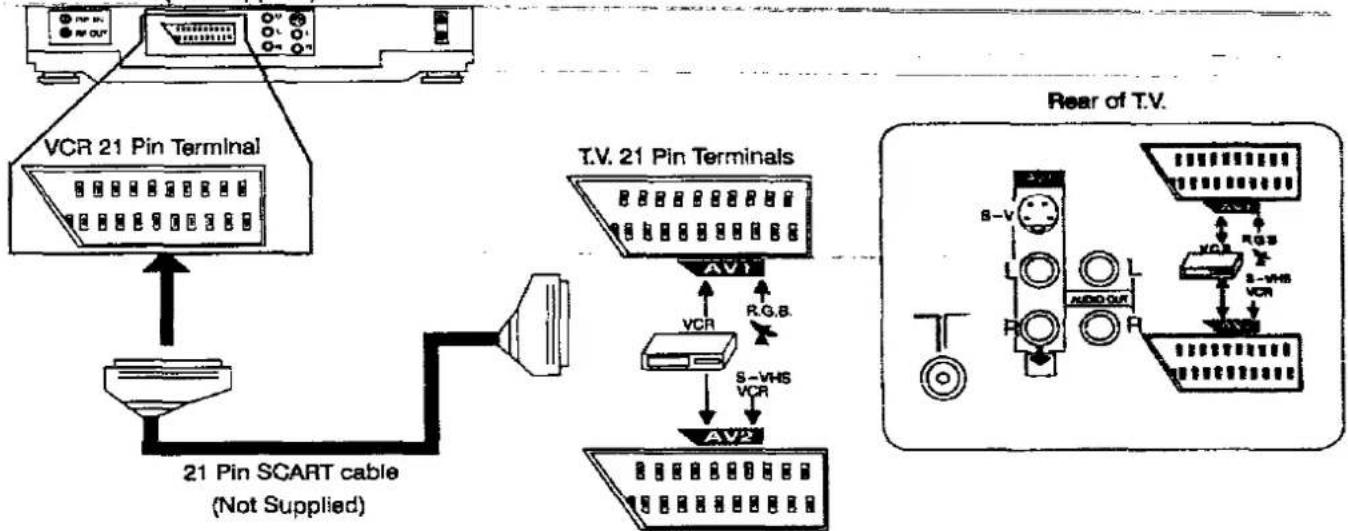

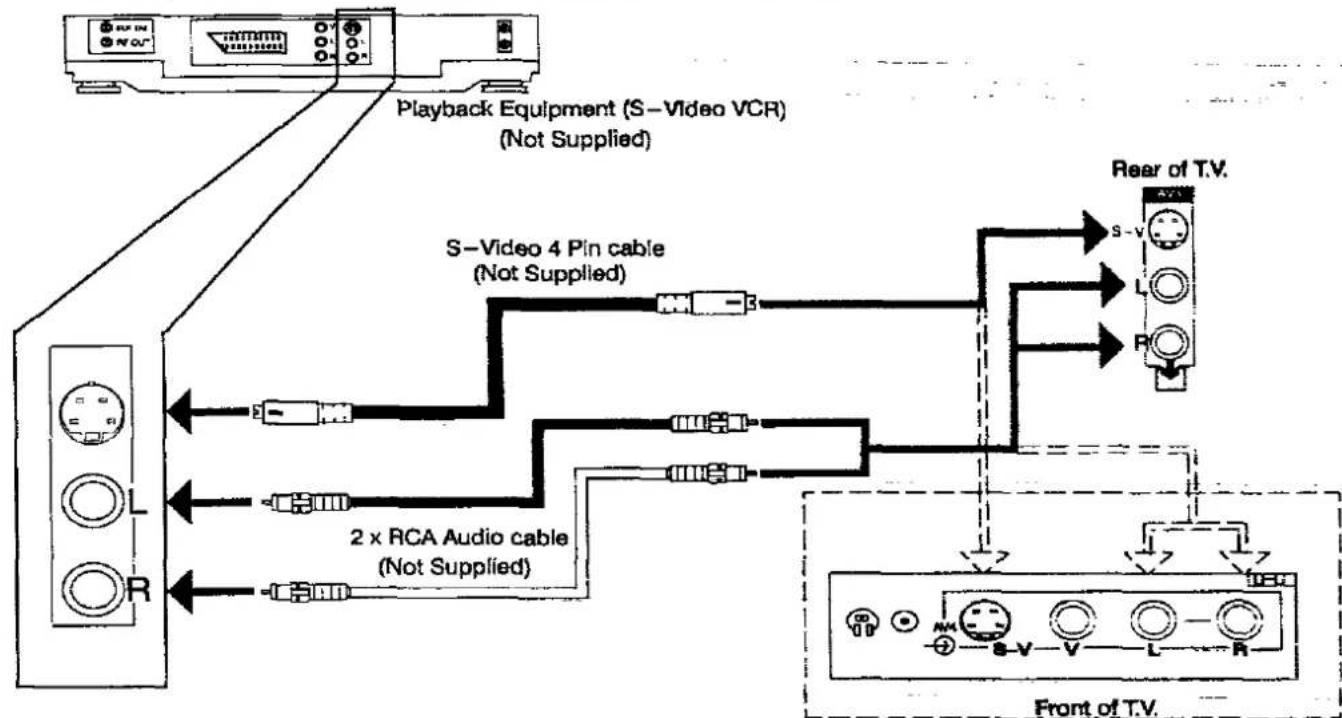

Note : For information on how to connect a VCR to this TV using Audio / Video cables please refer to pages 22 and 23.

Tuning Procedure

Switching the TV on / off

To switch ON or OFF press the Power on / off button on the front of the TV.

If the power to this TV is interrupted whilst it is switched on, when power is returned the TV will automatically switch back on.

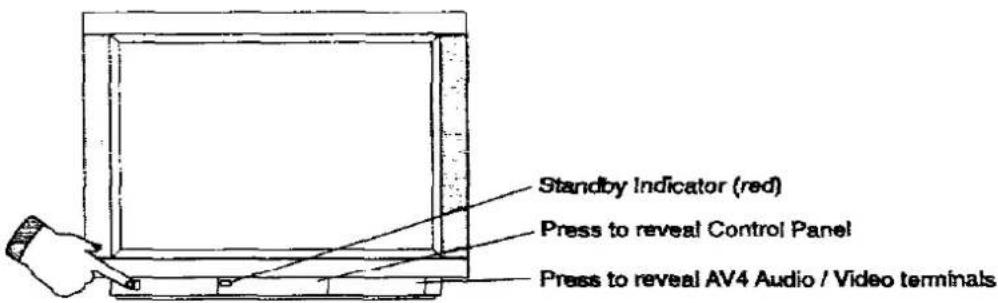

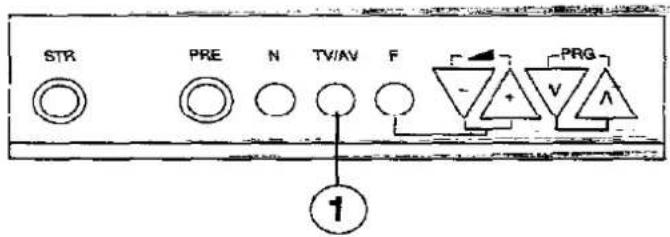

Standby Indicator (red) Press to reveal Control Panel Press to reveal AV4 Audio / Video terminals

Tuning-in the channels

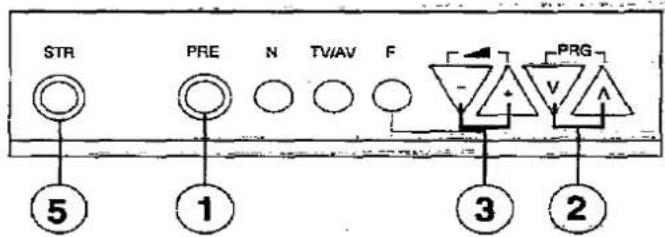

PRE

3 CH41 Function Local Key Handset Search : - , + Store : STI End : PRE

Press PRE on TV.

Search Tuning

If the local channel numbers are known proceed to step D.

Press + or - until the desired channel is on screen.

Now proceed to step E.

Note: If the channel received has a weak signal, it is advisable to continue tuning until a stronger signal is received.

Programme Position Selection

Press programme up/down to select the programme position on which to store the channel.

Note :

When tuning the TV into a VCR, position '0' should be selected.

Direct Channel Selection

Only use this step if the local channel numbers are known. Press the 'C' key, on the remote control.

Input the channel number as two digits using the numeric keys within six seconds. (e.g. for channel 25 press 2 and 5).

The screen will display the channel.

Tuning Procedure

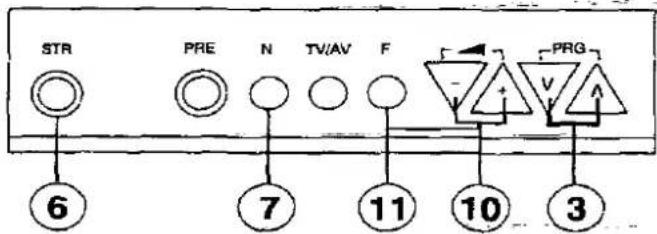

STR PRE N TV/AV F PRG ⑤ ① ③ ②

STR

Press STR to store the channel.

The programme position number will flash.

Repeat steps B-E to store other channels if desired.

PRE

Press PRE to end tuning procedure.

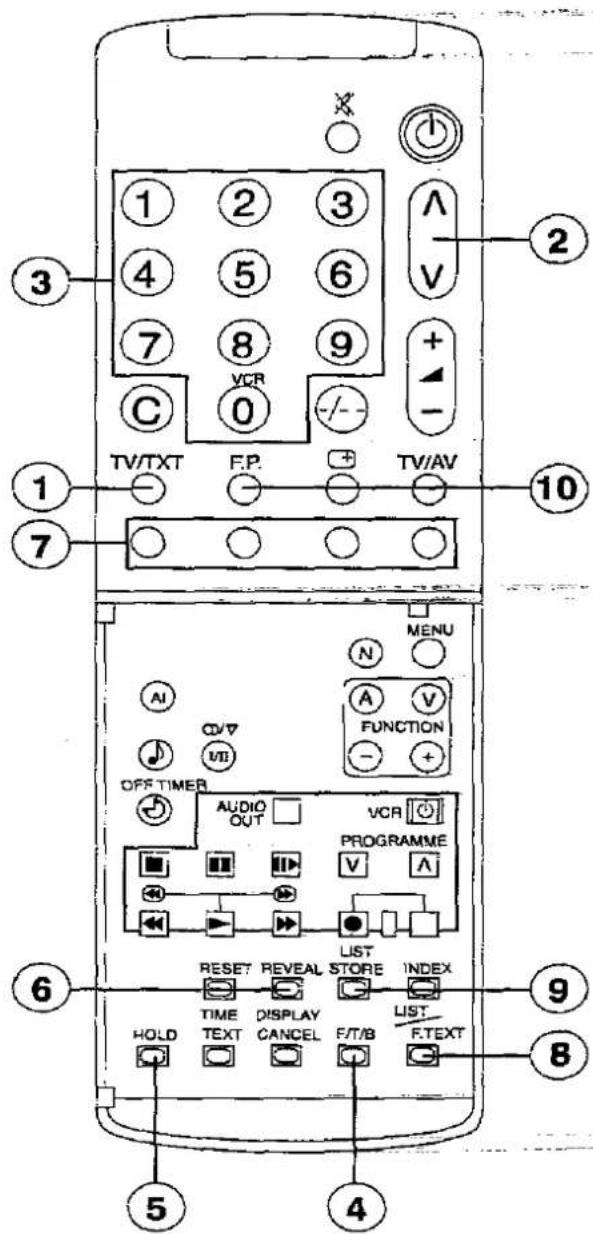

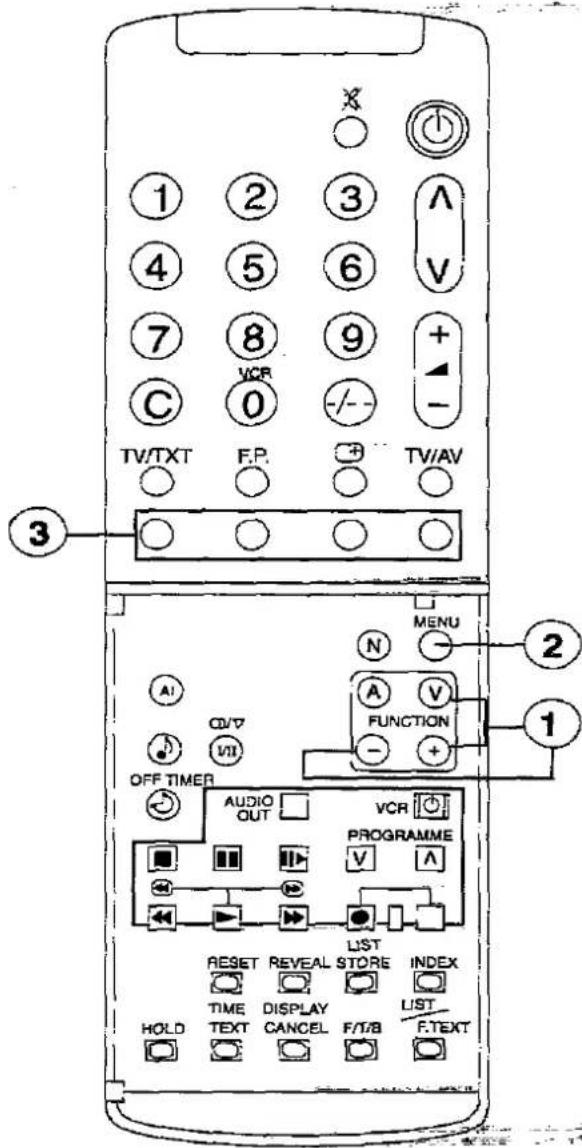

1 2 3 V 4 5 6 7 8 9 + - C 0 TV/TXT F.P. TV/AV OFF TIMER AUDIO OUT VCR PROGRAMME LIST RESET REVEAL STORE INDEX TIME DISPLAY LIST HOLD TEXT CANCEL F/T/B F.TEXT

General Operation

Note: Certain functions will display a coloured bar on screen for a short period of time.

Standby mode

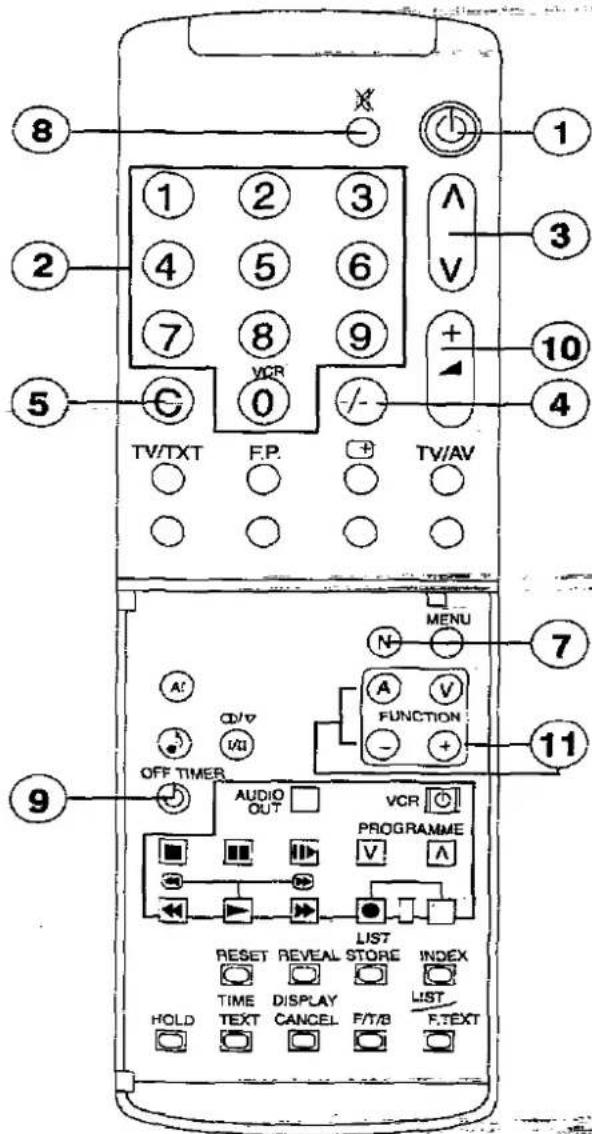

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ③ V Λ

Press to switch the TV, off for a period of time.

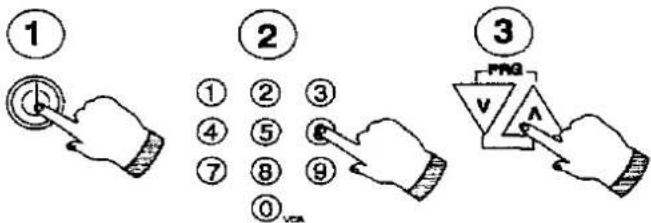

To switch back on perform one of the following :

1. Press Standby again.
2. Select a programme position from 0 - 9 on the remote control.
3. Press Programme Up / Down on the TV.
   Note: If the TV. is in Standby mode it is not possible to switch it back on using the Power switch (located at the front of the TV).

Programme Position Selection

PRG V ③ OR V

Press to change programme position by one.

OR

To select a programme between 0 - 9 press numeric key once. To select a programme position between 10 - 50 press the -- key followed by the numbers required.

Direct Channel Selection

Press the 'C' key.

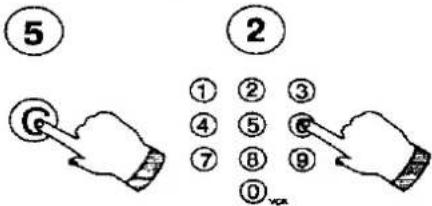

Press the numeric keys within five seconds. (e.g. for channel 41 press 4 and 1).

The screen will display the channel.

Note : The channel is not memorised unless STORE is pressed.

Normalisation Store

STR

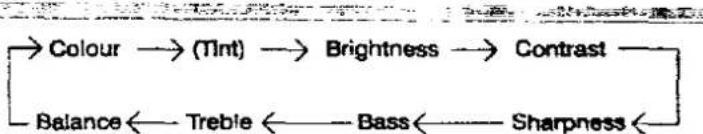

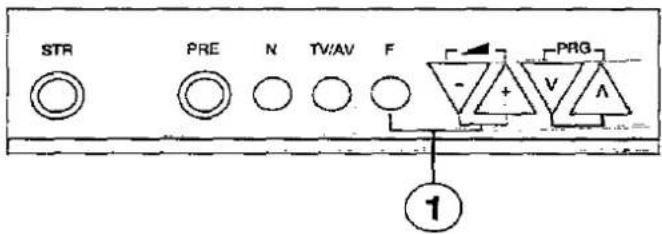

Adjust the Volume, Bass, Treble, Balance, Colour, Tint (NTSC, only), Brightness, Contrast and Sharpness to normal viewing levels. Press STR to store these levels in memory.

Note: It is possible to store different Bass and Treble values in Music and Speech modes.

Normalisation

N

Press to recall the levels previously set with Normalisation Store.

Sound Mute

Press to mute or restore the sound. Displayed as a red bar.

Off Timer

Press to select the required Off Time of 30, 60 or 90 minutes. The selected time will be displayed in the bottom right of the screen.

To cancel press until the screen shows '0'.

General Operation

Note: Certain functions will display a coloured bar on screen for a short period of time.

Sound Control Functions (A)

Volume

⑩ - + + + -

Press + or - to adjust.

Displayed as a green bar.

Bass

F ⑪

Press to select.

Press + or - to adjust.

Displayed as a green bar scale.

Treble

F ⑪ A -

Press to select.

Press +or - to adjust.

Displayed as a green bar scale.

Balance

F 11

Press to select.

Press + or - to adjust.

Displayed as a green bar.

Sound Selection Sequence (A) - Remote Control Operation

STR PRE N TV/AV F PRG 6 7 11 10 3

8 1 2 3 4 5 6 7 8 9 VCR C 0 TV/TXT FP. + TV/AV OFF TIMER A' CD/V I/O MENU A V FUNCTION - + 11 7 9 AUDIO OUT VCR PROGRAMME LIST RESET REVEAL STORE INDEX TIME DISPLAY LIST HOLD TEXT CANCEL F/T/B F.TEXT

General Operation

Note: Certain functions will display a coloured bar on screen for a short period of time.

Video Control Functions (V)

Colour

F ① A -

Press to select.

Press + or - to adjust.

Displayed as a red bar.

Contrast

F ①

Press to select.

Press + or - to adjust.

Displayed as a cyan bar.

Tint

F ① A - +

Press to select.

Press + or - to adjust.

Displayed as a green bar.

Note : Only operational and displayed when receiving an NTSC signal).

Sharpness

F ① A -

Press to select.

Press + or - to adjust.

Displayed as a green bar.

Brightness

F + ① A - +

Press to select.

Press + or - to adjust.

Displayed as a white bar.

Video Selection Sequence (V) - Remote Control Operation

Combined Selection Sequence (F) - TV Operation

Features Operation

Picture Format Selection (Aspect)

When receiving a 16:9 format signal select to obtain the correct picture height on screen.

AUTO Automatic selection between 16:9 / 4:3 picture aspect

16:9 Wide screen picture viewing

4:3 Normal picture viewing

Note: A correct 16:9 picture format is only possible when a 16:9 signal is received through the AV 21 pin terminals. It is possible to switch a normal 4:3 signal into 16:9 mode, but this is for effect only and does not accurately represent the 16:9 picture format.

Menu Aspect Auto Ambience Off P-NR Off AV2 OUT AV4 Change

Press MENU.

The screen will display the function settings.

Menu Aspect: Ambience : 1Auto P-NR 16:9 AV2 OUT 4:3 Up | Down | Select OK

Press the BLUE (Change) key to enter the options menu.

Press the RED (Up) or GREEN (Down) keys to move to Aspect.

Press the YELLOW (Select) key to select the required Aspect ratio from the sub-menu.

Press the BLUE (OK) key to confirm selection.

The Menu will remain on screen for a short period of time.

Note : Picture format cannot be changed whilst in Teletext mode.

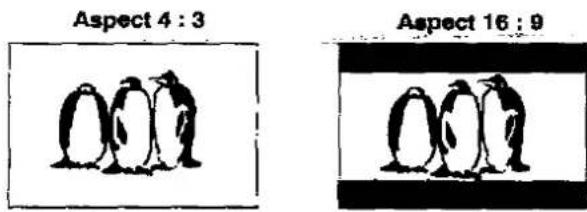

Aspect 4 : 3 Aspect 16 : 9

STR PRE N TV/AV F PRG ①

① ② ③ ∧ ④ ⑤ ⑥ V ⑦ ⑧ ⑨ + C VCR -/- - TV/TXT F.P. + TV/AV OFF TIMER AUDIO OUT VCR PROGRAMME N A V FUNCTION - + 1 2 3 1 RESET REVEAL STORE INDEX TIME DISPLAY LIST HOLD TEXT CANCEL F/T/B F.TEXT

Features Operation

AV2 Out Selection

AV2 can be used as an output to record from one of the following:

TV : Present programme position selected
AV1 : Equipment connected to AV1
AV3 : Equipment connected to AV3
AV4 : Equipment connected to AV4
MON : Picture displayed on screen (Monitor)

Notes :

1. Monitor output is not possible whilst AV2 is being used as an input.
2. Examples of Audio/Video connections are shown on page 22.

Menu Aspect : Auto Ambience : Off P-NR : Off AV2 OUT : AV4 Charge

Press MENU.

The screen will display the function settings.

Menu Aspect Ambience P-NR AVZ OUT Auto Off Off TV AN INS ON ON Up Down Select OK

Press the BLUE (Change) key to enter the options menu.

Press the RED (Up) or GREEN (Down) keys to move to AV2 OUT.

Press the YELLOW (Select) key to select the required output for AV2 OUT.

Press the BLUE (OK) key to confirm selection.

The Menu will remain on screen for a short period of time.

Ambience

A dynamic sound enhancer that gives a feeling of greater acoustic presence.

MENU

Menu Aspect : - Auto Ambience : O# P-NR : O# AV2 OUT : AV4 Change

Press MENU.

The screen will display the function settings.

Menu Aspect Amblanch P-N1 AV2 OUT Auto On Off Up Down Select On

Press the BLUE (Change) key to enter the options menu.

Press the RED (Up) or GREEN (Down) keys to move to Ambience.

Press the YELLOW (Select) key to switch the Ambience On or Off.

Press the BLUE (OK) key to confirm selection.

The Menu will remain on screen for a short period of time.

Status / Programme Table

17 CH44 Nicam 15:04:27 Prog Nidex

Press Status.

The screen will display the following :

a. Programme Position
b. Channel number
c. Time (If Teletext is available)
d. Audio System (If available)
e. Teletext System (If available)

The programme position will remain on screen, press Status again to remove.

Press the BLUE key to show the Programme Table.

The programme and channels will be displayed.

Press STATUS to return to TV mode.

Features Operation

Picture Noise Reduction

P.N.R. reduces the picture noise (a. interference.

MENU

Menu Aspect Auto Ambience Off P-NR O² AV2 OUT AV4 Change

Press MENU.

The screen will display the function settings.

Menu Aspect Auto Ambience Off LP-NS On AV2 OUT Off Up Down Select OK

Press the BLUE (Change) key to enter the options menu.

Press the RED (Up) or GREEN (Down) keys to move to P-NR.

Press the YELLOW (Select) key to switch the P-NR On or Off.

Press the BLUE (OK) key to confirm selection.

The Menu will remain on screen for a short period of time.

Music / Speech

The sound can be improved during Music or Speech mode by selecting the appropriate function.

Press Music / Speech to select appropriate function.

Displayed on screen for five seconds.

NO TA 1 2 3 4 5 6 7 8 9 C VCR 0 TV/TXT F.P. TV/AV NO TA 1 2 3 4 AUDIO OUT VCR FUNCTION - MENU OFF TIMER PROGRAMME LIST RESET REVEAL STORE INDEX TIME DISPLAY LIST HOLD TEXT CANCEL F/T/B F.TEXT

Features Operation

TV / AV Selection

Note : Examples of Audio / Video connections are shown on pages 22 and 23.

Press to switch between TV and Audio / Video mode.

Use this step for remote control operation

Press RED key to select AV1.

Press GREEN key to select AV2. (Press again to select AV2 S-Video).

Press YELLOW key to select AV3S.

Press BLUE key to select AV4. (Press again to select AV4 S-Video).

Press TV/AV key to return to TV mode.

TV/AV

Use this step for TV operation

Press to rotate through AV1, AV2 or AV2/S, AV3S and AV4 / AV4/S. AV2 / AV2S and AV4 / AV4S selections are dependant upon what they were previously set at using the remote control.

Notes :

1. AV1 and AV2 are capable of switching to AV operation automatically if the equipment connected provides a switching signal.

In this condition the display will show EC1 or EC2 and it is possible to change the programme position of the TV without changing the displayed picture.

To return to TV operation press the TV / AV key.

1. When using the automatic switching feature of AV1, there are two possible types of switching signal which the T.V. recognises, these two signals are :—

a. For pictures with an aspect ratio of 4:3
b. For pictures with an aspect ratio of 16:9

These two types of switching signals (e.g from VCR or Satellite) will automatically control the aspect ratio of the viewed picture if the "Picture Format Selection" feature is set to AUTO.

NTSC signals in A/V mode

NTSC is the USA TV colour broadcast system (also used in some other countries e.g Canada, Japan and Korea).

If you are using the AV function to replay an NTSC programme e.g. from a video recorder which is playing back an NTSC signal, then this TV will automatically accept this signal.

NICAM Stereo Sound System

(Only when receiving NICAM sound transmissions)

NICAM is a 2 channel sound broadcast system which provides either a high quality stereo soundtrack or two independent Mono soundtracks.

NICAM Stereo transmissions

Press to switch between NICAM Stereo and FM Mono sound output.

The screen will display the following :

Sound Output	Screen Display
NICAM Stereo	Nicam
FM Mono	Mono

NICAM Mono transmissions

Press to switch between NICAM Mono I, NICAM Mono II and FM Mono.

The screen will display the following :

Sound Output	Screen Display
NICAM Mono I	M1
NICAM Mono II	M2
FM Mono	Mono

Notes :

1. The sound outputs available are dependant upon what is transmitted on the received channel.
2. When the power is switched on, the model is pre-set to the last memorised position.
3. If the receiving conditions deteriorate, it is advisable to switch to FM Mono mode.
4. When NICAM transmissions are not being received, the sound will be FM Mono only and there will be no screen display or selection functions.

Features Operation

Last Position Memory

Certain functions have a last position memory, i.e. the setting at the time of switch-off will be the setting used when the receiver is switched on again:

Programme

AV Position

Volume

Stereo mode

Bass

Treble

Balance

Colour

Brightness

Tint

Contrast

Sharpness

Aspect

Standby

Artificial Intelligence (AI)

Music / Speech

AV2 OUT selection

Status

Artificial Intelligence (AI)

As the TV video signal is processed for immediate reception,

"Brightness", "Contrast", "Shade of Colour", etc. are automatically adjusted to the optimum conditions.

Each frame is finely and automatically adjusted to compensate for the pictures characteristics thereby achieving contrast with optimum field of depth, and vivid colour tones.

Press to switch between :

Normal	For a small amount of improvement.
Dynamic	For a large amount of improvement.
Off	To switch off this feature.

Select as required to improve the picture.

STR PRE N TV/AV F PRG ①

1 2 3 Λ 4 5 6 V 7 8 9 + C VCR 0 -/-- TV/TXT F.P. TV/AV 1 2 3 4 AI O/V FUNCTION N OFF TIMER AUDIO OUT VCR PROGRAMME V A V OFF TIMER RESET REVEAL STORE INDEX TIME DISPLAY LIST_ HOLD TEXT CANCEL F/T/B F.TEXT

Teletext Operation

Notes :

1. Teletext is only available if the channel selected is transmitting Teletext.
2. Teletext features may vary depending on the Broadcasting Companies.
3. This TV set is capable of receiving German TOP Teletext transmissions if available, it will automatically switch to them if they are being received. This will be indicated in the display area at the bottom of the screen.

TV / Teletext mode

TV/TXT

Press the TV/TXT key.

The screen will display the Teletext page.

Press again when you wish to return to TV. mode.

Hold

HOLD

Press to hold the current page.

Press again to cancel the hold.

Page Selection

Pages can be selected in two ways :

a. Press the Up / Down keys to increase or decrease the page number by one.
b. By entering the page number, using 0 -9 on the remote control.

Reveal

REVEAL

Press to reveal hidden words e.g. quiz page answers.

Press again to hide.

Red / Green / Yellow / Blue keys

Top / Bottom / Full

F/T/B

Press to expand the TOP half of the page.

Press again to expand the BOTTOM half.

Press again to return to normal (FULL) size.

In TOP or FASTEXT mode these correspond to the differently coloured subjects.

In LIST mode they correspond to the differently coloured page numbers.

Teletext Operation

List / F.text

⑧ LIST F.TEXT

Press to change from FASTEXT mode to LIST mode and vice versa.

In FASTEXT mode four differently coloured subjects are displayed at the bottom of the page. Press the appropriate coloured key to access more information about one of these subjects.

List Store

⑨ LIST STORE

In LIST mode the four page numbers can be altered for channel positions 1 - 25 only.

To do this, press one of the coloured keys and enter the new page number.

Press and hold List Store, the page numbers will change colour.

Favourite Page (F.P.)

This feature will store a favourite page number in the TV memory and will be instantly recalled when pressed. To store such a page number, the TV must be in LIST mode, and the programme position must be from 1 - 25. Press the BLUE key, select the page number, then press LIST STORE. The page number is now stored.

Press F.P. to recall this page number.

Note : Depending on the transmission sequence, when the F.P. key is pressed, the contents of the favourite page may take some time to appear. Only the page number is stored, not it's contents.

1 2 3 4 5 6 7 8 9 VCR C 0 -/-- TV/TXT F.P. + TV/AV 10 7 OFF TIMER AUDIO OUT VCR FUNCTION N A V + - + - LIST RESET REVEAL STORE INDEX TIME DISPLAY LIST TEXT CANCEL F/T/B F.TEXT HOLD 5 4 9 8

Teletext Operation

Reset

Press in TOP mode to reset to the main TOP page (100). Press in LIST mode to reset to the RED coloured page. Press in FASTEXT mode to reset to the Index page.

Index

Press in FASTEXT mode to reset to the index page. Depending on the way information is transmitted, this may have to be pressed more than once to return to the main index page.

Display Cancel

③ DISPLAY CANCEL

Press to view the TV. whilst searching for a Teletext page. When the page is found, the screen will display the page number at the top left. Press again to view the page. Press TV / TXT to return to normal TV. operation.

News Flash

③ DISPLAY CANCEL

Press when a news flash page has been selected to view the TV. When an update of the news flash is received, it will be superimposed over the TV. picture. Press again to remove updated news. Press TV / TXT to return to normal TV. operation.

Update

③ DISPLAY CANCEL

Press to see the update of information on certain pages. When an update is received, the page number will be displayed at the top left of the screen. Press again to view the page. Press TV / TXT to return to normal TV. operation.

Note: it is not possible to change the programme position when in News flash or Update mode.

VCR Operation

VCR Operation

The Remote Control is capable of operating some functions of selected Panasonic VCR's, please consult you dealer for details. Some VCR's have different functions, so to ensure compatibility, please refer to the VCR instruction book.

Standby

Press to switch the VCR to standby mode. Press again to switch back on.

Fast Forward / Cue

Press to fast forward the tape. In Play mode, press to view the picture rapidly forward.

Play

Press to playback the tape.

Rewind / Review

Press to rewind the tape. In Play mode, press to view the picture in reverse rapidly.

Stop

Press to stop the tape.

Pause / Still

Press in playback mode, the picture will pause.

Audio / Video (AV) Connections

Via the AV1 / AV2 21 Pin (SCART) terminals

Notes :

1. To connect a VHS VCR use the AV1 21 pin terminal.
2. To connect an S-Video VCR use the AV2 S-Video 21 pin terminal.

Playback or Recording Equipment (VHS or S—Video VCR) (Not Supplied)

Via the AV3 / AV4 4 Pin S-Video and RCA Audio terminals

Notes :

1. Cables shown are not supplied with this T.V. set.
2. Do not connect a computer with TTL output (5V) to this set.
3. The AV2 21 pin terminal can also be used as an Output to Audio / Video Equipment (refer to page 12 for details).

©

Trouble-shooting

Before calling for service, make a few simple checks as follows:

Symptoms		Checks
Picture	Sound
Snowy Picture	Noisy Sound	Aerial location, direction or connectionRetune Channel(s)
Multiple Images	Normal Sound	Aerial location, direction or connectionRetune Channel(s)
Interference	Noisy Sound	Electrical appliancesCars / MotorcyclesFluorescent lights
Normal Picture	No Sound	Sound muted
No Picture	No Sound	Not plugged into A.C. outletNot switched onPicture / Sound controls set atminimum levelsCheck if in standby mode
No Colour	Normal Sound	Colour controls set at minimum levels
Poor or Distorted Picture	Weak or No Sound	Retune Channel(s)
Coloured Patches	Normal Sound	Magnetic Interference from unshieldedequipmentReceiver moved while switched ON,switch TV off for 30 minutes.

Specifications

Power Source	240V 50Hz A.C.
Power ConsumptionTX-29A3TX-25A3	115W105W
Picture TubeTX-29A3TX-25A3(Measured Diagonally)	Super Flat FST 110°68cmV59cmV
Audio Output	2 x 10W Music power
DimensionsTX-29A3TX-25A3	H W D558 x 668 x 503mm509 x 606 x 482mm
WeightTX-29A3TX-25A3	41.5kg31kg
Receiving Systems	PAL - I (UHF)PAL - 60NTSC (AV Only)

Connections
Aerial	Rear of T.V.(UHF Only)
Headphones	Front of T.V.
Audio Monitor Out	2 x RCA Audio Out500mV rms 1kΩ
AV1	21 pin terminal(Audio / Video in / out)(RGB in)
AV2	21 pin terminal(Audio / Video in / out )(S-Video in)(Selectable Output)
AV3	S-Video 4 pin terminal2 x RCA Audio in
AV4	S-Video 4 pin terminal2 x RCA Audio in1 x RCA Video in

Notes: Specifications are subject to change without notice. Weight and dimensions shown are approximate.

Audio / Video 21 pin and S-Video 4 pin terminal specifications

Socket Earth 21——CVBS out (video) 19——CVBS earth 17——Red in 15——Red earth 13——Green In 11——Green earth 9——Blue In 7——Blue earth 6——Audio out (L) 3——Audio out (R) 1——

—— 20 —— 18 —— 16 —— 14 —— 12 —— 10 —— 8 —— 6 —— 4 —— 2

CVBS in (video)RGB status earthStatus RGB—— --—— --—— --—— Status CVBSAudio in (L)Audio earthAudio in (R)

Note: The AV2 21 pin terminal has the following differences from the AV121 pin terminal :-PIN 7 - No connectionPIN 11 - No connectionPIN 15 - S.C - InPIN 16 - No connectionPIN 20 - CVBS in (S-Y in)

Note: Pins 15 and 20 of the AV2 21 pin terminal are dependant on AV2 S—Video / VIDEO switching.

General Information

Sleep Feature

If the set is not switched off when the TV station stops transmitting at the end of the evening, it will automatically go to standby mode after 30 minutes. This function will not operate when the TV is in AV mode.

Service

Before requesting service, please refer to the trouble—shooting guide on page 24 to determine the symptoms. To obtain service please contact your local Panasonic dealer quoting the model number and serial number (both are located at the rear of the TV).

TV. Games / Home Computers

Extended use of TV games or home computers with any television set can cause a permanent 'shadow' on the screen. This type of irreversible picture tube damage, can be limited by observing the following points:

1. Reduce the brightness and contrast levels to a minimum viewing level.
2. Do not operate the television set for a continuous period of time while using TV games or home computers.
   This type of picture tube damage, is not an operating defect, and as such is not covered by the Panasonic warranty.
