HERTZ WEB MANUAL EP 5 www.hertzaudiovideo.com Amplifier Power Standard CEA-2008 Compliant

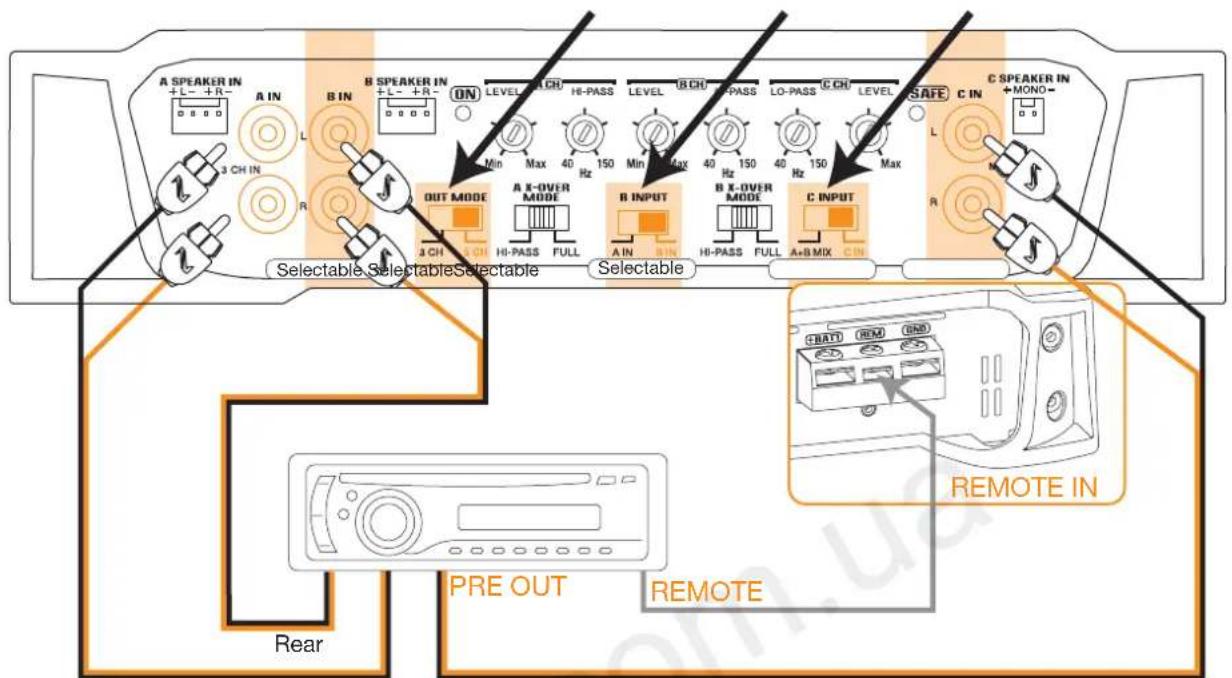

INPUTS

PRE IN 5 Channels Mode

A SPEAKER IN + L- + R- 0 0 0 0 3 CH IN A IN BIN B SPEAKER IN + L- + R- 0 0 0 0 ON LEVEL CH HI-PASS LEVEL BCH HI-PASS LO-PASS C CH LEVEL SAFE C IN + MONO+ 0 0 Selectable Selectable Selectable A X-OVER MODE A CH H1-PASS FULL B INPUT A IN BIN HI-PASS FULL B X-OVER MODE C INPUT R PRE OUT REMOTE REAR A B MIX C IN

Front Subwoofer

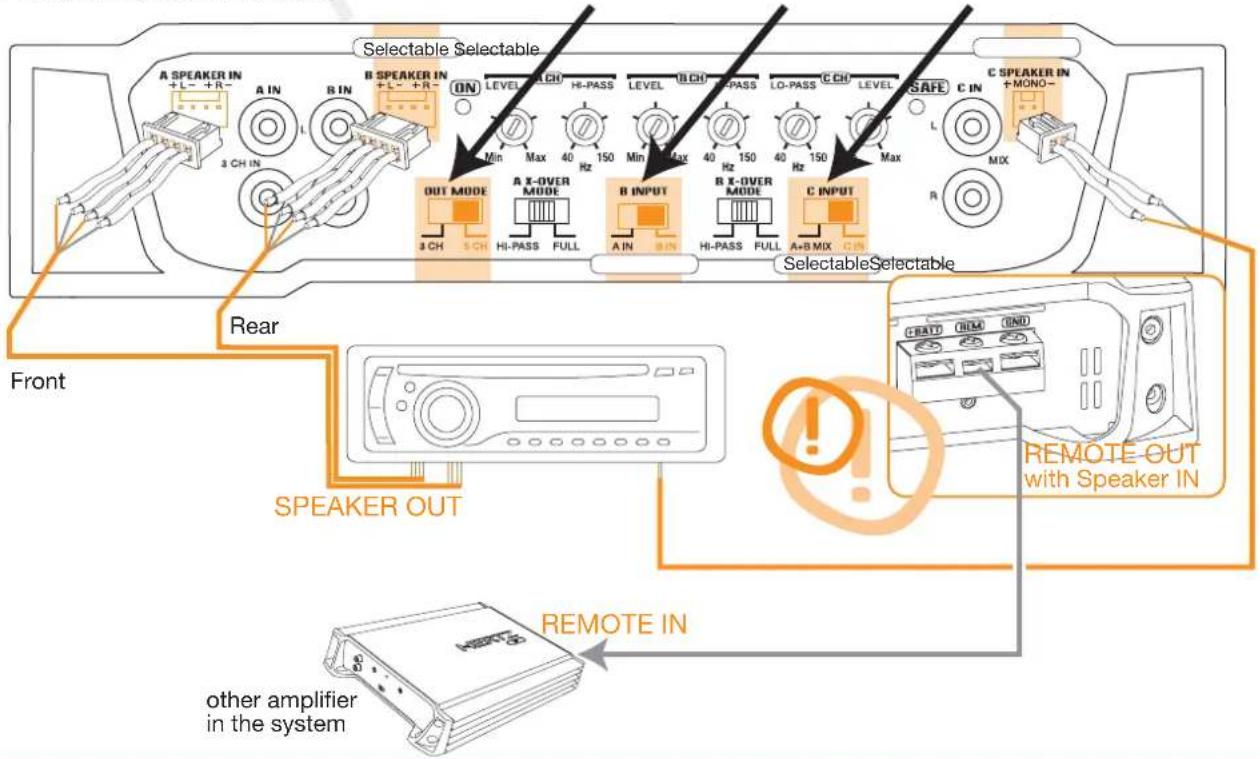

INPUTS

SPEAKER IN 5 Channels Mode

Selectable Selectable A SPEAKER IN +L - +R - 3 CH IN A IN B IN B SPEAKER IN +L - +R - ON LEVEL LECH HI-PASS LEVEL BCH PASS LO-PASS C CH LEVEL SAFE C IN C SPEAKER IN +MONO - OUT MODE A X-OVER MODE A B INPUT B X-OVER MODE C INPUT A+B MIX C IN Selectable Selectable R MIX Front SPEAKER OUT REMOTE OUT with Speaker IN other amplifier in the system

INPUTS

PRE IN 3 Channels Mode

A SPEAKER IN + L- + R- 0 0 0 0 3 CH IN A IN BIN B SPEAKER IN + L- + R- 0 0 0 0 ON LEVEL CH HI-PASS MIN Max 40 Hz 150 LEVEL BCH HI-PASS MIN Max 40 Hz 150 LEVEL C CH LO-PASS 40 Hz 150 C CH LEVEL SAFE C IN C SPEAKER IN + MONO+ L R NOT used OUT MODE A X-OVER MODE A IN 5 CH HI-PASS FULL A B IN HI-PASS FULL C INPUT NO Over Mode Not used Selectable Selectable PRE OUT REMOTE

Front Subwoofer

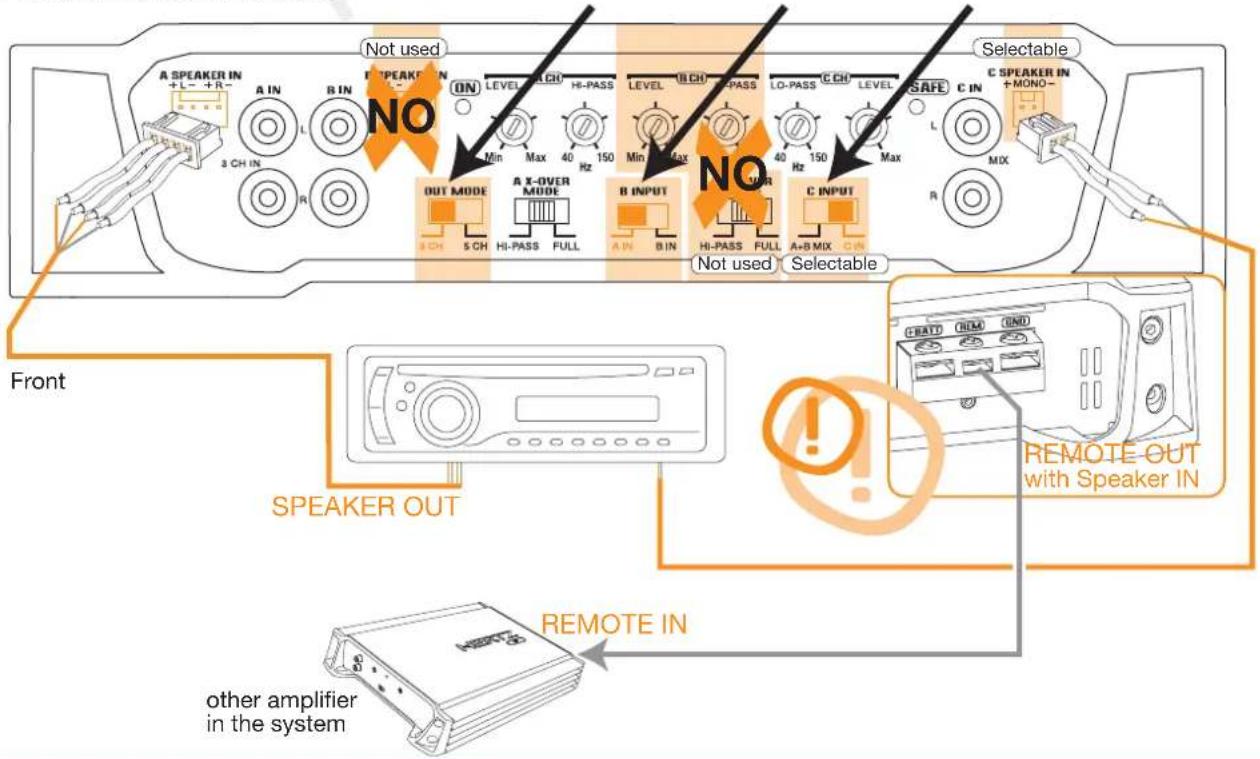

INPUTS

SPEAKER IN 3 Channels Mode

A SPEAKER IN +L - +R - 3 CH IN A IN B IN NO Not used OUT MODE 8 CH 5 CH A X-OVER MODE HI-PASS FULL LEVEL HIGH HI-PASS 40 Hz 150 LEVEL BCH PASS LO-PASS C CH LEVEL SAFE C IN Min Max 40 Hz 150 Max NO A B INPUT HI-PASS FULL A+B MIX C IN C INPUT Not used Selectable Selectable C SPEAKER IN +MONO- L MIX Front SPEAKER OUT REMOTE OUT with Speaker IN other amplifier in the system

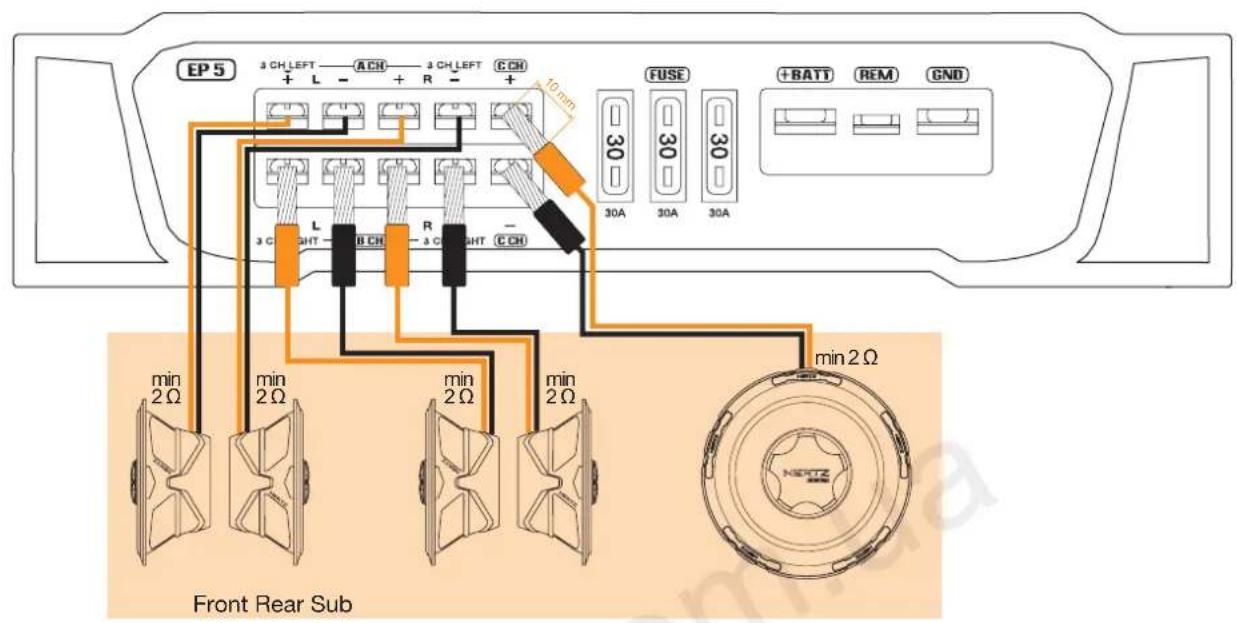

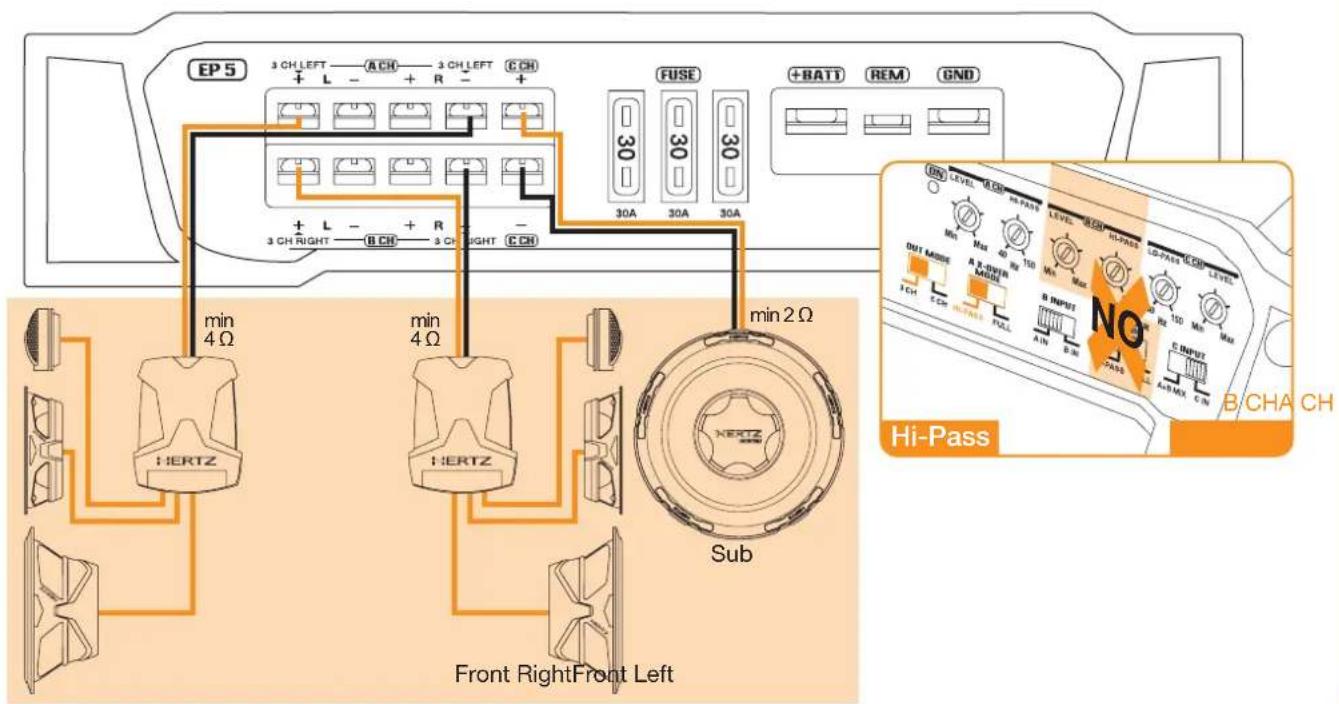

OUTPUTS

5 Channels Mode - Front / Rear / Sub

EP 5 3 CH LEFT + L - ACH 3 CH LEFT CCH + 10 nm FUSE 30 30A 30A 30A +BATT REM GND 3 C L B R - C C C 3 C RIGHT RIGHT CCH 3 C CCH 3 C CCH 30 min 2 Ω min 2 Ω min 2 Ω min 2 Ω Front Rear Sub

OUTPUTS

3 Channels Mode - Front / Sub

EP 5 3 CH LEFT — ACH — 3 CH LEFT CCH + L - + R - FUSE + BATT REM GND 30 30 30A 30A 30A 3 CH RIGHT — BCH — 3 CH RIGHT CCH min 4 Ω min 4 Ω min 2 Ω HERTZ HERTZ Sub Front Right Front Left Hi-Pass B/CHA CH

CONFIGURATION

Input configuration

3 Ch	Input	A Ch Mono	B Ch Mono	C Ch Mono
	A	A IN L	A IN R	A IN
	A+C	A IN L	A IN R	C IN

5 Ch	Input	A ch Stereo	B ch Stereo	C ch Mono
	A	A IN	A IN	A IN
	A+C	A IN	A IN	C IN
	A+B	A IN	B IN	A+BIN
	A+B+C	A IN	BIN	C IN

Filter configuration

Config.	A Ch B	Ch C Ch
1		Bypass	Bypass
2		Bypass	Hi-pass
3		Hi-pass	Bypass
4		Hi-pass	Hi-pass
5		Bypass	B Filter Not used
6		Hi-pass	B Filter Not used

TECHNICAL SPECIFICATIONS

EP5

Power Supply
Voltage	11÷15 VDC
Minimun idling current	1.5 A
Idling current when off	0.04 mA
Consumption @ 2Ω; 14.4 VDC(MAX Musical Power)	44 A
Remote IN Voltage	6÷15 VDC (1 mA)
Internal fuse	3 x 30 A
Amplifier stage
Bandwidth A & B Ch (-3dB)	7÷60k Hz
Bandwidth C Ch (-3dB)	7÷150 Hz
Distortion - THD (1 kHz @ 4 Ω)	0.09%
S/N Ration A& B Ch (weighted A @ 1 V)	98 dB
S/N Ration C Ch (weighted A @ 1 V)	102 dB
Damping factor A & B Ch (1 kHz @ 4 Ω)	100
Damping factor C Ch (1 kHz @ 4 Ω)	200
Input sensitive (PRE IN)	0.3÷5 V
Input sensitive (Speaker IN)	1.4÷24 V
Input impedance (PRE IN)	15 kΩ
Input impedance (Speaker IN)	5 kΩ
Load impedance (MIN)
5 Ch	4 x 2Ω + 1 x 2Ω
3 Ch	2 x 4Ω + 1 x 2Ω
Output Power (RMS)@ 14.4 VDC; THD 1%
5 Ch	60 W x 4 + 160 W x 1(4Ω)
5 Ch	95 W x 4 + 250 W x 1(2Ω)
3 Ch	190 W x 2 (4Ω) + 160 W x 1(4Ω)
3 Ch	190 W x 2 (4Ω) + 250 W x 1(2Ω)
Inputs / Outputs / Filters
Input	PRE / Speaker
AMP Filter
A Ch	Full / Hi-pass 40÷150Hz@12dB/Oct.
B Ch	Full / Hi-pass 40÷150Hz@12dB/Oct.
C Ch	Lo-pass 40÷150Hz@24dB/Oct.
Other Functions
ART	Automatic Remote Turn-On/Off with Speaker-In
Size
B x L x H mm	240 x 450 x 54
inches	9^15/32 × 17^23/32 × 2^0/32
Weight kg	4,80
lb	10.58
