Electone B-20CR - Tastatur YAMAHA - Kostenlose Bedienungsanleitung

Produkttyp	Elektronische Orgel (Tastatur)
Marke	Yamaha
Modell	Electone B-20CR
Abmessungen (B x T x H)	111 cm x 56 cm x 90 cm
Gewicht	69 kg
Stromversorgung	50/60 Hz, Wechselstrom
Leistungsaufnahme	85 W
Ausgangsleistung	30 W (RMS)
Tastaturen	Obermanual (44 Tasten), Untermanual (44 Tasten), Pedal (13 Tasten)
Tonregler	Obermanual: 8, Untermanual: 5, Pedal: 2
Effekte	Vibrato, Brillanz, Perkussion, Repeat Speed, Sustain (Obermanual), Hall
Tremolo/Chorus	Rotationslautsprecher mit Geschwindigkeitsregelung
Auto-Rhythmus	8 Rhythmen (Marsch, Walzer, Swing, Slow Rock, Jazz, Rhumba, Bossanova, Samba) mit Variation, Synchro-Start, Fußschalter
Preset-Tonauswahl	7 Upper Preset Tones (Akkordeon, Klavier, Hawaiian Guitar, Banjo, 3 Kombinationen) + Löschen
Anschlüsse	Kopfhörerbuchse, Aux In, Aux Out, Expression Input
Lautsprecher	Haupt: 30 cm, 20 cm, 5 cm; Rotary: 16x23 cm, 5 cm
Gehäuse	Nussbaumfurnier (amerikanisch)
Reinigung	Mit feuchtem Tuch, keine Lösungsmittel
Sicherheitshinweise	Nicht selbst öffnen, korrekte Spannung verwenden, nach Gebrauch ausschalten
Garantie	Siehe Bedienungsanleitung

Häufig gestellte Fragen - Electone B-20CR YAMAHA

Wie reinige ich das Yamaha Electone B-20CR?

Verwenden Sie ein weiches, leicht feuchtes Tuch. Verwenden Sie keine Lösungsmittel wie Benzin, da diese die Oberfläche beschädigen.

Was tun, wenn kein Ton zu hören ist?

Überprüfen Sie, ob das Netzkabel richtig eingesteckt ist und ob die Steckdose Strom liefert. Wenn das Problem weiterhin besteht, wenden Sie sich an Ihren Yamaha-Händler.

Wie aktiviere ich den Vibrato-Effekt?

Drehen Sie den Vibrato-Regler (Kniehebel) nach rechts, um den Effekt zu erhöhen. Der Effekt wird auf das Obermanual angewendet.

Wie benutze ich die Auto-Rhythmus-Funktion?

Wählen Sie einen Rhythmus mit den Rhythmustasten, drücken Sie Start oder nutzen Sie Synchro-Start, um den Rhythmus beim ersten Tastendruck zu starten. Der Fußschalter ermöglicht Start/Stopp.

Kann ich Kopfhörer anschließen?

Ja, schließen Sie einen Yamaha-Kopfhörer (optional) an die Kopfhörerbuchse unter der Tastatur an. Die Lautsprecher werden automatisch ausgeschaltet.

Was bedeutet die blinkende Anzeigelampe?

Die Tempo-Anzeigelampe blinkt im Takt des Rhythmus, wenn Synchro-Start aktiviert ist, auch wenn kein Ton zu hören ist.

Wie stelle ich die Lautstärke ein?

Verwenden Sie den Master Volume-Regler für die maximale Lautstärke und das Expression Pedal für dynamische Lautstärkeänderungen während des Spiels.

Gibt es eine Sustain-Funktion?

Ja, für das Obermanual gibt es den Upper 8'4' Sustain-Schalter und für das Pedal den Pedal Sustain-Regler. Der Kniehebel kann Sustain passagenweise steuern.

Kann ich externe Audiogeräte anschließen?

Ja, über die Aux In-Buchse können Sie externe Tonquellen (z.B. MP3-Player) abspielen, und über Aux Out können Sie Aufnahmen machen oder an eine Anlage anschließen.

Das Instrument erzeugt Störgeräusche, was kann ich tun?

Störgeräusche können durch andere Geräte (Kühlschrank, Waschmaschine) oder Neonlampen verursacht werden. Schalten Sie diese aus oder kontaktieren Sie einen Yamaha-Händler.

BEDIENUNGSANLEITUNG Electone B-20CR YAMAHA

B·20CR

GUIDE TO YOUR YAMAHA ELECTONE

Welcome to the Yamaha world of music. We are sure your selection of a Yamaha Electone was a wise one, and we want you to know that we will do everything possible to help you derive a lifetime of enjoyment from this fine musical instrument.

Please read this manual carefully to be sure you are familiar with each of the Electone's features and their expressive possibilities. In that way you and your Electone can become lifelong partners in musical creativity.

Contents

Page

Read the following before playing .... 1

This is the B-20CR 2

Keyboards 4

Tone Levers 5

Preset Tones 5

Vibrato, Brilliance, Upper Percussive, Repeat Speed, Upper 8', 4' Sustain, Reverb 6

Tremolo/Chorus, Pedal Sustain, Manual Balance, Expression Pedal, Master Volume 7

Auto Rhythm Section 8

To Fully Enjoy Your Electone ..... 10

Electone is not out of order If ..... 11

Specifications 13

Read the following before playing

In general, treat your Electone with the same care you would any fine musical instrument. The following points are suggested for optimum enjoyment.

1. Use only proper line voltage. Consult your Yamaha serviceman for changes.

As to British-Standard Model, its information is in 'Specifications' on the last page.

Illustration of two hands holding circular devices with hearts and a heart symbol (no text or labels)

1. Never touch the inside parts yourself.

Illustration of a person using a piano with a hand holding a tool (no text or symbols present)

1. Always shut off the power after playing.

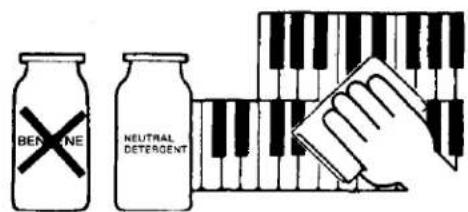

2. Clean keys, etc, with a damp cloth only. Never use solvents such as benzene; they will damage the finish.

1. Shield the cabinet from direct sunlight, humidity and heat to protect the finish and joints.

Cartoon illustration of a smiling kitchen with steam and sun (no text or symbols)

1. Do not hit or scratch the cabinet with a hard object.

Cartoon illustration of a person sitting at a cluttered desk with a computer and a ball above their head (no text or symbols)

1. To open or close the fallboard grasp the front lip with both hands and slide gently. Never pull directly upwards. Do not place anything heavy on the fallboard.

Simple line drawing of a desk with books, a bed, and a spring (no text or symbols)

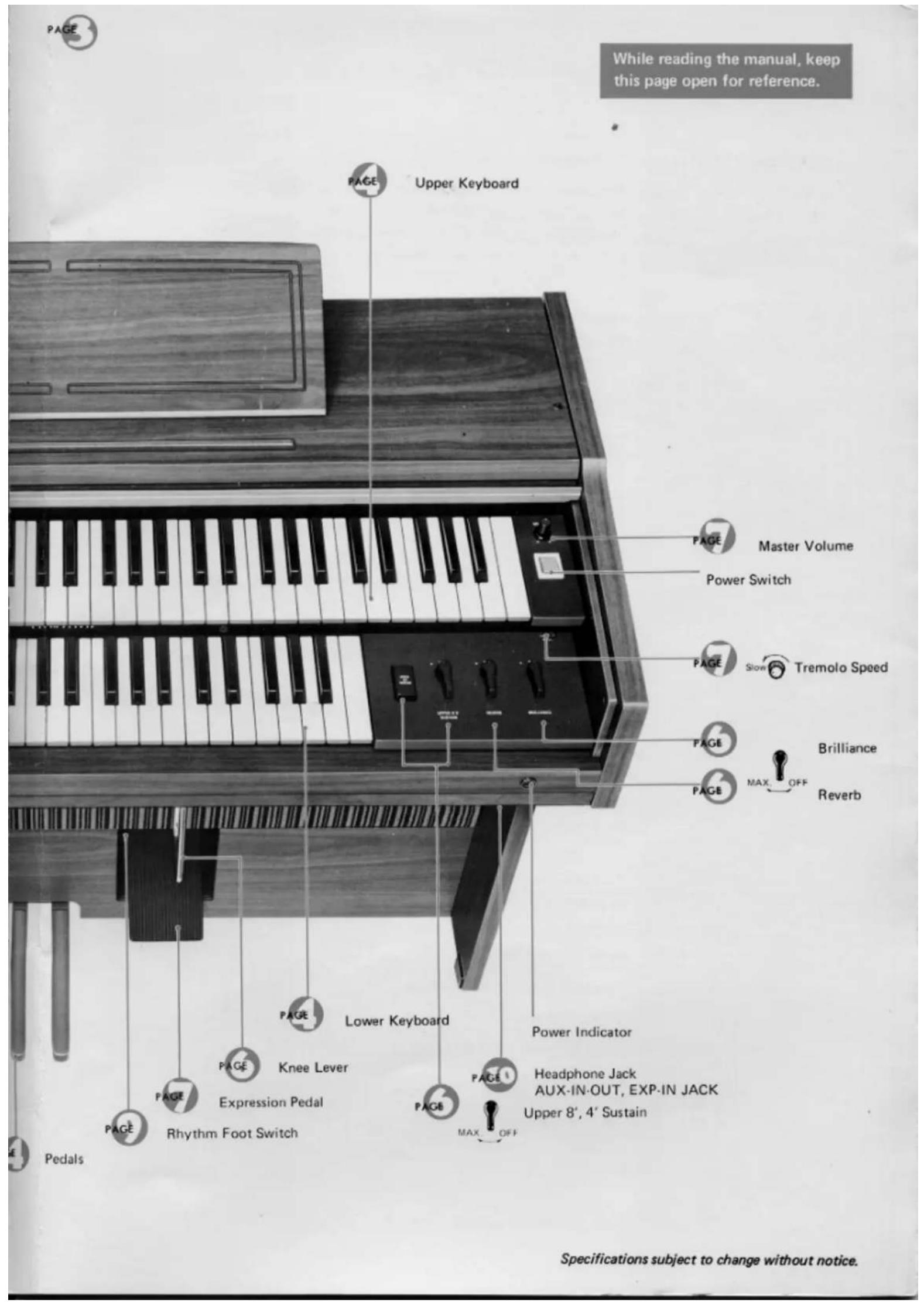

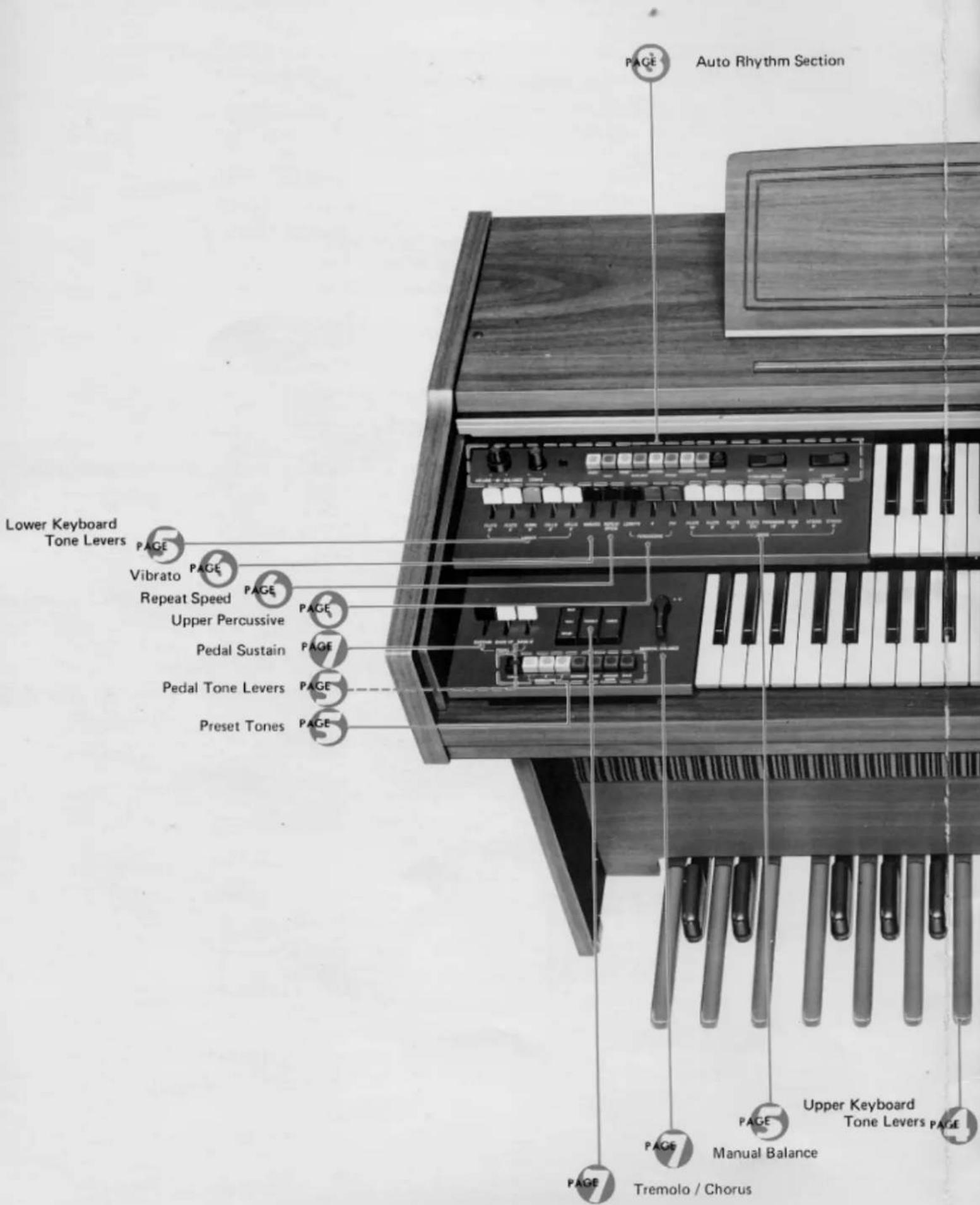

This is the B·20CR

Keyboards

This Electone has three keyboards. They have keys and octaves as follows:

Upper Keyboard 44 keys (3-2/3 octaves)

Lower Keyboard 44 keys (3-2/3 octaves)

Pedals 13 keys (1 octave)

This Electone is designed to permit playing the melody on the upper keyboard with the right hand, the chords on the lower keyboard with the left hand, and bass note on the pedals with the left foot.

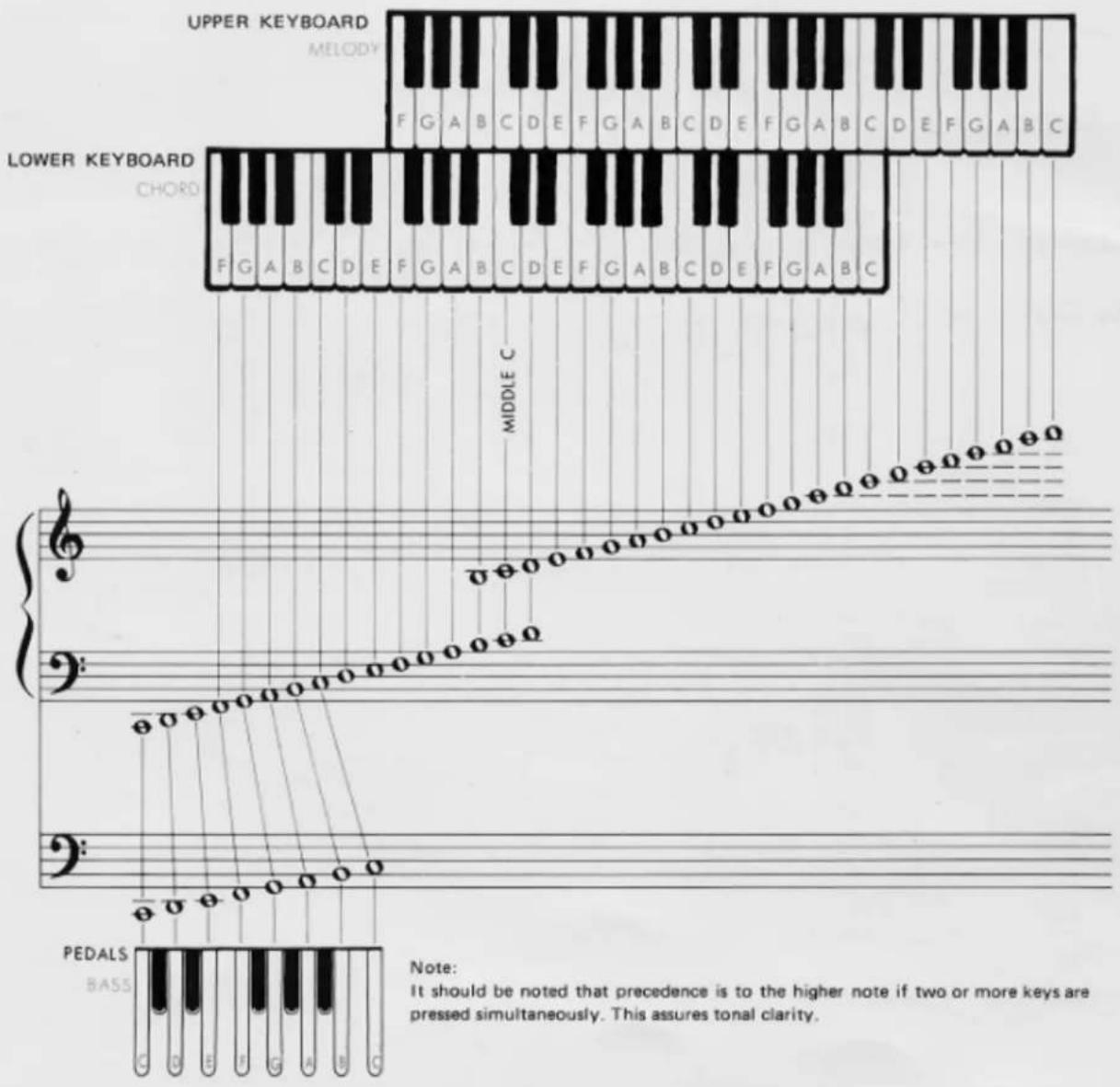

All keys are arranged in the keyboard method layout shown below. Each white key has a name (from C to B), and the blacks are sharps or flats.

Tone Levers

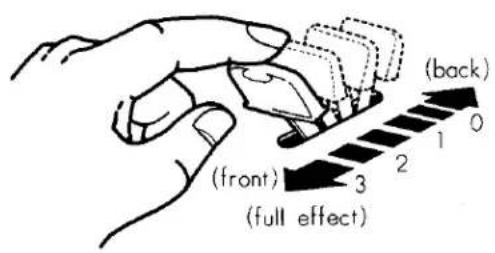

To the left of the upper and lower keyboards are series of tone levers which control the Electone voices which will sound when the keys are depressed. They are divided into groups for upper, lower and pedals, so that different registrations can be set for each.

Upper Keyboard Levers 8 voices

Lower Keyboard Levers 5 voices

Pedal Levers 2 voices

Black musical note symbol on white background (no text or symbols present)

PITCHES OR FOOTAGES

The B-20CR has four different pitch levels, indicated by the numbers 16', 8', 4' and 2 ^2/3 '. These are standard musical abbreviations showing the tone's pitch in relation to the fundamental (written note). An 8' tone will sound just as it has been written. As the numbers increase, the tones lower. A 16' tone will provide a tone exactly one octave lower than the written note.

Similarly, 4' tones are one octave higher than the written note, 2 ^2/3 tones are one octave and a fifth higher than the 8' fundamental.

Preset Tones

To the left of the lower keyboard are eight Upper Preset Tone selectors (seven tones plus Cancel). These on/off switches are special tonal blends that most closely resemble the instruments they name (Accordion, Piano, Hawaiian Guitar, Banjo) as well as three special preset combinations.

Since these buttons are factory preset, they automatically cancel all other upper keyboard tone lever settings. This lets you switch back and forth. In addition, precedence is to the right. This means that if two or more buttons are pressed, the one to the right will take effect. To switch from one button to another it is not necessary to first press the cancel button.

Note: Upper Sustain control lever does not work with the Accordion, Piano, Hawaiian Guitar and Banjo preset selectors.

Cartoon character playing a stringed instrument with musical notes, no text or symbols present

Vibrato

Vibrato is a waving of the tone. You will see violin and cello players use it freely by an oscillating motion of the left hand. That increases the emotional quality of the violin tone. This vibrato lever produces the same vibrato effect.

Brilliance

With this single, continuously-variable control you can pinpoint the degree of overall softness or clarity desired for any mood of music.

Upper Percussive

Changing the beginning of some or all notes can do wonders for lively selections. Your B-20CR's percussive effects provide subtle but important shading at the moment each note is heard. The special popping 4',2% percussive drive can be smoothly blended into all upper keyboard tones with percussive, 4',2%, and a percussive length lever regulates the length of decay for this effect.

With percussive, use a detached fingering. Each note should be played cleanly; slurred notes will diminish the percussive impact.

Note: If Upper Percussive 4' is set at the same time as Upper Sustain, no sound will be heard.

Repeat Speed

Cuts and repeats each note just like the double-strumming effect of a mandolin. The lever provides continuous speed adjustment to create a full variety of different moods. Affect upper keyboard notes only.

Upper 8'4'Sustain

When this is switched on, the sustain effect is evoked. As the name of the tab implies, only 8' and 4' tones are affected. The length of such sustain is set by the Upper Sustain control. When combined with Upper Percussive 4', all sound is cancelled.

KNEE LEVER

This lever is operated with the right knee for instantaneous implementation or stop of the sustain effect preset by the sustain control and selector, allowing passage-by-passage or even phrase-by-phrase sustain control precision.

Reverb

The reverberation effect, which makes your playing sound full and rich as if you were playing in a large hall, can be adjusted continuously and smoothly to suit your taste.

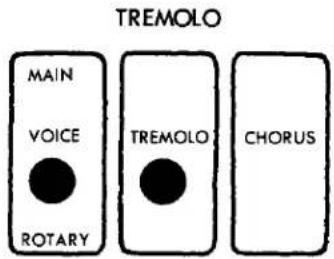

Tremolo/Chorus

TREMOLO SPEED

CHORUS

The Electone's special tremolo is produced by a Rotary speaker that actually spins just behind the Rotary speaker grille on the side of the cabinet.

The tremolo selector is complemented by a continuous tremolo speed control knob.

When the speed control is set to its maximum position, the Tremolo will turn the speaker at normal revolution. The Chorus will turn it at one revolution. Once either tablet is switched on, it takes several seconds for the rotary speaker to attain the standard speed. This is also true when switching to a slower speed (Tremolo to Chorus), the speed variation will be heard in the music.

If you wish an instant tremolo or chorus sound, be sure to switch on that tablet well in advance of the speaker selector. For special selections you can use this speed variation by switching the speaker on first, the Tremolo or Chorus switch later.

Note: Only Tremolo is produced when Tremolo and Chorus are switched on simultaneously.

VOICE (Main/Rotary)

Lets you divert the sound from the main to the tremolo speaker.

Pedal Sustain

This control provides continuous adjustment of the sustain effect on the pedals and allows the pedal note to continue to sound a few seconds after you have released it.

Manual Balance

This control governs the volume strength of the upper and lower keyboards. It is normally left in the center position, but can be shifted to stress the melody or accompaniment in a selection or passage.

This control can also be used to compensate for a higher number of total tone lever settings (which would ordinarily result in higher volume) on one of the two keyboards.

Expression Pedal

Affect the emotional mood of every passage by letting you vary the volume continuously with your right foot. This works within the range set by the master volume control.

Master Volume

Determines the maximum volume obtainable by depressing the expression pedal.

Auto Rhythm Section

Cartoon illustration of three musicians playing with a YAMAHA instrument, no text or symbols present

This section provides eight catchy rhythms, each one called forth by a simple button. You can also enjoy more rhythm variations with the variation button. In addition to a combined volume and balance knob, tempo control and tempo indicator light, there are two other switches: ordinary Start and the Yamaha Synchro-Start which begins the rhythm accompaniment on the first beat of a measure when the first lower keyboard or pedal note is struck. A foot switch fitted in the expression pedal housing lets you stop and restart the rhythm at any point during play, when the rhythm stop control is on.

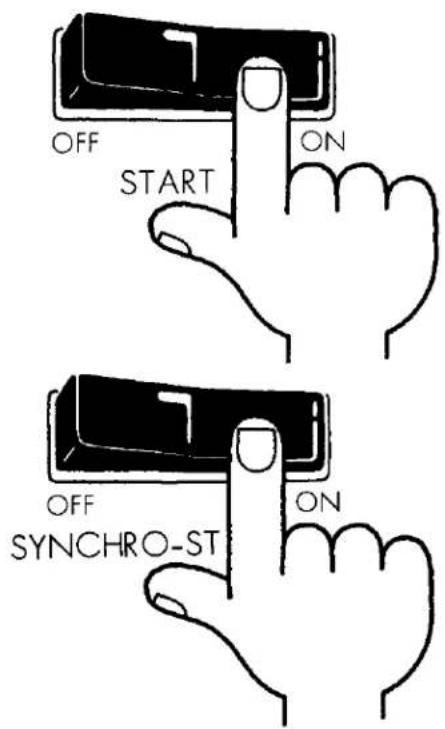

NORMAL START

For instant rhythm at the beginning of a selection, push the rhythm selector desired, then flick the Start switch on.

SYNCHRO-START

Select the rhythm, switch on the Synchro-Start and begin to play once you have the tempo established. The rhythm will begin as soon as you strike a lower keyboard or pedal note. This switch permits you to lead in with a rhythm-free melody at first if so desired.

You can switch off the Auto Rhythm with the foot switch.

When you wish to continue hearing the Auto Rhythm, be sure to switch on with the foot switch.

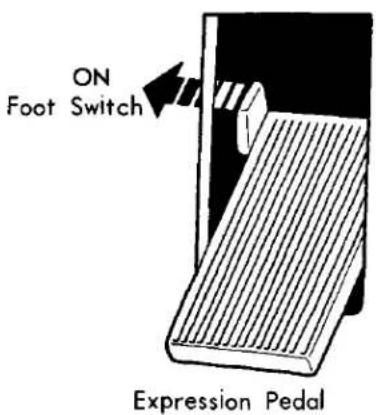

RHYTHM FOOT SWITCH

Once the rhythm is on, push this switch once to instantly stop it, once again to restart. It lets you stop and restart the rhythm in the middle of a selection without using your hand.

Note: If the foot switch has been used, be sure it is reset to normal after you finish playing your selection, and then make sure both Start and Synchro-Start switches are off. Otherwise you may turn on one of the switches in the middle of a new number only to find the rhythm still cancelled.

TEMPO

The tempo of the Auto Rhythm section can be adjusted by a continuous control knob. This is best accomplished by turning on the Synchro-Start switch.

Although no sound will be produced, the indicator lamp will flash each quarter note, letting you visually check the tempo while you adjust.

VOLUME

Use it to balance the volume of the rhythm section and the keyboards. This volume is then varied during the selection by the expression pedal, just like that of the other tones.

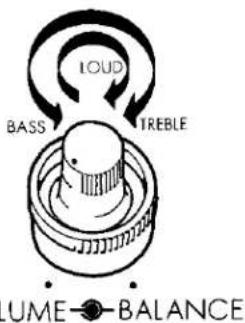

BALANCE

This control lets you balance the low rhythm sounds, such as drums, and the high sounds (i.e., cymbals) according to your taste and the selection. It can make a big difference even when using the same rhythm. Turn the knob to the right to accentuate the higher (treble) sounds, to the left for lower (bass). If you accentuate the treble sounds the rhythm becomes brighter.

Check the playing hints for specific settings.

To Fully Enjoy Your Electone

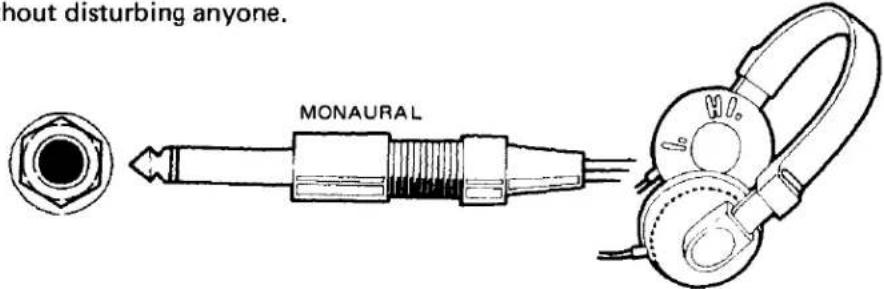

HEADPHONES

A Yamaha headphones set (optional) can be plugged into the jack under the keyboard. With the headphones connected, the speakers are automatically shut off, allowing you to play or practice at any volume level without disturbing anyone.

EXP. IN

This jack accepts any sound sources and reproduces them through this Eectone's speakers.

Note: The volume of the sound source can be controlled by the expression pedal.

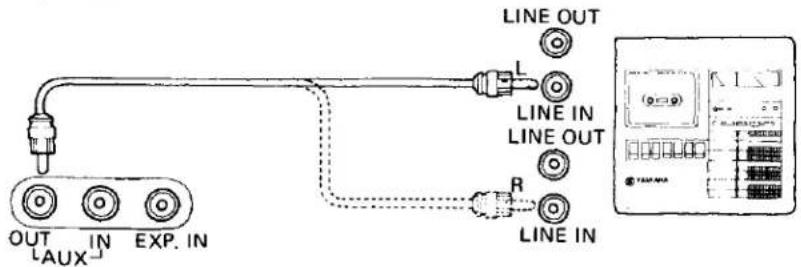

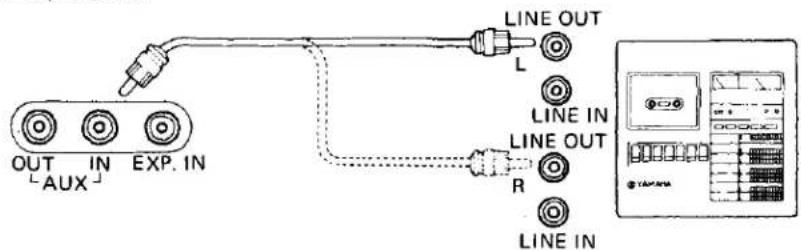

AUX OUT

For recording, connect the AUX OUT jack with the tape deck's LINE IN jack. Control the recording levels on the tape deck.

AUX IN

For playback, connect the AUX IN jack with the tape deck's LINE OUT jack. Control the playback levels on the tape deck.

Note: These sound sources (tape recorder, etc.) are not affected by the expression pedal.

Electone is not out of order If...

1. ..... the set does not go on when the power switch is turned on. Check the following.

Is the AC plug fully inserted into the electric wall outlet? Reinsert it to be sure. Is there power coming from that outlet?

If there is power in the outlet but the Electone does not play, unplug the cord and contact your Yamaha dealer. There are NO USER SERVICEABLE PARTS inside.

1. ..... a sound should occur the instant you turn on the switch.

This merely indicates normal operation consequent on a surge of electricity in the main amplifier.

1. ..... occasional unpleasant static occurs.

In the majority of such cases, the cause can be traced to the turning on or off of refrigerators, washing machines, electric pumps or other household appliances. Electrical faults in a neighboring outdoor neon sign may also be to blame.

If the cause is a fault in a neon or fluorescent lighting fixture, it should be repaired. When the cause is unknown, or in case of doubt, contact your Yamaha dealer.

1. ..... the Electone reproduces radio or TV signals.

If there is a powerful transmitter such as a radio station in the vicinity this can occur. Contact your Yamaha dealer.

Cartoon illustration of a person reacting to a computer screen with a antenna, no text or symbols present

1. ..... pedal notes sound too high, upper keyboard's notes too low. This is especially noticeable when comparing the Electone with piano. Piano tones are combinations of harmonics and must interact with their surroundings, while Electone harmonics are simpler (multiples of the fundamental tone), requiring the Electone to be adjusted differently at the assembly stages.

2. ..... rattling (sympathetic vibration) occurs.

All materials have critical resonance frequencies at which they vibrate. The Electone's continuous tones will naturally cause other objects (windows, shelves, etc.) to vibrate.

Cartoon illustration of a hand using a computer with a pen and a musical note symbol nearby (no text or symbols present)

Specifications

KEYBOARDS

Upper Keyboard	44 keys f ~ c4	(3 12 octaves)
Lower Keyboard	44 keys F~ c3	(3 12 octaves)
Pedals	13 keys	(1 octave)

TONE LEVERS

Upper Keyboard	Flute 16'	Trombone 16'
	Flute 8'	Oboe 8'
	Flute 4'	String 8'
	Flute 212 ''	String 4'
Lower Keyboard	Flute 8'	Cello 8'
	Flute 4'	Cello 4'
	Horn 8'
Pedals	Bass 16'
	Bass 8'

PRESET TONE SELECTORS

Combination 1,2,3

Accordion (Upper)

Piano (Upper)

Hawaiian Guitar (Upper)

Banjo (Upper)

Cancel

EFFECT LEVERS

Vibrato

Percussive 4' (Upper)

Percussive 2% (Upper)

Percussive Length (Upper)

Repeat Speed (Upper)

Pedal Sustain

EFFECT CONTROLS

Brilliance

Upper 8', 4' Sustain

Reverb

Manual Balance

TREMOLO SELECTORS

Tremolo Voice

Tremolo

Chorus

Tremolo Speed Control

AUTO RHYTHM SECTION

Rhythm Selectors

March Jazz Rock

Waltz Rhumba

Swing Bossanova

Slow Rock Samba

Variation

Rhythm Controls

Rhythm Start

Rhythm Stop (Foot Control)

Synchro-Start

Tempo

Volume

Tone Balance

Tempo Indicator

OTHER CONTROLS

Master Volume

Power Indicator

Expression Pedal

Rhythm Foot Switch

Power Switch

Knee Lever

OTHER FITTINGS

Headphone Jack

External Jack

Expression Input Jack

Aux In Jack

Aux Out Jack

SPEAKERS

Main: 30cm (12"), 20cm (8"), 5cm (2")

Rotary: 16x23cm (6½x9"), 5cm(2")

CIRCUITRY

Solid State (Incl. LSIs and FETs)

Output Power: 30 Watts (RMS)

Power Consumption: 85 Watts

Power Source: 50/60Hz, AC

DIMENSIONS

Width: 111 cm (43")

Depth: 56 cm (22")

Height: 90 cm (35")

WEIGHT

69 kg (152 lbs.)

FINISH

American Walnut Grain

Specifications subject to change without notice.

Special Instructions for British-Standard Model

As the colours of the wires in the mains lead of the apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows.

The wire which is coloured GREEN-and-YELLOW must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol or coloured GREEN or GREEN-and-YELLOW.

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.

IMPORTANT

THE WIRES IN THE MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE.

GREEN-AND-YELLOW: EARTH

BLUE: NEUTRAL

BROWN: LIVE

WARNING:

THIS APPARATUS MUST BE EARTHED.

SINCE 1887

YAMAHA

NIPPON GAKKI CO., LTD. HAMAMATSU, JAPAN
